Model Whirlpool LG5801XMW2 GAS DRYER – Common Parts & Diagrams

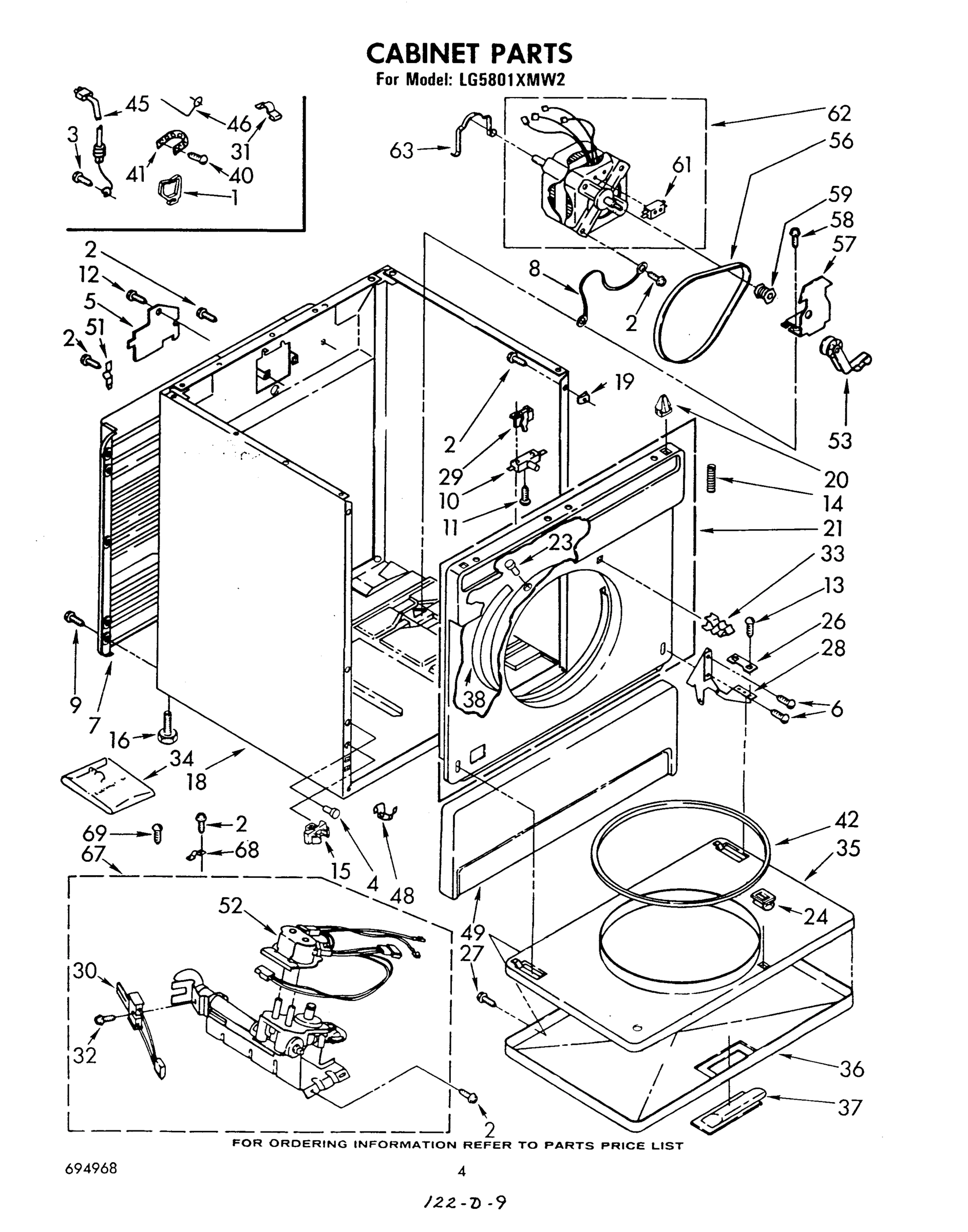

03 - CABINET

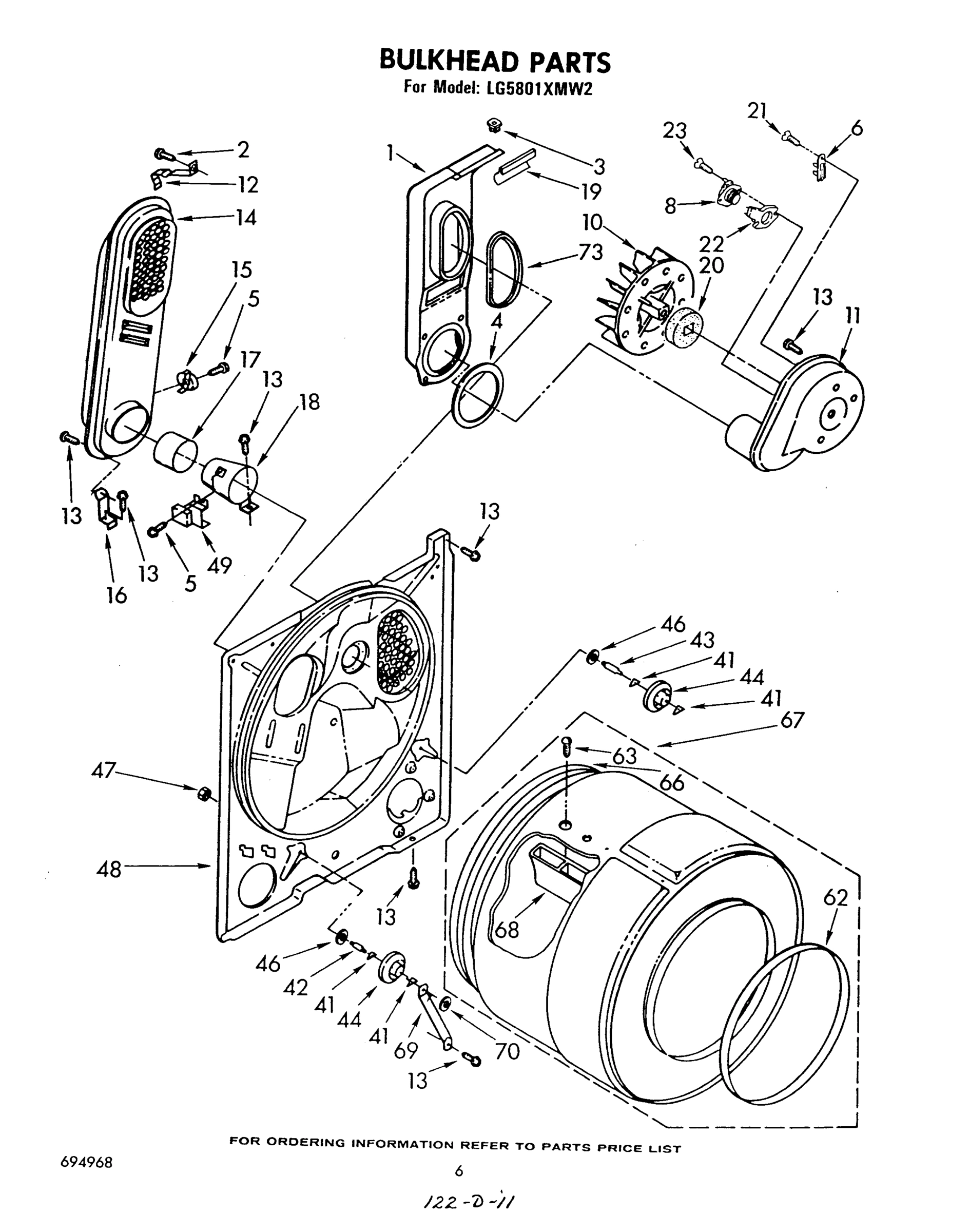

04 - BULKHEAD

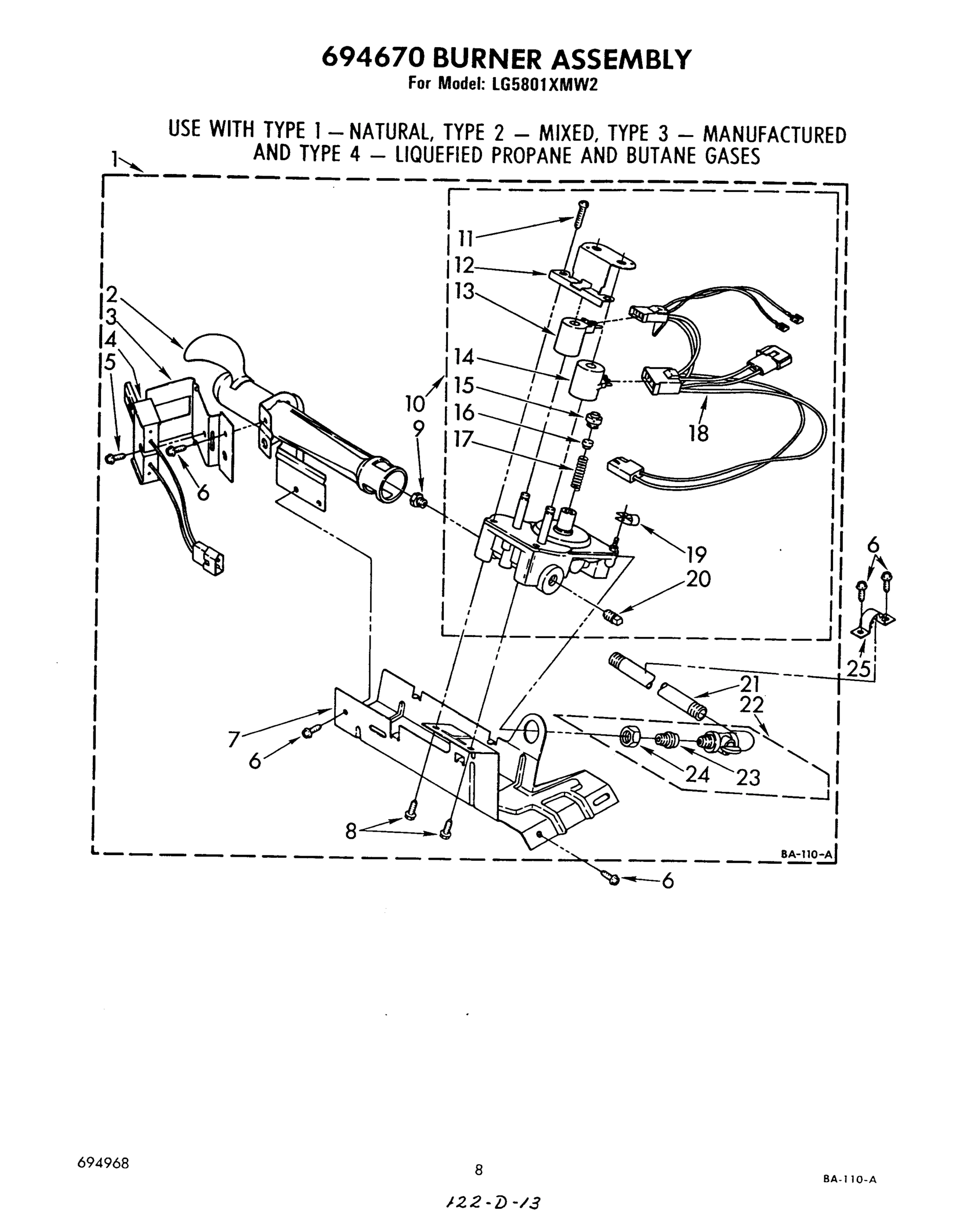

05 - 694670 BURNER ASSEMBLY

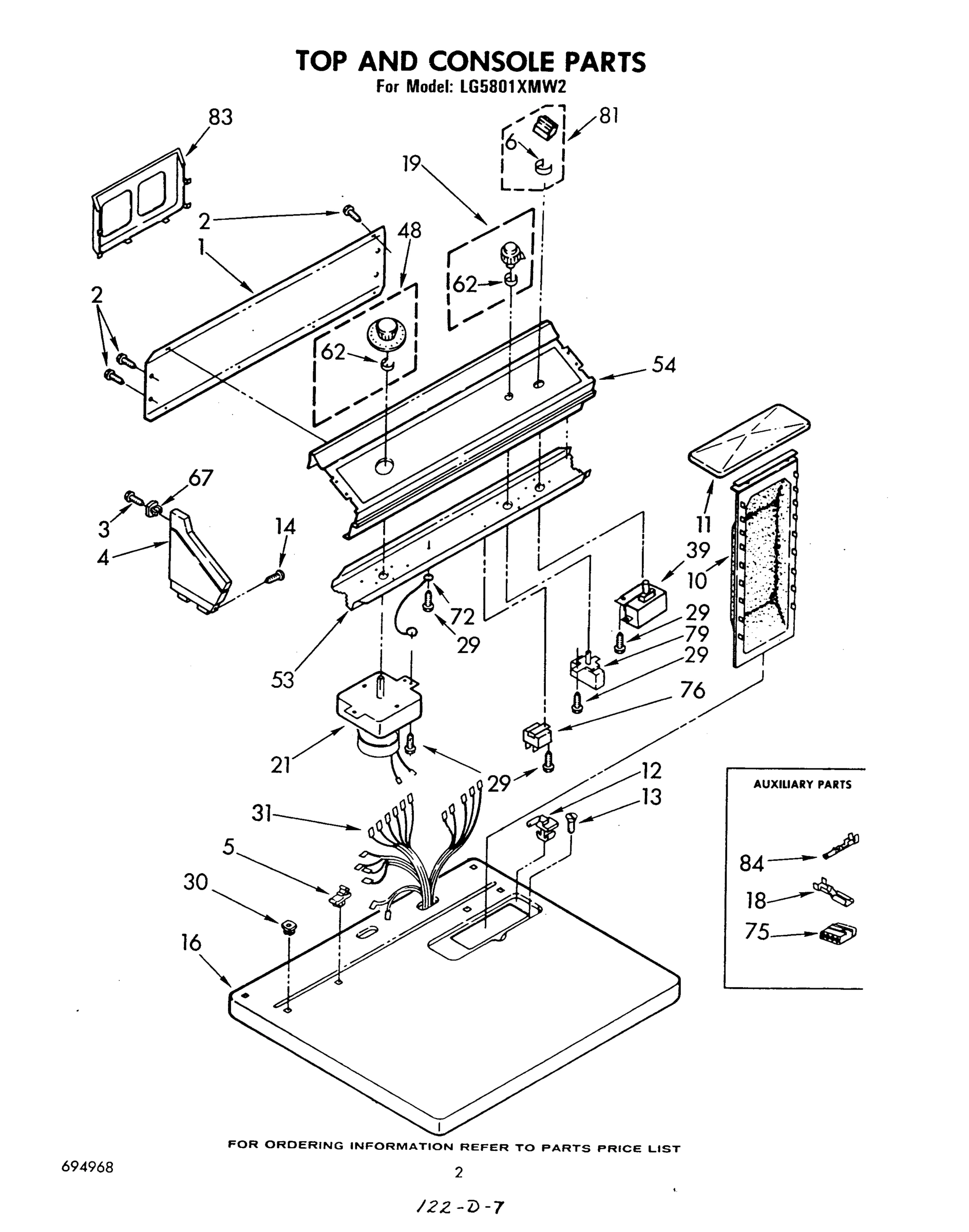

02 - TOP AND CONSOLE PARTS, LITERATURE AND OPTIONAL
Common parts from model Whirlpool LG5801XMW2 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 285367 WPL 285367 Contact Us For Availability
WPL 285368 WPL 285368 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability
1
Panel, Rear Console WPL 359372 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End L.H. (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest) WPL 375318 Contact Us For Availability
4
Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
4
Cap, End (L.H.) (Toast) WPL 377284 Contact Us For Availability
4
Cap, End (L.H.) (Platinum Cap, End (R.H.)) WPL 377285 Contact Us For Availability
4
Cap, End L.H. (Toast) WPL 377286 Contact Us For Availability
4
Cap, End L.H. (Platinum) WPL 377287 Contact Us For Availability
5
Stop, Push-In (2) WPL 358472 Contact Us For Availability
6
Clip WPL 90015 Contact Us For Availability
7
Base, Burner WPL 693986 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
11
Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability
11
Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability
14
Screw, 8-18 x 1 WPL 358225 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Top (Almond) WPL 689449 Contact Us For Availability
16
Top (Golden Harvest) WPL 689452 Contact Us For Availability
16
Top (Toast) WPL 694983 Contact Us For Availability
16
Top (Platinum) WPL 694984 Contact Us For Availability
19
Clip, Harness WPL 694510 Contact Us For Availability
19
Control Knob Assembly WPL 690292 Contact Us For Availability
20
Seal, Blower WPL 694630 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
21
Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability
22
Thermostat, Heater WPL 61298 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
25
Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
31
Harness, Wiring WPL 694748 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability
36
Door, Front (Toast) WPL 695034 Contact Us For Availability
36
Door, Front WPL 695035 Contact Us For Availability
37
WPL 690266 WPL 690266 Contact Us For Availability
37
WPL 690269 WPL 690269 Contact Us For Availability
37
WPL 695016 WPL 695016 Contact Us For Availability
37
WPL 695017 WPL 695017 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 348771 Contact Us For Availability
39
Switch, Push-To-Start WPL 660648 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 685067 Contact Us For Availability
40
WPL 132848 WPL 132848 Contact Us For Availability
41
WPL 22965 WPL 22965 Contact Us For Availability
46
WPL 364089 WPL 364089 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
48
Timer Knob Assembly WPL 690200 Contact Us For Availability
49
WPL 237035 WPL 237035 Contact Us For Availability
49
WPL 689537 WPL 689537 Contact Us For Availability
49
WPL 689539 WPL 689539 Contact Us For Availability
49
WPL 694999 WPL 694999 Contact Us For Availability
49
WPL 695000 WPL 695000 Contact Us For Availability
53
Bracket, Control WPL 359708 Contact Us For Availability
54
Panel, Control WPL 690418 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
67
Nut, Push-On (4) WPL 694055 Contact Us For Availability
69
WPL 343826 WPL 343826 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
79
Switch, Rotary WPL 695091 Contact Us For Availability
81
Pushbutton Assembly WPL 689857 Contact Us For Availability
83
WPL 357645 WPL 357645 Contact Us For Availability
84
WPL 261888 WPL 261888 Contact Us For Availability
84
WPL 261890 WPL 261890 Contact Us For Availability
84
WPL 285365 WPL 285365 Contact Us For Availability
84
WPL 285366 WPL 285366 Contact Us For Availability
84
WPL 350941 WPL 350941 Contact Us For Availability
84
WPL 691271 WPL 691271 Contact Us For Availability
84
WPL 693849 WPL 693849 Contact Us For Availability
84
WPL 694344 WPL 694344 Contact Us For Availability
84
WPL 694968 WPL 694968 Contact Us For Availability
84
WPL 72112 WPL 72112 Contact Us For Availability
84
WPL 799351 WPL 799351 Contact Us For Availability
× ![]()
