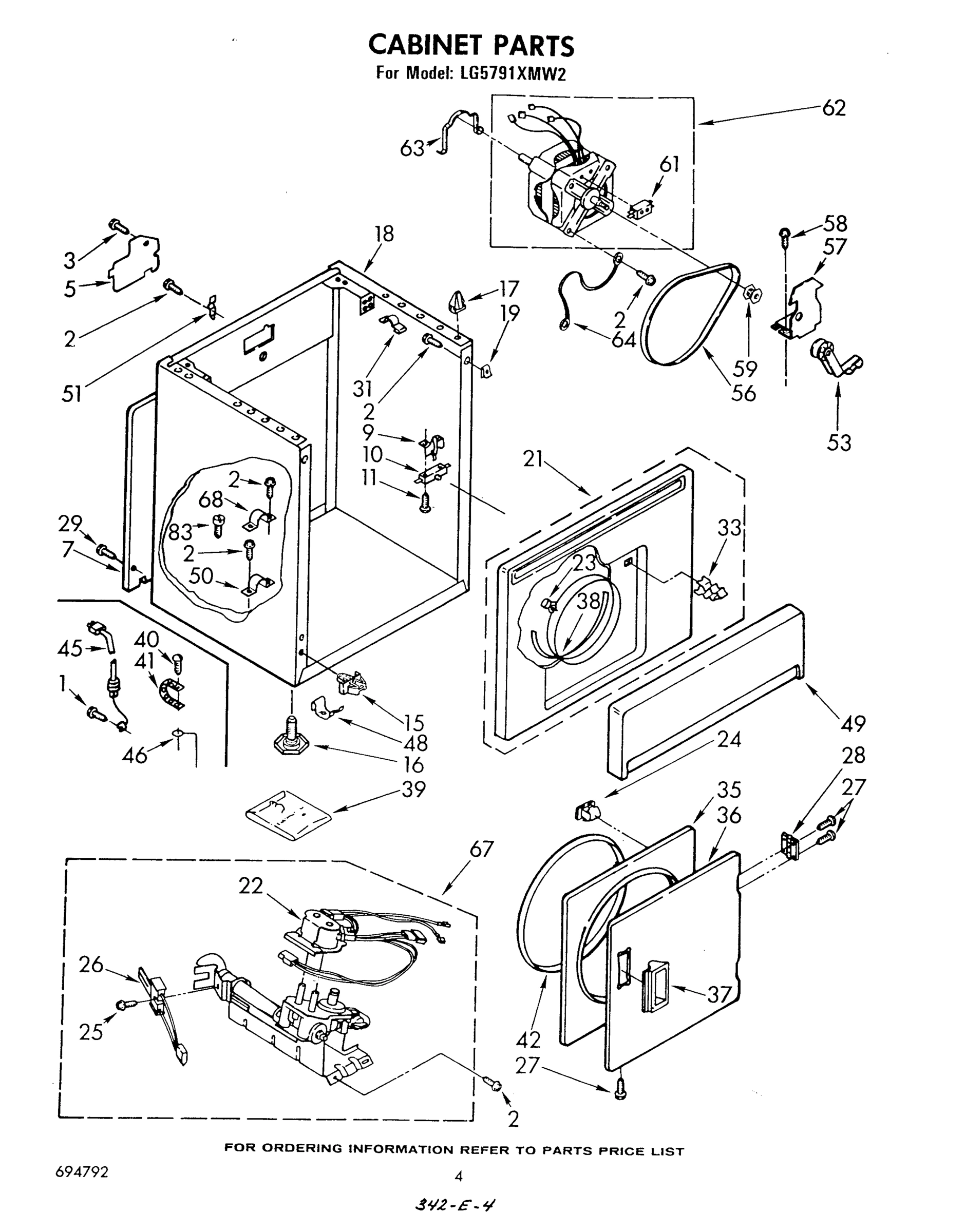

Model Whirlpool LG5791XMW2 GAS DRYER – Common Parts &amp; Diagrams

WPL 978883 WPL 978883 Contact Us For Availability

1

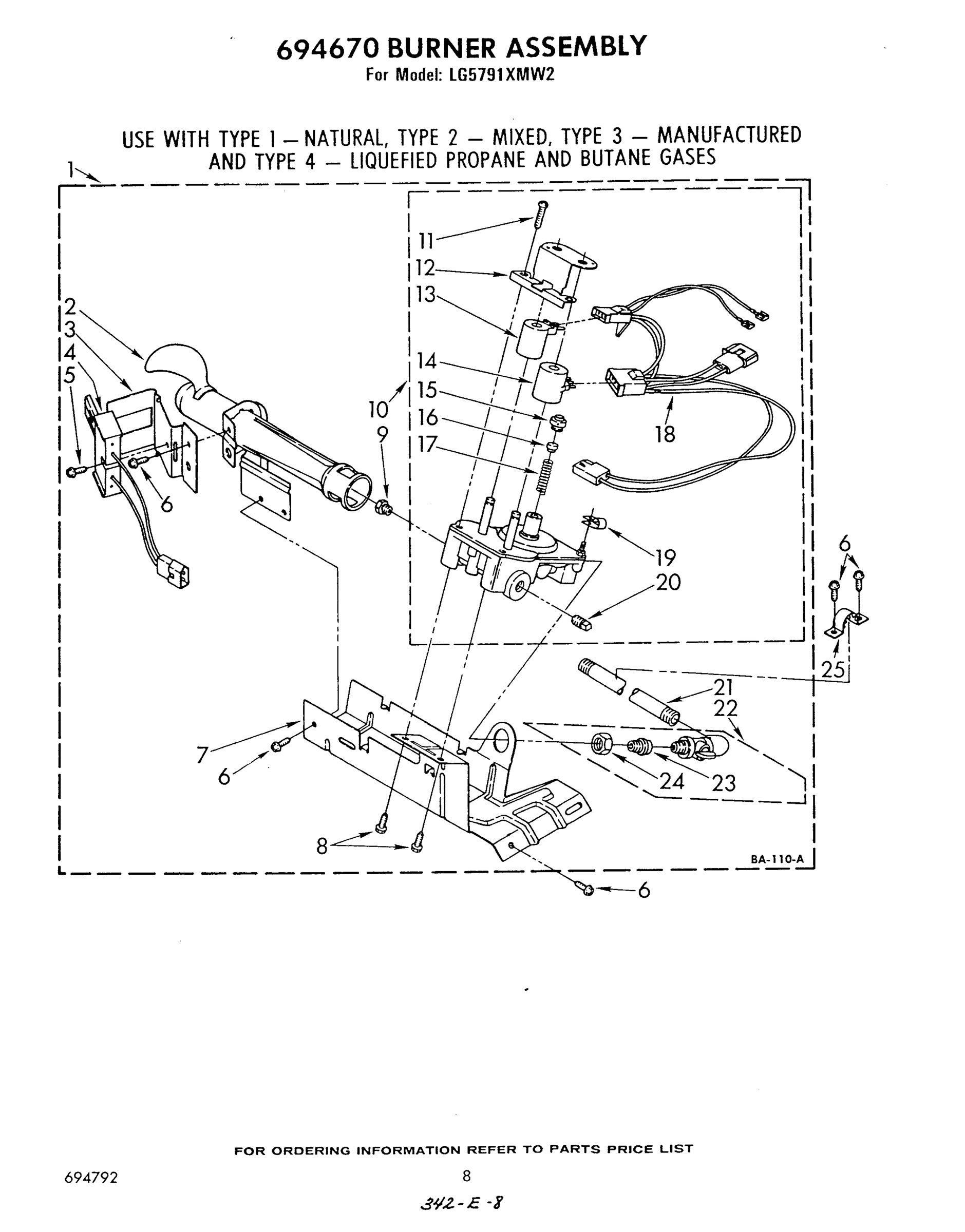

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

Panel, Rear Console WPL 359372 Contact Us For Availability

1

Lint Chute WPL 686215 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

3

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End L.H. (Almond Cap, End R.H.) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

6

Clip, Harness Retainer WPL 688412 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

Screw, 8-18 x 1 (2) WPL 358225 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

15

Thermostat, High Limit 205oF (96oC) 341196 (A WPL 660036 Contact Us For Availability

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

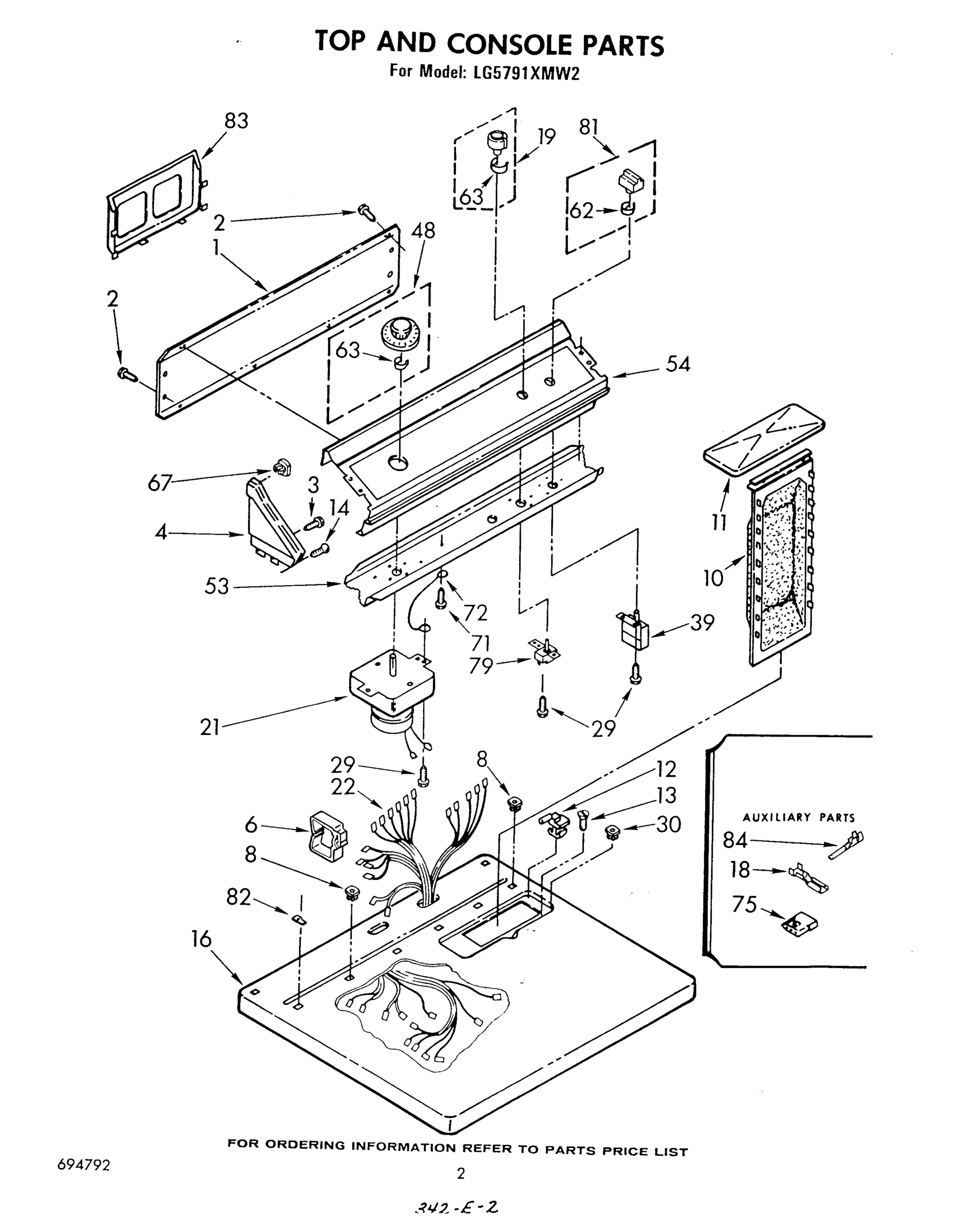

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $103.71

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Control Knob, Temperature WPL 690292 Contact Us For Availability

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Seal, Blower WPL 694630 Contact Us For Availability

21

Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

21

Alert, Lint WPL 690981 Contact Us For Availability

22

Harness, Wiring WPL 694690 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

22

Hose, Differential WPL 686577 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

23

Thermostat, Heater WPL 61298 Contact Us For Availability

24

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

24

Nut, Compression WPL 233076 Contact Us For Availability

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

98460 Whirlpool Nut Backorder WPL 98460 $9.59

36

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

39

Switch, Push-To-<x> 346364 <x> 692021 <x> WPL 660936 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer <x> WPL 690200 Contact Us For Availability

48

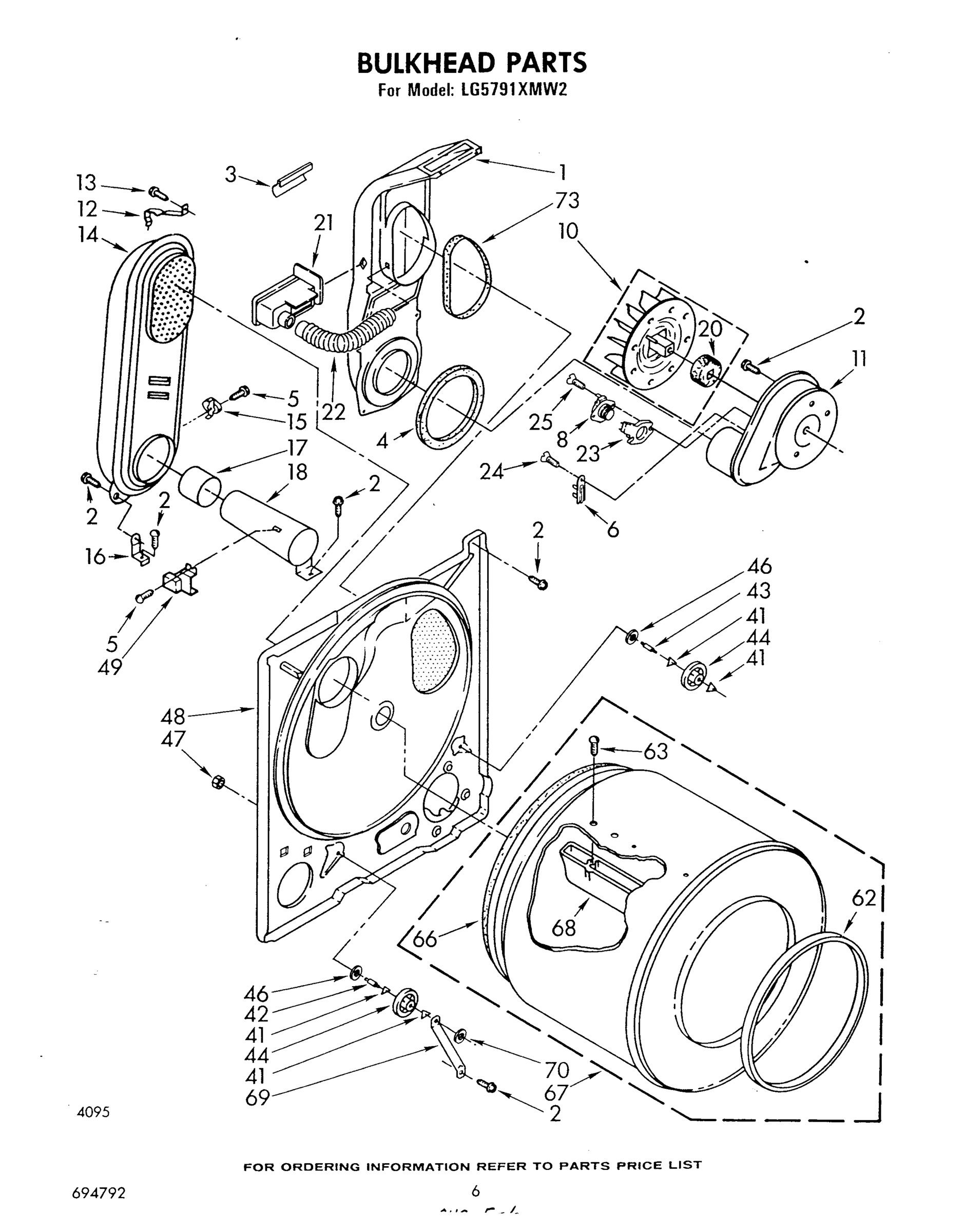

Bulkhead WPL 685769 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

Panel, Toe (White) WPL 237035 Contact Us For Availability

49

Panel, Toe (Almond) WPL 689537 Contact Us For Availability

50

Clamp, Pipe (Front) WPL 695885 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

<x> WPL 692006 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

61

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

62

<x> WPL 90015 Contact Us For Availability

63

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

79

Switch, Temperature Selector WPL 695091 Contact Us For Availability

81

Button, Push-To-Start WPL 689857 Contact Us For Availability

82

Stop, Push-In (2) WPL 358472 Contact Us For Availability

83

WPL 343826 WPL 343826 Contact Us For Availability

83

Rack, Literature WPL 357645 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Leveler (Thinner) WPL 350941 Contact Us For Availability

Use & Care Guide WPL 693680 Contact Us For Availability

Guide, Dryer WPL 693849 Contact Us For Availability

Instructions, Installation WPL 694344 Contact Us For Availability

List, Service Parts WPL 694792 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
