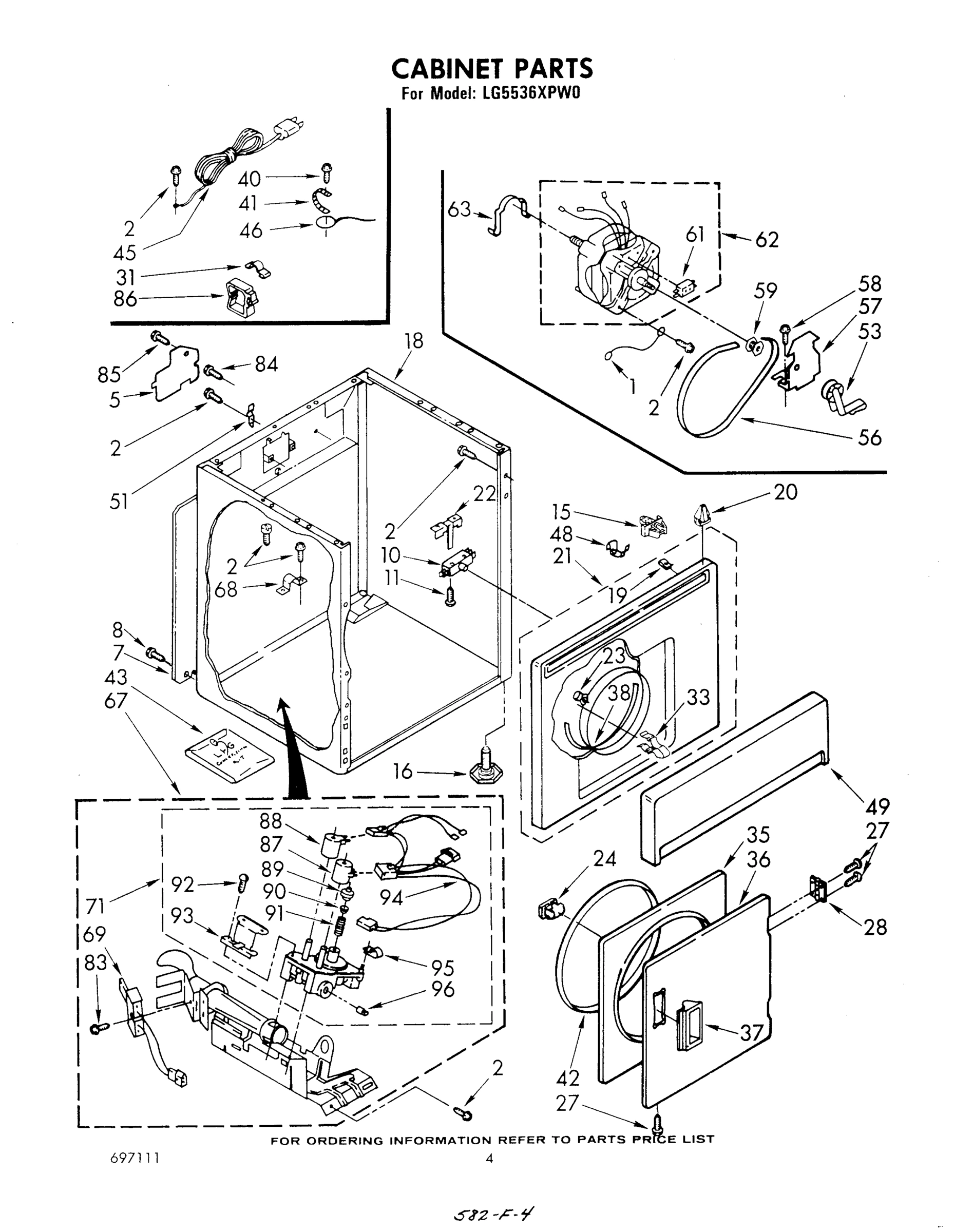

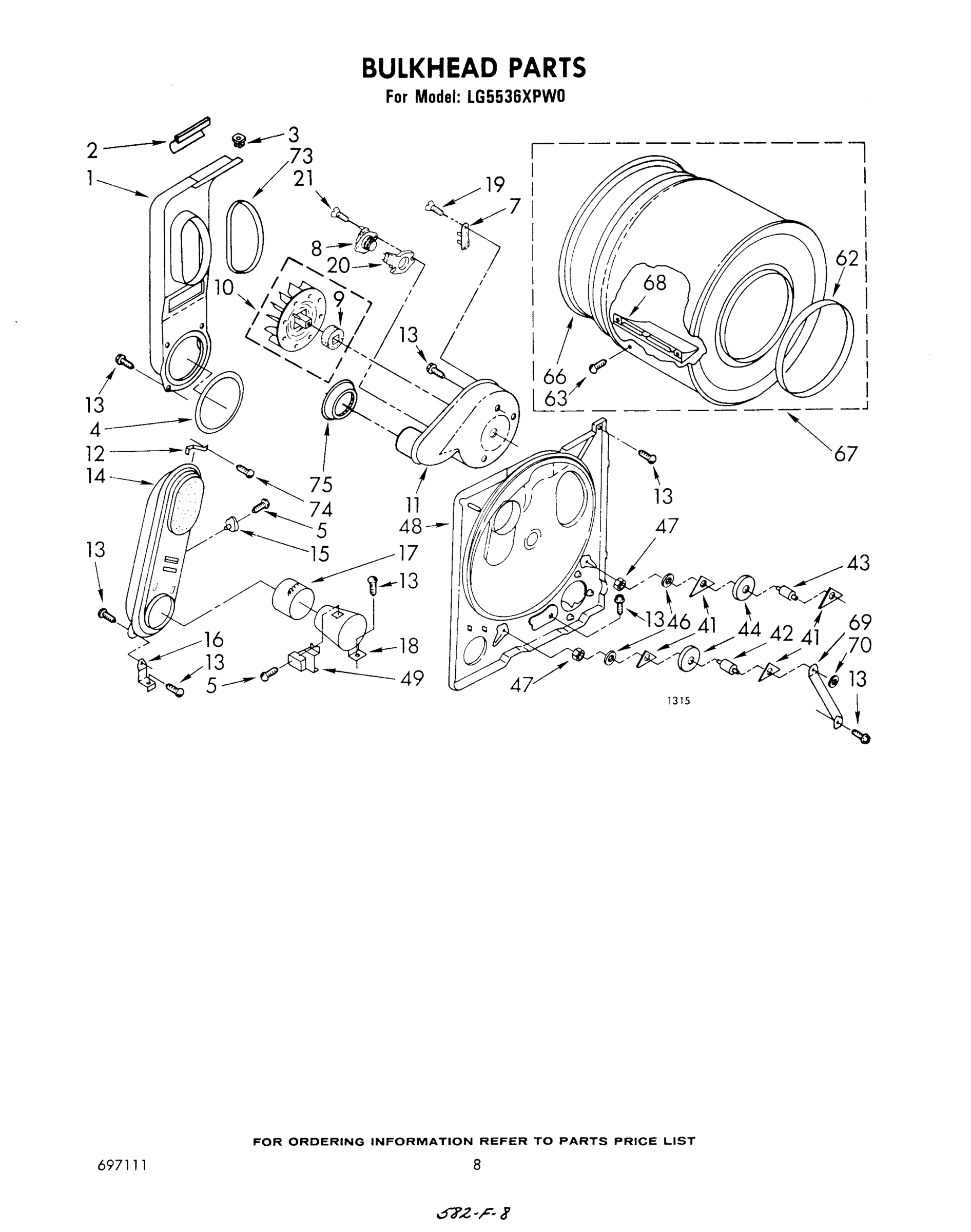

Model Whirlpool LG5536XPW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado (Uncut) WPL 261889 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT677813 WPL LIT677813 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

WPL LIT693849 WPL LIT693849 Contact Us For Availability

WPL LIT696233 WPL LIT696233 Contact Us For Availability

WPL LIT696758 WPL LIT696758 Contact Us For Availability

WPL LIT697111 WPL LIT697111 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $131.33

1

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

2

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

5

Stop, Push-In (2) WPL 358473 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

Screw, 8-18 WPL 64211 Contact Us For Availability

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

7

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

Seal, Blower WPL 694630 Contact Us For Availability

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

10

SCREEN WPL 339392 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

Housing, Blower WPL 695081 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

15

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

15

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $107.10

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Clip, Harness WPL 694510 Contact Us For Availability

Knob, Temperature Selector WPL 386629 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Heater, Thermostat WPL 61894 Contact Us For Availability

21

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

21

Timer Assembly, 60 Hz. WPL 687950 Contact Us For Availability

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $16.78

25

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

29

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

30

Nut, Push-In (2) WPL 358472 Contact Us For Availability

31

Harness, Wiring WPL 694750 Contact Us For Availability

36

WP348205 Whirlpool Door Backorder WPL WP348205 $58.63

39

Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Grou WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Bulkhead WPL 685775 Contact Us For Availability

48

Timer Knob And Dial WPL 695555 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

WPL 237035 WPL 237035 Contact Us For Availability

WPL 689537 WPL 689537 Contact Us For Availability

WPL 689539 WPL 689539 Contact Us For Availability

WPL 694999 WPL 694999 Contact Us For Availability

WPL 695000 WPL 695000 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 695965 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $42.93

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $30.40

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

Clip, Push-On (4) WPL 689559 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

79

Switch, Rotary (Temperature Selector) WPL 694720 Contact Us For Availability

81

Knob, Push To Start WPL 695946 Contact Us For Availability

83

Rack, Literature WPL 63020 Contact Us For Availability

85

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

86

WPL 688412 WPL 688412 Contact Us For Availability

89

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

90

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

91

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
