Model Speed Queen LFNE5BSP543KW01 Washer – Common Parts & Diagrams

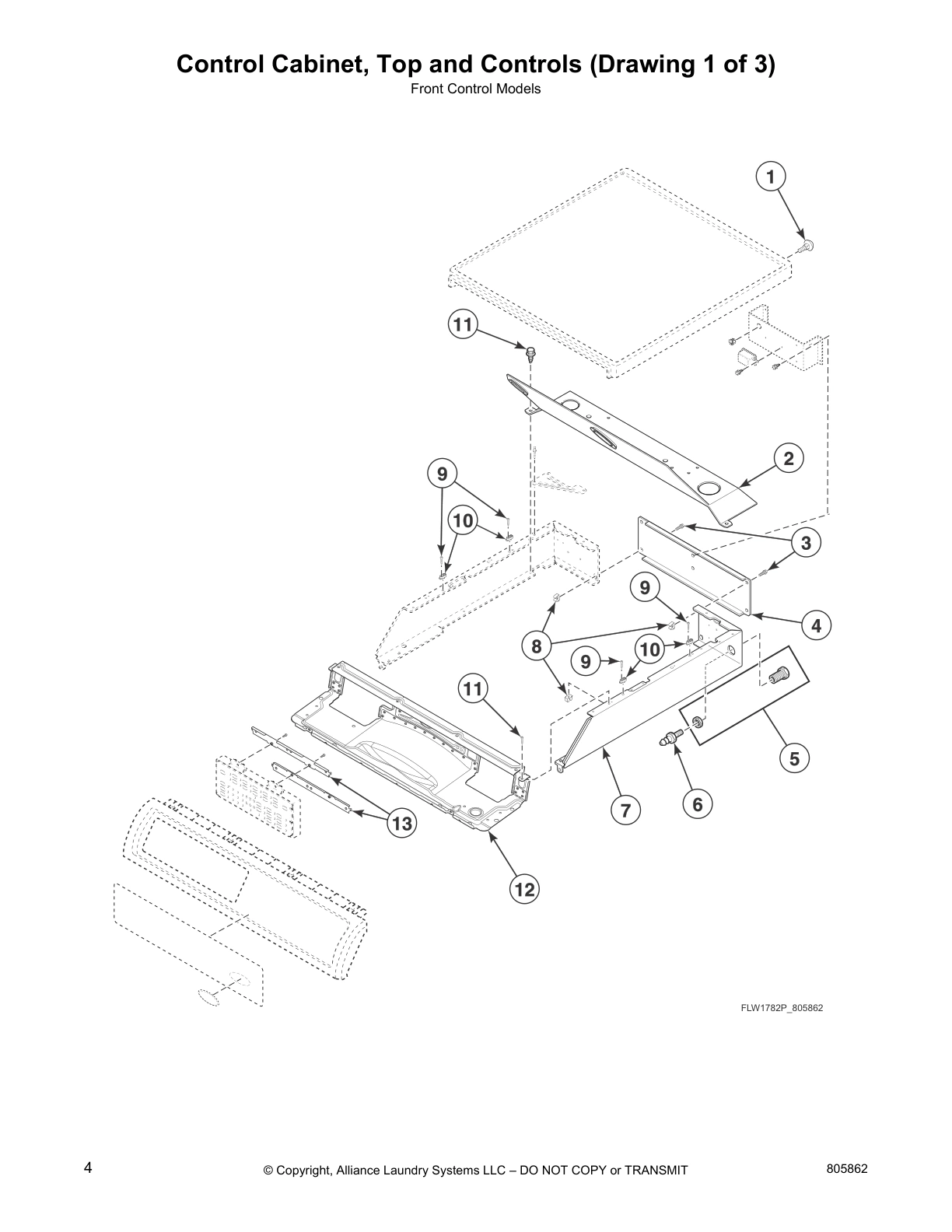

Control Cabinet, Top and Controls (Drawing 1 of 3)

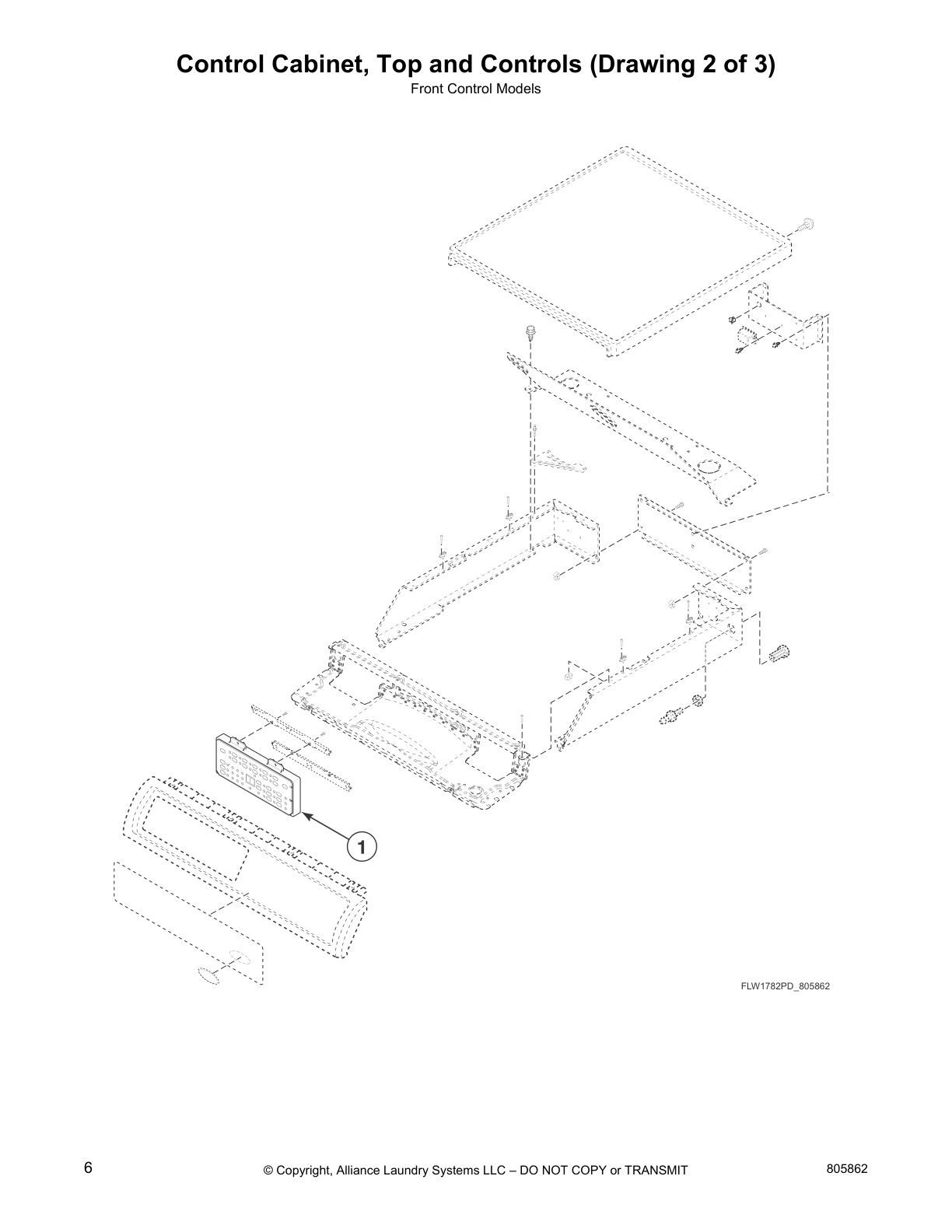

Control Cabinet, Top and Controls (Drawing 2 of 3)
Control Cabinet, Top and Controls (Drawing 3 of 3)
Control Cabinet Top
Control Overlay
Control Cabinet Line Filter
Top and Hood Back Panel
Front Panel and Door Seal
Door Assembly
Dispenser Assembly
Chemical Injection Conversion Kits
Mixing Valve and Valve-to-Dispenser Hose
Fill Hose
Outer Tub, Front and Clamp Ring (Drawing 1 of 2)
Outer Tub, Front and Clamp Ring (Drawing 2 of 2)
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt
Drain Hose and Pump (Drawing 1 of 2)
Drain Hose and Pump (Drawing 2 of 2)
Drain Hose and Valve
Washer Base, Side Panels and Rear Panel
Junction Box and Power Cord (Drawing 1 of 2)
Junction Box and Power Cord (Drawing 2 of 2)
Junction Box
Special Tools
Washer Labels
Shipping Materials
Wire Ties, Clips and Lead-In Cord
Wire Harnesses and Wires
Common parts from model Speed Queen LFNE5BSP543KW01 Washer
SPQ 802803 SPQ 802803 Contact Us For Availability
SPQ 804429P SPQ 804429P Contact Us For Availability
SPQ 802281 SPQ 802281 Contact Us For Availability
SPQ 804685WP SPQ 804685WP Contact Us For Availability
SPQ 804684 SPQ 804684 Contact Us For Availability
SPQ 803789 SPQ 803789 Contact Us For Availability
1
Out-of-Balance Switch Assembly SPQ 807384 Contact Us For Availability
1
Control Assembly SPQ 805217P Contact Us For Availability
1
Drain Hose Sleeve SPQ 33615 Contact Us For Availability
1
Front Control Harness SPQ 806031 Contact Us For Availability
1
Washer SPQ 20290 Contact Us For Availability
1
Pulley Bolt Tightening Fixture SPQ 802336 Contact Us For Availability
1
Bumper Pad SPQ 36226 Contact Us For Availability
1
Dispenser Plate SPQ 803843 Contact Us For Availability
2
Hose Clamp SPQ 805494P Contact Us For Availability
2
Washer SPQ 802254 Contact Us For Availability
2
Trunnion Shaft Kit SPQ 804393 Contact Us For Availability
2
Pressure Sensor Harness SPQ 804433 Contact Us For Availability
2
Screw SPQ 803864 Contact Us For Availability
2
Standpipe Strap SPQ 33489 Contact Us For Availability
2
Door Lock Drip Shield SPQ 804617W Contact Us For Availability
2
Base Assembly SPQ 21899 Contact Us For Availability
2
Wrench SPQ 392P4 Contact Us For Availability
2
Dispenser Inlet Hose SPQ 803849 Contact Us For Availability
2
Pump Housing Assembly SPQ 802434P Contact Us For Availability
2
Motor Rod SPQ 808067P Contact Us For Availability
2
Washer SPQ M400014 Contact Us For Availability
2
Foreign Object Deflector SPQ 802343 Contact Us For Availability
2
Harness Strap SPQ 55881 Contact Us For Availability
3
Control Wrapper SPQ 804659W Contact Us For Availability
3
Inverter Control Assembly SPQ 805726P Contact Us For Availability
3
Rear Access Panel SPQ D503688 Contact Us For Availability
3
Fill Hose SPQ 803615 Contact Us For Availability
3
Pump Housing SPQ 802428 Contact Us For Availability
3
Bearing Kit SPQ 804382 Contact Us For Availability
3
Dispenser Inlet Hose SPQ 801001 Contact Us For Availability
3
Hose Clip SPQ 36985 Contact Us For Availability
3
Retainer Clip SPQ 36014 Contact Us For Availability
4
Panel Locator SPQ 203843 Contact Us For Availability
4
Drain Hose SPQ 803976 Contact Us For Availability
4
Anti-Seize Compound SPQ 804376P Contact Us For Availability
4
Mixing Valve Screen SPQ 24122 Contact Us For Availability
4
Door Lock Harness Assembly SPQ 806028 Contact Us For Availability
4
Gasket SPQ 802427 Contact Us For Availability
4
Rear Wrapper Brace SPQ 804627W Contact Us For Availability
5
Motor Control Shield SPQ 807175P Contact Us For Availability
5
Strain Relief SPQ 32219 Contact Us For Availability
5
SPQ 804374P SPQ 804374P Contact Us For Availability
5
Tub Front Seal SPQ 803770 Contact Us For Availability
5
Door Seal SPQ 56079 Contact Us For Availability
5
Lid Assembly SPQ 802426P Contact Us For Availability
6
Tub-to-Pump Hose SPQ 803829 Contact Us For Availability
6
Inner Door Bezel Kit SPQ 802695P Contact Us For Availability
6
Clamp Ring SPQ 806361 Contact Us For Availability
6
Hose Stand SPQ 38732 Contact Us For Availability
6
Strain Relief SPQ 38384 Contact Us For Availability
6
Door Seal Assembly SPQ 806086 Contact Us For Availability
7
Hose Clamp SPQ F200204 Contact Us For Availability
7
Washer SPQ 806313 Contact Us For Availability
7
Hinge Plate SPQ 39733 Contact Us For Availability
7
Door Catch Assembly SPQ 685846 Contact Us For Availability
7
Expansion Clip SPQ 804630W Contact Us For Availability
8
SPQ 803920 SPQ 803920 Contact Us For Availability
8
SPQ 806308 SPQ 806308 Contact Us For Availability
8
SPQ 804717 SPQ 804717 Contact Us For Availability
9
SPQ 800548 SPQ 800548 Contact Us For Availability
9
SPQ 803801 SPQ 803801 Contact Us For Availability
10
Hose Clip SPQ 803415 Contact Us For Availability
10
Door Hinge SPQ 802934 Contact Us For Availability
10
Dispenser Drawer SPQ 803667 Contact Us For Availability
10
Front Panel SPQ 802288P Contact Us For Availability
10
Screw SPQ D503661 Contact Us For Availability
10
Screw SPQ 800462 Contact Us For Availability
11
Nut SPQ 802277WP Contact Us For Availability
11
Drive Belt SPQ 807429P Contact Us For Availability
11
Washer SPQ 807679 Contact Us For Availability
11
Nut SPQ 23951 Contact Us For Availability
11
Clothes Guard Deflector SPQ 802596 Contact Us For Availability
12
Motor and Rod Assembly Kit SPQ 804985 Contact Us For Availability
12
Dispenser Handle SPQ 804227WP Contact Us For Availability
12
Screw SPQ 685831 Contact Us For Availability
12
Hose Clamp SPQ 804483 Contact Us For Availability
12
Glass Mounting Clip SPQ 802700 Contact Us For Availability
12
Side Panel Kit SPQ 806492 Contact Us For Availability
12
Top Panel Brace Assembly SPQ 804613 Contact Us For Availability
12
O-Ring SPQ 802429P Contact Us For Availability
12
Tub Front Assembly SPQ 805548 Contact Us For Availability
13
Panel Locator SPQ 36020 Contact Us For Availability
13
Bearing Housing Kit SPQ M403958 Contact Us For Availability
13
Nut SPQ 804467 Contact Us For Availability
14
Outer Tub Assembly SPQ 29175 Contact Us For Availability
14
Door Latch Assembly SPQ 801045 Contact Us For Availability
14
Dispenser Assembly SPQ 803669 Contact Us For Availability
14
Tub Front SPQ 803879 Contact Us For Availability
14
Balance Ring Assembly SPQ M400043 Contact Us For Availability
15
Rubber Foot SPQ 34319 Contact Us For Availability
16
Rubber Foot SPQ D501855 Contact Us For Availability
16
Inner Basket Assembly Kit SPQ 805525 Contact Us For Availability
17
Anchor Floor Mount Assembly SPQ 34318 Contact Us For Availability
18
Anchor SPQ 802844P Contact Us For Availability
19
Nut SPQ 155P3 Contact Us For Availability
NI
SPQ 804428P SPQ 804428P Contact Us For Availability
NI
SPQ 27604P SPQ 27604P Contact Us For Availability
NI
SPQ 806466 SPQ 806466 Contact Us For Availability
NI
SPQ 803698 SPQ 803698 Contact Us For Availability
NI
SPQ 808095 SPQ 808095 Contact Us For Availability
NI
SPQ 203719 SPQ 203719 Contact Us For Availability
NI
Paint SPQ 800004WP Contact Us For Availability
NI
SPQ 122P4P SPQ 122P4P Contact Us For Availability
NI
SPQ 803802 SPQ 803802 Contact Us For Availability
NI
SPQ 802206 SPQ 802206 Contact Us For Availability
NI
SPQ 801993 SPQ 801993 Contact Us For Availability
NI
SPQ 806716 SPQ 806716 Contact Us For Availability
NI
SPQ 203720 SPQ 203720 Contact Us For Availability
NI
12 Gauge Wire SPQ 45380 Contact Us For Availability
NI
SPQ 803859 SPQ 803859 Contact Us For Availability
NI
SPQ 805730 SPQ 805730 Contact Us For Availability
NI
Foam Gasket SPQ 802525P Contact Us For Availability
NI
SPQ M400080 SPQ M400080 Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
× ![]()
