Model Speed Queen LDEE5BSS553KN01 Dryer – Common Parts & Diagrams
Control Panel and Controls - Rear Control Models (Drawing 2 of 3)

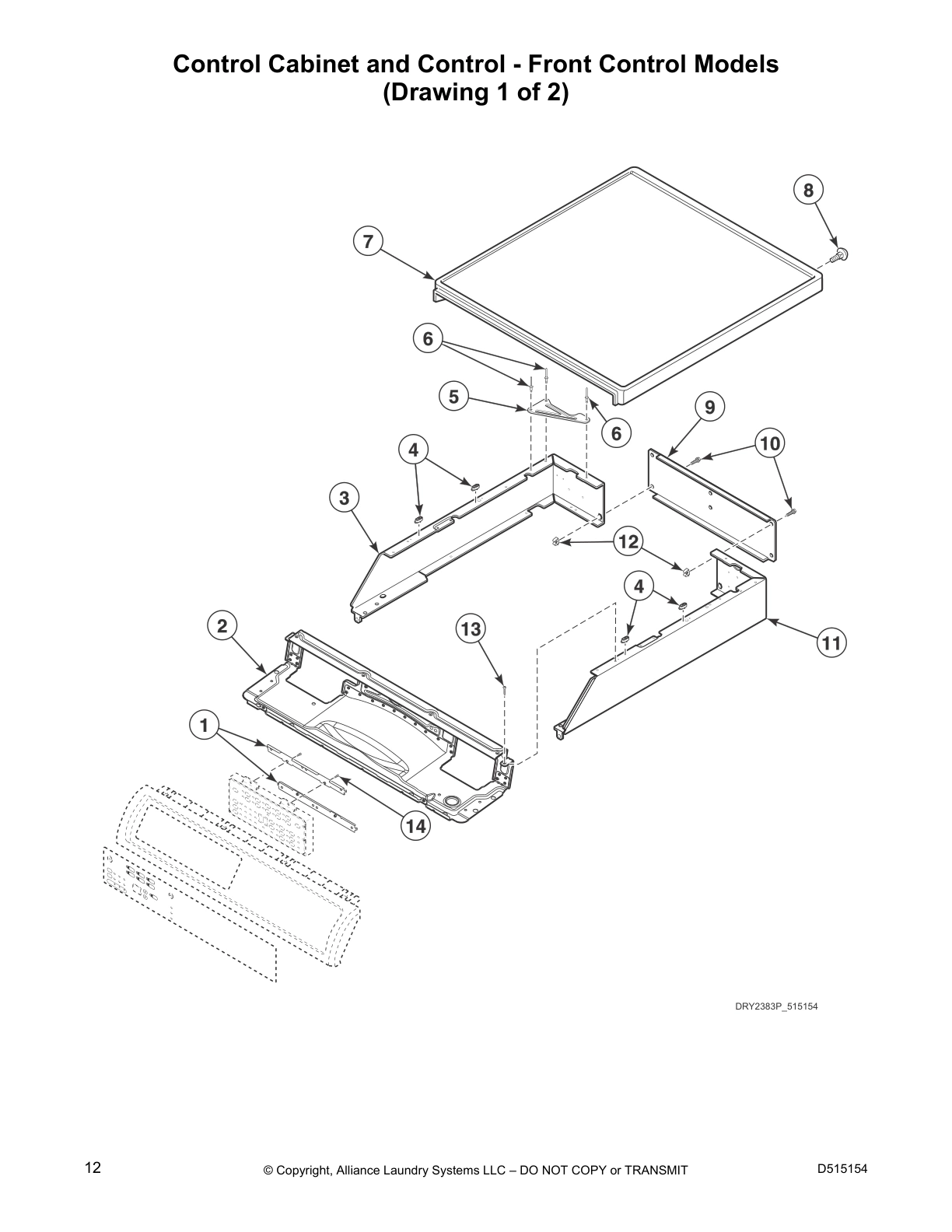

Control Cabinet and Control - Front Control Models
(Drawing 1 of 2)
Control Cabinet and Control - Front Control Models
(Drawing 2 of 2)
Loading Door
Front Panel and Seal
Access Panel
Motor, Exhaust Fan and Belt (Drawing 1 of 2)
Motor, Exhaust Fan and Belt (Drawing 2 of 2)
Thermistor
Front Bulkhead and Seal - Without Light
Front Bulkhead and Seal - With Light
Air Duct
Cylinder and Baffles
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block and Shield (Drawing 1 of 2)
Terminal Block and Shield (Drawing 2 of 2)
Heater Duct and Element Assembly - 1 Phase Models
Heater Duct and Element Assembly - 3 Phase Models
Heater Duct Assembly
Gas Valve and Igniter Through Serial No. 1908000001
Gas Valve and Igniter Starting Serial No. 1908000001
Gas Valve Through Serial No. 1908000001
Gas Valve Starting Serial No. 1908000001
Cabinet, Exhaust Duct and Base (Drawing 1 of 2)
Cabinet, Exhaust Duct and Base (Drawing 2 of 2)
Contactor and Transformer
Ignition Control Module
Power Cord (Drawing 1 of 2)
Power Cord (Drawing 2 of 2)
Junction Box
Junction Box Filter and Harnesses (Drawing 1 of 3)
Junction Box Filter and Harnesses (Drawing 3 of 3)
Terminal Block and Terminals
Terminals
Motor Connection Block, Terminal Extractor Tools
Wire Harnesses and Wires - Front Control Models
Wire Harnesses and Wires - Rear Control Models
