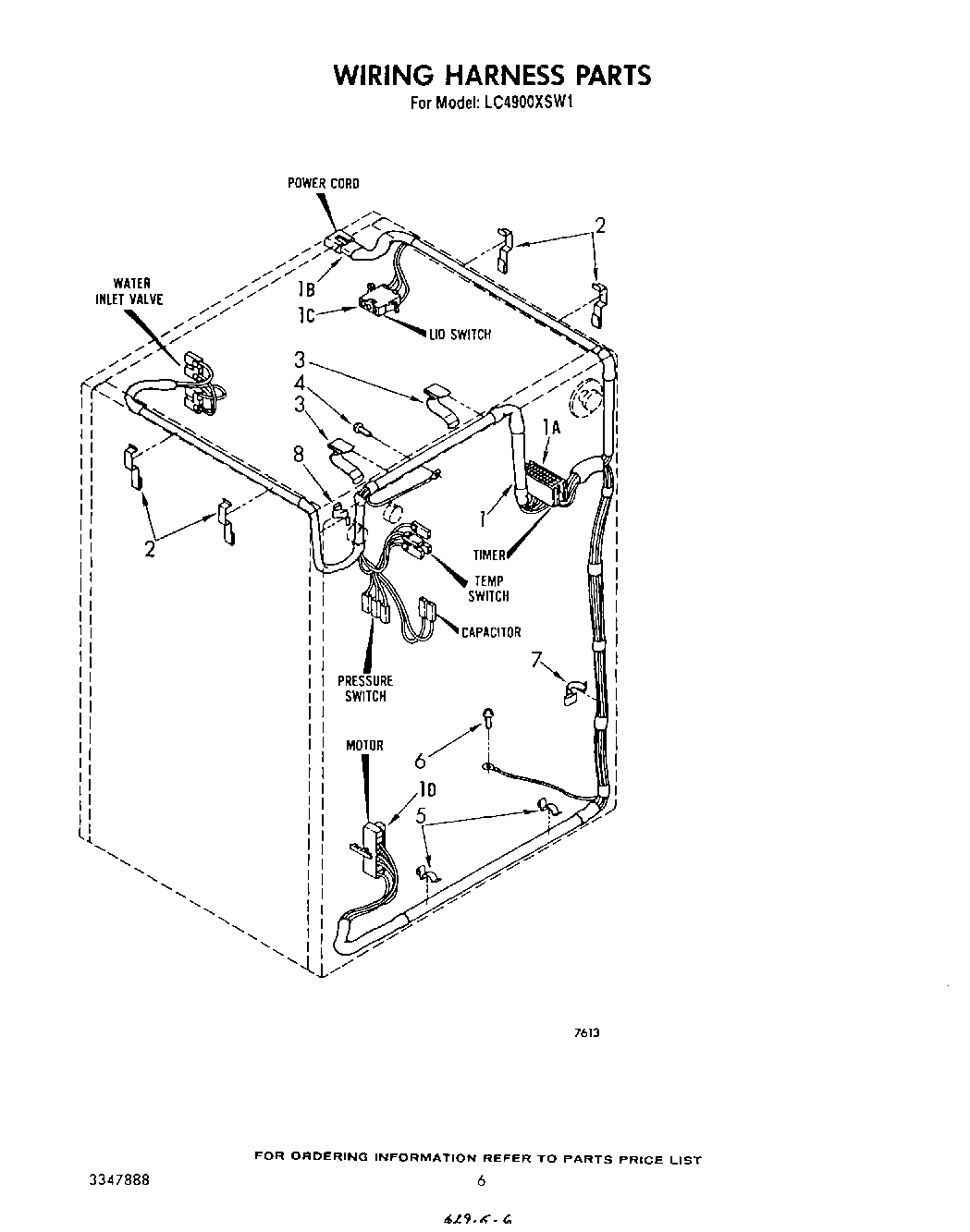

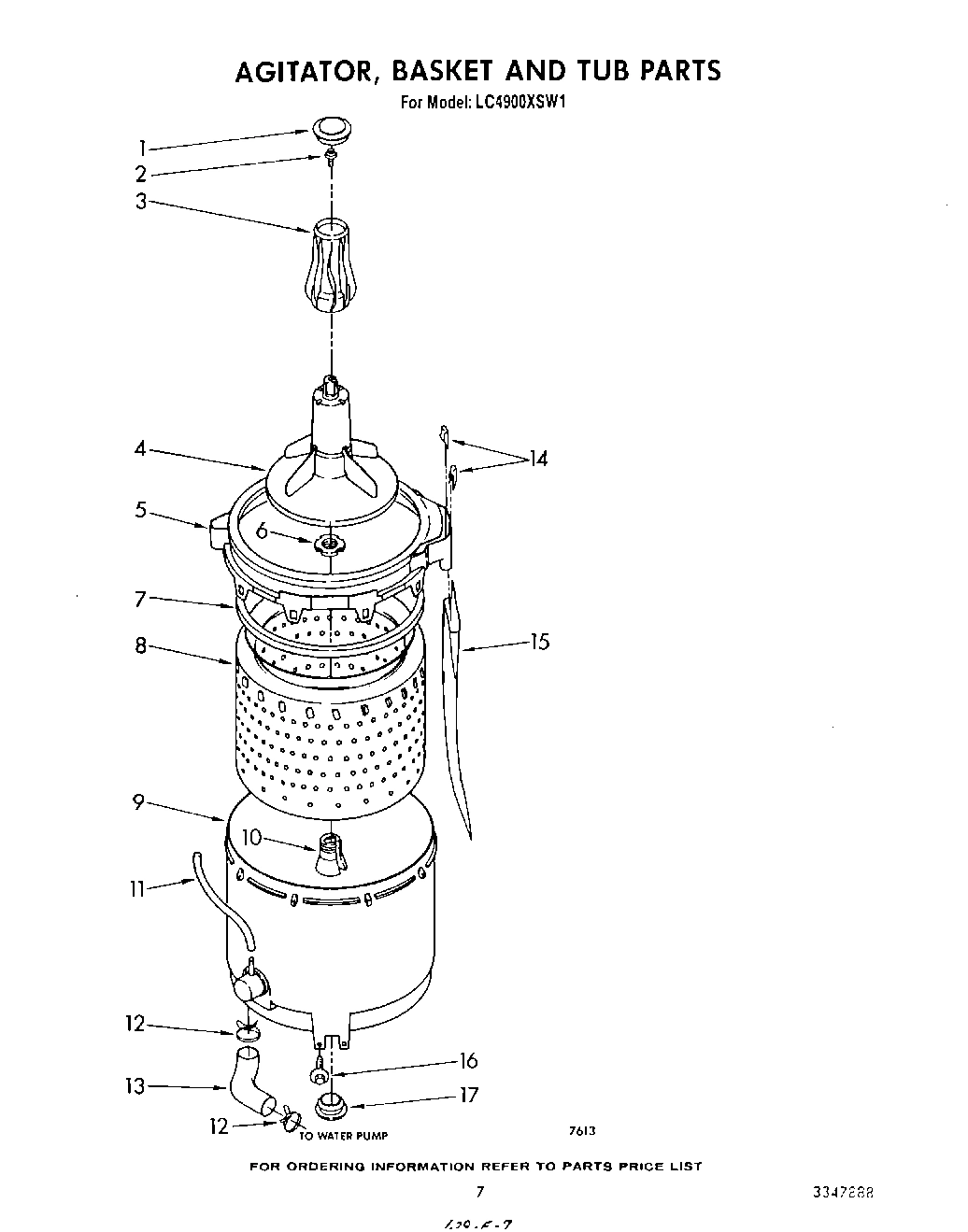

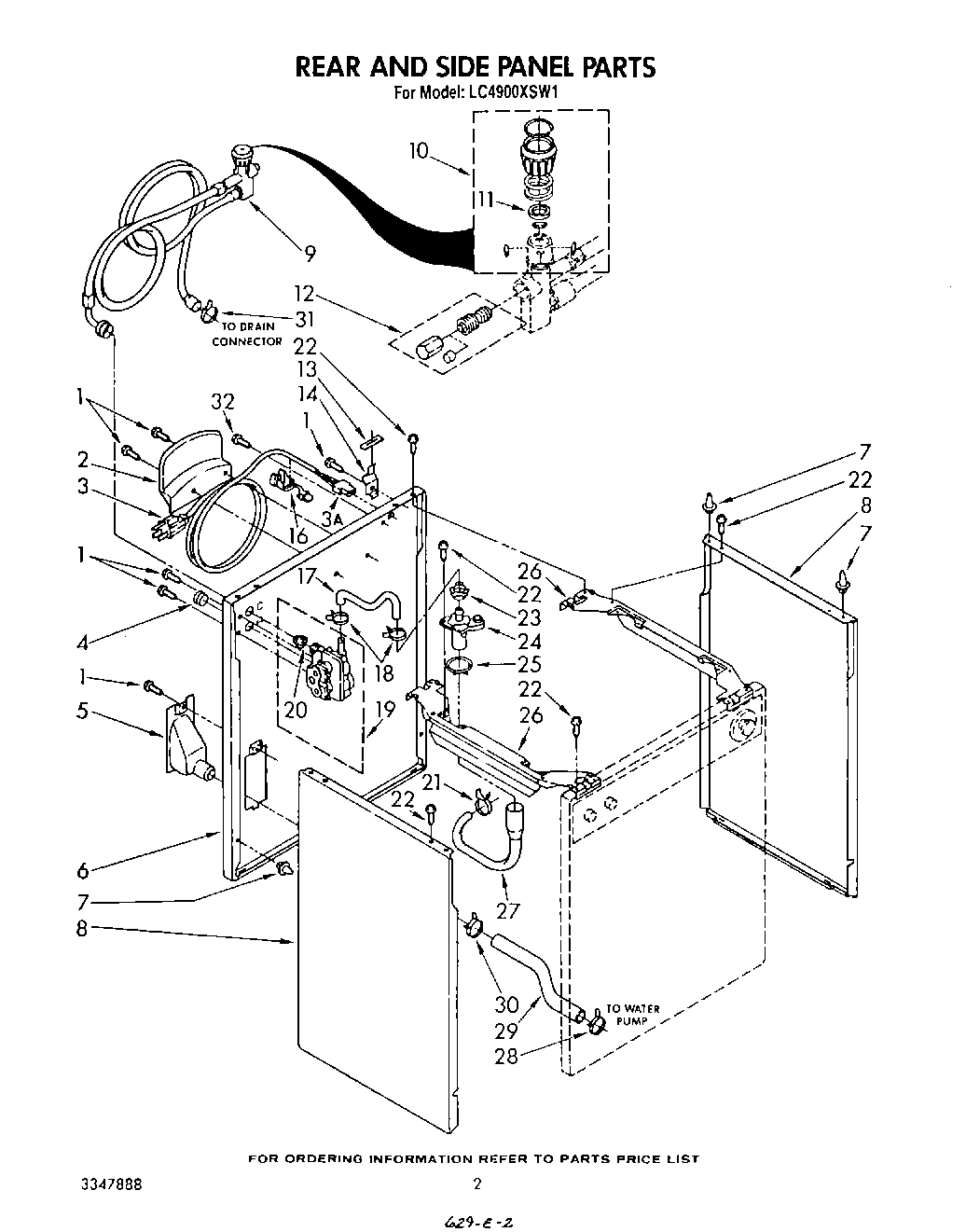

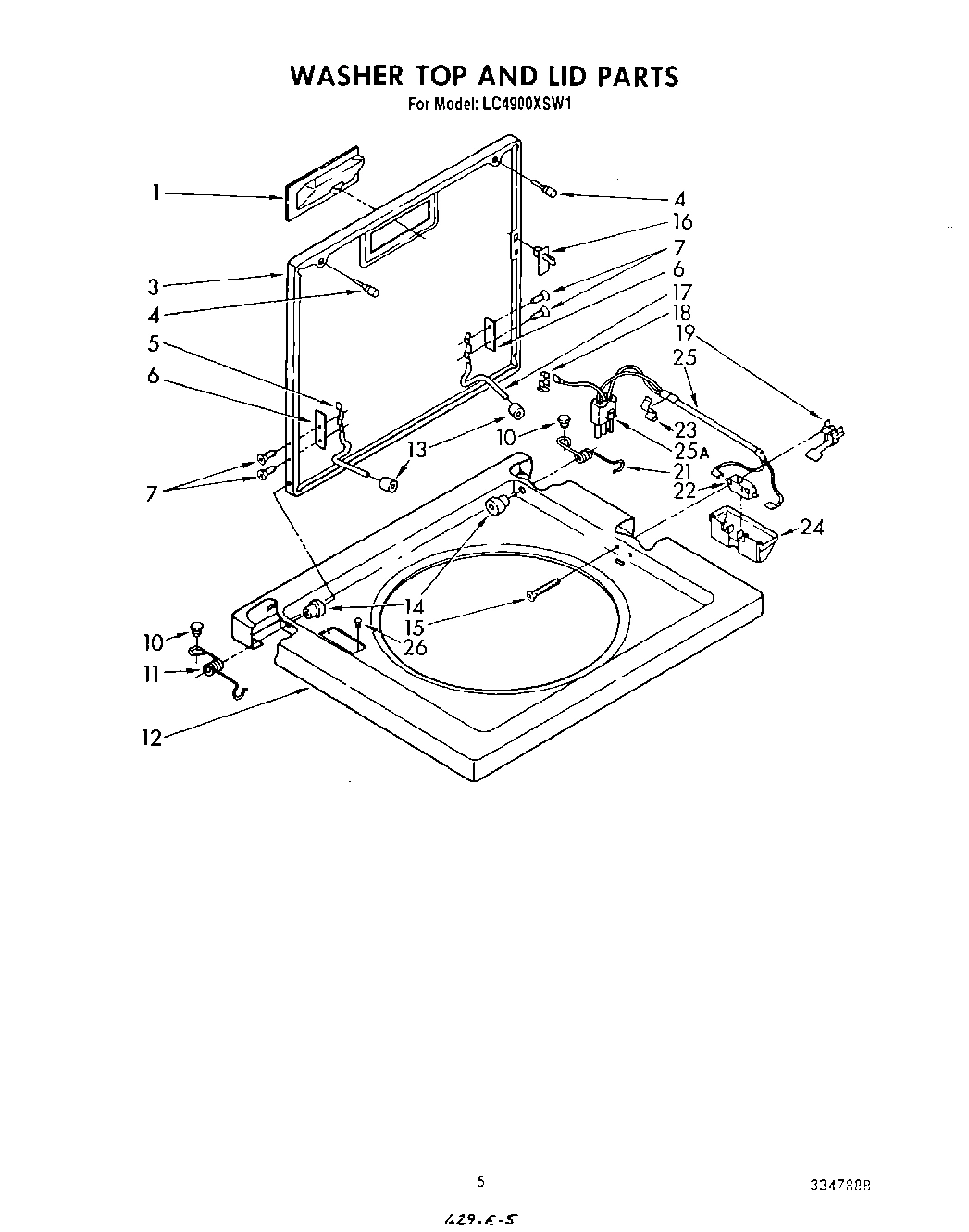

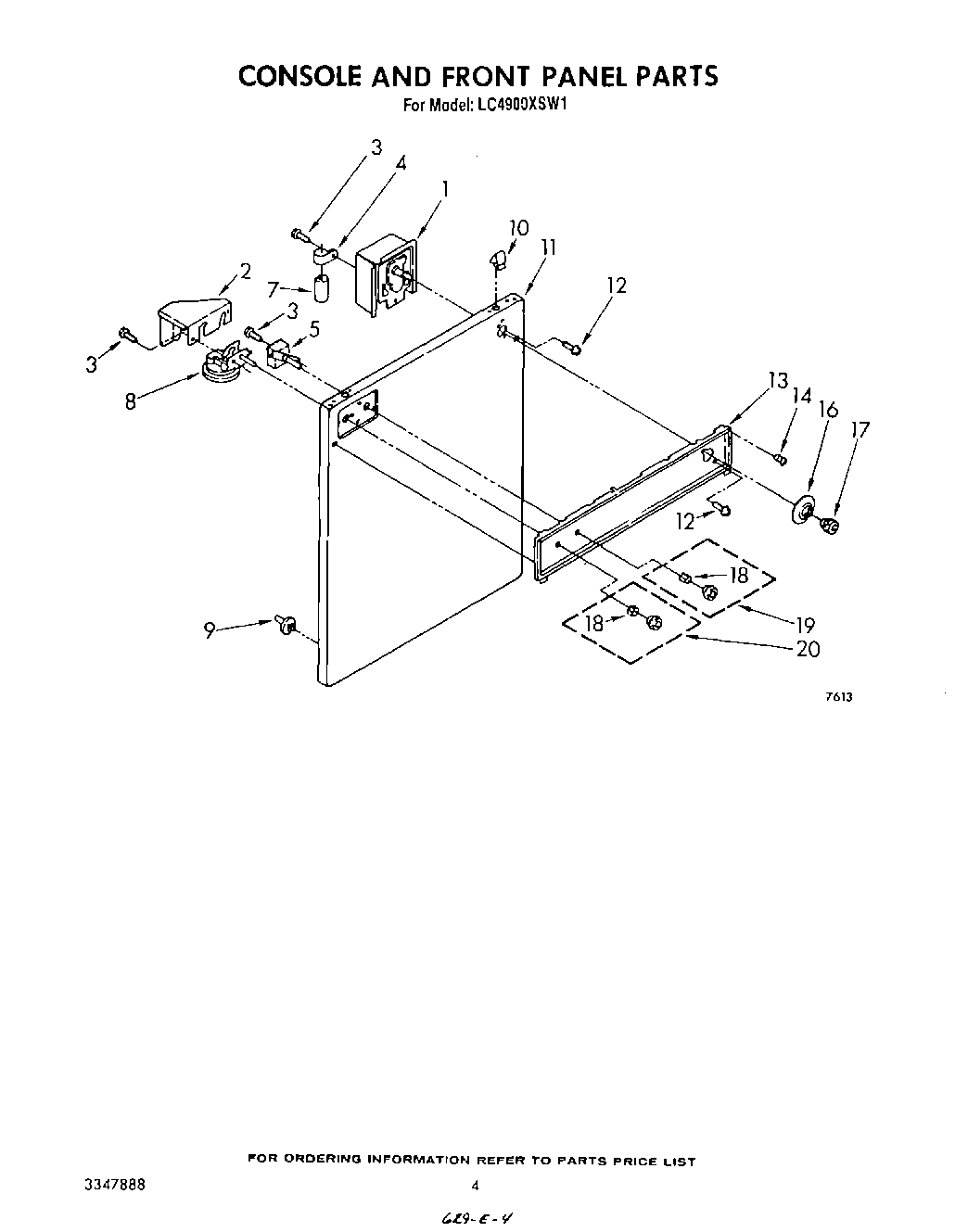

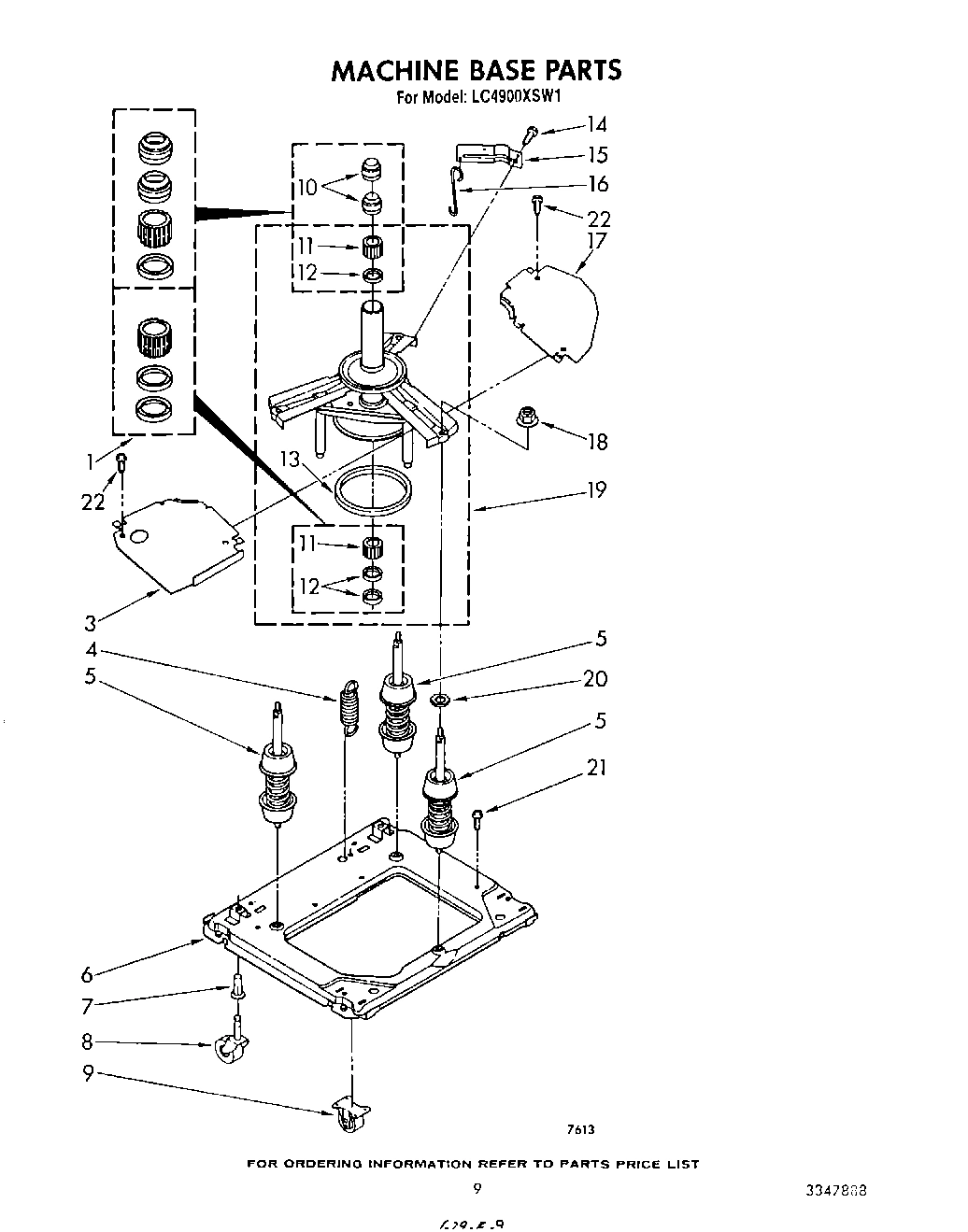

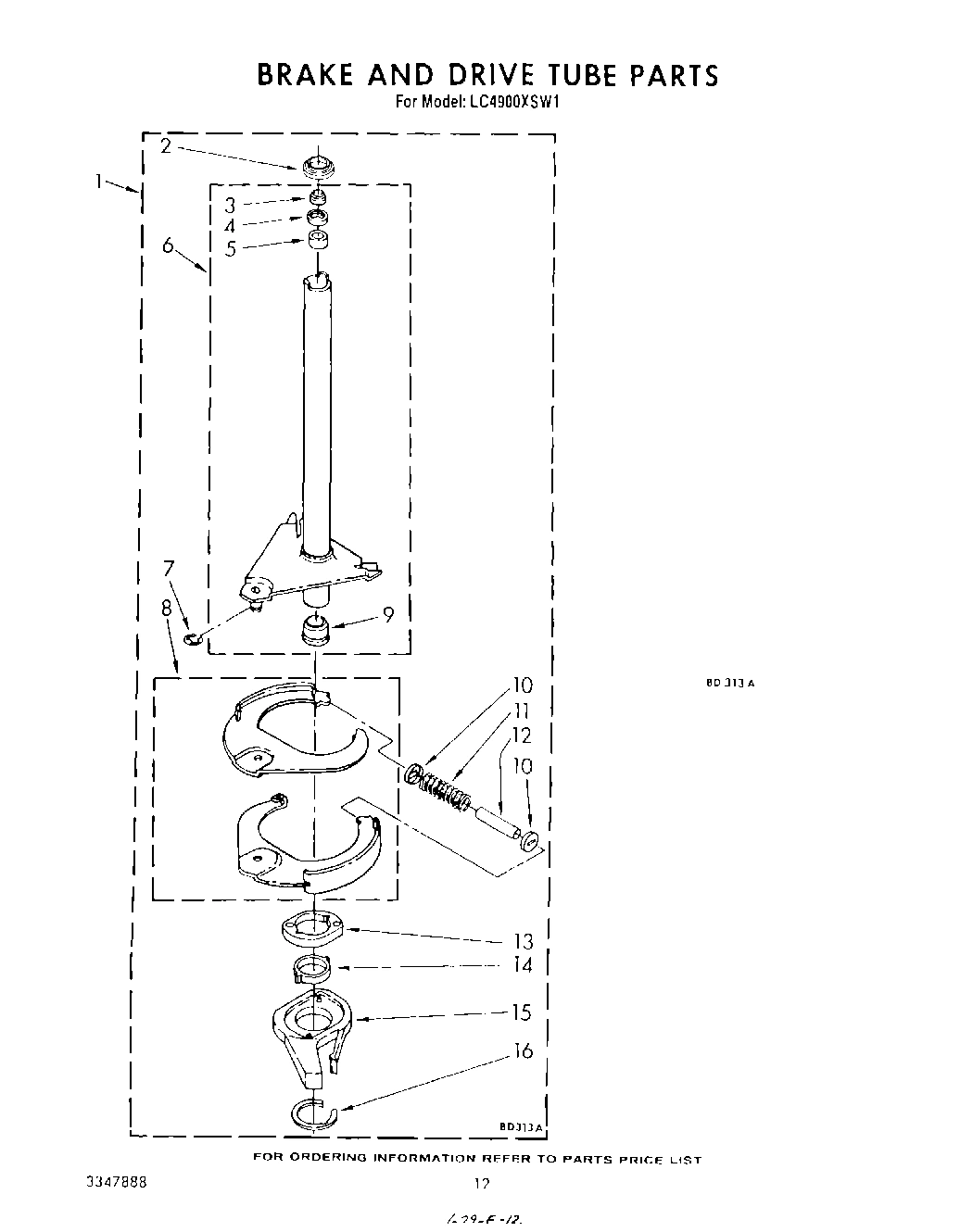

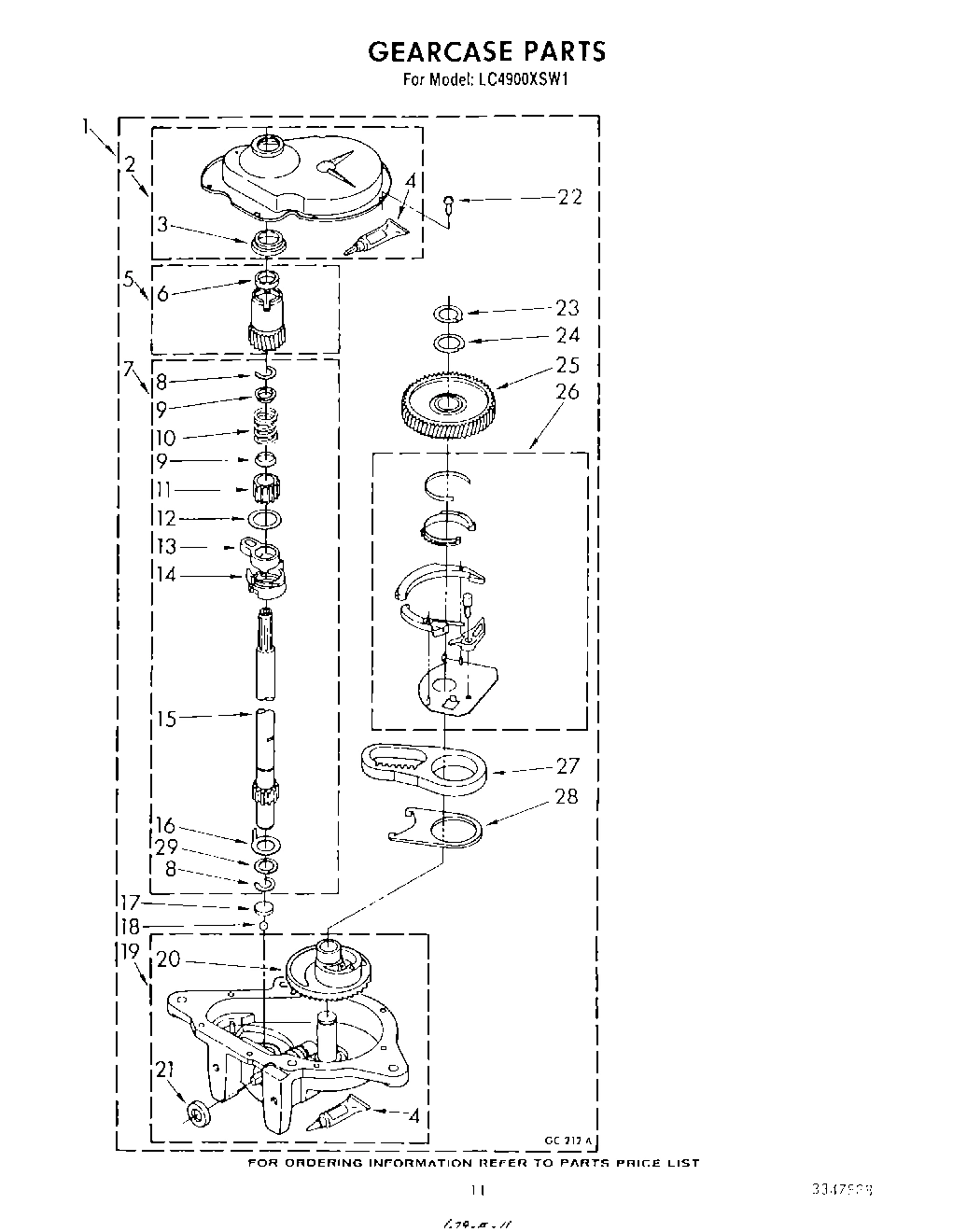

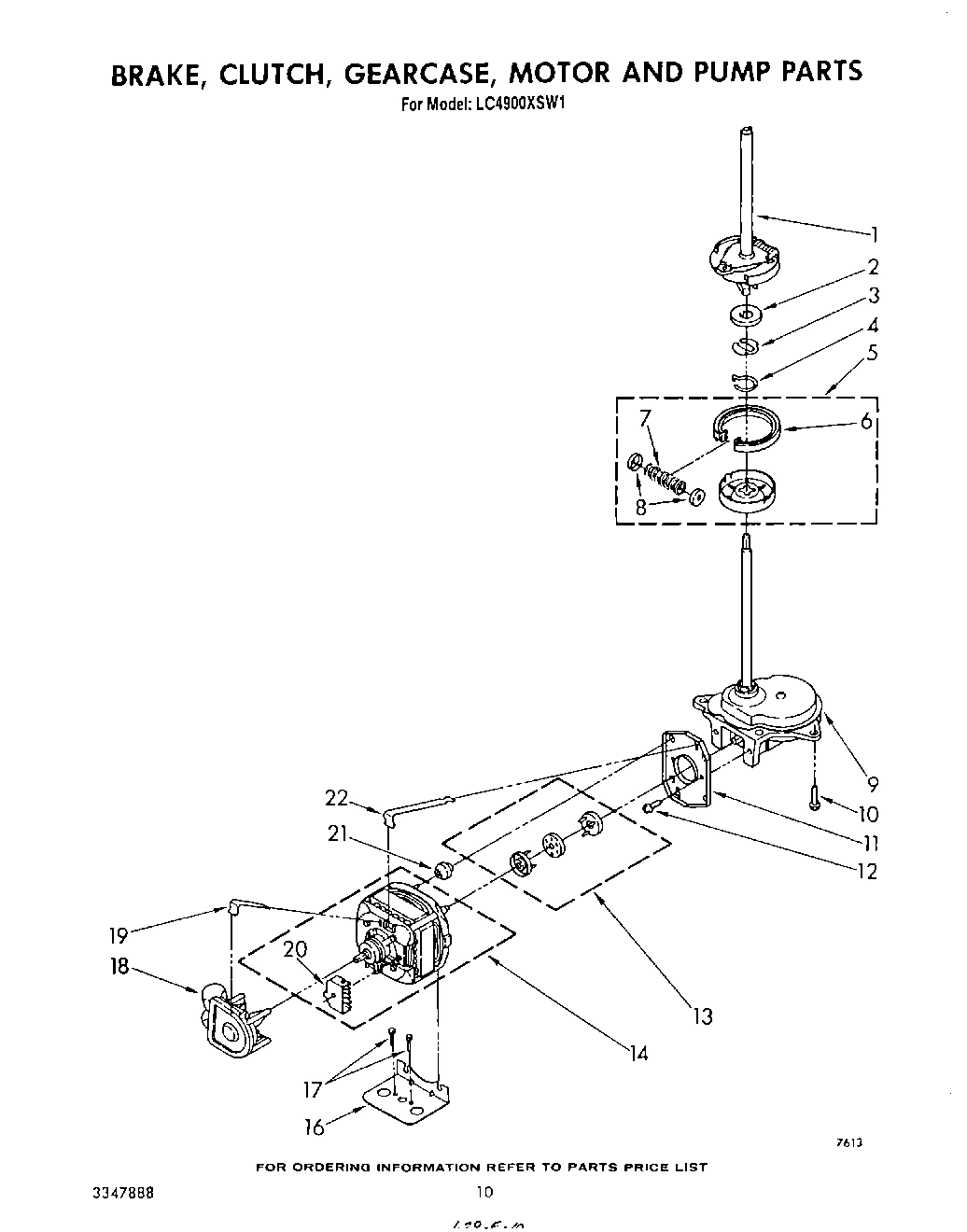

Model Whirlpool LC4900XSW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPL 799344 WPL 799344 Contact Us For Availability

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.88

1

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

1

Timer, 60 Hz. (Serviced As A Complete Assembl WPL 3347793 Contact Us For Availability

1

Plug, Terminal (3 Way) (Connects To Power Cor WPL 353424 Contact Us For Availability

1

Handle, Lid (White) WPL 379884 Contact Us For Availability

1

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

1

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

1

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

1

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

1

Harness, Cabinet Wiring (Includes Illus. 1A, WPL 387711 Contact Us For Availability

1

Plug, Terminal (3 Way) (Connects To Lid Switc WPL 62888 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $16.43

2

Shield, Control WPL 388189 Contact Us For Availability

2

Clip, Harness (4) WPL 64227 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $66.14

3

WP64137 Whirlpool Shield Assembly Backorder WPL WP64137 $12.96

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

3

WP96743 Whirlpool Hose Backorder WPL WP96743 $25.33

3

Lid (White Model) WPL 3348018 Contact Us For Availability

3

Lid (Almond Model) WPL 3348019 Contact Us For Availability

3

Lid (Platinum) WPL 3348020 Contact Us For Availability

3

Lid (Toast) WPL 3348021 Contact Us For Availability

3

Lid (Golden Harvest) WPL 3348022 Contact Us For Availability

3

Clip, Harness (2) WPL 387668 Contact Us For Availability

4

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

4

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $2.73

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $71.24

4

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

4

Screw, 8-18 x 5/16 WPL 3347107 Contact Us For Availability

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $30.89

5

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

5

Switch, Water Temperature WPL 387909 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Suspension Assembly (3) WPL 389358 Contact Us For Availability

6

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

WP8577373 Whirlpool Base Assembly In Stock WPL WP8577373 $134.12

7

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $9.37

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

7

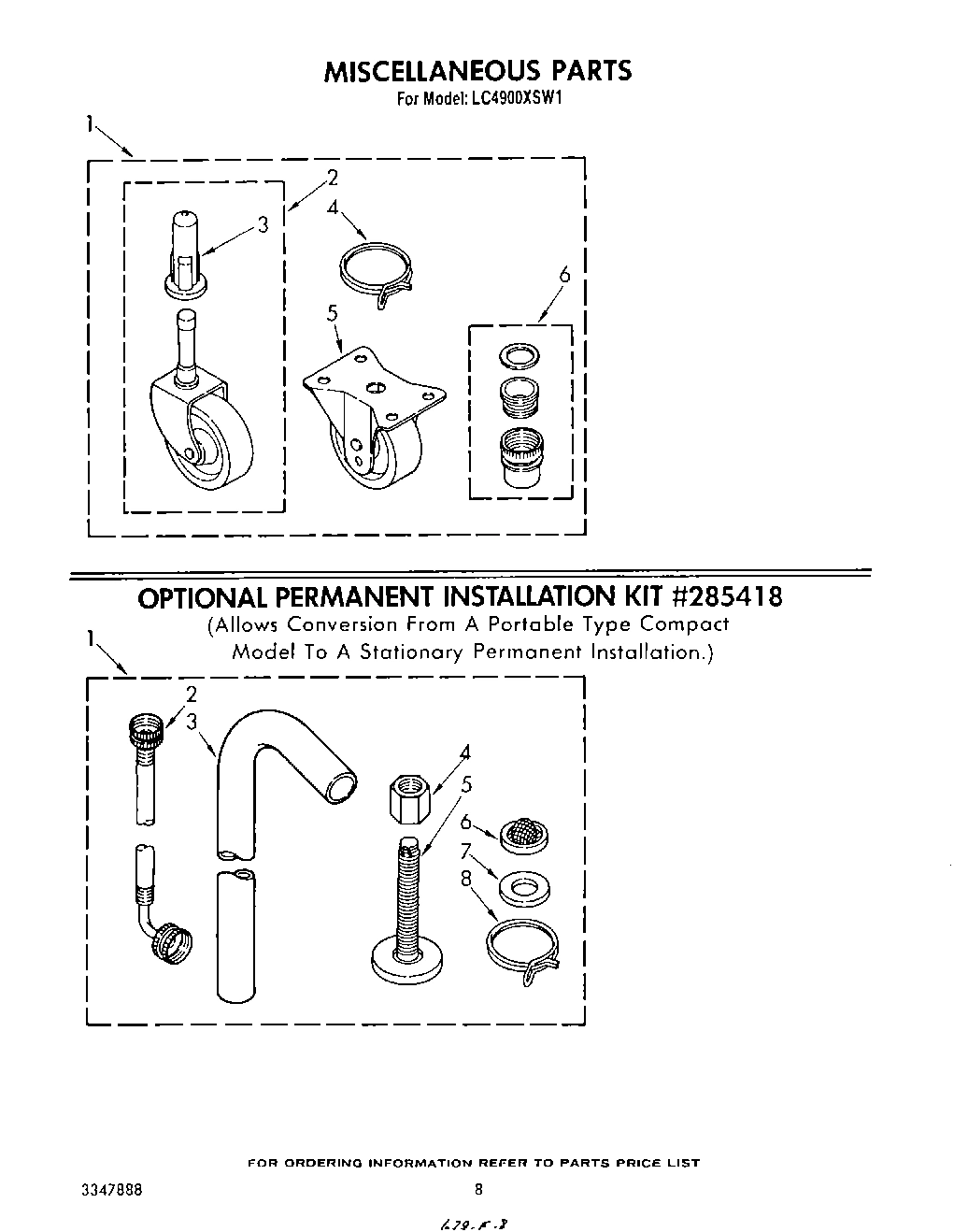

Socket, Caster (2) WPL 300450 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

Switch, Water Level WPL 64055 Contact Us For Availability

8

Clip, Harness WPL 64162 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

8

Basket WPL 64081 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

Tub WPL 63782 Contact Us For Availability

9

Locator, Top (2) WPL 98669 Contact Us For Availability

9

Wheel, Front (2) WPL 64057 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

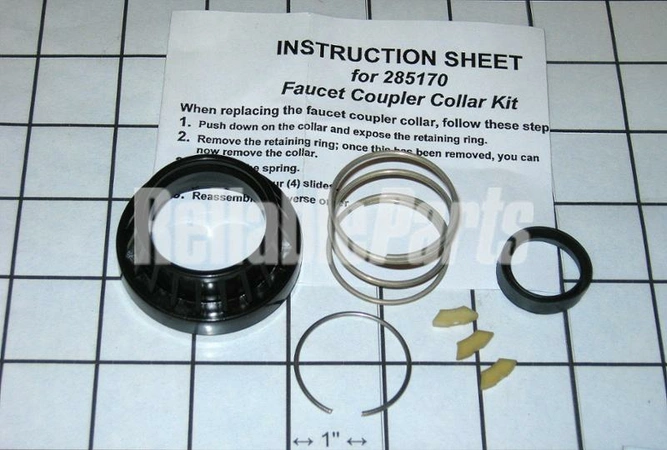

WP285170 Whirlpool Collar In Stock WPL WP285170 $29.68

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Plug, Button (2) WPL 54690 Contact Us For Availability

Lock, Front Top (2) WPL 356422 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP63748 Whirlpool Spring Backorder WPL WP63748 $2.51

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Seal WPL 711696 Contact Us For Availability

Spring, Lid (L.H.) (Includes Illus. 10) WPL 384463 Contact Us For Availability

Panel, Front (White Model) WPL 63609 Contact Us For Availability

Panel, Front (Almond Model) WPL 63610 Contact Us For Availability

Panel, Front (Toast) WPL 63611 Contact Us For Availability

Panel, Front (Platinum) WPL 63612 Contact Us For Availability

Panel, Front (Golden Harvest) WPL 63613 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP384693 Whirlpool Top Backorder WPL WP384693 $156.84

Top (Almond Model) WPL 384210 Contact Us For Availability

Top (Golden Harvest) WPL 384213 Contact Us For Availability

Top (Toast) WPL 386544 Contact Us For Availability

Top (Platinum) WPL 386545 Contact Us For Availability

280120 Whirlpool Hose Backorder WPL 280120 $13.36

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

Panel, Console WPL 387673 Contact Us For Availability

Cam, Brake Release (Alt.) WPL 3348228 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Rivet, Console Mounting (2) WPL 356388 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

63636 Whirlpool Bracket Backorder WPL 63636 $28.07

Screw & Washer, Lid Switch Shield (2) WPL 354764 Contact Us For Availability

Shaft, Agitator WPL 389231 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WPW10083200 Whirlpool Wire Ring Backorder WPL WPW10083200 $4.96

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

Dial, Timer WPL 696425 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

384459 Whirlpool Hinge Backorder WPL 384459 $30.89

63637 Whirlpool Shield Backorder WPL 63637 $12.96

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

Hose, Water Inlet WPL 386932 Contact Us For Availability

Knob, Timer WPL 3347726 Contact Us For Availability

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

Nut, 1/2 - 20 (3) WPL 388398 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $14.60

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

Actuator, Lid Switch WPL 357347 Contact Us For Availability

Knob & Skirt (Water Temperature) WPL 696343 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Knob & Skirt (Water Level) WPL 696342 Contact Us For Availability

Gear, Main Drive WPL 62528 Contact Us For Availability

Washer, Hex (2) WPL 64259 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Clamp, Hose WPL 272855 Contact Us For Availability

Spring, Lid (R.H.) (Includes Illus. 10) WPL 384462 Contact Us For Availability

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $32.52

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

23

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

23

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

23

Ring, Retaining WPL 95082 Contact Us For Availability

24

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $3.88

24

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

24

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

25

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

25

Harness, Lid Switch WPL 63909 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $30.87

26

Brace, Tie (2) WPL 63634 Contact Us For Availability

26

Rivet, Serial Nameplate (2) WPL 354239 Contact Us For Availability

27

Hose, Siphon Break WPL 386933 Contact Us For Availability

28

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

Hose, Pump Drain WPL 386930 Contact Us For Availability

30

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
