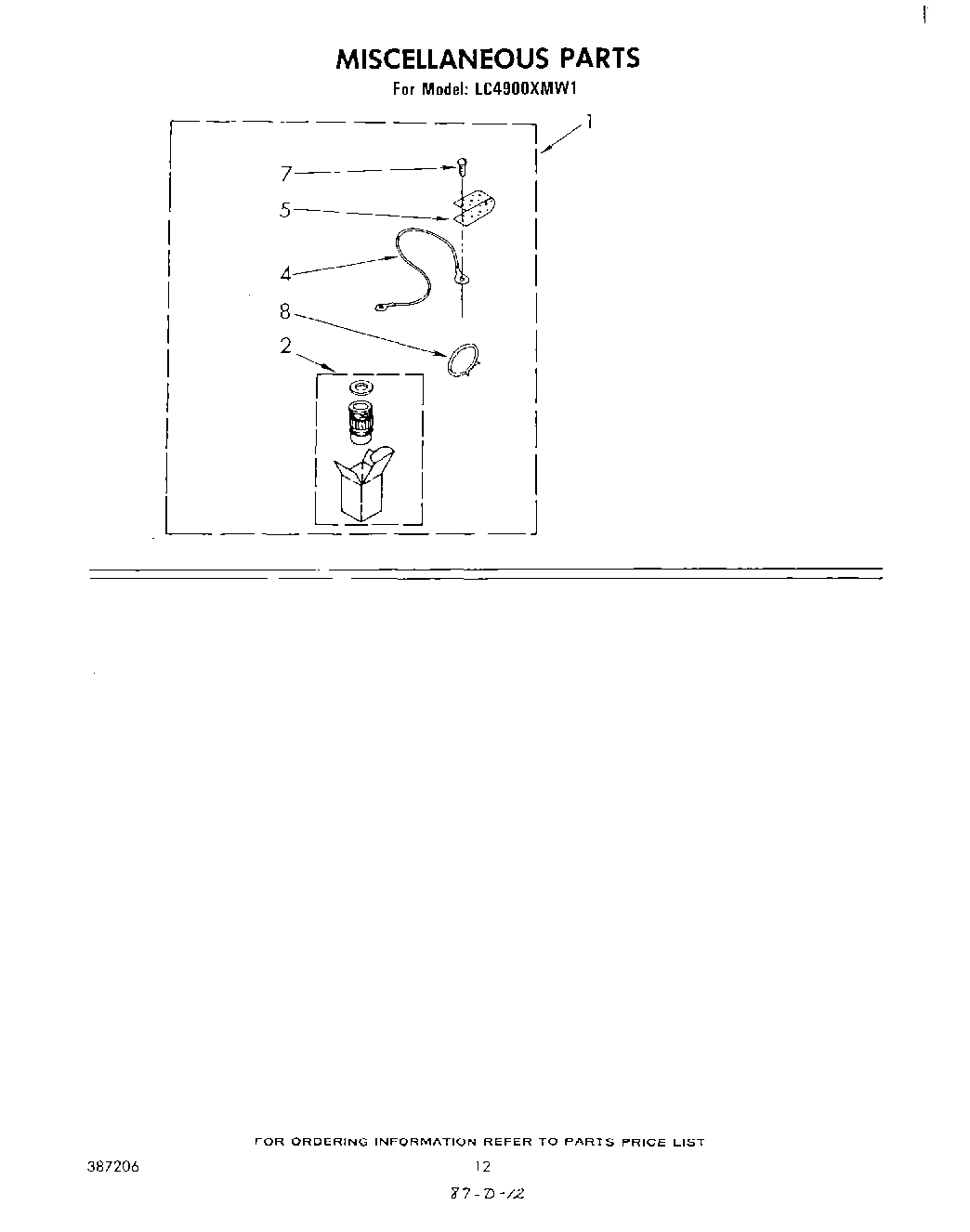

Model Whirlpool LC4900XMW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

1

Hose Kit, Permanent Installation WPL 285050 Contact Us For Availability

1

Feet Kit (Kit Contains 4 Feet & 4 Locknuts) WPL 285052 Contact Us For Availability

1

Harness, Wiring (Lower) WPL 358100 Contact Us For Availability

1

Lid (White) WPL 385581 Contact Us For Availability

1

Lid (Almond) WPL 385582 Contact Us For Availability

1

Lid (Coffee) WPL 385583 Contact Us For Availability

1

Lid (Golden Harvest) WPL 385585 Contact Us For Availability

1

Cap, Agitator WPL 356381 Contact Us For Availability

1

Pump Assembly (Complete) WPL 358258 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

2

Valve, Pressure Relief WPL 285171 Contact Us For Availability

2

Locknut (4) WPL 359304 Contact Us For Availability

2

Hose, Drain WPL 96745 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350508 Contact Us For Availability

2

Harness, Wiring (Upper) WPL 380780 Contact Us For Availability

2

Screw & Washer (3) WPL 370571 Contact Us For Availability

2

Baseplate & Centerpost WPL 359179 Contact Us For Availability

3

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

3

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Coupler & Hose WPL 359607 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354253 Contact Us For Availability

3

Agitator WPL 367200 Contact Us For Availability

3

Gasket, Tub (3) WPL 17235 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly In Stock WPL 96746 $27.41

4

WP384693 Whirlpool Top Backorder WPL WP384693 $149.36

4

Spring, Basket Drive (Gray Black) (4) WPL 356152 Contact Us For Availability

4

Plug, Terminal (9-Way) (Accepts Terminal 9461 WPL 94611 Contact Us For Availability

4

Top (Almond Model) WPL 384210 Contact Us For Availability

4

Top (Coffee) WPL 384211 Contact Us For Availability

4

Top (Golden Harvest) WPL 384213 Contact Us For Availability

4

Shield, Tub Ring WPL 387167 Contact Us For Availability

4

Spring, Idler Arm WPL 356137 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

5

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

5

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Tub Ring Assembly (Includes Illus. 22 & 23) WPL 387170 Contact Us For Availability

5

Idler Arm & Shaft WPL 366856 Contact Us For Availability

5

Pulley, Pump WPL 356926 Contact Us For Availability

6

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.51

6

Lining, Basket Brake (Lower) WPL 356396 Contact Us For Availability

6

Cap, Terminal (9-Way) (Accepts Terminal 94613 WPL 94612 Contact Us For Availability

6

Timer, Disconnect (60 Hz.) WPL 385359 Contact Us For Availability

6

Insert, Filter WPL 384477 Contact Us For Availability

6

Pulley, Idler WPL 366855 Contact Us For Availability

6

Lever, Valve WPL 355538 Contact Us For Availability

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

7

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Motor, Timer WPL 365941 Contact Us For Availability

7

Clip, Tub Ring (5) WPL 356141 Contact Us For Availability

7

Washer, Thrust WPL 356133 Contact Us For Availability

7

Rod, Connecting WPL 96264 Contact Us For Availability

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

8

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

8

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

8

80011 Whirlpool Washer Lid Bumper Kit of 2 Backorder WPL 80011 $2.73

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

8

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

8

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Gasket, Tub Ring WPL 356380 Contact Us For Availability

8

Ring, Retainer WPL 356087 Contact Us For Availability

8

Bearing Block Assembly WPL 383750 Contact Us For Availability

9

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

9

Bracket, Hose Storage WPL 356499 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357716 Contact Us For Availability

9

Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability

9

Ring, Retainer WPL 356088 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

Barrier, Splash WPL 353885 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 356405 Contact Us For Availability

Panel, Control WPL 375544 Contact Us For Availability

Locknut WPL 356995 Contact Us For Availability

Magnet WPL 365998 Contact Us For Availability

Seal WPL 711696 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

Clip, Harness WPL 356327 Contact Us For Availability

Knob, Assembly Water Temperature WPL 370269 Contact Us For Availability

Block, Basket Drive WPL 357836 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Clip, Harness WPL 357469 Contact Us For Availability

Dial, Timer WPL 385527 Contact Us For Availability

Basket Assembly WPL 359174 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Knob, Timer WPL 356500 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

Terminal WPL 352088 Contact Us For Availability

Belt, ``V`` (Alternate) WPL 356402 Contact Us For Availability

Box, Power Cord WPL 356211 Contact Us For Availability

Pulley, Basket Drive WPL 366948 Contact Us For Availability

Shield, Timer WPL 357901 Contact Us For Availability

Belt, ``V`` ((Alternate)) WPL 356403 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Clip WPL 356387 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Spring, Brake WPL 94726 Contact Us For Availability

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

Seal WPL 351830 Contact Us For Availability

Hose, Water Inlet WPL 356314 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Strap, Ground WPL 22965 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Screw WPL 98520 Contact Us For Availability

Wire, Ground WPL 364089 Contact Us For Availability

Funnel, Drain WPL 356201 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Switch, Water Level WPL 370865 Contact Us For Availability

Set Screw, 5/16-18 x 13/16 WPL 358931 Contact Us For Availability

Spring, Lid (Includes Illus. 20) (L.H.) WPL 384460 Contact Us For Availability

Spring, Lid (Includes Illus. 20) (R.H.) WPL 384461 Contact Us For Availability

Manifold, Tub Outlet WPL 357160 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

Bracket, Control WPL 357174 Contact Us For Availability

Basket Drive & Brake (Refer To Page 11 For Fu WPL 359175 Contact Us For Availability

Retainer, Oil WPL 354319 Contact Us For Availability

Plug, Button WPL 54690 Contact Us For Availability

Tub WPL 367162 Contact Us For Availability

21

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

21

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

21

Spring, Brake Yoke WPL 17261 Contact Us For Availability

356398 Whirlpool Tube Backorder WPL 356398 $28.80

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $29.43

Hose, Drain WPL 356727 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

24

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

24

Pin, Roll WPL 90532 Contact Us For Availability

25

Hinge, Cabinet (2) WPL 356606 Contact Us For Availability

25

Switch Actuator Assembly WPL 357347 Contact Us For Availability

25

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

26

Hose, Pump To Filter WPL 356397 Contact Us For Availability

26

Screw & Washer WPL 354764 Contact Us For Availability

26

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

27

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

27

WP385728 Whirlpool Bushing Backorder WPL WP385728 $2.51

27

Bracket, Hose WPL 356982 Contact Us For Availability

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

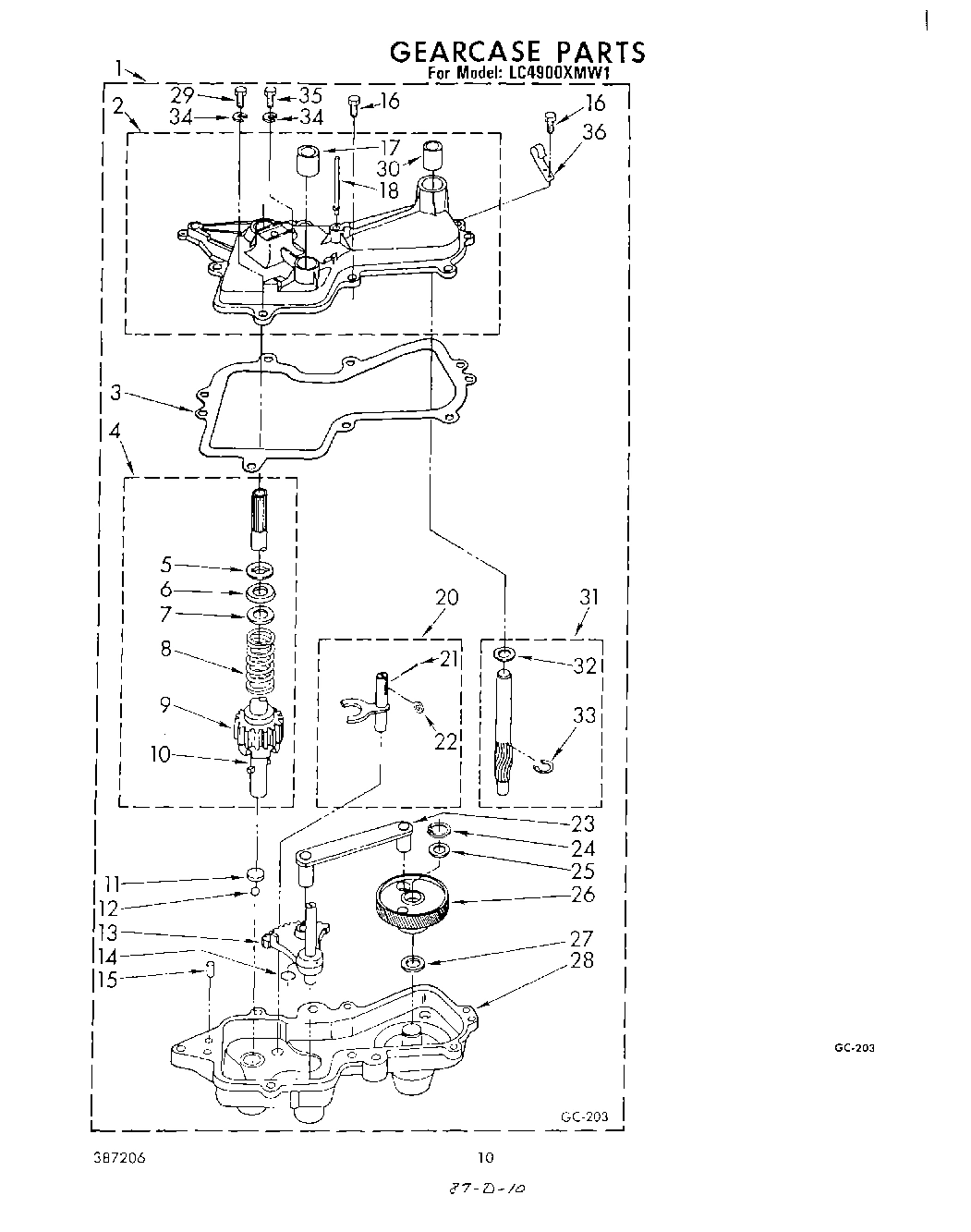

Gearcase WPL 362906 Contact Us For Availability

Cabinet (White) WPL 370910 Contact Us For Availability

Cabinet (Almond) WPL 376950 Contact Us For Availability

Cabinet (Coffee) WPL 376951 Contact Us For Availability

Cabinet (Golden Harvest) WPL 376953 Contact Us For Availability

Wire, Ground WPL 368715 Contact Us For Availability

Screw & Washer (3) WPL 356154 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

Bolt, 5/16-24 x 1-1/8 (1) WPL 356512 Contact Us For Availability

Screw, 10-16 x 1 WPL 9426223 Contact Us For Availability

Washer WPL 90918 Contact Us For Availability

Baseplate, Lower WPL 359321 Contact Us For Availability

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Spacer, Cabinet (2) WPL 357043 Contact Us For Availability

Manifold Repair Kit (This Kit Eliminates The WPL 285150 Contact Us For Availability

Bearing, Upper WPL 356993 Contact Us For Availability

31

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

31

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

31

Pinion, Drive WPL 84467 Contact Us For Availability

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $3.70

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Knob Assembly, Water Level WPL 367675 Contact Us For Availability

Bearing, Lower WPL 354195 Contact Us For Availability

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

Ring, Retainer WPL 90094 Contact Us For Availability

Clip Timer WPL 90015 Contact Us For Availability

Pulley, Motor WPL 356939 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

Lockwasher (2) WPL 138485 Contact Us For Availability

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

Power, Cord WPL 357500 Contact Us For Availability

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Coffee) WPL 379886 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

Motor, 60 Hz. (Emerson) WPL 358816 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

384459 Whirlpool Hinge Backorder WPL 384459 $29.43

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bracket, Hose WPL 357172 Contact Us For Availability

37

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

37

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

37

Housing, Power Cord WPL 356231 Contact Us For Availability

38

Spring, Hose Retaining WPL 356887 Contact Us For Availability

39

Hose, Water Inlet WPL 357048 Contact Us For Availability

39

Rivet, Plastic (2) WPL 694024 Contact Us For Availability

39

Harness, Jumper WPL 370950 Contact Us For Availability

40

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

41

Ball WPL 358585 Contact Us For Availability

42

Pulley, Main Drive WPL 356155 Contact Us For Availability

43

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

43

Gearcase (Refer To Page 10 For Further Breakd WPL 359279 Contact Us For Availability

44

Clamp, Hose WPL 357171 Contact Us For Availability

44

Nut, Motor Mounting (4) WPL 98023 Contact Us For Availability

45

W11213338 Whirlpool Connector Backorder WPL W11213338 $26.90

45

Sleeve, Cabinet Support (2) WPL 356638 Contact Us For Availability

46

Grommet, Motor (4) WPL 356322 Contact Us For Availability

47

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

48

Bracket, Harness WPL 357504 Contact Us For Availability

48

Switch, Motor Start (Use W/Emerson Motor) WPL 362738 Contact Us For Availability

49

S WPL 425583 Contact Us For Availability

Pad, Top (L.H.) WPL 356916 Contact Us For Availability

Pad, Top (R.H.) WPL 356917 Contact Us For Availability

WPL 367011 WPL 367011 Contact Us For Availability

WPL 367012 WPL 367012 Contact Us For Availability

WPL 367013 WPL 367013 Contact Us For Availability

51

Lock, Front Top WPL 356422 Contact Us For Availability

51

WPL 717588 WPL 717588 Contact Us For Availability

52

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

52

WP3370639 Whirlpool Caster Backorder WPL WP3370639 $25.57

53

Clip WPL 356649 Contact Us For Availability

53

WPL 358354 WPL 358354 Contact Us For Availability

54

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

54

WPL 285136 WPL 285136 Contact Us For Availability

55

WPL 357623 WPL 357623 Contact Us For Availability

56

Clamp, Hose WPL 353094 Contact Us For Availability

56

WPL 357622 WPL 357622 Contact Us For Availability

57

WPL 356288 WPL 356288 Contact Us For Availability

58

Switch, Water Temperature WPL 370145 Contact Us For Availability

59

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $4.56

60

356746 Whirlpool Clip Backorder WPL 356746 $10.76

61

Relief, Strain WPL 357499 Contact Us For Availability

63

18849 Whirlpool Pad Backorder WPL 18849 $9.13
