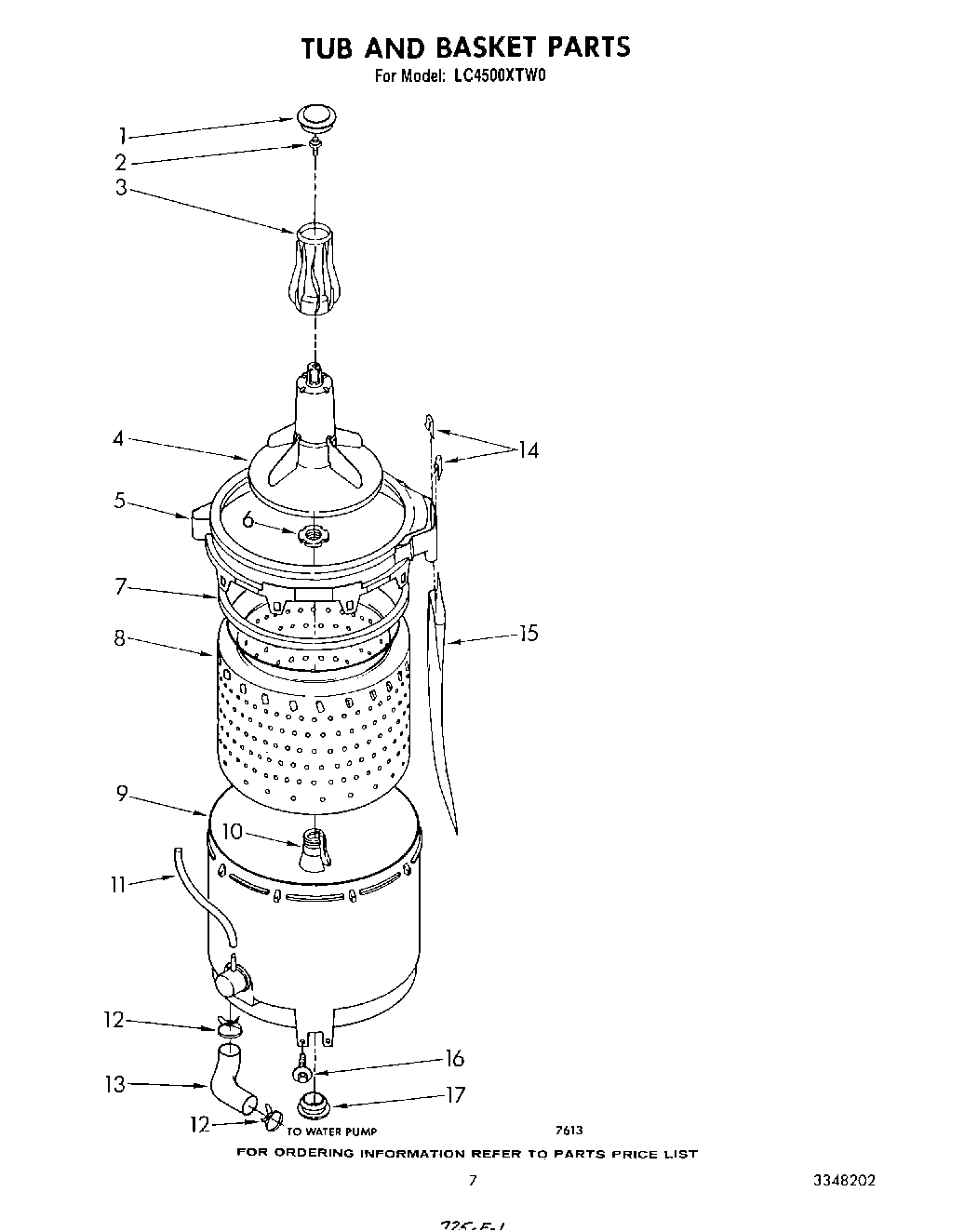

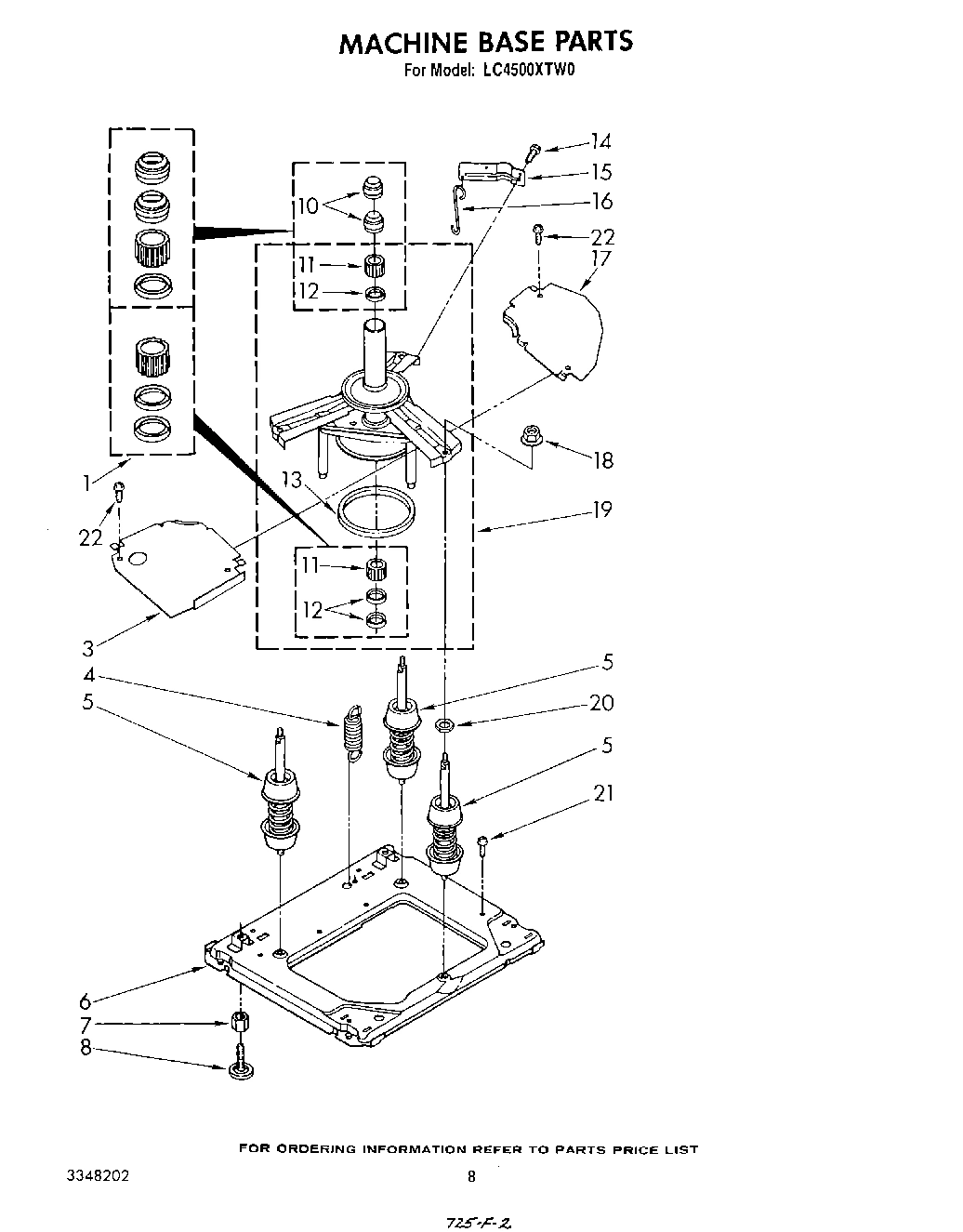

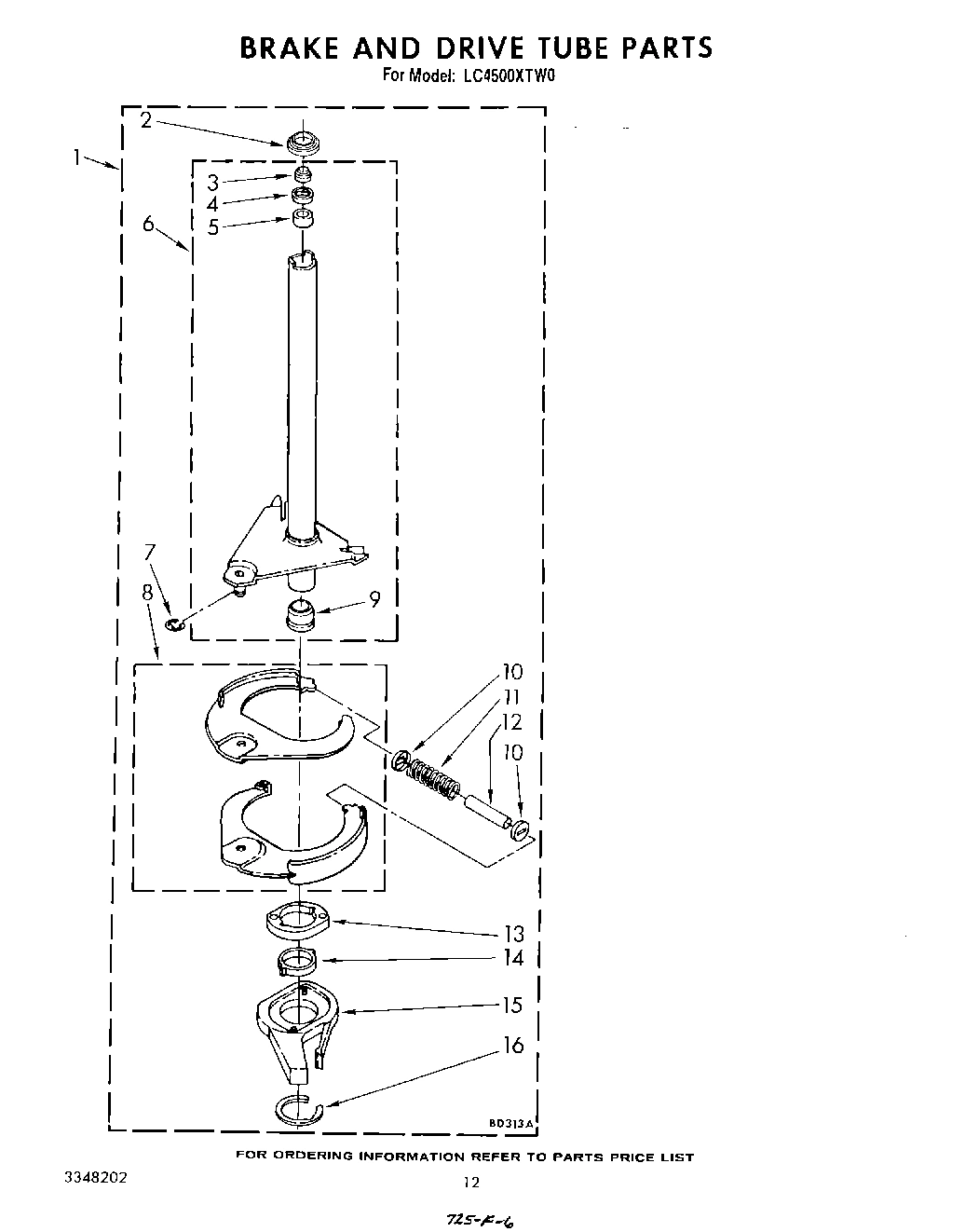

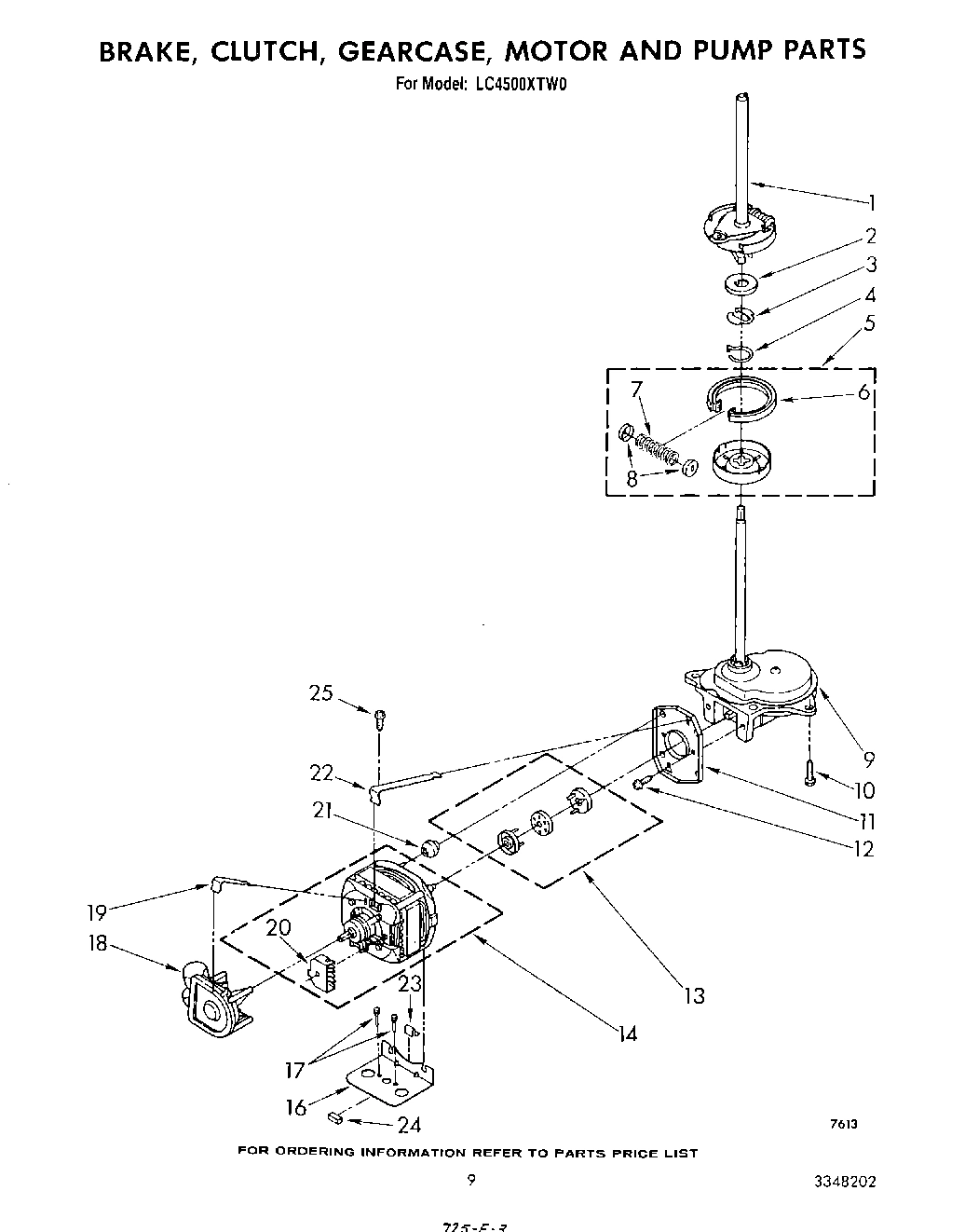

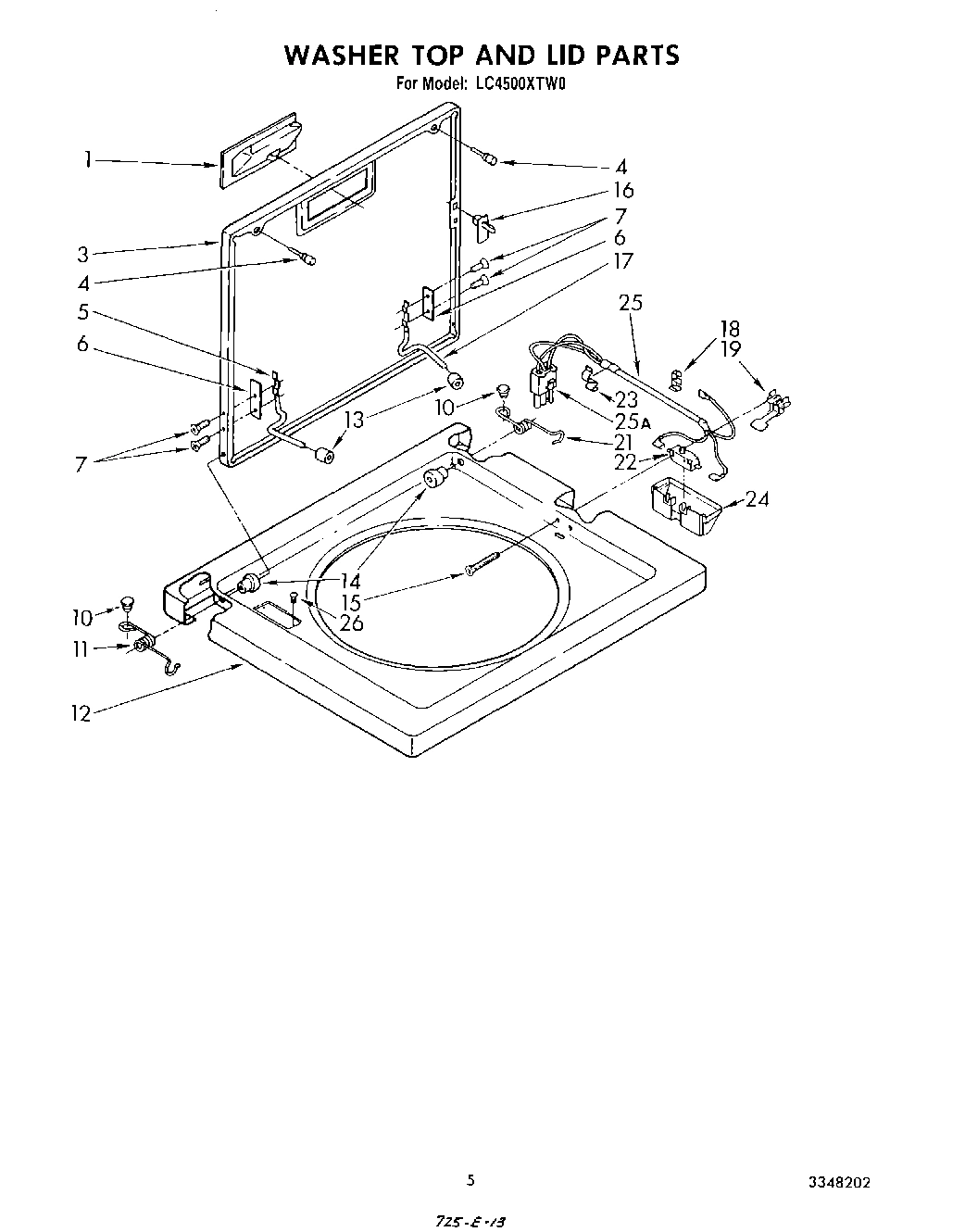

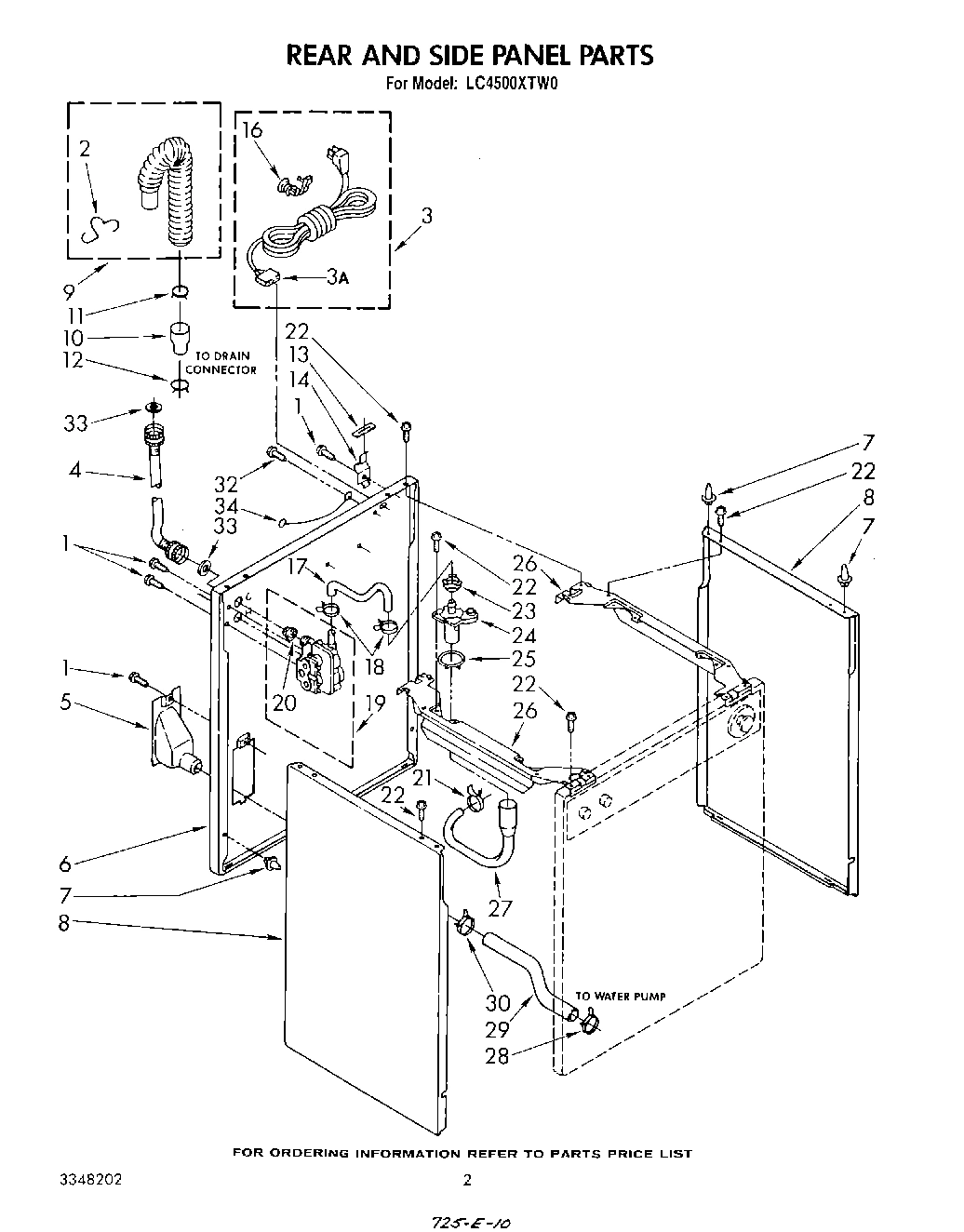

Model Whirlpool LC4500XTN0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT3347018 Contact Us For Availability

Label, Energy Guide WPL LIT3348135 Contact Us For Availability

List, Repair Parts WPL LIT3348202 Contact Us For Availability

Guide, Use And Care WPL LIT3349153 Contact Us For Availability

Guide, Laundry WPL LIT385238 Contact Us For Availability

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

1

353424 Whirlpool Connector Backorder WPL 353424 $10.76

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

1

Timer, 60 Hz. (Serviced Only As A Complete As WPL 3347793 Contact Us For Availability

1

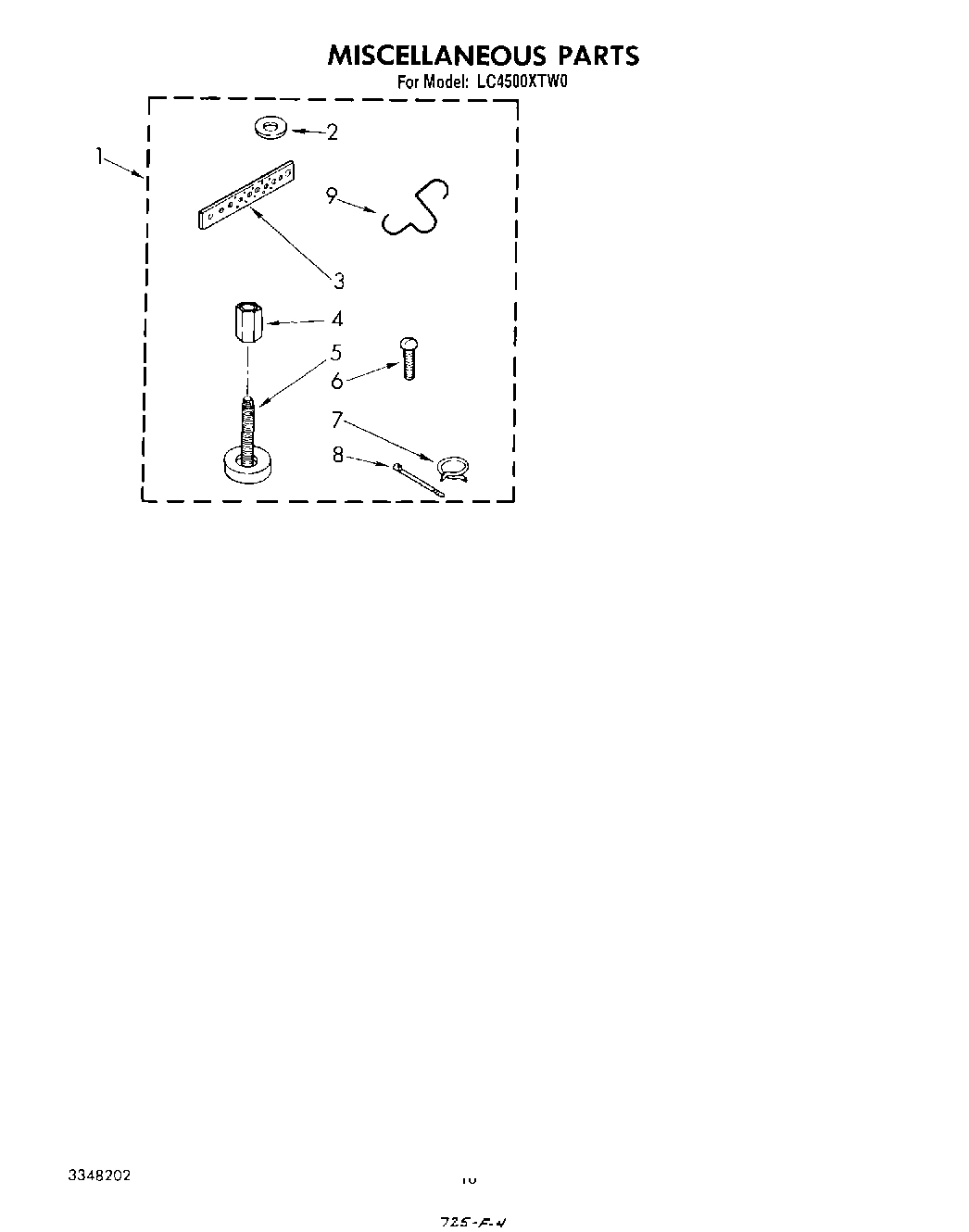

Miscelleous Parts Bag WPL 3350285 Contact Us For Availability

1

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

1

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

1

Handle, Lid (White) WPL 379889 Contact Us For Availability

1

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

1

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

1

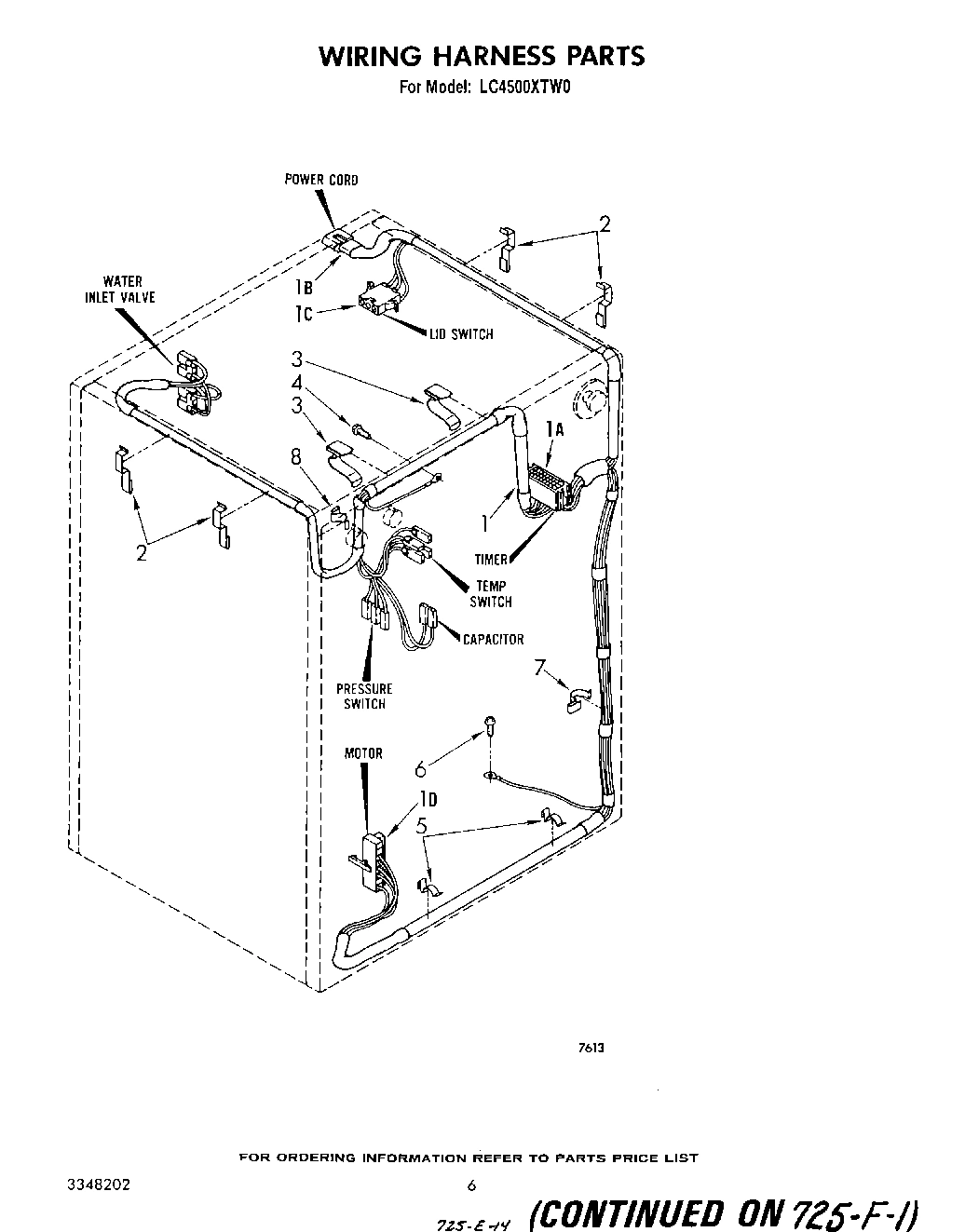

Harness, Cabinet Wiring (Includes Illus. 1A, WPL 3347899 Contact Us For Availability

1

Plug, Terminal (3 Way) (Connects To Lid Switc WPL 62888 Contact Us For Availability

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

Clip, Harness (4) WPL 64227 Contact Us For Availability

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $81.43

3

WP64137 Whirlpool Shield Assembly Backorder WPL WP64137 $12.96

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

3

Strap, Ground WPL 22965 Contact Us For Availability

3

Lid (White Model) WPL 3348018 Contact Us For Availability

3

Lid (Almond Model) WPL 3348019 Contact Us For Availability

3

Lid (Platinum) WPL 3348020 Contact Us For Availability

3

Lid (Toast) WPL 3348021 Contact Us For Availability

3

Lid (Golden Harvest) WPL 3348022 Contact Us For Availability

3

Clip, Harness (2) WPL 387668 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

4

80011 Whirlpool Washer Lid Bumper Kit of 2 Backorder WPL 80011 $2.73

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $67.86

4

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

4

Screw, 8-18 x 5/16 WPL 3347107 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $29.43

5

W10831641 Whirlpool Tub Ring Backorder WPL W10831641 $127.70

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Suspension Assembly (3) WPL 389358 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

WP8577373 Whirlpool Base Assembly Backorder WPL WP8577373 $127.73

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $9.37

7

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

7

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

8

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

8

Basket WPL 64081 Contact Us For Availability

8

Clip, Harness WPL 64162 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Tub WPL 63782 Contact Us For Availability

9

Retainer, Drain Hose WPL 3350222 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Plug, Button (2) WPL 54690 Contact Us For Availability

Screw, 5/16-24 x 3/16 (3) (Gearcase To Tub Su WPL 62735 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP63748 Whirlpool Spring Backorder WPL WP63748 $2.51

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Spring, Lid (L.H.) (Includes Illus. 10) WPL 384463 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP384693 Whirlpool Top Backorder WPL WP384693 $149.36

Top (Almond Model) WPL 384210 Contact Us For Availability

Top (Golden Harvest) WPL 384213 Contact Us For Availability

Top (Toast) WPL 386544 Contact Us For Availability

Top (Platinum) WPL 386545 Contact Us For Availability

280120 Whirlpool Hose Backorder WPL 280120 $13.36

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

15

356398 Whirlpool Tube Backorder WPL 356398 $28.80

15

63636 Whirlpool Bracket Backorder WPL 63636 $26.74

15

Screw & Washer, Lid Switch Shield (2) WPL 354764 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Screw & Washer (Tub Mounting) (4) WPL 98005 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

384459 Whirlpool Hinge Backorder WPL 384459 $29.43

63637 Whirlpool Shield Backorder WPL 63637 $12.96

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

Nut, 1/2 - 20 (3) WPL 388398 Contact Us For Availability

19

W10863713 Whirlpool Support Backorder WPL W10863713 $233.75

19

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

19

Actuator, Lid Switch WPL 357347 Contact Us For Availability

20

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

20

Washer, Hex (2) WPL 64259 Contact Us For Availability

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

21

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

21

Spring, Lid (R.H.) (Includes Illus. 10) WPL 384462 Contact Us For Availability

22

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

22

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

22

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

23

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

23

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

23

Clip, Shield WPL 3349322 Contact Us For Availability

24

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $28.80

24

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $3.70

24

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

25

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

25

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

25

Harness, Lid Switch WPL 3350429 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

Rivet, Serial Nameplate (2) WPL 354239 Contact Us For Availability

27

Hose, Siphon Break WPL 386933 Contact Us For Availability

28

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

29

Hose, Pump Drain WPL 386930 Contact Us For Availability

30

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

32

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

33

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

34

Wire, Ground WPL 364089 Contact Us For Availability
