Model Whirlpool LC4500XMW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

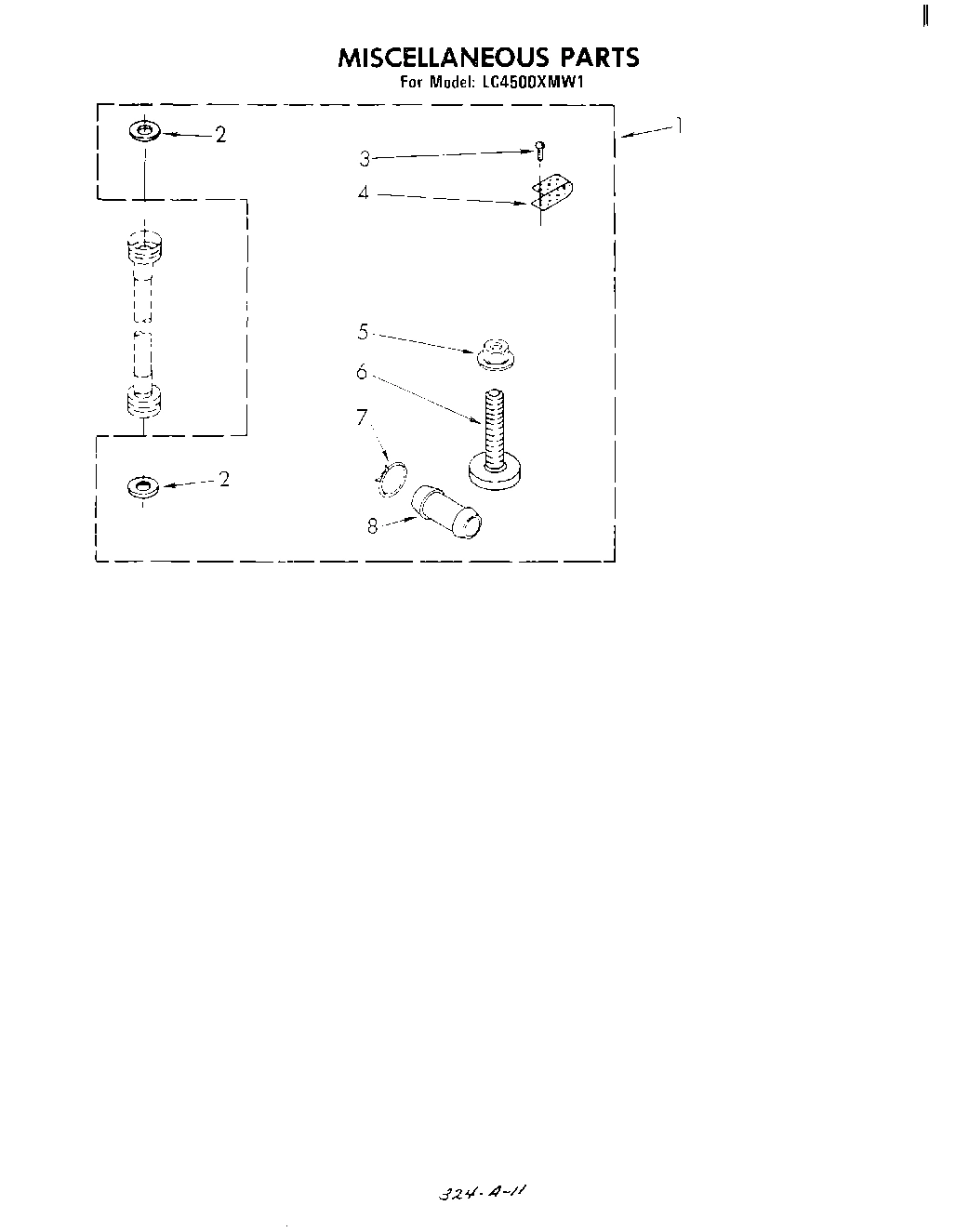

1

Miscellaneous Parts Bag WPL 384248 Contact Us For Availability

1

Basket Drive & Brake WPL 359175 Contact Us For Availability

1

Gearcase (Complete) WPL 359279 Contact Us For Availability

1

Plug, Terminal WPL 94611 Contact Us For Availability

1

Pump Assembly (Complete) WPL 358258 Contact Us For Availability

1

Cap, Agitator WPL 356381 Contact Us For Availability

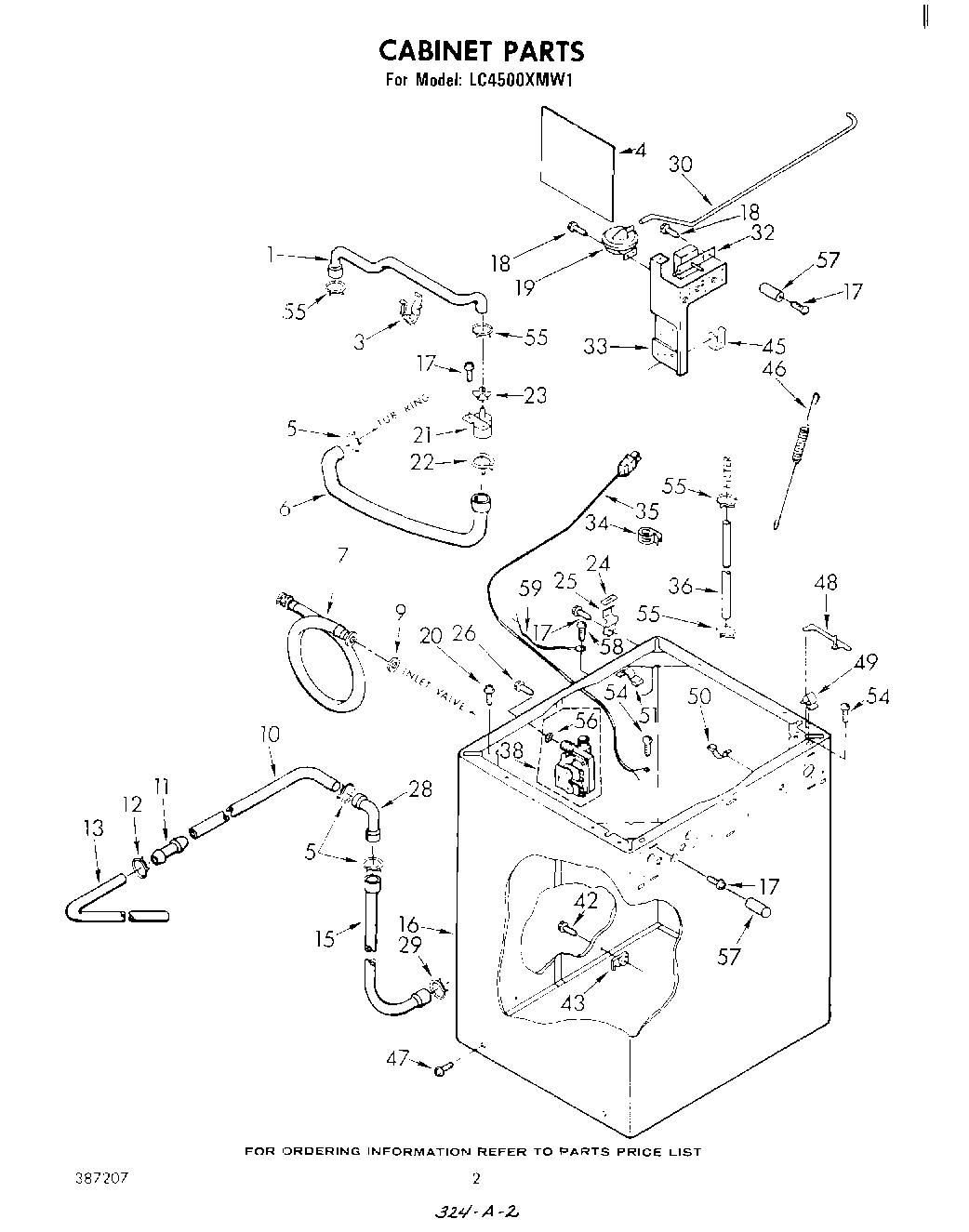

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Baseplate & Centerpost WPL 359179 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Harness, Upper WPL 380781 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350508 Contact Us For Availability

2

Screw & Washer, Tub (5/16-24 x 3/4) (3) WPL 370571 Contact Us For Availability

3

356746 Whirlpool Clip Backorder WPL 356746 $10.76

3

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

3

Gasket, Tub (3) WPL 17235 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354253 Contact Us For Availability

3

Agitator WPL 367200 Contact Us For Availability

4

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

4

Strap, Ground WPL 22965 Contact Us For Availability

4

Spring, Idler Arm WPL 356137 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

4

Spring, Basket Drive (Gray Black) (4) WPL 356152 Contact Us For Availability

4

Shield, Tub Ring WPL 387167 Contact Us For Availability

5

Terminal (Use W/352089) WPL 352088 Contact Us For Availability

5

Idler Arm & Shaft WPL 366856 Contact Us For Availability

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Pulley, Pump WPL 356926 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Tub Ring (Includes Illus. 22 & 23) WPL 387170 Contact Us For Availability

6

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

6

Pulley, Idler WPL 366855 Contact Us For Availability

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Lever, Valve WPL 355538 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 356396 Contact Us For Availability

6

Filter WPL 384477 Contact Us For Availability

7

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

7

Washer, Thrust WPL 356133 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Rod, Connecting WPL 96264 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Clip, Tub Ring (5) WPL 356141 Contact Us For Availability

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

8

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

8

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

8

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

8

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

8

Golden Harvest WPL 261890 Contact Us For Availability

8

Leveler (Thinner) WPL 350941 Contact Us For Availability

8

Installation Instructions WPL 369728 Contact Us For Availability

8

Guide, Use & Care WPL 385034 Contact Us For Availability

8

Guide, Laundry WPL 385238 Contact Us For Availability

8

Label, Energy Guide WPL 386155 Contact Us For Availability

8

List, Repair Parts WPL 387207 Contact Us For Availability

8

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

8

Ring, Retainer WPL 356087 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Clip, Harness WPL 356327 Contact Us For Availability

8

Bearing Block Assembly WPL 383750 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Gasket, Tub Ring WPL 356380 Contact Us For Availability

9

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

9

Ring, Retainer WPL 356088 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Harness, Lower WPL 358099 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357716 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

Magnet WPL 365998 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Cap, Terminal WPL 94612 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 356405 Contact Us For Availability

Locknut WPL 356995 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

Screw, Taper End WPL 16135 Contact Us For Availability

Lid (White) WPL 385576 Contact Us For Availability

Lid (Almond) WPL 385577 Contact Us For Availability

Lid (Golden Harvest) WPL 385580 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

Block, Basket Drive WPL 357836 Contact Us For Availability

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Guide, Cam Bar WPL 95462 Contact Us For Availability

Basket Assembly WPL 359174 Contact Us For Availability

13

Cam, Bar Spin WPL 354838 Contact Us For Availability

13

Gear, Sector WPL 75073 Contact Us For Availability

13

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

Belt, ``V`` (Alternate) WPL 356402 Contact Us For Availability

Belt, ``V`` (Alt.) WPL 356403 Contact Us For Availability

Belt, ``V`` WPL 660373 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Pulley, Basket Drive WPL 366948 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP384693 Whirlpool Top Backorder WPL WP384693 $149.36

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Top (Almond Model) WPL 384210 Contact Us For Availability

Top (Golden Harvest) WPL 384213 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Spring, Brake WPL 94726 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (5) WPL 356599 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

Seal WPL 351830 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Plunger WPL 84866 Contact Us For Availability

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Timer, 60 Hz. (Mallory) WPL 385358 Contact Us For Availability

Funnel, Drain WPL 356201 Contact Us For Availability

19

Rivet WPL 354959 Contact Us For Availability

19

Set Screw, 5/16-18 x 13/16 WPL 358931 Contact Us For Availability

19

Manifold, Tub Outlet WPL 357160 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Motor, Timer WPL 365941 Contact Us For Availability

Retainer, Oil WPL 354319 Contact Us For Availability

Tub WPL 367162 Contact Us For Availability

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $3.70

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

356398 Whirlpool Tube Backorder WPL 356398 $28.80

80011 Whirlpool Washer Lid Bumper Kit of 2 Backorder WPL 80011 $2.73

Support, Spin Tube WPL 358586 Contact Us For Availability

Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

Rod, Connecting WPL 76577 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

25

Washer, Retainer WPL 95083 Contact Us For Availability

26

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

26

Gear, Main Drive WPL 359273 Contact Us For Availability

26

Panel, Control WPL 375543 Contact Us For Availability

27

WP385728 Whirlpool Bushing Backorder WPL WP385728 $2.51

27

Washer, Thrust WPL 363362 Contact Us For Availability

27

Rivet, Plastic (2) WPL 694024 Contact Us For Availability

28

Screw & Washer (3) WPL 356154 Contact Us For Availability

28

Gearcase WPL 362906 Contact Us For Availability

28

Dial, Timer WPL 385526 Contact Us For Availability

29

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

29

Baseplate, Lower WPL 359322 Contact Us For Availability

29

Bolt, 5/16-24 x 1-1/8 (1) WPL 356512 Contact Us For Availability

Bearing, Upper WPL 356993 Contact Us For Availability

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Knob, Timer WPL 356500 Contact Us For Availability

Manifold Repair Kit (This Kit Eliminates The WPL 285150 Contact Us For Availability

31

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

31

Pinion, Drive WPL 84467 Contact Us For Availability

31

Shield, Timer WPL 357901 Contact Us For Availability

32

Bumper, Lid Hinge (1) WPL 19119 Contact Us For Availability

32

Bearing, Lower WPL 354195 Contact Us For Availability

32

Washer, Drive Pinion WPL 16024 Contact Us For Availability

33

Pulley, Motor WPL 356939 Contact Us For Availability

33

Ring, Retainer WPL 90094 Contact Us For Availability

34

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

34

Lockwasher (2) WPL 138485 Contact Us For Availability

Motor, 60 Hz. (Alt.) (Emerson) WPL 358589 Contact Us For Availability

Motor, 60 Hz. (Alt.) (General Electric) WPL 362857 Contact Us For Availability

Motor, 60 Hz. WPL 660303 Contact Us For Availability

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

36

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

36

Bracket, Hose WPL 357172 Contact Us For Availability

38

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

39

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $29.43

39

Spring, Agitator Plunger WPL 358354 Contact Us For Availability

40

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

40

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

41

Ball WPL 358585 Contact Us For Availability

42

Pulley, Main Drive WPL 356155 Contact Us For Availability

44

Nut, Motor Mounting (4) WPL 98023 Contact Us For Availability

45

Sleeve, Cabinet Support (2) WPL 356638 Contact Us For Availability

45

Switch Actuator Assembly WPL 357347 Contact Us For Availability

46

Grommet, Motor (4) WPL 356322 Contact Us For Availability

47

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

47

Screw And Washer WPL 354764 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Pad, Top (R.H.) WPL 356917 Contact Us For Availability

Switch, Motor Start ((Use W/General Electric WPL 359642 Contact Us For Availability

Switch, Motor Star WPL 362738 Contact Us For Availability

49

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

49

Lock, Front Top WPL 356422 Contact Us For Availability

49

WPL 425583 WPL 425583 Contact Us For Availability

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

WPL 367011 WPL 367011 Contact Us For Availability

WPL 367012 WPL 367012 Contact Us For Availability

WPL 367013 WPL 367013 Contact Us For Availability

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

51

Clip, Harness WPL 356387 Contact Us For Availability

51

WPL 359304 WPL 359304 Contact Us For Availability

51

Wire, Ground WPL 368715 Contact Us For Availability

52

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

52

Washer WPL 90918 Contact Us For Availability

53

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

53

WPL 285136 WPL 285136 Contact Us For Availability

54

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

54

WPL 357622 WPL 357622 Contact Us For Availability

55

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

55

WPL 357623 WPL 357623 Contact Us For Availability

55

Control Knob Assembly WPL 370269 Contact Us For Availability

56

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

56

Clip WPL 90015 Contact Us For Availability

57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

58

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

59

Wire, Ground WPL 364089 Contact Us For Availability

59

Spring, Lid (Includes Illus. 61) (L.H.) WPL 384460 Contact Us For Availability

59

Spring, Lid (Includes Illus. 61) (R.H.) WPL 384461 Contact Us For Availability

60

384459 Whirlpool Hinge Backorder WPL 384459 $29.43

61

Plug, Button WPL 54690 Contact Us For Availability

64

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

66

Clip, Push-On WPL 356288 Contact Us For Availability
