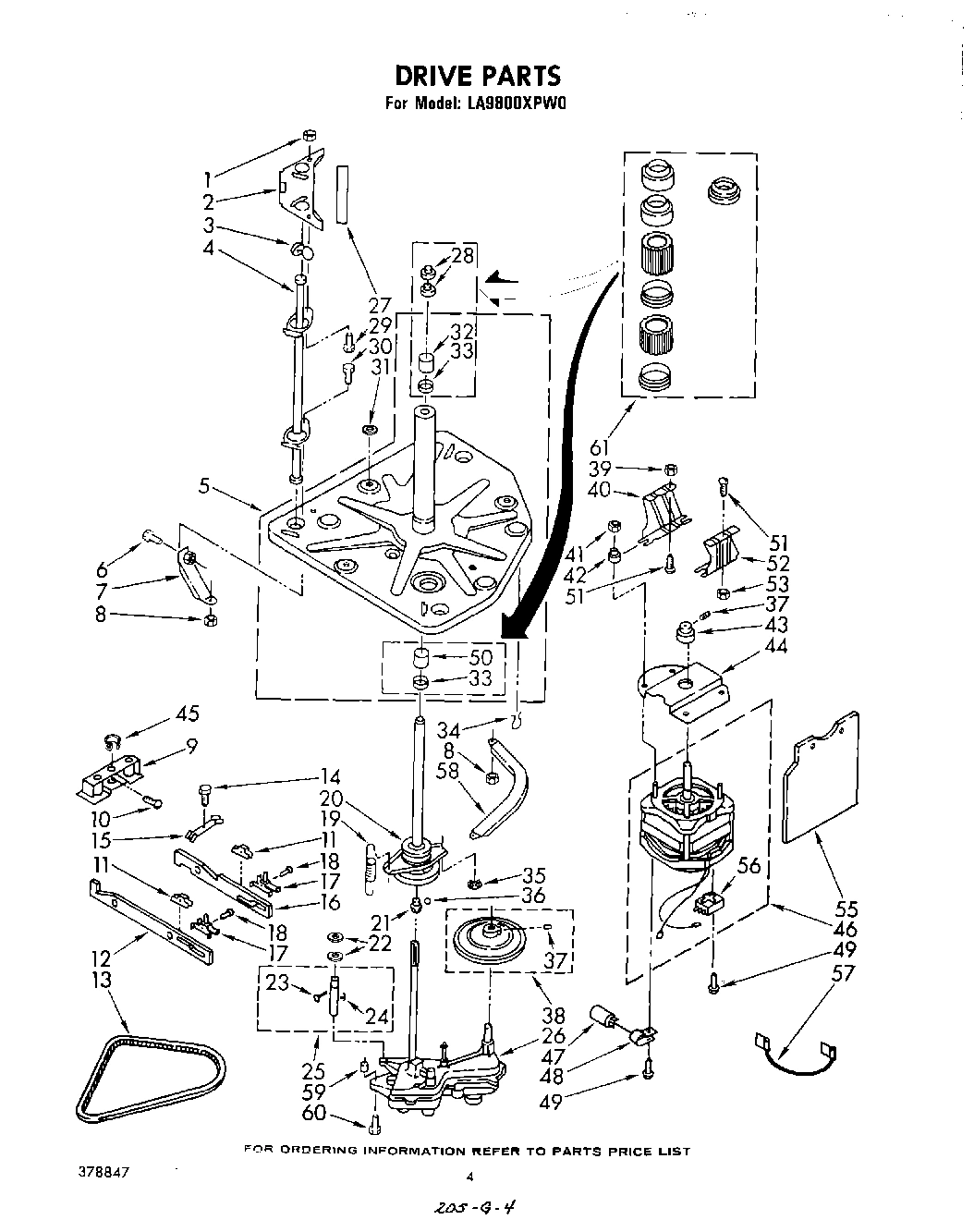

Model Whirlpool LA9800XPW0 AUTOMATIC WASHER – Common Parts & Diagrams

1
Miscellaneous Parts Bag
Miscellaneous Parts Bag WPL 375976 Contact Us For Availability
View on Model
2
Cover, Gearcase
Cover, Gearcase WPL 367552 Contact Us For Availability
View on Model
2
Rack, Literature
Rack, Literature WPL 63020 Contact Us For Availability
View on Model
2
Cover, Rear Gusset (2)
Cover, Rear Gusset (2) WPL 352143 Contact Us For Availability
View on Model
2
Cover, Left Front Gusset
Cover, Left Front Gusset WPL 353230 Contact Us For Availability
View on Model
3
Gasket, Gearcase
Gasket, Gearcase WPL 95089 Contact Us For Availability
View on Model
3
Panel, Rear Console
Panel, Rear Console WPL 386367 Contact Us For Availability
View on Model
3
Ball, Suspension (6)
Ball, Suspension (6) WPL 91073 Contact Us For Availability
View on Model
4
Shaft, Agitator
Shaft, Agitator WPL 362642 Contact Us For Availability
View on Model
4
Rod, Suspension (3)
Rod, Suspension (3) WPL 359678 Contact Us For Availability
View on Model
5
Cord, Power
Cord, Power WPL 92667 Contact Us For Availability
View on Model
5
Ring, Retainer
Ring, Retainer WPL 352430 Contact Us For Availability
View on Model
5
Transformer, Power
Transformer, Power WPL 60814 Contact Us For Availability
View on Model
5
Strap, Ground
Strap, Ground WPL 22965 Contact Us For Availability
View on Model
5
Baseplate & Centerpost
Baseplate & Centerpost WPL 359721 Contact Us For Availability
View on Model
6
Seal, Agitator Shaft
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
View on Model
6
Barrier, Harness
Barrier, Harness WPL 359525 Contact Us For Availability
View on Model
7
Shield, Agitator Spring
Shield, Agitator Spring WPL 94276 Contact Us For Availability
View on Model
7
Screw, Ground (10-24 x 1)
Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability
View on Model
7
Brace, Baseplate
Brace, Baseplate WPL 353301 Contact Us For Availability
View on Model
8
Hinge, R.H.
Hinge, R.H. WPL 18775 Contact Us For Availability
View on Model
8
Hinge, L.H.
Hinge, L.H. WPL 92657 Contact Us For Availability
View on Model
8
Spring, Agitator Shaft
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
View on Model
8
Panel, Console
Panel, Console WPL 386796 Contact Us For Availability
View on Model
8
Nut, 5/16-24
Nut, 5/16-24 WPL 96101 Contact Us For Availability
View on Model
9
Gear, Agitator Shaft
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
View on Model
9
Magnet
Magnet WPL 359997 Contact Us For Availability
View on Model
10

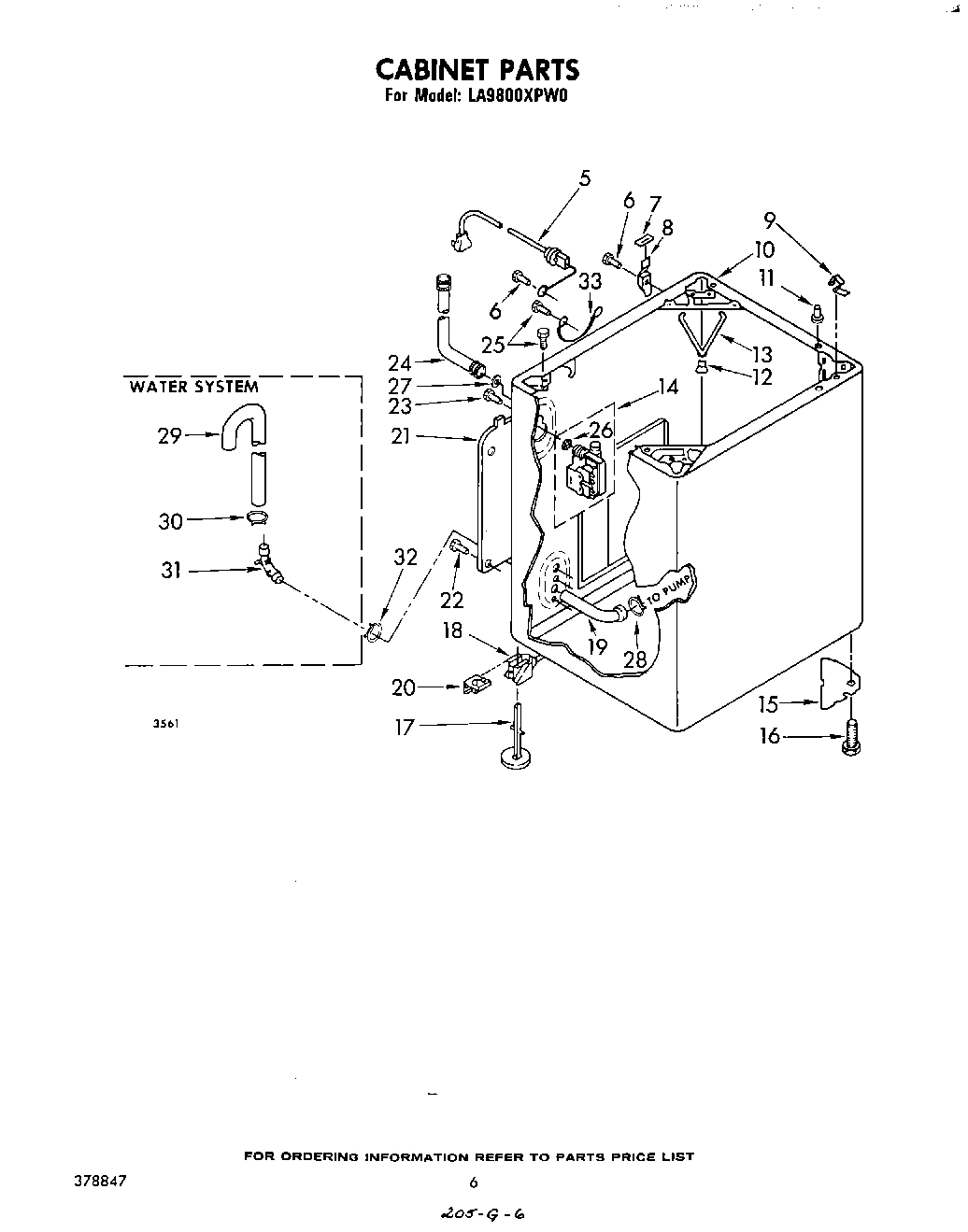

Cabinet (White)
Cabinet (White) WPL 384793 Contact Us For Availability
View on Model
10
Cabinet (Almond)
Cabinet (Almond) WPL 384794 Contact Us For Availability
View on Model
10
Cabinet (Golden Harvest)
Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability
View on Model
10
Cabinet (Toast)
Cabinet (Toast) WPL 386477 Contact Us For Availability
View on Model
10
Cabinet (Platinum)
Cabinet (Platinum) WPL 386478 Contact Us For Availability
View on Model
10
Shaft, Agitator
Shaft, Agitator WPL 362098 Contact Us For Availability
View on Model
10
Screw, 13-16 x 5/8
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
View on Model
10
Screw, Taper End
Screw, Taper End WPL 16135 Contact Us For Availability
View on Model
11
Locator, Top
Locator, Top WPL 98669 Contact Us For Availability
View on Model
11
Cap, End. (R.H.)
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
View on Model
11
Golden Harvest
Golden Harvest WPL 261890 Contact Us For Availability
View on Model
11
Toast
Toast WPL 285365 Contact Us For Availability
View on Model
11
Paint, Spray (13 Oz.) (Platinum)
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
View on Model
11
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
11
Sheet, Tech (Service Information)
Sheet, Tech (Service Information) WPL 377903 Contact Us For Availability
View on Model
11
List, Repair Parts
List, Repair Parts WPL 378847 Contact Us For Availability
View on Model
11
Sheet, Installation Instructions
Sheet, Installation Instructions WPL 383981 Contact Us For Availability
View on Model
11
Guide, Use & Care
Guide, Use & Care WPL 385045 Contact Us For Availability
View on Model
11
Guide, Laundry
Guide, Laundry WPL 385238 Contact Us For Availability
View on Model
11
Label, Energy Guide
Label, Energy Guide WPL 386193 Contact Us For Availability
View on Model
11
Paint, (Touch-Up 1/2 Oz.) (Toast)
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
View on Model
11
Thinner (1 Gal.)
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
View on Model
11
Guide, Cam Bar
Guide, Cam Bar WPL 95462 Contact Us For Availability
View on Model
12
Snubber
Snubber WPL 358336 Contact Us For Availability
View on Model
12
Screw, 8-18
Screw, 8-18 WPL 64211 Contact Us For Availability
View on Model
12
Cam, Bar Spin
Cam, Bar Spin WPL 354838 Contact Us For Availability
View on Model
13
Washer, Thrust (2)
Washer, Thrust (2) WPL 353320 Contact Us For Availability
View on Model
13
Spring, Snubber
Spring, Snubber WPL 357977 Contact Us For Availability
View on Model
13
Gear, Sector
Gear, Sector WPL 75073 Contact Us For Availability
View on Model
13
Wire, Ground
Wire, Ground WPL 357535 Contact Us For Availability
View on Model
14
Valve, Mixing (Alt.)
Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability
View on Model
14
Pulley, Basket Drive
Pulley, Basket Drive WPL 359697 Contact Us For Availability
View on Model
14
Valve, Mixing (Alt.) (Serviced Only As Comple
Valve, Mixing (Alt.) (Serviced Only As Comple WPL 358971 Contact Us For Availability
View on Model
14
Valve, Mixing
Valve, Mixing WPL 660749 Contact Us For Availability
View on Model
14
Ring, Retainer
Ring, Retainer WPL 52083 Contact Us For Availability
View on Model
14
Screw, 1/4-28 x 1/2
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
View on Model
15
Spring, Brake
Spring, Brake WPL 94726 Contact Us For Availability
View on Model
15
Bearing, Drive Pulley
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
View on Model
15
Plate, Gusset (2)
Plate, Gusset (2) WPL 356459 Contact Us For Availability
View on Model
15
Pin, Dowel
Pin, Dowel WPL 5018 Contact Us For Availability
View on Model
16
Bolt, 5/16-24 x 3/4 (4)
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
View on Model
16
Cam, Agitator & Pump
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
View on Model
17
Drive Tube & Bearing, Basket
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
View on Model
17
Bearing, Gear Fork
Bearing, Gear Fork WPL 96853 Contact Us For Availability
View on Model
17
Bracket, Control
Bracket, Control WPL 386840 Contact Us For Availability
View on Model
17
Plunger
Plunger WPL 84866 Contact Us For Availability
View on Model
18
Link, Leveling
Link, Leveling WPL 359059 Contact Us For Availability
View on Model
18
Support, Brake Shoe Yoke
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
View on Model
18
Trim, Frame
Trim, Frame WPL 359787 Contact Us For Availability
View on Model
18
Rivet
Rivet WPL 354959 Contact Us For Availability
View on Model
19
Set Screw, 5/16-18X 13/16
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
View on Model
19
Hose, Pump to Cabinet
Hose, Pump to Cabinet WPL 358560 Contact Us For Availability
View on Model
19
Spring, Gear Fork Shaft
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
View on Model
19
Module, Touch
Module, Touch WPL 385220 Contact Us For Availability
View on Model
19
Spring, Brake Yoke
Spring, Brake Yoke WPL 17261 Contact Us For Availability
View on Model
20
Spacer, Agitator Shaft
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
View on Model
20
Fork, Agitator Gear
Fork, Agitator Gear WPL 80398 Contact Us For Availability
View on Model
20
Display Assembly
Display Assembly WPL 61130 Contact Us For Availability
View on Model
20

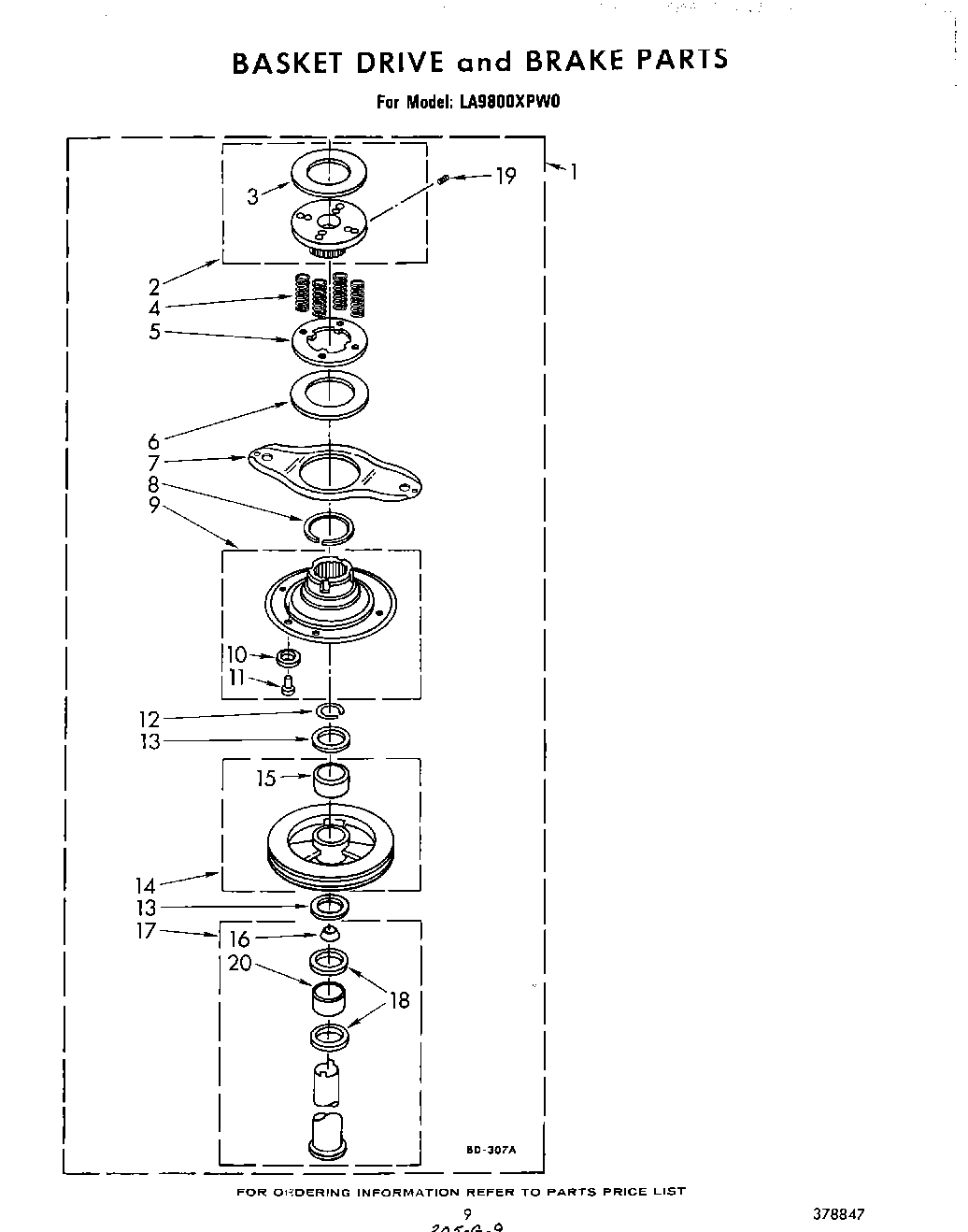

Basket Drive & Brake (For Further Breakdown R
Basket Drive & Brake (For Further Breakdown R WPL 359699 Contact Us For Availability
View on Model
21
Panel, Rear
Panel, Rear WPL 85279 Contact Us For Availability
View on Model
21
Microcomputer Assembly
Microcomputer Assembly WPL 61266 Contact Us For Availability
View on Model
21
Support, Spin Tube
Support, Spin Tube WPL 358586 Contact Us For Availability
View on Model
23
Pin, Roll
Pin, Roll WPL 90532 Contact Us For Availability
View on Model
23
Rod, Connecting
Rod, Connecting WPL 76577 Contact Us For Availability
View on Model
23
Screw & Washer
Screw & Washer WPL 354975 Contact Us For Availability
View on Model
24
Roller, Basket Clutch Shaft
Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability
View on Model
24
Ring, Retaining
Ring, Retaining WPL 95082 Contact Us For Availability
View on Model
24
Clip, End Cap (1)
Clip, End Cap (1) WPL 98084 Contact Us For Availability
View on Model
25
Washer, Retainer
Washer, Retainer WPL 95083 Contact Us For Availability
View on Model
25
Shaft, Basket Clutch
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
View on Model
26

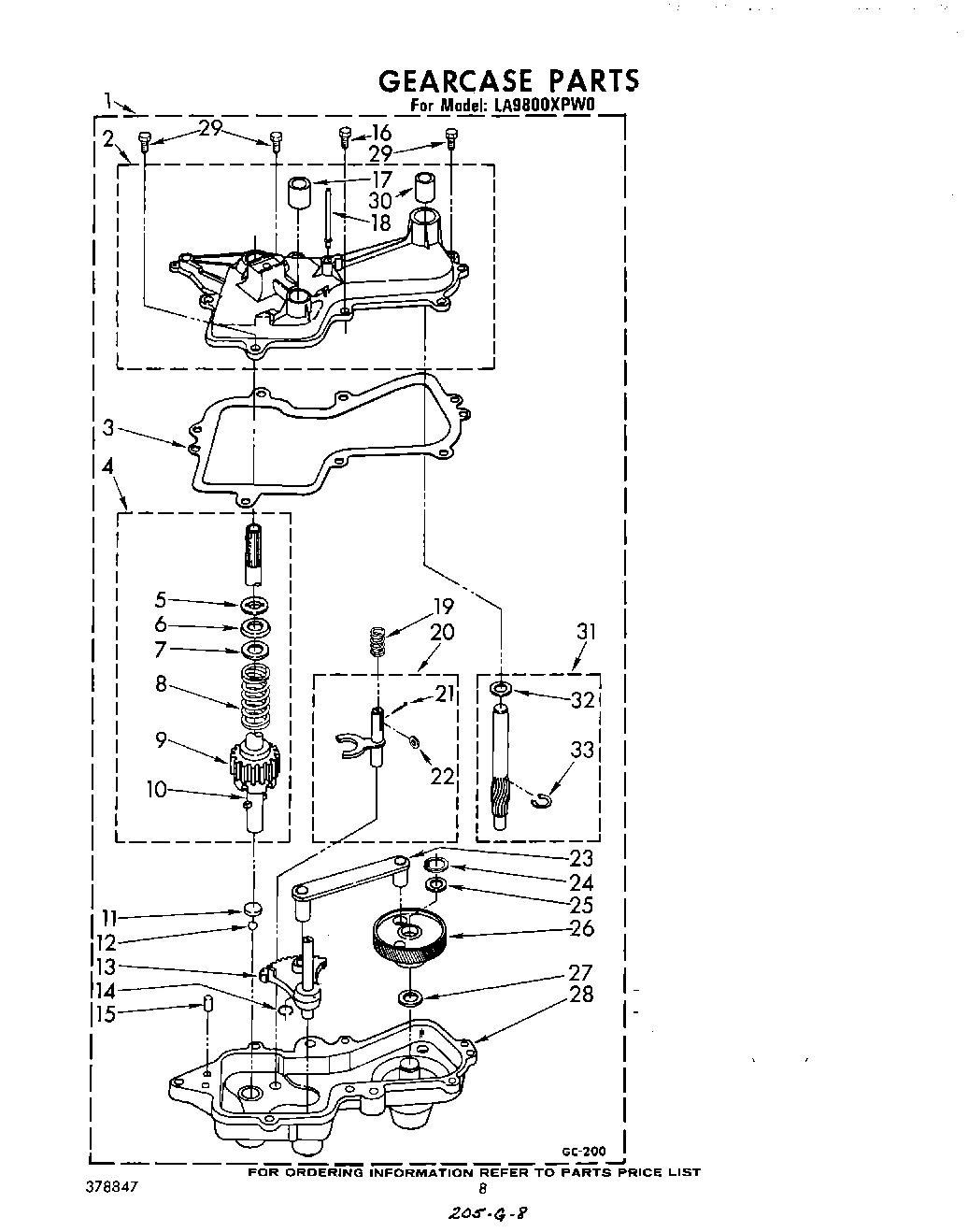

Gearcase For Further Breakdown Refer To Page
Gearcase For Further Breakdown Refer To Page WPL 358483 Contact Us For Availability
View on Model
26
Gear, Main Drive
Gear, Main Drive WPL 353397 Contact Us For Availability
View on Model
27
Washer, Thrust
Washer, Thrust WPL 363362 Contact Us For Availability
View on Model
27
Pad, Gusset Cover (6)
Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability
View on Model
28
Seal
Seal WPL 351830 Contact Us For Availability
View on Model
28
Gearcase
Gearcase WPL 362906 Contact Us For Availability
View on Model
29
Bolt, 5/16-24 x 1-1/8 (3)
Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability
View on Model
29
Bumper, Lid Hinge
Bumper, Lid Hinge WPL 91605 Contact Us For Availability
View on Model
29
Bolt, 5/16 x 5/8 (2)
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
View on Model
29
Bolt, 5/16 x 1 (3)
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
View on Model
29
Bolt, Snubber (1)
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
View on Model
30
Bearing, Drive Pinion
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
View on Model
30
Spring, Lid
Spring, Lid WPL 92398 Contact Us For Availability
View on Model
30
Bolt, 5/16-24
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
View on Model
31
Connector, Hose
Connector, Hose WPL 95440 Contact Us For Availability
View on Model
31
Pinion, Drive
Pinion, Drive WPL 84467 Contact Us For Availability
View on Model
31
Hinge, Lid (L.H.)
Hinge, Lid (L.H.) WPL 91099 Contact Us For Availability
View on Model
31
Gasket, Tub (7)
Gasket, Tub (7) WPL 17235 Contact Us For Availability
View on Model
32
Actuator, Switch
Actuator, Switch WPL 370959 Contact Us For Availability
View on Model
32
Washer, Drive Pinion
Washer, Drive Pinion WPL 16024 Contact Us For Availability
View on Model
33
Wire, Ground
Wire, Ground WPL 364089 Contact Us For Availability
View on Model
33
Ring, Retainer
Ring, Retainer WPL 90094 Contact Us For Availability
View on Model
35
Top (White)
Top (White) WPL 386319 Contact Us For Availability
View on Model
35
Top (Almond)
Top (Almond) WPL 386320 Contact Us For Availability
View on Model
35
Top (Toast)
Top (Toast) WPL 386321 Contact Us For Availability
View on Model
35
Top (Platinum)
Top (Platinum) WPL 386322 Contact Us For Availability
View on Model
35
Top (Golden Harvest)
Top (Golden Harvest) WPL 386323 Contact Us For Availability
View on Model
35
Retainer, Brake Yoke
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
View on Model
36
Tray, Dispenser
Tray, Dispenser WPL 352827 Contact Us For Availability
View on Model
36
Ball
Ball WPL 358585 Contact Us For Availability
View on Model
37
Screw & Washer
Screw & Washer WPL 354764 Contact Us For Availability
View on Model
37
Setscrew, 5/16-18 x 1/2
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
View on Model
38
Nut, Push-In (2)
Nut, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
38
Hose, Dispenser
Hose, Dispenser WPL 352978 Contact Us For Availability
View on Model
38
Pulley, Main Drive
Pulley, Main Drive WPL 360840 Contact Us For Availability
View on Model
39
Strike, Lid Switch
Strike, Lid Switch WPL 357633 Contact Us For Availability
View on Model
40
Stop, Push-In Top
Stop, Push-In Top WPL 358472 Contact Us For Availability
View on Model
40
Bracket, Motor Mounting
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
View on Model
41
Handle, Lid (White)
Handle, Lid (White) WPL 379884 Contact Us For Availability
View on Model
41
Handle, Lid (Almond)
Handle, Lid (Almond) WPL 379885 Contact Us For Availability
View on Model
41
Handle, Lid (Golden Harvest)
Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability
View on Model
41
Handle, Lid (Toast)
Handle, Lid (Toast) WPL 379890 Contact Us For Availability
View on Model
41
Handle, Lid (Platinum)
Handle, Lid (Platinum) WPL 379891 Contact Us For Availability
View on Model
41
Nut (4)
Nut (4) WPL 98023 Contact Us For Availability
View on Model
42
Grommet, Motor Bracket (4)
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
View on Model
42
Screw (11)
Screw (11) WPL 690756 Contact Us For Availability
View on Model
43
Bezel, Dispenser
Bezel, Dispenser WPL 352821 Contact Us For Availability
View on Model
43
Pulley, Motor
Pulley, Motor WPL 92216 Contact Us For Availability
View on Model
44
Screw, 6-20 X 1/2
Screw, 6-20 X 1/2 WPL 339583 Contact Us For Availability
View on Model
44
Shield, Motor (Upper)
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
View on Model
45
Relay, Hi & Lo Motor (2)
Relay, Hi & Lo Motor (2) WPL 384674 Contact Us For Availability
View on Model
46
Motor (Emerson) 60 Hz.
Motor (Emerson) 60 Hz. WPL 386613 Contact Us For Availability
View on Model
47
Lever, Push To Start
Lever, Push To Start WPL 358564 Contact Us For Availability
View on Model
48
Pivot, Lever
Pivot, Lever WPL 358563 Contact Us For Availability
View on Model
49
Relay Push To Start
Relay Push To Start WPL 383731 Contact Us For Availability
View on Model
50
WPL  354195
WPL 354195 WPL 354195 Contact Us For Availability
View on Model
51
WPL  98537
WPL 98537 WPL 98537 Contact Us For Availability
View on Model
52
WPL  359774
WPL 359774 WPL 359774 Contact Us For Availability
View on Model
52
WPL  93549
WPL 93549 WPL 93549 Contact Us For Availability
View on Model
53
WPL  358559
WPL 358559 WPL 358559 Contact Us For Availability
View on Model
53
WPL  95721
WPL 95721 WPL 95721 Contact Us For Availability
View on Model
54
WPL  90015
WPL 90015 WPL 90015 Contact Us For Availability
View on Model
55
WPL  359068
WPL 359068 WPL 359068 Contact Us For Availability
View on Model
55
WPL  359719
WPL 359719 WPL 359719 Contact Us For Availability
View on Model
56
WPL  63789
WPL 63789 WPL 63789 Contact Us For Availability
View on Model
56
WPL  362738
WPL 362738 WPL 362738 Contact Us For Availability
View on Model
57
WPL  370950
WPL 370950 WPL 370950 Contact Us For Availability
View on Model
58
WPL  351499
WPL 351499 WPL 351499 Contact Us For Availability
View on Model
58
WPL  351500
WPL 351500 WPL 351500 Contact Us For Availability
View on Model
59
WPL  308569
WPL 308569 WPL 308569 Contact Us For Availability
View on Model
59
WPL  16062
WPL 16062 WPL 16062 Contact Us For Availability
View on Model
60
WPL  60279
WPL 60279 WPL 60279 Contact Us For Availability
View on Model
60
WPL  90877
WPL 90877 WPL 90877 Contact Us For Availability
View on Model
61
WPL  285134
WPL 285134 WPL 285134 Contact Us For Availability
View on Model
62
WPL  96894
WPL 96894 WPL 96894 Contact Us For Availability
View on Model
63
WPL  357695
WPL 357695 WPL 357695 Contact Us For Availability
View on Model
64
WPL  96895
WPL 96895 WPL 96895 Contact Us For Availability
View on Model
69
WPL  94697
WPL 94697 WPL 94697 Contact Us For Availability
View on Model
70
WPL  94696
WPL 94696 WPL 94696 Contact Us For Availability
View on Model
71
WPL  358516
WPL 358516 WPL 358516 Contact Us For Availability
View on Model
72
WPL  60862
WPL 60862 WPL 60862 Contact Us For Availability
View on Model
73
WPL  690367
WPL 690367 WPL 690367 Contact Us For Availability
View on Model
74
WPL  379949
WPL 379949 WPL 379949 Contact Us For Availability
View on Model
74
WPL  379950
WPL 379950 WPL 379950 Contact Us For Availability
View on Model
74
WPL  379953
WPL 379953 WPL 379953 Contact Us For Availability
View on Model
74
WPL  382800
WPL 382800 WPL 382800 Contact Us For Availability
View on Model
74
WPL  382801
WPL 382801 WPL 382801 Contact Us For Availability
View on Model
75
WPL  359267
WPL 359267 WPL 359267 Contact Us For Availability
View on Model
77
WPL  385222
WPL 385222 WPL 385222 Contact Us For Availability
View on Model
78
WPL  359299
WPL 359299 WPL 359299 Contact Us For Availability
View on Model
80
WPL  60816
WPL 60816 WPL 60816 Contact Us For Availability
View on Model
