Model Whirlpool LA7800XPW1 AUTOMATIC WASHER – Common Parts & Diagrams
07 - GEARCASE
05 - CABINET
09 - WATER SYSTEM

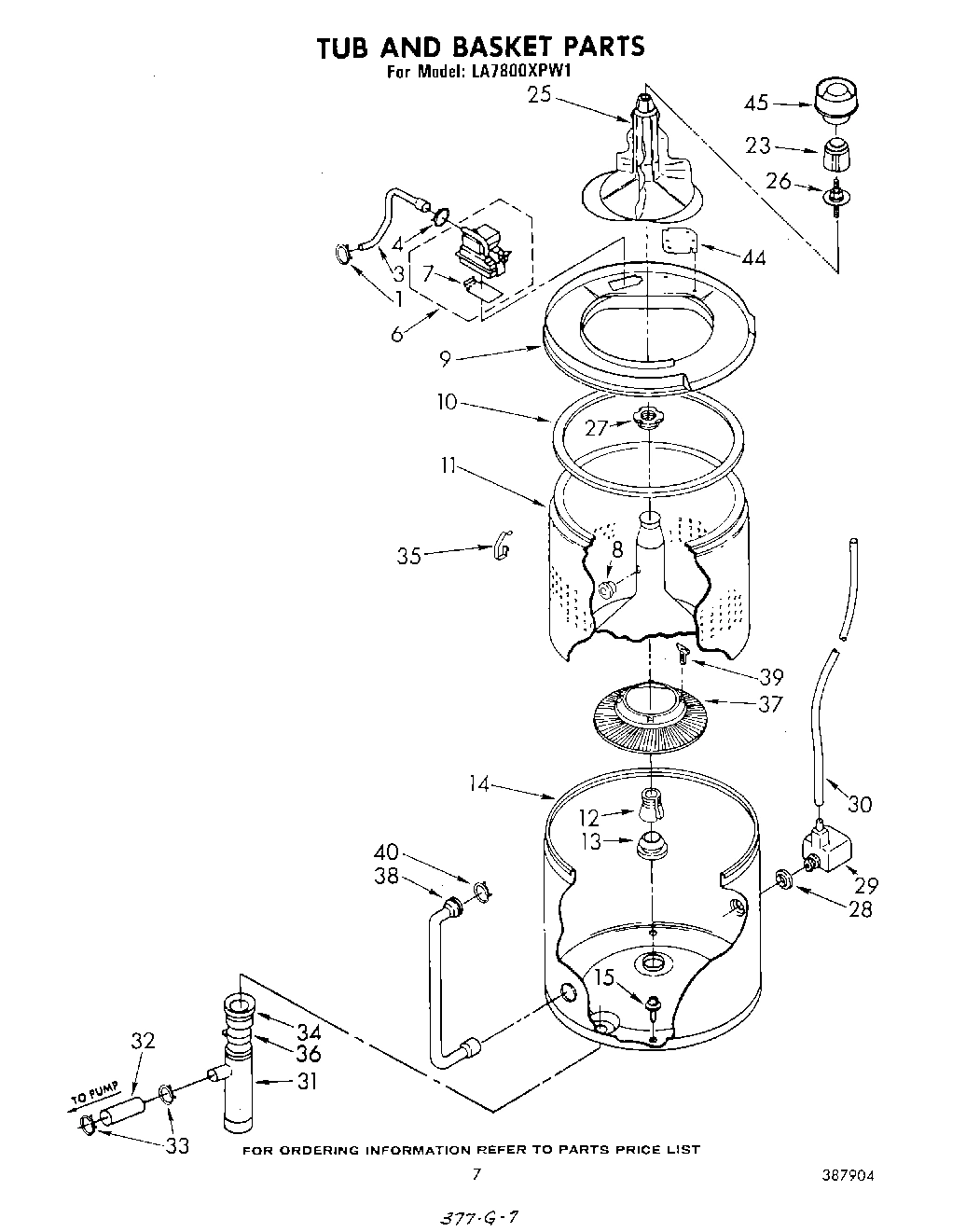

06 - TUB AND BASKET

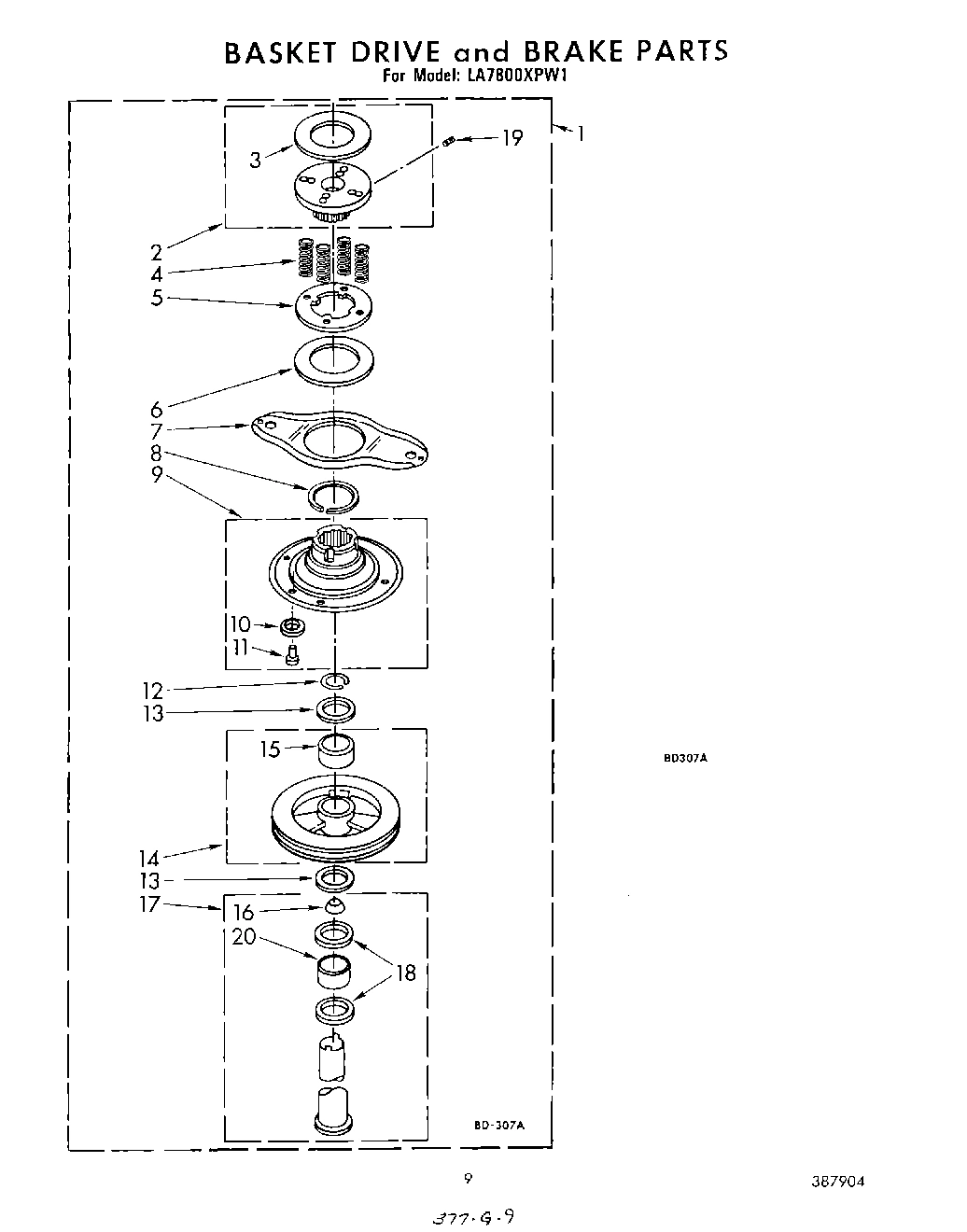

08 - BASKET DRIVE AND BRAKE

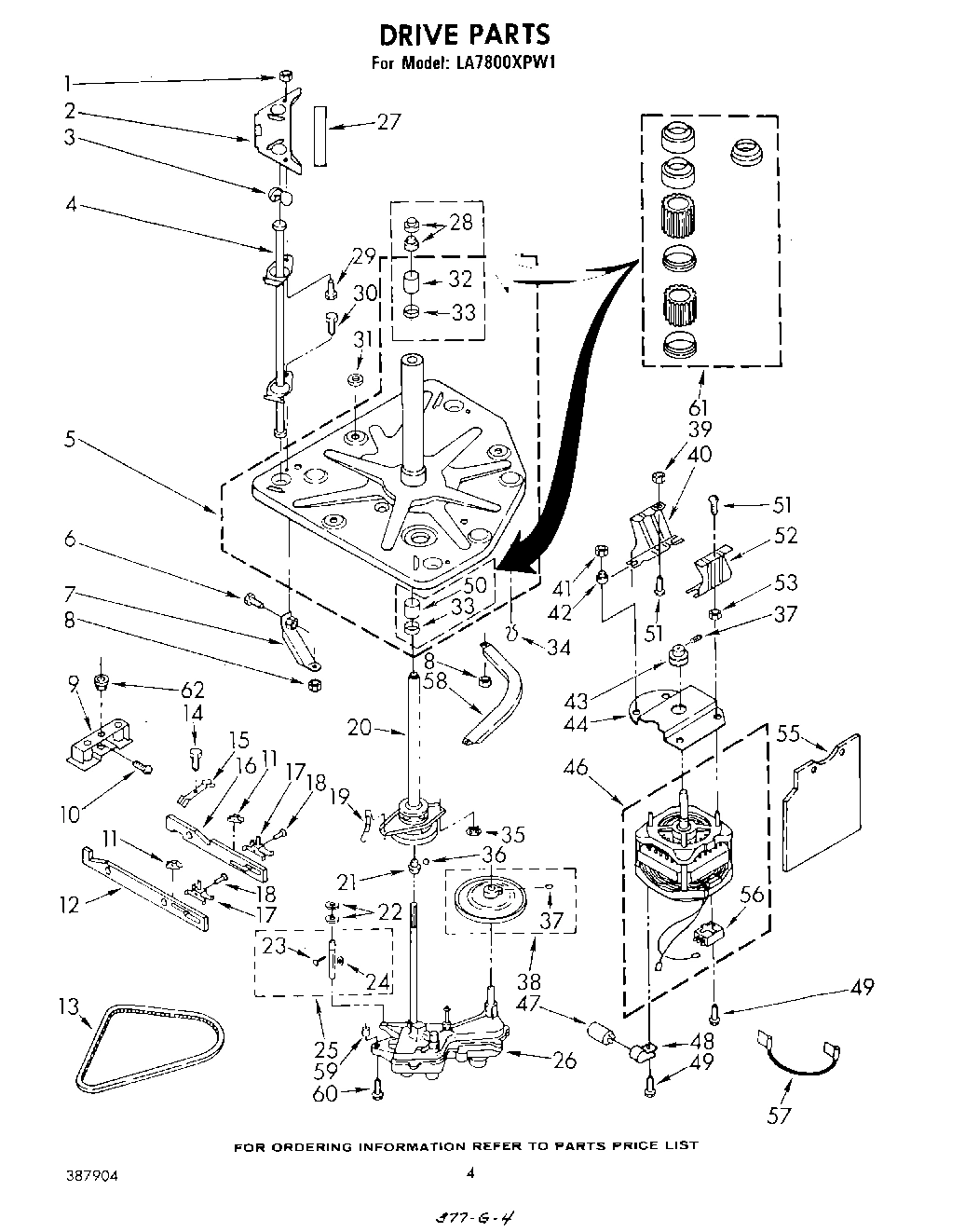

03 - DRIVE

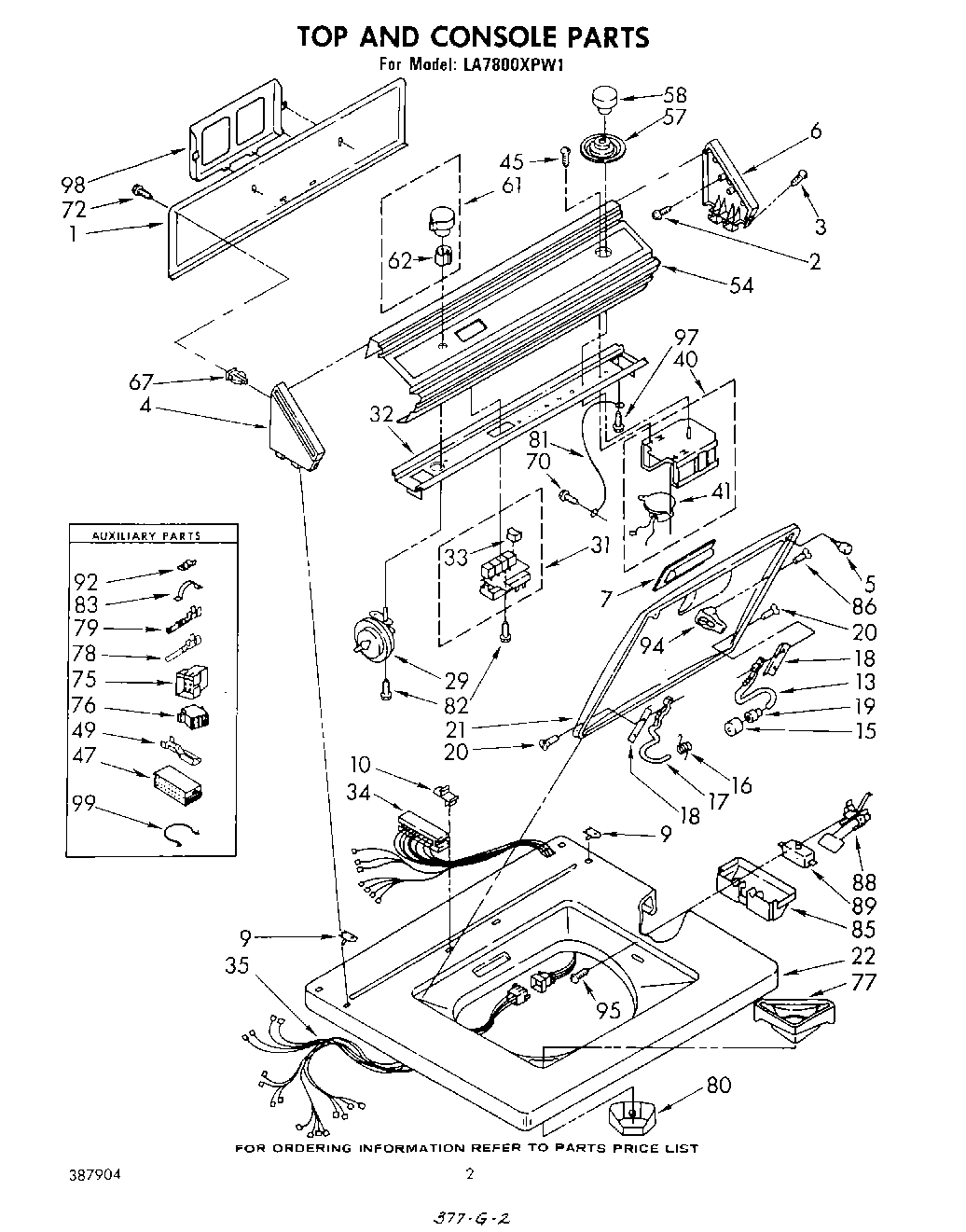

02 - TOP AND CONSOLE
04 - PUMP
10 - MISCELLANEOUS , LITERATURE AND OPTIONAL
Common parts from model Whirlpool LA7800XPW1 AUTOMATIC WASHER
WPL 299885 WPL 299885 Contact Us For Availability
Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability
Dryer WPL LIT677818 Contact Us For Availability
Compactor WPL LIT677821 Contact Us For Availability
Dishwasher WPL LIT677967 Contact Us For Availability
Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability
1
Panel, Rear WPL 386367 Contact Us For Availability
1
Pump Assembly WPL 383957 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 387200 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350522 Contact Us For Availability
2
Cover, Rear Gusset (2) WPL 352143 Contact Us For Availability
2
Cover, Front Gusset WPL 353230 Contact Us For Availability
2
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Hose, Water Inlet WPL 356349 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability
3
Ball, Suspension (6) WPL 91073 Contact Us For Availability
3
Screw WPL 64211 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
4
Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability
4
Rod, Suspension (3) WPL 359678 Contact Us For Availability
4
Cap, End (L.H.) WPL 63789 Contact Us For Availability
4
Spring, Toggle WPL 96266 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
5
Baseplate & Centerpost WPL 359721 Contact Us For Availability
5
Pulley WPL 359630 Contact Us For Availability
5
Strap, Ground WPL 22965 Contact Us For Availability
6
Inlet, Water WPL 366072 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability
6
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
6
Lever, Valve WPL 355538 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
7
Flapper WPL 355584 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
7
Brace, Baseplate WPL 353301 Contact Us For Availability
7
Handle, Lid (White) WPL 379884 Contact Us For Availability
7
Handle, Lid (Almond) WPL 379885 Contact Us For Availability
7
Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability
7
Handle, Lid (Toast) WPL 379890 Contact Us For Availability
7
Handle, Lid (Platinum) WPL 379891 Contact Us For Availability
7
Rod, Connecting WPL 96264 Contact Us For Availability
7
Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability
8
Stopper (2) WPL 21265 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
8
Nut, 5/16-24 WPL 96101 Contact Us For Availability
8
Bearing Block Assembly WPL 383750 Contact Us For Availability
9
Nut, Push-In (2) WPL 358473 Contact Us For Availability
9
Retainer, Wire WPL 357247 Contact Us For Availability
9
Ring, Tub (Includes Illus. 44) WPL 381971 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability
9
Magnet WPL 359997 Contact Us For Availability
9
Wick, Oil WPL 96265 Contact Us For Availability
10
Seal, Tub Ring WPL 383553 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability
10
Screw, Taper End WPL 16135 Contact Us For Availability
10
Stop, Push-In Top (1) WPL 358472 Contact Us For Availability
10
Golden Harvest WPL 261890 Contact Us For Availability
10
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
10
Toast WPL 285365 Contact Us For Availability
10
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
10
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
10
Platinum (Uncut) WPL 285368 Contact Us For Availability
10
Leveler (Thinner) WPL 350941 Contact Us For Availability
10
Guide, Use & Care WPL 385046 Contact Us For Availability
10
Guide, Laundry WPL 385238 Contact Us For Availability
10
Label, Energy Guide WPL 386194 Contact Us For Availability
10
List, Repair Parts WPL 387904 Contact Us For Availability
10
Sheet, Installation Instructions WPL 387930 Contact Us For Availability
10
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
10
Almond (Uncut) WPL 978883 Contact Us For Availability
11
Basket WPL 384025 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
11
Guide, Cam Bar WPL 95462 Contact Us For Availability
12
Cam, Bar Spin WPL 354838 Contact Us For Availability
13
Connector, Hose WPL 358805 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
14
Screw, Connector Mounting WPL 90876 Contact Us For Availability
14
Tub WPL 384076 Contact Us For Availability
14
Pulley, Basket Drive WPL 359697 Contact Us For Availability
14
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Clip WPL 351395 Contact Us For Availability
15
Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
15
Bumper WPL 91605 Contact Us For Availability
16
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
16
Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability
17
Hose, Pump to Cabinet WPL 358560 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
17
Plunger WPL 84866 Contact Us For Availability
17
Hinge, L.H. WPL 91099 Contact Us For Availability
18
Rivet WPL 354959 Contact Us For Availability
19
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
19
Spring, Brake Yoke WPL 17261 Contact Us For Availability
20
Basket Drive & Brake (For Further Breakdown R WPL 359699 Contact Us For Availability
20
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
21
Support, Spin Tube WPL 358586 Contact Us For Availability
21
Lid (White) WPL 382802 Contact Us For Availability
21
Lid (Almond) WPL 382803 Contact Us For Availability
21
Lid (Toast) WPL 382804 Contact Us For Availability
21
Lid (Platinum) WPL 382805 Contact Us For Availability
21
Lid (Golden Harvest) WPL 382806 Contact Us For Availability
22
Top (White) WPL 386319 Contact Us For Availability
22
Top (Almond) WPL 386320 Contact Us For Availability
22
Top (Toast) WPL 386321 Contact Us For Availability
22
Top (Platinum) WPL 386322 Contact Us For Availability
22
Top (Golden Harvest) WPL 386323 Contact Us For Availability
23
Cap, Agitator WPL 358431 Contact Us For Availability
23
Pin, Roll WPL 90532 Contact Us For Availability
24
Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability
25
Agitator Assembly WPL 383951 Contact Us For Availability
25
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
26
Stud and Seal Assembly WPL 358440 Contact Us For Availability
26
Gearcase For Further Breakdown Refer To Page WPL 358483 Contact Us For Availability
27
Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability
28
Seal WPL 351830 Contact Us For Availability
29
Air Dome Assembly WPL 360804 Contact Us For Availability
29
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
29
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
29
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
29
Switch, Water Level WPL 359711 Contact Us For Availability
30
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
31
Manifold WPL 84091 Contact Us For Availability
31
Gasket, Tub (7) WPL 17235 Contact Us For Availability
31
Switch, Water Temperature WPL 387066 Contact Us For Availability
32
Hose, Pump To Manifold WPL 92231 Contact Us For Availability
32
Bracket, Control WPL 386364 Contact Us For Availability
33
Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability
33
Pushbutton (5) WPL 386934 Contact Us For Availability
34
Hose, Tub Outlet WPL 93553 Contact Us For Availability
34
Harness, Console WPL 387264 Contact Us For Availability
35
Snubber WPL 358336 Contact Us For Availability
35
Clip, Tub Ring (4) WPL 359763 Contact Us For Availability
35
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
35
Harness, Base WPL 358116 Contact Us For Availability
36
Clip, Hose WPL 9421321 Contact Us For Availability
36
Ball WPL 358585 Contact Us For Availability
37
Filter, Element (Includes Illus. 39) WPL 383719 Contact Us For Availability
37
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
38
Hose, Dispenser WPL 352978 Contact Us For Availability
38
Pulley, Main Drive WPL 360840 Contact Us For Availability
39
Clip, Filter Element (4) WPL 383718 Contact Us For Availability
40
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
40
Timer Assembly, 60 Hz. WPL 386886 Contact Us For Availability
41
Nut (4) WPL 98023 Contact Us For Availability
41
Motor, Timer 60 Hz. WPL 365941 Contact Us For Availability
42
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
43
Pulley, Motor (60 Hz.) WPL 92216 Contact Us For Availability
44
Plate, Snubber WPL 355852 Contact Us For Availability
44
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
45
Dispenser, Rinse WPL 88932 Contact Us For Availability
46
Motor, 60 Hz. (Alt.) (Emerson) WPL 357822 Contact Us For Availability
46
Motor, 60 Hz. (Alt.) (General Electric) WPL 370653 Contact Us For Availability
46
Motor, 60 Hz. WPL 660604 Contact Us For Availability
47
Block, Disconnect (White) WPL 352090 Contact Us For Availability
49
Terminal, Female WPL 352088 Contact Us For Availability
50
WPL 354195 WPL 354195 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
54
Panel, Control WPL 63671 Contact Us For Availability
55
WPL 359719 WPL 359719 Contact Us For Availability
56
WPL 359642 WPL 359642 Contact Us For Availability
56
WPL 362738 WPL 362738 Contact Us For Availability
57
WPL 370950 WPL 370950 Contact Us For Availability
57
Dial, Timer WPL 387183 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
58
Knob, Timer WPL 386570 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
61
WPL 285134 WPL 285134 Contact Us For Availability
61
Knob Assembly, Water Level WPL 386631 Contact Us For Availability
75
Cap, Terminal (Console Harness) WPL 94612 Contact Us For Availability
76
Plug, Terminal (Cabinet Harness) WPL 94611 Contact Us For Availability
77
Bezel, Dispenser WPL 352821 Contact Us For Availability
80
Tray, Dispenser WPL 352827 Contact Us For Availability
86
WPL 354975 WPL 354975 Contact Us For Availability
88
WPL 370959 WPL 370959 Contact Us For Availability
94
WPL 357633 WPL 357633 Contact Us For Availability
95
WPL 354764 WPL 354764 Contact Us For Availability
98
WPL 63020 WPL 63020 Contact Us For Availability
99
WPL 387551 WPL 387551 Contact Us For Availability
× ![]()
