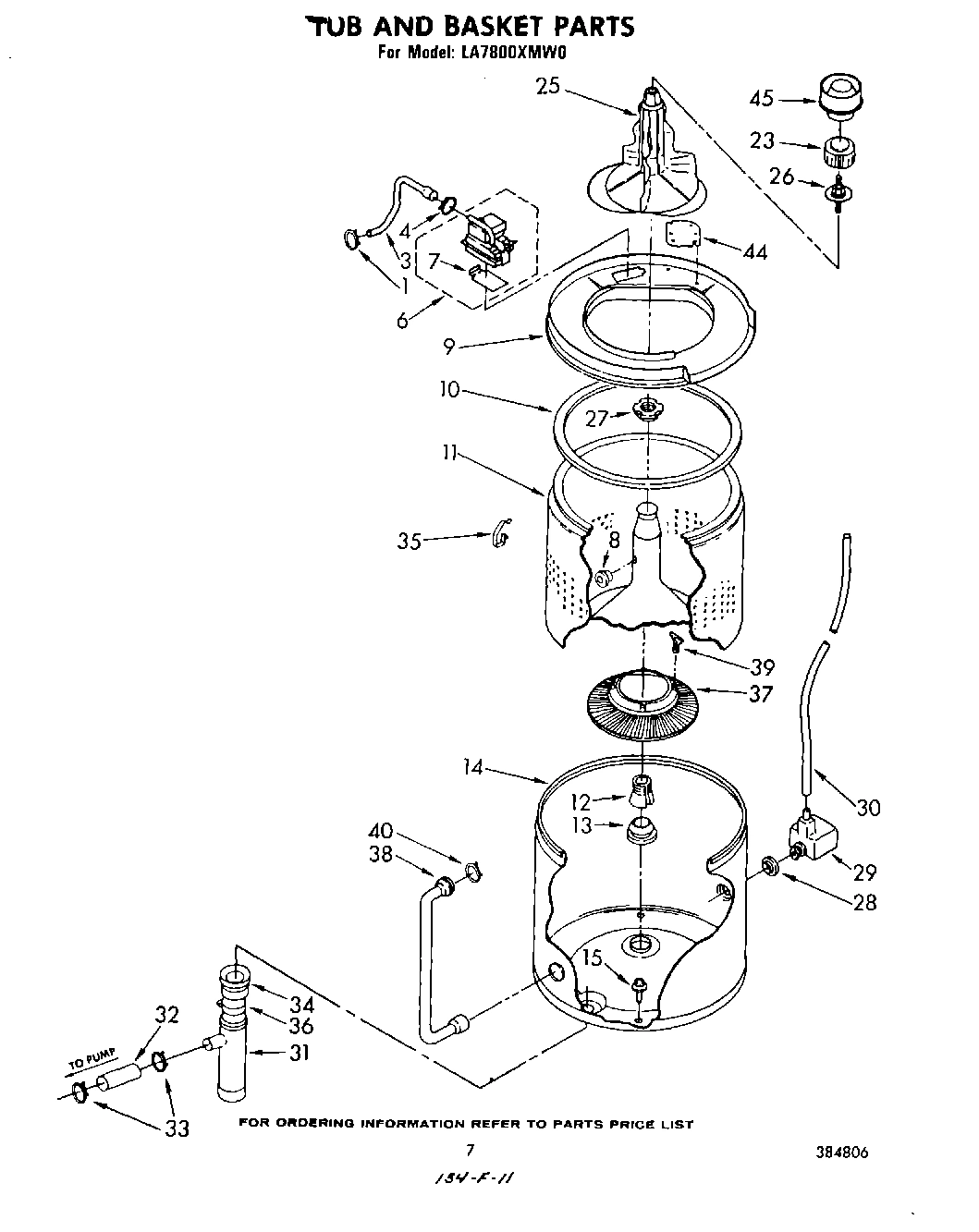

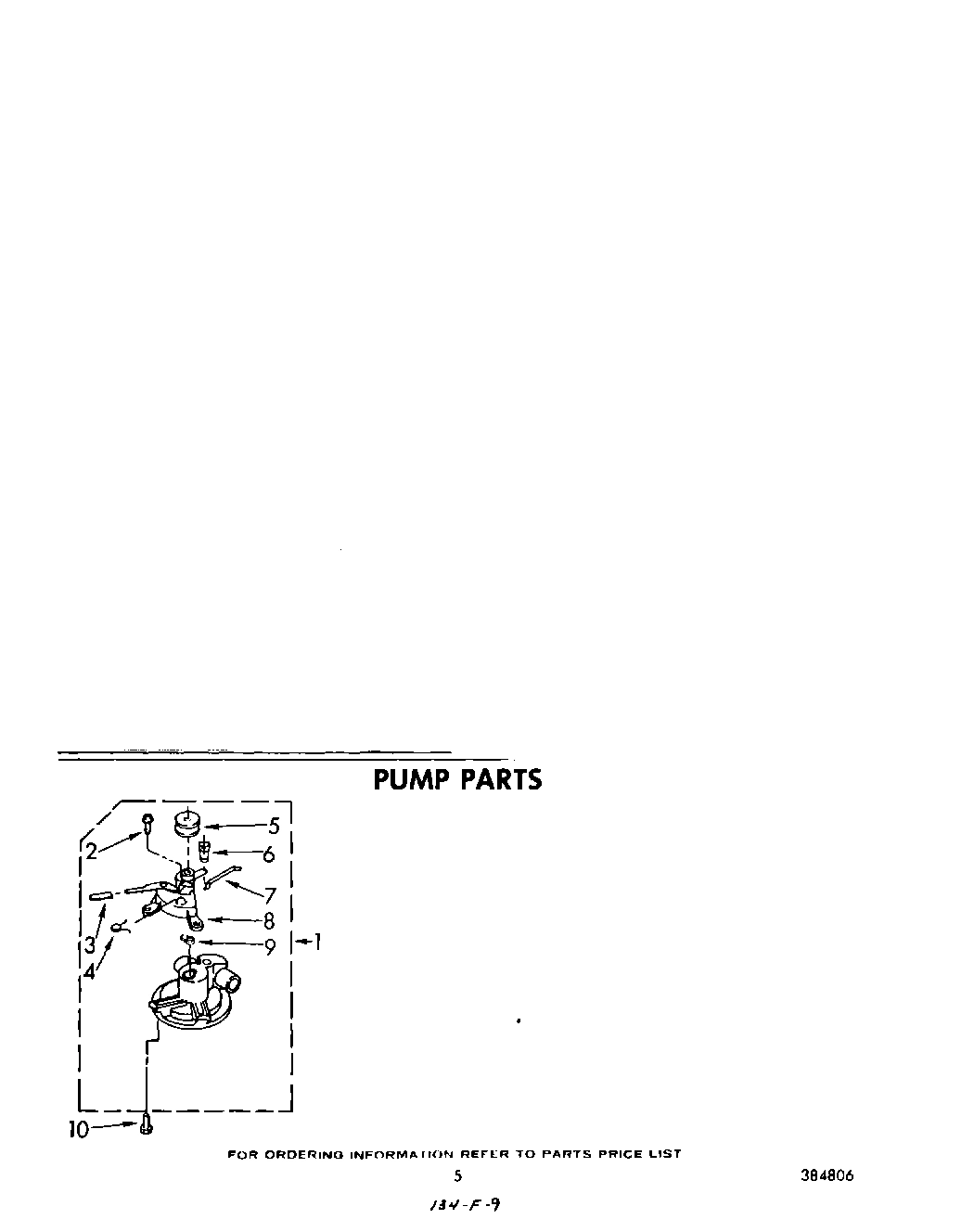

Model Whirlpool LA7800XMW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Miscellaneous Parts Bag WPL 375976 Contact Us For Availability

1

Wire, Ground WPL 364089 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Cover, Rear Gusset (2) WPL 352143 Contact Us For Availability

2

Cover, Front Gusset WPL 353230 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

4

Cap, End (L.H.) (New Avocado) WPL 377282 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

4

Cap, End (L.H.) (Toast) WPL 377284 Contact Us For Availability

4

Cap, End (L.H.) (Platinum Cap, End (R.H.)) WPL 377285 Contact Us For Availability

4

Cap, End L.H. (Toast) WPL 377286 Contact Us For Availability

4

Cap, End L.H. (Platinum) WPL 377287 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability

4

Rod, Suspension (3) WPL 359678 Contact Us For Availability

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Baseplate & Centerpost WPL 359721 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Coffee) WPL 379886 Contact Us For Availability

7

Handle, Lid (New Avocado) WPL 379887 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

7

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Stop, Push-In Top (1) WPL 358472 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado (Uncut) WPL 261889 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Sheet, Installation Instructions WPL 378953 Contact Us For Availability

Label, Energy Guide WPL 383373 Contact Us For Availability

List, Repair Parts WPL 384806 Contact Us For Availability

Guide, Use & Care WPL 385024 Contact Us For Availability

Guide, Laundry WPL 385238 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

12

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

12

Cam, Bar Spin WPL 354838 Contact Us For Availability

12

Panel, Rear WPL 85279 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Gear, Sector WPL 75073 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Ring, Retainer WPL 52083 Contact Us For Availability

Pulley, Basket Drive WPL 359697 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Bumper WPL 91605 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

Hinge, L.H. WPL 91099 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Basket Drive & Brake (For Further Breakdown R WPL 359699 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Lid (White) WPL 379969 Contact Us For Availability

Lid (Almond) WPL 379970 Contact Us For Availability

Lid (Coffee) WPL 379971 Contact Us For Availability

Lid (New Avocado) WPL 379972 Contact Us For Availability

Lid (Golden Harvest) WPL 379973 Contact Us For Availability

Lid (Toast) WPL 382798 Contact Us For Availability

Lid (Platinum) WPL 382799 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

Top (White) WPL 380283 Contact Us For Availability

Top (Almond) WPL 380284 Contact Us For Availability

Top (Coffee) WPL 380285 Contact Us For Availability

Top (New Avocado) WPL 380286 Contact Us For Availability

Top (Golden Harvest) WPL 380287 Contact Us For Availability

Top (Toast) WPL 386483 Contact Us For Availability

Top (Platinum) WPL 386484 Contact Us For Availability

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Rod, Connecting WPL 76577 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

Cabinet (White) WPL 384793 Contact Us For Availability

Cabinet (Almond) WPL 384794 Contact Us For Availability

Cabinet (Coffee) WPL 384795 Contact Us For Availability

Cabinet (New Avocado) WPL 384796 Contact Us For Availability

Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability

Cabinet (Toast) WPL 386477 Contact Us For Availability

Cabinet (Platinum) WPL 386478 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

26

Gearcase For Further Breakdown Refer To Page WPL 358483 Contact Us For Availability

26

Gear, Main Drive WPL 353397 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Washer, Thrust WPL 363362 Contact Us For Availability

27

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Seal WPL 351830 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

Leveling Link Assembly WPL 359059 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Switch, Water Level WPL 359711 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $9.13

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Switch, Water Temperature WPL 358475 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Bracket, Control WPL 359707 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

Pushbutton (5) WPL 301008 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

Valve, Mixing (Alt.) (Serviced Only As Comple WPL 358971 Contact Us For Availability

Valve, Mixing WPL 660749 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $11.62

34

Harness, Console WPL 359325 Contact Us For Availability

34

Spring, Snubber WPL 357977 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Ha WPL 358116 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Hose, Dispenser WPL 352978 Contact Us For Availability

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

WPL 362681 WPL 362681 Contact Us For Availability

WPL 365941 WPL 365941 Contact Us For Availability

WPL 385352 WPL 385352 Contact Us For Availability

WPL 385355 WPL 385355 Contact Us For Availability

WPL 660974 WPL 660974 Contact Us For Availability

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

Hose, Pump to Cabinet WPL 358560 Contact Us For Availability

41

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

WP96743 Whirlpool Hose Backorder WPL WP96743 $25.33

43

Pulley, Motor (60 Hz.) WPL 92216 Contact Us For Availability

44

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

45

Connector, Hose WPL 95440 Contact Us For Availability

46

Motor, 60 Hz. (Alt.) (Emerson) WPL 357822 Contact Us For Availability

46

Motor, 60 Hz. (Alt.) (General Electric) WPL 370653 Contact Us For Availability

46

Motor, 60 Hz. WPL 660604 Contact Us For Availability

47

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

47

WPL 352090 WPL 352090 Contact Us For Availability

48

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

49

WPL 352088 WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WPL 384774 WPL 384774 Contact Us For Availability

55

WPL 359719 WPL 359719 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 359254 WPL 359254 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

58

WPL 359206 WPL 359206 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

WPL 690301 WPL 690301 Contact Us For Availability

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

67

WPL 689559 WPL 689559 Contact Us For Availability

72

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

77

WPL 352821 WPL 352821 Contact Us For Availability

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

80

WPL 352827 WPL 352827 Contact Us For Availability

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $30.25

82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

83

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

92

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

94

WPL 357633 WPL 357633 Contact Us For Availability

95

WPL 354764 WPL 354764 Contact Us For Availability

98

WPL 357645 WPL 357645 Contact Us For Availability
