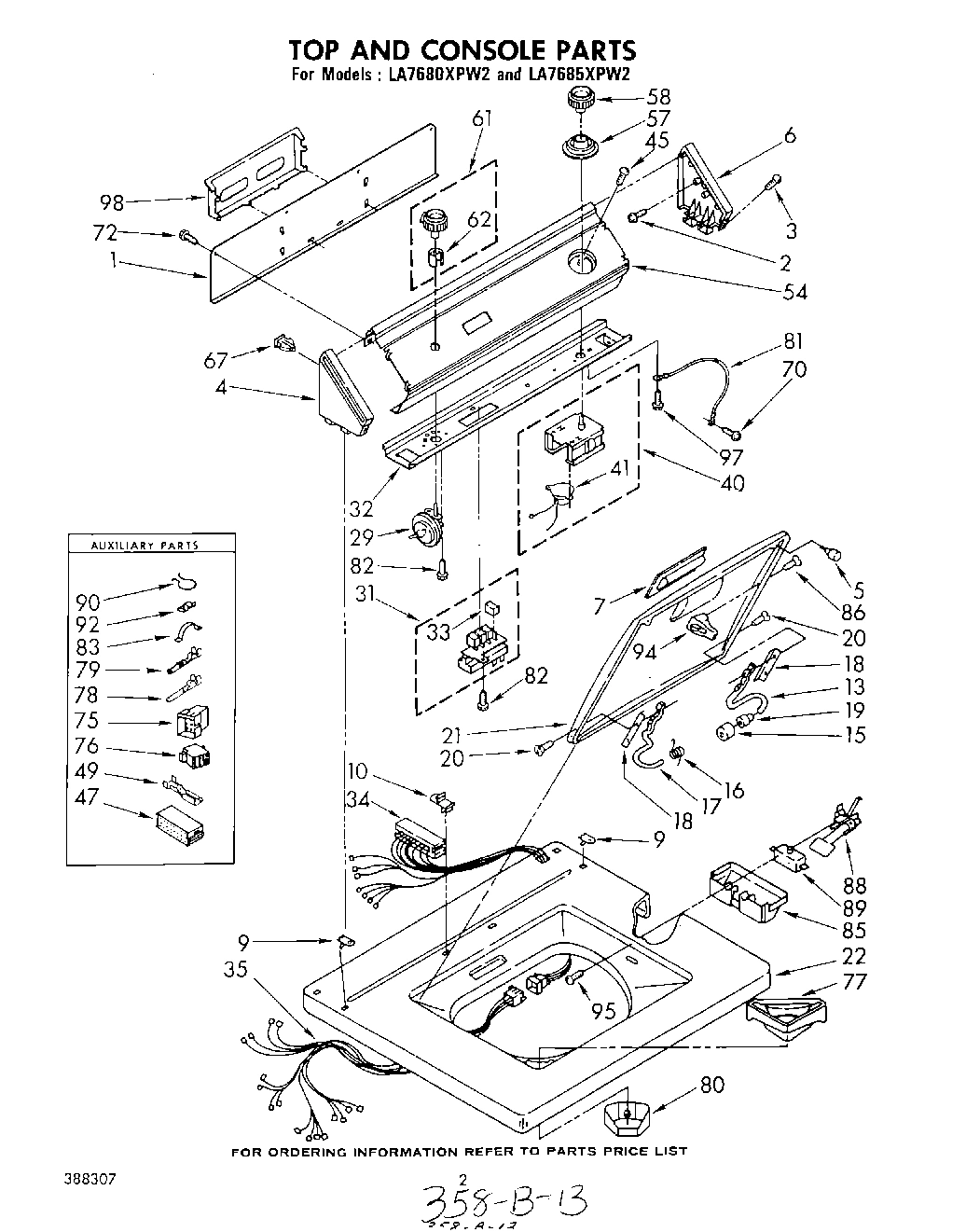

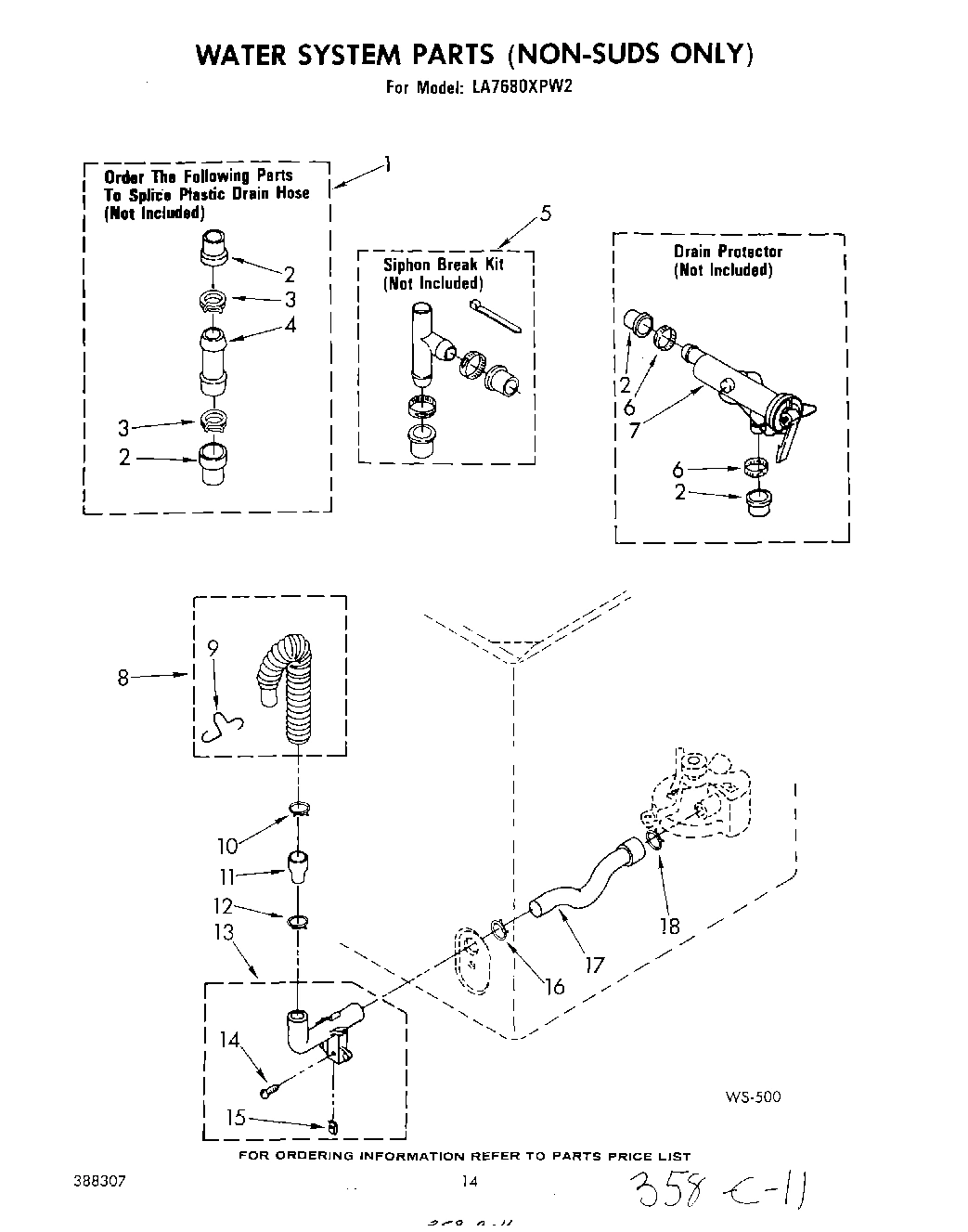

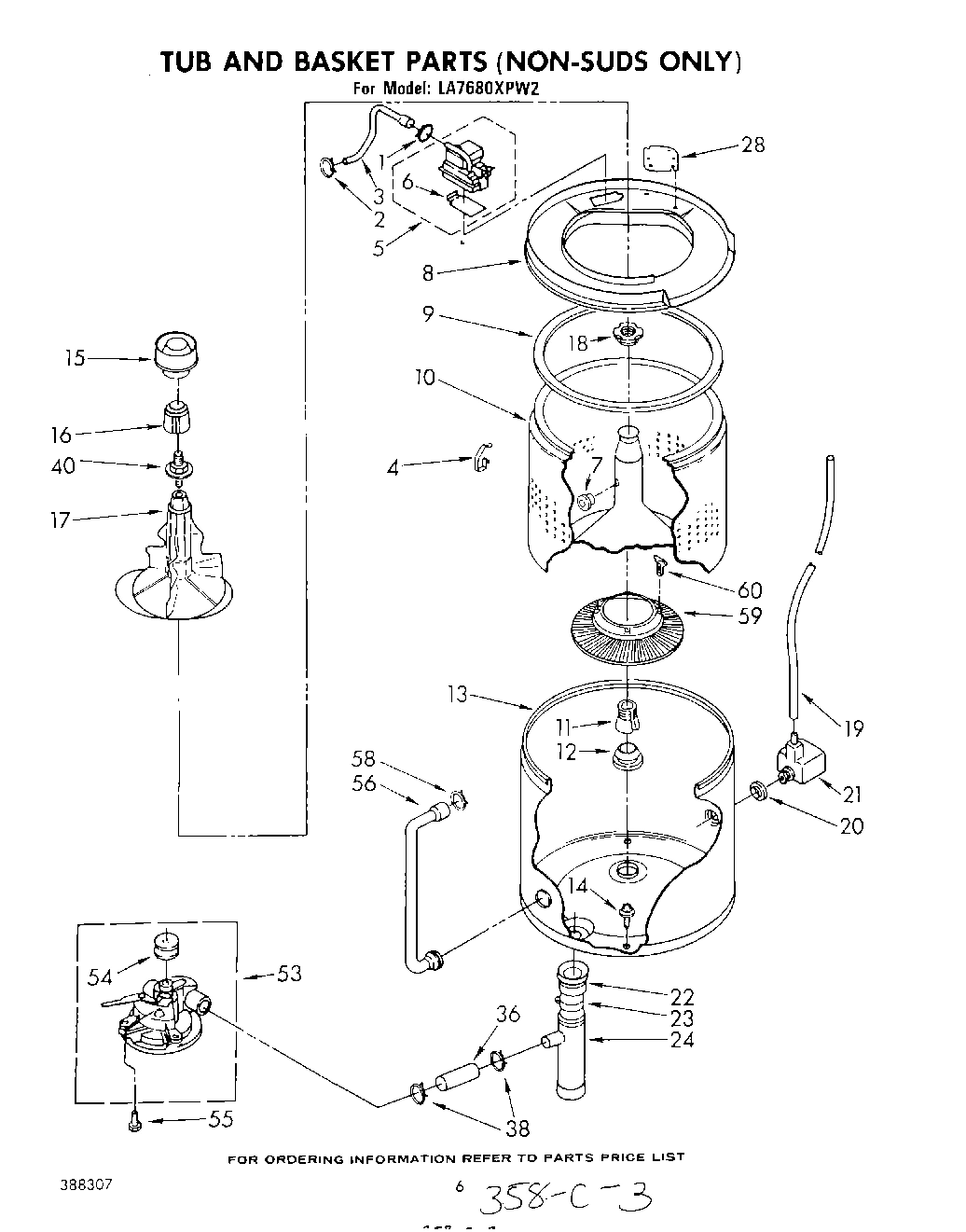

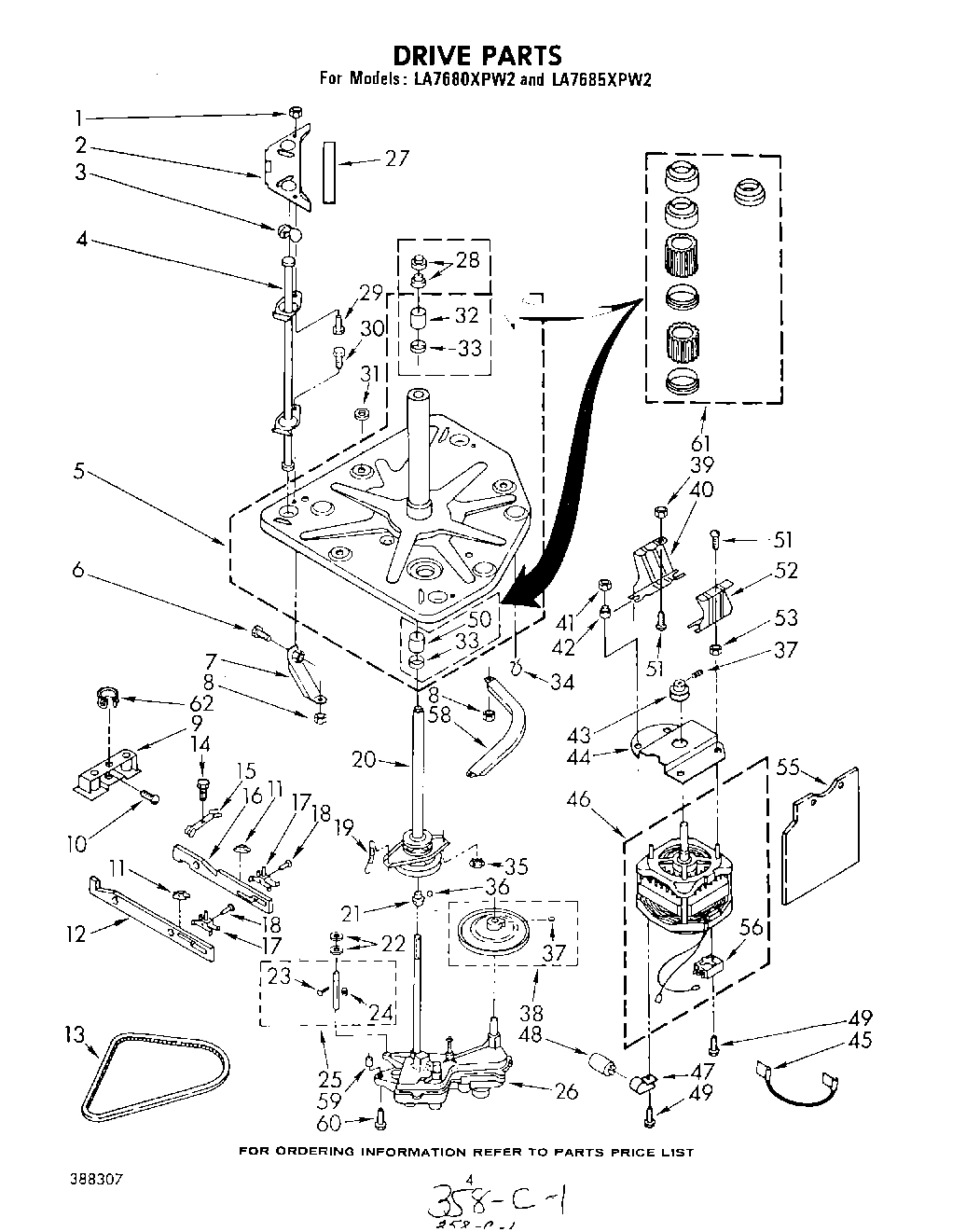

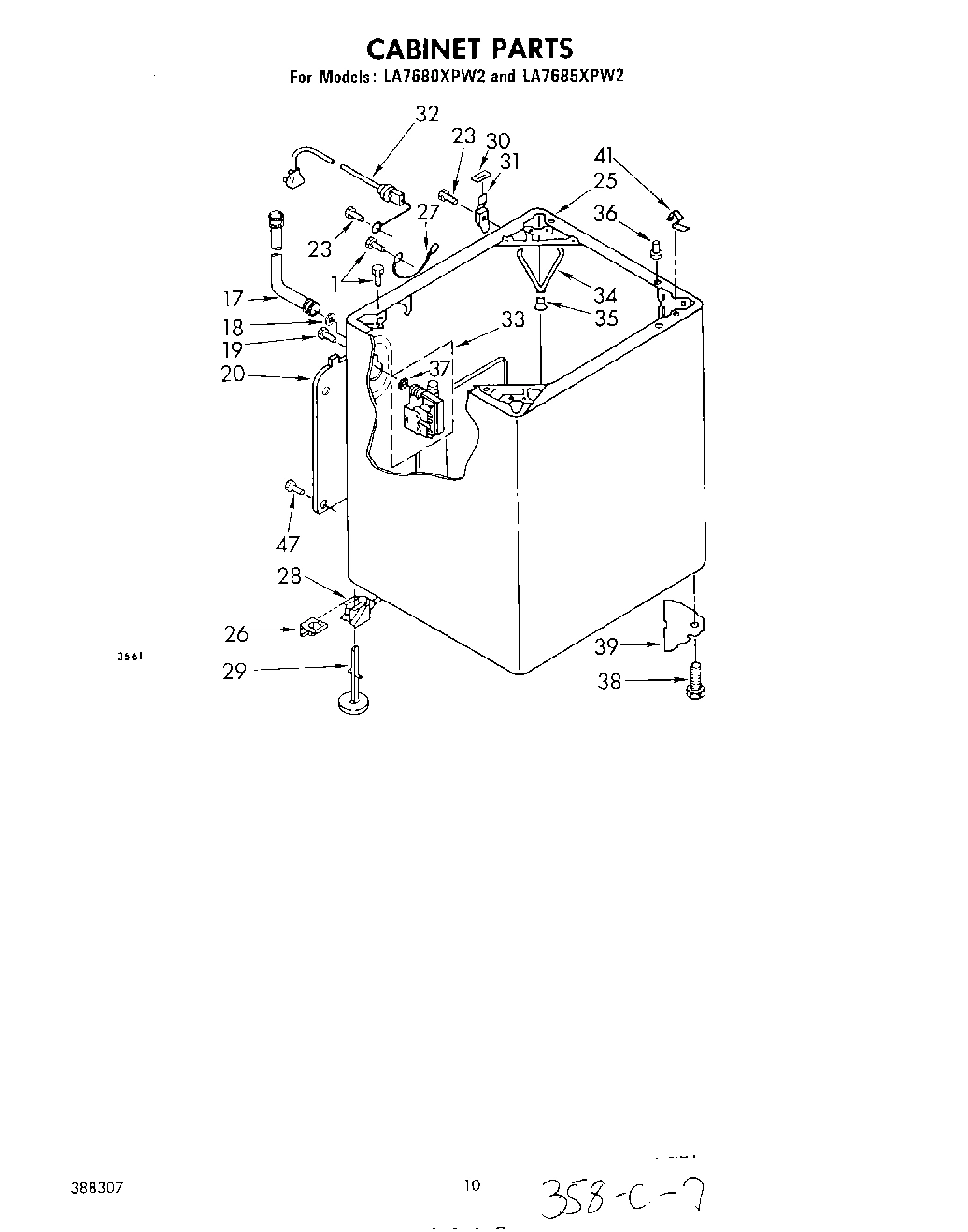

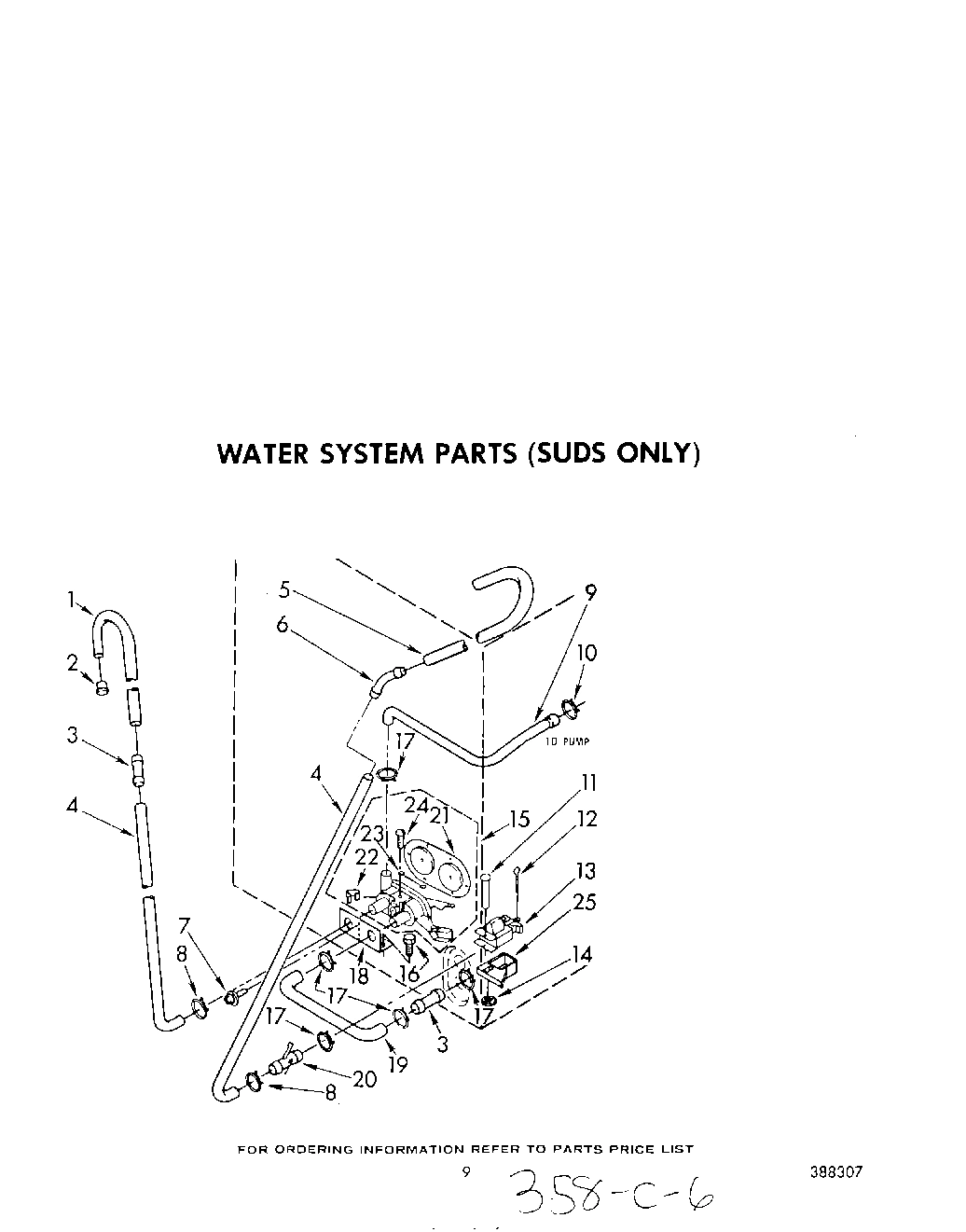

Model Whirlpool LA7680XPW2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

WPL 299885 WPL 299885 Contact Us For Availability

WPL 386837 WPL 386837 Contact Us For Availability

WPL 386884 WPL 386884 Contact Us For Availability

WPL 387267 WPL 387267 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado WPL 261889 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Sheet, Installation Instructions (Non-Suds) WPL LIT383980 Contact Us For Availability

Guide, Laundry WPL LIT385238 Contact Us For Availability

Label, Energy Guide (Non-$FLSuds) WPL LIT386211 Contact Us For Availability

Label, Energy Guide (Suds) WPL LIT386219 Contact Us For Availability

Guide, Use & Care WPL LIT386908 Contact Us For Availability

Sheet, Installation Instructions (Suds) WPL LIT387930 Contact Us For Availability

List, Repair Parts WPL LIT388307 Contact Us For Availability

Automatic Washer (Belt Driv WPL LIT677813 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

1

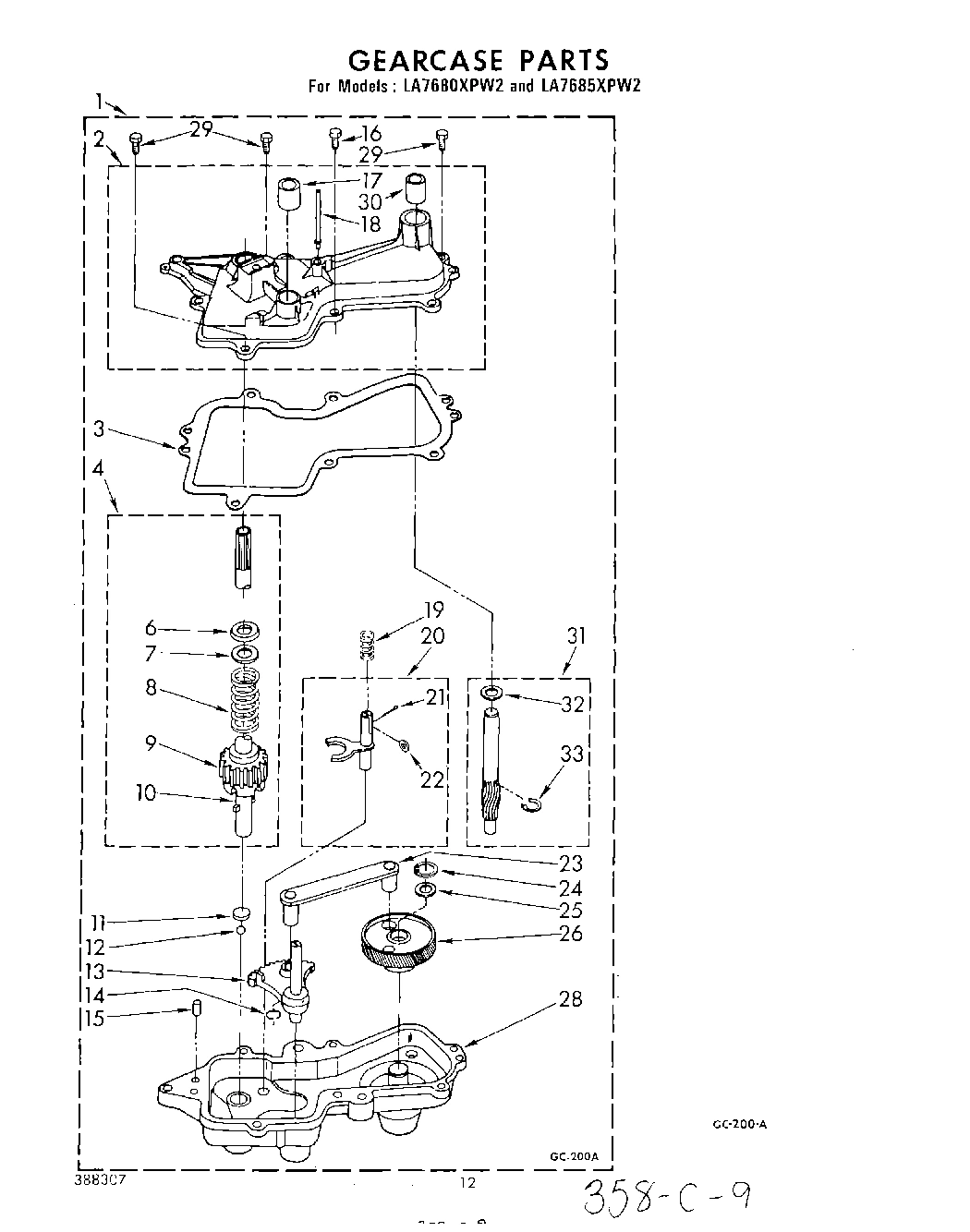

Gearcase (Complete) WPL 358483 Contact Us For Availability

1

Hose, Suds Discharge WPL 91273 Contact Us For Availability

1

Panel, Rear WPL 386367 Contact Us For Availability

1

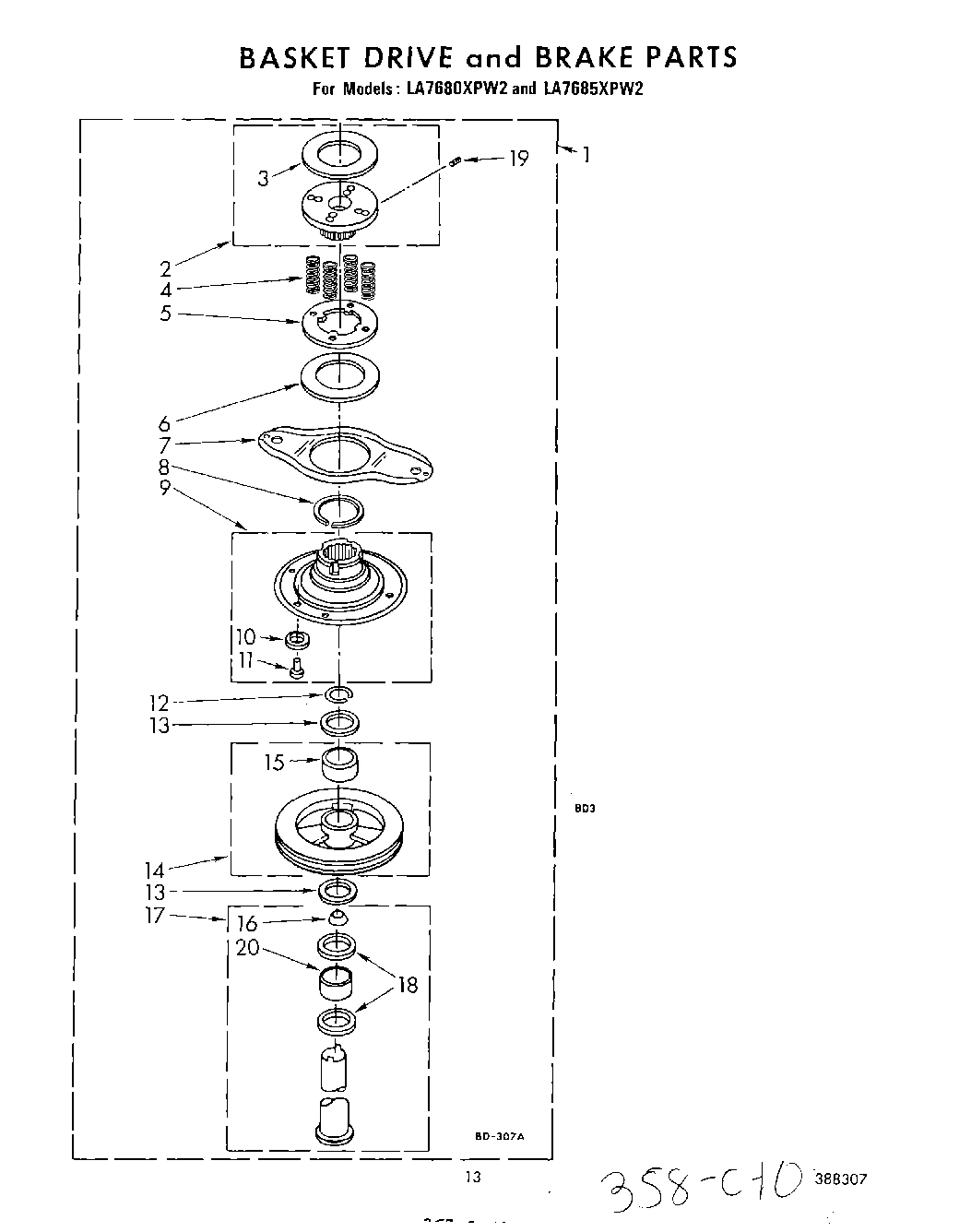

Basket Drive & Brake WPL 359699 Contact Us For Availability

1

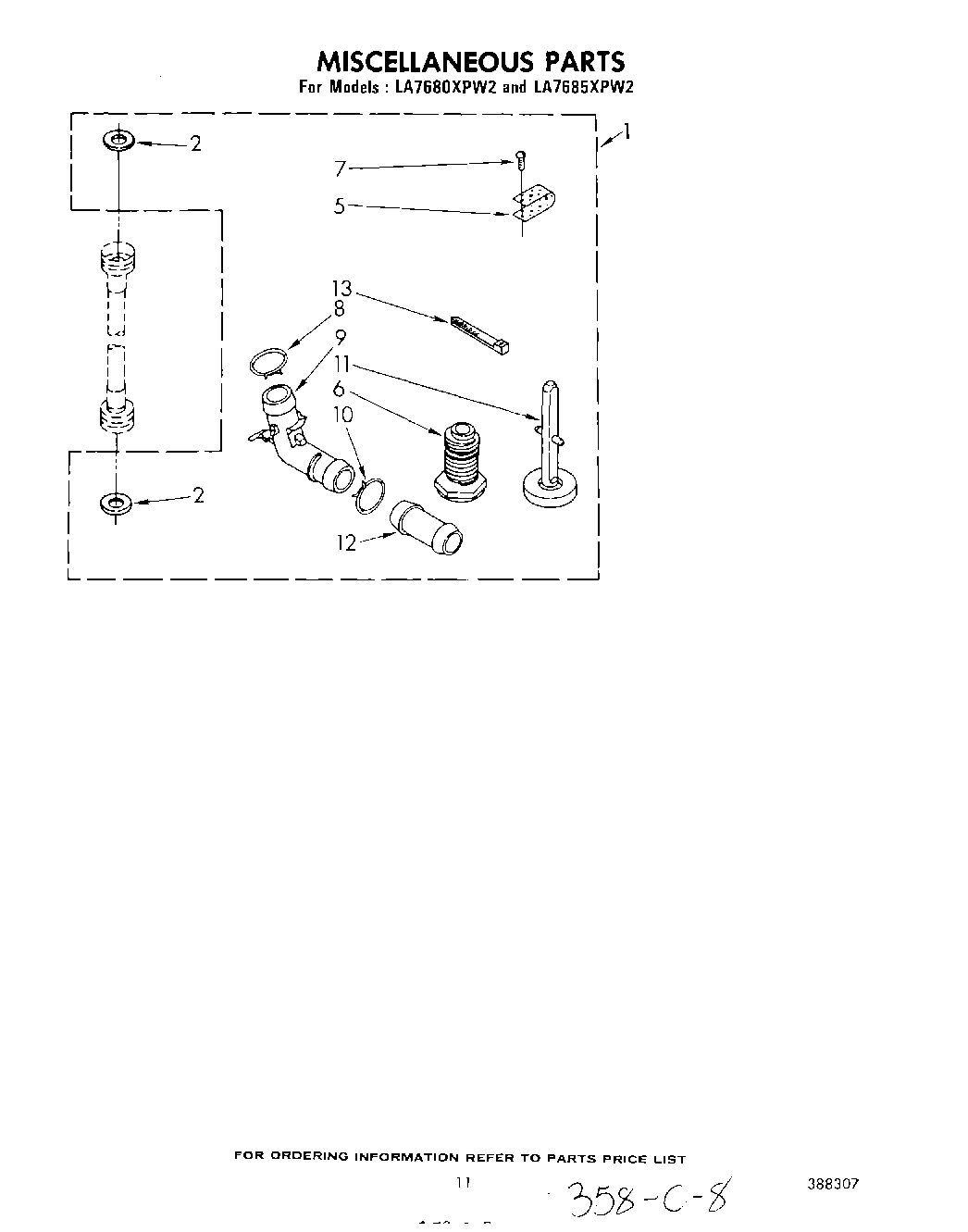

Miscellaneous Parts Bag (Suds) WPL 375975 Contact Us For Availability

1

Miscellaneous Parts Bag (Non-Suds) WPL 387200 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

Strainer, Hose WPL 352833 Contact Us For Availability

2

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Screw WPL 64211 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $28.79

4

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

4

Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

WP96743 Whirlpool Hose Backorder WPL WP96743 $25.33

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

5

Inlet, Water WPL 366072 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

6

Flapper WPL 355584 Contact Us For Availability

6

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

7

Stopper (2) WPL 21265 Contact Us For Availability

7

Screw & Washer WPL 190575 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

7

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

Ring, Tub (Includes Illus. 28) WPL 381971 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

9

Connector, Hose WPL 95440 Contact Us For Availability

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Seal, Tub Ring WPL 383553 Contact Us For Availability

9

Hose, Pump To Two-Way Valve WPL 357189 Contact Us For Availability

9

Retainer, Wire WPL 357247 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

Basket WPL 384024 Contact Us For Availability

Clamp, Hose WPL 272857 Contact Us For Availability

Stop, Push-In Top (1) WPL 358472 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

Rivet WPL 359089 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Pin, Cotter (1/8 x 3/4) WPL 90228 Contact Us For Availability

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Tub WPL 384076 Contact Us For Availability

Solenoid, Two-Way Valve WPL 86798 Contact Us For Availability

Connector, Hose WPL 358805 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Gear, Sector WPL 75073 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Screw & Washer, Tub (4) (Tub To Baseplate) WPL 370571 Contact Us For Availability

Screw, Connector Mounting WPL 90876 Contact Us For Availability

Pulley, Basket Drive WPL 359697 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Dispenser, Rinse WPL 88932 Contact Us For Availability

Valve, Two-Way WPL 359634 Contact Us For Availability

Clip WPL 351395 Contact Us For Availability

Bumper WPL 91605 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

Agitator Cap WPL 358431 Contact Us For Availability

Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

Agitator & Insert WPL 383951 Contact Us For Availability

Hose, Pump to Cabinet WPL 358560 Contact Us For Availability

Hinge, L.H. WPL 91099 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

Bracket WPL 357191 Contact Us For Availability

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

Hose, Two-Way Valve To Connector WPL 97784 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

Seal, Air Dome WPL 351830 Contact Us For Availability

Connector, Hose WPL 357334 Contact Us For Availability

Panel, Rear (Suds) WPL 357335 Contact Us For Availability

Panel, Rear (Non-Suds) WPL 85279 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

Diaphragm WPL 358317 Contact Us For Availability

Lid (White) WPL 382802 Contact Us For Availability

Lid (Almond) WPL 382803 Contact Us For Availability

Lid (Toast) WPL 382804 Contact Us For Availability

Lid (Platinum) WPL 382805 Contact Us For Availability

Lid (Golden Harvest) WPL 382806 Contact Us For Availability

Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability

Hose, Tub Outlet WPL 93553 Contact Us For Availability

Clip, Retainer (8) WPL 96262 Contact Us For Availability

Top (White) WPL 386319 Contact Us For Availability

Top (Almond) WPL 386320 Contact Us For Availability

Top (Toast) WPL 386321 Contact Us For Availability

Top (Platinum) WPL 386322 Contact Us For Availability

Top (Golden Harvest) WPL 386323 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Clamp, Hose WPL 9421321 Contact Us For Availability

Strap, Ground WPL 358343 Contact Us For Availability

Rod, Connecting WPL 76577 Contact Us For Availability

24

Manifold Assembly WPL 84091 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

Shield, Two-Way Valve WPL 359096 Contact Us For Availability

Cabinet (White) WPL 384793 Contact Us For Availability

Cabinet (Almond) WPL 384794 Contact Us For Availability

Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability

Cabinet (Toast) WPL 386477 Contact Us For Availability

Cabinet (Platinum) WPL 386478 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

26

Gear, Main Drive WPL 353397 Contact Us For Availability

27

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

27

Wire, Ground WPL 364089 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Plate, Snubber WPL 355852 Contact Us For Availability

Leveling Link Assembly WPL 359059 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Switch, Water Level WPL 359711 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $9.13

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Switch, Water Temperature WPL 386935 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Bracket, Control WPL 386364 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

Pushbutton (4) WPL 386934 Contact Us For Availability

Valve, Mixing (Alt.) (Serviced Only As Comple WPL 358971 Contact Us For Availability

Valve, Mixing WPL 660749 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $11.62

34

xHarness, Console (Non-Suds) WPL 387266 Contact Us For Availability

34

Spring, Snubber WPL 357977 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

35

xHarness, Base (Non-Suds) WPL 358116 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Hose, Pump To Manifold WPL 92231 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

37

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

39

Plate, Gusset (2) WPL 356459 Contact Us For Availability

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

Stud & Seal, Agitator WPL 358440 Contact Us For Availability

Timer Assembly, 60 Hz. C.C.A. (Alt.) (Non-Sud WPL 386883 Contact Us For Availability

Timer Assembly, 60 Hz. Mallory (Alt.) (Non-Su WPL 386886 Contact Us For Availability

Timer Assembly, 60 Hz. WPL 660992 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

Nut (4) WPL 98023 Contact Us For Availability

Motor, Timer (60 Hz.) (Use W/Mallory Timer) WPL 63491 Contact Us For Availability

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 63493 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Pulley, Motor (60 Hz.) WPL 92216 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

45

Harness, Jumper WPL 370950 Contact Us For Availability

46

Motor, 60 Hz. (Alt.) (Emerson) WPL 357822 Contact Us For Availability

46

Motor, 60 Hz. (Alt.) (General Electri WPL 370653 Contact Us For Availability

46

WPL 660604 WPL 660604 Contact Us For Availability

47

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

47

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

47

Block, Disconnect (White) WPL 352090 Contact Us For Availability

48

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

49

Terminal, Female WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

53

Pump (Complete) (Refer To Page 5 For Further WPL 383957 Contact Us For Availability

54

Pulley, Pump WPL 359630 Contact Us For Availability

54

Panel, Control (Non-Suds) WPL 63672 Contact Us For Availability

54

Panel, Control (Suds) WPL 63673 Contact Us For Availability

55

386011 Whirlpool Screw Backorder WPL 386011 $27.74

55

WPL 359719 WPL 359719 Contact Us For Availability

56

Hose, Bleach Dispenser WPL 352978 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

Dial, Timer WPL 387183 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WPL 351499 WPL 351499 Contact Us For Availability

WPL 351500 WPL 351500 Contact Us For Availability

Knob, Timer WPL 386570 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

59

Filter, Element (Includes Illus. 60) WPL 383719 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

60

Clip, Filter Element (4) WPL 383718 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

Knob Assembly, Water Level WPL 386631 Contact Us For Availability

62

WP385728 Whirlpool Bushing Backorder WPL WP385728 $2.51

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

67

NUT, PUSH I WPL 689559 Contact Us For Availability

70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

72

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

77

WPL 352821 WPL 352821 Contact Us For Availability

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

80

WPL 352827 WPL 352827 Contact Us For Availability

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $30.25

82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

83

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

90

WPL 387551 WPL 387551 Contact Us For Availability

92

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

94

WPL 357633 WPL 357633 Contact Us For Availability

95

WPL 354764 WPL 354764 Contact Us For Availability

98

WPL 63020 WPL 63020 Contact Us For Availability
