Model Whirlpool LA7680XMW0 AUTOMATIC WASHER – Common Parts & Diagrams

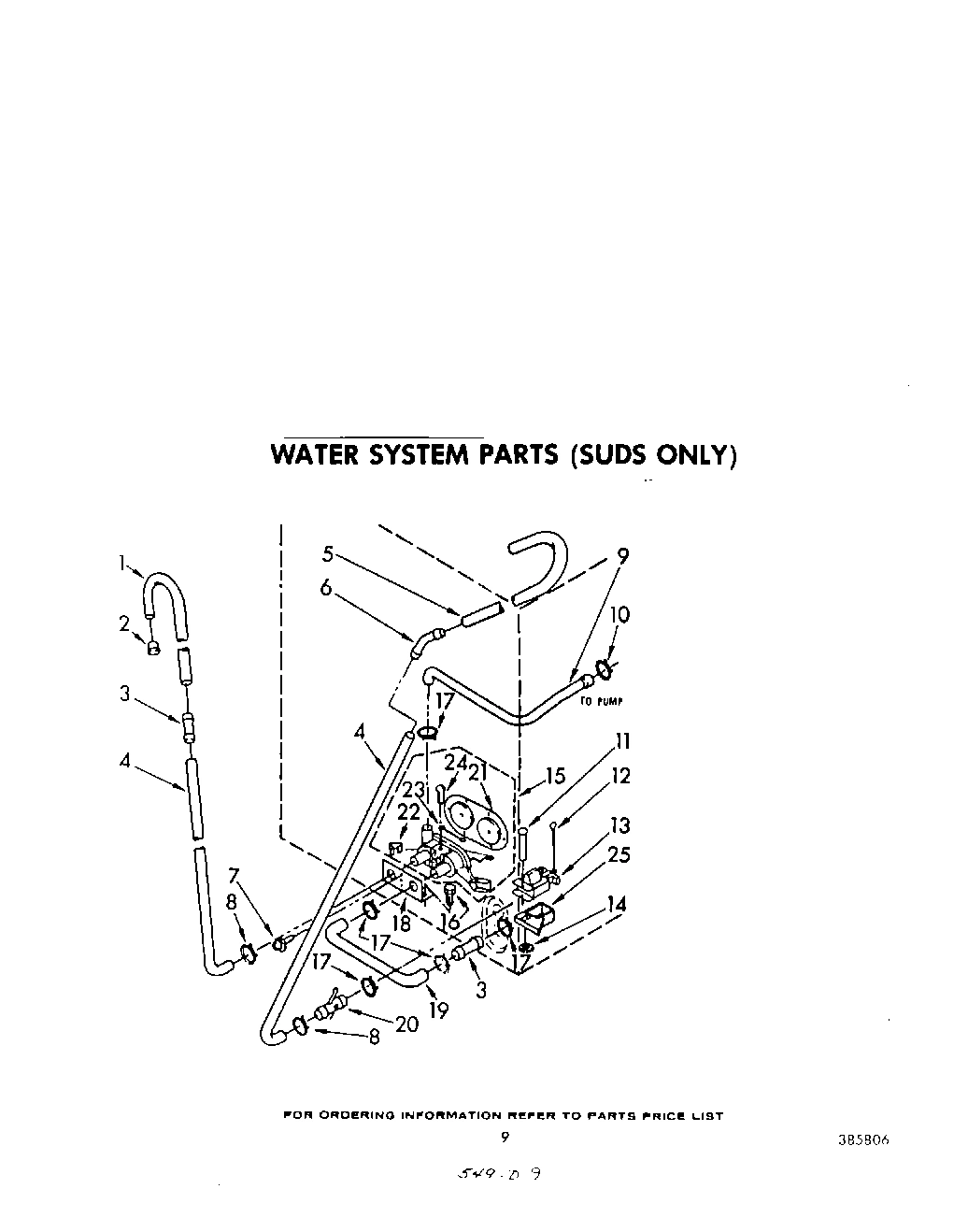

07 - WATER SYSTEM

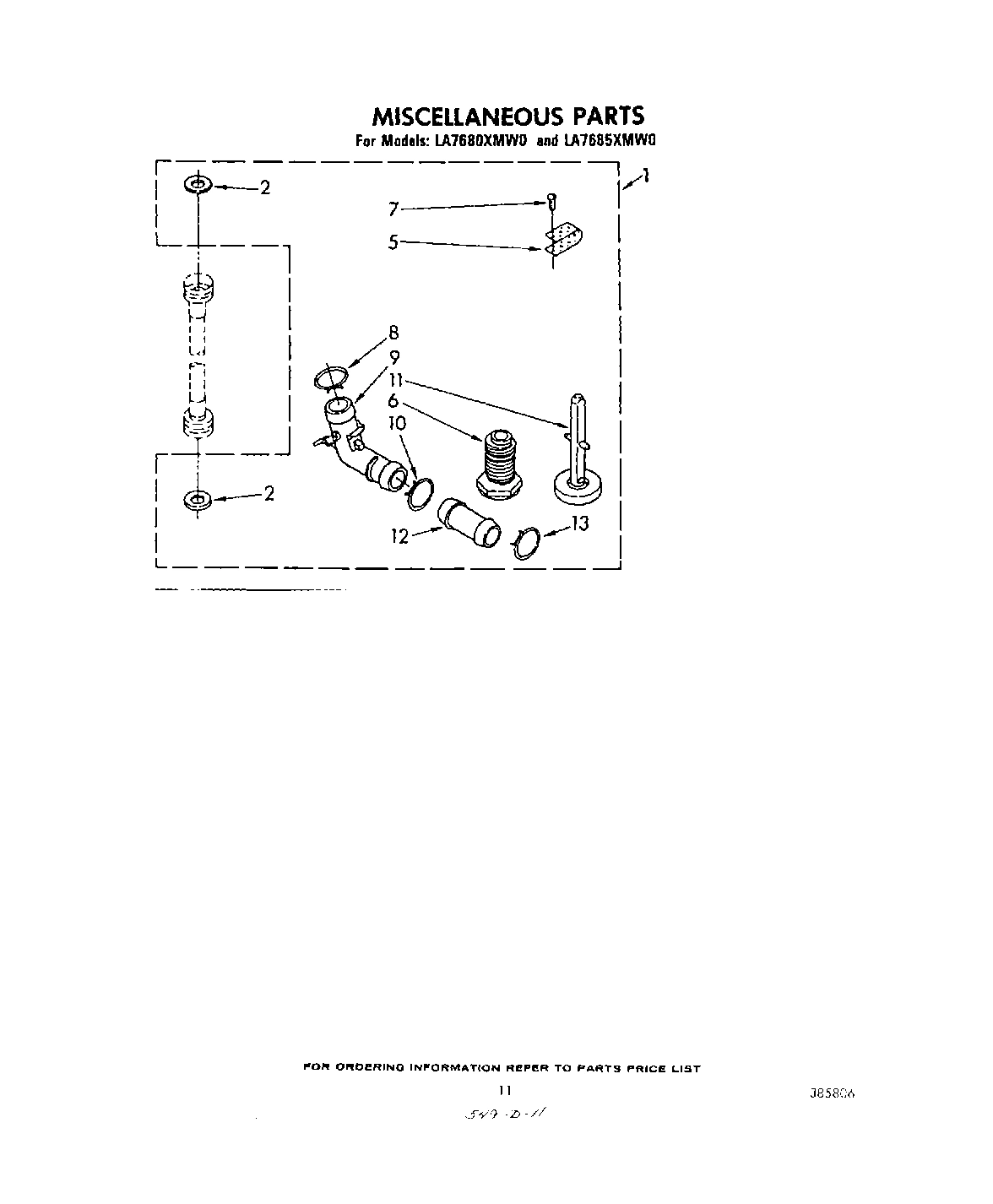

09 - MISCELLANEOUS , LITERATURE AND OPTIONAL

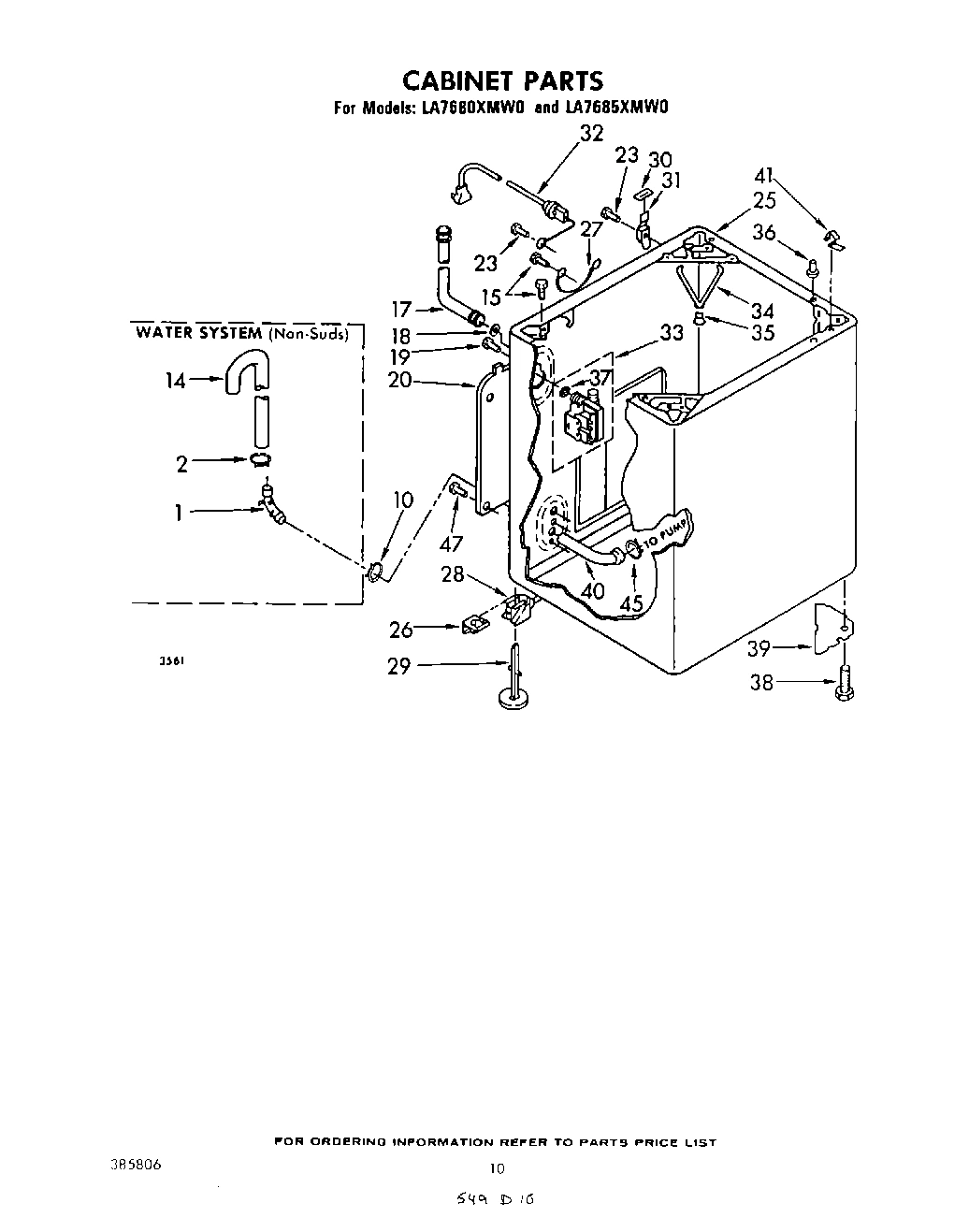

08 - CABINET

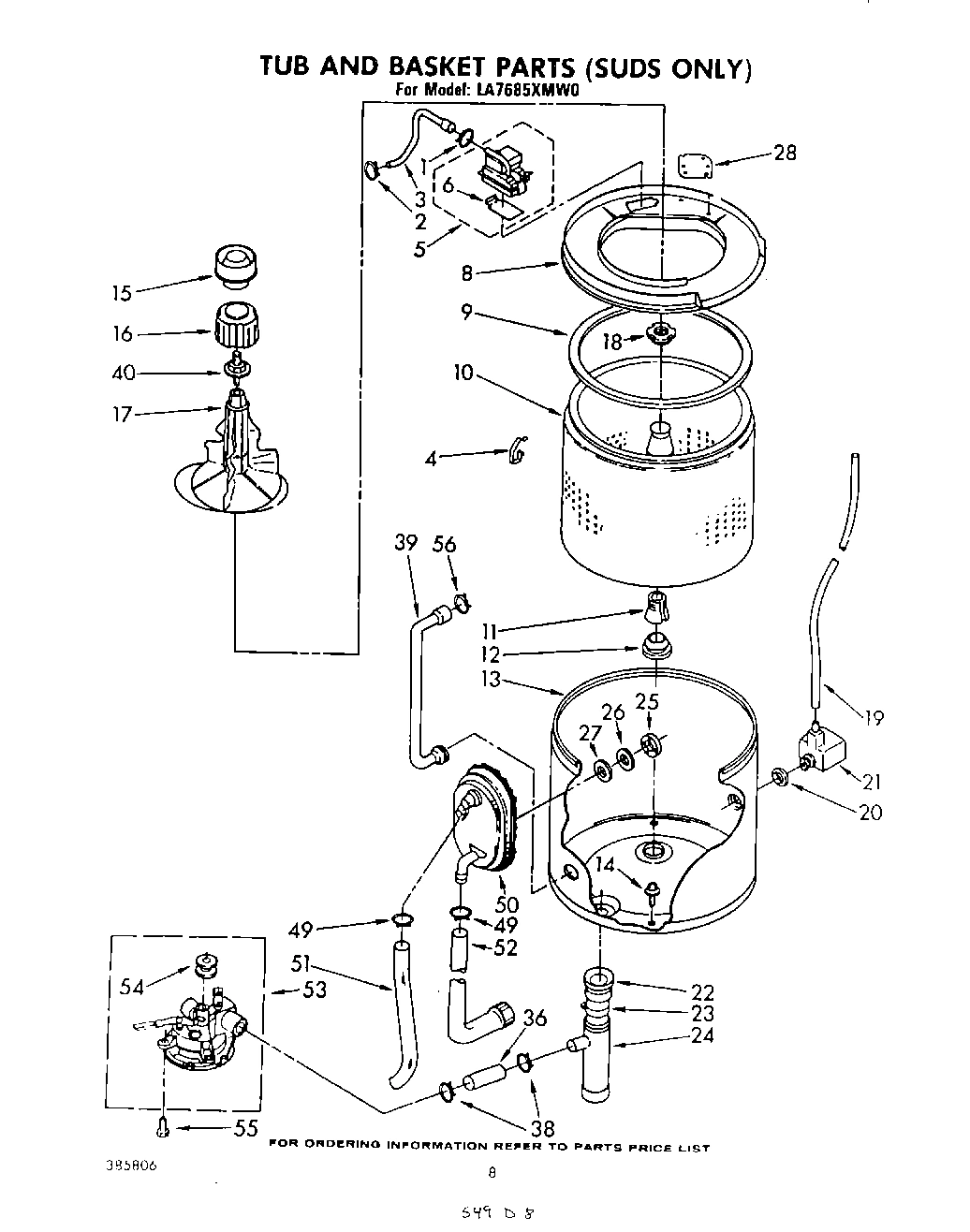

06 - TUB BASKET (SUDS ONLY)

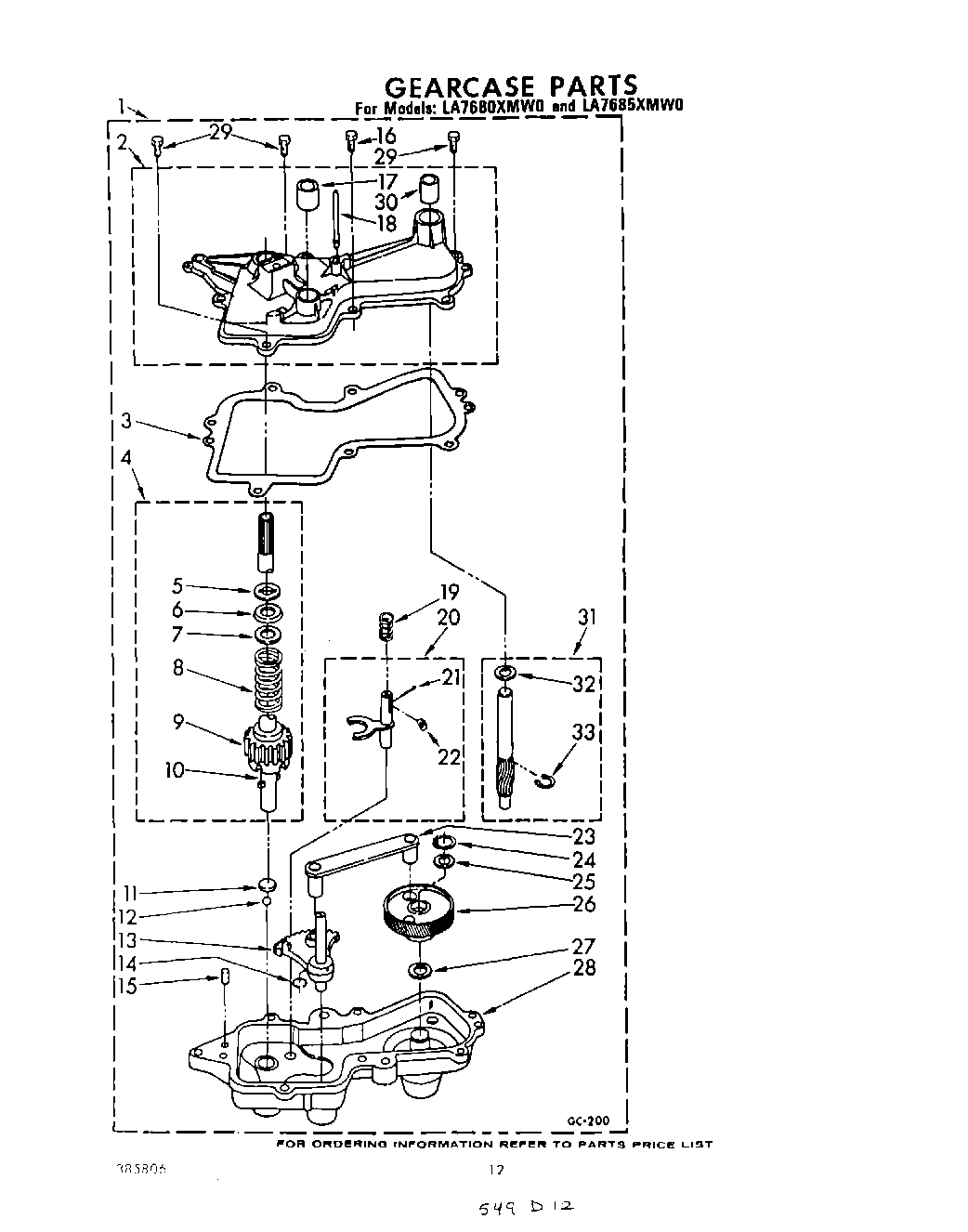

10 - GEARCASE

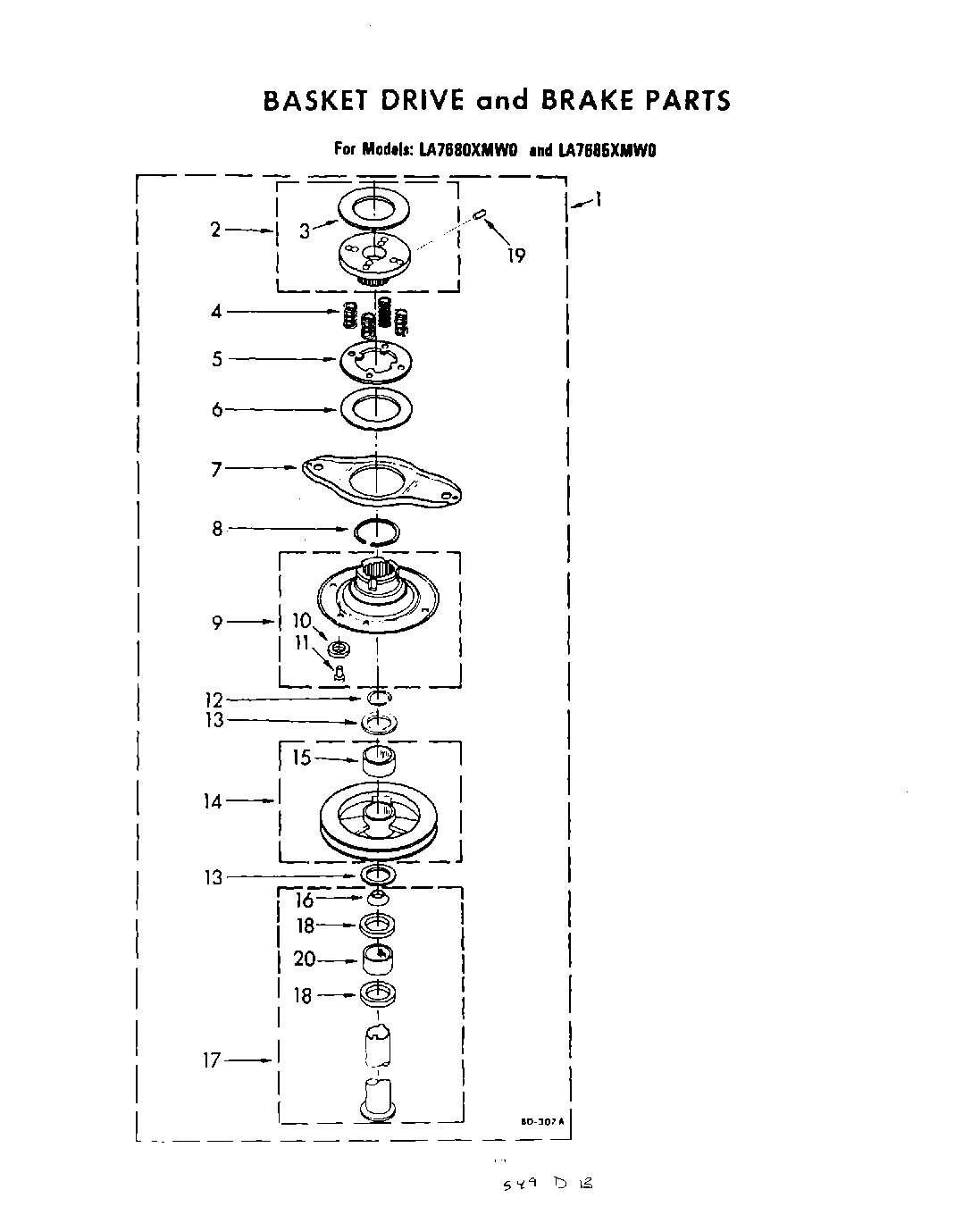

11 - BASKET DRIVE AND BRAKE

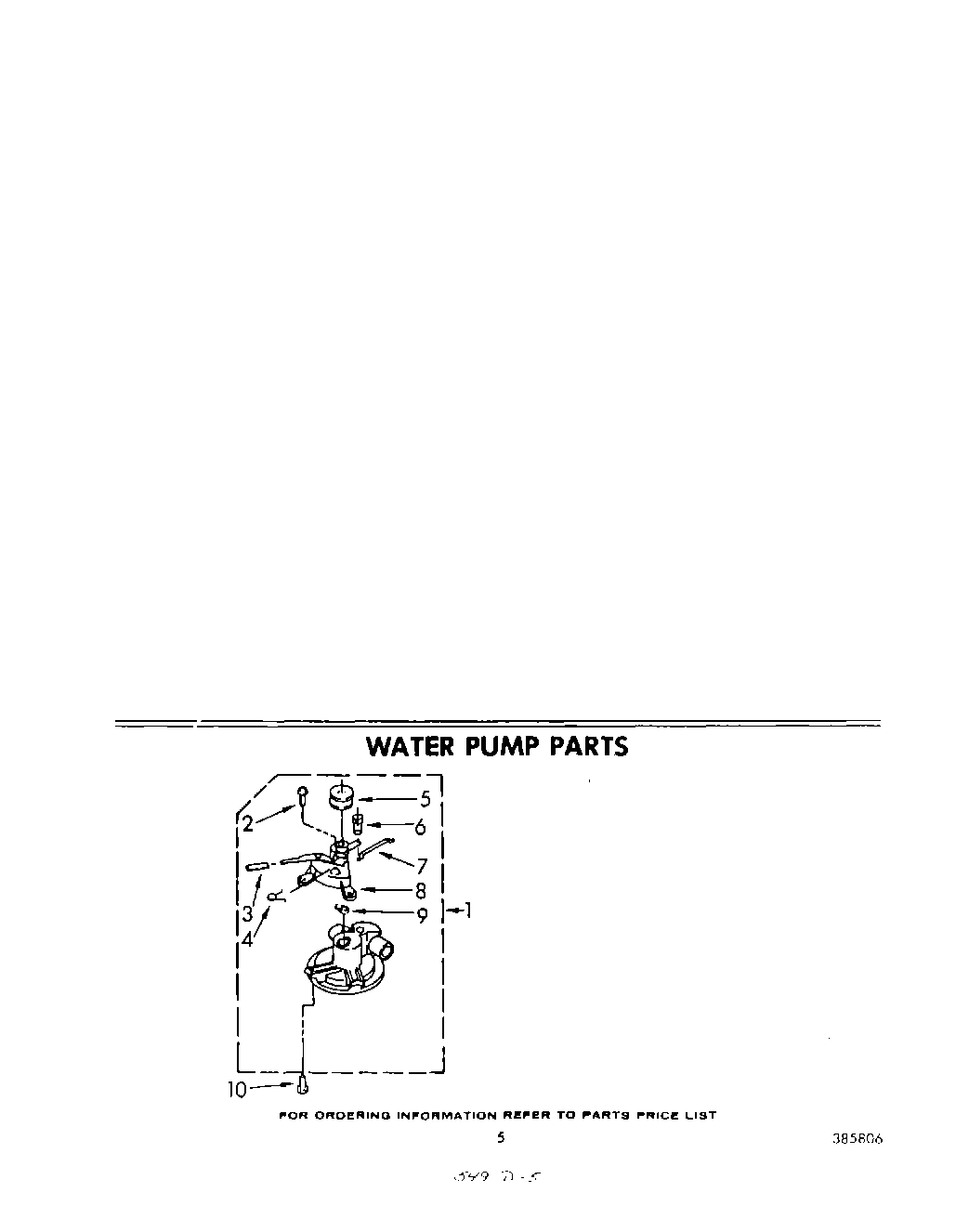

04 - WATER PUMP

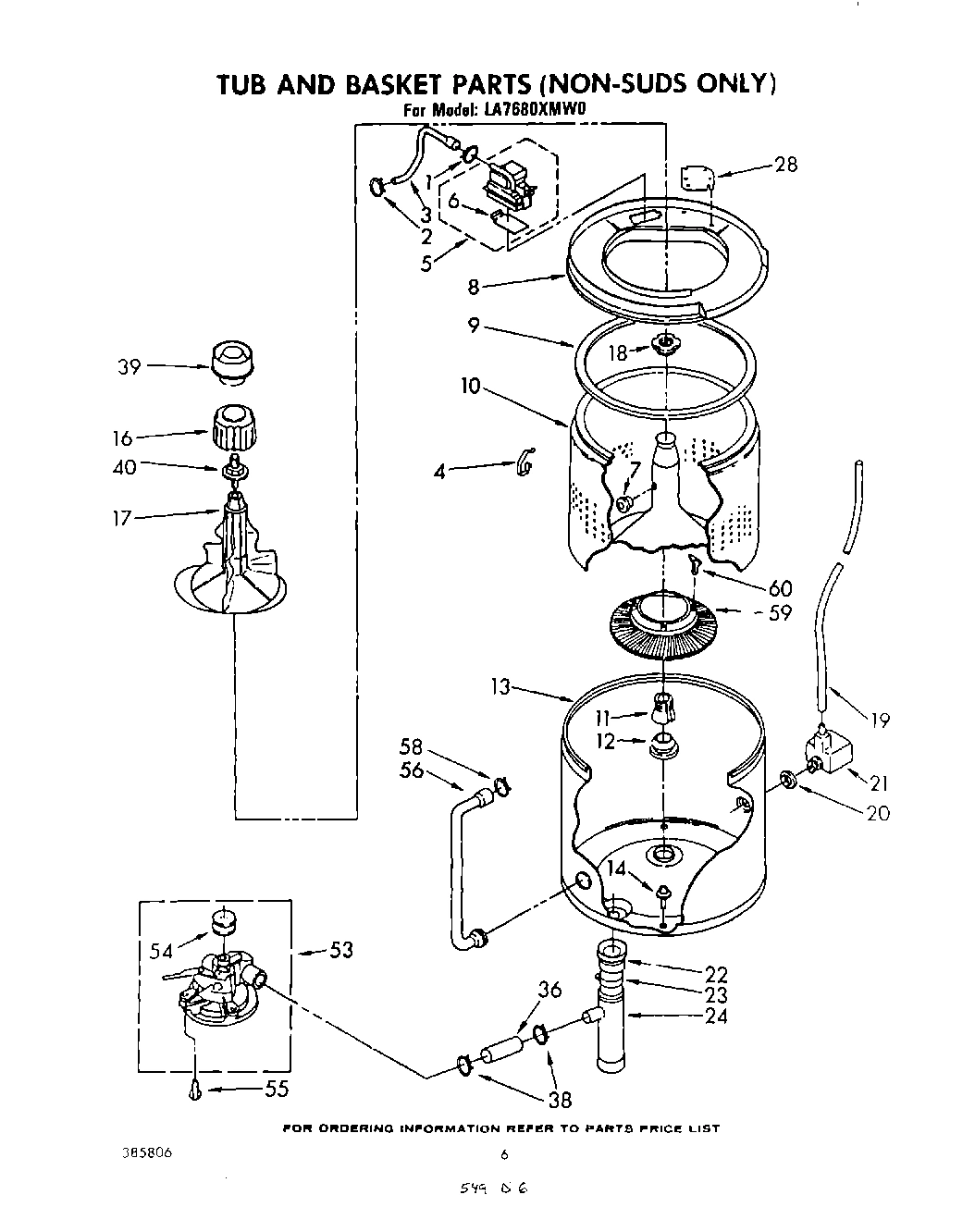

05 - TUB AND BASKET (NON-SUDS ONLY)

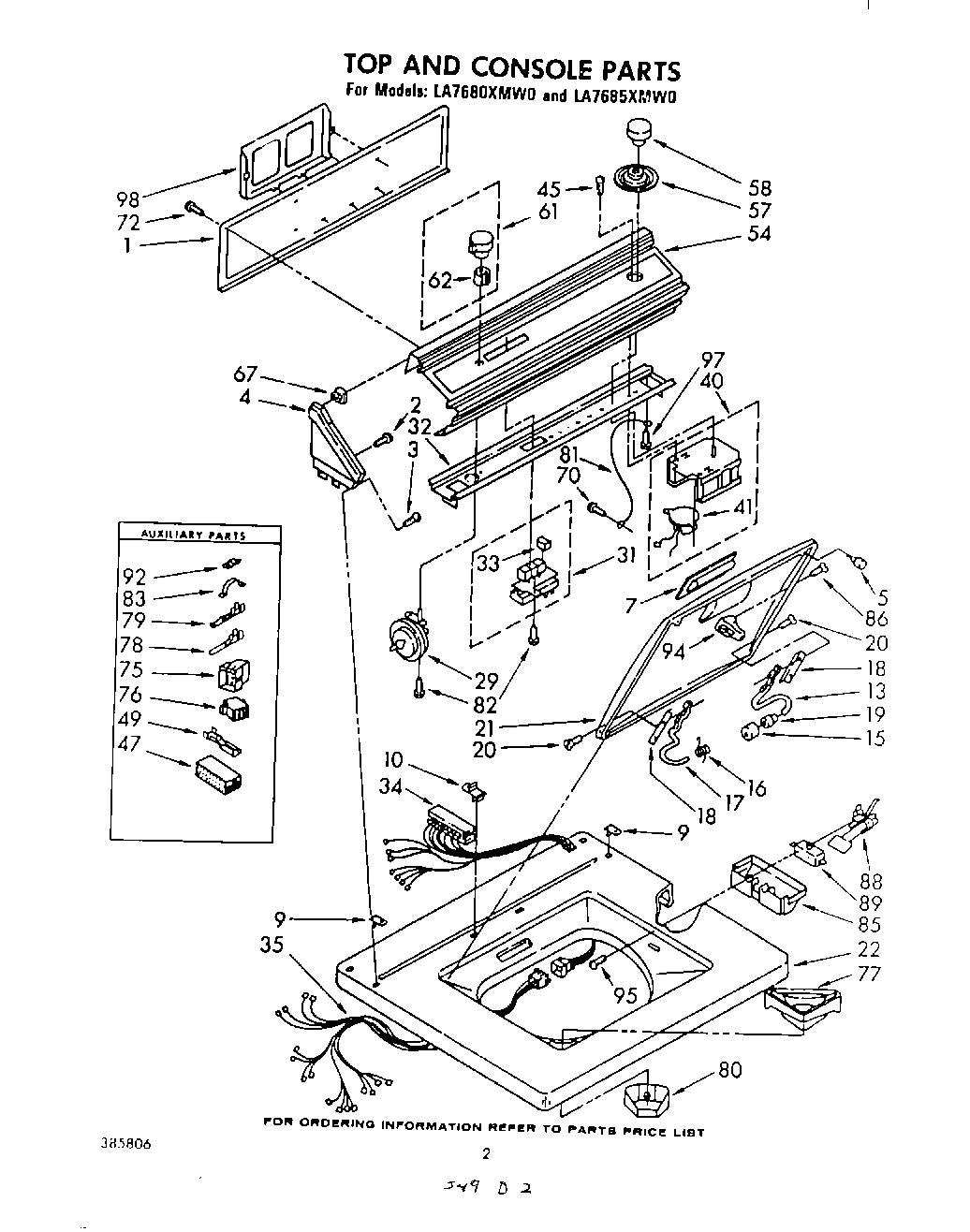

02 - TOP AND CONSOLE

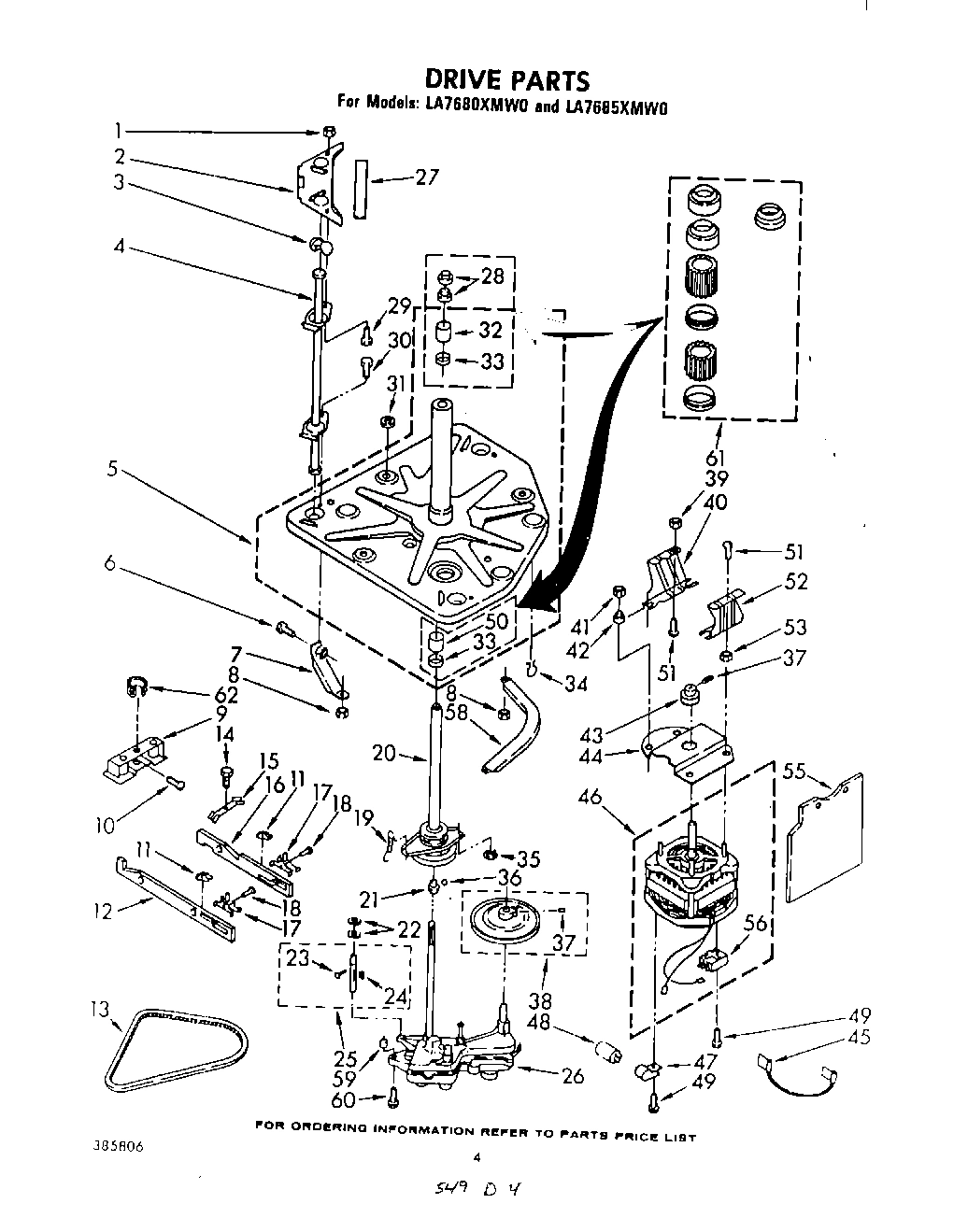

03 - DRIVE
Common parts from model Whirlpool LA7680XMW0 AUTOMATIC WASHER
WPL 299885 WPL 299885 Contact Us For Availability
1
Connector, Hose WPL 95440 Contact Us For Availability
1
Panel, Rear WPL 359372 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350522 Contact Us For Availability
2
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
2
Cover, Rear Gusset (2) WPL 352143 Contact Us For Availability
2
Cover, Front Gusset WPL 353230 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3
Hose, Water Inlet WPL 356349 Contact Us For Availability
3
Screw WPL 358225 Contact Us For Availability
3
Ball, Suspension (6) WPL 91073 Contact Us For Availability
4
Clip, Tub Ring (4) WPL 359763 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
4
Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability
4
Spring, Toggle WPL 96266 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End L.H. (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability
4
Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
4
Rod, Suspension (3) WPL 359678 Contact Us For Availability
5
Inlet, Water WPL 366072 Contact Us For Availability
5
Ring, Retainer WPL 352430 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
5
Baseplate & Centerpost WPL 359721 Contact Us For Availability
6
Flapper WPL 355584 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability
6
Lever, Valve WPL 355538 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
7
Rod, Connecting WPL 96264 Contact Us For Availability
7
Stopper (2) WPL 21265 Contact Us For Availability
7
Handle, Lid (White) WPL 379884 Contact Us For Availability
7
Handle, Lid (Almond) WPL 379885 Contact Us For Availability
7
Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability
7
Brace, Baseplate WPL 353301 Contact Us For Availability
8
Ring, Tub (Includes Illus. 28) WPL 381971 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
8
Bearing Block Assembly WPL 383750 Contact Us For Availability
8
Nut, 5/16-24 WPL 96101 Contact Us For Availability
9
Nut, Push-In (2) WPL 358473 Contact Us For Availability
9
Seal, Tub Ring WPL 383553 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability
9
Wick, Oil WPL 96265 Contact Us For Availability
9
Magnet WPL 359997 Contact Us For Availability
10
Basket WPL 384024 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability
10
Stop, Push-In Top (1) WPL 358472 Contact Us For Availability
10
Screw, Taper End WPL 16135 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
11
Guide, Cam Bar WPL 95462 Contact Us For Availability
12
Cam, Bar Spin WPL 354838 Contact Us For Availability
13
Tub WPL 359668 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
13
Tub WPL 384076 Contact Us For Availability
14
Screw & Washer, Tub (4) (Tub To Baseplate) WPL 370571 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
14
Pulley, Basket Drive WPL 359697 Contact Us For Availability
14
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Pin, Dowel WPL 5018 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
15
Bumper WPL 91605 Contact Us For Availability
16
Agitator Cap WPL 359990 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
16
Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability
16
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
17
Agitator & Insert WPL 383951 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
17
Hinge, L.H. WPL 91099 Contact Us For Availability
17
Plunger WPL 84866 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
18
Rivet WPL 354959 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
19
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
19
Spring, Brake Yoke WPL 17261 Contact Us For Availability
20
Seal, Air Dome WPL 351830 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
20
Basket Drive & Brake (For Further Breakdown R WPL 359699 Contact Us For Availability
20
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
21
Air Dome Assembly WPL 360804 Contact Us For Availability
21
Lid (White) WPL 379964 Contact Us For Availability
21
Lid (Almond) WPL 379965 Contact Us For Availability
21
Lid (Golden Harvest) WPL 379968 Contact Us For Availability
21
Support, Spin Tube WPL 358586 Contact Us For Availability
22
Hose, Tub Outlet WPL 93553 Contact Us For Availability
22
Top (White) WPL 380283 Contact Us For Availability
22
Top (Almond) WPL 380284 Contact Us For Availability
22
Top (Golden Harvest) WPL 380287 Contact Us For Availability
23
Clamp, Hose WPL 9421321 Contact Us For Availability
23
Pin, Roll WPL 90532 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
24
Manifold Assembly WPL 84091 Contact Us For Availability
24
Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
25
Nut, Spanner WPL 92229 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
25
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
26
Washer, Fiber WPL 92232 Contact Us For Availability
26
Gearcase (For Further Breakdown Refer To Page WPL 358483 Contact Us For Availability
26
Gear, Main Drive WPL 353397 Contact Us For Availability
27
Washer, Rubber WPL 92235 Contact Us For Availability
27
Washer, Thrust WPL 363362 Contact Us For Availability
27
Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability
28
Plate, Snubber WPL 355852 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability
29
Switch, Water Level WPL 359711 Contact Us For Availability
29
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
29
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
29
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
30
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
31
Switch, Water Temperature WPL 358553 Contact Us For Availability
31
Gasket, Tub (7) WPL 17235 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
32
Bracket, Control WPL 359707 Contact Us For Availability
33
Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
33
Push Button (4) WPL 301008 Contact Us For Availability
34
Harness, Console (Non-Suds) WPL 359325 Contact Us For Availability
34
Harness, Console (Suds) WPL 359326 Contact Us For Availability
35
Snubber WPL 358336 Contact Us For Availability
35
Harness, Base (Non-Suds) WPL 358116 Contact Us For Availability
35
Harness, Cabinet (Suds) WPL 88916 Contact Us For Availability
35
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
36
Hose, Pump To Manifold WPL 92231 Contact Us For Availability
36
Ball WPL 358585 Contact Us For Availability
37
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
38
Pulley, Main Drive WPL 360840 Contact Us For Availability
39
Dispenser, Rinse WPL 88932 Contact Us For Availability
40
Stud & Seal, Agitator WPL 358440 Contact Us For Availability
40
C.C.A. (Alternate) (Non-Suds) WPL 385328 Contact Us For Availability
40
Mallory (Alternate) (Non-Suds) WPL 385331 Contact Us For Availability
40
Mallory (Suds) WPL 385333 Contact Us For Availability
40
Timer Assembly, 60 Hz. WPL 660971 Contact Us For Availability
40
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
41
Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 362681 Contact Us For Availability
41
Motor, Timer (60 Hz.) (Use W/Mallory Timer) WPL 365941 Contact Us For Availability
41
Nut (4) WPL 98023 Contact Us For Availability
42
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
43
Pulley, Motor (60 Hz.) WPL 92216 Contact Us For Availability
44
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
45
Harness, Jumper WPL 370950 Contact Us For Availability
46
Motor, 60 Hz. (Alt.) (Emerson) WPL 357822 Contact Us For Availability
46
Motor, 60 Hz. (Alt.) (General Electri WPL 370653 Contact Us For Availability
46
WPL 660604 WPL 660604 Contact Us For Availability
47
Block, Disconnect (White) WPL 352090 Contact Us For Availability
49
Terminal, Female WPL 352088 Contact Us For Availability
49
Clamp, Hose WPL 353096 Contact Us For Availability
50
Filter WPL 368772 Contact Us For Availability
50
WPL 354195 WPL 354195 Contact Us For Availability
51
Hose, Filter Drain (Upper) WPL 359798 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
52
Hose, Filter Drain (Lower) WPL 357052 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
53
Pump (Complete) (Refer To Page 5 For Further WPL 383957 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
54
Pulley, Pump WPL 359630 Contact Us For Availability
54
Panel, Control (Non-Suds) WPL 384780 Contact Us For Availability
54
Panel, Control (Suds) WPL 384781 Contact Us For Availability
55
WPL 359719 WPL 359719 Contact Us For Availability
56
Hose, Bleach Dispenser WPL 352978 Contact Us For Availability
56
WPL 359642 WPL 359642 Contact Us For Availability
56
WPL 362738 WPL 362738 Contact Us For Availability
57
Dial, Tim WPL 359254 Contact Us For Availability
58
WPL 359206 WPL 359206 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
59
Filter, Element (Includes Illus. 60) WPL 383719 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
Clip, Filter Element (4) WPL 383718 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
61
WPL 285134 WPL 285134 Contact Us For Availability
61
WPL 690301 WPL 690301 Contact Us For Availability
75
WPL 94612 WPL 94612 Contact Us For Availability
76
WPL 94611 WPL 94611 Contact Us For Availability
77
WPL 352821 WPL 352821 Contact Us For Availability
80
WPL 352827 WPL 352827 Contact Us For Availability
86
WPL 354975 WPL 354975 Contact Us For Availability
88
WPL 370959 WPL 370959 Contact Us For Availability
94
WPL 357633 WPL 357633 Contact Us For Availability
95
WPL 354764 WPL 354764 Contact Us For Availability
98
WPL 357645 WPL 357645 Contact Us For Availability
× ![]()
