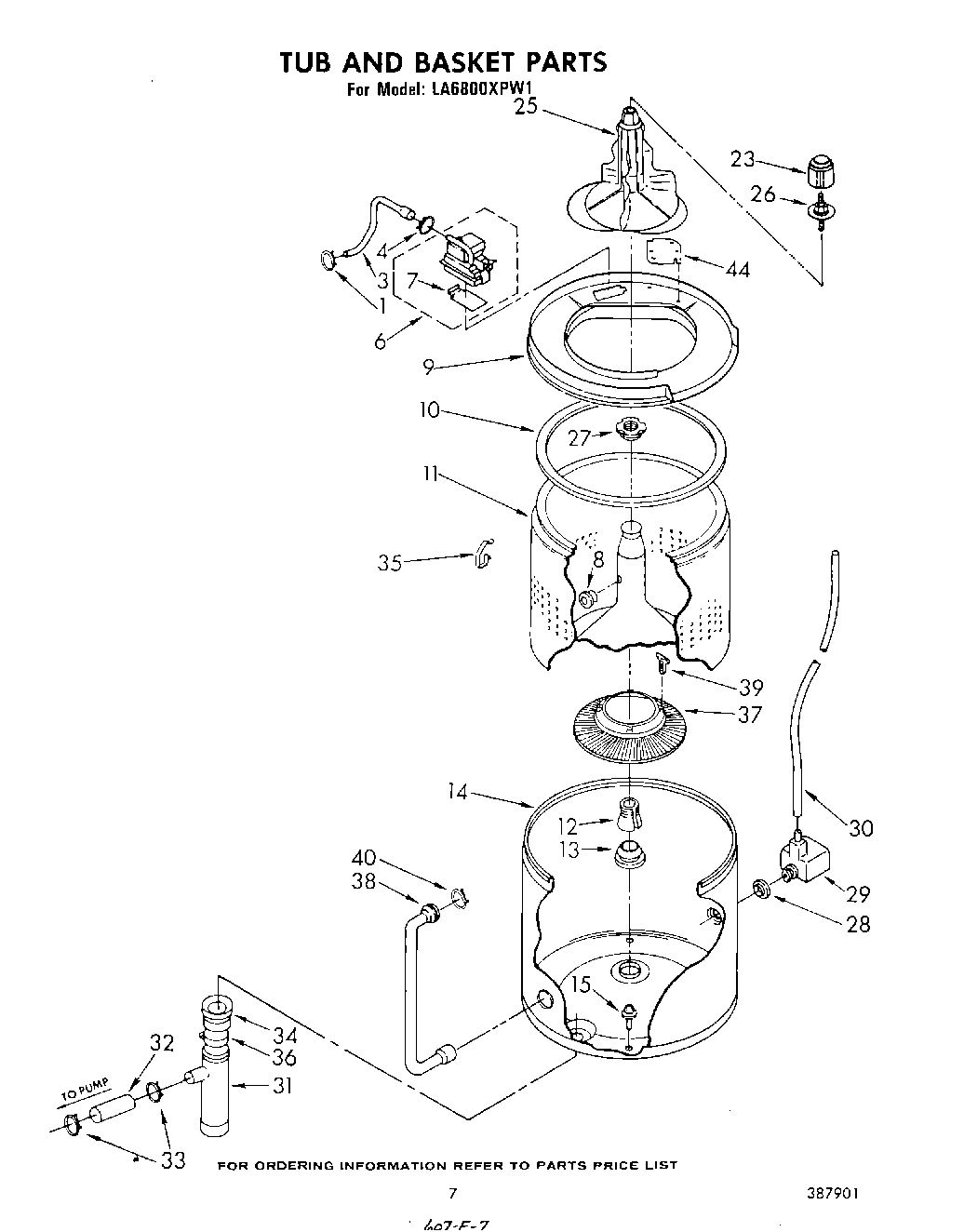

Model Whirlpool LA6800XPW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Laundry WPL LIT385238 Contact Us For Availability

Label, Energy Guide WPL LIT386198 Contact Us For Availability

Guide, Use & Care WPL LIT386895 Contact Us For Availability

List, Repair Parts WPL LIT387901 Contact Us For Availability

Sheet, Installation Instructions WPL LIT387930 Contact Us For Availability

(Belt Drive) WPL LIT677813 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

Compactor WPL LIT677821 Contact Us For Availability

Dishwasher WPL LIT677967 Contact Us For Availability

1

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

1

90984 Whirlpool Nut Backorder WPL 90984 $9.13

1

Panel, Rear Console WPL 386367 Contact Us For Availability

1

Pump Assembly WPL 383957 Contact Us For Availability

1

Wire, Ground WPL 364089 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 387200 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Cover, Rear Gusset (2) WPL 352143 Contact Us For Availability

2

Cover, Front Gusset WPL 353230 Contact Us For Availability

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

Rod, Suspension (3) WPL 359678 Contact Us For Availability

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

4

Strap, Ground WPL 22965 Contact Us For Availability

5

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

5

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

5

Baseplate & Centerpost WPL 359721 Contact Us For Availability

5

Pulley WPL 359630 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

6

Retainer, Drain Hose WPL 357247 Contact Us For Availability

6

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

6

Lever, Valve WPL 355538 Contact Us For Availability

7

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

7

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

7

Rod, Connecting WPL 96264 Contact Us For Availability

8

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Stop, Push-In Top WPL 358472 Contact Us For Availability

8

Bearing Block Assembly WPL 383750 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Magnet WPL 359997 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $27.74

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Shaft, Agitator WPL 362098 Contact Us For Availability

Connector, 90 o WPL 358805 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Screw, Connector Mounting (10 x 3/4) WPL 90876 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

12

Clip WPL 351395 Contact Us For Availability

12

Cam, Bar Spin WPL 354838 Contact Us For Availability

12

Panel, Rear WPL 85279 Contact Us For Availability

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Gear, Sector WPL 75073 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Ring, Retainer WPL 52083 Contact Us For Availability

Hose, Pump To 90 o Connector WPL 358560 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Spring, Lid WPL 92398 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

Spring, Brake WPL 94726 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Hinge, L.H. WPL 91099 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

19

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

19

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

19

Spring, Brake Yoke WPL 17261 Contact Us For Availability

20

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

20

Fork, Agitator Gear WPL 80398 Contact Us For Availability

20

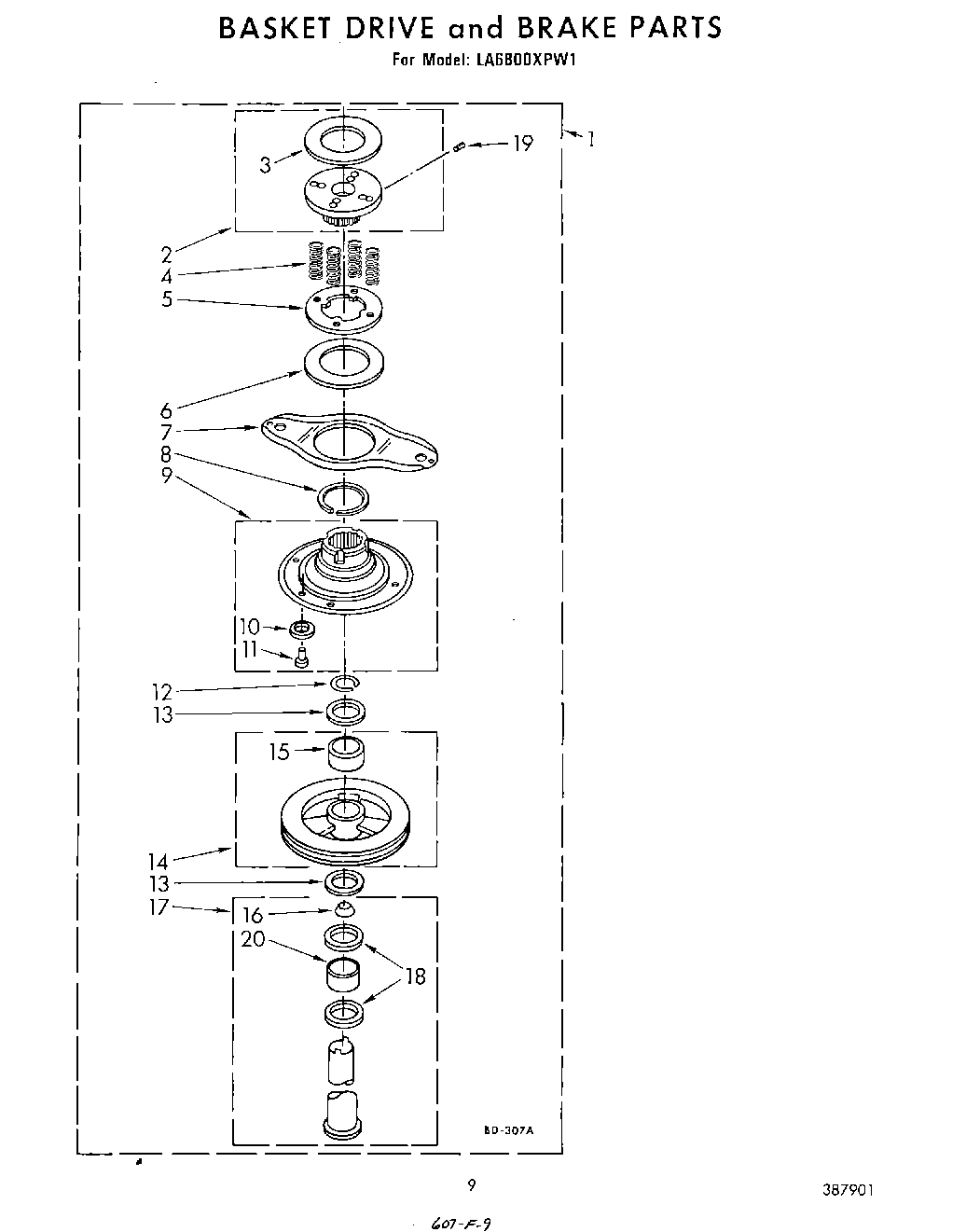

Basket Drive & Brake (For Further Breakdown R WPL 359699 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

Lid (White) WPL 382802 Contact Us For Availability

Lid (Almond) WPL 382803 Contact Us For Availability

Lid (Golden Harvest) WPL 382804 Contact Us For Availability

Lid (Toast) WPL 382805 Contact Us For Availability

Lid (Platinum) WPL 382806 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

Top (White) WPL 386319 Contact Us For Availability

Top (Almond) WPL 386320 Contact Us For Availability

Top (Golden Harvest) WPL 386321 Contact Us For Availability

Top (Toast) WPL 386322 Contact Us For Availability

Top (Platinum) WPL 386323 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Rod, Connecting WPL 76577 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

24

Rack, Literature WPL 63020 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

Cabinet (White) WPL 384793 Contact Us For Availability

Cabinet (Almond) WPL 384794 Contact Us For Availability

Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability

Cabinet (Toast) WPL 386477 Contact Us For Availability

Cabinet (Platinum) WPL 386478 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

26

Gear, Main Drive WPL 353397 Contact Us For Availability

26

Gearcase For Further Breakdown Refer To Page WPL 358483 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Seal WPL 351830 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

Screw, End Cap Mounting (2) WPL 64211 Contact Us For Availability

Leveling Link Assembly WPL 359059 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Switch, Water Level WPL 359711 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $9.13

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Switch, Water Temperature WPL 386935 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Bracket, Control WPL 386364 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

Valve, Mixing (Alt.) (Serviced Only As Comple WPL 358971 Contact Us For Availability

Valve, Mixing WPL 660749 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $11.62

34

Spring, Snubber WPL 357977 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Hose, Dispenser WPL 352978 Contact Us For Availability

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

40

Timer Assembly 60 Hz. 386883 (C.C.A.) (Alt.) WPL 660992 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/Mallory Timer) WPL 63491 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 63493 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Pulley, Motor (60 Hz.) WPL 92216 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

46

Motor, 60 Hz. (Alt.) (Emerson) WPL 357822 Contact Us For Availability

46

Motor, 60 Hz. (Alt.) (General Electric) WPL 370653 Contact Us For Availability

46

Motor, 60 Hz. WPL 660604 Contact Us For Availability

47

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

48

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

49

Terminal, Female WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

Panel, Control WPL 64126 Contact Us For Availability

55

WPL 359719 WPL 359719 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

57

Dial, Timer WPL 387183 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

58

Knob, Timer WPL 386570 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

59

Push Button (4) WPL 301008 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

Knob Assembly, Water Level WPL 386631 Contact Us For Availability

62

WP385728 Whirlpool Bushing Backorder WPL WP385728 $2.51

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

75

Cap, Terminal (Console Harness) WPL 94612 Contact Us For Availability

76

Plug, Ter WPL 94611 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $30.25

82

WPL 352821 WPL 352821 Contact Us For Availability

83

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

87

WPL 352827 WPL 352827 Contact Us For Availability

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

90

WPL 387264 WPL 387264 Contact Us For Availability

91

WPL 358116 WPL 358116 Contact Us For Availability

92

WPL 357469 WPL 357469 Contact Us For Availability

95

WPL 357633 WPL 357633 Contact Us For Availability

97

WPL 354764 WPL 354764 Contact Us For Availability
