Model Whirlpool LA5800XKW0 AUTOMATIC WASHER – Common Parts & Diagrams
04 - TUB AND BASKET
03 - DRIVE

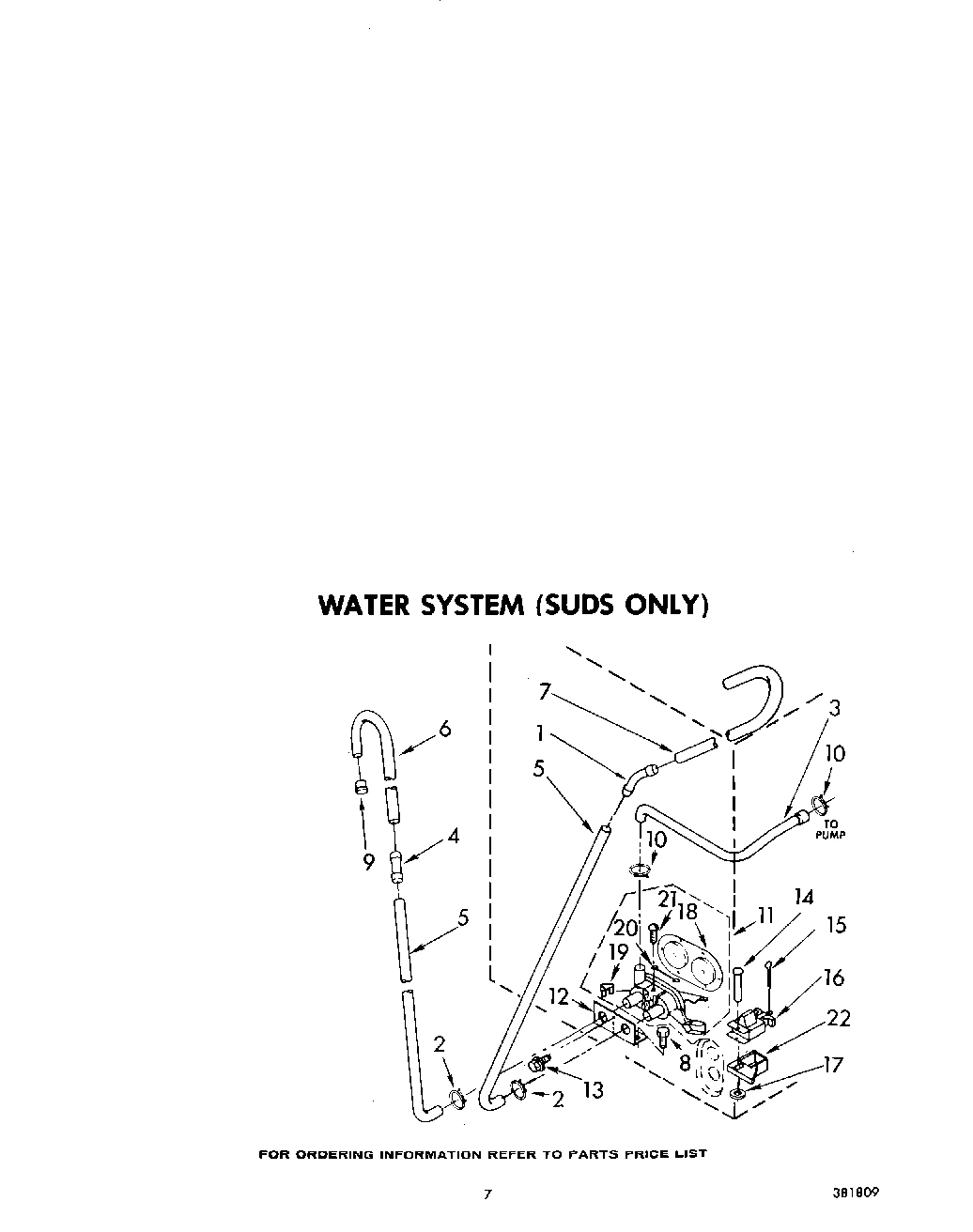

05 - WATER SYSTEM (SUDS ONLY)

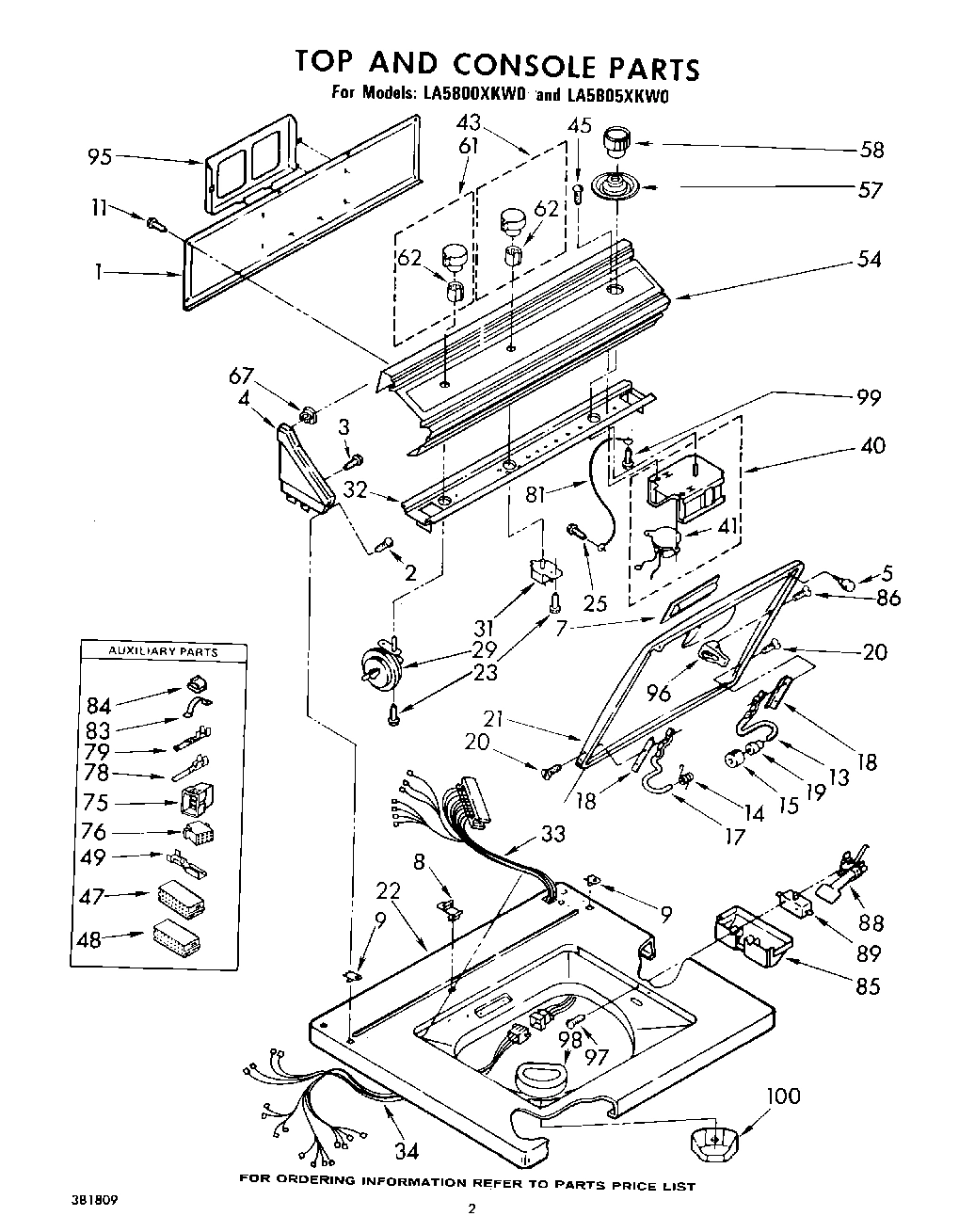

02 - TOP AND CONSOLE

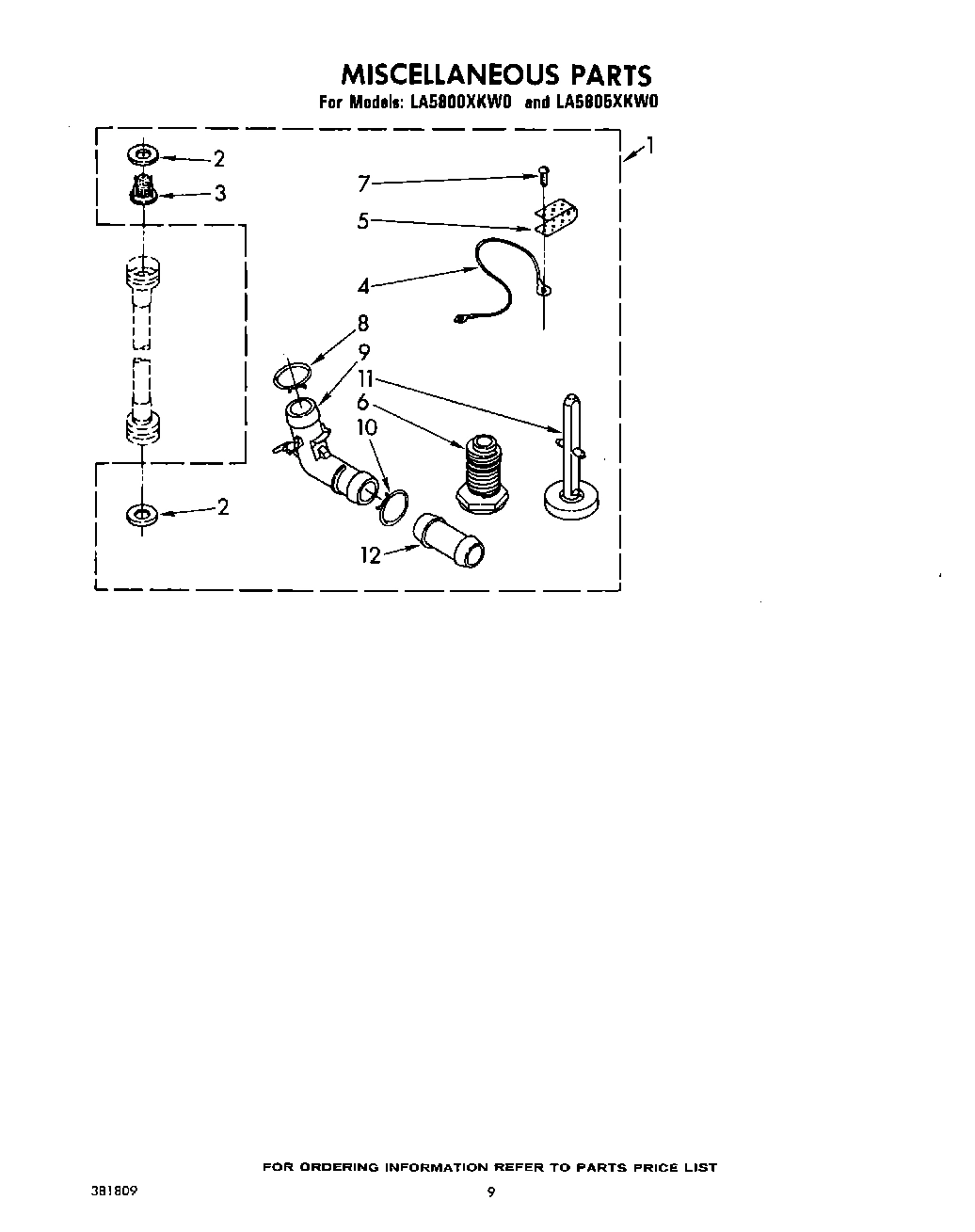

07 - MISCELLANEOUS, LIT/OPTIONAL

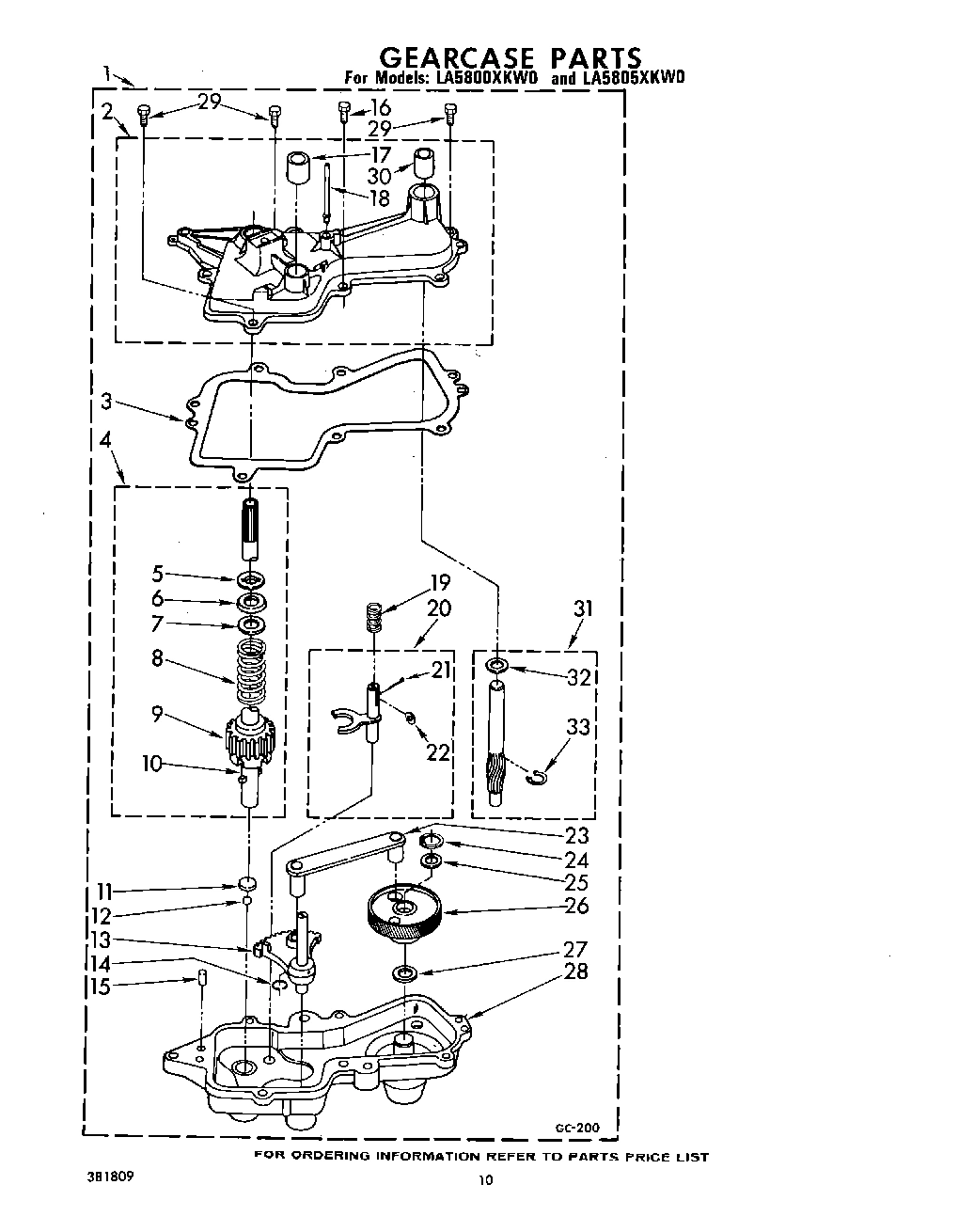

08 - GEARCASE

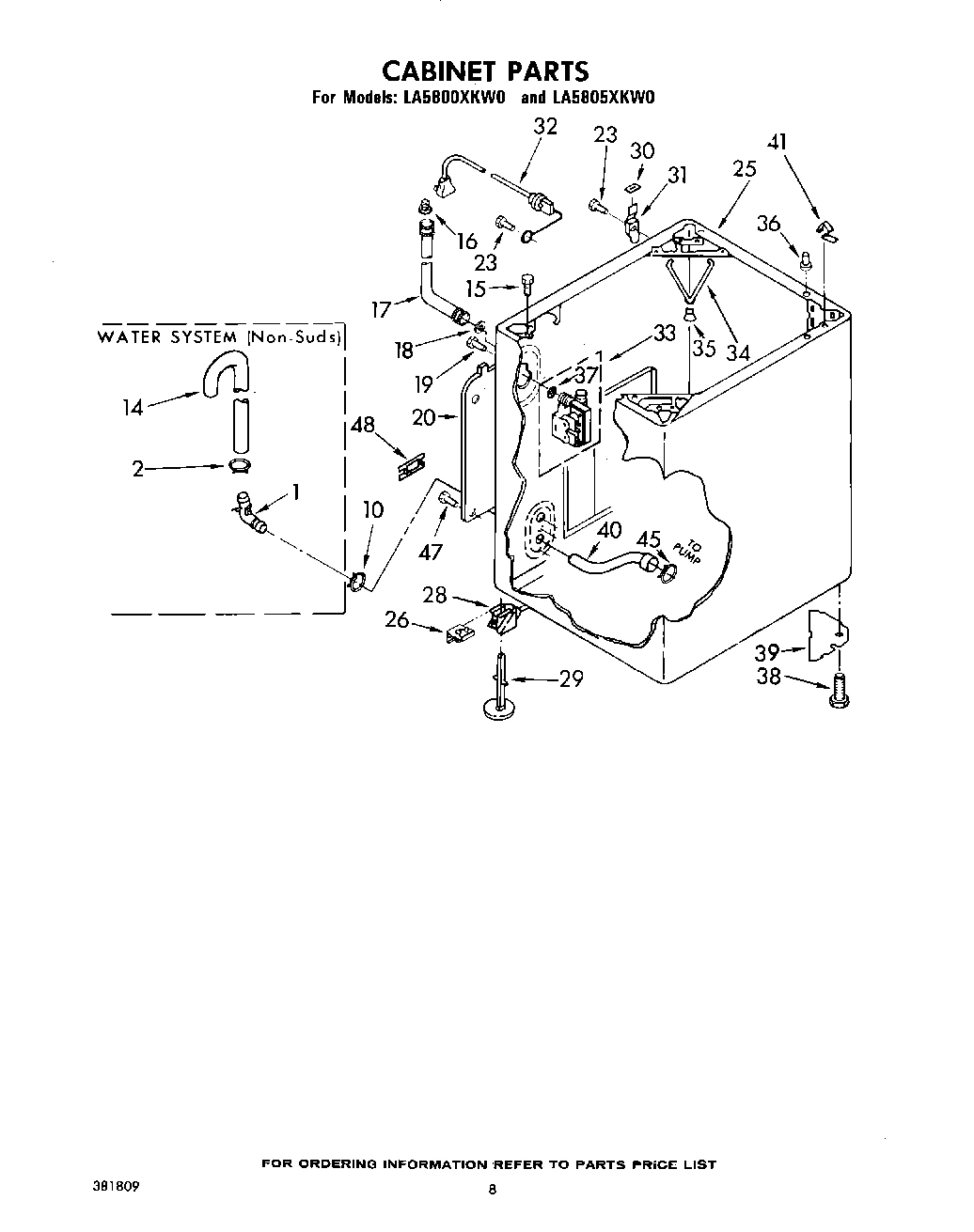

06 - CABINET

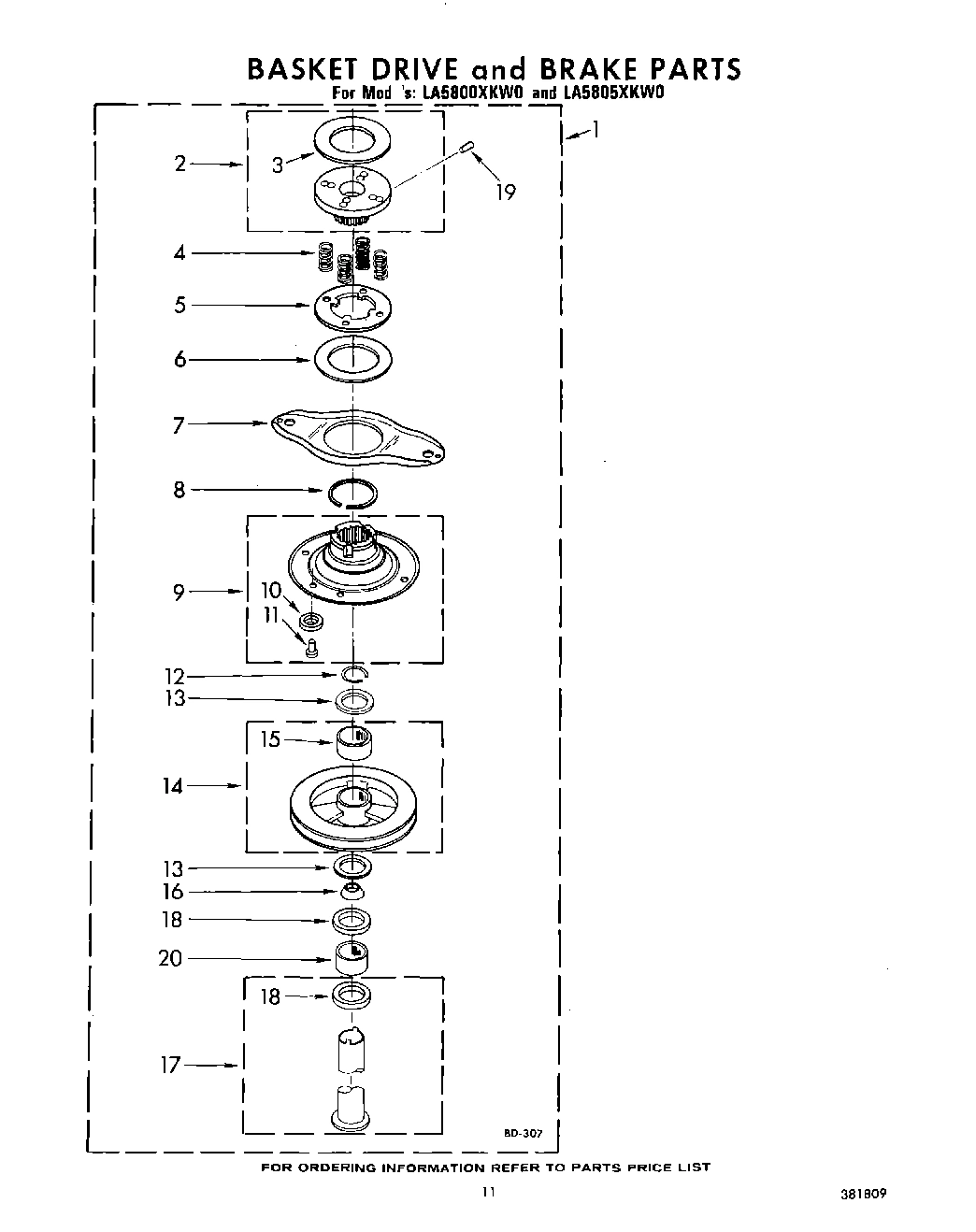

09 - BASKET DRIVE AND BRAKE
Common parts from model Whirlpool LA5800XKW0 AUTOMATIC WASHER
1
Connector, Hose WPL 95440 Contact Us For Availability
1
Basket Drive & Brake WPL 359699 Contact Us For Availability
1
Gearcase (Complete) WPL 358483 Contact Us For Availability
1
Panel, Rear Console WPL 359372 Contact Us For Availability
1
Miscellaneous Parts Bag (Non-Suds) WPL 375962 Contact Us For Availability
1
Miscellaneous Parts Bag (Suds) WPL 375964 Contact Us For Availability
2
Screw, 8-18 x 1 WPL 358225 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350522 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Ball, Suspension (6) WPL 91073 Contact Us For Availability
3
Hose, Pump To Valve (Suds) WPL 357189 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability
4
Rod, Suspension (3) WPL 359678 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End L.H. (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (L.H.) (New Avocado) WPL 375317 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability
4
Cap, End (L.H.) (New Avocado) WPL 377282 Contact Us For Availability
4
Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
4
Wire, Ground WPL 364089 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
4
Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability
5
Baseplate & Centerpost WPL 359722 Contact Us For Availability
5
Strap, Ground WPL 22965 Contact Us For Availability
5
Ring, Retainer WPL 352430 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
6
Hose, Suds Return WPL 91273 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability
7
Brace, Baseplate WPL 353301 Contact Us For Availability
7
Handle, Lid (White) WPL 379884 Contact Us For Availability
7
Handle, Lid (Almond) WPL 379885 Contact Us For Availability
7
Handle, Lid (New Avocado) WPL 379887 Contact Us For Availability
7
Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability
7
Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
8
Nut, 5/16-24 WPL 96101 Contact Us For Availability
8
Stop, Push-In Top (1) WPL 358472 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
9
Nut, Push-In (2) WPL 358473 Contact Us For Availability
9
Magnet (120 Volt) WPL 365998 Contact Us For Availability
9
Strainer, Hose (Suds) WPL 352833 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability
10
Screw, Taper End WPL 16135 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability
11
Guide, Cam Bar WPL 95462 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
12
Cam, Bar Spin WPL 354838 Contact Us For Availability
12
Bracket, Two-Way Valve WPL 357191 Contact Us For Availability
12
New Avocado WPL 261888 Contact Us For Availability
12
New Avocado (Uncut) WPL 261889 Contact Us For Availability
12
Golden Harvest WPL 261890 Contact Us For Availability
12
xGolden Harvest (Uncut) WPL 261891 Contact Us For Availability
12
Leveler (Thinner) WPL 35094 Contact Us For Availability
12
Guide, Laundry WPL 358770 Contact Us For Availability
12
Instructions, Installation WPL 372845 Contact Us For Availability
12
Instructions, Operating WPL 380480 Contact Us For Availability
12
List, Repair Parts WPL 381809 Contact Us For Availability
12
Label, Energy Guide (Non-Suds) WPL 382271 Contact Us For Availability
12
Label, Energy Guide (Suds) WPL 382272 Contact Us For Availability
12
Thinner (1 Gal.) WPL 79935 Contact Us For Availability
12
Almond (Uncut) WPL 978883 Contact Us For Availability
13
Screw & Washer WPL 190575 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
14
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
14
Rivet WPL 359089 Contact Us For Availability
14
Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
14
Pulley, Basket Drive WPL 359697 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Pin, Cotter WPL 90228 Contact Us For Availability
15
Bumper, Lid Hinge WPL 91605 Contact Us For Availability
15
Pin, Dowel WPL 5018 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
16
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
16
Solenoid WPL 86798 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
17
Plunger WPL 84866 Contact Us For Availability
17
Hinge, L.H. WPL 91099 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
18
Rivet WPL 354959 Contact Us For Availability
18
Diaphragm WPL 358317 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
19
Spring, Brake Yoke WPL 17261 Contact Us For Availability
19
Clip, Retainer (8) WPL 96262 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
19
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
20
Strap, Ground WPL 358343 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
20
Panel, Rear (Suds) WPL 357335 Contact Us For Availability
20
Panel, Rear (Non-Suds) WPL 85279 Contact Us For Availability
20
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
21
Support, Spin Tube WPL 358586 Contact Us For Availability
21
Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability
21
Lid (White) WPL 379959 Contact Us For Availability
21
Lid (Almond) WPL 379960 Contact Us For Availability
21
Lid (New Avocado) WPL 379962 Contact Us For Availability
21
Lid (Golden Harvest) WPL 379963 Contact Us For Availability
22
Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability
22
Shield, Two-Way Valve WPL 359096 Contact Us For Availability
22
Top (White) WPL 380283 Contact Us For Availability
22
Top (Almond) WPL 380284 Contact Us For Availability
22
Top (New Avocado) WPL 380286 Contact Us For Availability
22
Top (Golden Harvest) WPL 380287 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
25
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
25
Cabinet (White) WPL 379101 Contact Us For Availability
25
Cabinet (Almond) WPL 379102 Contact Us For Availability
25
Cabinet (New Avocado) WPL 379104 Contact Us For Availability
25
Cabinet (Golden Harvest) WPL 379105 Contact Us For Availability
26
Gear, Main Drive WPL 353397 Contact Us For Availability
27
Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability
27
Washer, Thrust WPL 363362 Contact Us For Availability
28
Seal WPL 351830 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
28
Leveling Link Assembly WPL 359059 Contact Us For Availability
29
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
29
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
29
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
29
Switch, Water Level WPL 359711 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability
30
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
31
Gasket, Tub (7) WPL 17235 Contact Us For Availability
31
Switch, Water Temperature (Alternate) WPL 370145 Contact Us For Availability
31
Switch, Water Temperature (Alternate) WPL 370146 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
31
Hinge, R.H. WPL 18775 Contact Us For Availability
31
Hinge, L.H. WPL 92657 Contact Us For Availability
32
Hose, Dispenser WPL 352978 Contact Us For Availability
32
Bracket, Control WPL 359708 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
32
Cord, Power (120 Volt) WPL 92667 Contact Us For Availability
33
Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability
33
+Harness, Console (Non-Suds) WPL 359327 Contact Us For Availability
33
+Harness, Console (Suds) WPL 359338 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
33
Valve, Mixing (Alternate) WPL 358971 Contact Us For Availability
34
Harness, Cabinet (Non-Suds) WPL 358116 Contact Us For Availability
34
Harness, Cabinet (Suds) WPL 88916 Contact Us For Availability
34
Spring, Snubber WPL 357977 Contact Us For Availability
35
Snubber WPL 358336 Contact Us For Availability
35
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
36
Ball WPL 358585 Contact Us For Availability
36
Locator, Top (2) WPL 98669 Contact Us For Availability
37
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
38
Pulley, Main Drive WPL 360840 Contact Us For Availability
39
Plate, Gusset (2) WPL 356459 Contact Us For Availability
40
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
40
Timer, 60 Hz. (C.C.A. Non-Suds) WPL 380257 Contact Us For Availability
40
Timer, 60 Hz. (C.C.A. Suds) WPL 380259 Contact Us For Availability
40
Timer, 60 Hz. (M WPL 380261 Contact Us For Availability
40
Hose, Pump Discharge (Non-Suds) WPL 358560 Contact Us For Availability
41
Nut (4) WPL 98023 Contact Us For Availability
41
WPL 362681 WPL 362681 Contact Us For Availability
41
WPL 365941 WPL 365941 Contact Us For Availability
42
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
43
Pulley, Motor (60 Hz.) WPL 92216 Contact Us For Availability
43
WPL 690307 WPL 690307 Contact Us For Availability
44
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
45
Clamp, Hose WPL 272857 Contact Us For Availability
46
Motor (Emerson) (Alternate) 60 Hz. WPL 357822 Contact Us For Availability
46
Motor (General Electric) (Alternate) 60 H WPL 370653 Contact Us For Availability
48
WPL 352090 WPL 352090 Contact Us For Availability
48
Plug, Cabinet (2) WPL 354179 Contact Us For Availability
49
WPL 352088 WPL 352088 Contact Us For Availability
50
WPL 354195 WPL 354195 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
54
WPL 382411 WPL 382411 Contact Us For Availability
54
WPL 382412 WPL 382412 Contact Us For Availability
55
WPL 359719 WPL 359719 Contact Us For Availability
56
WPL 359642 WPL 359642 Contact Us For Availability
56
WPL 362738 WPL 362738 Contact Us For Availability
57
WPL 370950 WPL 370950 Contact Us For Availability
57
WPL 359254 WPL 359254 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
58
WPL 359773 WPL 359773 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
61
WPL 285134 WPL 285134 Contact Us For Availability
61
WPL 690305 WPL 690305 Contact Us For Availability
75
WPL 94612 WPL 94612 Contact Us For Availability
76
WPL 94611 WPL 94611 Contact Us For Availability
86
WPL 354975 WPL 354975 Contact Us For Availability
88
WPL 370959 WPL 370959 Contact Us For Availability
95
WPL 357645 WPL 357645 Contact Us For Availability
96
WPL 357633 WPL 357633 Contact Us For Availability
97
WPL 354764 WPL 354764 Contact Us For Availability
98
WPL 352821 WPL 352821 Contact Us For Availability
100
WPL 352827 WPL 352827 Contact Us For Availability
× ![]()
