Model Whirlpool LA5715XPW3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

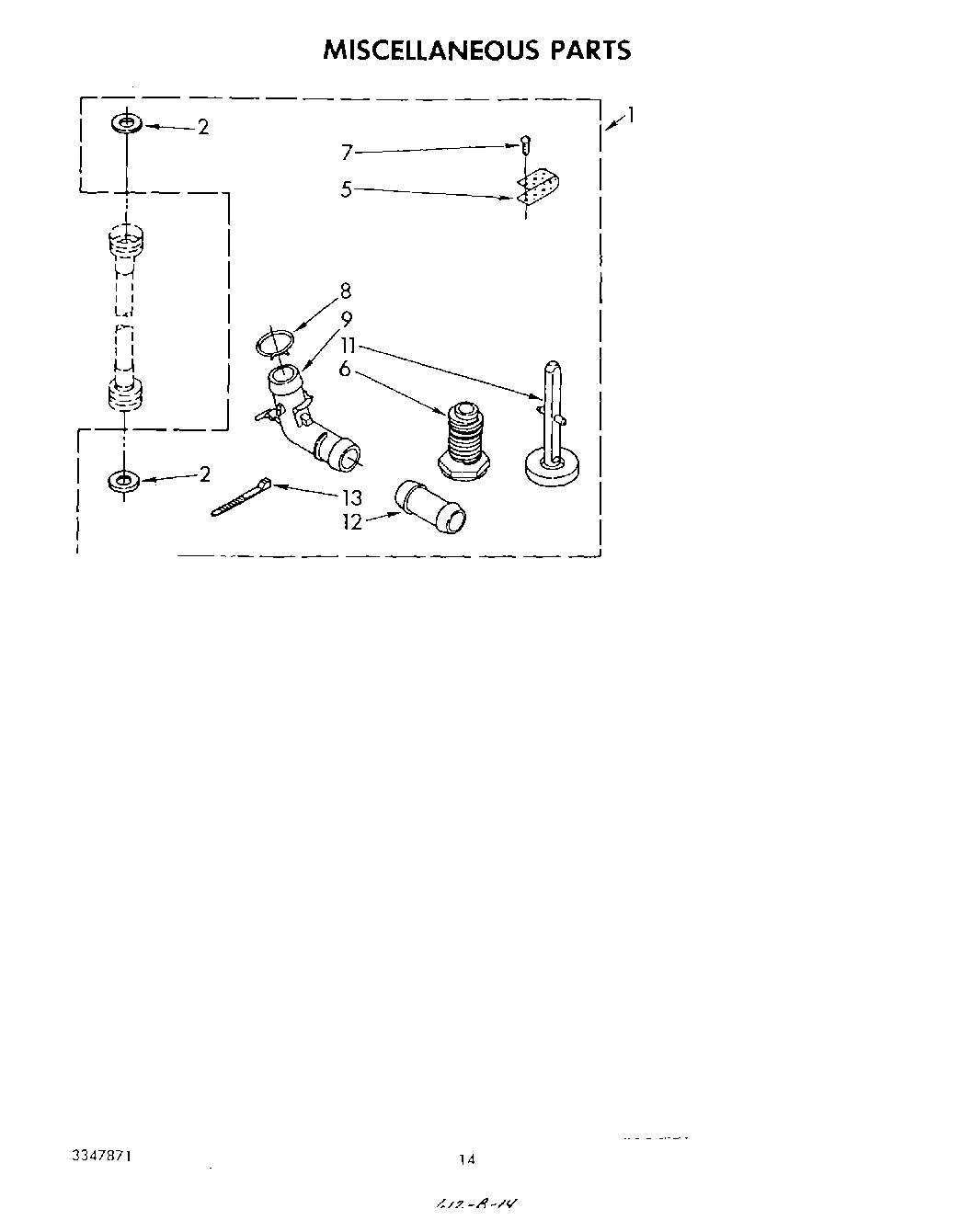

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

List, Repair Parts WPL LIT3347871 Contact Us For Availability

Instructions, Installation (Suds) WPL LIT378957 Contact Us For Availability

Guide, Laundry WPL LIT385238 Contact Us For Availability

Label, Energy Guide (Non-Suds) WPL LIT387734 Contact Us For Availability

Label, Energy Guide (Suds) WPL LIT387735 Contact Us For Availability

Sheet, Installation Instructions WPL LIT387930 Contact Us For Availability

Guide, Use & Care WPL LIT388538 Contact Us For Availability

Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

Compactor WPL LIT677821 Contact Us For Availability

Dishwasher WPL LIT677967 Contact Us For Availability

Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability

WPL 386884 WPL 386884 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

1

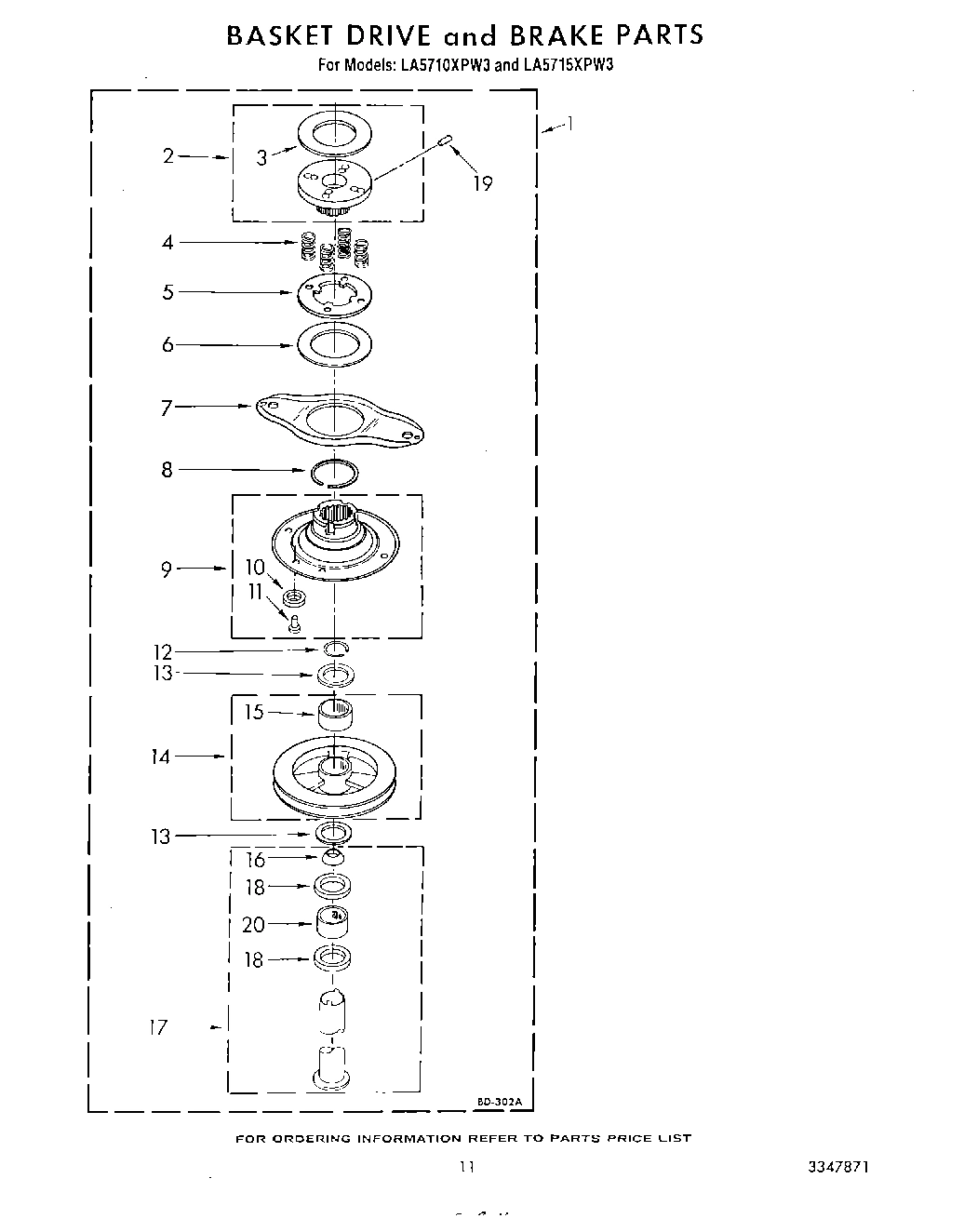

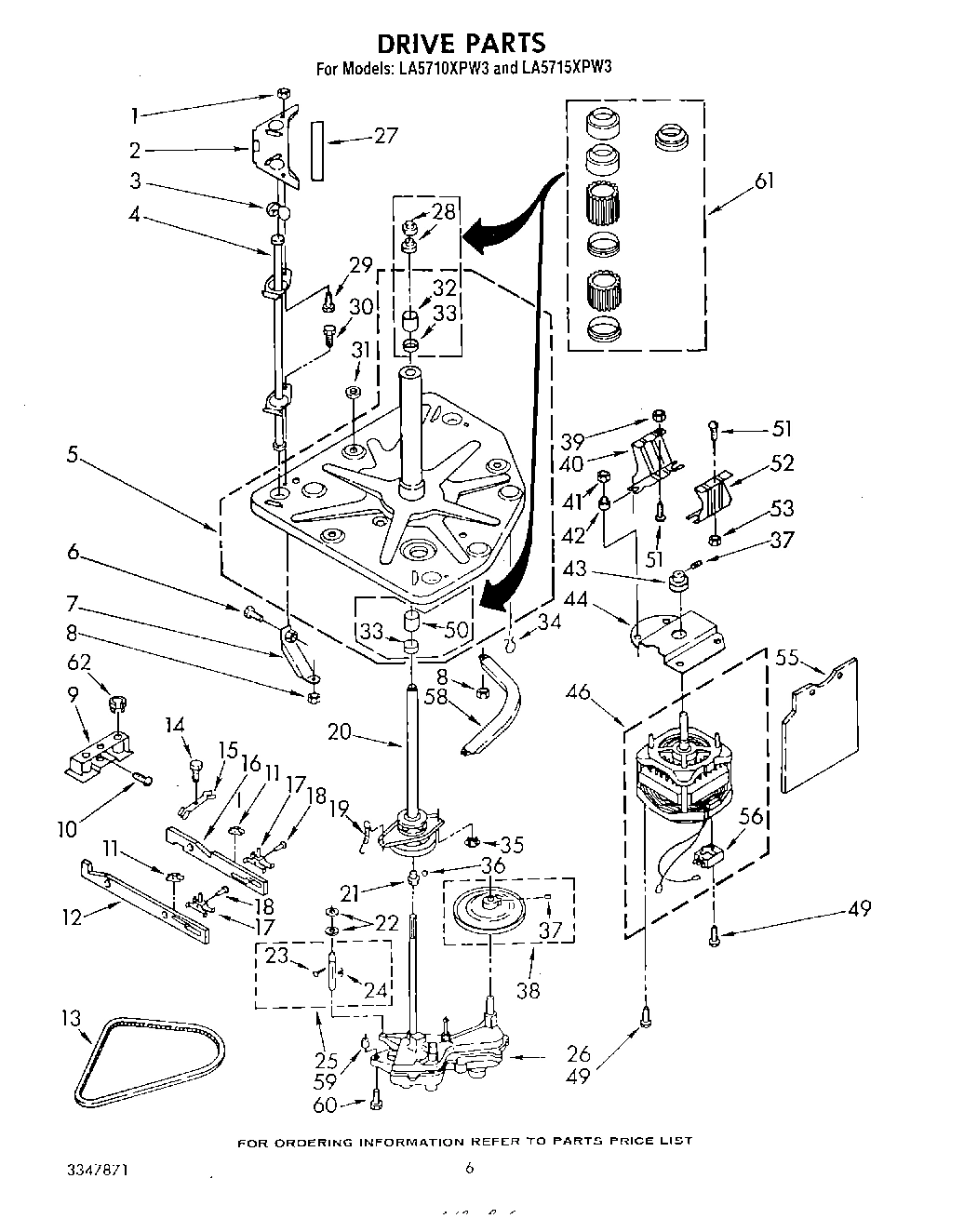

Basket Drive & Brake WPL 358364 Contact Us For Availability

1

Hose, Gooseneck WPL 388798 Contact Us For Availability

1

Miscellaneous Parts Bag (Suds) WPL 375977 Contact Us For Availability

1

Miscellaneous Parts Bag (Non-Suds) WPL 387200 Contact Us For Availability

1

Panel, Rear WPL 386367 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Strainer, Hose WPL 352833 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Hose, Recirculating WPL 92272 Contact Us For Availability

2

Screw, 8-18 x 1 WPL 64211 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly In Stock WPL 96746 $27.41

4

Spring, Toggle WPL 96266 Contact Us For Availability

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

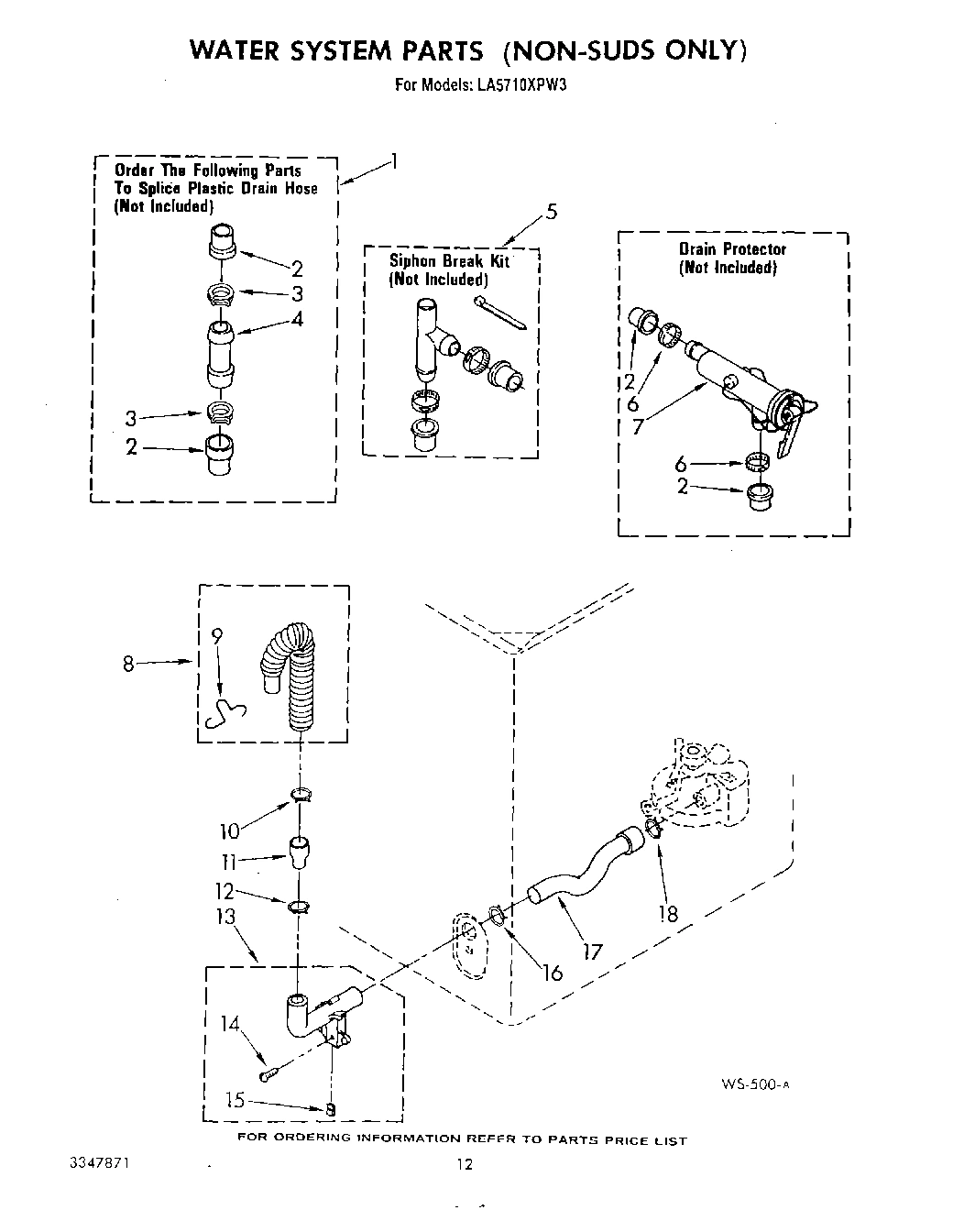

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Baseplate & Centerpost WPL 358949 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

6

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

6

Inlet, Water WPL 366072 Contact Us For Availability

7

Connector, Hose WPL 95440 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

7

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Pin, Cotter (1/8 x 3/4) WPL 90228 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Plate, Snubber WPL 355852 Contact Us For Availability

8

Stop, Push-In Top (1) WPL 358472 Contact Us For Availability

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Magnet, 120 Volt WPL 359997 Contact Us For Availability

9

Rivet WPL 359089 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Retainer, Wire WPL 357247 Contact Us For Availability

9

Ring & Filter, Tub (Includes Illus. 8 & 41) WPL 381978 Contact Us For Availability

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

Screw, Taper End WPL 16135 Contact Us For Availability

Solenoid WPL 86798 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Seal, Tub Ring WPL 383553 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Guide, Cam Bar WPL 95462 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

Basket WPL 383960 Contact Us For Availability

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Cam, Bar Spin WPL 354838 Contact Us For Availability

Lever, Valve WPL 355538 Contact Us For Availability

Two-Way Valve WPL 359634 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Rod, Connecting WPL 96264 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Connector, Hose WPL 358805 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Hose, Pump To Valve WPL 21115 Contact Us For Availability

Bearing Block Assembly WPL 383750 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Screw, Connector Mounting WPL 90876 Contact Us For Availability

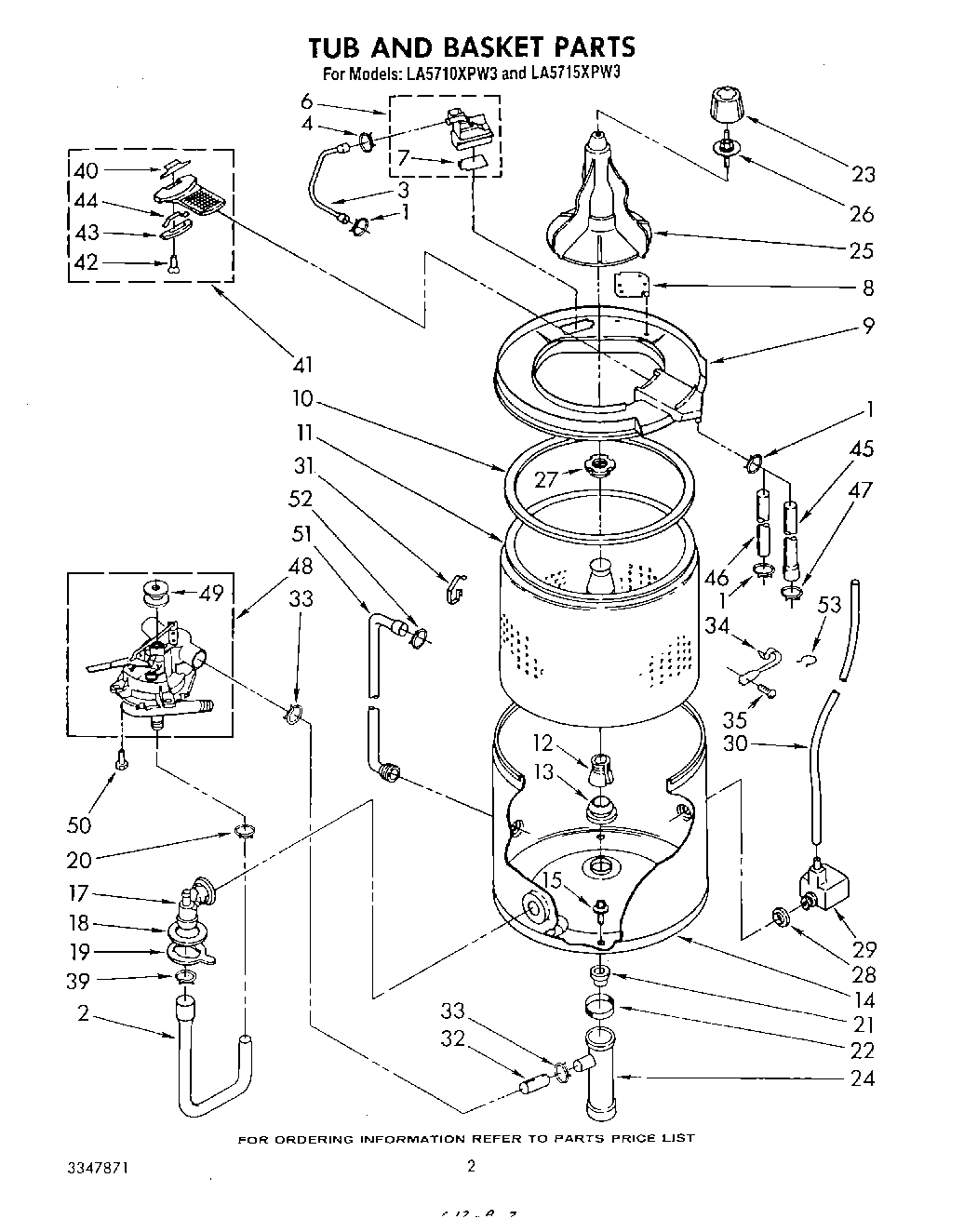

Tub (Suds) WPL 359591 Contact Us For Availability

Tub (Non-Suds) WPL 384125 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Clip, Retainer (8) WPL 96262 Contact Us For Availability

Wick, Oil WPL 96265 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Clip WPL 351395 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Screw & Washer WPL 190575 Contact Us For Availability

Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Plunger WPL 84866 Contact Us For Availability

Strap, Ground WPL 358343 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Hose, Pump To Cabinet WPL 21114 Contact Us For Availability

Funnel, Drain WPL 92555 Contact Us For Availability

Hinge, L.H. WPL 91099 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Rivet WPL 354959 Contact Us For Availability

Gasket WPL 50909 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Diaphragm, Valve WPL 358317 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Lockwasher WPL 50926 Contact Us For Availability

20

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

20

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

Hose, Tub Outlet WPL 93553 Contact Us For Availability

Lid (White) WPL 384725 Contact Us For Availability

Lid (Almond) WPL 384726 Contact Us For Availability

Lid (Toast) WPL 384727 Contact Us For Availability

Lid (Platinum) WPL 384728 Contact Us For Availability

Lid (Golden Harvest) WPL 384729 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

Clip, Hose WPL 9421321 Contact Us For Availability

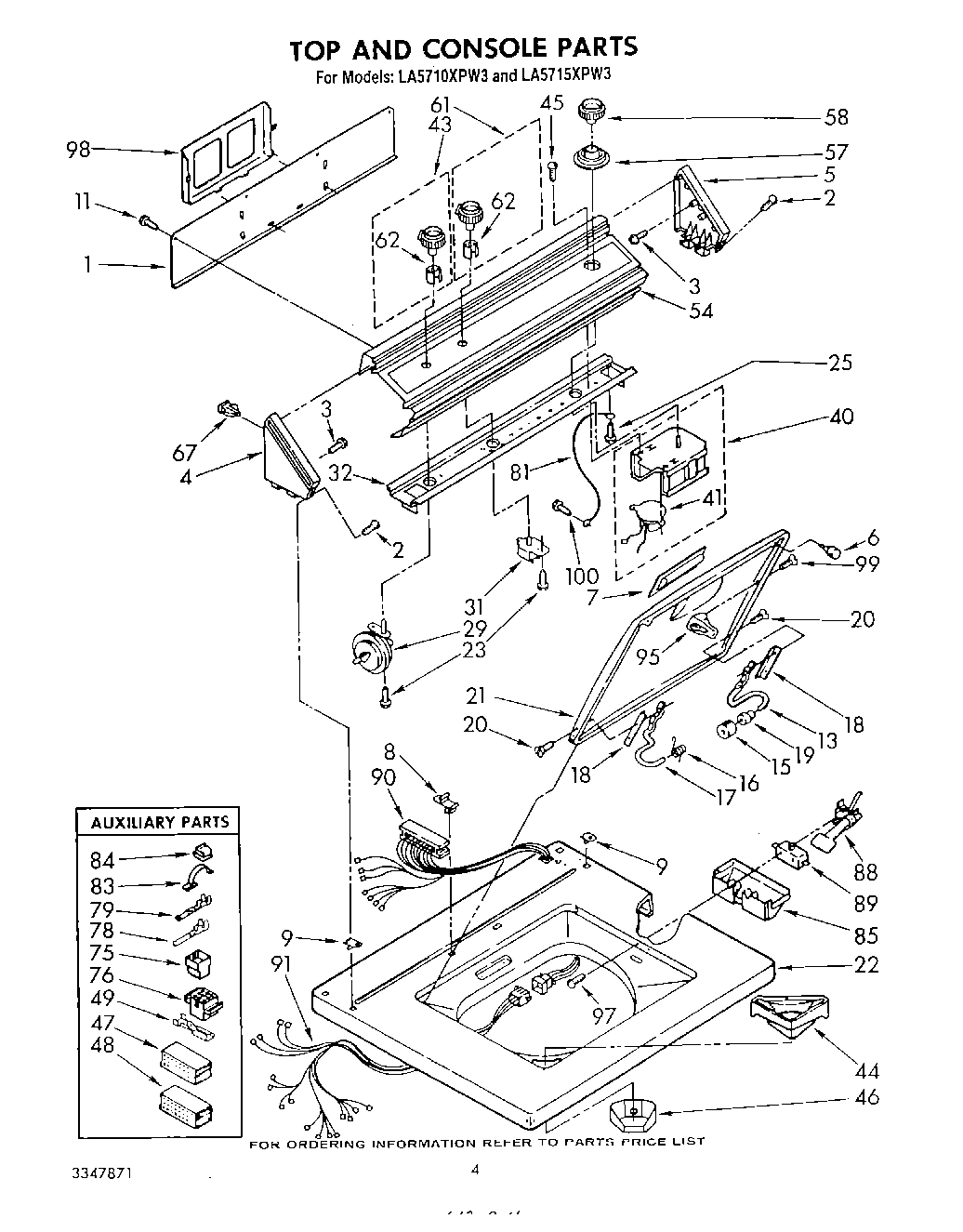

Top (White) WPL 386910 Contact Us For Availability

Top (Almond) WPL 386911 Contact Us For Availability

Top (Toast) WPL 386912 Contact Us For Availability

Top (Platinum) WPL 386913 Contact Us For Availability

Top (Golden Harvest) WPL 386914 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Cap, Agitator WPL 358431 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Manifold WPL 84091 Contact Us For Availability

25

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

25

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

25

Agitator WPL 363633 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

26

Gearcase (For Further Breakdown Refer To Page WPL 362901 Contact Us For Availability

26

Stud, Agitator Shaft WPL 358440 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

28

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

28

Seal WPL 351830 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

Switch, Water Level (Alternate) WPL 359647 Contact Us For Availability

Switch, Water Level WPL 363301 Contact Us For Availability

30

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370145 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370146 Contact Us For Availability

Switch, Water Temperature WPL 660393 Contact Us For Availability

32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

32

Hose WPL 92231 Contact Us For Availability

32

Bracket, Control WPL 386627 Contact Us For Availability

33

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

33

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $11.62

34

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

34

Bracket, Hose WPL 358339 Contact Us For Availability

35

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

Latch WPL 357249 Contact Us For Availability

Timer, 60 Hz. (Alt.) (Non-Suds) (C.C.A.) WPL 386883 Contact Us For Availability

Timer, 60 Hz. (Alt.) (Non-Suds) (Mallory) WPL 386886 Contact Us For Availability

Timer, 60 Hz. WPL 660992 Contact Us For Availability

Nut (4) WPL 98023 Contact Us For Availability

Filter WPL 359785 Contact Us For Availability

Motor, Timer (60 Hz.) (Use W/Mallory Timer) WPL 63491 Contact Us For Availability

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 63493 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

42

Screw (2) WPL 176360 Contact Us For Availability

43

Pulley, Motor (60 Hz.) WPL 357514 Contact Us For Availability

43

Retainer WPL 357250 Contact Us For Availability

43

Knob Assembly Water Level WPL 386629 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

44

Spring WPL 94403 Contact Us For Availability

44

Bezel, Dispenser WPL 352821 Contact Us For Availability

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

45

Hose, Pump To Filter (Suds) WPL 357345 Contact Us For Availability

46

Motor, 60 Hz. WPL 357875 Contact Us For Availability

46

Hose, Pump To Filter (Non-Suds) WPL 357346 Contact Us For Availability

46

Tray, Dispenser WPL 352827 Contact Us For Availability

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

47

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

48

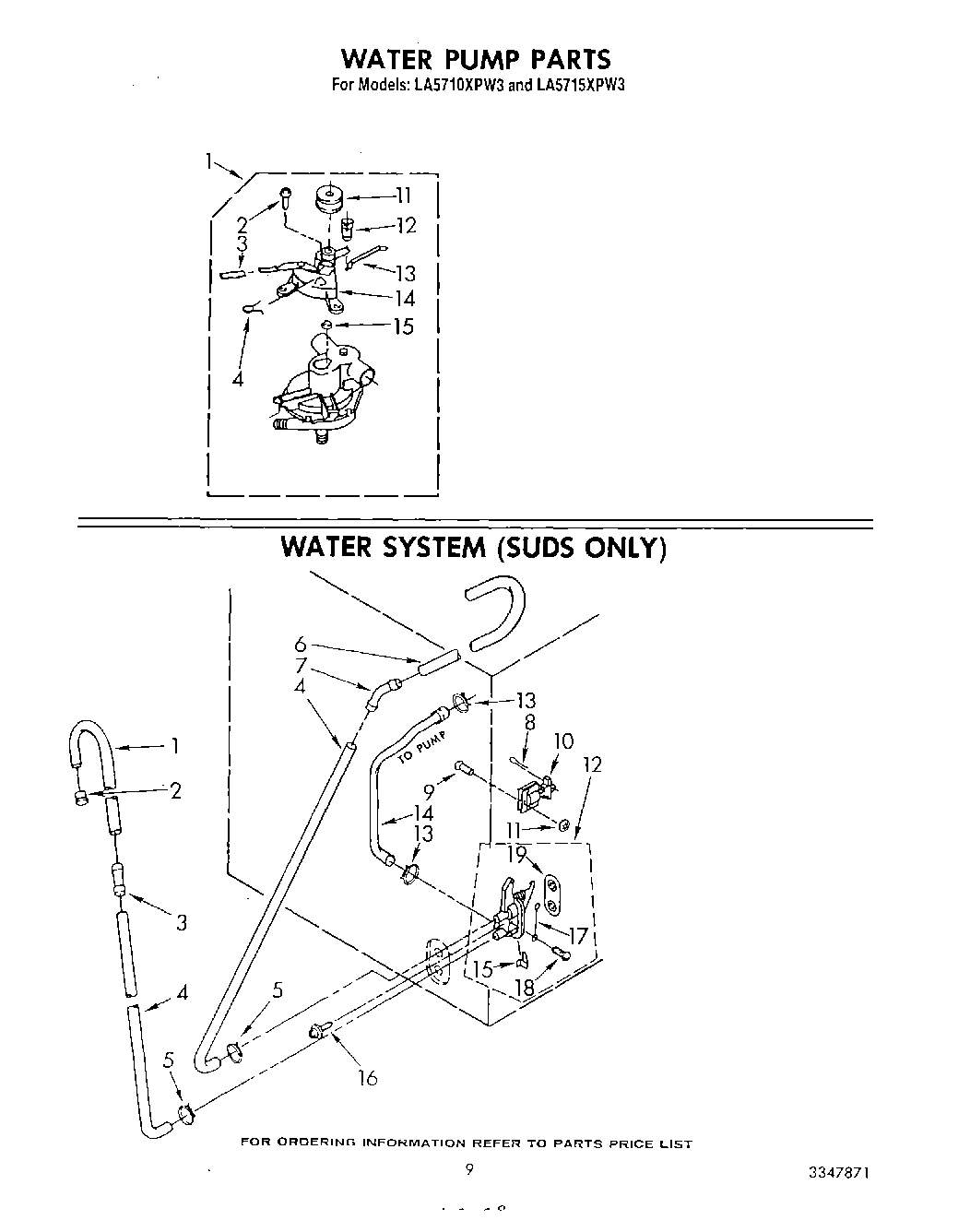

Pump, Complete (Non-Suds) (Refer To Page 8 Fo WPL 357729 Contact Us For Availability

48

Pump, Complete (Suds) WPL 362175 Contact Us For Availability

48

Block, Disconn WPL 352090 Contact Us For Availability

49

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

WPL 352088 WPL 352088 Contact Us For Availability

49

Pulley, Pump WPL 359630 Contact Us For Availability

50

Bearing, Lower WPL 354195 Contact Us For Availability

51

Bo WPL 98537 Contact Us For Availability

51

Hose, Dispenser WPL 352818 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

53

Clip, Harness WPL 387551 Contact Us For Availability

54

WPL 387790 WPL 387790 Contact Us For Availability

54

WPL 387791 WPL 387791 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 387183 WPL 387183 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

58

WPL 386570 WPL 386570 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

386011 Whirlpool Screw Backorder WPL 386011 $26.43

61

WPL 285134 WPL 285134 Contact Us For Availability

61

WPL 386630 WPL 386630 Contact Us For Availability

62

WP385728 Whirlpool Bushing Backorder WPL WP385728 $2.51

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

89

WPL 387268 WPL 387268 Contact Us For Availability

90

WPL 3347657 WPL 3347657 Contact Us For Availability

91

WPL 358115 WPL 358115 Contact Us For Availability

91

WPL 88401 WPL 88401 Contact Us For Availability

95

WPL 357633 WPL 357633 Contact Us For Availability

97

WPL 354764 WPL 354764 Contact Us For Availability

98

WPL 63020 WPL 63020 Contact Us For Availability

99

WPL 354975 WPL 354975 Contact Us For Availability

100

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51
