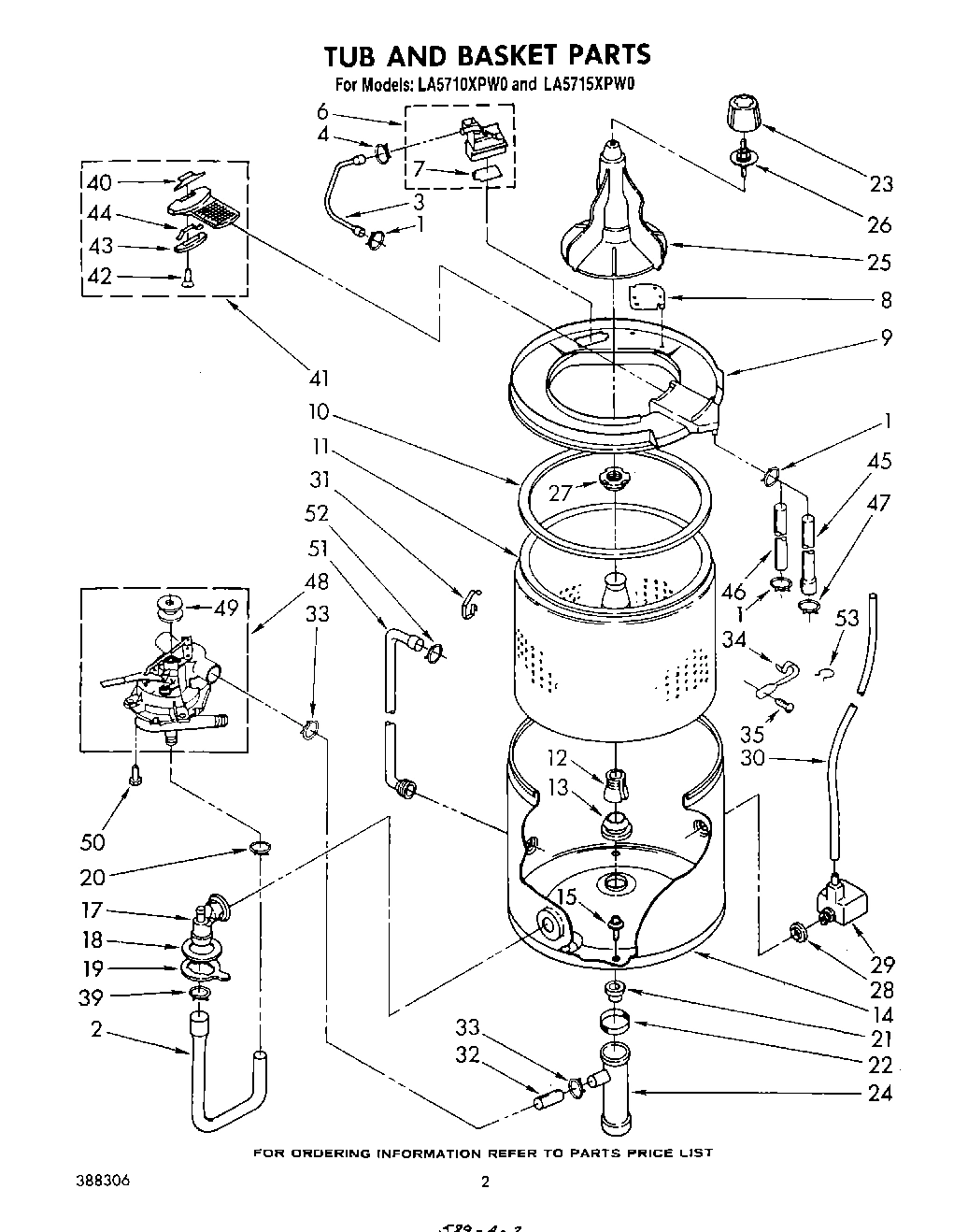

Model Whirlpool LA5710XPW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation (Suds) WPL LIT378957 Contact Us For Availability

Guide, Laundry WPL LIT385238 Contact Us For Availability

Label, Energy Guide (Non-Suds) WPL LIT387734 Contact Us For Availability

Label, Energy Guide (Suds) WPL LIT387735 Contact Us For Availability

Sheet, Installation Instructions WPL LIT387930 Contact Us For Availability

List, Repair Parts WPL LIT388306 Contact Us For Availability

Guide, Use & Care WPL LIT388509 Contact Us For Availability

Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

Compactor WPL LIT677821 Contact Us For Availability

Dishwasher WPL LIT677967 Contact Us For Availability

Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability

WPL 386884 WPL 386884 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

90984 Whirlpool Nut Backorder WPL 90984 $9.13

1

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

1

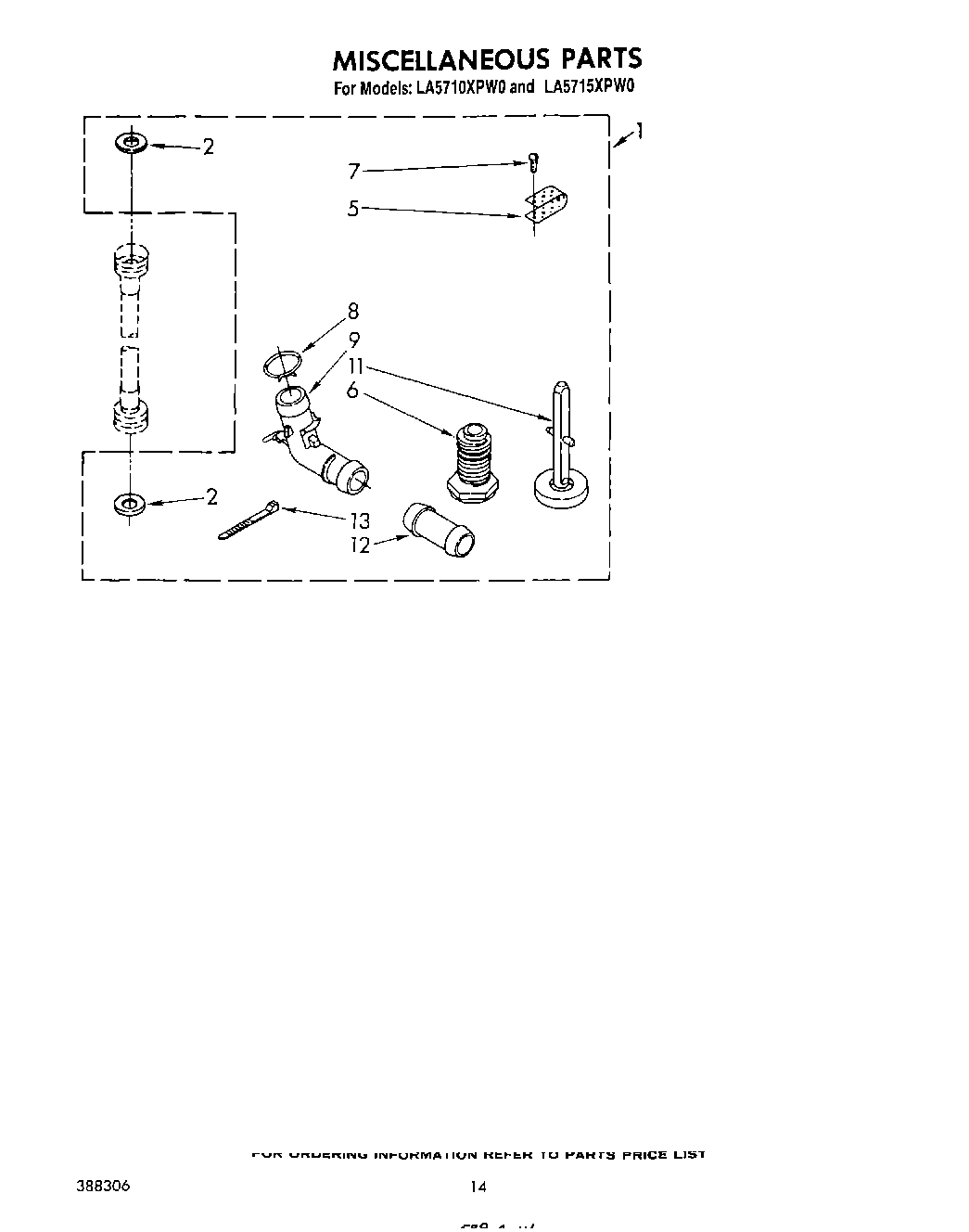

Miscellaneous Parts Bag (Suds) WPL 375977 Contact Us For Availability

1

Miscellaneous Parts Bag (Non-Suds) WPL 387200 Contact Us For Availability

1

Panel, Rear WPL 386367 Contact Us For Availability

1

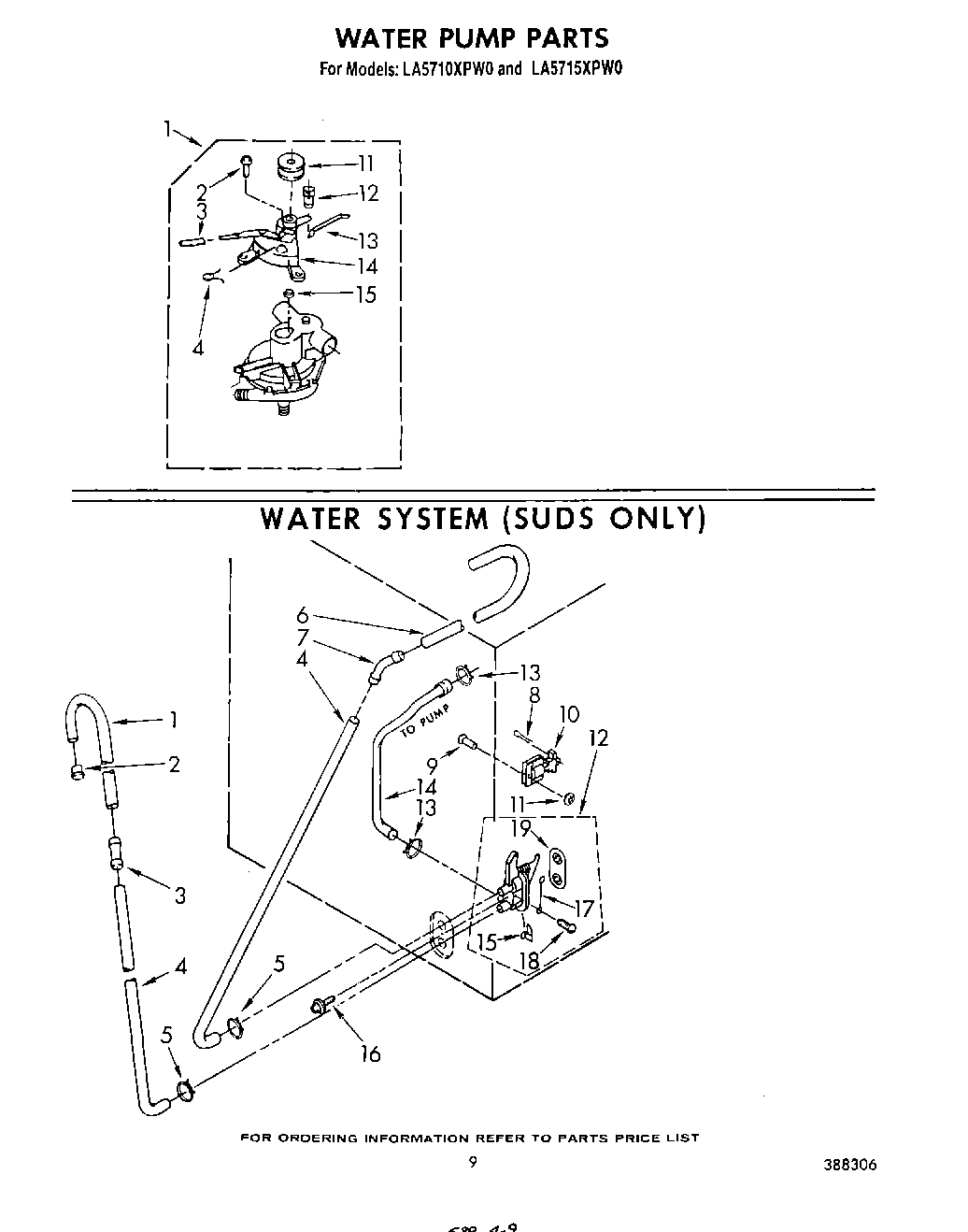

Pump Assembly (Non-Suds) (3 Port) WPL 357729 Contact Us For Availability

1

Pump Assembly (Suds) (4 Port) WPL 362175 Contact Us For Availability

1

Hose, Gooseneck WPL 388798 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Screw, 8-18 x 1 WPL 64211 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Cover, Gusset (L.R.) WPL 352143 Contact Us For Availability

2

Cover, Gusset (L.F.) WPL 353230 Contact Us For Availability

2

COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability

2

Strainer, Hose WPL 352833 Contact Us For Availability

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly In Stock WPL 96746 $27.41

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Rod, Suspension (3) WPL 82584 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

5

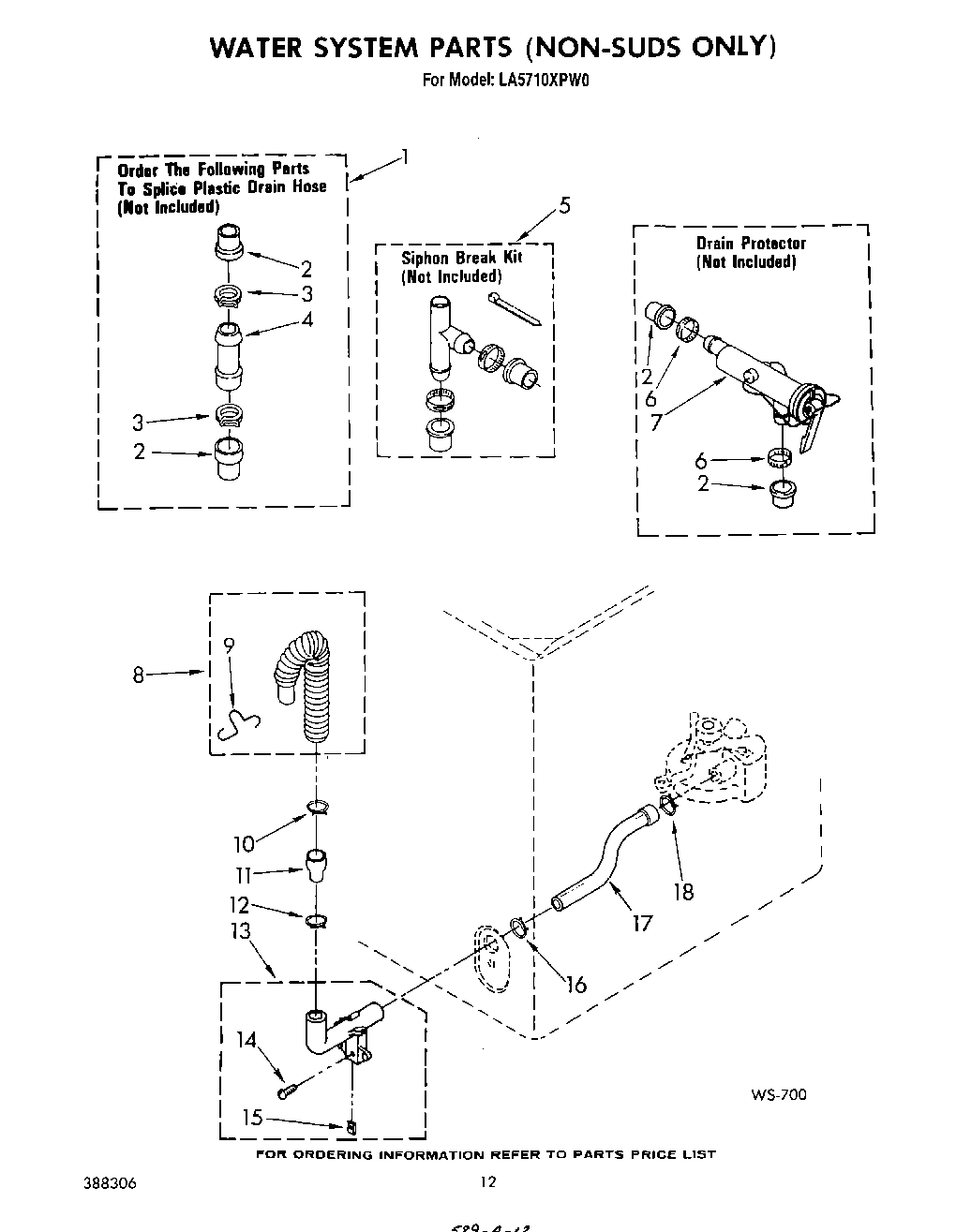

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

5

Baseplate & Centerpost WPL 358949 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

6

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

7

Connector, Hose WPL 95440 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

7

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Stop, Push-In Top (1) WPL 358472 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Pin, Cotter (1/8 x 3/4) WPL 90228 Contact Us For Availability

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Magnet, 120 Volt WPL 359997 Contact Us For Availability

9

Rivet WPL 359089 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

Solenoid WPL 86798 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Eyelet (3) WPL 98281 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

Pulley WPL 359630 Contact Us For Availability

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Panel, Rear WPL 85279 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

Lever, Valve WPL 355538 Contact Us For Availability

Two-Way Valve WPL 359634 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

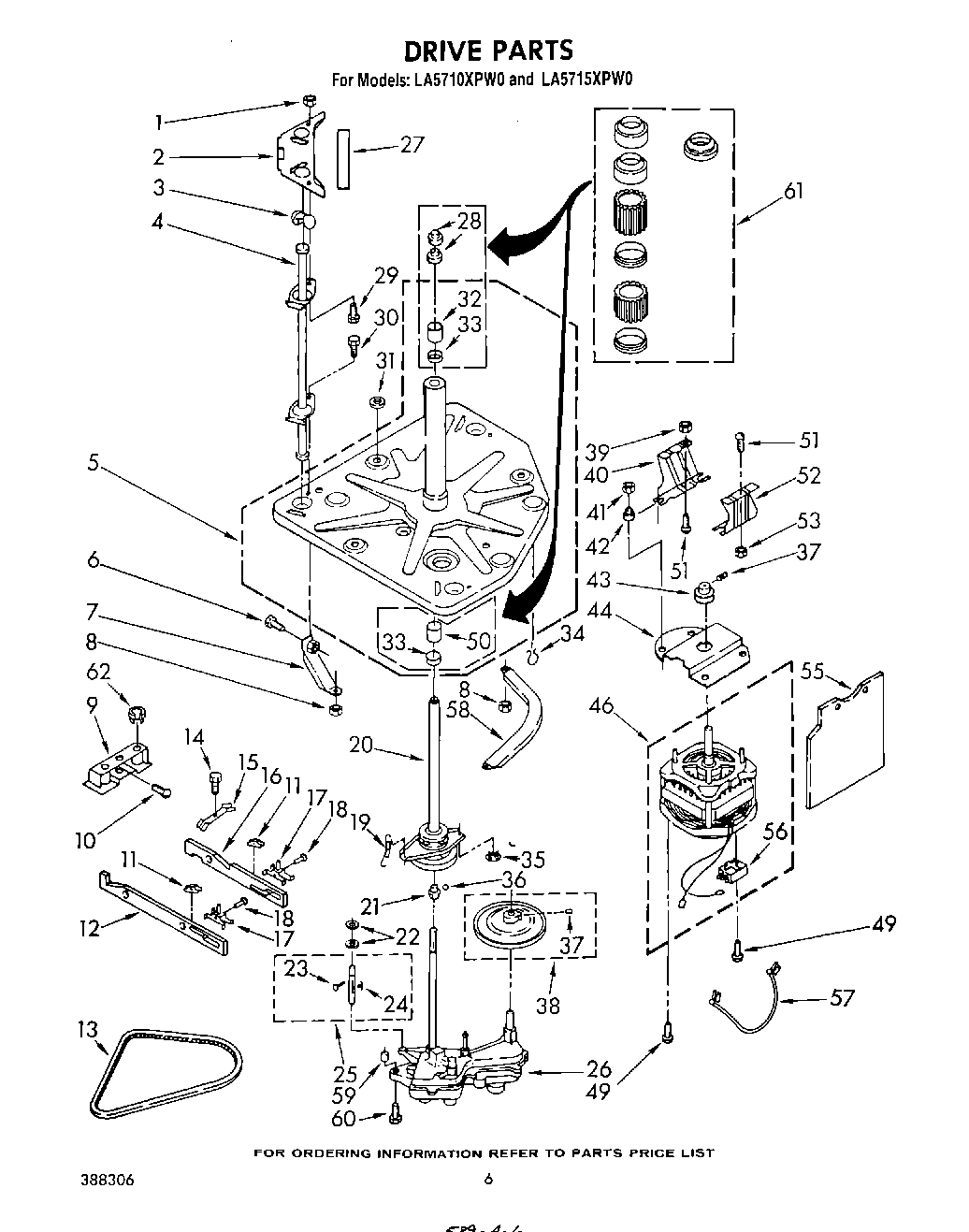

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Gear, Sector WPL 75073 Contact Us For Availability

Rod, Connecting WPL 96264 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Hose, Pump To Valve WPL 21115 Contact Us For Availability

Bearing Block Assembly WPL 383750 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Clip, Retainer (8) WPL 96262 Contact Us For Availability

Wick, Oil WPL 96265 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Screw & Washer WPL 190575 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Hinge, L.H. WPL 91099 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Strap, Ground WPL 358343 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Plate, Gusset (2) WPL 356459 Contact Us For Availability

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Diaphragm, Valve WPL 358317 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

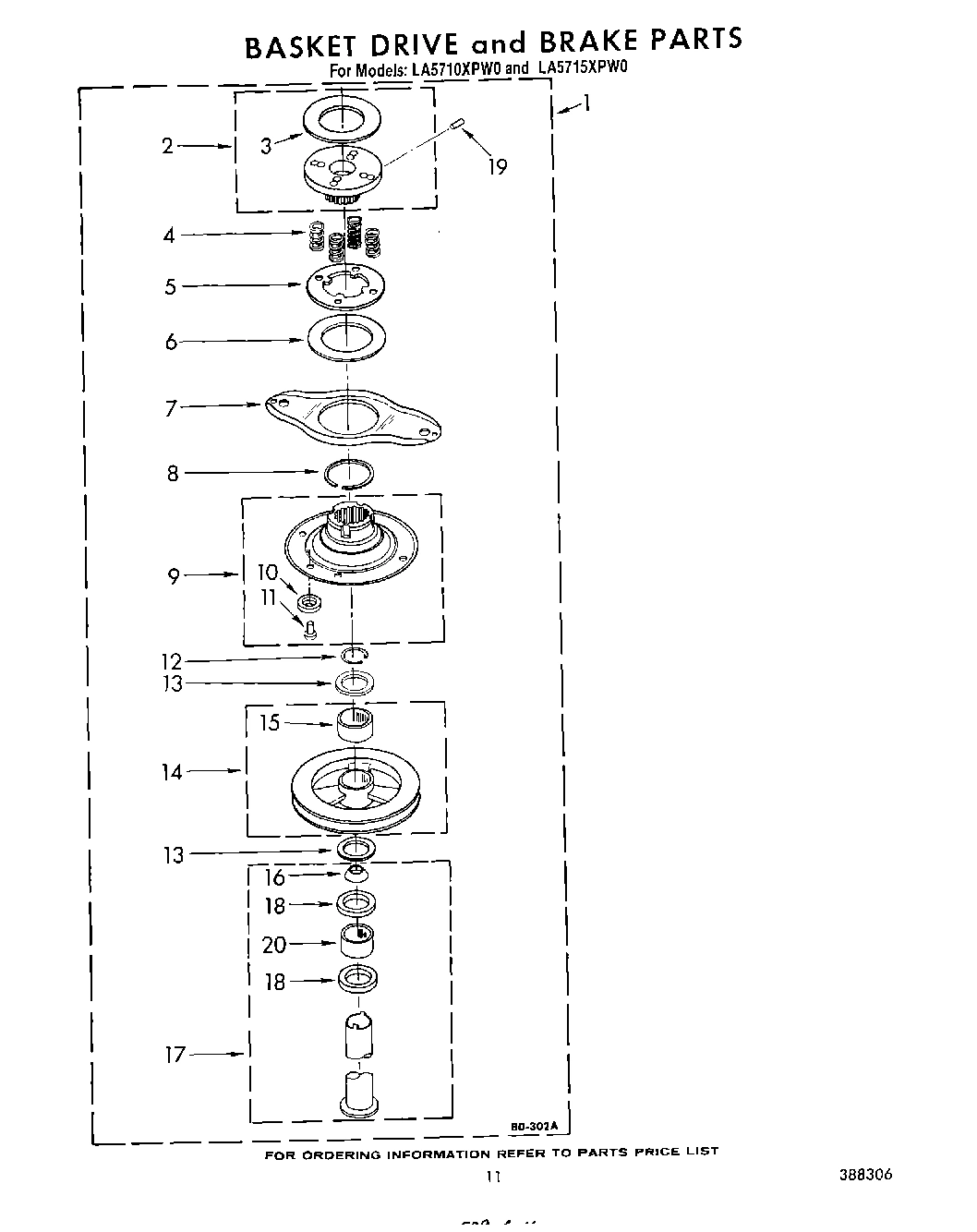

Basket Drive & Brake (For Further Breakdown R WPL 358364 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Lid (White) WPL 382802 Contact Us For Availability

Lid (Almond) WPL 382803 Contact Us For Availability

Lid (Toast) WPL 382804 Contact Us For Availability

Lid (Platinum) WPL 382805 Contact Us For Availability

Lid (Golden Harvest) WPL 382806 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

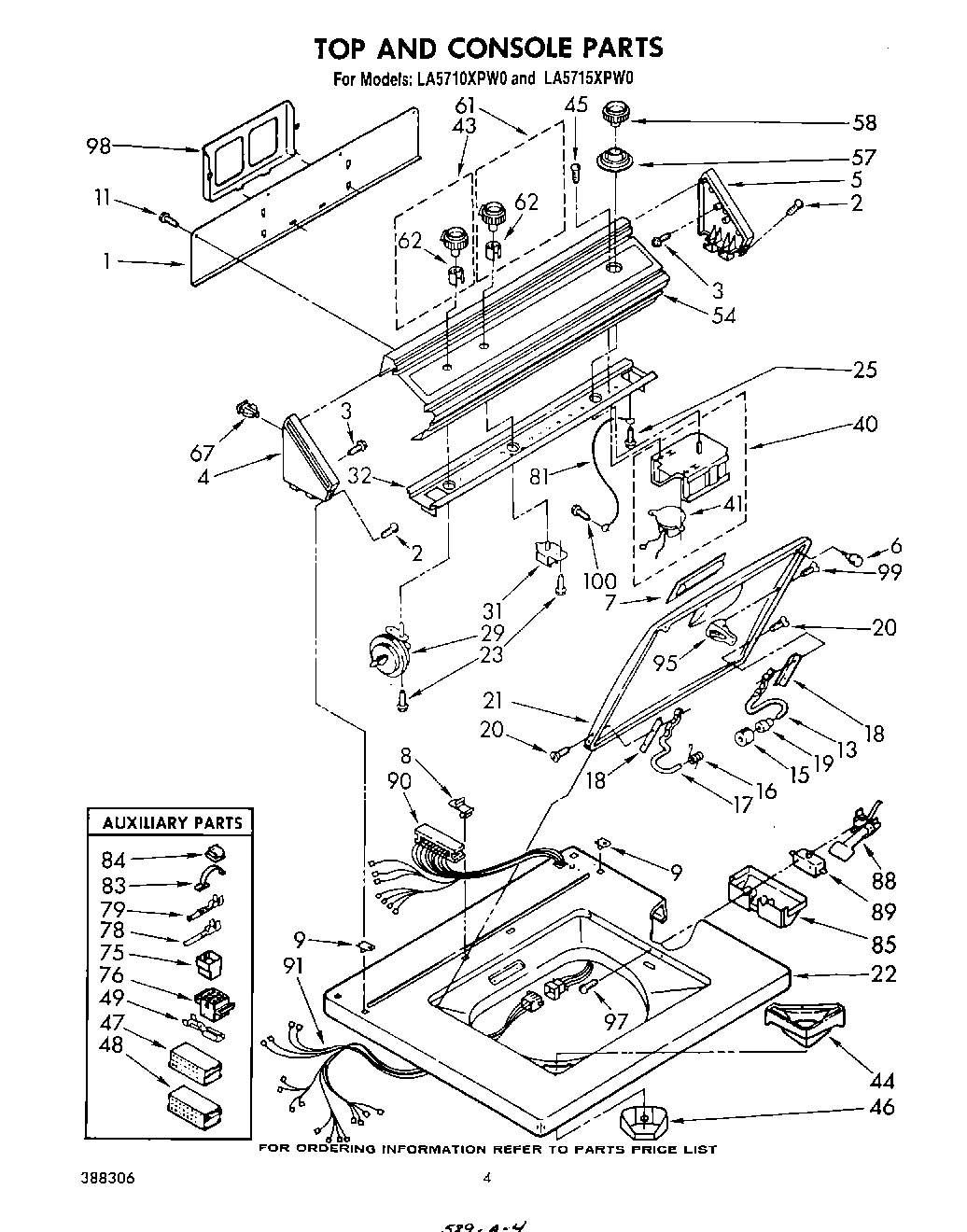

Top (White) WPL 386319 Contact Us For Availability

Top (Almond) WPL 386320 Contact Us For Availability

Top (Toast) WPL 386321 Contact Us For Availability

Top (Platinum) WPL 386322 Contact Us For Availability

Top (Golden Harvest) WPL 386323 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Rod, Connecting WPL 76577 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

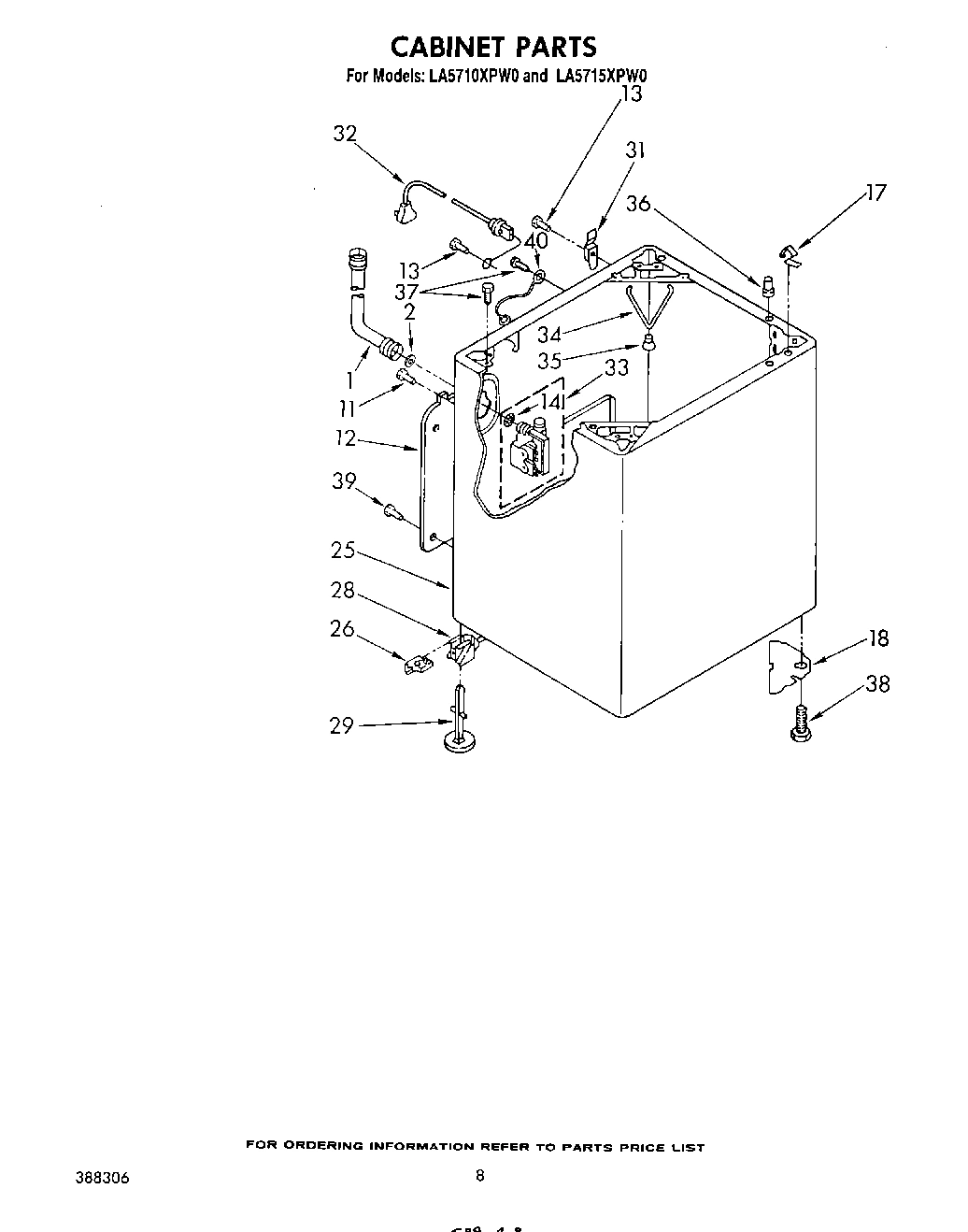

Cabinet (White) WPL 384793 Contact Us For Availability

Cabinet (Almond) WPL 384794 Contact Us For Availability

Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability

Cabinet (Toast) WPL 386477 Contact Us For Availability

Cabinet (Platinum) WPL 386478 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

26

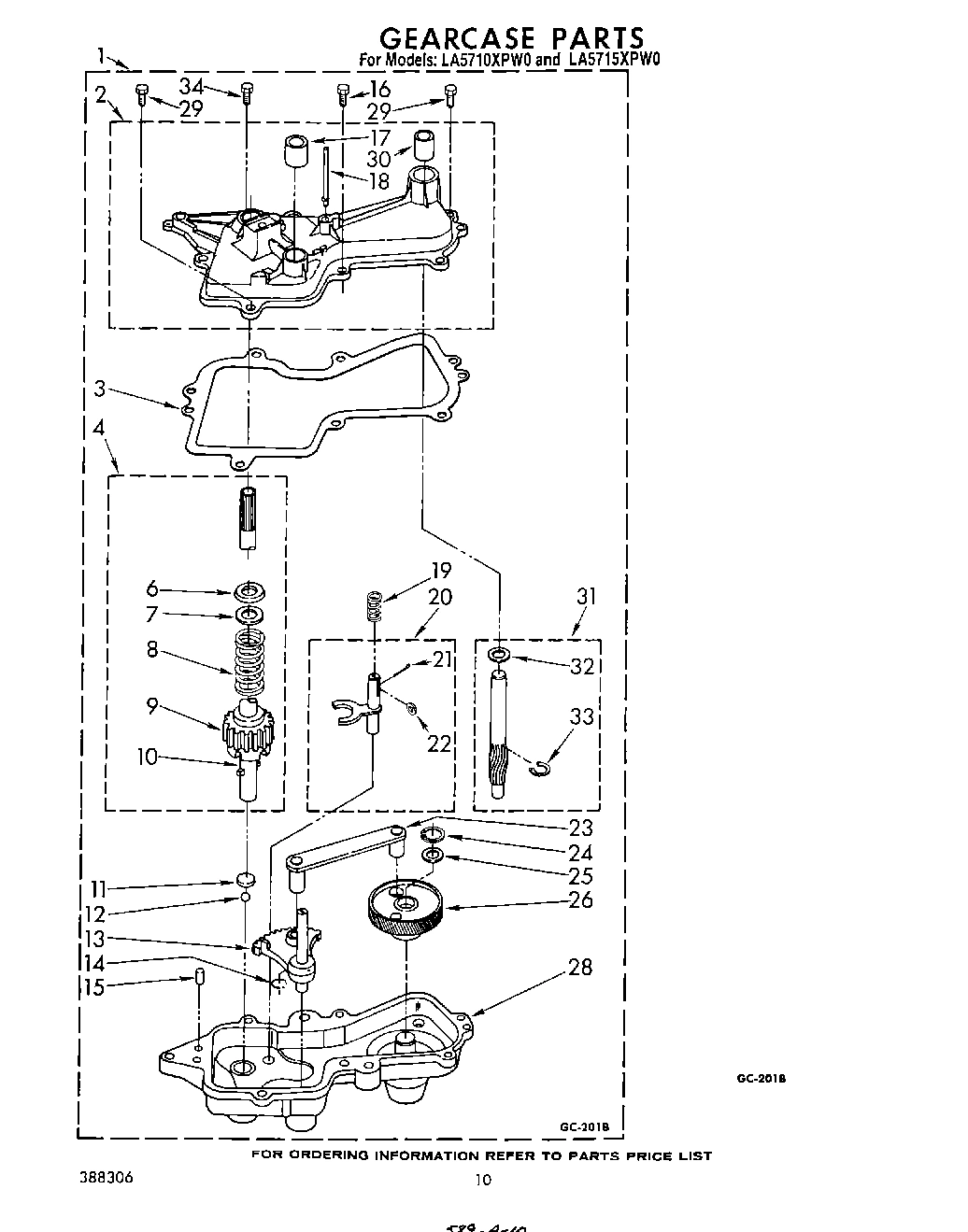

Gearcase (For Further Breakdown Refer To Page WPL 362901 Contact Us For Availability

26

Gear, Main Drive WPL 353397 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Seal WPL 351830 Contact Us For Availability

Leveling Link Assembly WPL 359059 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Switch, Water Level (Alternate) WPL 359647 Contact Us For Availability

Switch, Water Level (Alt.) WPL 363301 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370145 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370146 Contact Us For Availability

Switch, Water Temperature WPL 660393 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Bracket, Control WPL 386627 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

Valve, Mixing (Alt.) (Serviced Only As A Comp WPL 358971 Contact Us For Availability

Valve, Mixing WPL 660749 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

Spring, Snubber WPL 357977 Contact Us For Availability

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

Timer, 60 Hz. (Alt.) (Non-Suds) (C.C.A.) WPL 386883 Contact Us For Availability

Timer, 60 Hz. (Alt.) (Non-Suds) (Mallory) WPL 386886 Contact Us For Availability

Timer, 60 Hz. WPL 660992 Contact Us For Availability

Wire, Ground WPL 364089 Contact Us For Availability

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/Mallory Timer) WPL 63491 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 63493 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Knob Assembly Water Level WPL 386629 Contact Us For Availability

43

Pulley, Motor (60 Hz.) WPL 357514 Contact Us For Availability

44

Bezel, Dispenser WPL 352821 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

Tray, Dispenser WPL 352827 Contact Us For Availability

Motor, 60 Hz. (Alt.) (Emerson) WPL 357875 Contact Us For Availability

Motor, 60 Hz. (Alt.) (G WPL 362856 Contact Us For Availability

WPL 660198 WPL 660198 Contact Us For Availability

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

48

Block, Disconn WPL 352090 Contact Us For Availability

49

WPL 352088 WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WPL 387790 WPL 387790 Contact Us For Availability

54

WPL 387791 WPL 387791 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 387183 WPL 387183 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

58

WPL 386570 WPL 386570 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

386011 Whirlpool Screw Backorder WPL 386011 $26.43

61

WPL 285134 WPL 285134 Contact Us For Availability

61

WPL 386630 WPL 386630 Contact Us For Availability

62

WP385728 Whirlpool Bushing Backorder WPL WP385728 $2.51

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

89

WPL 387268 WPL 387268 Contact Us For Availability

90

WPL 388797 WPL 388797 Contact Us For Availability

91

WPL 358115 WPL 358115 Contact Us For Availability

91

WPL 88401 WPL 88401 Contact Us For Availability

95

WPL 357633 WPL 357633 Contact Us For Availability

97

WPL 354764 WPL 354764 Contact Us For Availability

98

WPL 63020 WPL 63020 Contact Us For Availability

99

WPL 354975 WPL 354975 Contact Us For Availability
