Model Whirlpool LA5600XMW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Connector, Hose WPL 95440 Contact Us For Availability

1

Miscellaneous Parts Bag (Non-Suds) WPL 375976 Contact Us For Availability

1

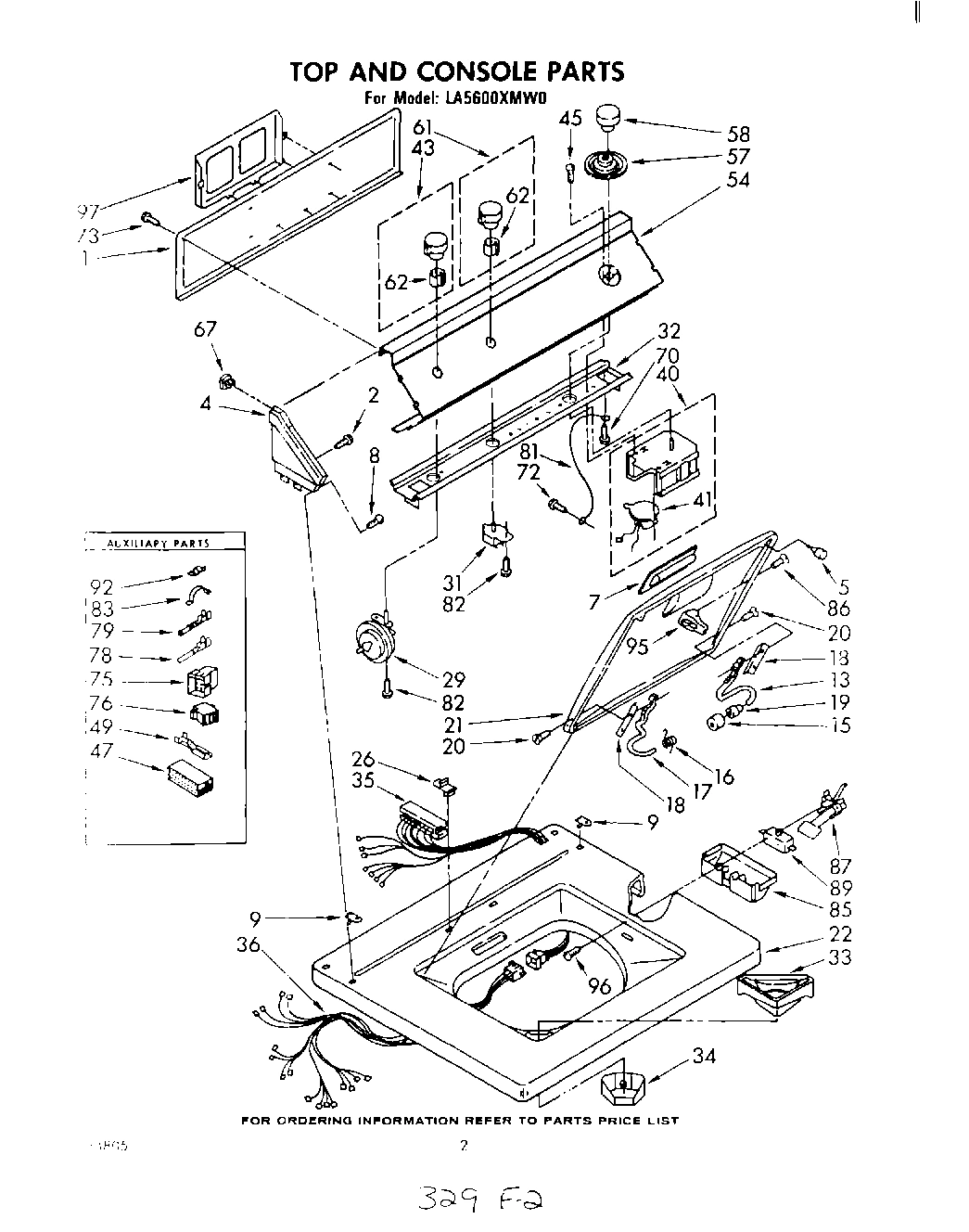

Panel, Rear Console WPL 359372 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Cover, Gusset (L.R.) WPL 352143 Contact Us For Availability

2

Cover, Gusset (L.F.) WPL 353230 Contact Us For Availability

2

COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability

2

Screw WPL 355326 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

4

Rod, Suspension (3) WPL 82584 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

4

Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

4

Stopper (2) WPL 21265 Contact Us For Availability

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

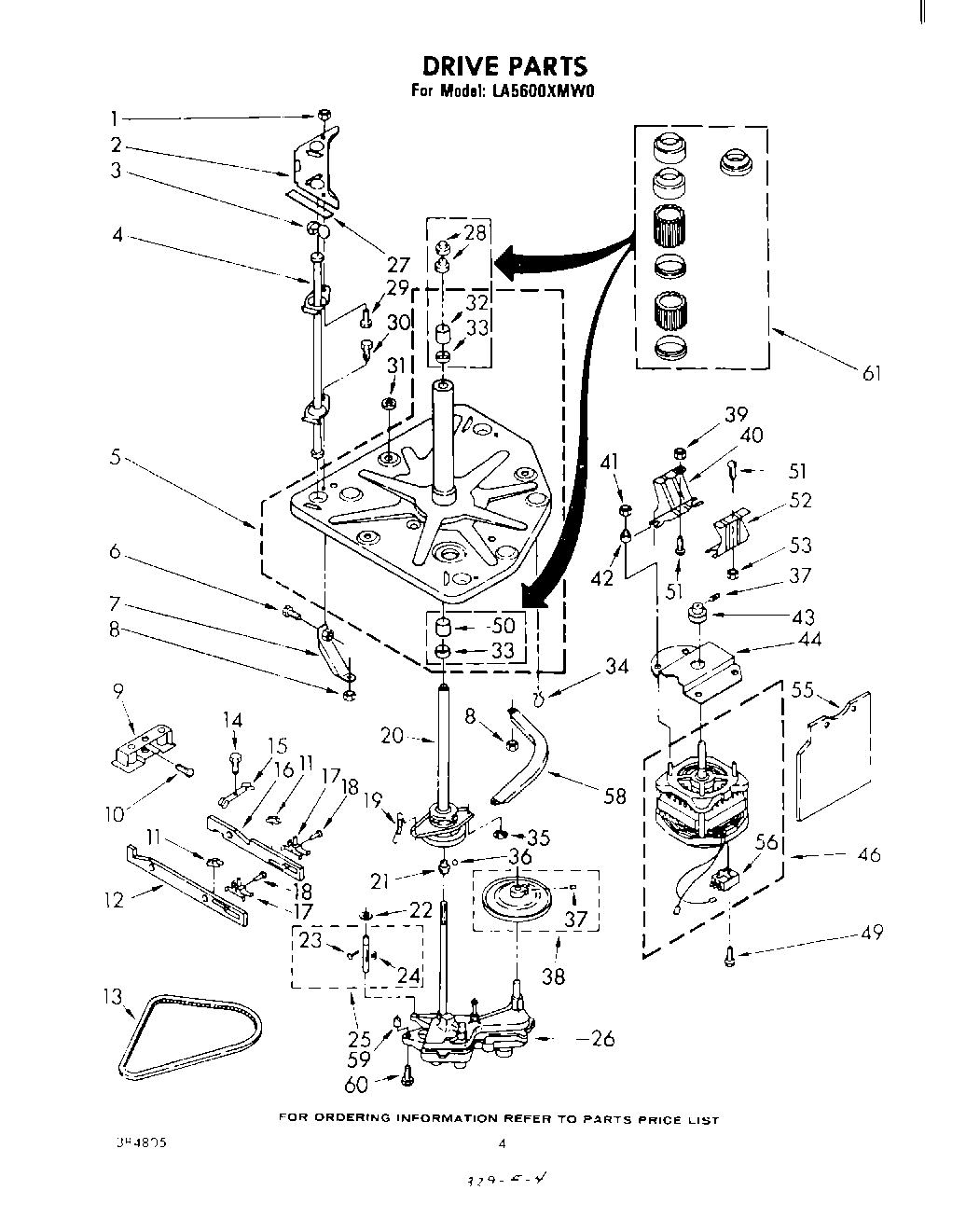

Baseplate & Centerpost WPL 358949 Contact Us For Availability

5

Inlet, Water WPL 366072 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

6

Flapper WPL 355584 Contact Us For Availability

7

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Handle, Lid (White) WPL 379889 Contact Us For Availability

7

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Screw, 8-18 WPL 358225 Contact Us For Availability

8

Ring, Tub (Includes Illus. 28) WPL 381971 Contact Us For Availability

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

9

Seal, Tub Ring WPL 383553 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

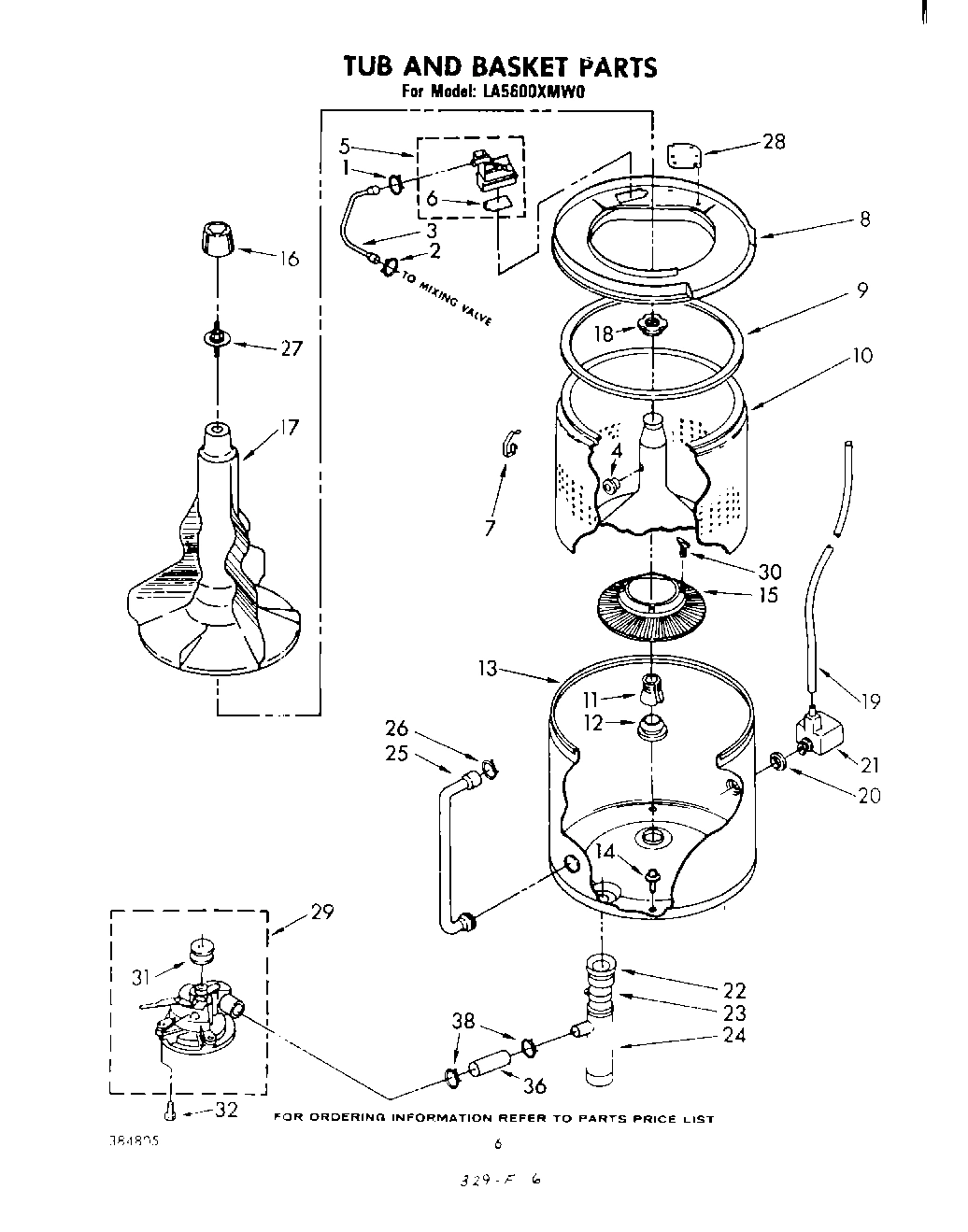

Basket WPL 383960 Contact Us For Availability

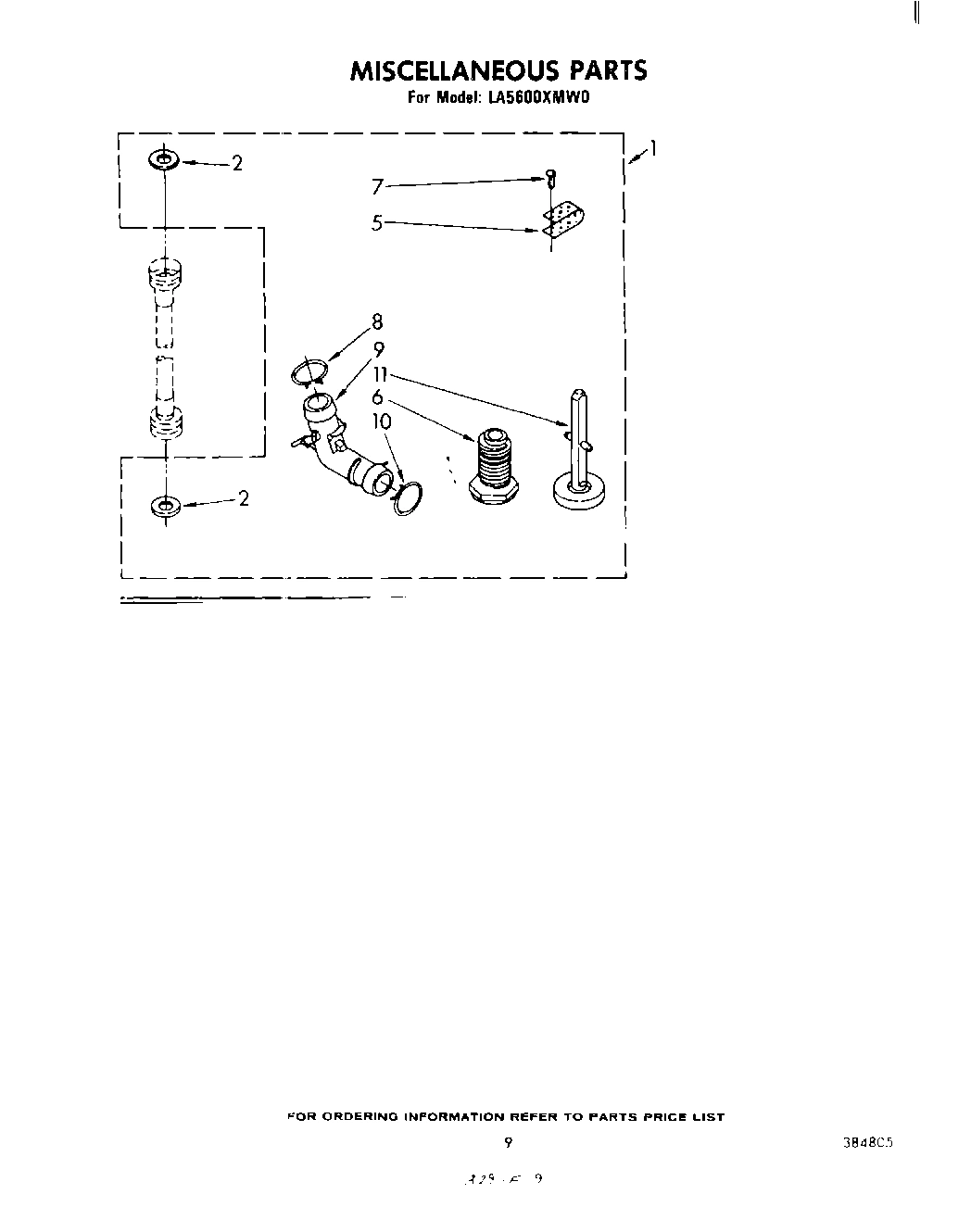

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Block, Drive WPL 96384 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Sheet, Installation Instructions WPL 378953 Contact Us For Availability

Guide, Use & Care WPL 383175 Contact Us For Availability

Label, Energy Guide WPL 383372 Contact Us For Availability

List, Repair Parts WPL 384805 Contact Us For Availability

Guide, Laundry WPL 385238 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Cam, Bar Spin WPL 354838 Contact Us For Availability

Lever, Valve WPL 355538 Contact Us For Availability

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Rod, Connecting WPL 96264 Contact Us For Availability

Tub WPL 384125 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Bearing Block Assembly WPL 383750 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Wick, Oil WPL 96265 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

Filter, Element (Includes Illus. 30) WPL 383719 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Spring, Lid (L.H.) WPL 92398 Contact Us For Availability

Agitator Cap WPL 358431 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Hinge, Lid (L.H.) WPL 91099 Contact Us For Availability

Agitator WPL 383952 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Rivet WPL 354959 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Seal WPL 351830 Contact Us For Availability

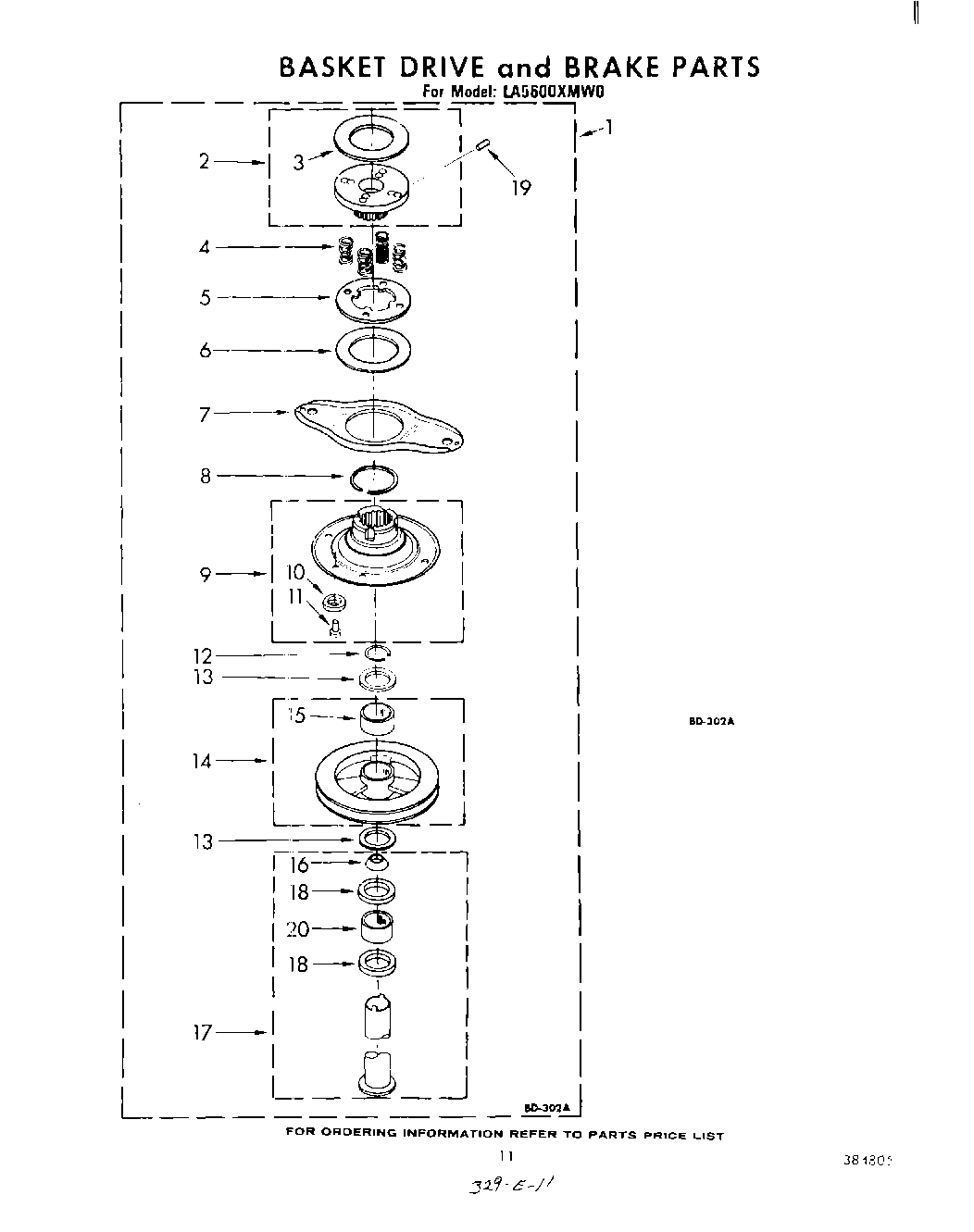

Basket Drive & Brake (Refer To Page 11 for Fu WPL 358364 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

Lid (White) WPL 379964 Contact Us For Availability

Lid (Almond) WPL 379965 Contact Us For Availability

Lid (Golden Harvest) WPL 379968 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

Spacer, Clutch Shaft WPL 359332 Contact Us For Availability

Top (White) WPL 380283 Contact Us For Availability

Top (Almond) WPL 380284 Contact Us For Availability

Top (Golden Harvest) WPL 380287 Contact Us For Availability

Hose, Tub Outlet WPL 93553 Contact Us For Availability

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Clamp, Hose WPL 9421321 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Manifold Assembly WPL 84091 Contact Us For Availability

25

Shaft, Basket Clutch WPL 383723 Contact Us For Availability

25

Hose, Bleach WPL 352818 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

26

Gearcase (Refer To Page 10 For Further Breakd WPL 362901 Contact Us For Availability

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

27

Stud & Seal, Agitator WPL 358440 Contact Us For Availability

28

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

28

Gearcase WPL 362906 Contact Us For Availability

28

Plate, Snubber WPL 355852 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

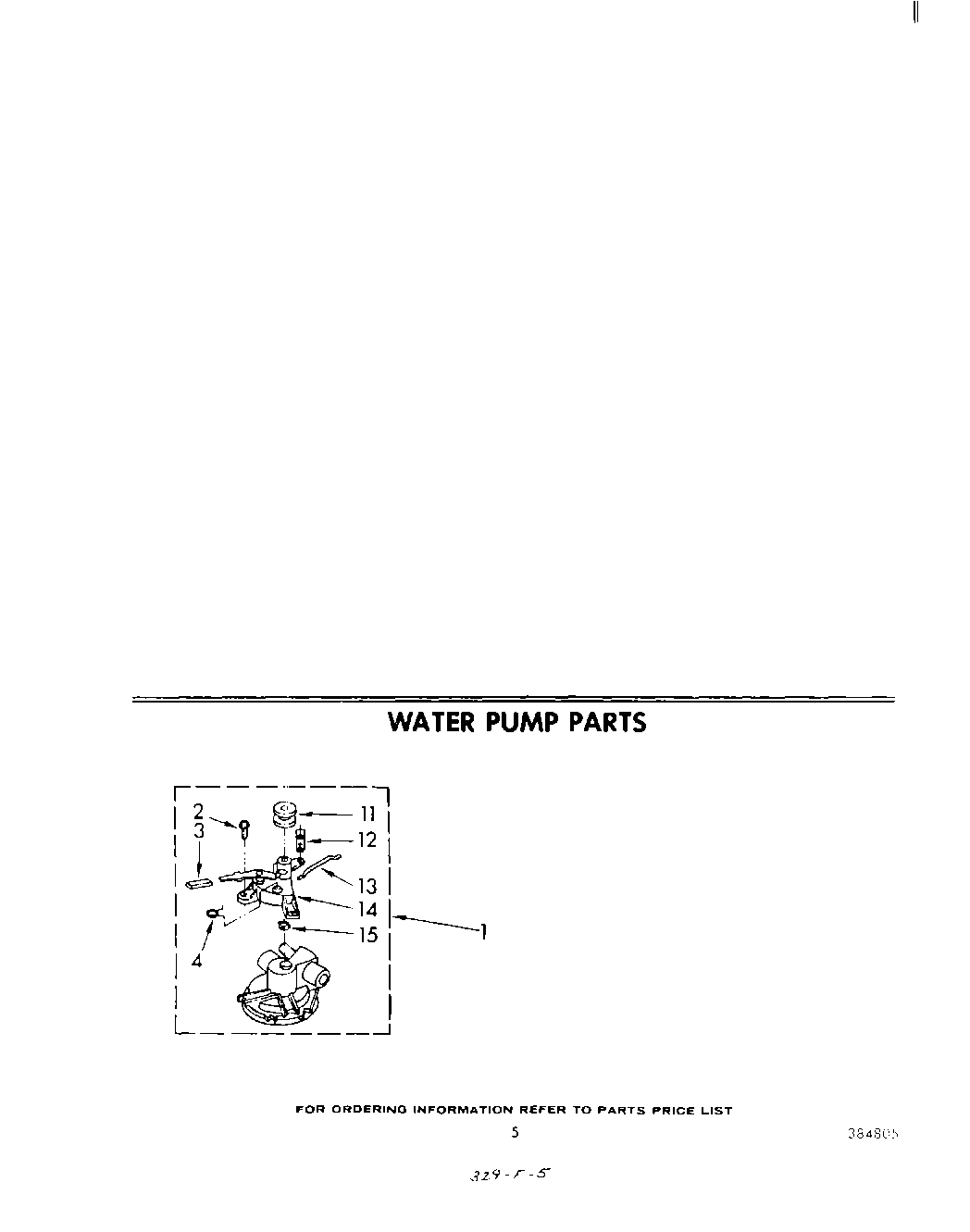

Pump (Complete) (Refer To Page 5 For Further WPL 383957 Contact Us For Availability

Switch, Water Level (Alternate) WPL 359647 Contact Us For Availability

Switch, Water Level (Alt.) WPL 363301 Contact Us For Availability

Switch, Water Level WPL 660930 Contact Us For Availability

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

30

Clip, Filter Element (4) WPL 383718 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Pulley, Pump WPL 359630 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370145 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 370146 Contact Us For Availability

Switch, Water Temperature WPL 660393 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Bracket, Control WPL 359708 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

Bezel, Dispenser WPL 352821 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

Tray, Dispenser WPL 352827 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

35

Harness, Console WPL 359327 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Harness, Base WPL 358115 Contact Us For Availability

36

Hose, Pump To Manifold WPL 92231 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

Motor, Timer (60 Hz.) (Use W/Mallory Timer) WPL 365941 Contact Us For Availability

Timer, 60 Hz. C.C.A. (Alt.) WPL 385322 Contact Us For Availability

Timer, 60 Hz. Mallory (Alt.) WPL 385325 Contact Us For Availability

Timer, 60 Hz. WPL 660970 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

41

Timer Motor, 60 Hz. (Use W/C.C.A. Timer) WPL 362681 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Pulley, Motor (60 Hz.) WPL 357514 Contact Us For Availability

43

Knob Assembly, Water Level WPL 690297 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

46

Motor, 60 Hz. (Alt.) (Emerson) WPL 357875 Contact Us For Availability

46

Motor, 60 Hz. (Alt.) (G WPL 362856 Contact Us For Availability

46

WPL 660198 WPL 660198 Contact Us For Availability

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

47

WPL 352090 WPL 352090 Contact Us For Availability

49

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

WPL 352088 WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WPL 384773 WPL 384773 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 359254 WPL 359254 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

58

WPL 359206 WPL 359206 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

WPL 690300 WPL 690300 Contact Us For Availability

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

72

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

73

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

82

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

87

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

92

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

95

WPL 357633 WPL 357633 Contact Us For Availability

96

WPL 354764 WPL 354764 Contact Us For Availability

97

WPL 357645 WPL 357645 Contact Us For Availability
