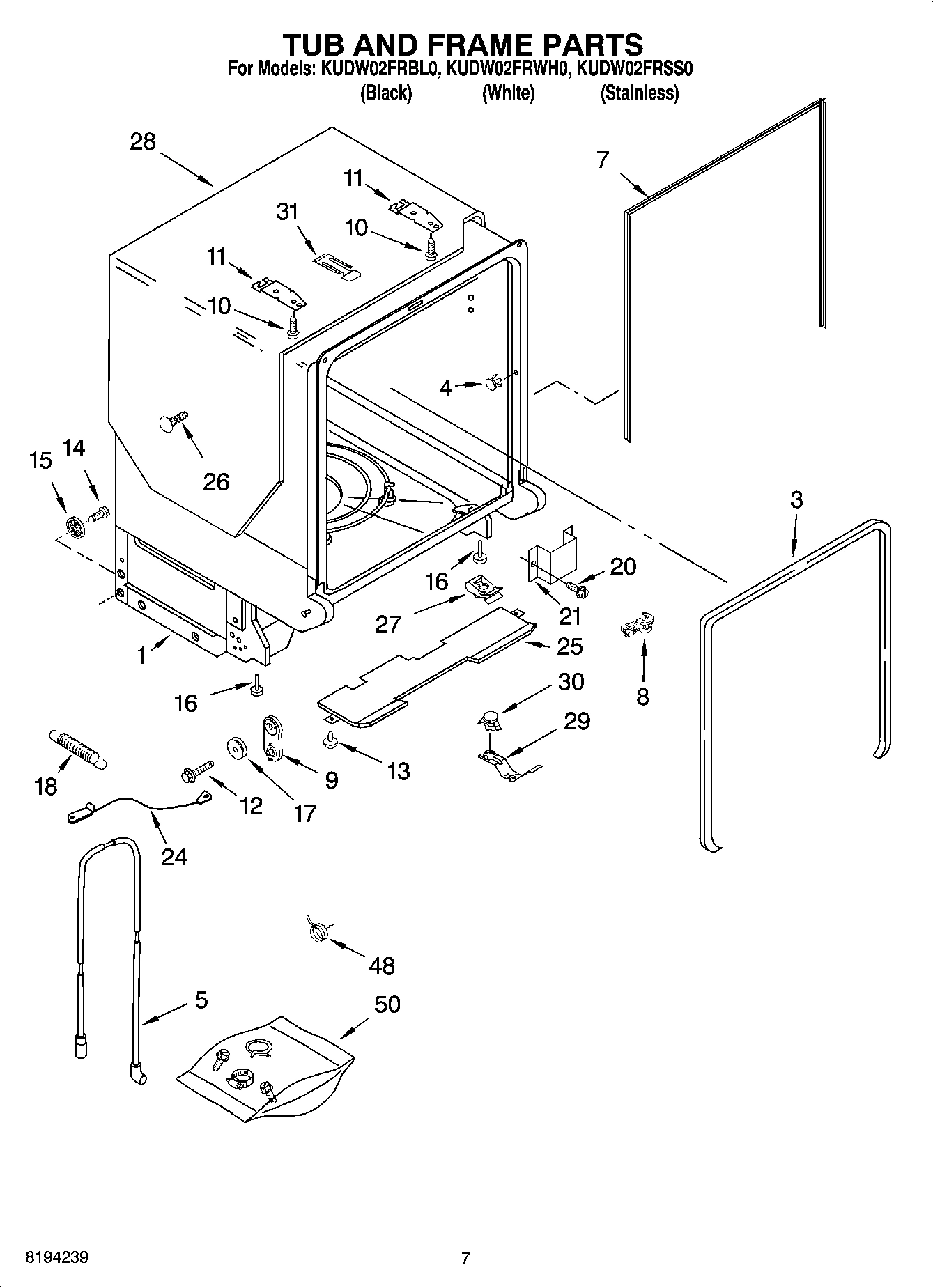

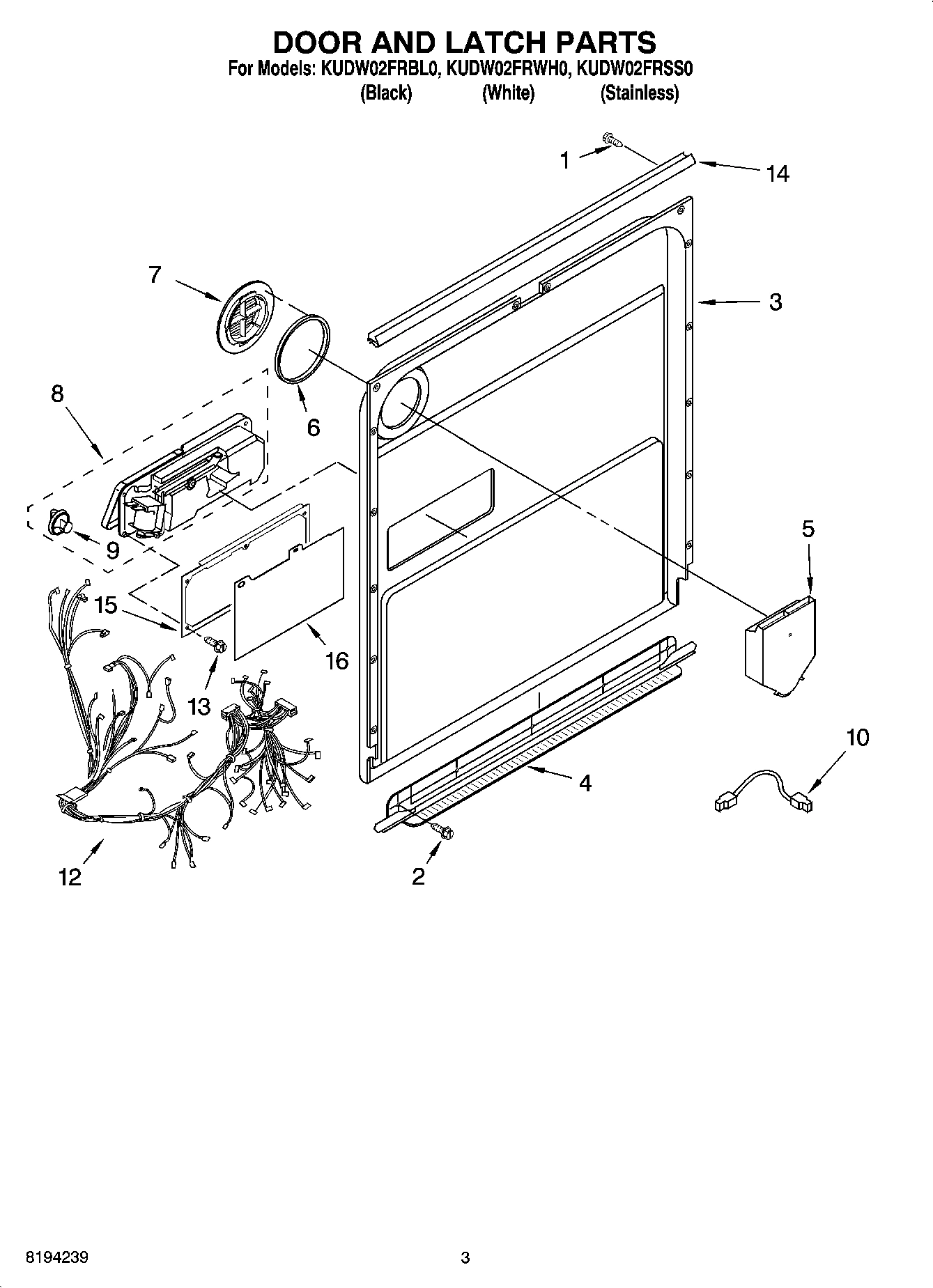

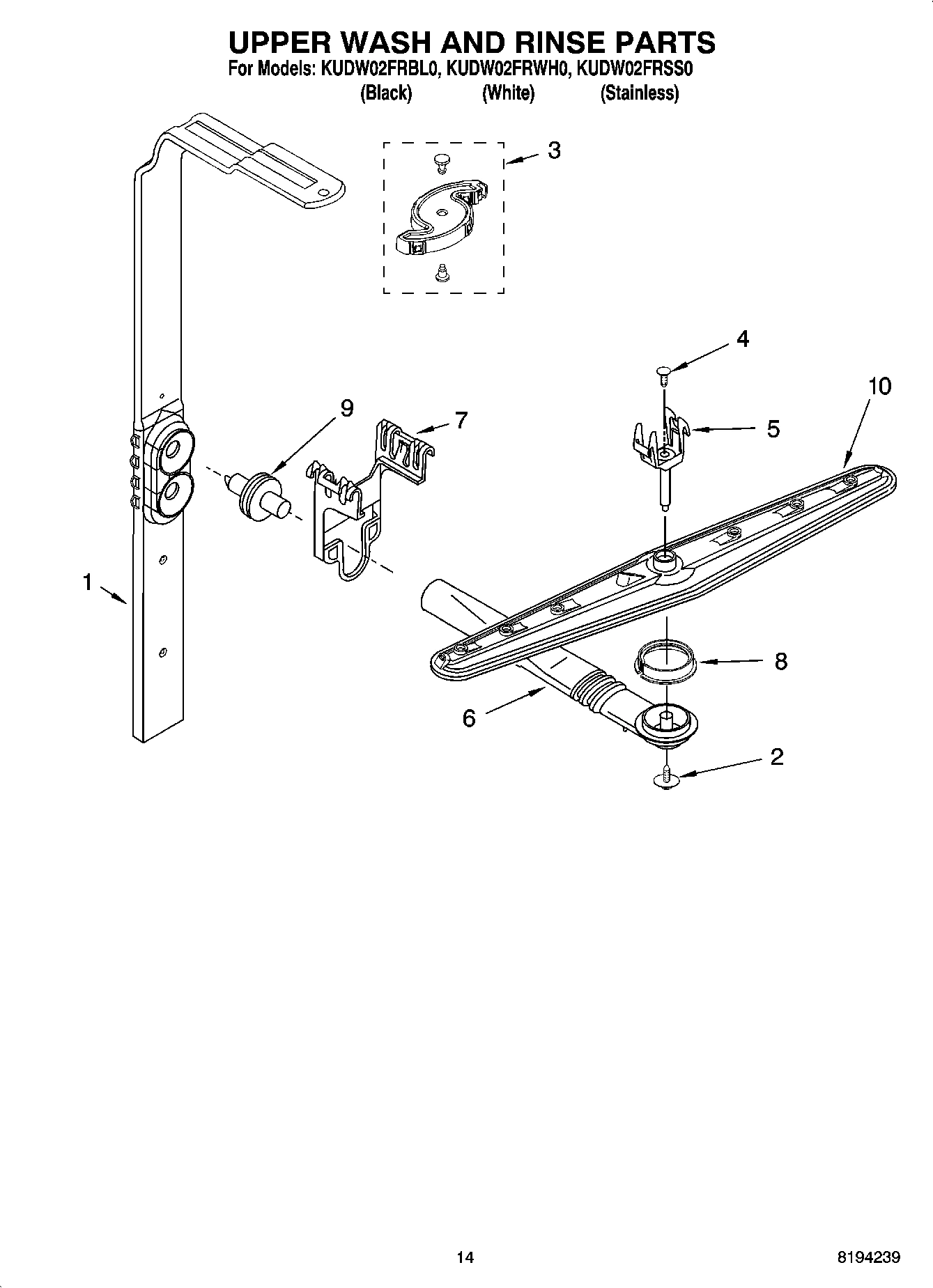

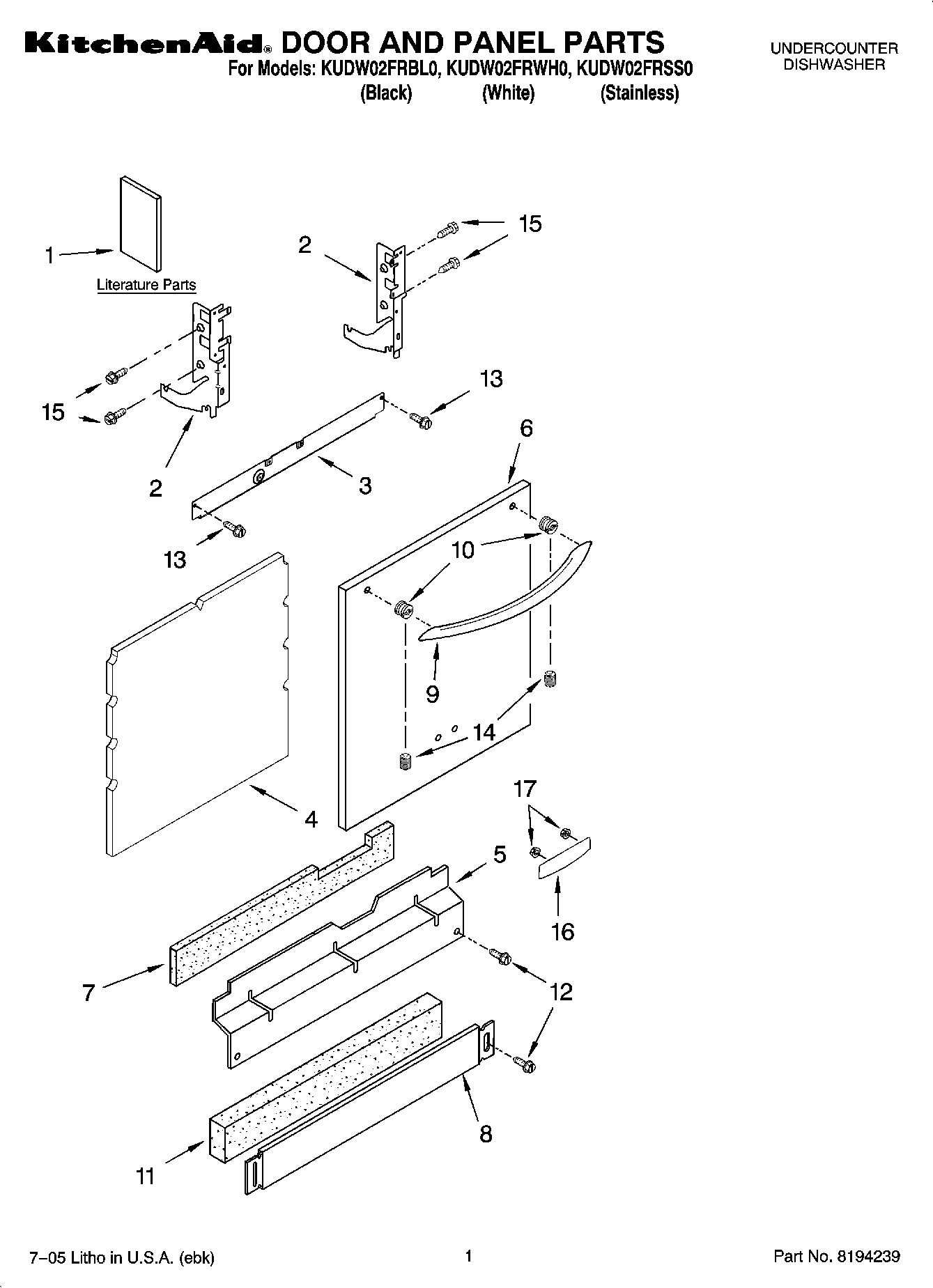

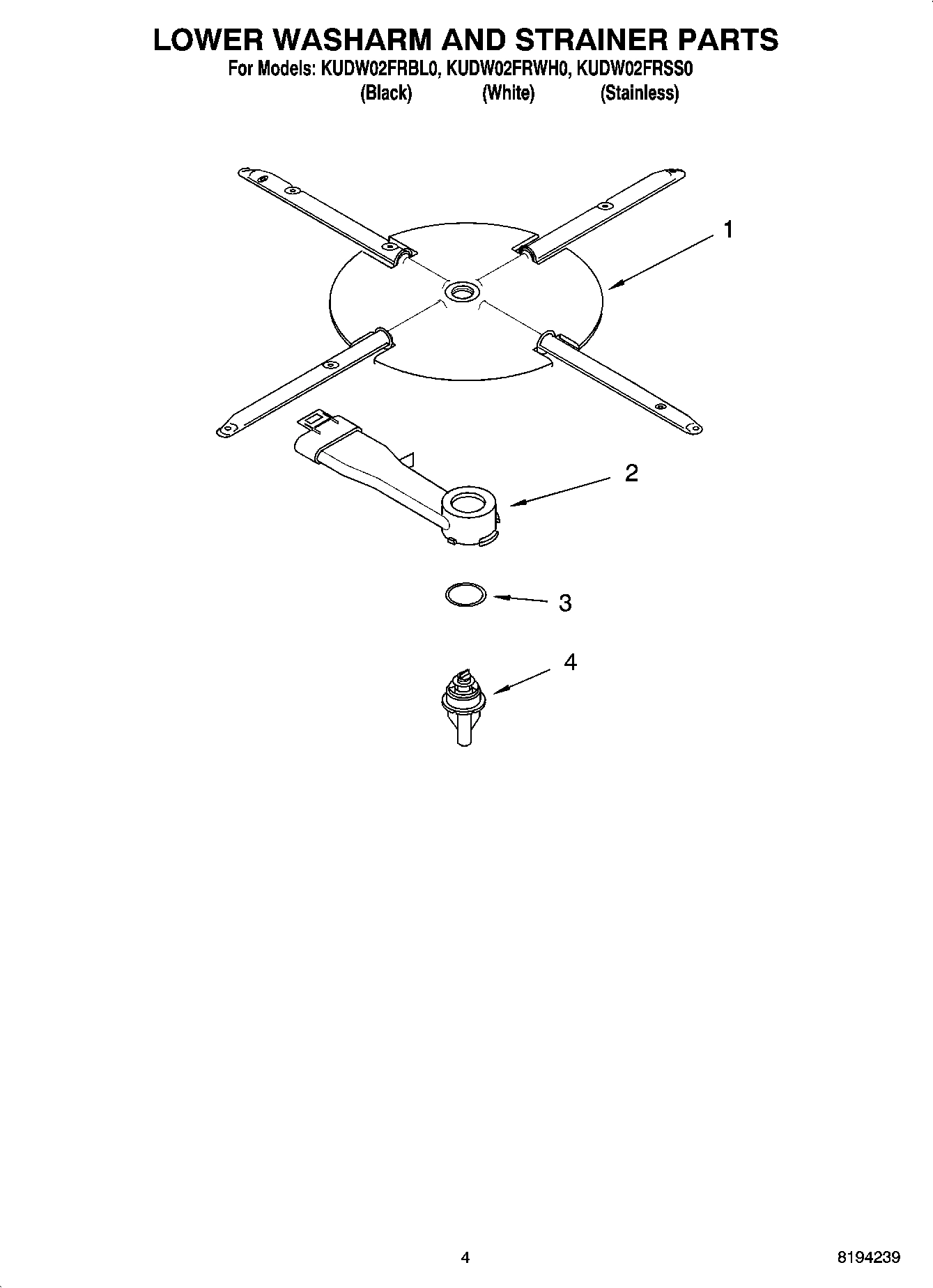

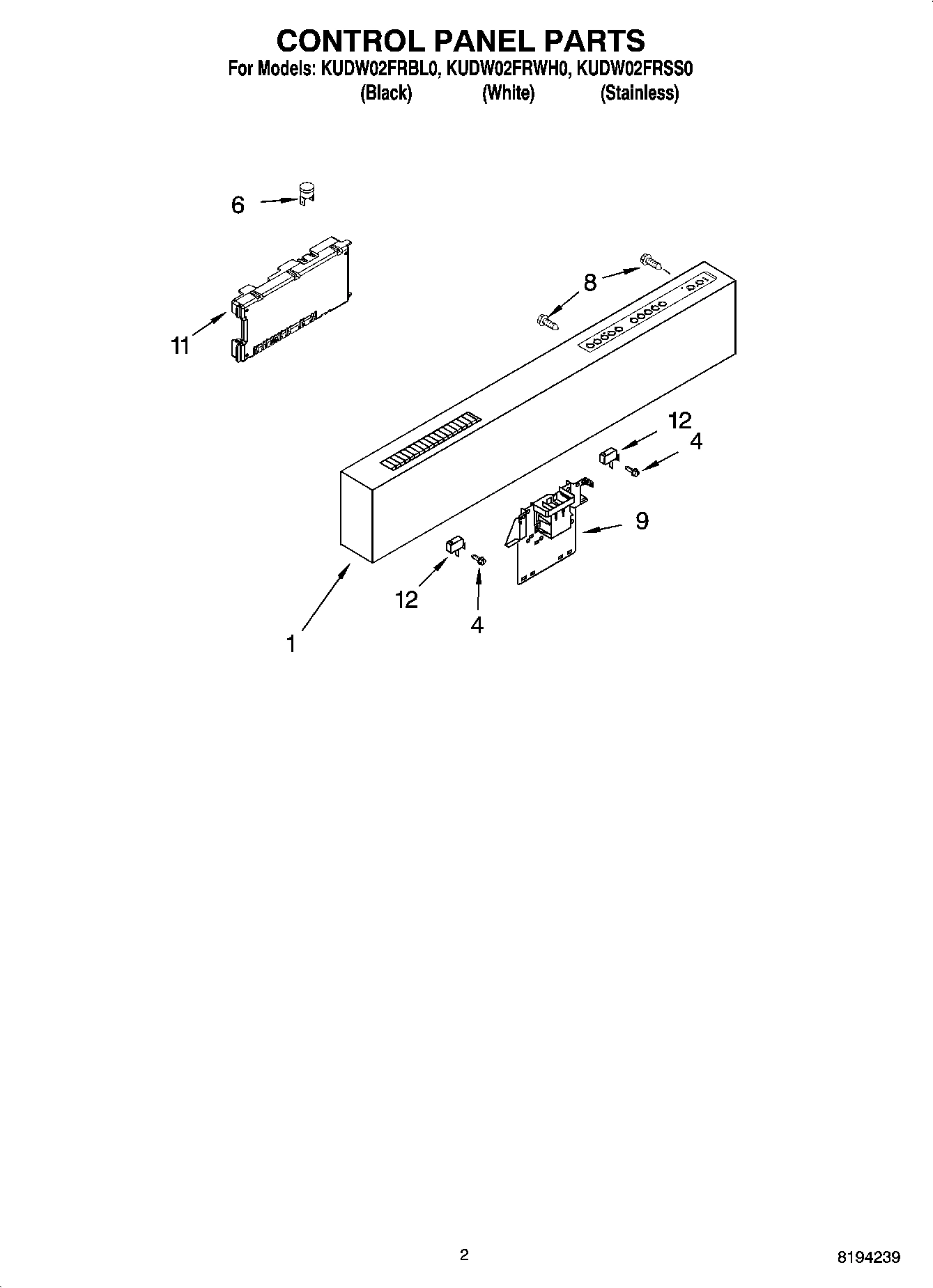

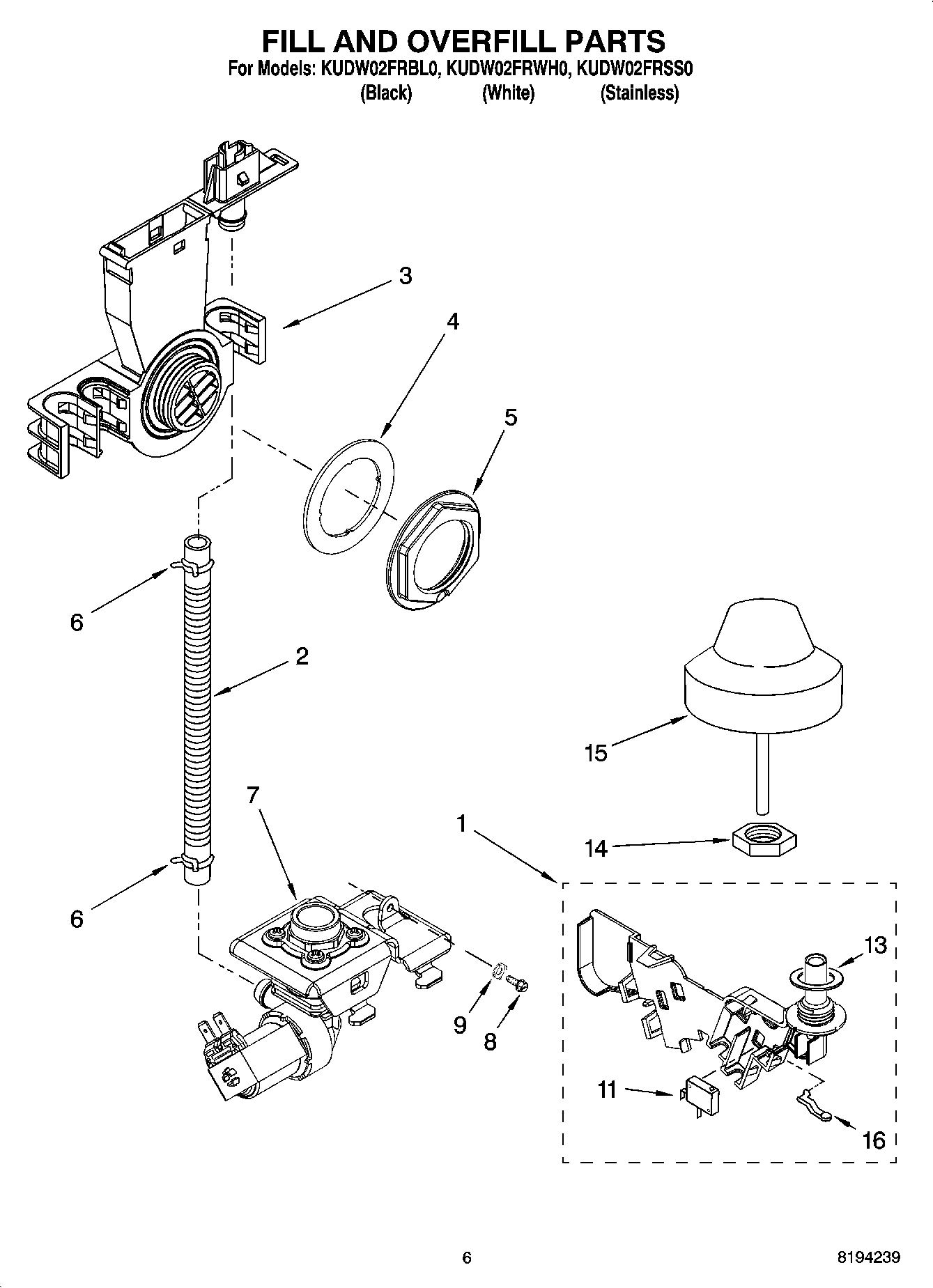

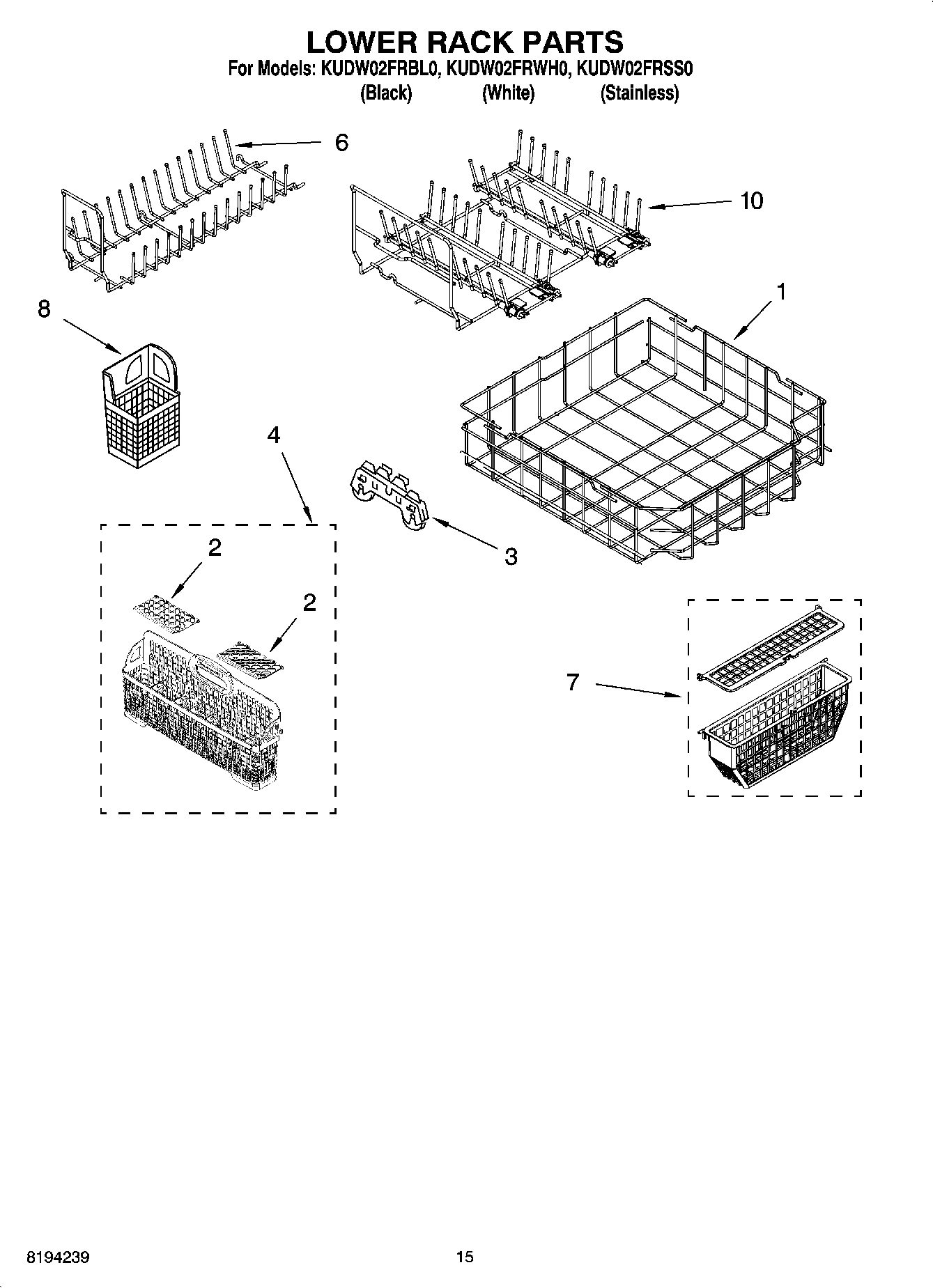

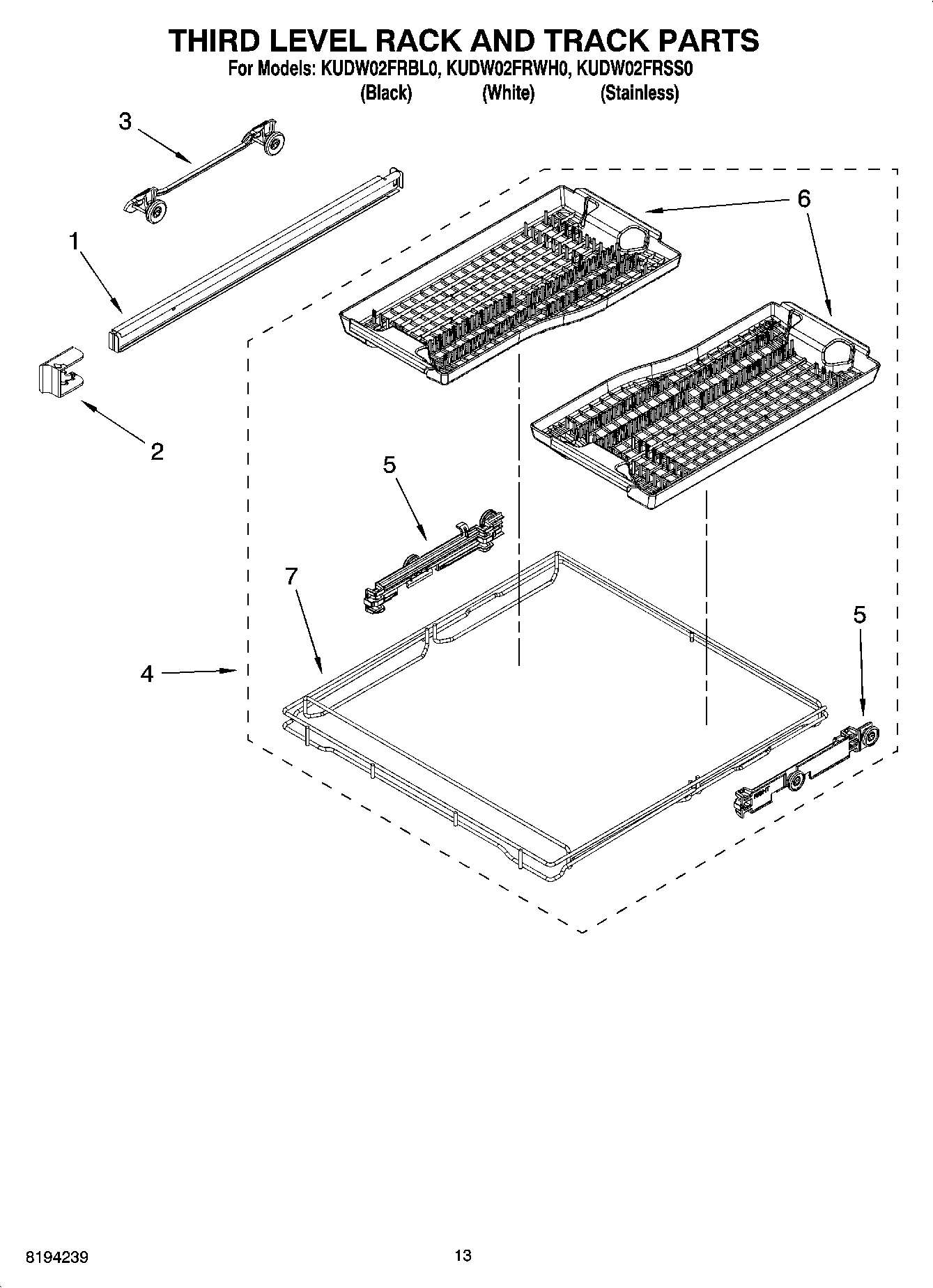

Model Whirlpool KUDW02FRBL0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

WPL 8171659 WPL 8171659 Contact Us For Availability

WPL 8171656 WPL 8171656 Contact Us For Availability

WPL 8171657 WPL 8171657 Contact Us For Availability

1

8193506 Whirlpool Dishwasher Switch In Stock WPL 8193506 $72.98

1

8193918 Whirlpool Accumulator In Stock WPL 8193918 $92.13

1

W10728863 Whirlpool Dishwasher Upper Dishrack In Stock WPL W10728863 $182.20

1

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

2

8283527 Whirlpool Shield Backorder WPL 8283527 $64.13

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $29.43

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $37.28

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $61.92

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $61.92

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $29.92

3

WP8564899 Whirlpool Dishwasher Mount Assembly Backorder WPL WP8564899 $51.17

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $51.46

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Inner Door Mastic Assembly (Also Order Item 6 WPL 8530900 Contact Us For Availability

3

Screw WPL 3400069 Contact Us For Availability

4

WP3400920 Whirlpool Screw Cover Backorder WPL WP3400920 $4.43

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $26.75

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $113.08

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $30.80

5

WP8270138 Whirlpool Dishwasher Upper Wheel Backorder WPL WP8270138 $4.56

5

WP8572611 Whirlpool Air Duct Assembly Backorder WPL WP8572611 $86.52

5

WPW10508676 Whirlpool Dishwasher Tube Nut Backorder WPL WPW10508676 $6.73

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP8268703 Whirlpool Dishwasher Rack Axle Backorder WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8281156 Whirlpool Dishwasher Screw Backorder WPL WP8281156 $2.51

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $30.85

7

WPW10158389 Whirlpool Dishwasher Inlet Valve In Stock WPL WPW10158389 $30.96

8

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $60.15

8

WPW10224430 Whirlpool Dishwasher Detergent Di In Stock WPL WPW10224430 $116.22

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

9

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

9

WP8539190 Whirlpool Tine Pivot In Stock WPL WP8539190 $27.71

9

WP8564929 Whirlpool Rinse Aid Cap In Stock WPL WP8564929 $13.76

9

Handle (White) WPL 8564947 Contact Us For Availability

10

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $7.12

10

Harness, Vent Motor WPL 8545608 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

W10831329 Whirlpool Dishwasher Shield In Stock WPL W10831329 $16.05

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

Clip, Insert Tines WPL 8539148 Contact Us For Availability

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

WP8539102 Whirlpool Dishwasher Positioner In Stock WPL WP8539102 $40.97

WPW10413097 Whirlpool Dishwasher Wire Harness Backorder WPL WPW10413097 $157.21

13

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

13

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $3.46

WP8534008 Whirlpool Screw Backorder WPL WP8534008 $2.40

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $56.09

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WPW10780877 Whirlpool Dishwasher Pump and Mot In Stock WPL WPW10780877 $169.69

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP8268895 Whirlpool Dishwasher Float Assembly Backorder WPL WP8268895 $30.80

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

WPW10300599 Whirlpool Dishwasher Sump Tab Backorder WPL WPW10300599 $30.40

WPW10462232 Whirlpool Dishwasher Dispenser Mo In Stock WPL WPW10462232 $12.13

8533949 Whirlpool Dishwasher Nut Backorder WPL 8533949 $28.84

WP8268738 Whirlpool Dishwasher Positioner Backorder WPL WP8268738 $32.85

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

WP8531865 Whirlpool Dishwasher Door Shield Backorder WPL WP8531865 $35.78

Nameplate (Black) WPL 2005292 Contact Us For Availability

Nameplate (White) WPL 2209118W Contact Us For Availability

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

WP8539101 Whirlpool Dishwasher Clip In Stock WPL WP8539101 $31.86

WPW10348269 Whirlpool Washer Drain Pump In Stock WPL WPW10348269 $42.33

18

WP8270182 Whirlpool Door Spring Assembly In Stock WPL WP8270182 $15.12

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

WP8573953 Whirlpool Dishwasher Stop Assembly Backorder WPL WP8573953 $3.70

WP8573954 Whirlpool Dishwasher Stop Assembly Backorder WPL WP8573954 $3.70

WPW10757217 Whirlpool Circulation Pump and Mo In Stock WPL WPW10757217 $150.68

21

W11622922 Whirlpool Dishwasher Volute In Stock WPL W11622922 $8.20

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

23

8193951A Whirlpool Impeller Assembly In Stock WPL 8193951A $83.10

24

W11125975 Whirlpool Dishwasher Cup Shelf Backorder WPL W11125975 $40.15

25

8562026 Whirlpool Dishwasher Clip Backorder WPL 8562026 $33.73

25

WPW10705575 Whirlpool Dishwasher Sensor In Stock WPL WPW10705575 $15.45

26

WPW10334457 Whirlpool Dishwasher Capacitor Backorder WPL WPW10334457 $68.89

27

8534946 Whirlpool Dishwasher Shield Backorder WPL 8534946 $10.25

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
