Model Whirlpool KUDJ01TJWH1 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

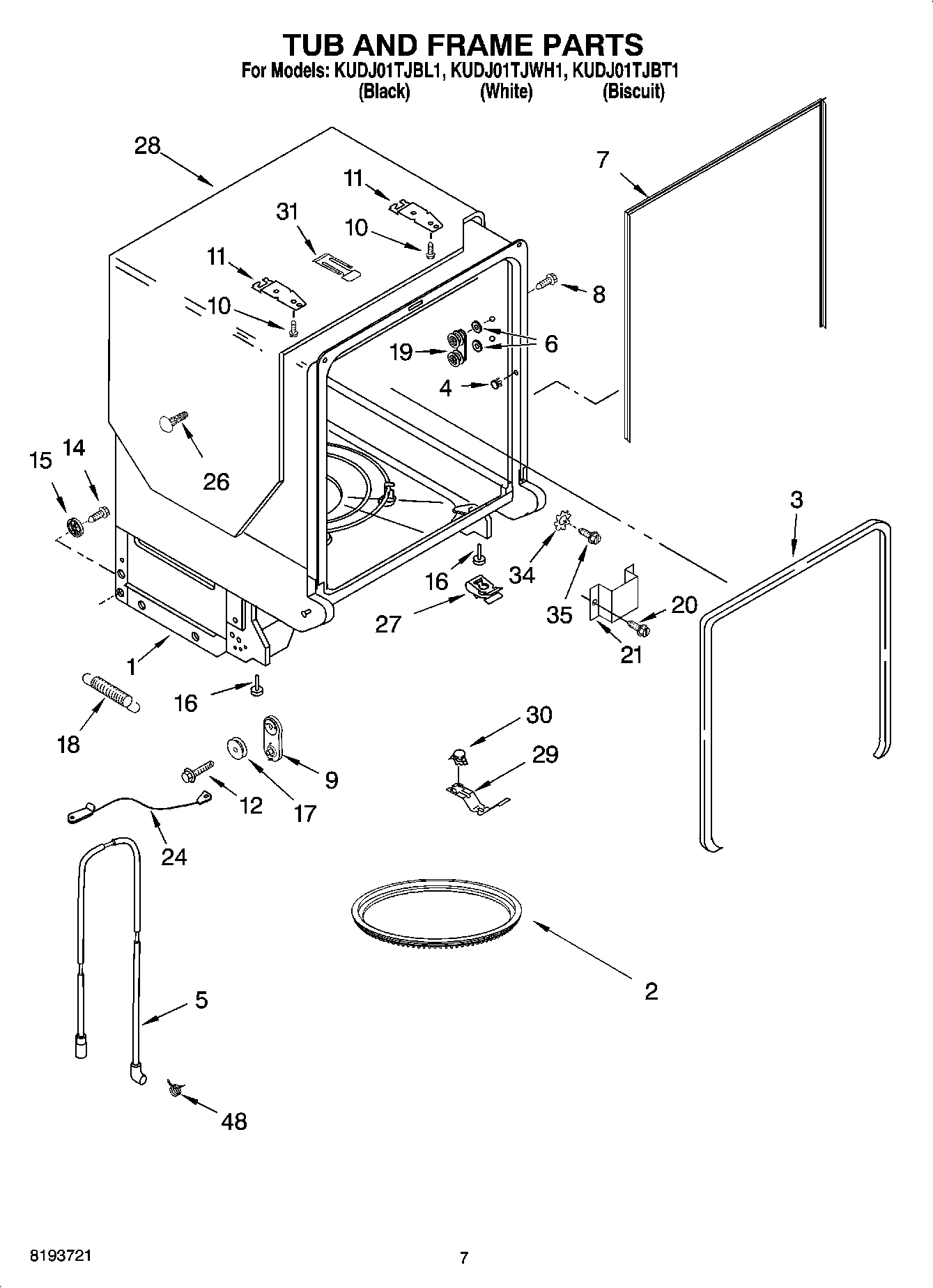

07 - TUB AND FRAME PARTS

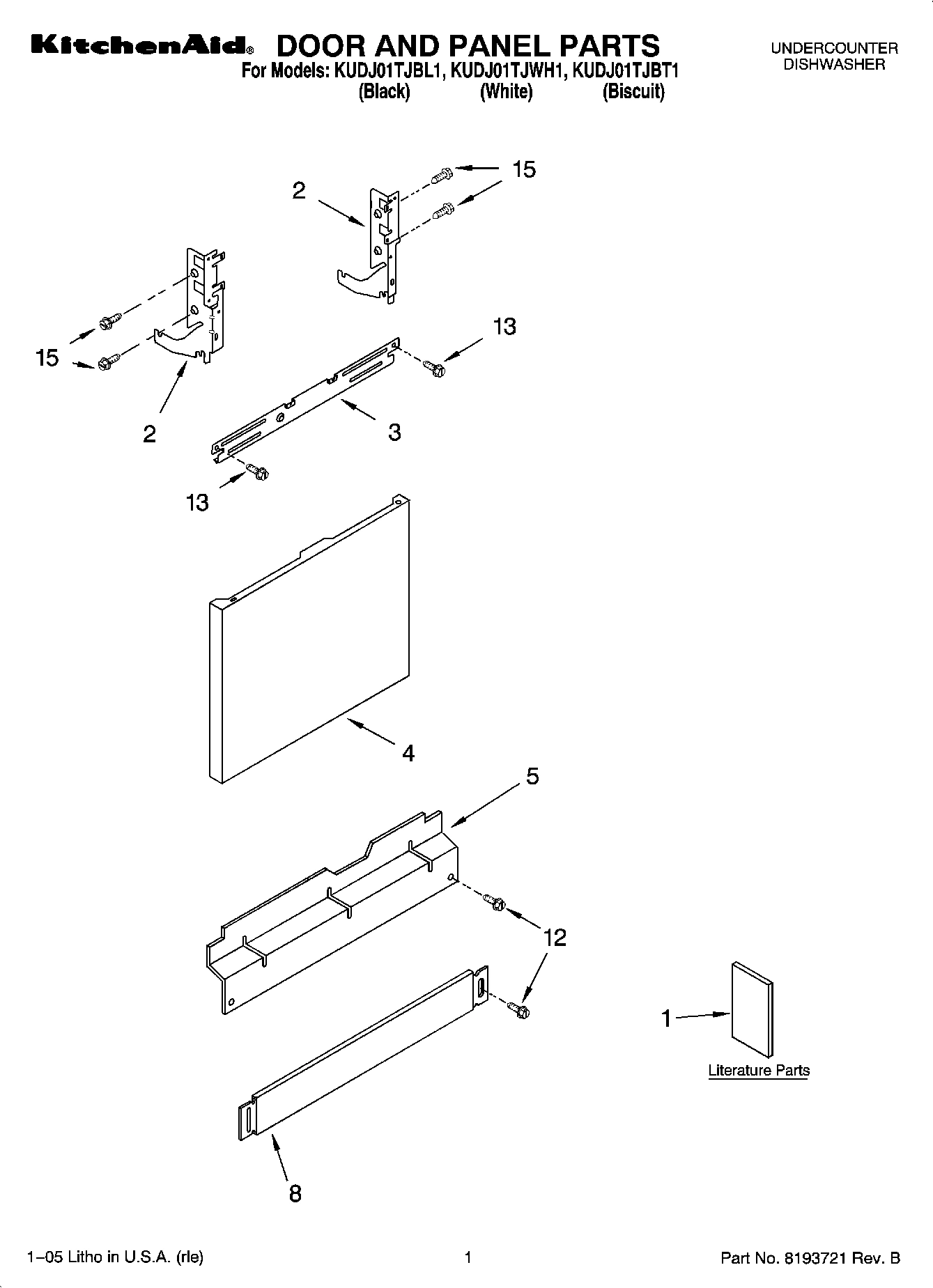

01 - DOOR AND PANEL PARTS

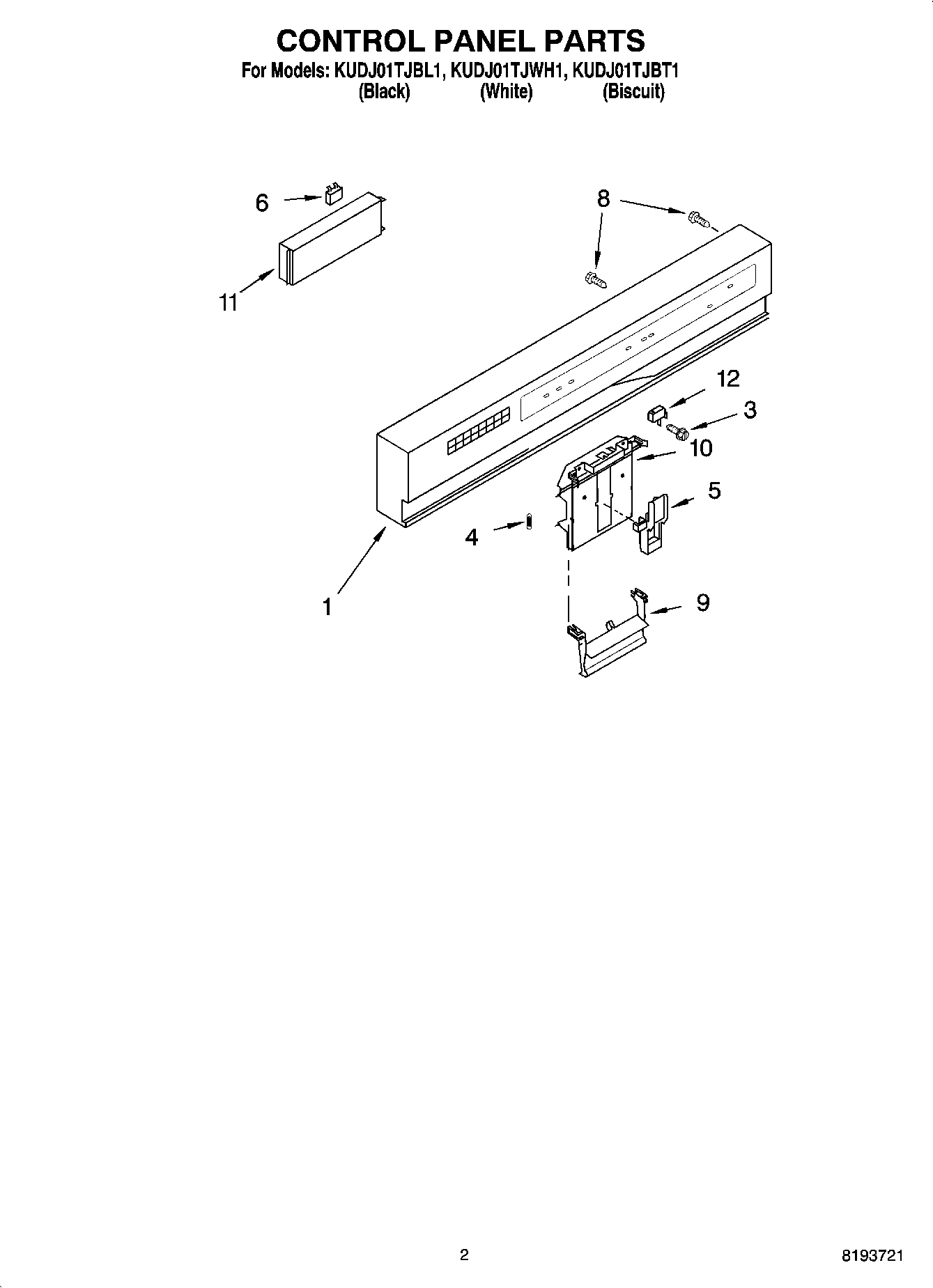

02 - CONTROL PANEL PARTS

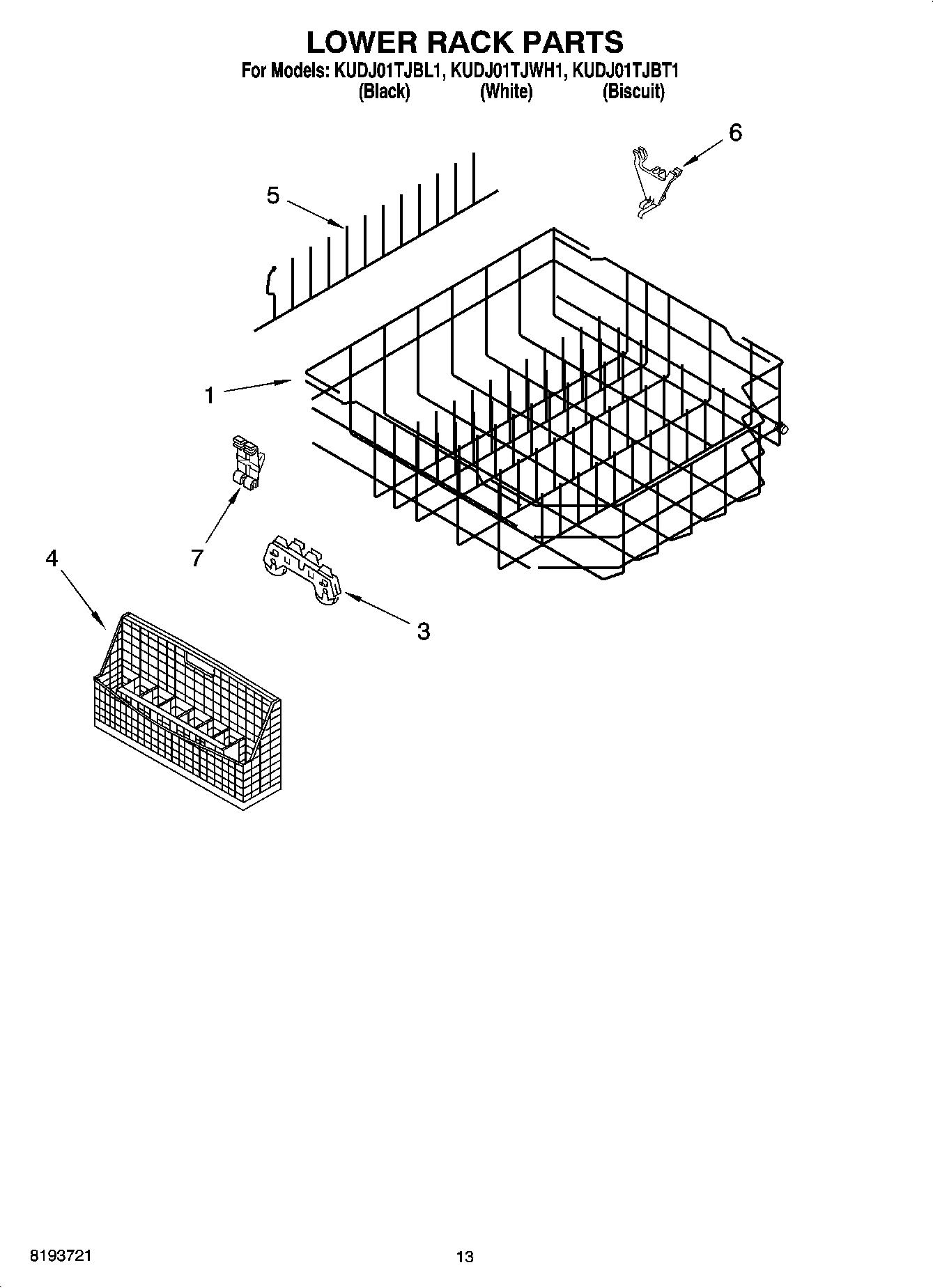

10 - LOWER RACK PARTS

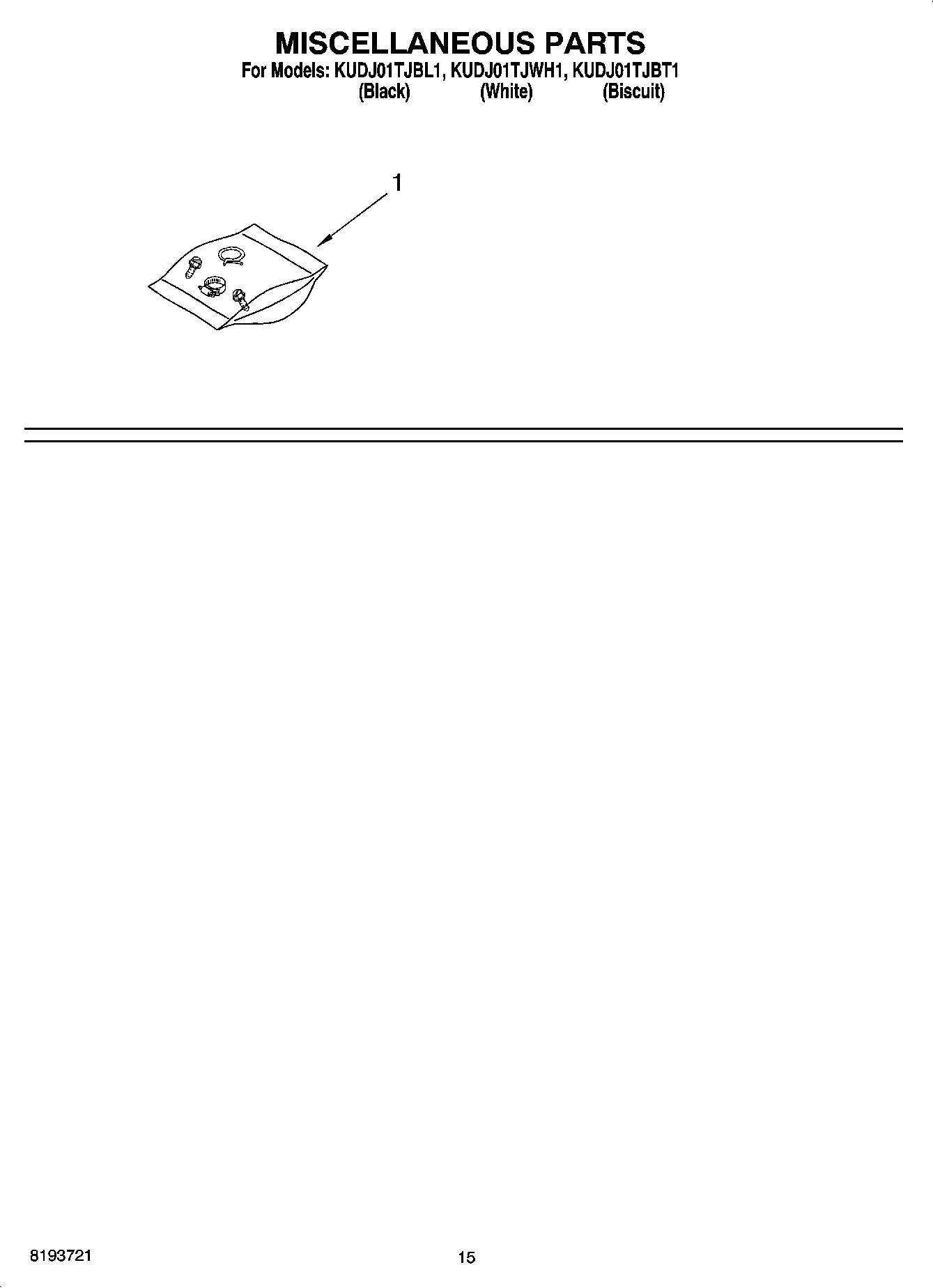

12 - MISCELLANEOUS PARTS OPTIONAL PARTS (NOT INCLUDED)

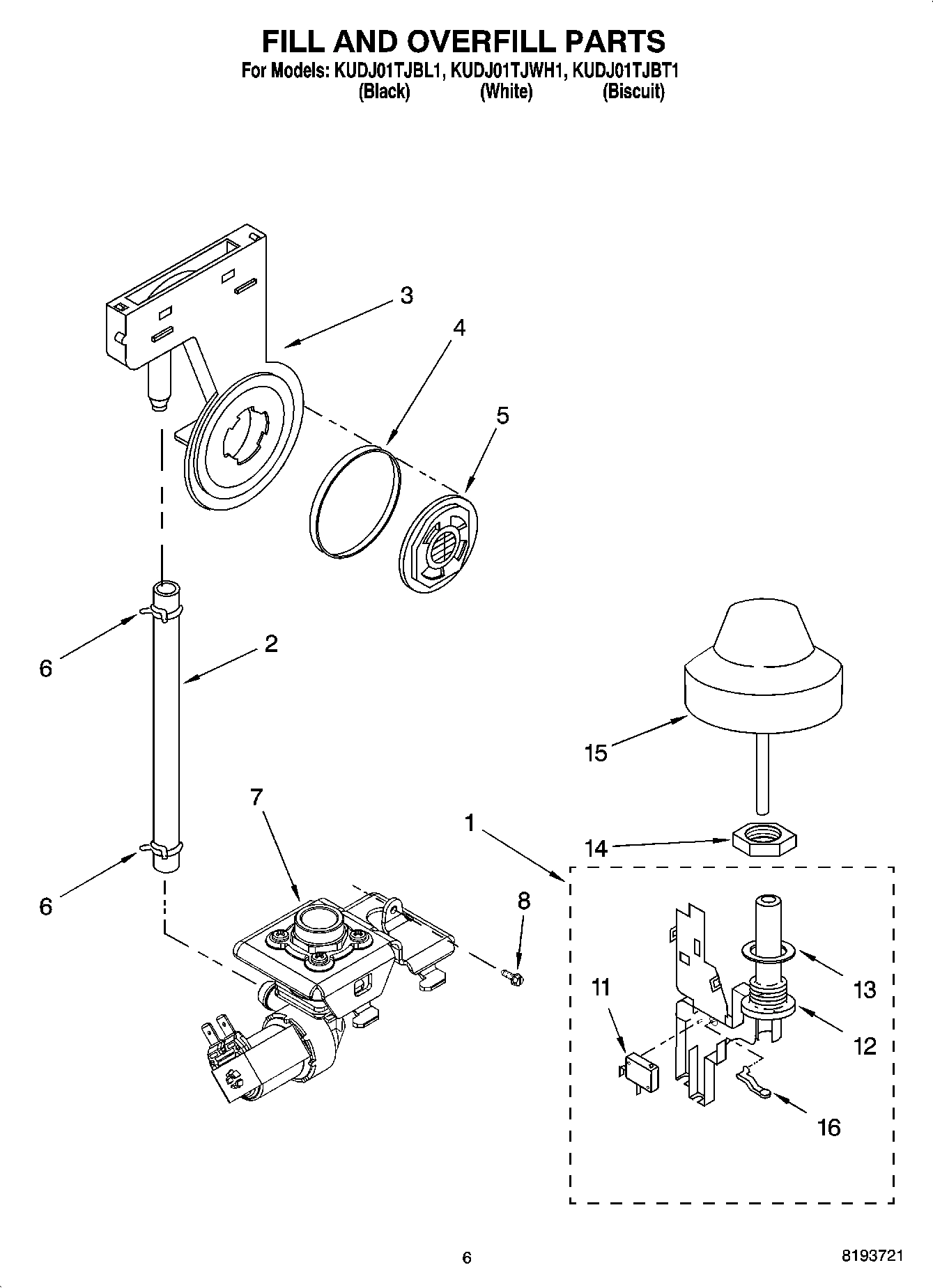

06 - FILL AND OVERFILL PARTS

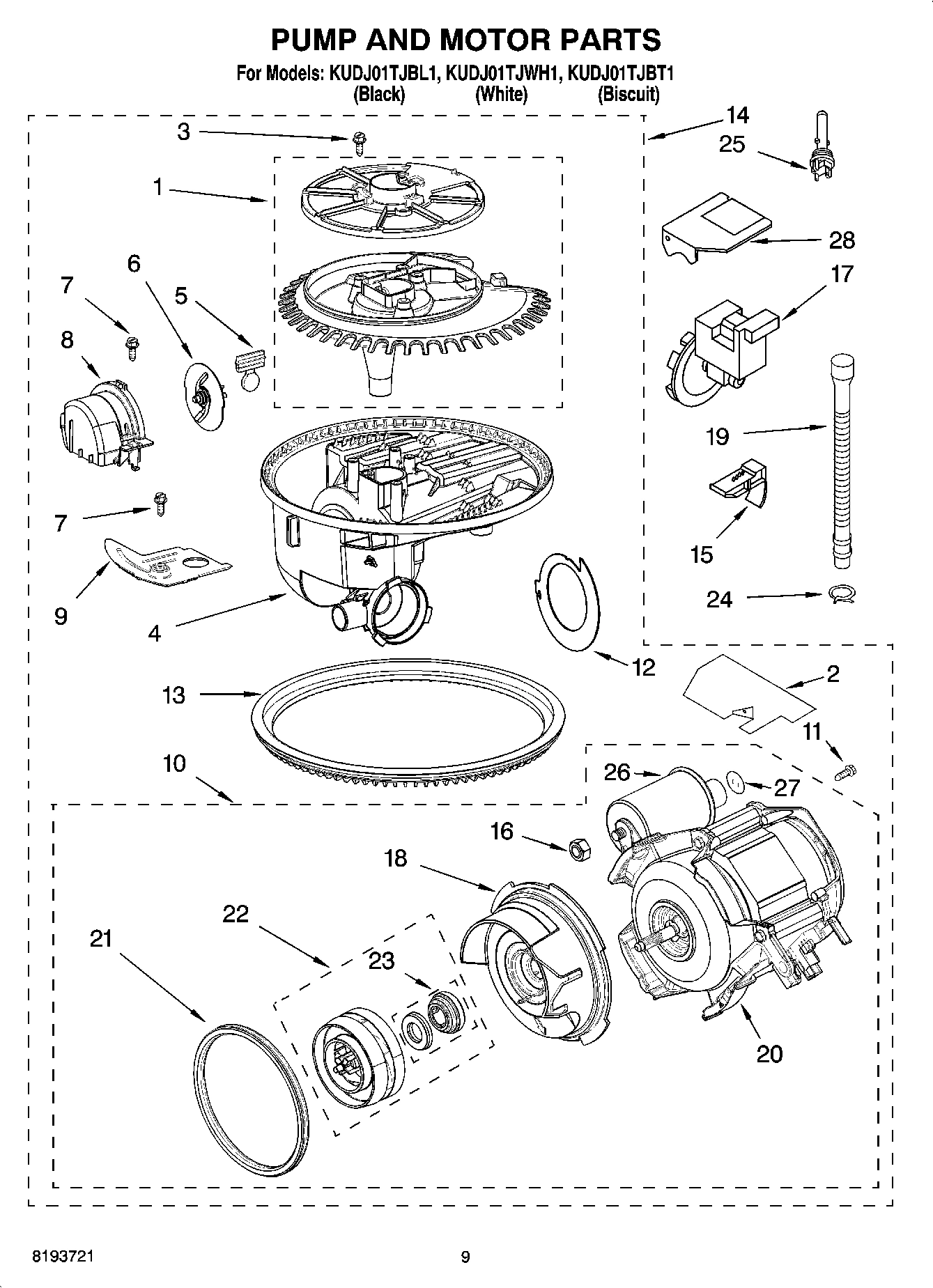

08 - PUMP AND MOTOR PARTS

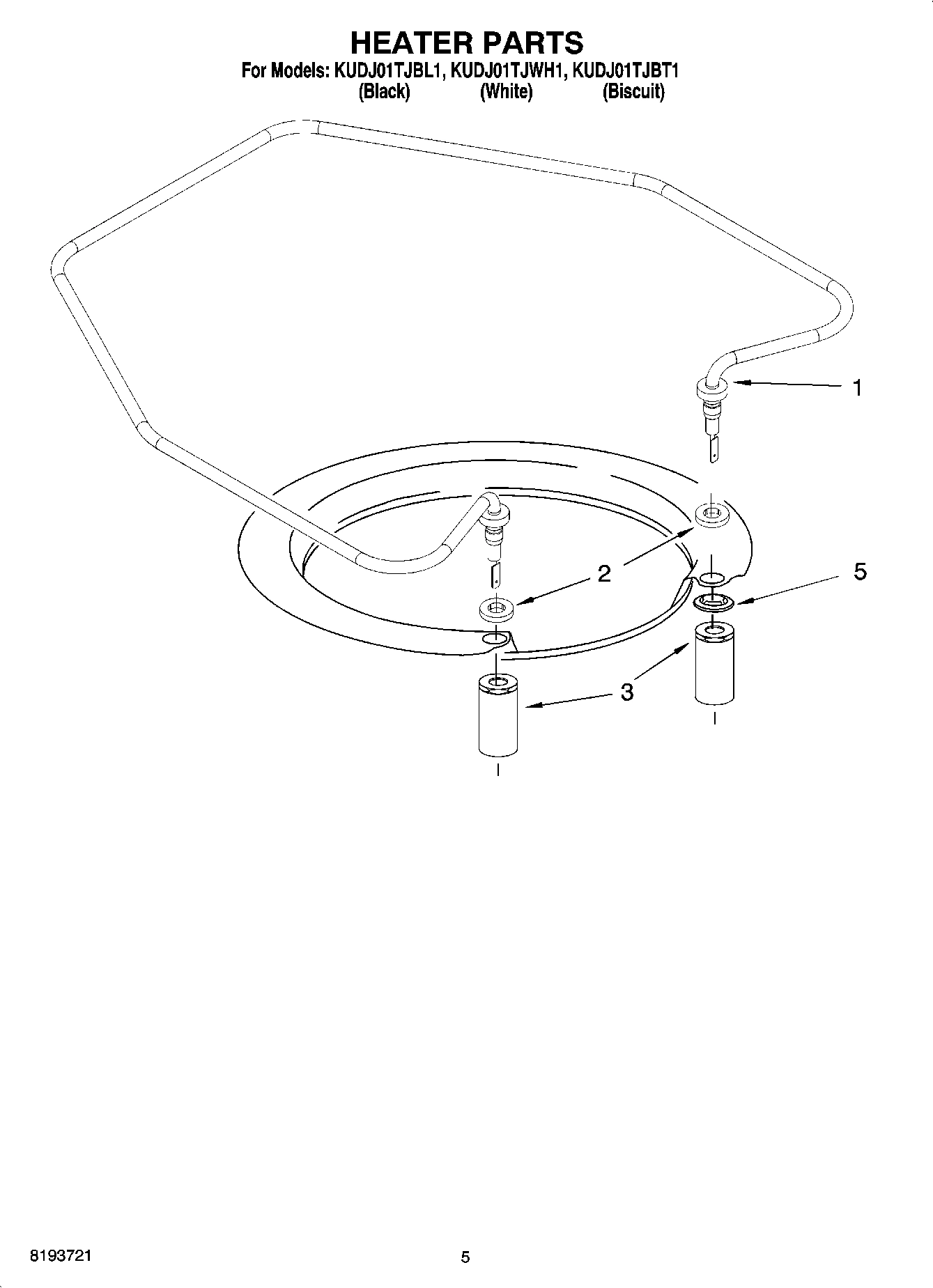

05 - HEATER PARTS

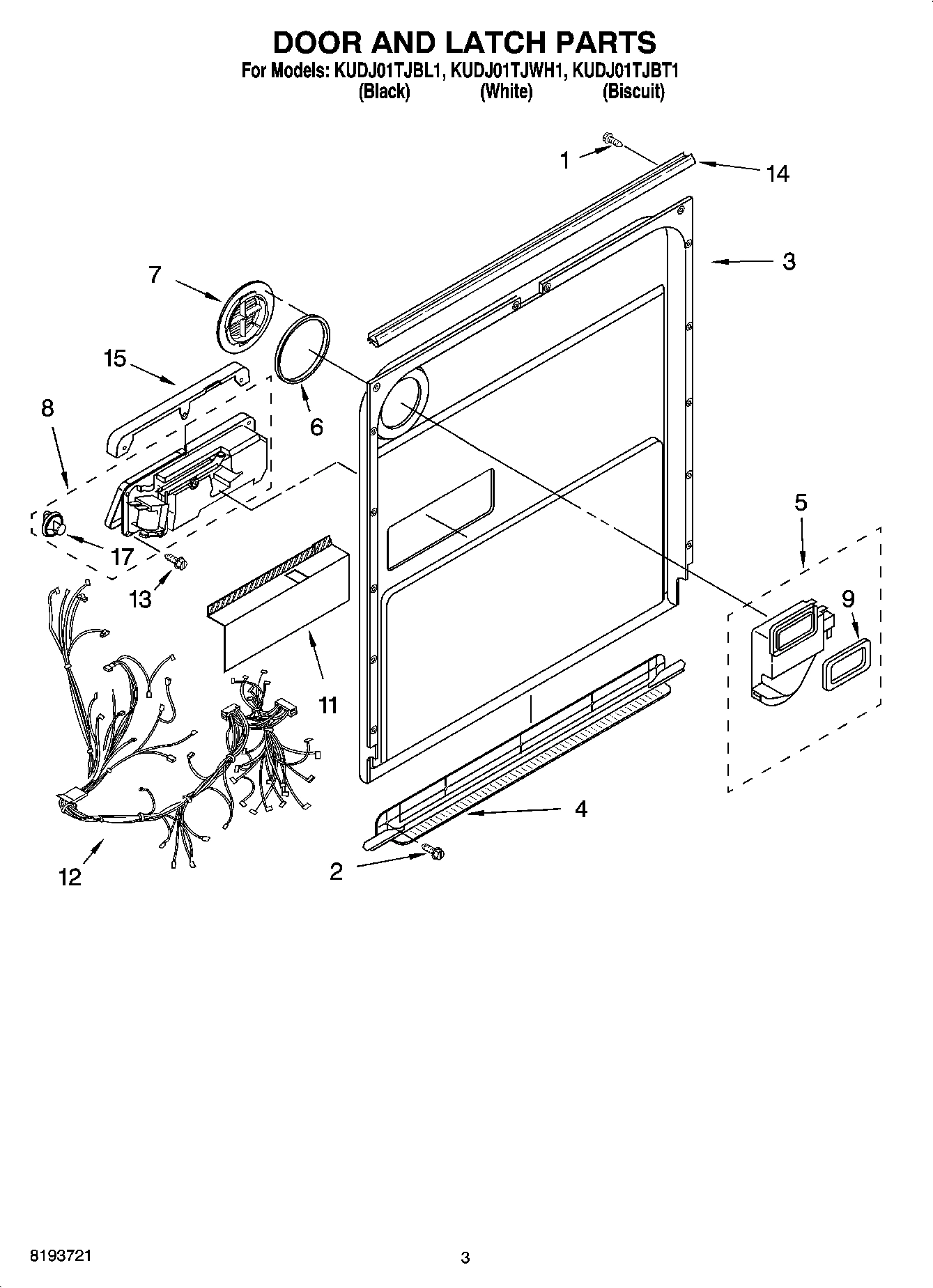

03 - DOOR AND LATCH PARTS

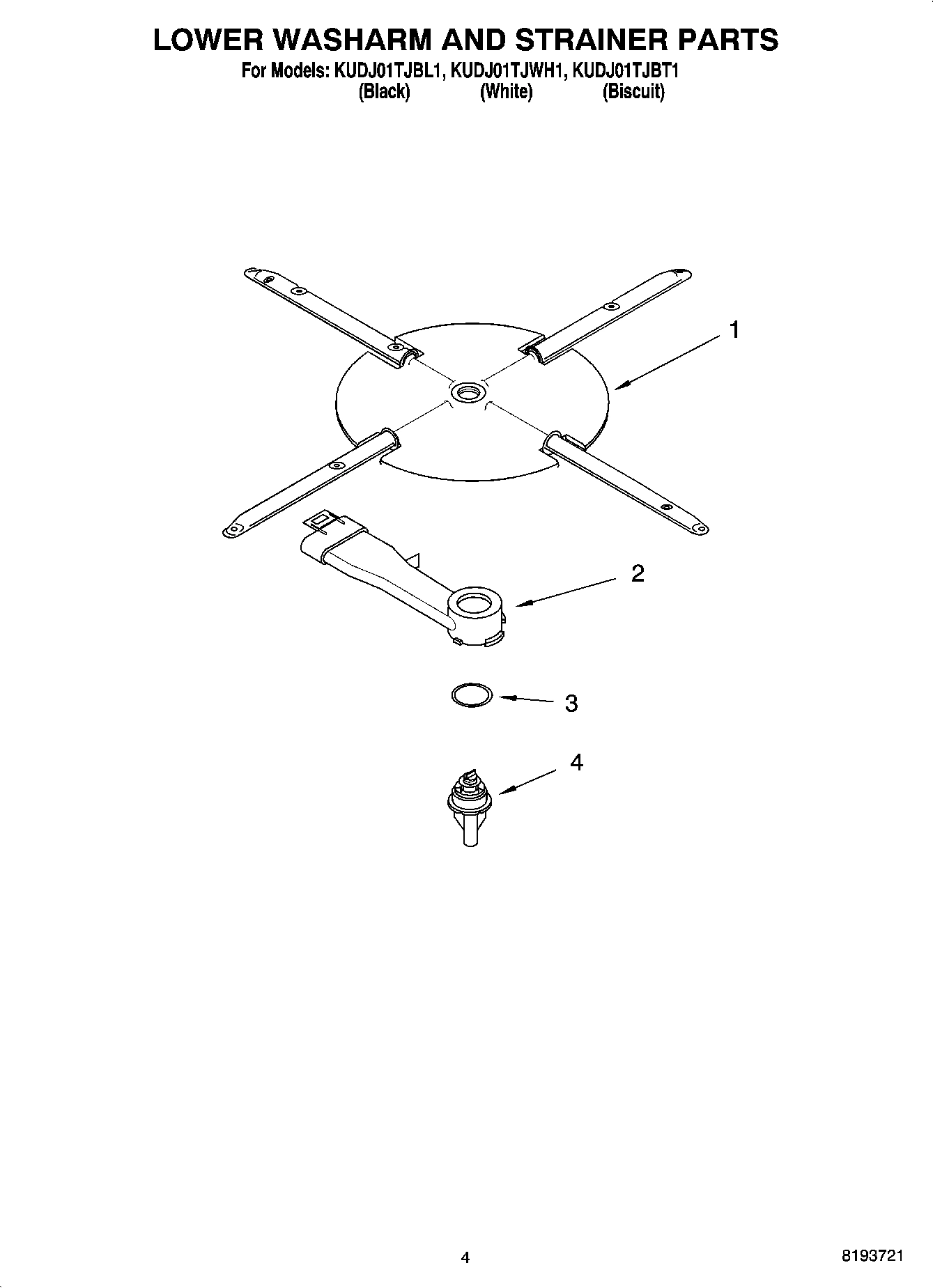

04 - LOWER WASHARM AND STRAINER PARTS

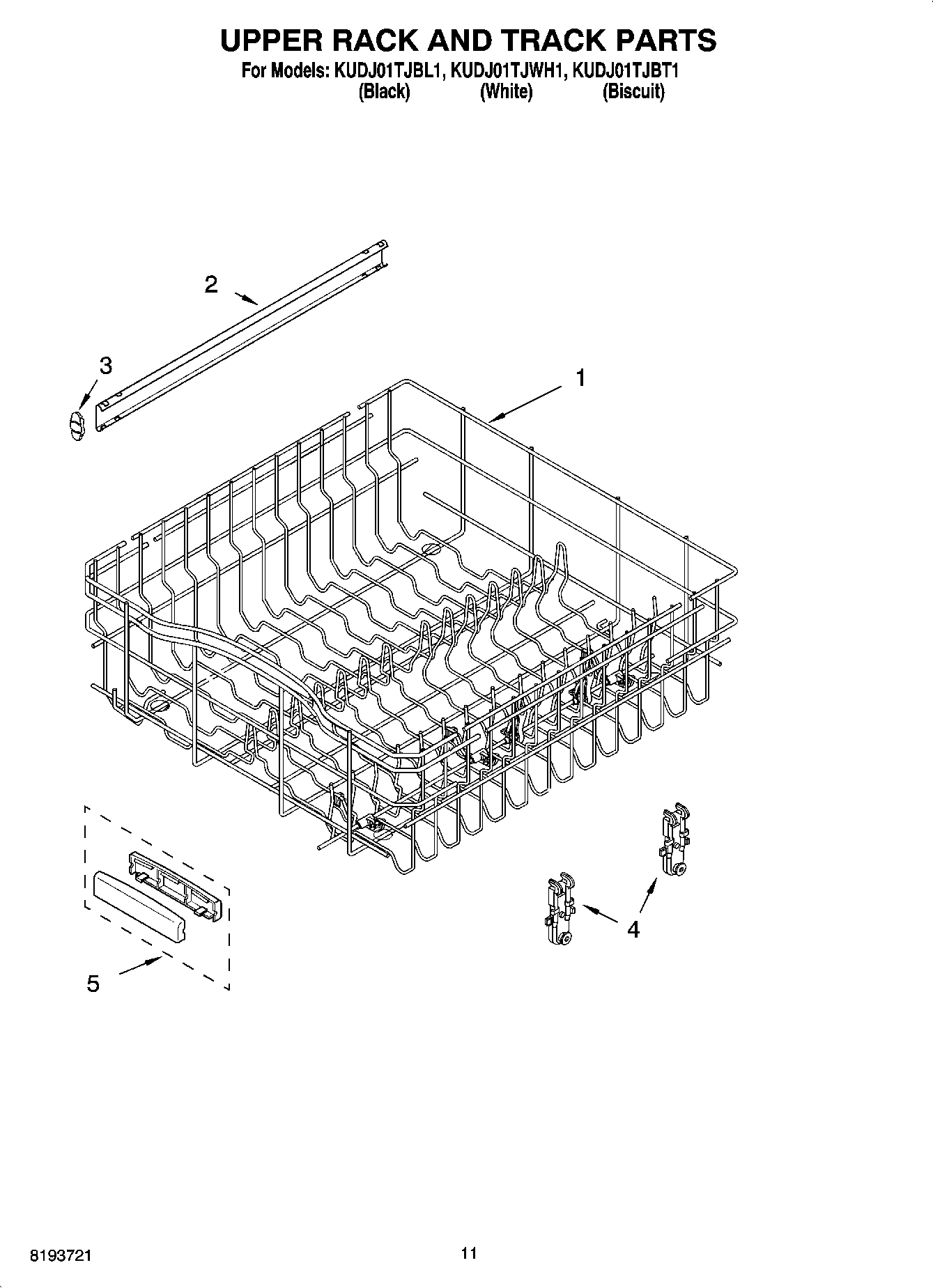

09 - UPPER RACK AND TRACK PARTS

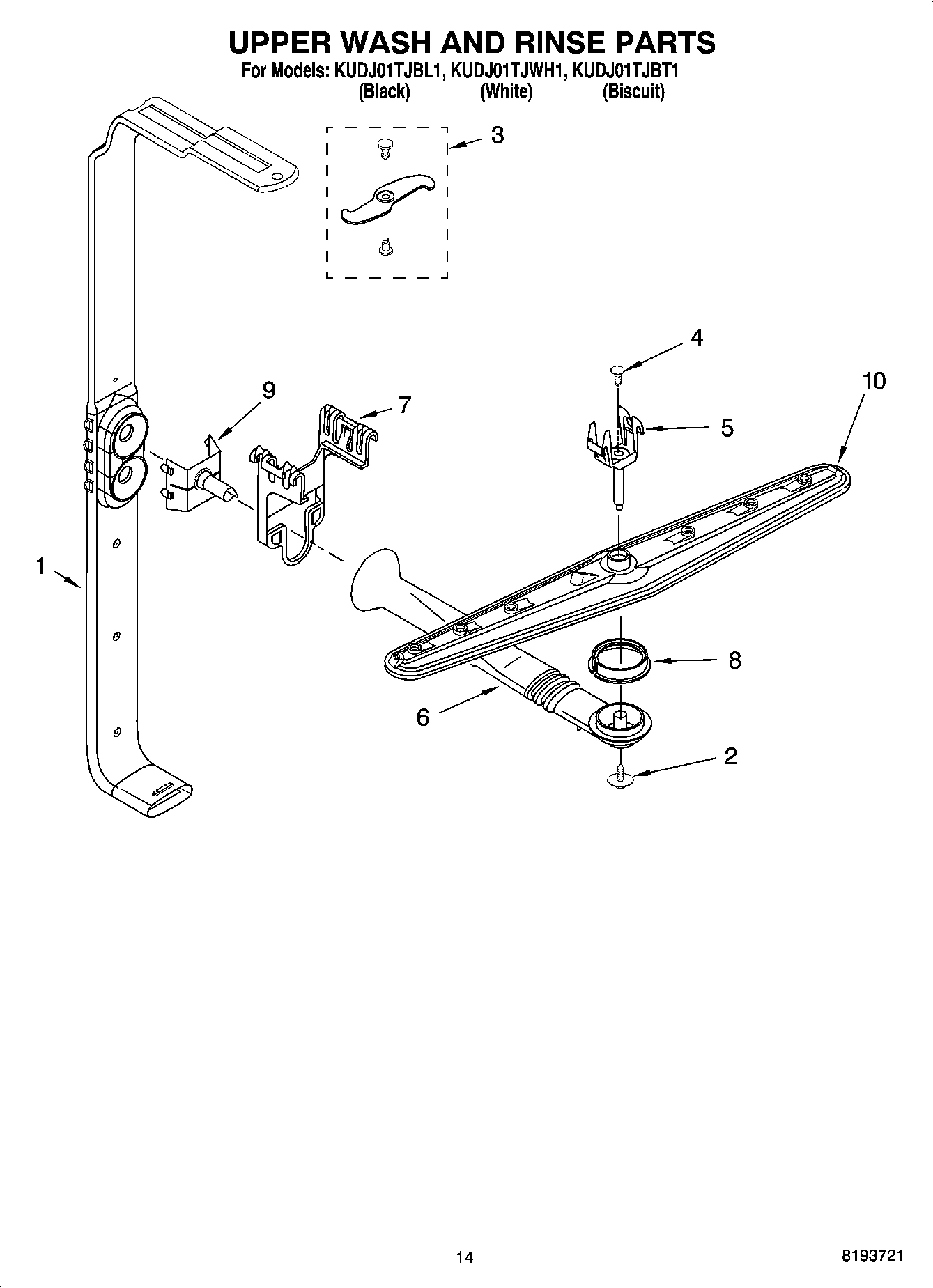

11 - UPPER WASH AND RINSE PARTS
Common parts from model Whirlpool KUDJ01TJWH1 UNDERCOUNTER DISHWASHER
1
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
1
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
1
POWER CORD KIT (INCLUDES POWER CORD & MISC. H WPL 4317824 Contact Us For Availability
1
Heater Element Assembly (Includes Item 2 & El WPL 8194200 Contact Us For Availability
1
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
1
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
1
PAINT, PRESSURIZED SPRAY (12 oz.) (Almond) WPL 350956 Contact Us For Availability
1
Floor Mount Kit WPL 8171477 Contact Us For Availability
1
Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability
1
Paint, Touch-Up 1/2 Oz. (Cobalt Blue) WPL 8171571 Contact Us For Availability
1
Paint, Touch-Up 1/2 Oz. (Empire Red) WPL 8171652 Contact Us For Availability
1
Side Panel Kits (White) WPL 8171656 Contact Us For Availability
1
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Side Panel Kits (Black) WPL 8171657 Contact Us For Availability
1
Paint, Touch-Up 1/2 Oz. (Majestic Yellow) WPL 8171653 Contact Us For Availability
1
Side Panel Kits (Biscuit) WPL 8171658 Contact Us For Availability
1
WPL 978883 WPL 978883 Contact Us For Availability
1
WPL ARI155885A WPL ARI155885A Contact Us For Availability
1
WPL ARI155886A WPL ARI155886A Contact Us For Availability
1
WPL ARI155887A WPL ARI155887A Contact Us For Availability
1
Feed Tube Assembly (Also Includes Item 3) WPL 8268360 Contact Us For Availability
2
Seal, Sump WPL 8268395 Contact Us For Availability
3
Water Inlet Assembly (Includes Items 4 & 5) WPL 8269240 Contact Us For Availability
3
Screw WPL 3400069 Contact Us For Availability
3
Inner Door Mastic Assembly (Also Order Item 6 WPL 8530900 Contact Us For Availability
4
Gasket WPL 8269241 Contact Us For Availability
4
Sump WPL 8268382 Contact Us For Availability
5
Speed Nut WPL 3400931 Contact Us For Availability
5
Bezel, Inlet WPL 8269268 Contact Us For Availability
5
NOTE: If heater element is removed, it must b WPL ARI155884A Contact Us For Availability
5
Handle, Dishrack WPL 8269714 Contact Us For Availability
6
Manifold WPL 8268355 Contact Us For Availability
7
Retainer, Tine Row WPL 8268745 Contact Us For Availability
9
Nozzle, Feed WPL 8269295 Contact Us For Availability
11
Screw WPL 3400217 Contact Us For Availability
11
Shield, Dispenser WPL 8268541 Contact Us For Availability
12
Screen, Separation WPL 8268391 Contact Us For Availability
12
Wiring Harness Main WPL 8269191 Contact Us For Availability
16
Nut WPL 3400921 Contact Us For Availability
17
Pump, Drain WPL 661658 Contact Us For Availability
25
Thermister WPL 8269208 Contact Us For Availability
27
Shield, Capacitor WPL 8269512 Contact Us For Availability
28
Shield, Drain Pump WPL 8269449 Contact Us For Availability
29
BRACKET, THERMOSTAT WPL 9742648 Contact Us For Availability
× ![]()
