Model Whirlpool KUDJ01TJWH0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

1

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

1

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

1

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

1

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

1

8193506 Whirlpool Dishwasher Switch In Stock WPL 8193506 $72.98

1

8193918 Whirlpool Accumulator In Stock WPL 8193918 $92.13

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

WPW10320510 Whirlpool Dishwasher Spray Arm In Stock WPL WPW10320510 $80.71

1

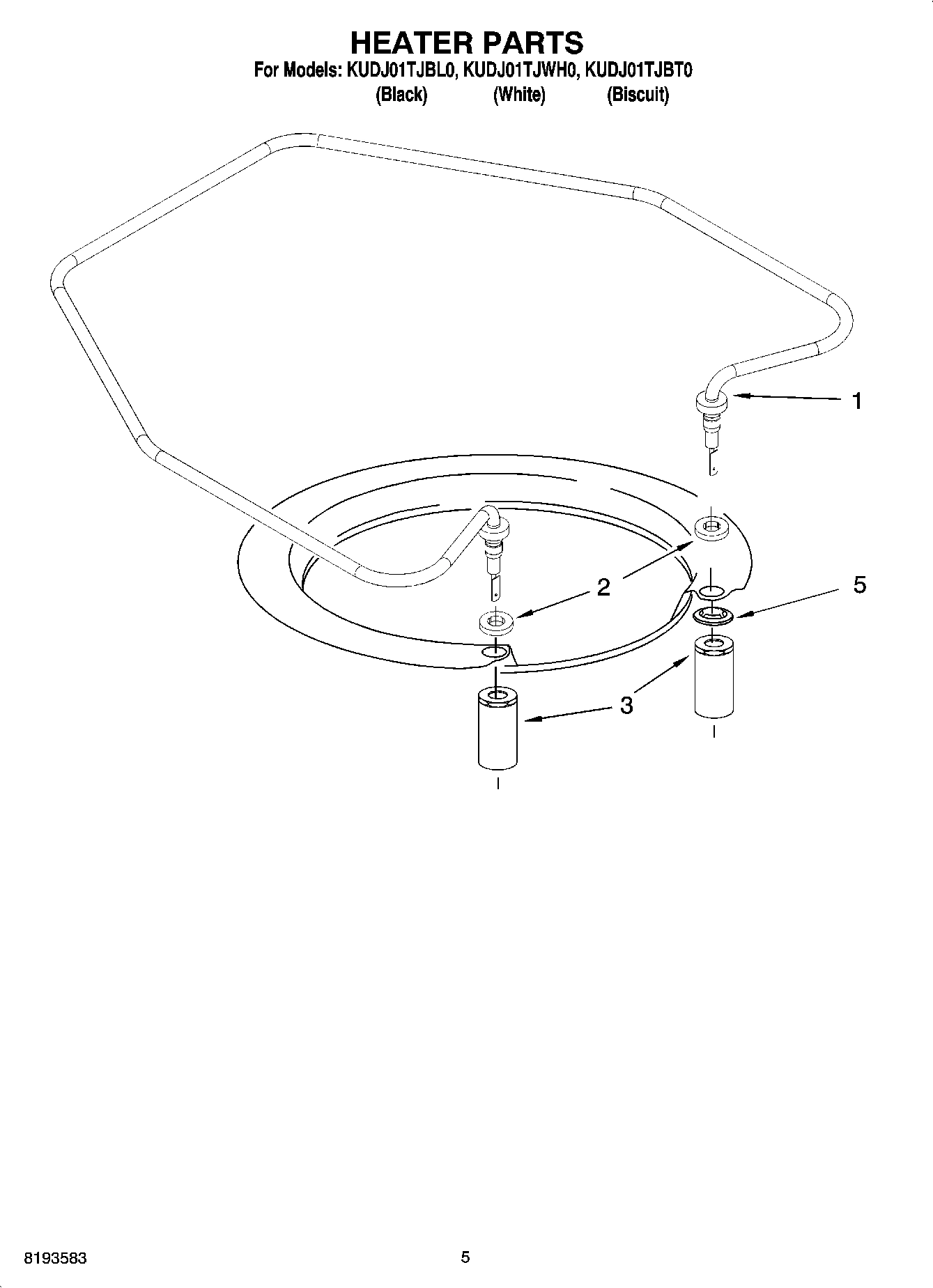

Heater Element Assembly (Includes Item 2 & El WPL 8194200 Contact Us For Availability

1

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

1

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

1

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8268481 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8268482 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8268483 Contact Us For Availability

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

2

WP8268522 Whirlpool Dishwasher Retainer Backorder WPL WP8268522 $3.70

2

WP8269242 Whirlpool Dishwasher Fill Hose Backorder WPL WP8269242 $32.56

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $29.92

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

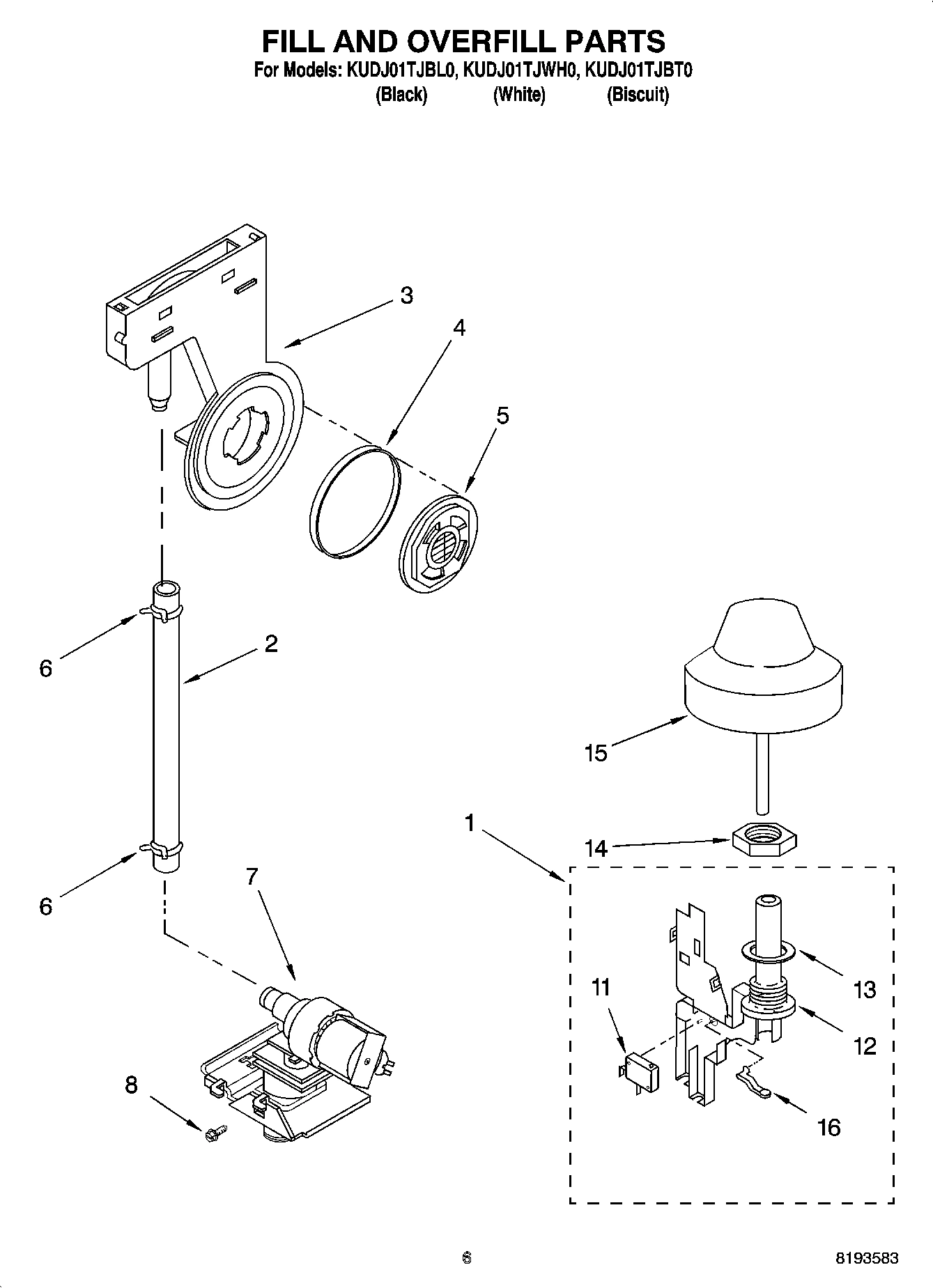

Water Inlet Assembly (Includes Items 4 & 5) WPL 8269240 Contact Us For Availability

3

Screw WPL 3400069 Contact Us For Availability

4

WP3400919 Whirlpool Dishwasher Screw Cover Backorder WPL WP3400919 $4.43

4

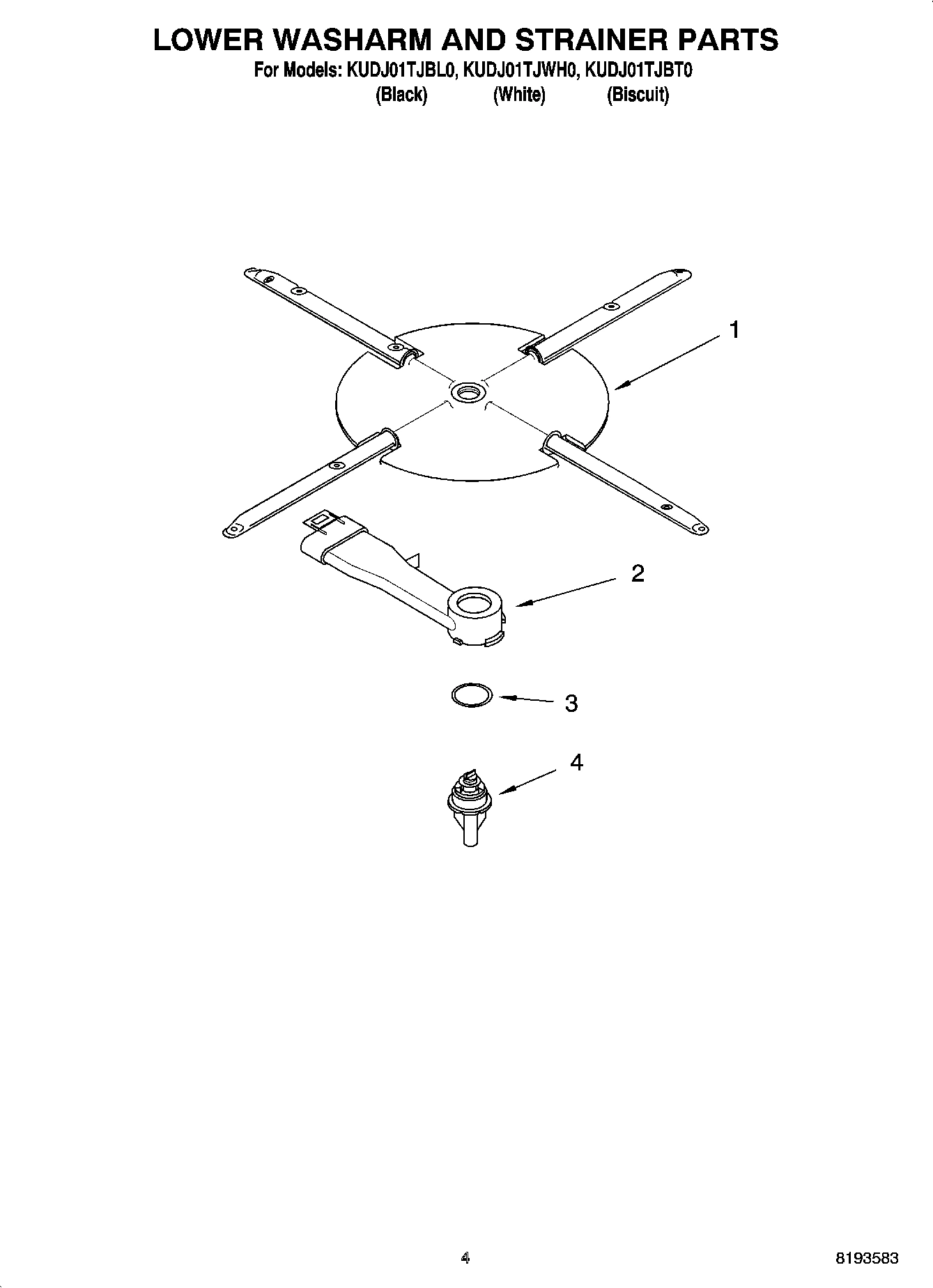

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8268540 Whirlpool Door Handle Spring In Stock WPL WP8268540 $2.51

4

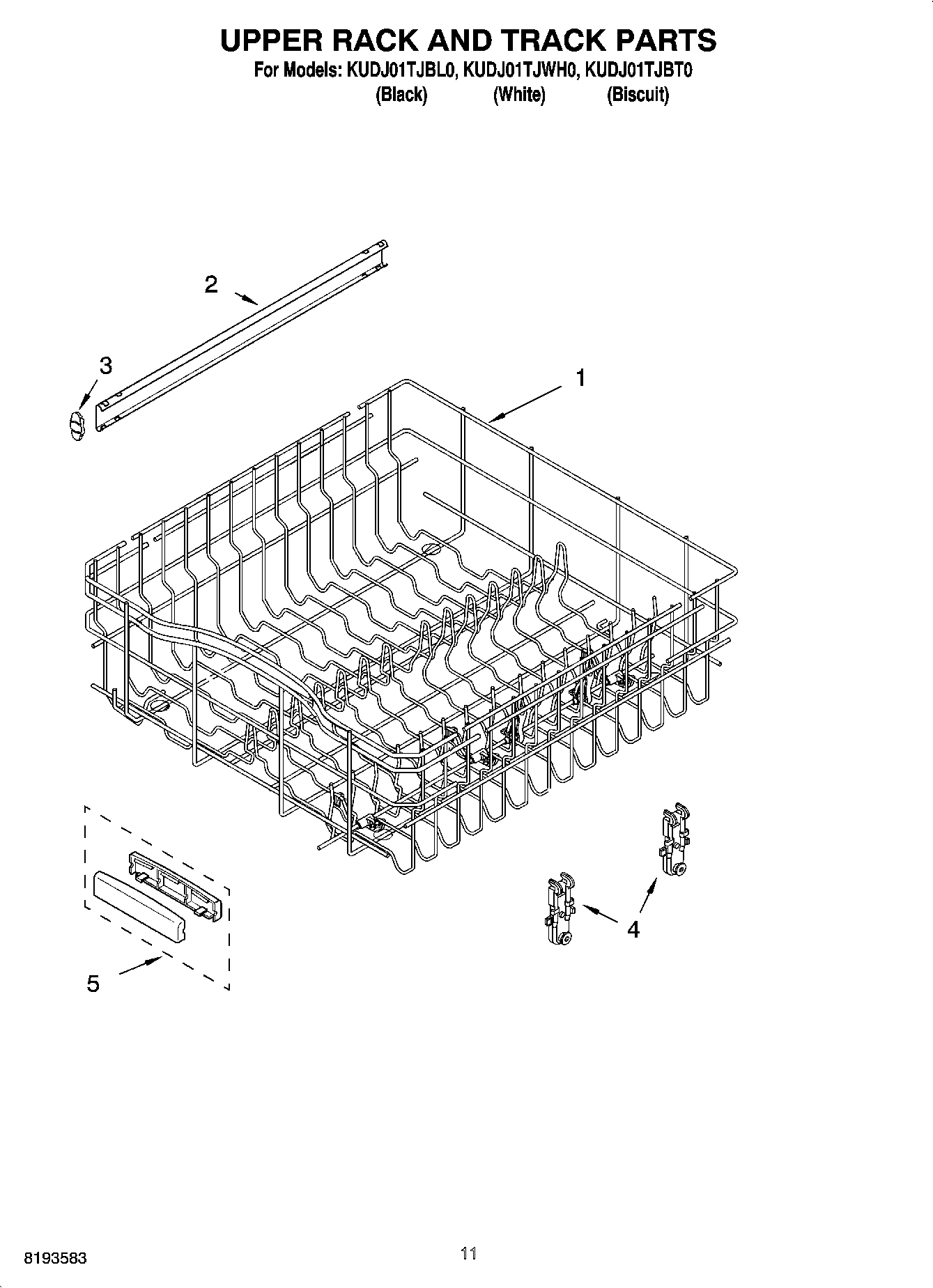

WP8268743 Whirlpool Dishwasher Upper Dishrack In Stock WPL WP8268743 $13.56

4

Gasket WPL 8269241 Contact Us For Availability

4

Sump WPL 8268382 Contact Us For Availability

5

W10728160 Whirlpool Tine Assembly In Stock WPL W10728160 $27.32

5

WP8268321 Whirlpool Dishwasher Mount Backorder WPL WP8268321 $34.28

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $30.80

5

WP8524472 Whirlpool Dishwasher Door Latch Act Backorder WPL WP8524472 $32.70

5

Speed Nut WPL 3400931 Contact Us For Availability

5

Bezel, Inlet WPL 8269268 Contact Us For Availability

6

8193762 Whirlpool Fuse Kit In Stock WPL 8193762 $33.60

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP8268326 Whirlpool Dishwasher Tube Backorder WPL WP8268326 $35.78

6

WP8268523 Whirlpool Dishwasher Pivot Tine Backorder WPL WP8268523 $36.97

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

7

8268745 Whirlpool Dishwasher Retainer Backorder WPL 8268745 $34.99

7

WP8531669 Whirlpool Dishwasher Inlet Valve In Stock WPL WP8531669 $28.99

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

7

Hanger WPL 8268325 Contact Us For Availability

8

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $60.15

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

9

WP8269117 Whirlpool Dishwasher Handle In Stock WPL WP8269117 $49.46

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $28.80

9

Nozzle, Feed WPL 8269295 Contact Us For Availability

10

8193882 Whirlpool Dishwasher Primary Latch Bo In Stock WPL 8193882 $38.89

10

WP8268933 Whirlpool Dishwasher Door Guard Backorder WPL WP8268933 $26.21

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

Control, Electronic WPL 8527685 Contact Us For Availability

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

Wiring Harness Main WPL 8269191 Contact Us For Availability

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

Seal, Sump WPL 8268395 Contact Us For Availability

Bumper, Latch WPL 8270102 Contact Us For Availability

14

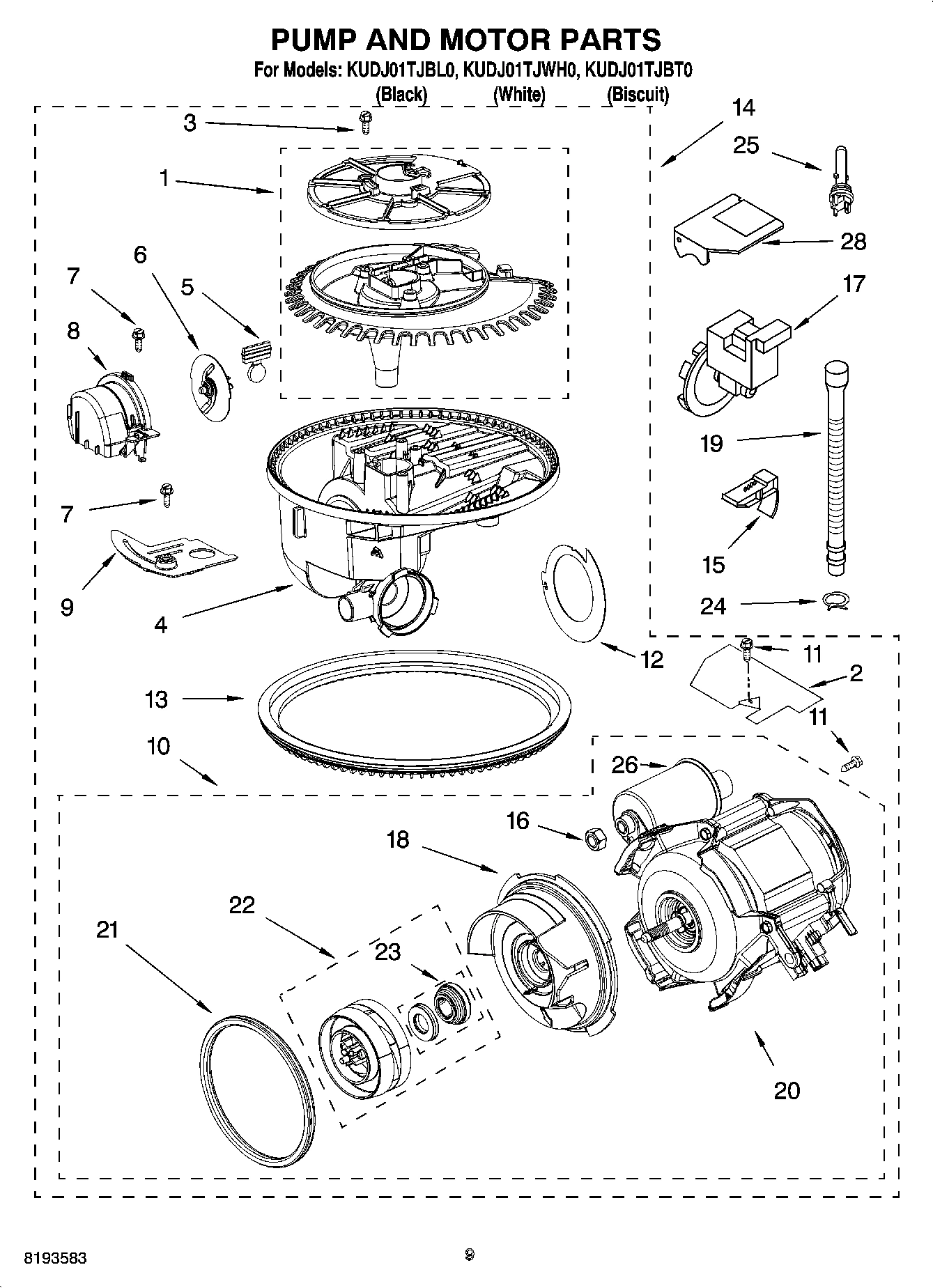

W10782773 Whirlpool Dishwasher Pump and Motor In Stock WPL W10782773 $157.78

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP8268895 Whirlpool Dishwasher Float Assembly Backorder WPL WP8268895 $30.80

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WPW10300599 Whirlpool Dishwasher Sump Tab Backorder WPL WPW10300599 $30.40

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

16

Nut WPL 3400921 Contact Us For Availability

17

Pump, Drain WPL 8268411 Contact Us For Availability

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.17

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

WP8270019 Whirlpool Dishwasher Dishrack Wheel In Stock WPL WP8270019 $4.50

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

21

W11622922 Whirlpool Dishwasher Volute In Stock WPL W11622922 $8.20

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

22

WPW10757217 Whirlpool Circulation Pump and Mo In Stock WPL WPW10757217 $150.68

23

8193951A Whirlpool Impeller Assembly In Stock WPL 8193951A $83.10

25

Thermister WPL 8269208 Contact Us For Availability

26

WPW10334457 Whirlpool Dishwasher Capacitor Backorder WPL WPW10334457 $68.89

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

28

Shield, Drain Pump WPL 8269449 Contact Us For Availability

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

34

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

35

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
