Model Whirlpool KTRS22MGWH01 – Common Parts & Diagrams

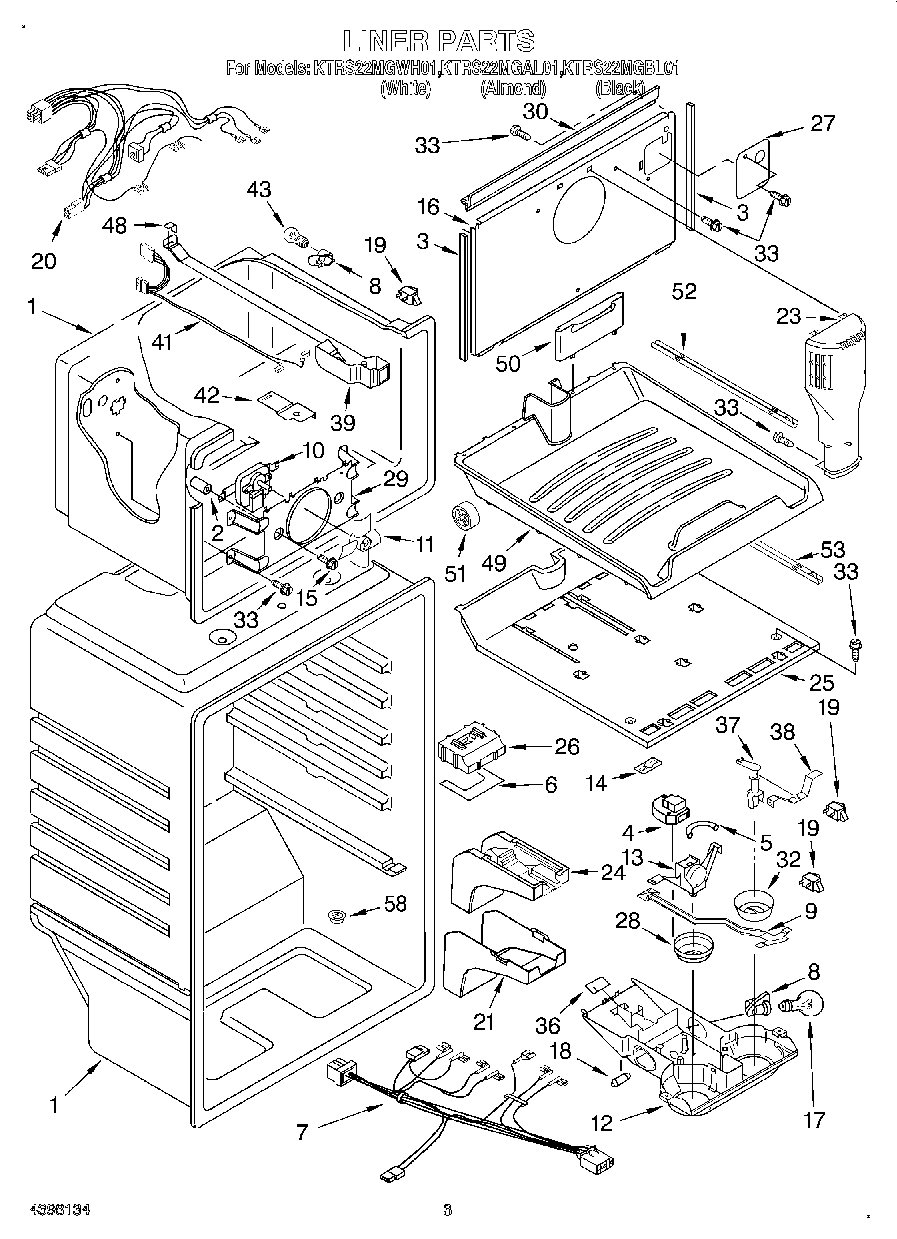

02 - LINER

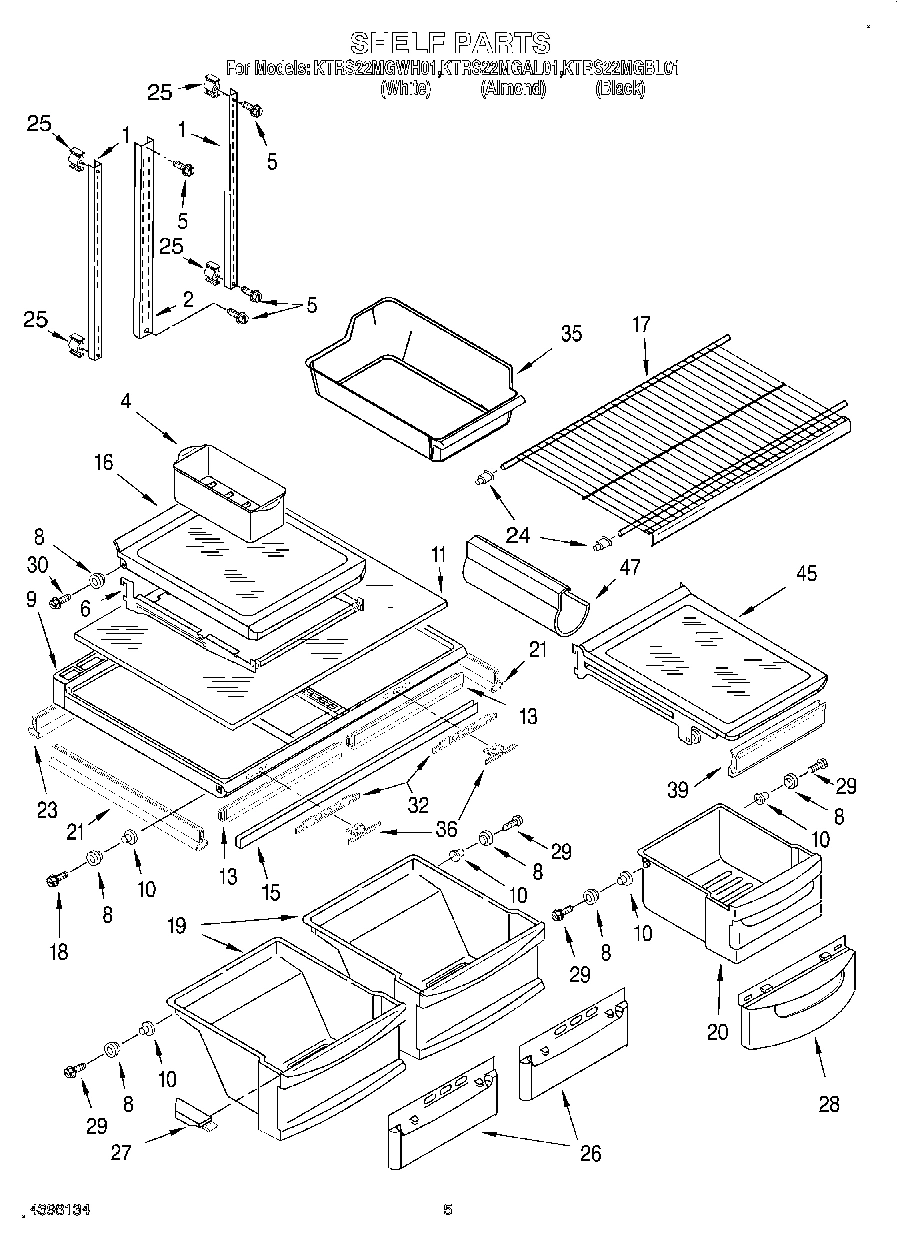

03 - SHELF

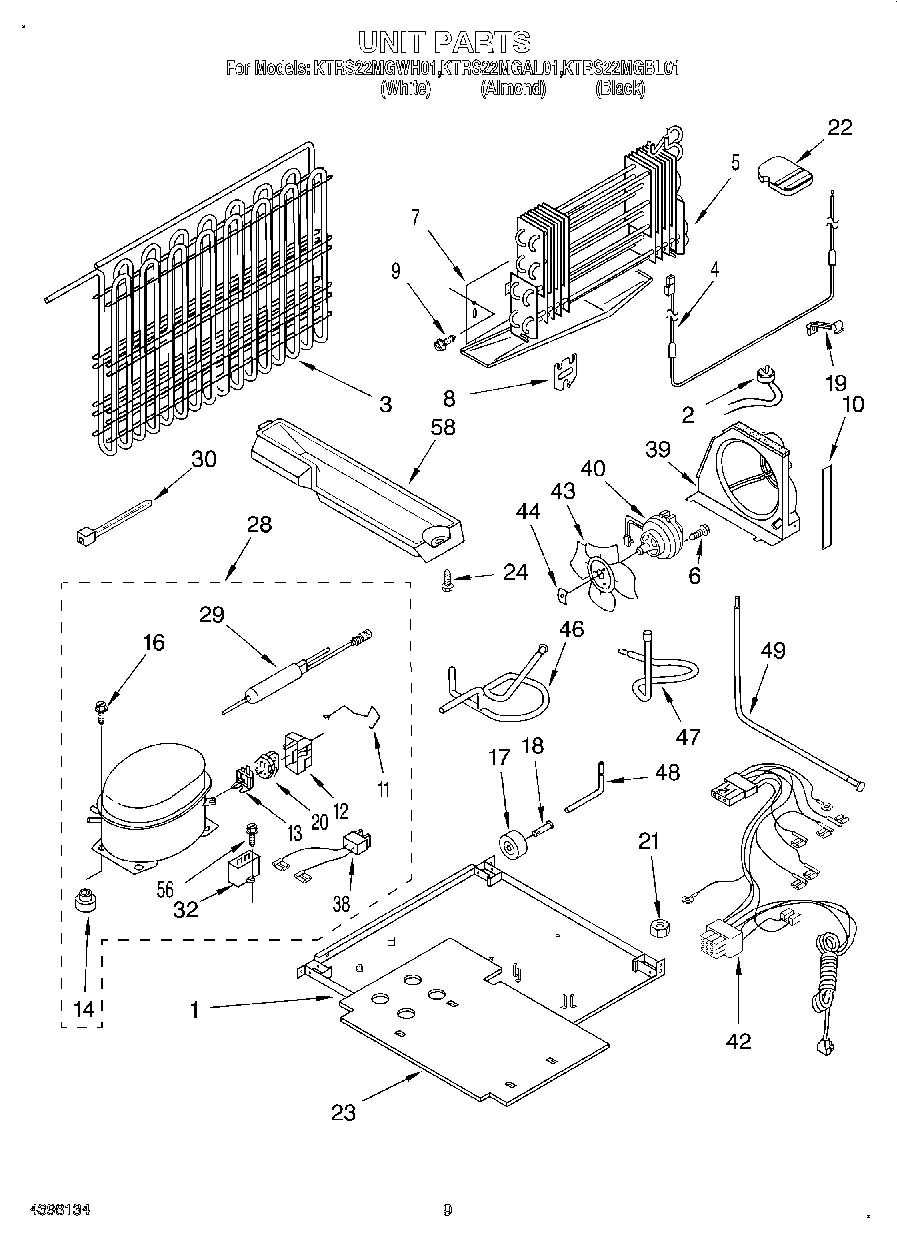

05 - UNIT

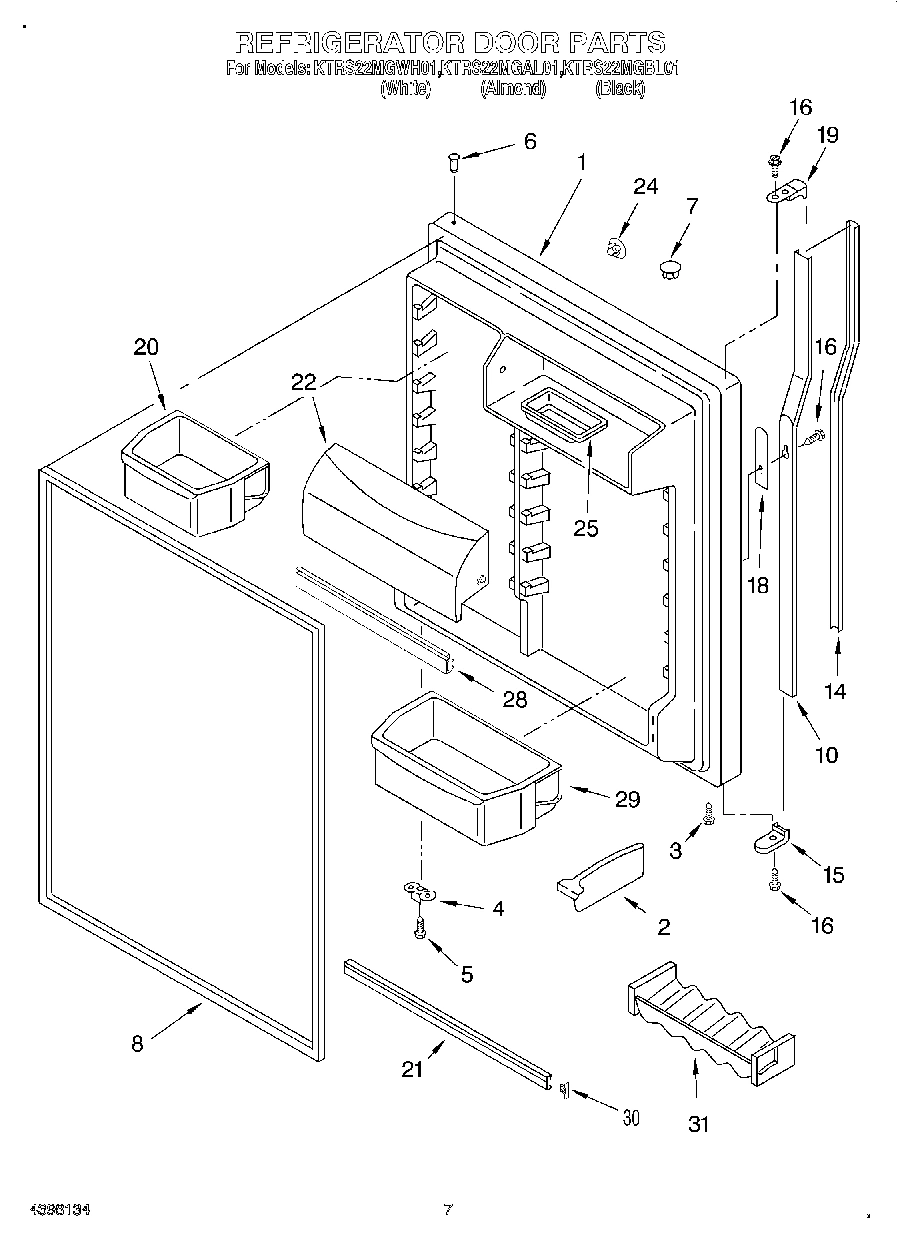

04 - REFRIGERATOR DOOR

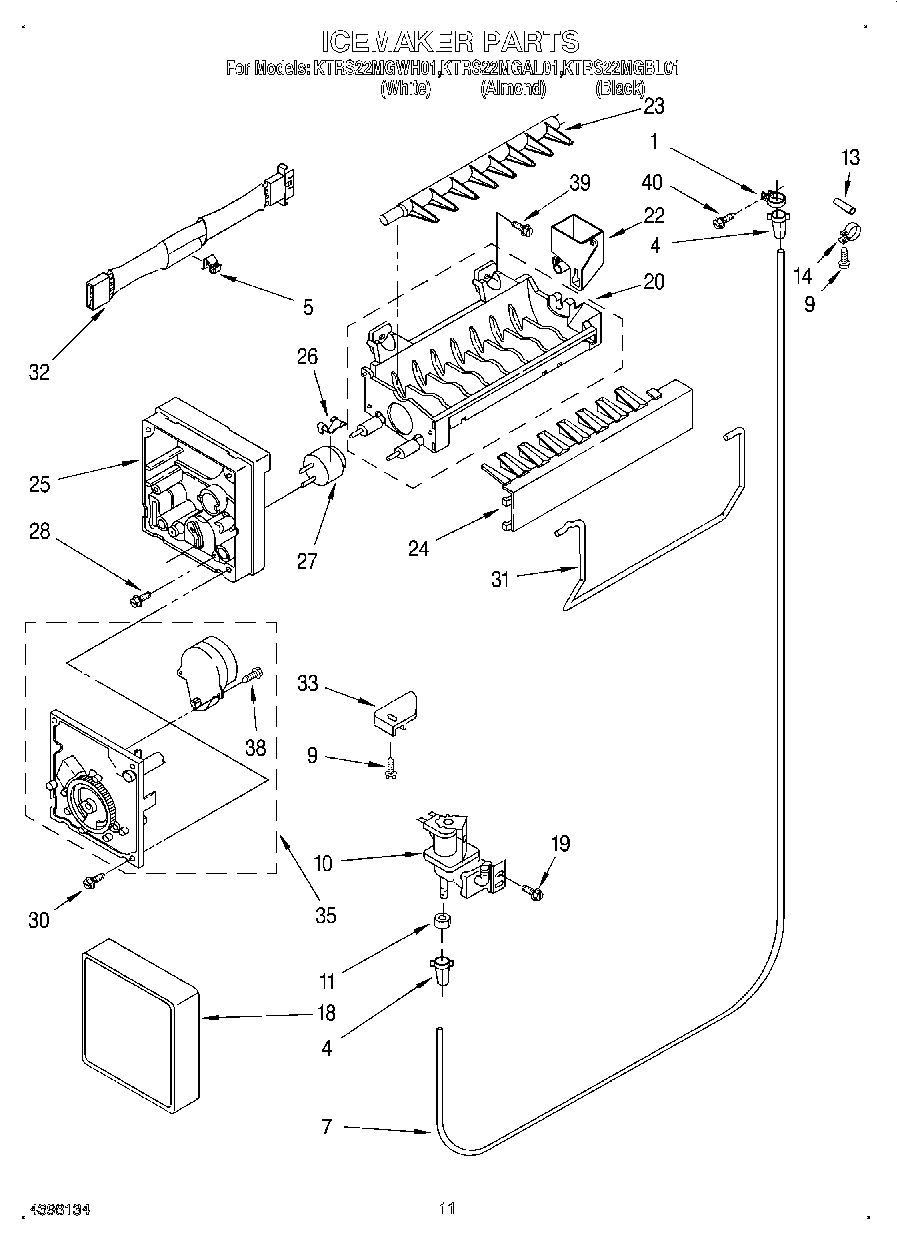

06 - ICEMAKER

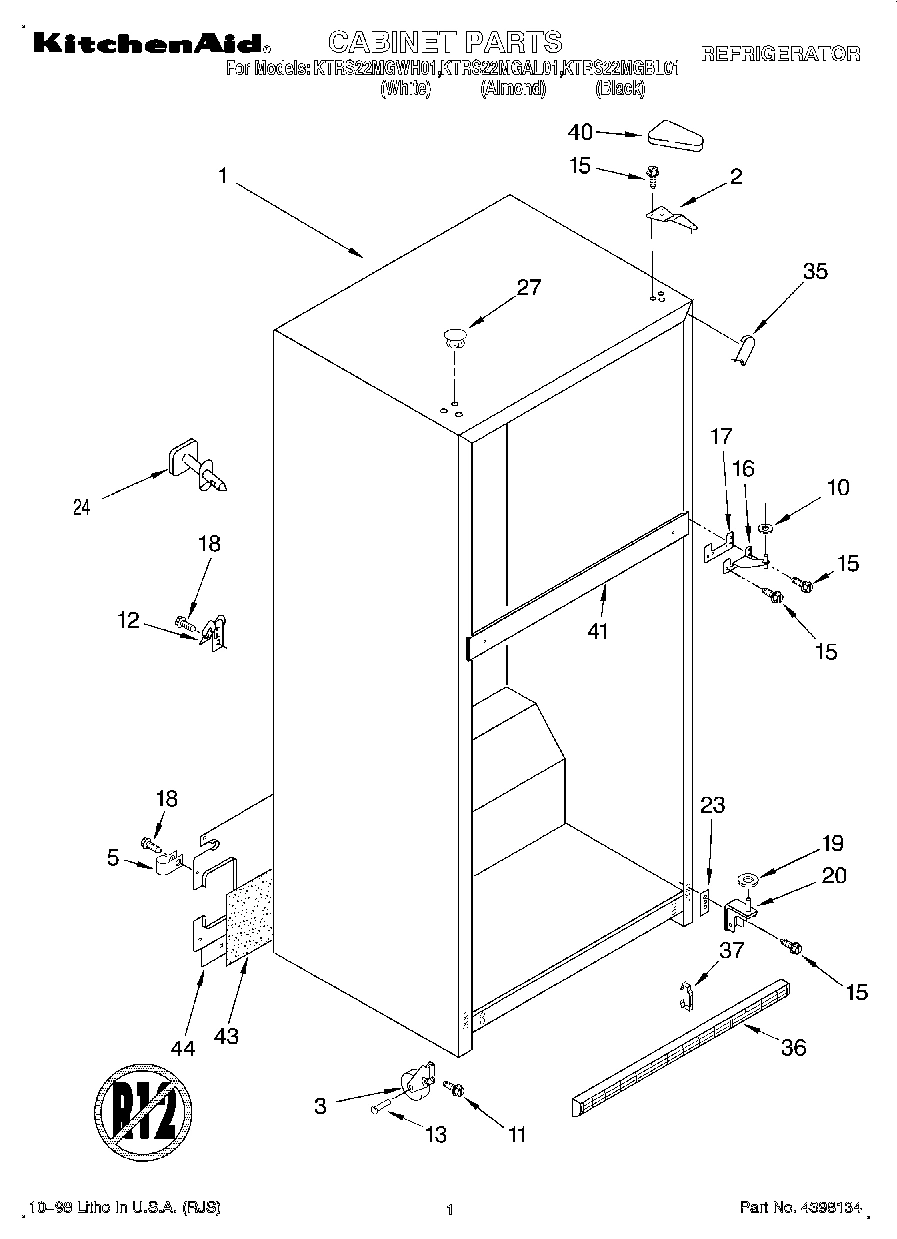

01 - CABINET

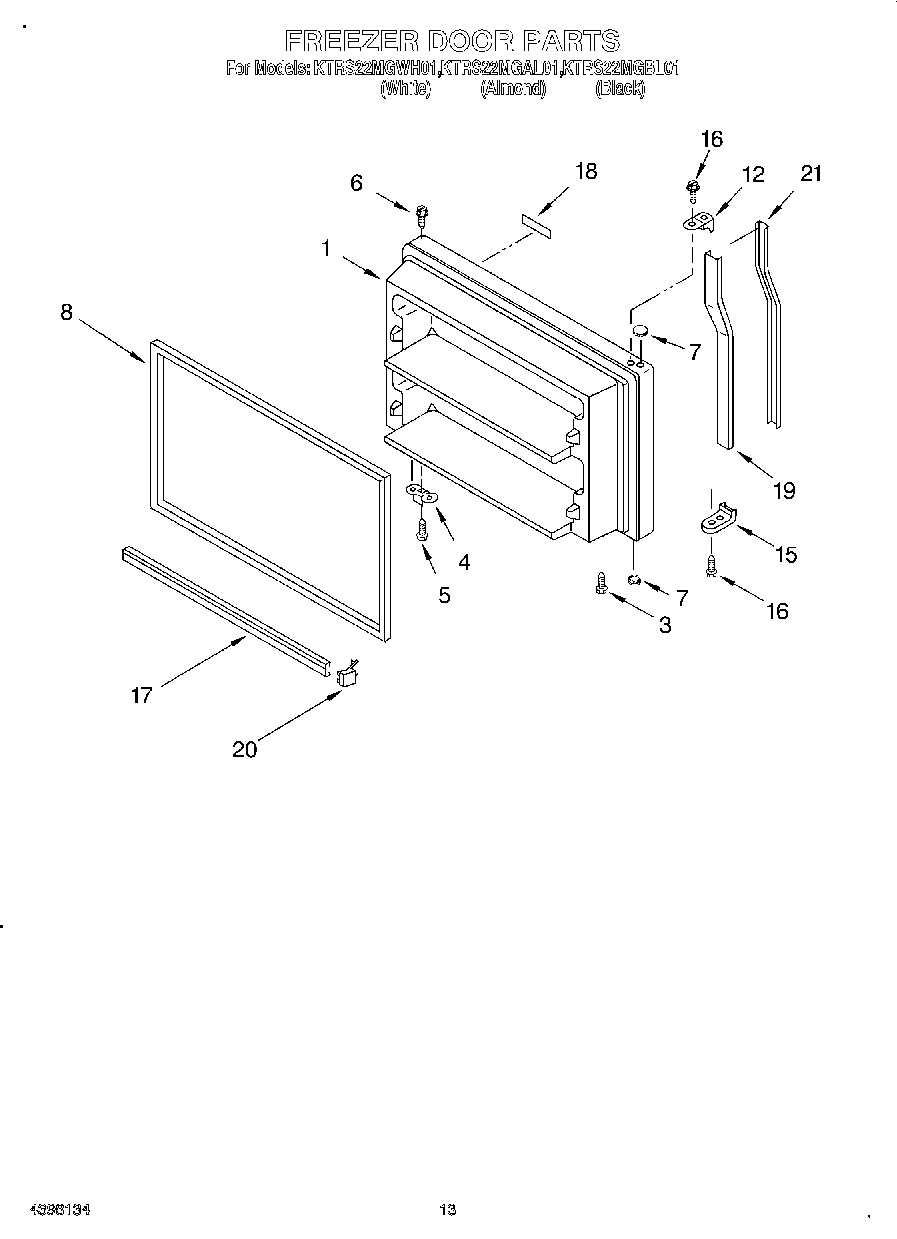

07 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool KTRS22MGWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
WPL LIT2199010 WPL LIT2199010 Contact Us For Availability
WPL LIT2199062 WPL LIT2199062 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2198970 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Alm WPL 2198971 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2200613 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112754A Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2183862 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Almond) WPL 2183863 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Black) WPL 2200621 Contact Us For Availability
2
Divider, Door Bin WPL 1123293 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Retainer, Insert (Black) WPL 2195993B Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2195993N Contact Us For Availability
10
Retainer, Insert (White) WPL 2195993W Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Endcap (White) WPL 2195994W Contact Us For Availability
12
End Cap (Black) WPL 2195994B Contact Us For Availability
12
Endcap (Almond) WPL 2195994N Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
14
Insert, Handle (Black) WPL 2188155 Contact Us For Availability
14
Insert, Handle (White) WPL 2195986 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2195987 Contact Us For Availability
15
Endcap, Bottom (Black) WPL 2188132 Contact Us For Availability
15
Endcap, Bottom (White) WPL 2195990 Contact Us For Availability
15
Endcap, Bottom (Almond) WPL 2195991 Contact Us For Availability
15
End Cap (Black) WPL 2195995B Contact Us For Availability
15
Endcap (Almond) WPL 2195995N Contact Us For Availability
17
Trim, Door WPL 2195947 Contact Us For Availability
18
Spacer, Handle WPL 2188146 Contact Us For Availability
18
Nameplate (White) WPL 2188149 Contact Us For Availability
18
Nameplate (Almond) WPL 2188150 Contact Us For Availability
18
Nameplate (Black) WPL 2188151 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
19
Insert, Handle (Black) WPL 2195992B Contact Us For Availability
19
Insert, Handle (Almond) WPL 2195992N Contact Us For Availability
19
Insert, Handle (White) WPL 2195992W Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Insert, Handle (Black) WPL 2188154 Contact Us For Availability
21
Insert, Handle (White) WPL 2195984 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2195985 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
24
Screw (4) WPL 489462 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI112755A Contact Us For Availability
25
Support WPL 2189314 Contact Us For Availability
25
Tray, Butter WPL 2165792 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Almond) WPL 2201007 Contact Us For Availability
36
Grille (Black) WPL 2201008 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI112756A Contact Us For Availability
42
Wire Assy. Unit WPL 2200629 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200778 Contact Us For Availability
44
Cover, Unit WPL 2200508 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
FeaturePak (Includes 17, 20) Also See Ref.Dr. WPL 2199051 Contact Us For Availability
100
Door Reversal Instructions WPL 2179846 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1 WPL 542639 Contact Us For Availability
100
WPL 799832 WPL 799832 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
