Model Whirlpool KSSS36QHT00 BUILT IN REFRIGERATOR – Common Parts & Diagrams
15 - LOWER UNIT AND TUBE
16 - AIR FLOW AND RESERVOIR

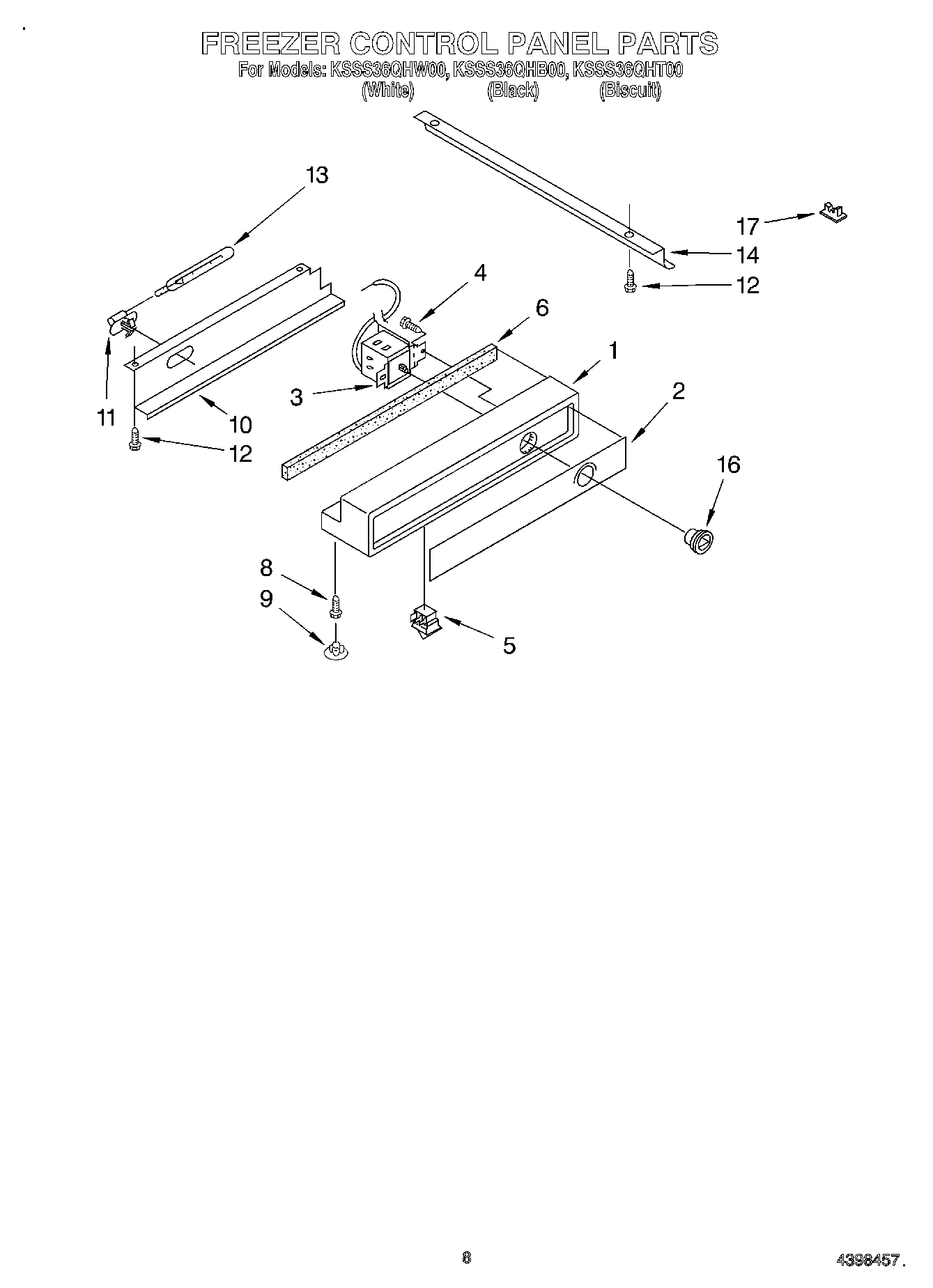

06 - FREEZER CONTROL PANEL

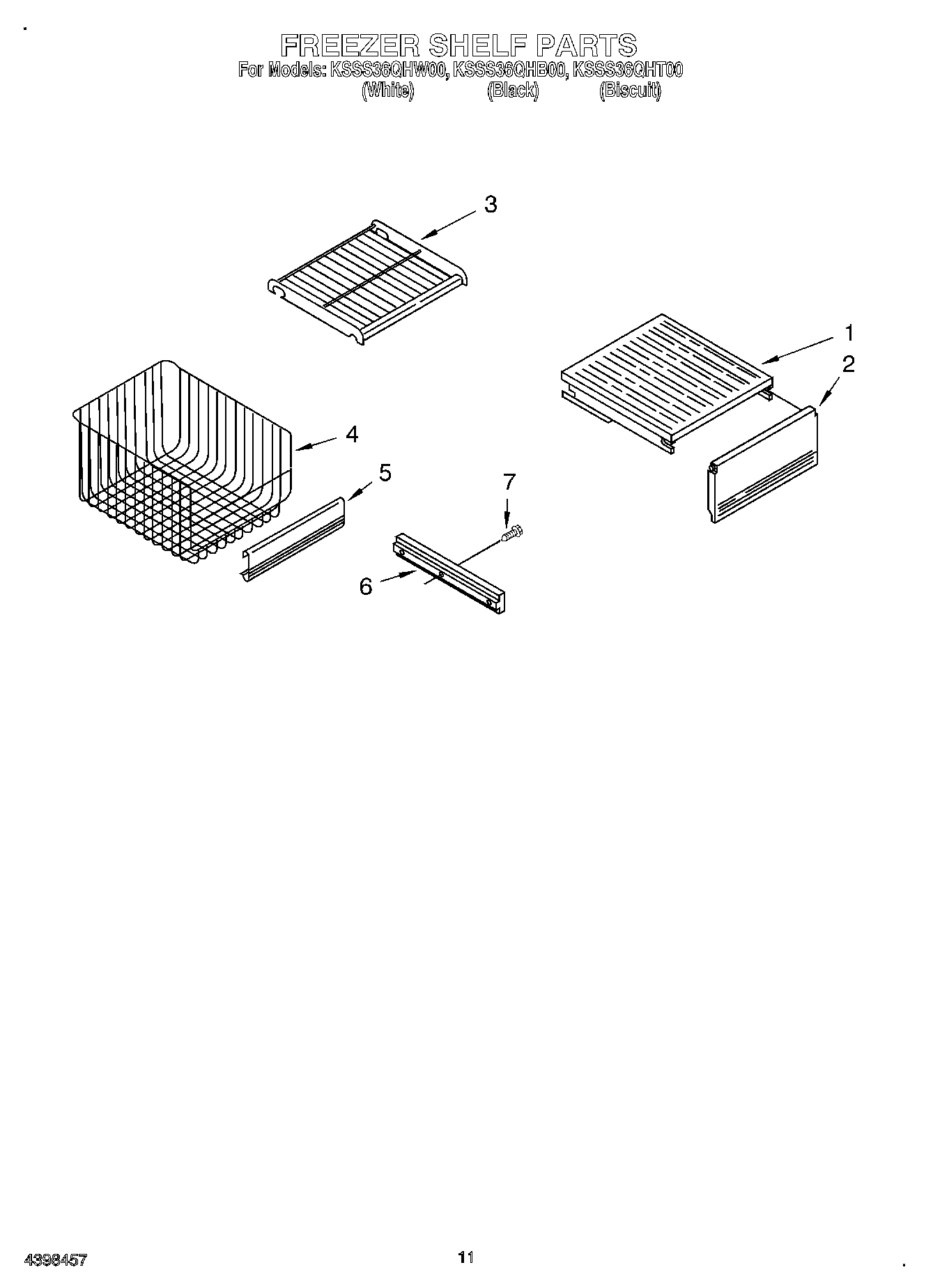

08 - FREEZER SHELF

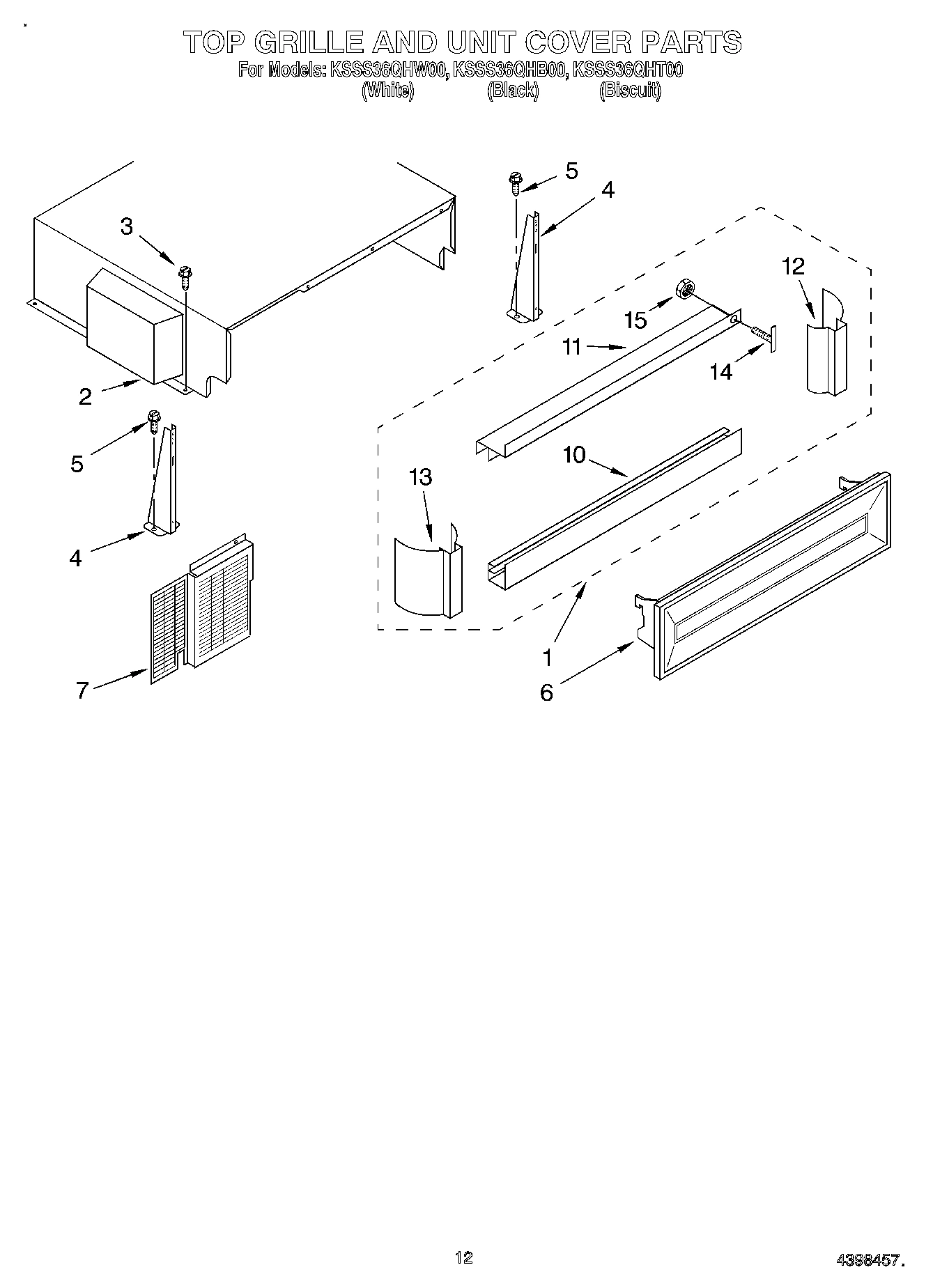

09 - TOP GRILL AND UNIT COVER

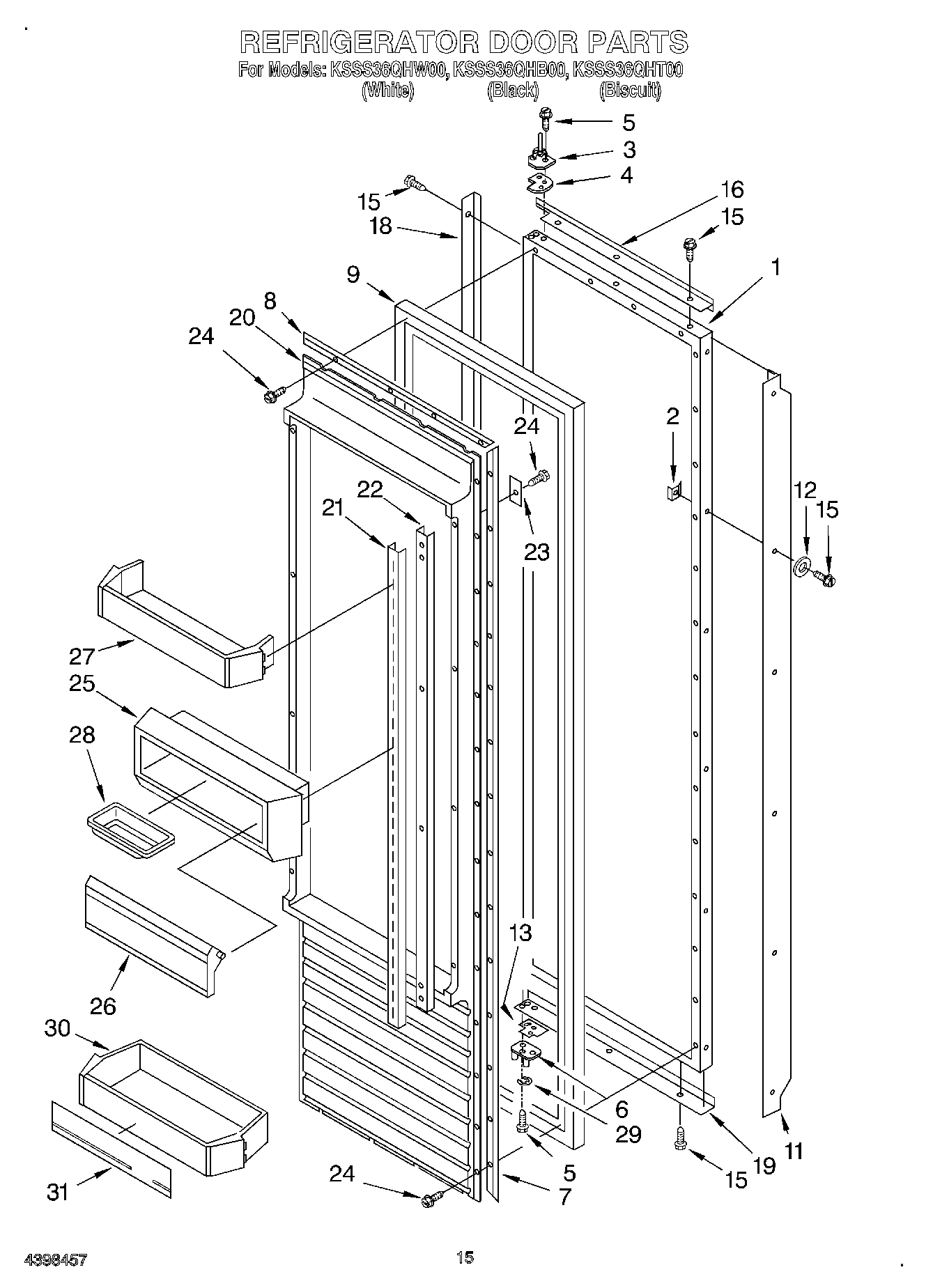

11 - REFRIGERATOR DOOR

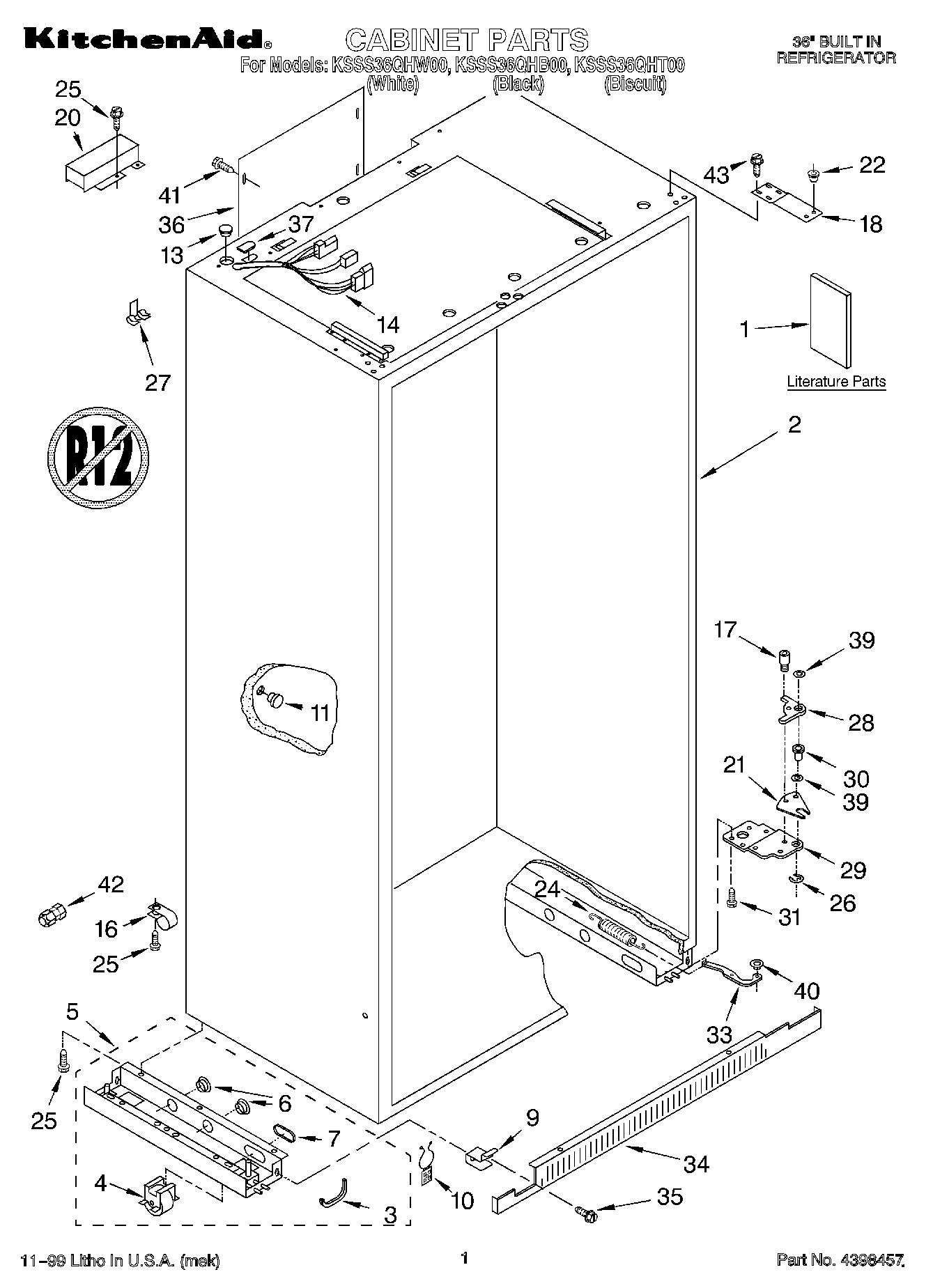

01 - CABINET, LITERATURE

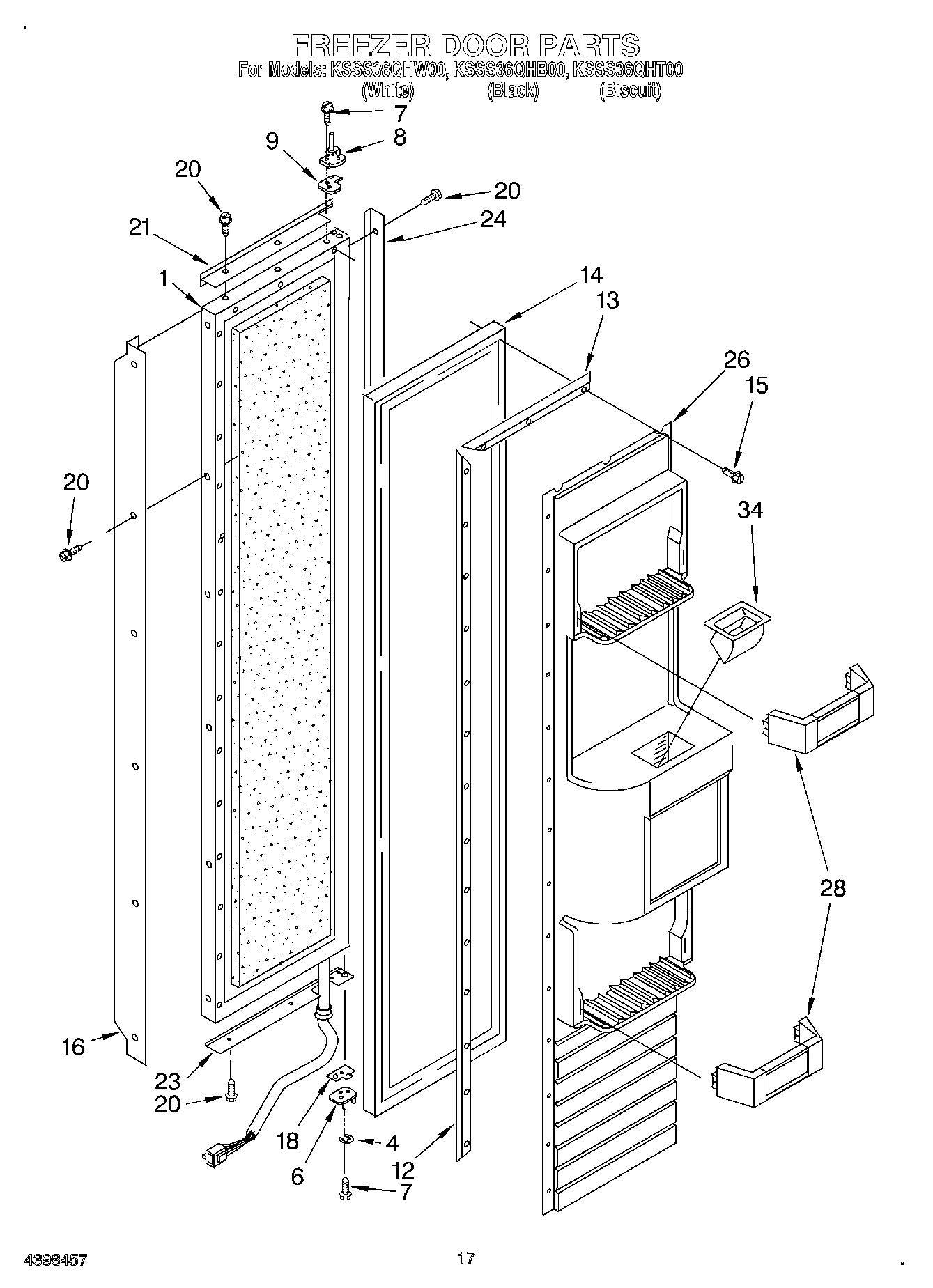

12 - FREEZER DOOR

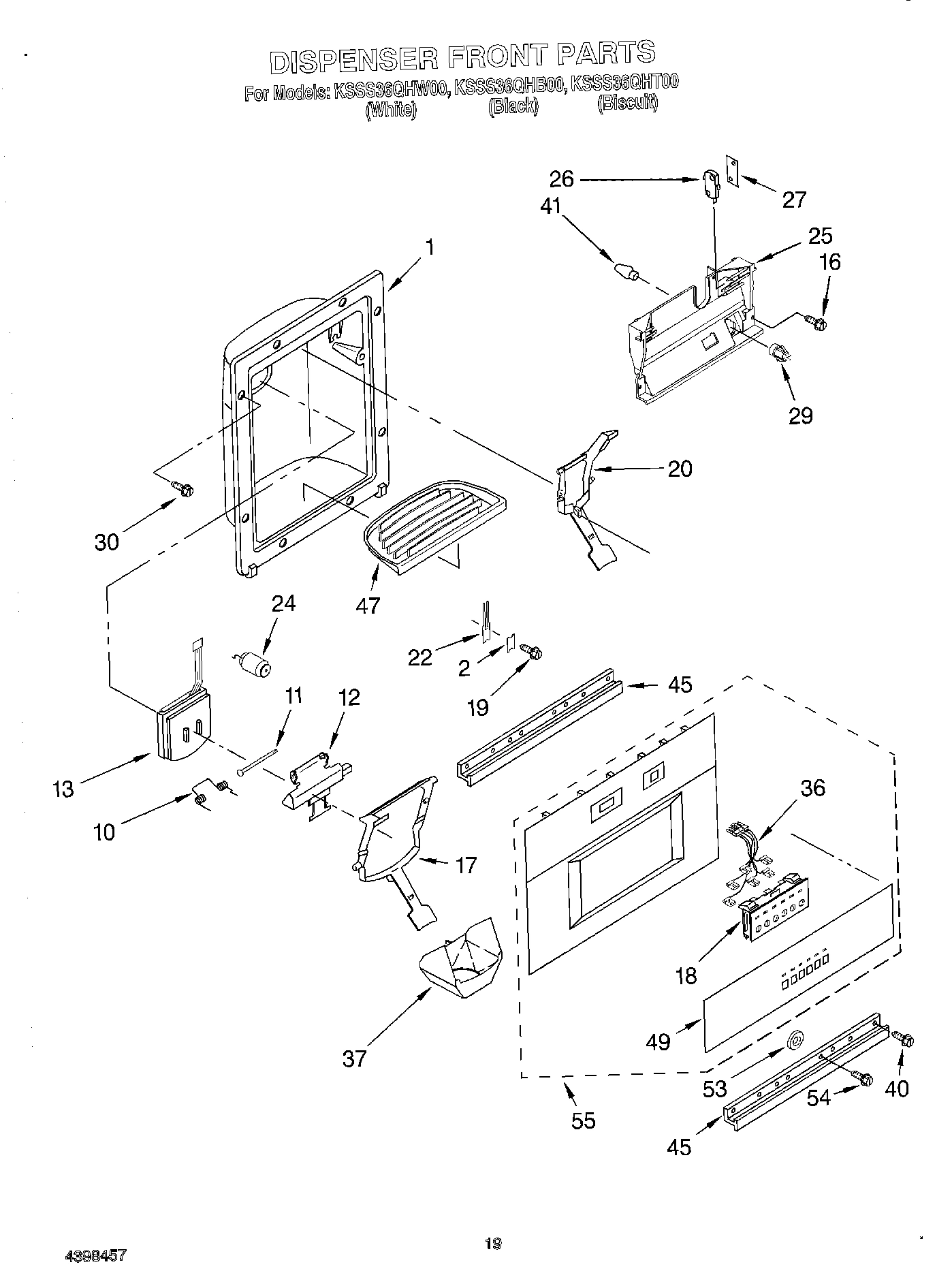

13 - DISPENSER FRONT

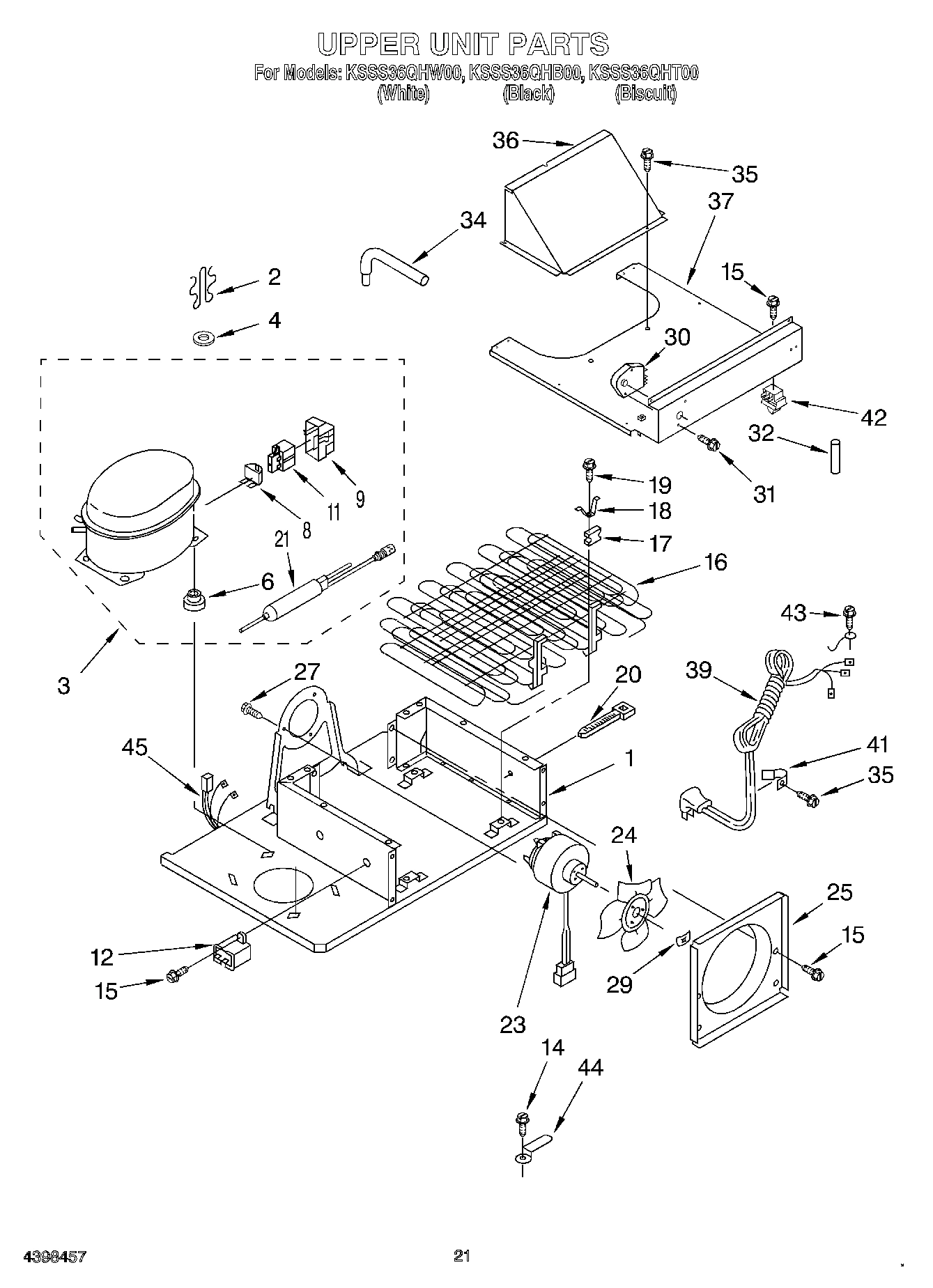

14 - UPPER UNIT

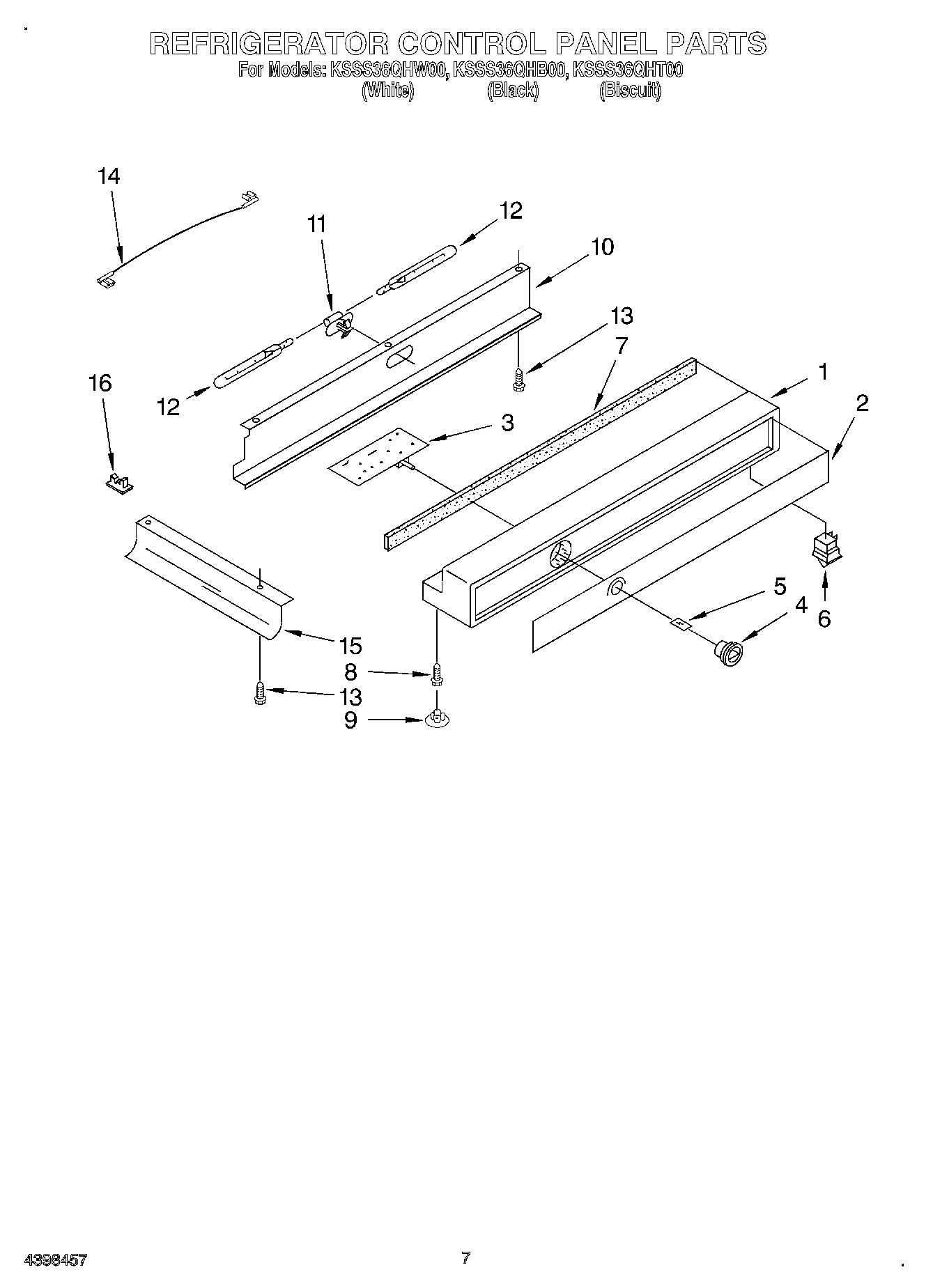

05 - REFRIGERATOR CONTROL PANEL

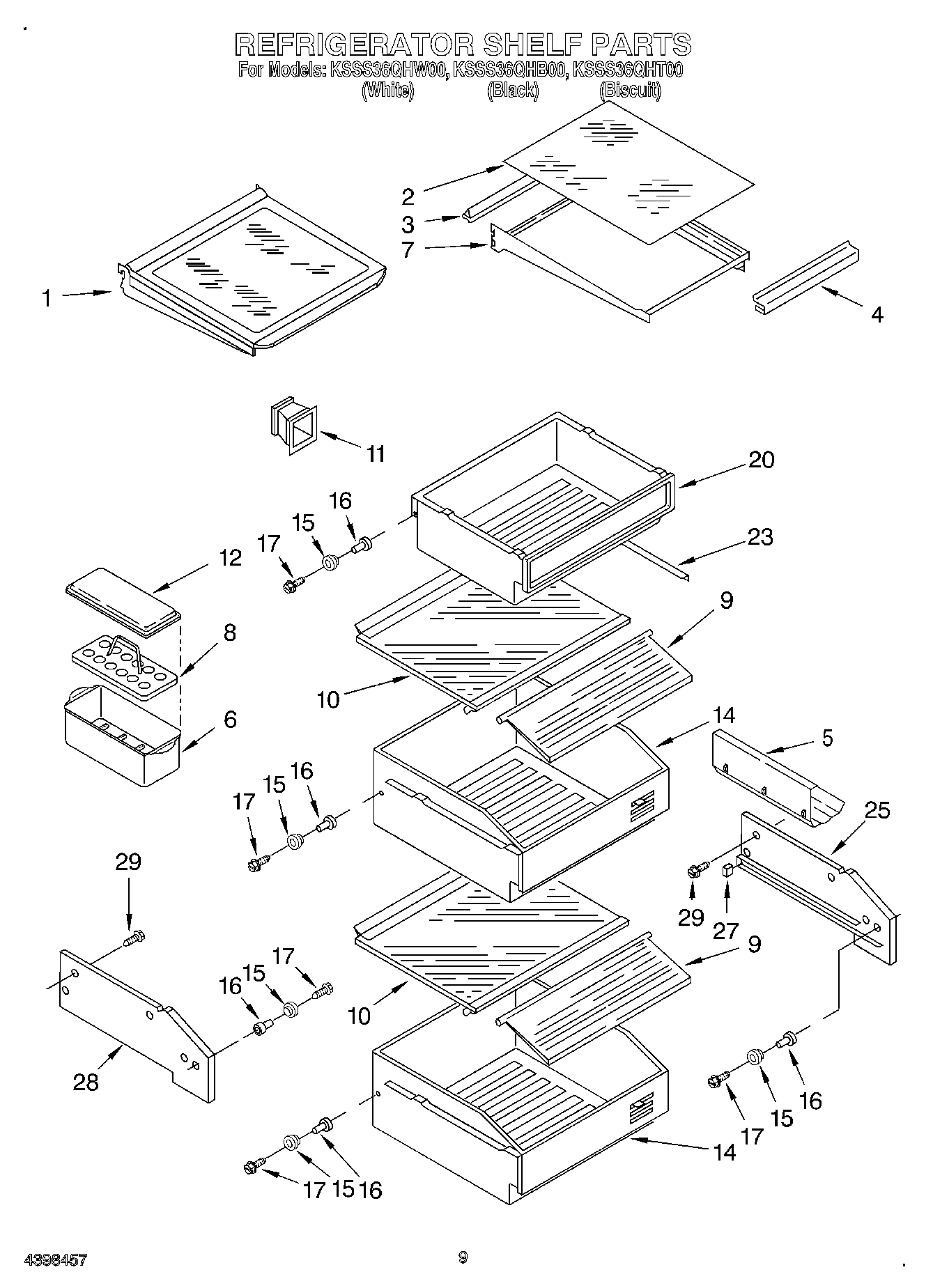

07 - REFRIGERATOR SHELF

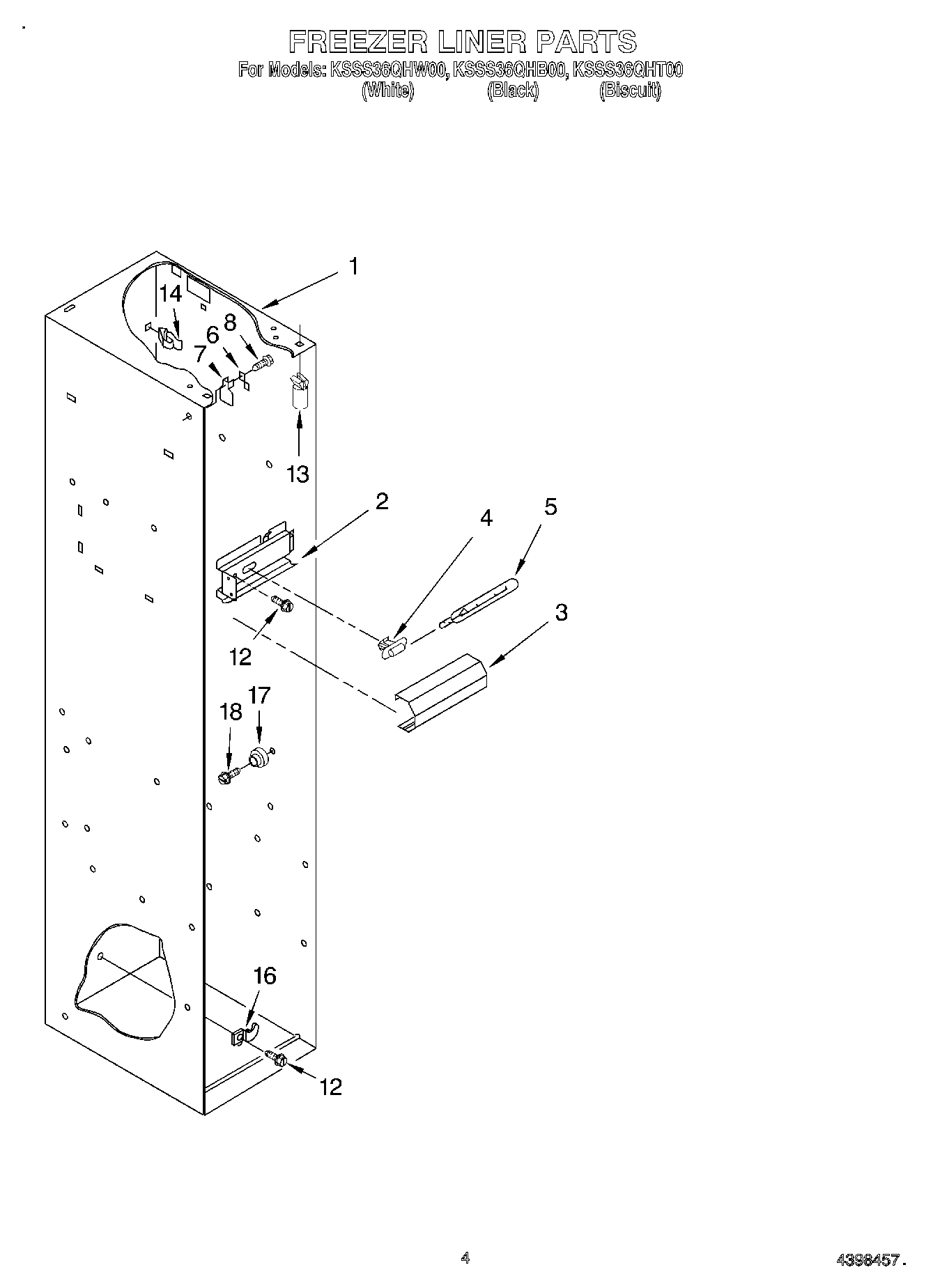

03 - FREEZER LINER

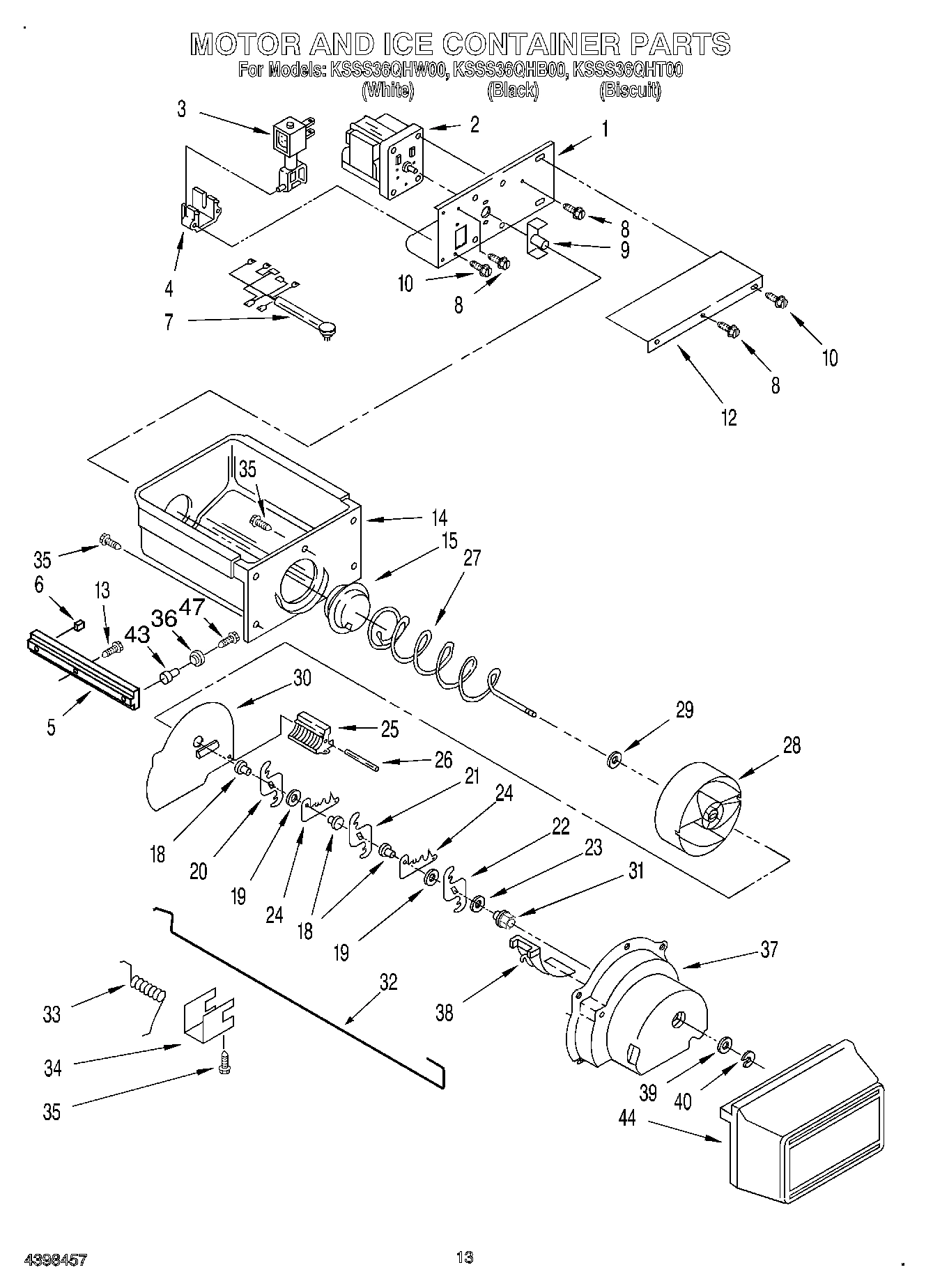

10 - MOTOR AND ICE CONTAINER
17 - ICEMAKER

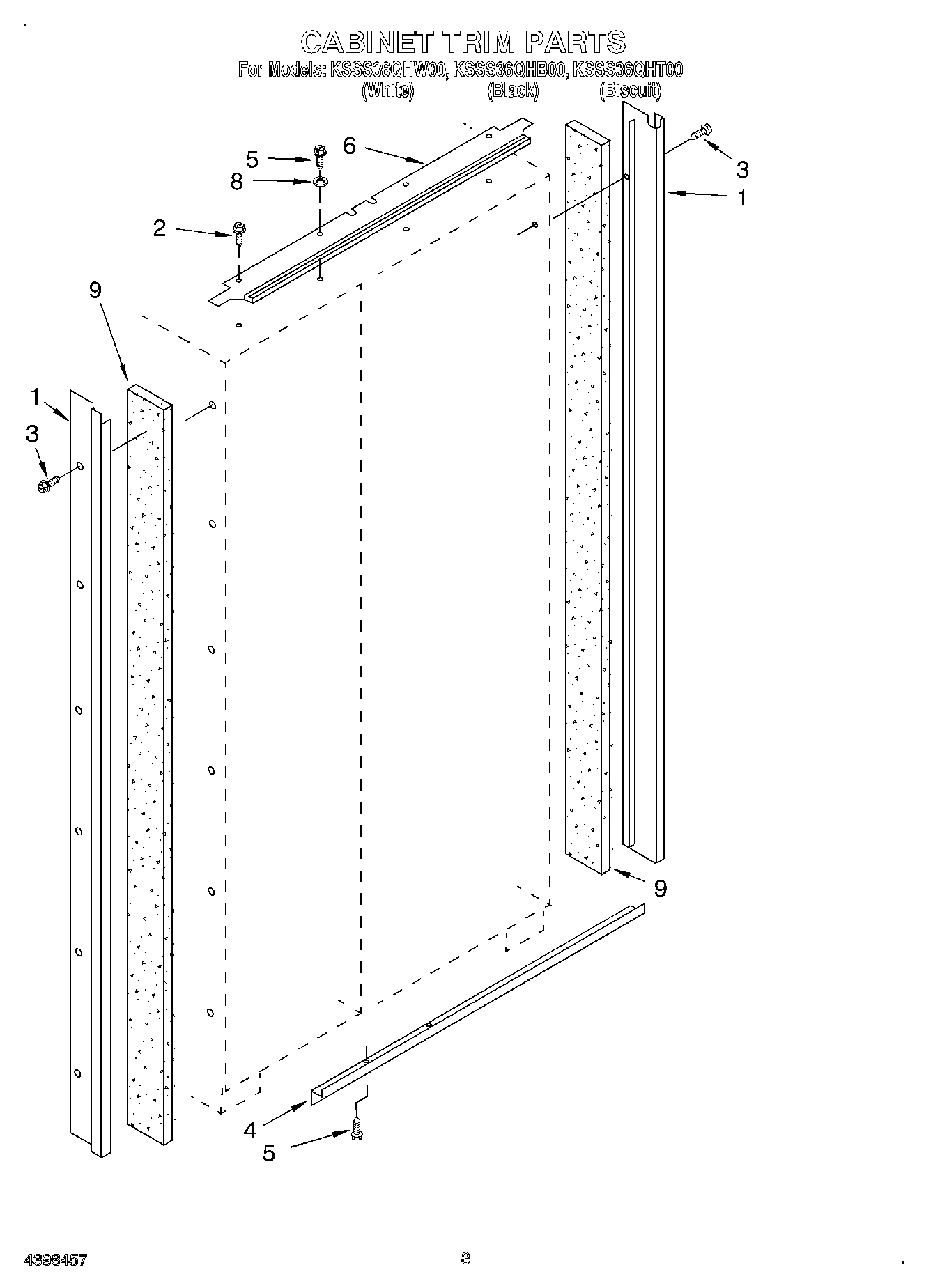

02 - CABINET TRIM

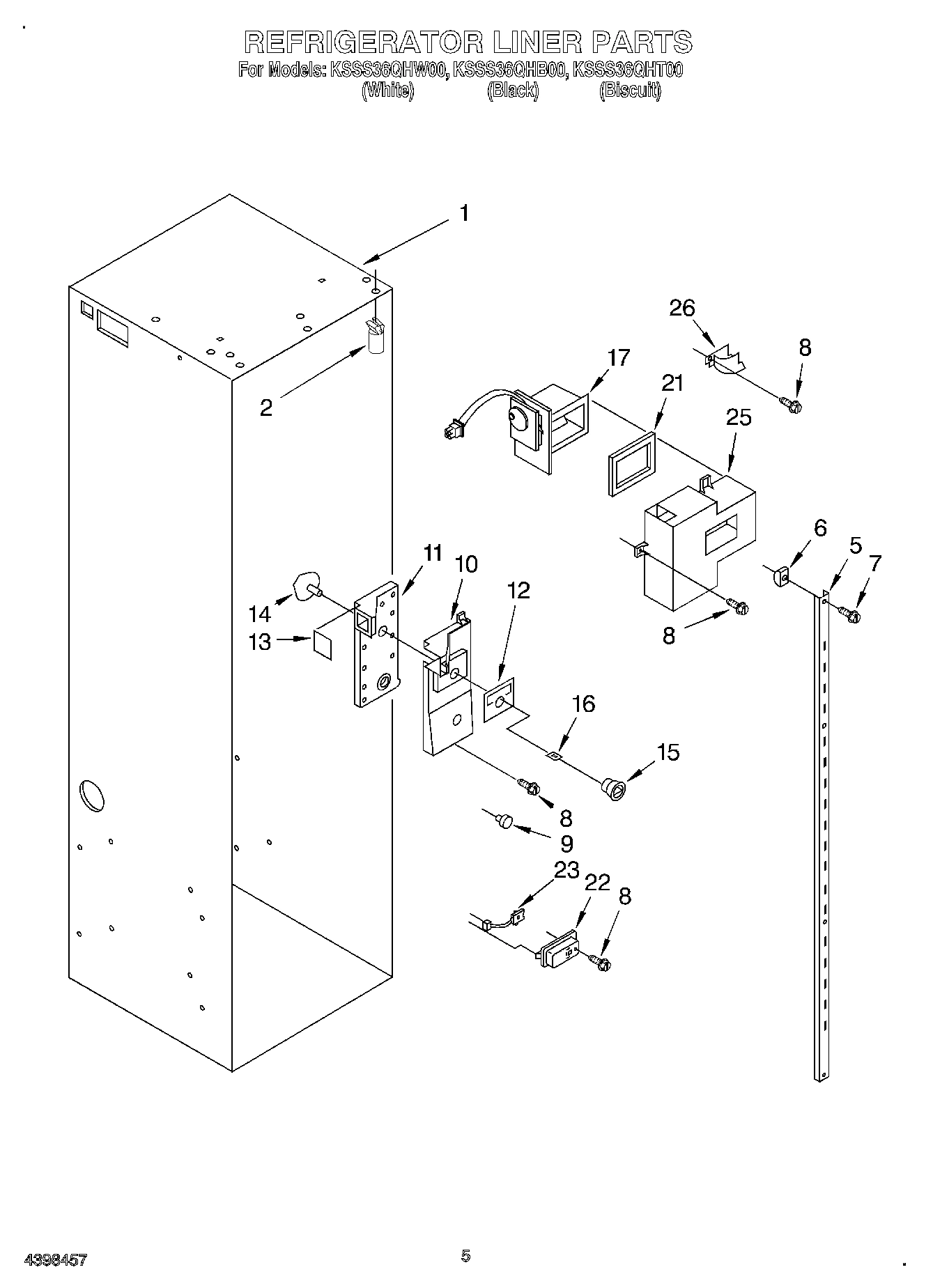

04 - REFRIGERATOR LINER
Common parts from model Whirlpool KSSS36QHT00 BUILT IN REFRIGERATOR
1
Refrigerator Door Panel (Includes Insulation) WPL 2003870 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2005930 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT2006136 Contact Us For Availability
1
LITERATURE PARTS (Installation Instructions) WPL LIT2006137 Contact Us For Availability
1
LITERATURE PARTS (Energy Label) WPL LIT2006651 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Bla WPL 2202546B Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Bis WPL 2202546T Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Whi WPL 2202546W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI106738A Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
1
Control Panel WPL 1112640 Contact Us For Availability
1
Frame, Shelf WPL 2174402 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106736A Contact Us For Availability
1
Bracket, Motor WPL 2003939 Contact Us For Availability
1
Cabinet, Trim (2) (White) WPL 2004668 Contact Us For Availability
1
Cabinet, Trim (2) (Biscuit) WPL 2005730 Contact Us For Availability
1
Cabinet, Trim (2) (Black) WPL 2005820 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106737A Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI106735A Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Inlay, Control Panel WPL 2003301 Contact Us For Availability
2
Glass, Shelf WPL 2003375 Contact Us For Availability
2
Bracket, Light WPL 2005567 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
3
Grommet, Tube Crossover WPL 2005004 Contact Us For Availability
3
Circuit Board WPL 2004005 Contact Us For Availability
3
Reflector, Shelf WPL 1113546 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Soleniod Assembly WPL 2003979 Contact Us For Availability
4
Socket, Light WPL 2005042 Contact Us For Availability
4
Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
4
Control Knob WPL 2003842 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113790 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2004536 Contact Us For Availability
5
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2004523 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Stop, Roller WPL 1113169 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Hinge, Bottom WPL 2004524 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003645 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Seal, Control Panel WPL 1113133 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2006523 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2004006 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Hinge, Top WPL 2005329 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
8
Washer (2) WPL 487944 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Spacer-Door, Top WPL 2004520 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Cover, Crisper WPL 1113893 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
10
Clip, Wire WPL 2005237 Contact Us For Availability
10
Shield, Control Panel WPL 2005564 Contact Us For Availability
10
Glass, Crisper WPL 2003378 Contact Us For Availability
10
Valve, Solenoid WPL 2003791 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability
11
Handle, Door (White) WPL 2005953 Contact Us For Availability
11
Handle, Door (Biscuit) WPL 2005955 Contact Us For Availability
11
Handle, Door (Black) WPL 2005956 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Socket, Light WPL 2005043 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
12
Ice Door Mechanism WPL 2180208 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Cover, Motor WPL 1113128 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
13
Trim, Grille Left Side (Black) WPL 2005824 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability
13
Door, Ice WPL 2180205 Contact Us For Availability
13
Water Valve, Harness WPL 2006738 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2006752 Contact Us For Availability
14
Door Gasket, Magnetic WPL 2005529 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Wire, Light WPL 2006223 Contact Us For Availability
14
Crisper Pan (2) WPL 2006544 Contact Us For Availability
14
Ice Container WPL 2208906 Contact Us For Availability
14
Insert, Tube WPL 1129177 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
15
Heat Exchanger WPL 2003001 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
16
Trim (Top) (White) WPL 2005013 Contact Us For Availability
16
Trim (Top) (Biscuit) WPL 2005740 Contact Us For Availability
16
Trim, Top (Black) WPL 2005839 Contact Us For Availability
16
Handle, Door (White) WPL 2005943 Contact Us For Availability
16
Handle, Door (Biscuit) WPL 2005945 Contact Us For Availability
16
Handle, Door (Black) WPL 2005946 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
16
Retainer, Knob WPL 2003841 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
17
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
17
Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability
17
Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
17
Air Baffle Assembly WPL 2004484 Contact Us For Availability
18
Door, Spacer WPL 2004549 Contact Us For Availability
18
Trim (Side) (White) WPL 2005968 Contact Us For Availability
18
Trim (Side) (Biscuit) WPL 2005970 Contact Us For Availability
18
Trim, Side (Black) WPL 2005971 Contact Us For Availability
18
Switch Assembly (Also Order Item No.49) WPL 2202551 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim (Bottom) (White) WPL 2003666 Contact Us For Availability
19
Trim (Bottom) (Biscuit) WPL 2005743 Contact Us For Availability
19
Trim (Bottom) (Black) WPL 2005880 Contact Us For Availability
20
Screw (White) WPL 2001208 Contact Us For Availability
20
Screw (Biscuit) WPL 3400877 Contact Us For Availability
20
Screw (Black) WPL 3400878 Contact Us For Availability
20
Panel, Interior Door WPL 1113952 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Wire Tie (2) WPL 851095 Contact Us For Availability
20
Meat Pan WPL 2006529 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Trim (Top) (White) WPL 2005022 Contact Us For Availability
21
Trim (Top) (Biscuit) WPL 2005746 Contact Us For Availability
21
Trim (Top) (Black) WPL 2005885 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Trim (Bottom) (White) WPL 2004669 Contact Us For Availability
23
Trim (Bottom) (Biscuit) WPL 2005747 Contact Us For Availability
23
Trim (Bottom) (Black) WPL 2005888 Contact Us For Availability
23
Motor, Fan WPL 2208903 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Spring, Door Closure WPL 2004567 Contact Us For Availability
24
Trim (Side) (White) WPL 2005963 Contact Us For Availability
24
Trim (Side) (Biscuit) WPL 2005965 Contact Us For Availability
24
Trim (Side) (Black) WPL 2005966 Contact Us For Availability
24
Delay Mechanism WPL 2180223 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Bin, Utility WPL 1112720 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
25
Air Baffle Cover WPL 2003578 Contact Us For Availability
26
Door, Utility Bin WPL 2003463 Contact Us For Availability
26
Panel, Interior Door WPL 2002838 Contact Us For Availability
27
Insulation, Switch WPL 625834 Contact Us For Availability
27
Door Shelf (4) WPL 2003130 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
28
Tray, Butter WPL 2165792 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
28
Shelf Bin (2) WPL 2003127 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
30
Shelf, Gallon Door WPL 2207459 Contact Us For Availability
31
Overlay WPL 2207460 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
Control Arm WPL 2002728 Contact Us For Availability
33
Linkage, Door Closure WPL 2004516 Contact Us For Availability
34
Grille Base, Front (Black) WPL 2004530 Contact Us For Availability
34
Grille Base, Front (White) WPL 2004533 Contact Us For Availability
34
Ice Chute WPL 2208909 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
35
Screw WPL 489238 Contact Us For Availability
36
Cover, Rear WPL 2004512 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
36
Roller WPL 2188212 Contact Us For Availability
36
Fitting, Water Tube WPL 2185988 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Cover, Condenser WPL 2005535 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
40
Bushing, Door Closure WPL 2004565 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
43
Eyelet, Roller WPL 2174478 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Front Cover, Ice Container WPL 2002722 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Trim, Front (2) (White) WPL 2208917 Contact Us For Availability
45
Trim, Front (2) (Biscuit) WPL 2208923 Contact Us For Availability
45
Trim, Front (2) (Black) WPL 2208926 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2207479 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
47
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
47
Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability
49
Overlay, Cover (White) WPL 2202573 Contact Us For Availability
49
Overlay, Cover (Black) WPL 2202576 Contact Us For Availability
49
Overlay, Cover (Biscuit) WPL 2202579 Contact Us For Availability
55
Front Cover Assembly (Includes Items 18, 36, WPL 2202570B Contact Us For Availability
55
Front Cover Assembly (Includes Items 18, 36, WPL 2202570T Contact Us For Availability
55
Front Cover Assembly (Includes Items 18, 36, WPL 2202570W Contact Us For Availability
99
Complete Ice Crusher Mechanism Assembly WPL 2160606 Contact Us For Availability
100
Complete Ice Container Assembly WPL 2006541 Contact Us For Availability
100
Front Panel Kit (White) WPL 4378650 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4378653 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4378656 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4378659 Contact Us For Availability
100
Front Panel Kit (Biscuit) WPL 4392886 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
