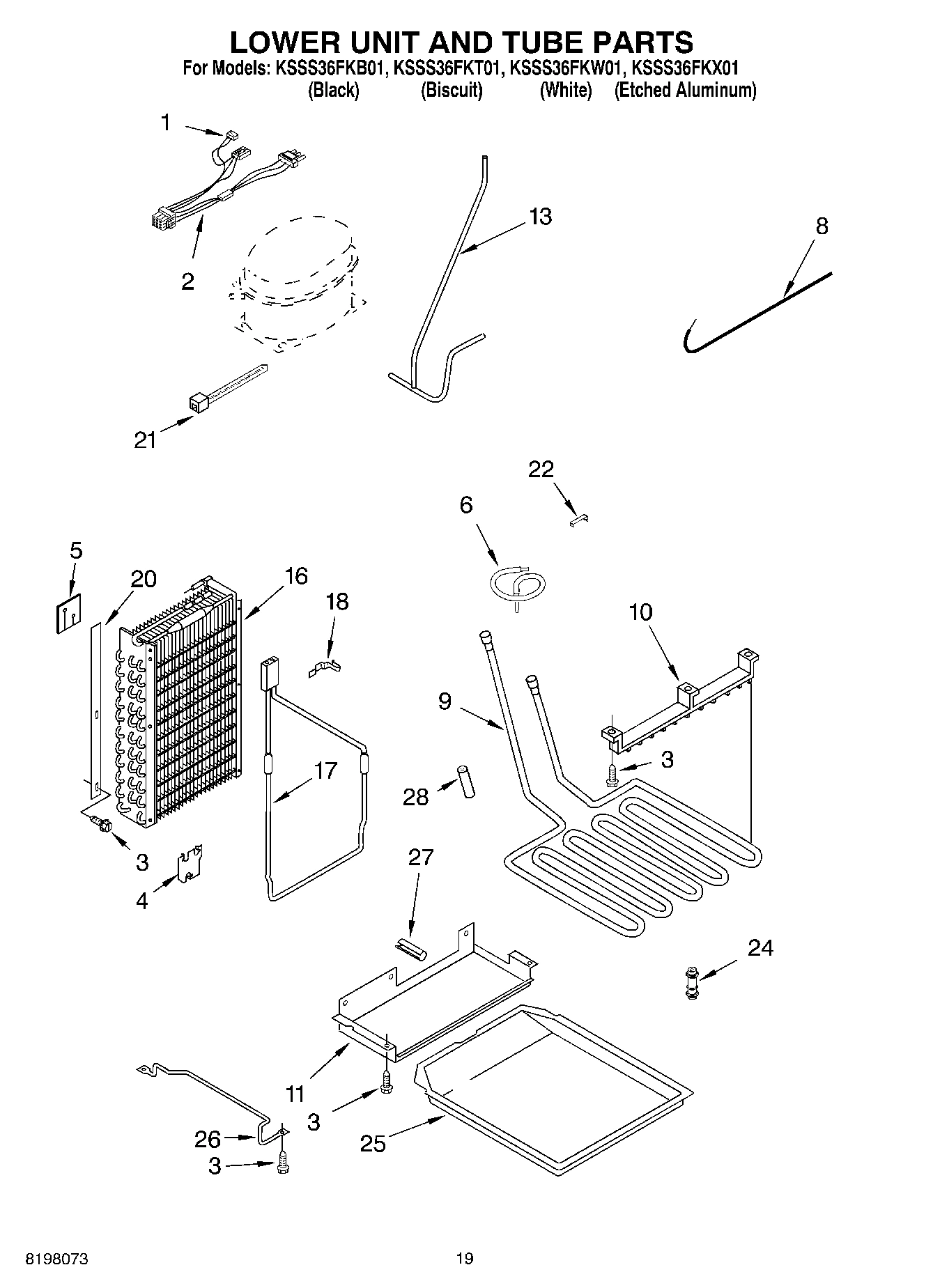

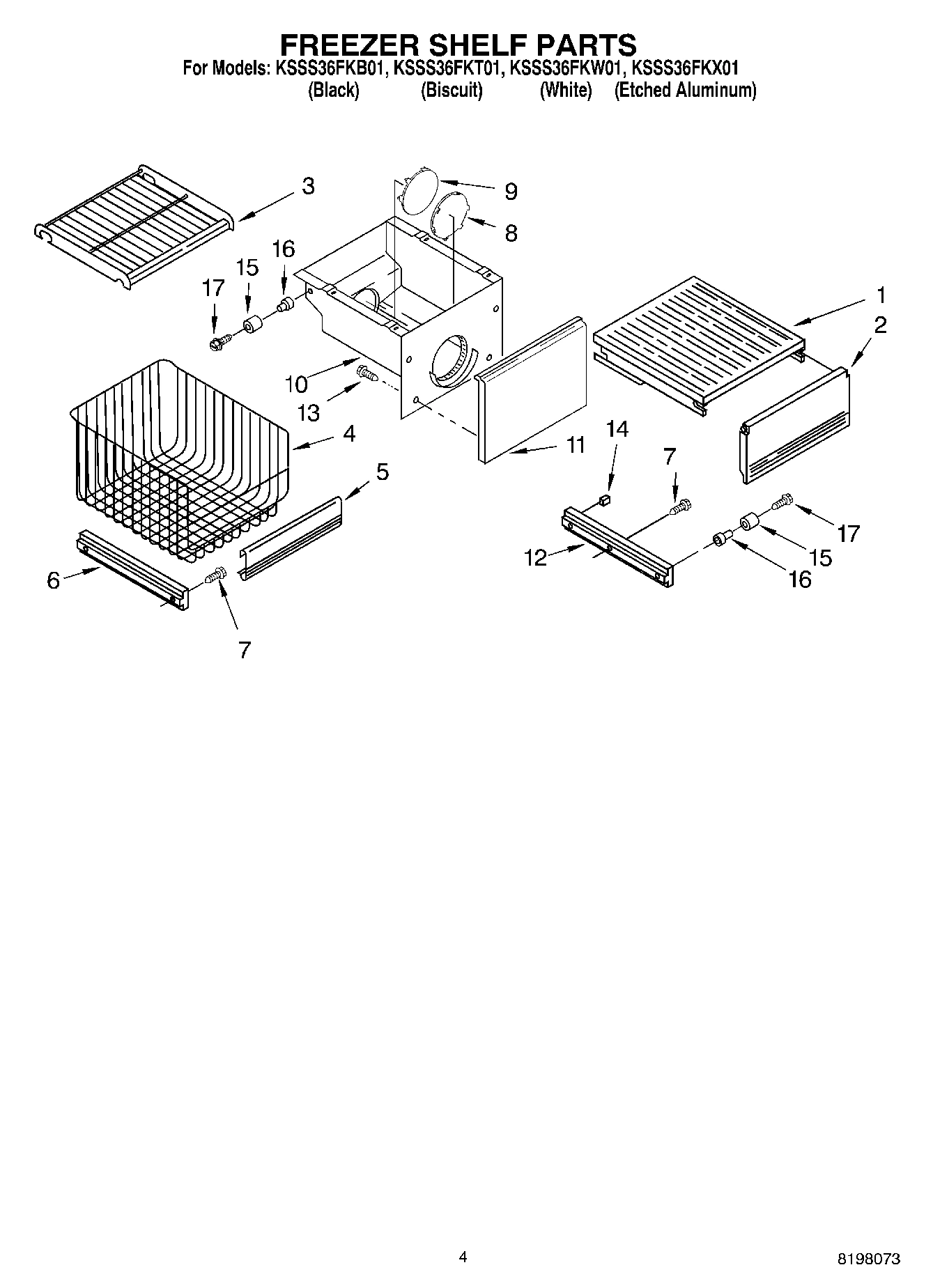

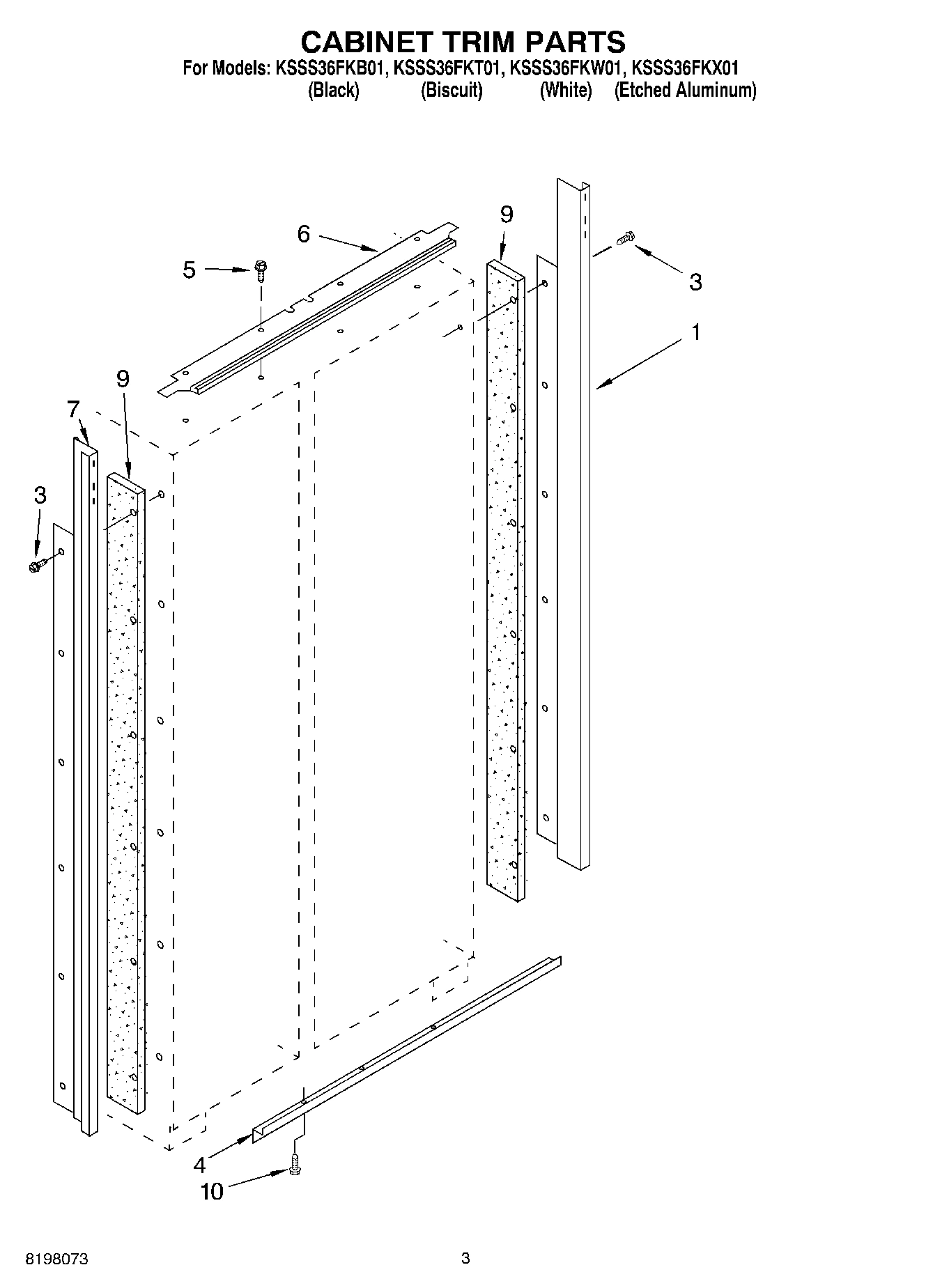

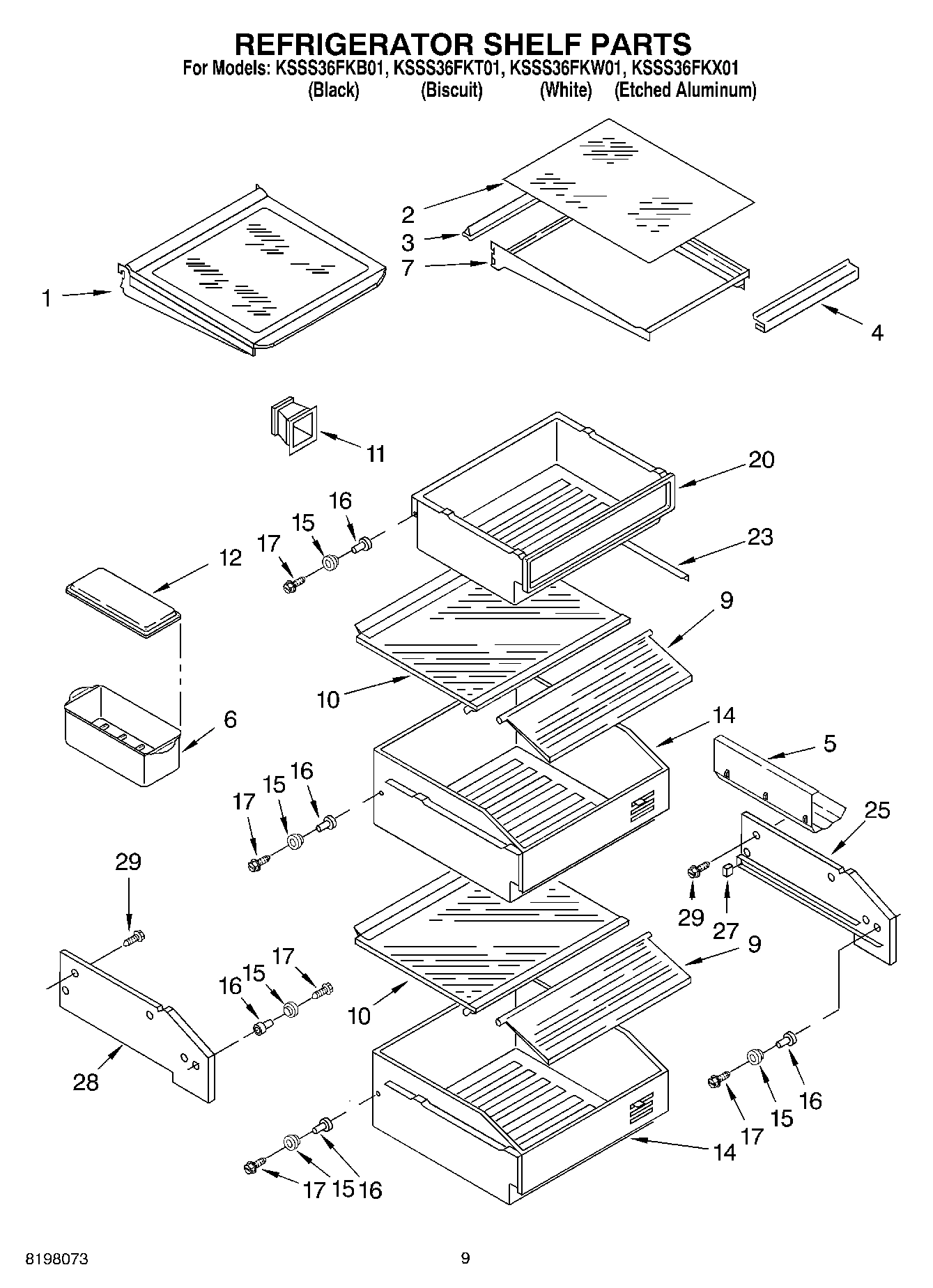

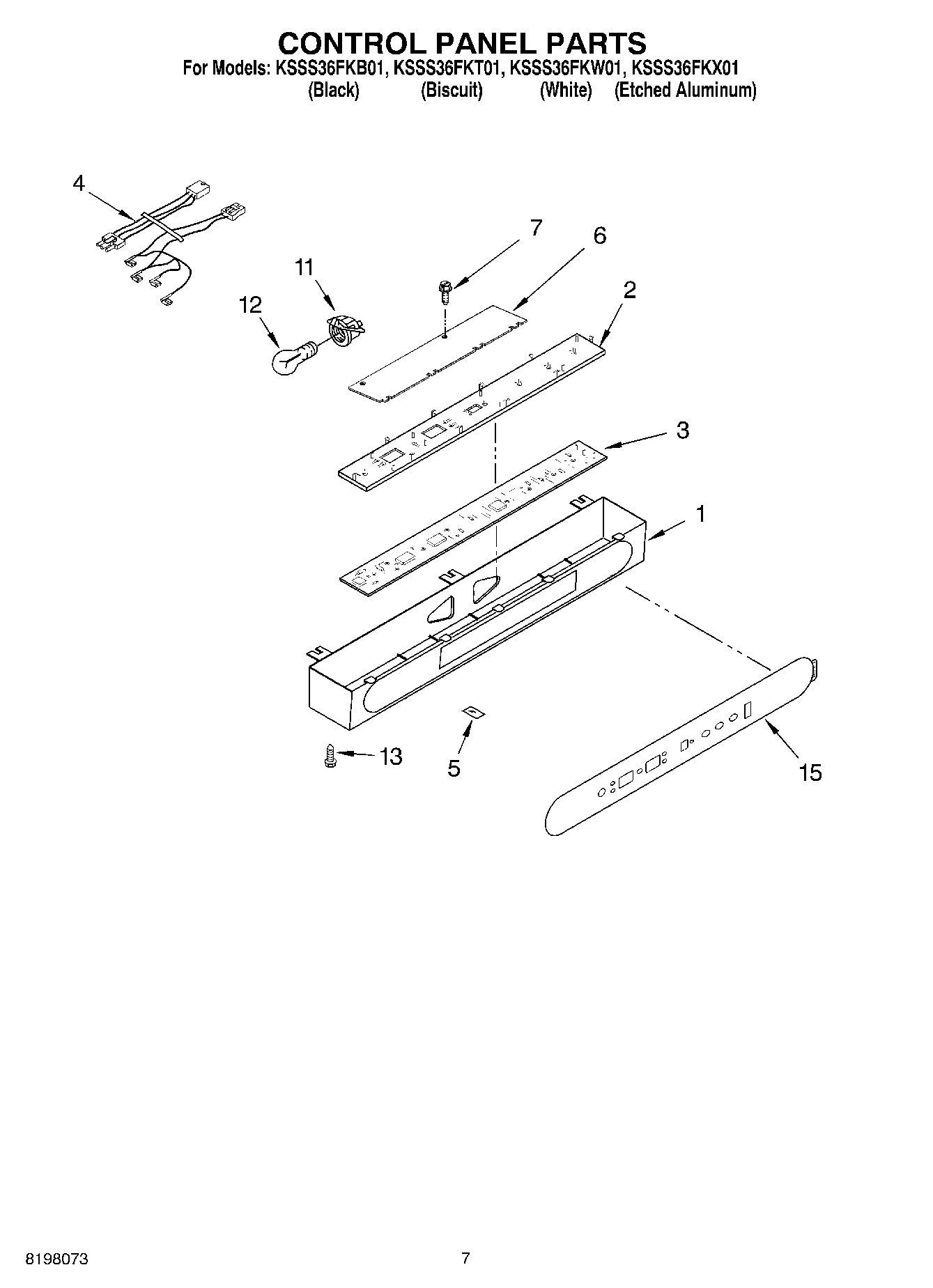

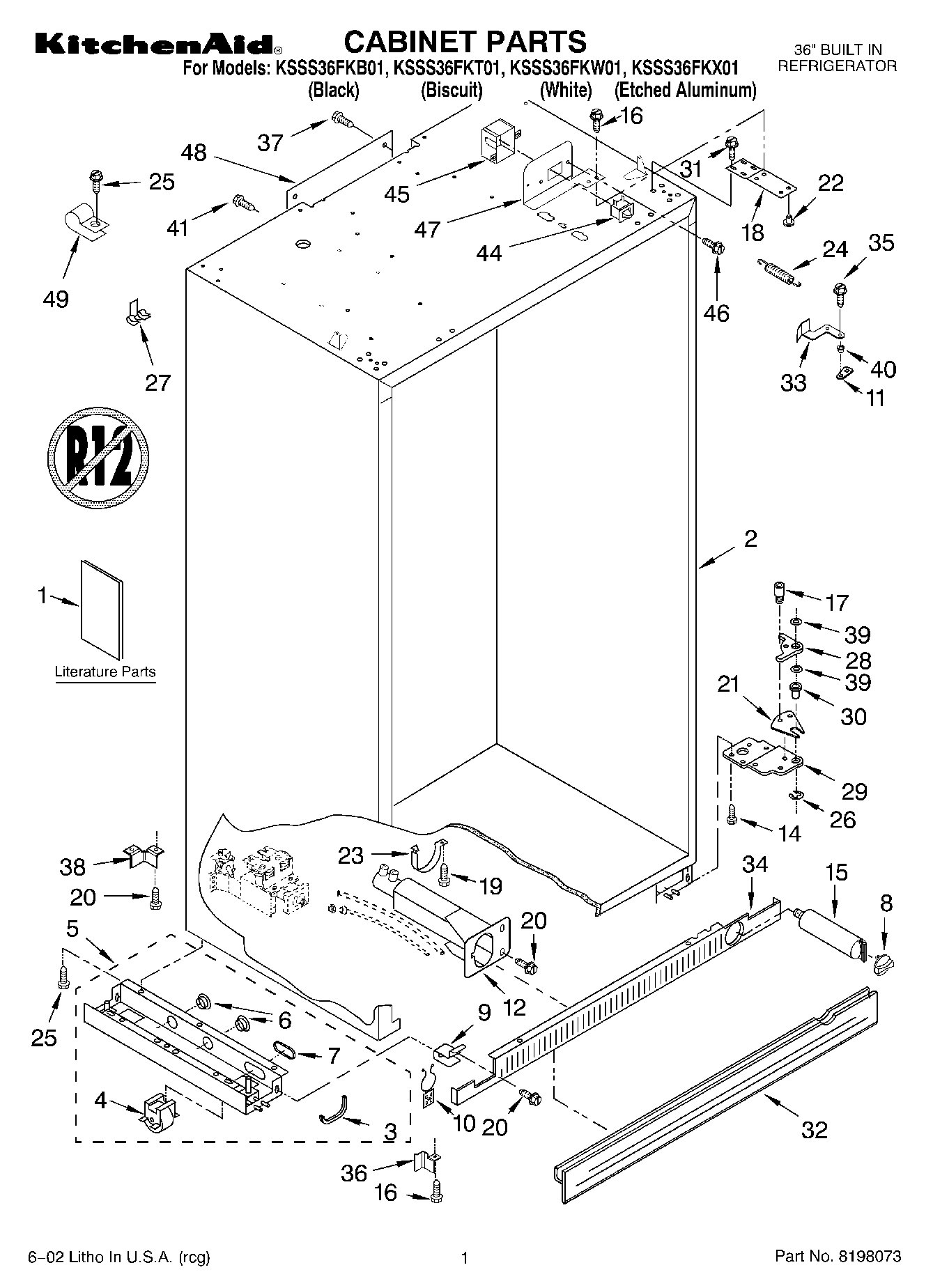

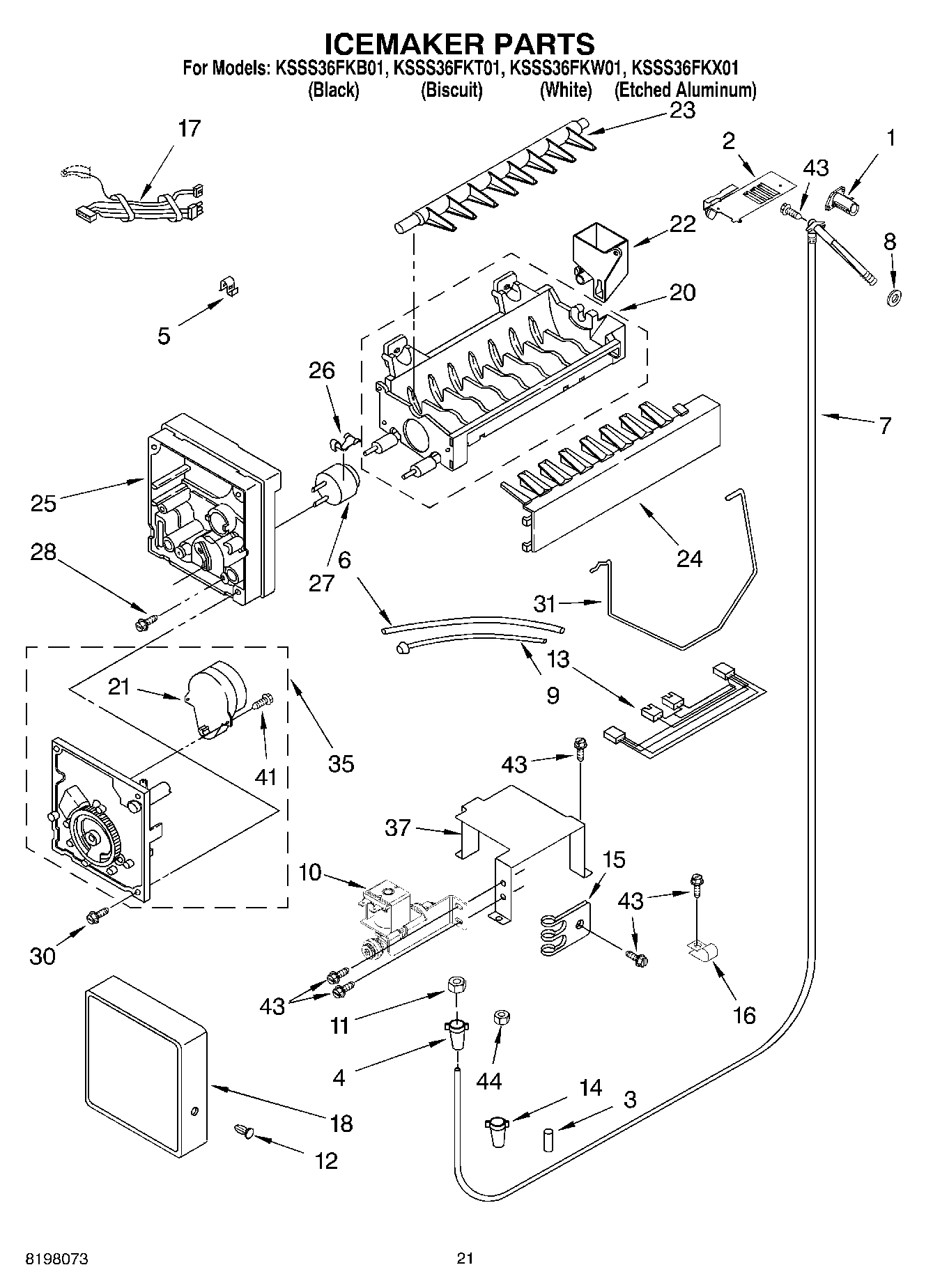

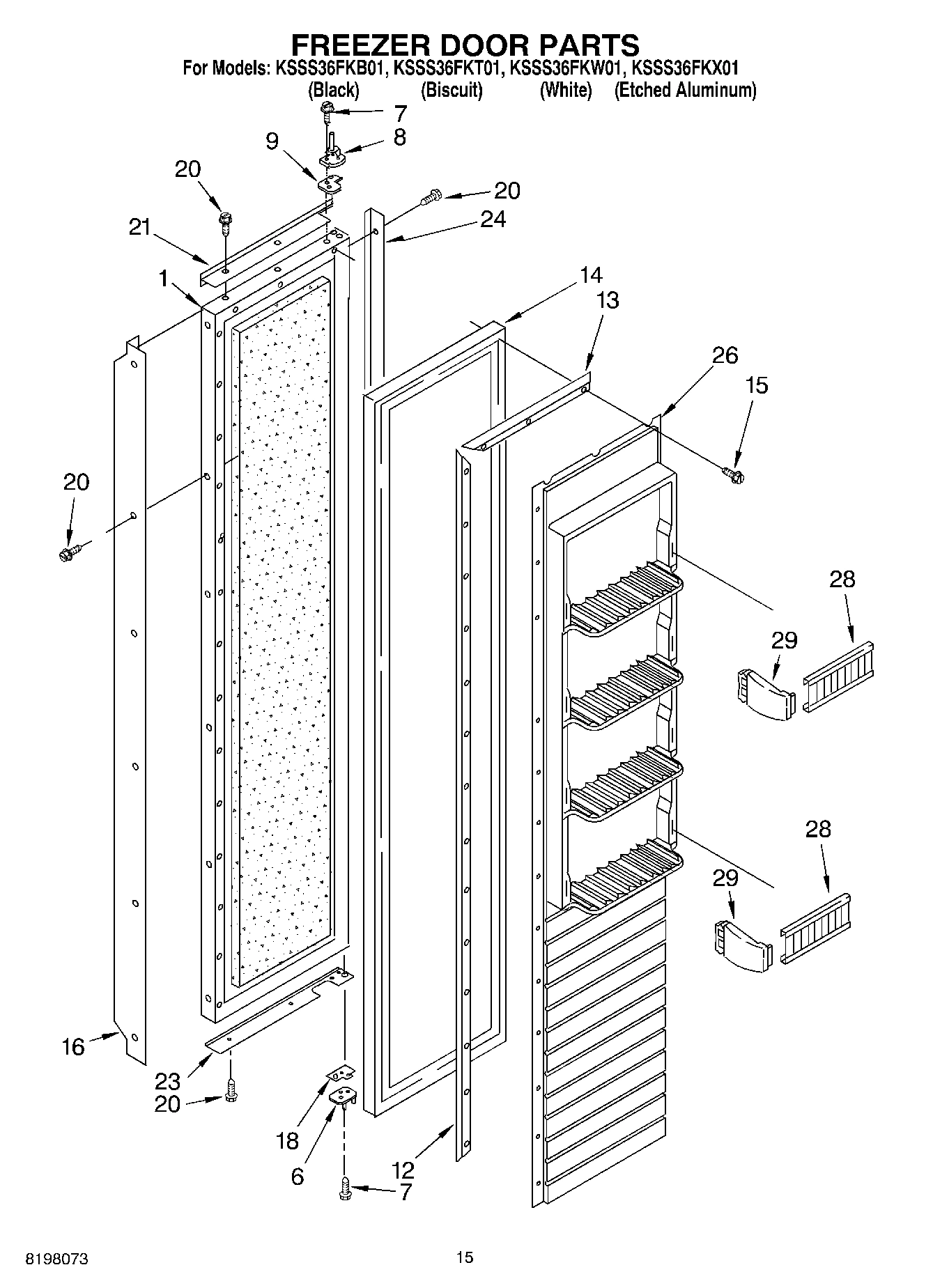

Model Whirlpool KSSS36FKX01 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

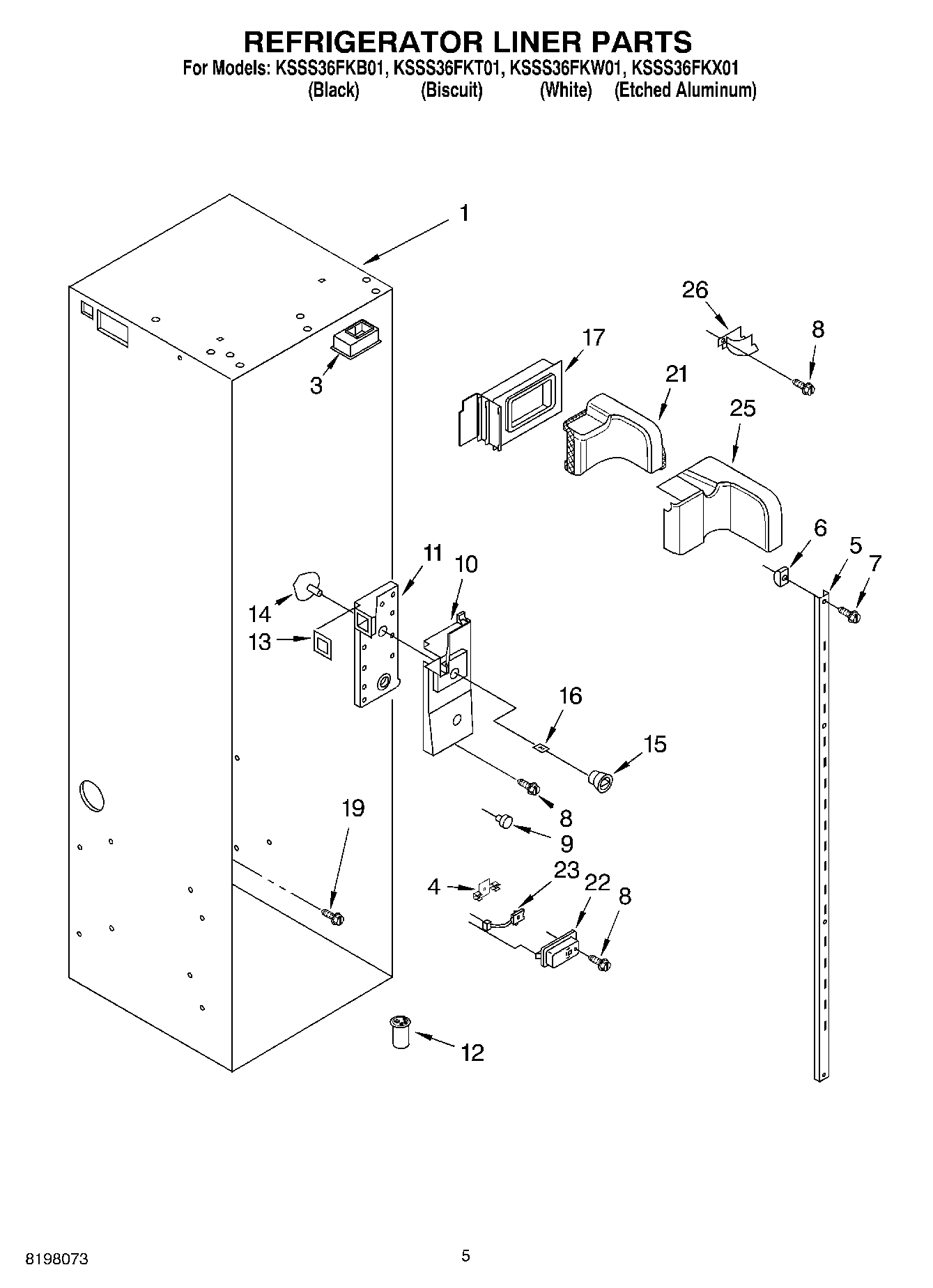

1

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

1

Control Box WPL 2215715 Contact Us For Availability

1

Frame, Shelf WPL 2174402 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI106561A Contact Us For Availability

1

Refrigerator Door Panel WPL 8201580 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) WPL 2215975 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT2215852 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2221223 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2254714 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2254722 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Top Grille Assembly (Black) WPL 2215924B Contact Us For Availability

1

Top Grille Assembly (Biscuit) WPL 2215924T Contact Us For Availability

1

Top Grille Assembly (White) WPL 2215924W Contact Us For Availability

1

Top Grille Assembly (Etched Aluminum) WPL 8201576 Contact Us For Availability

2

WP2221231 Whirlpool Refrigerator Shield Backorder WPL WP2221231 $38.58

2

Insert, Control Box WPL 2215670 Contact Us For Availability

2

Glass, Shelf WPL 2003375 Contact Us For Availability

2

Wire Harness WPL 2209119 Contact Us For Availability

2

Cabinet (Not A Serviceable Part) WPL ARI106560A Contact Us For Availability

2

Cover, Unit WPL 2209490 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct Backorder WPL 2208970 $51.19

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Circuit Board, Housing Control WPL 2209159 Contact Us For Availability

3

Reflector, Shelf WPL 1113546 Contact Us For Availability

3

Grommet, Tube Crossover WPL 2005004 Contact Us For Availability

3

Plug, Water Valve WPL 2005038 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

4

Gasket, Glass (2) WPL 1113790 Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

5

Backorder WPL 2179404 $8.47

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Side Support WPL 2209067 Contact Us For Availability

5

Ladder, Shelf (2) WPL 2221211 Contact Us For Availability

5

Guard, Wiring WPL 2209492 Contact Us For Availability

6

2221121 Whirlpool Refrigerator Support Backorder WPL 2221121 $32.68

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Suction Tube WPL 2209035 Contact Us For Availability

6

Hinge Assembly, Bottom WPL 2220809 Contact Us For Availability

6

Hinge, Bottom WPL 2220810 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

7

Frame, Assembly Meat Pan WPL 2006523 Contact Us For Availability

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $26.75

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

8

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

8

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability

8

Hinge, Top WPL 2220922 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability

8

Baffle-Air, Condenser WPL 2215678 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $12.81

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Cover, Crisper WPL 1113893 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Spacer-Door, Top WPL 2004520 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188497 Contact Us For Availability

9

Mounting Stud, Grill WPL 2006442 Contact Us For Availability

9

Tube, Filter Outlet WPL 2209430 Contact Us For Availability

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $89.88

Glass, Crisper (Includes No.9) WPL 2003378 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

Meat Pan, Air Duct Cover WPL 2220888 Contact Us For Availability

Clip, Wire WPL 2005237 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

Cam, Door Closer WPL 2005783 Contact Us For Availability

Meat Pan, Connector WPL 2000742 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Handle, Door (Etched Aluminum) WPL 2005952 Contact Us For Availability

Handle, Door (White) WPL 2005953 Contact Us For Availability

Handle, Door (Biscuit) WPL 2005955 Contact Us For Availability

Handle, Door (Black) WPL 2005956 Contact Us For Availability

Nut Compression WPL 2204357 Contact Us For Availability

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $91.73

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

Release Valve WPL 2220993 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

Washer WPL 2001230 Contact Us For Availability

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Tube, Discharge WPL 2209036 Contact Us For Availability

Seal, Air Duct WPL 2221175 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability

Water Valve, Harness WPL 2254711 Contact Us For Availability

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

Screw WPL 3400525 Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

Crisper Pan (2) WPL 2220895 Contact Us For Availability

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

Door Gasket, Magnetic WPL 2188495 Contact Us For Availability

Insert, Tube WPL 1129177 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Roller WPL 2188212 Contact Us For Availability

Overlay WPL 2221067 Contact Us For Availability

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

WP2306092 Whirlpool Refrigerator Evaporator In Stock WPL WP2306092 $174.42

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Eyelet, Roller WPL 2174478 Contact Us For Availability

Retainer, Knob WPL 2003841 Contact Us For Availability

Trim, Top (Etched Aluminum) WPL 2005010 Contact Us For Availability

Trim (Top) (White) WPL 2005013 Contact Us For Availability

Trim (Top) (Biscuit) WPL 2005740 Contact Us For Availability

Trim, Top (Black) WPL 2005839 Contact Us For Availability

Handle, Door (Etched Aluminum) WPL 2005942 Contact Us For Availability

Handle, Door (White) WPL 2005943 Contact Us For Availability

Handle, Door (Biscuit) WPL 2005945 Contact Us For Availability

Handle, Door (Black) WPL 2005946 Contact Us For Availability

Clamp, Tube WPL 488937 Contact Us For Availability

WP2005378 Whirlpool Refrigerator Screw Backorder WPL WP2005378 $4.58

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Heater, Defrost WPL 2006749 Contact Us For Availability

Wire Assembly, Icemaker WPL 2254737 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

Door, Spacer WPL 2004549 Contact Us For Availability

Trim, Side (Etched Aluminum) WPL 2005967 Contact Us For Availability

Trim (Side) (White) WPL 2005968 Contact Us For Availability

Trim (Side) (Biscuit) WPL 2005970 Contact Us For Availability

Trim, Side (Black) WPL 2005971 Contact Us For Availability

Cover WPL 2221232 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $28.80

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Screw WPL 487522 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

Trim (Bottom) (Etched Aluminum) WPL 2209417 Contact Us For Availability

Trim (Bottom) (Black) WPL 2209417B Contact Us For Availability

Trim (Bottom) (Biscuit) WPL 2209417T Contact Us For Availability

Trim (Bottom) (White) WPL 2209417W Contact Us For Availability

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Meat Pan WPL 2220901 Contact Us For Availability

Screw (White) WPL 8281251 Contact Us For Availability

Screw (Biscuit) WPL 8281253 Contact Us For Availability

Panel, Interior Door WPL 1113952 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Diffuser Assembly WPL 2208997 Contact Us For Availability

Ladder, Shelf (2) WPL 1113951 Contact Us For Availability

Trim (Top) (Etched Aluminum) WPL 2005019 Contact Us For Availability

Trim (Top) (White) WPL 2005022 Contact Us For Availability

Trim (Top) (Biscuit) WPL 2005746 Contact Us For Availability

Trim (Top) (Black) WPL 2005885 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $28.80

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Cover, Air Outlet WPL 2215718 Contact Us For Availability

Retainer, Glass WPL 2002181 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

Trim (Bottom) (Etched Aluminum) WPL 2209420 Contact Us For Availability

Trim (Bottom) (Black) WPL 2209420B Contact Us For Availability

Trim (Bottom) (Biscuit) WPL 2209420T Contact Us For Availability

Trim (Bottom) (White) WPL 2209420W Contact Us For Availability

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Blade, Fan WPL 2190685 Contact Us For Availability

Grommet, Water Tube WPL 2209444 Contact Us For Availability

Trim (Side) (Etched Aluminum) WPL 2005962 Contact Us For Availability

Trim (Side) (White) WPL 2005963 Contact Us For Availability

Trim (Side) (Biscuit) WPL 2005965 Contact Us For Availability

Trim (Side) (Black) WPL 2005966 Contact Us For Availability

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability

Bin, Utility WPL 1112720 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Door, Utility Bin WPL 2003463 Contact Us For Availability

Panel, Interior Door WPL 2209030 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Door Shelf WPL 1112745 Contact Us For Availability

Fastener (3) WPL 1113227 Contact Us For Availability

Cement Alumilastic) WPL 542639 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

Shelf Bin WPL 2209163 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Shelf, Gallon Door WPL 2188331 Contact Us For Availability

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

31

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

31

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $67.86

32

Skirt, Grille- Bottom (Biscuit) WPL 2209024T Contact Us For Availability

32

SKIRT-GRILLE, BOTTOM (WHITE) WPL 2209024W Contact Us For Availability

33

WP2307857 Whirlpool Refrigerator Extension In Stock WPL WP2307857 $32.17

33

WPW10121046 Whirlpool Refrigerator Extension In Stock WPL WPW10121046 $38.52

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

Gril WPL 2209425B Contact Us For Availability

WPL 2209425T WPL 2209425T Contact Us For Availability

WPL 2209425W WPL 2209425W Contact Us For Availability

35

WPL 2005921 WPL 2005921 Contact Us For Availability

35

Wire, Jumper WPL 2221077 Contact Us For Availability

36

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $12.50

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

37

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

37

Water Valve Mounting Bracket WPL 2221282 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

38

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $22.56

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

43

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

44

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

44

Compresion Nut WPL 1129179 Contact Us For Availability

2215938 Whirlpool Refrigerator Switch Cover Backorder WPL 2215938 $28.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $29.43

47

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $29.43

48

WPL 2209449 WPL 2209449 Contact Us For Availability

49

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

Front Panel Kit (White) WPL 2220852 Contact Us For Availability

Front Panel Kit (Black) WPL 2220855 Contact Us For Availability

Front Panel Kit (Biscuit) WPL 2220858 Contact Us For Availability

Front Panel Kit (Stainless Steel) WPL 2220861 Contact Us For Availability

Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
