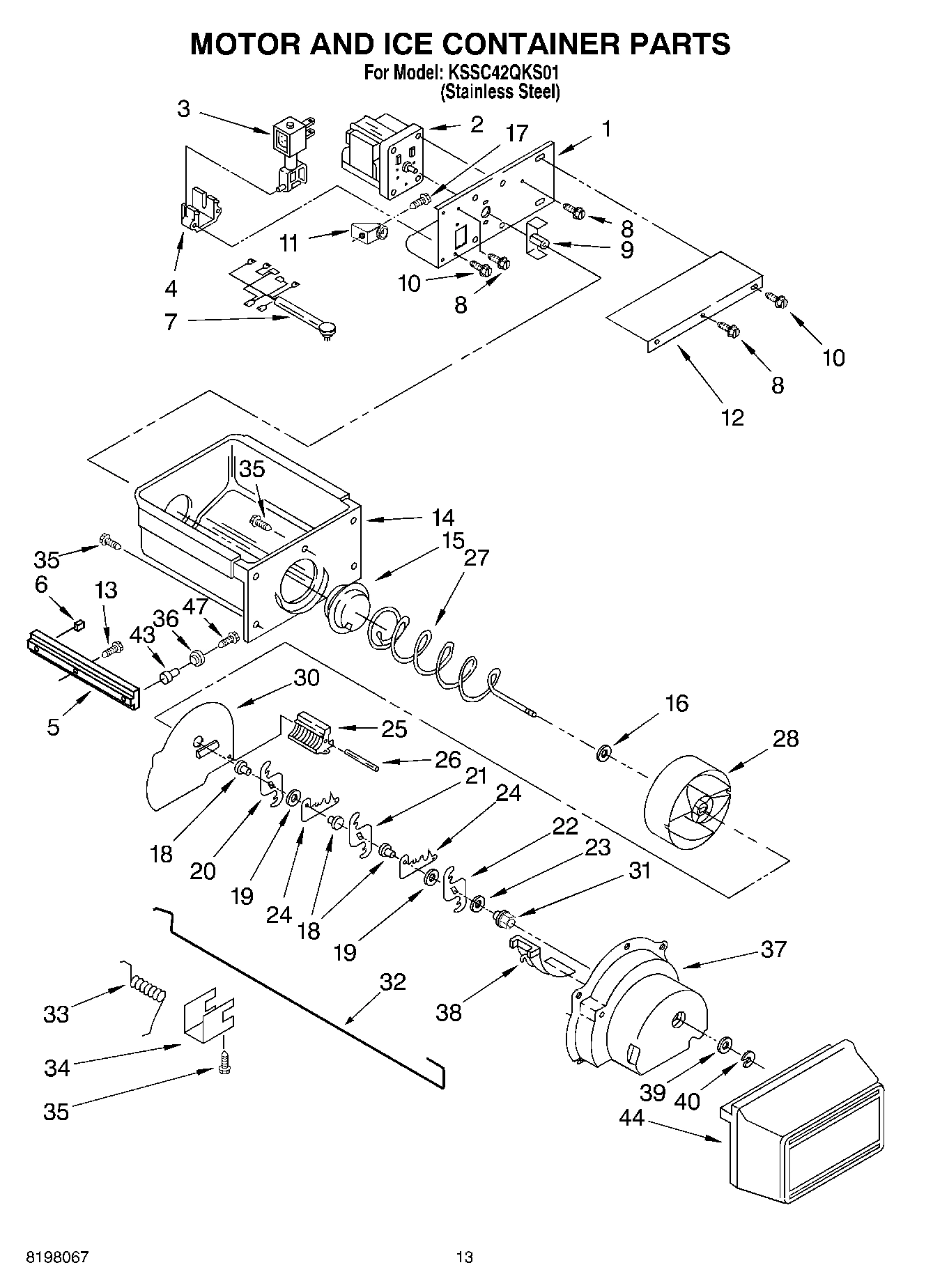

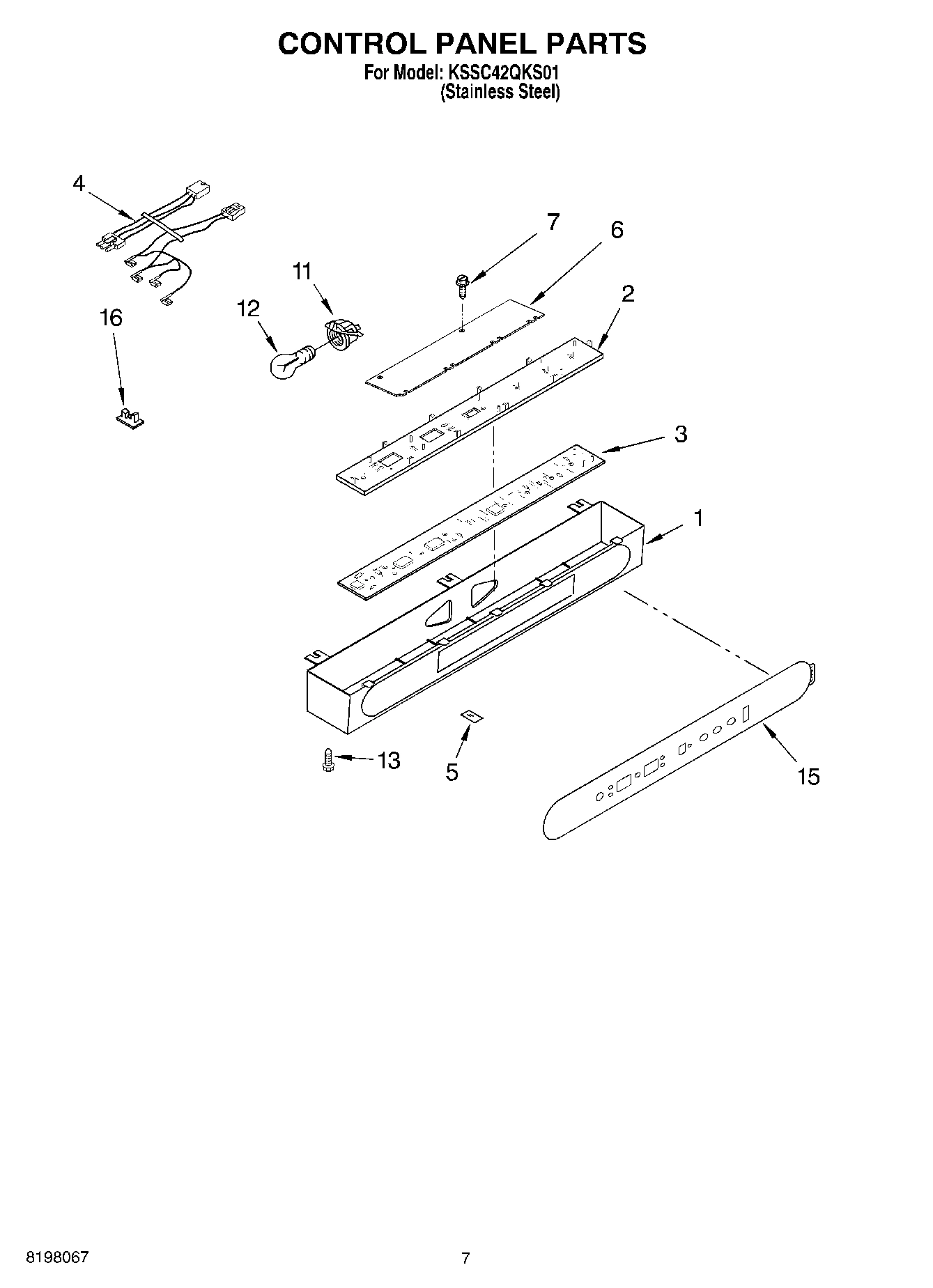

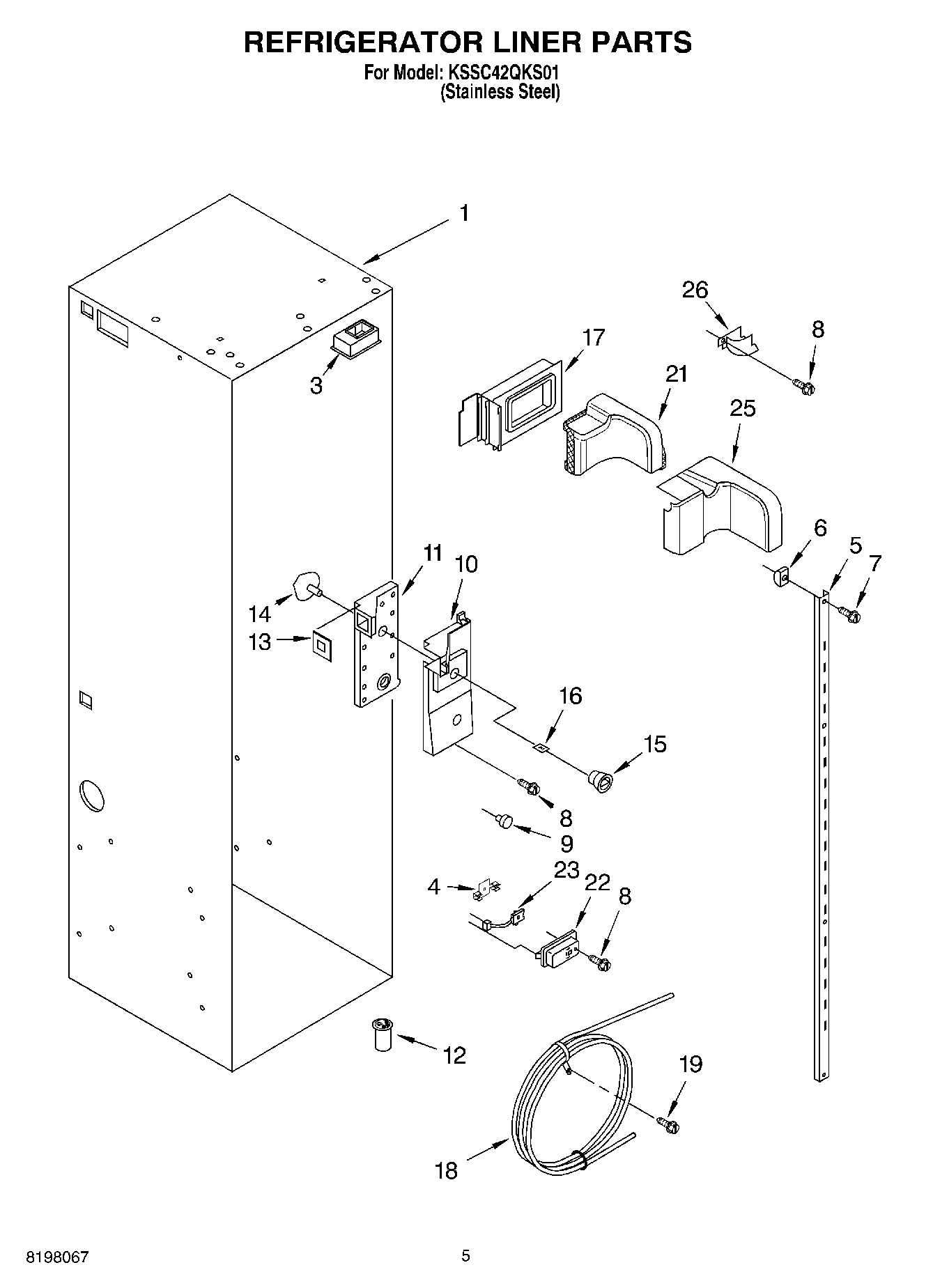

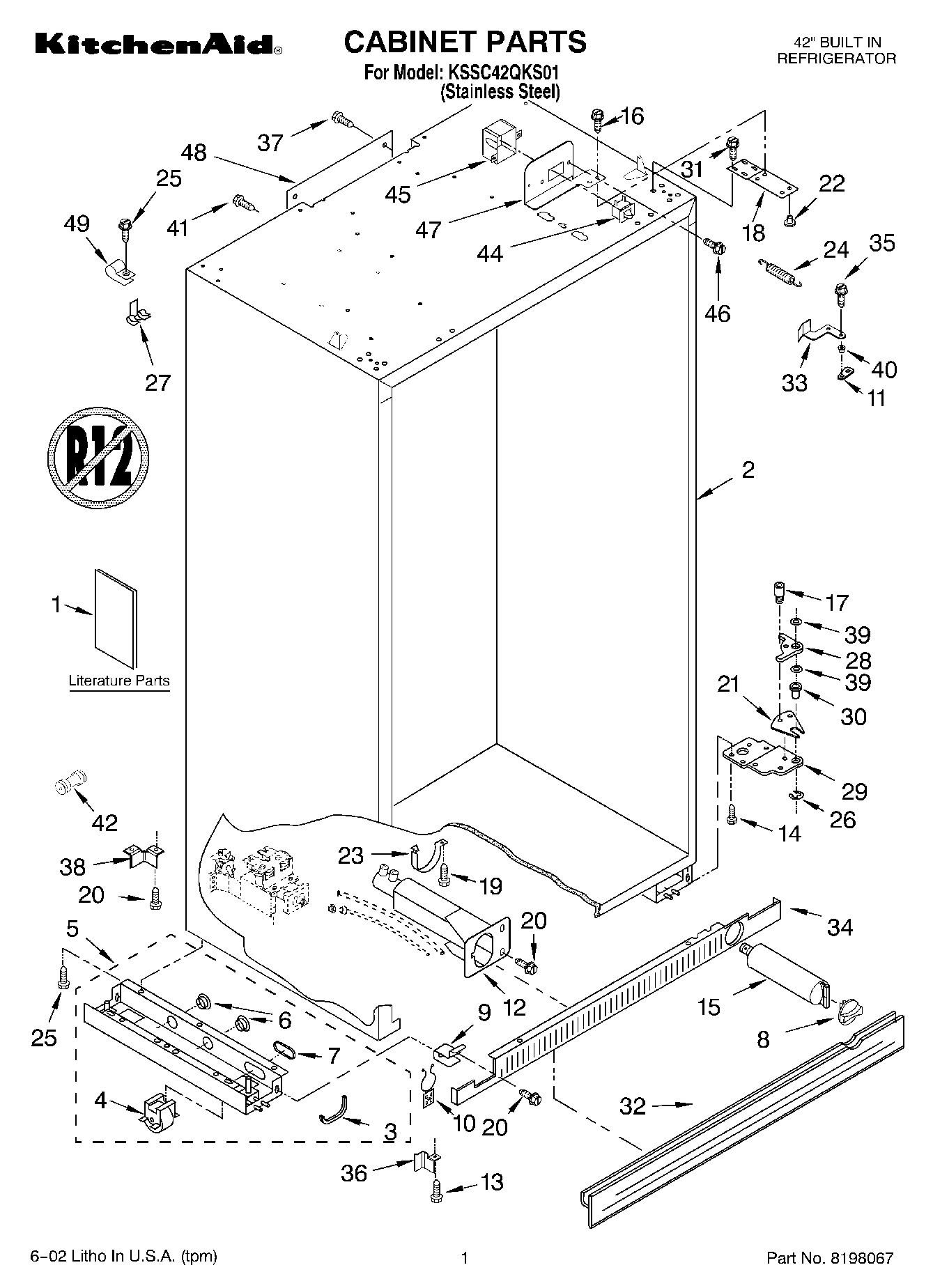

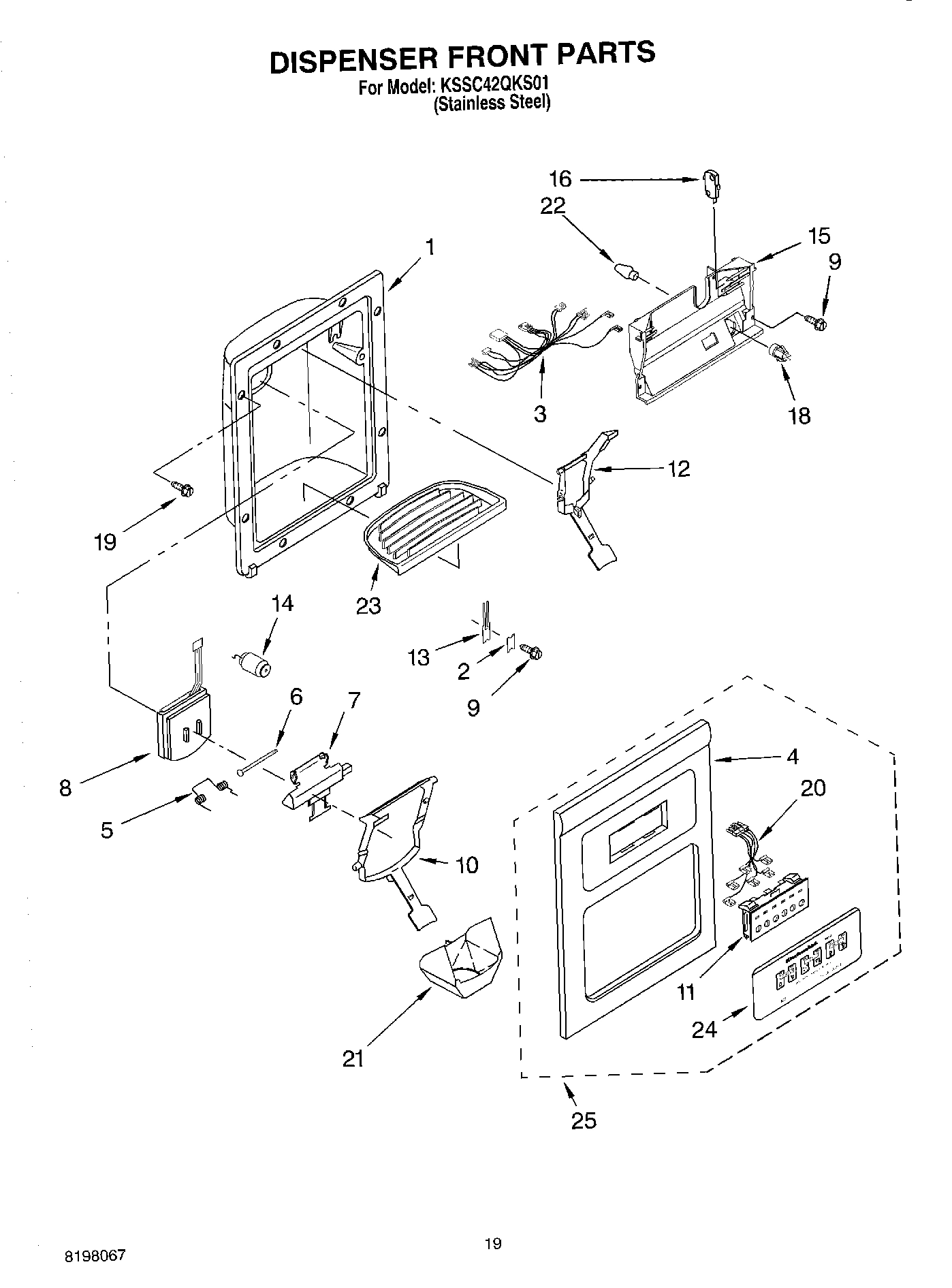

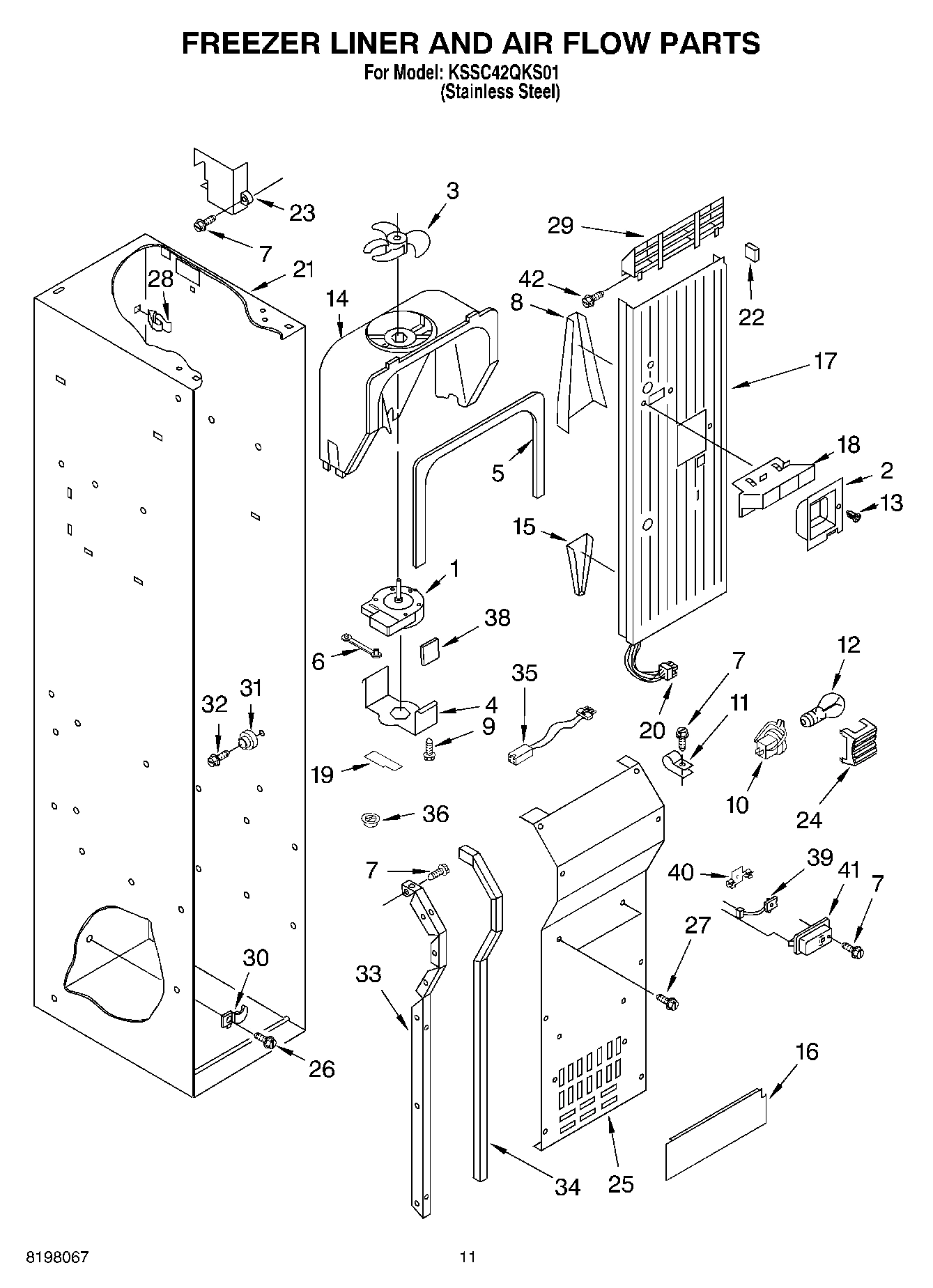

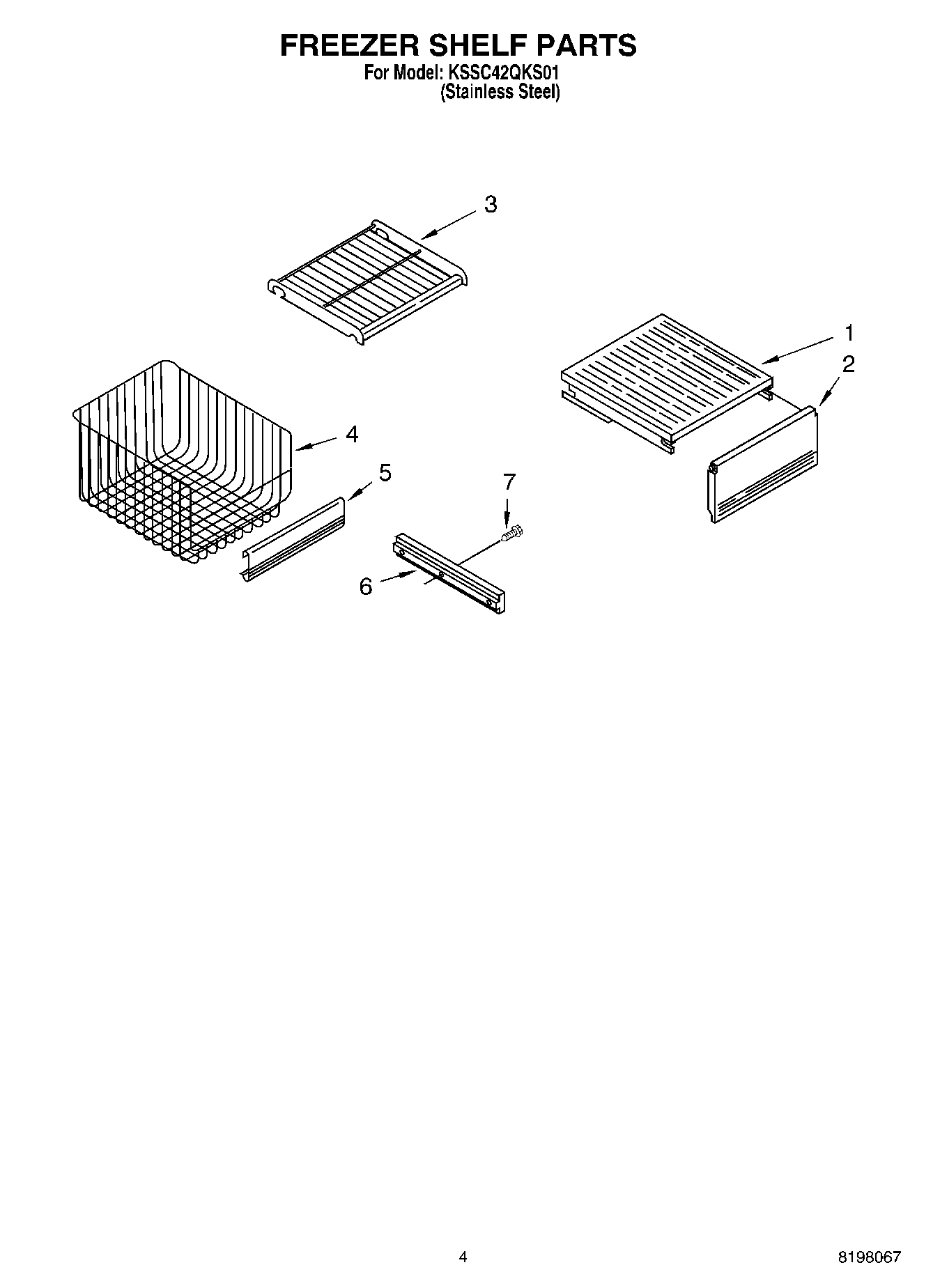

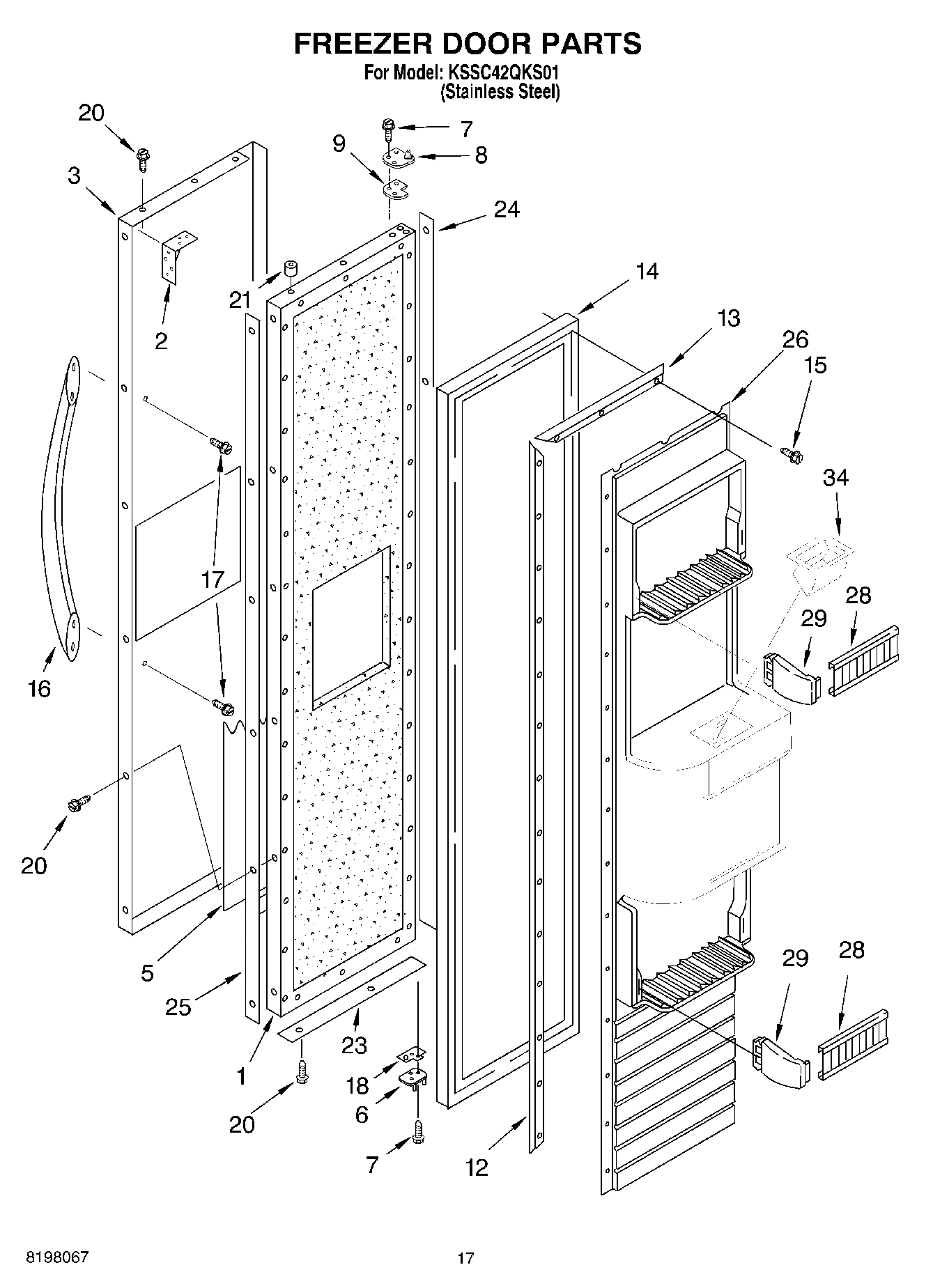

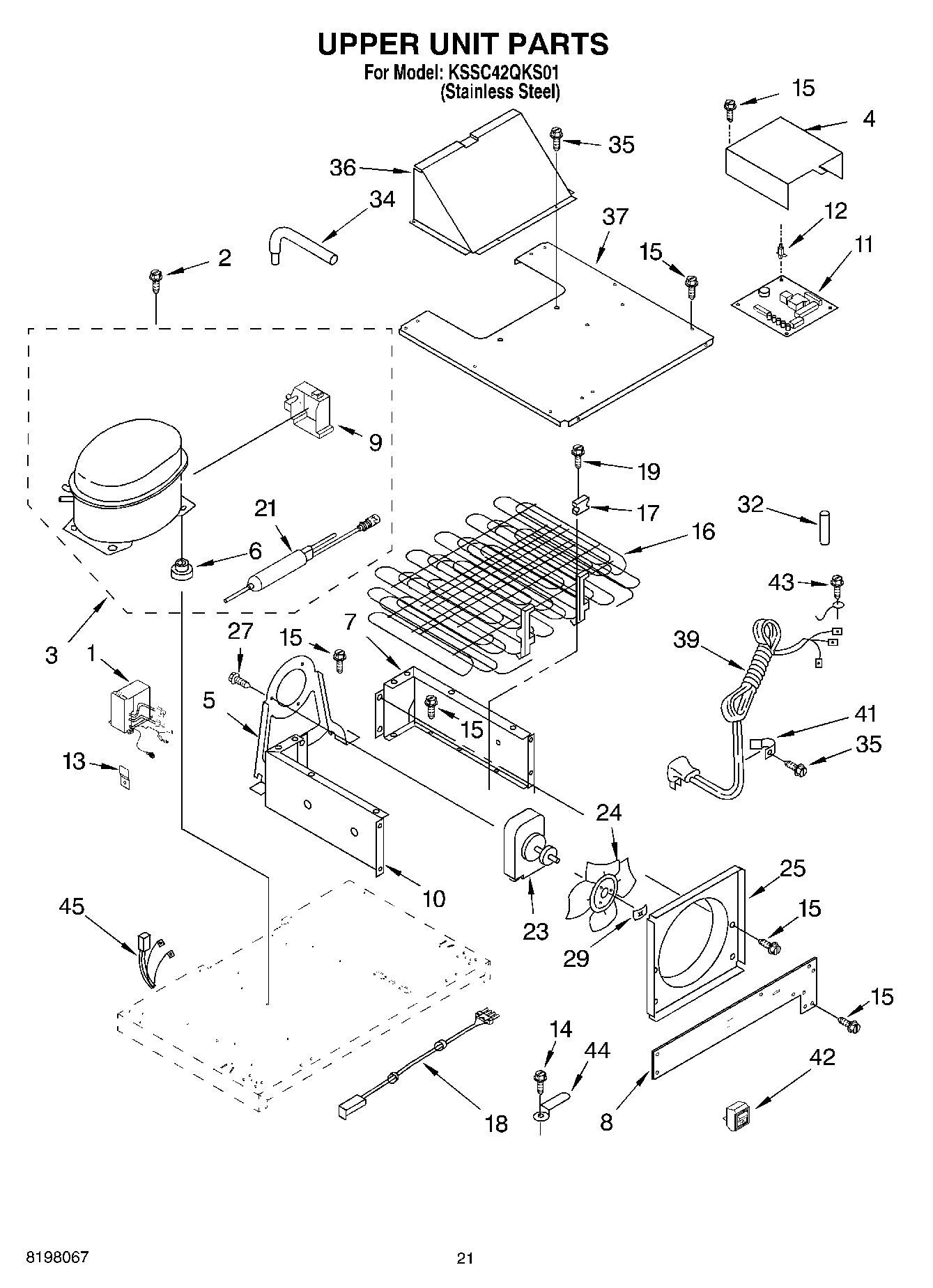

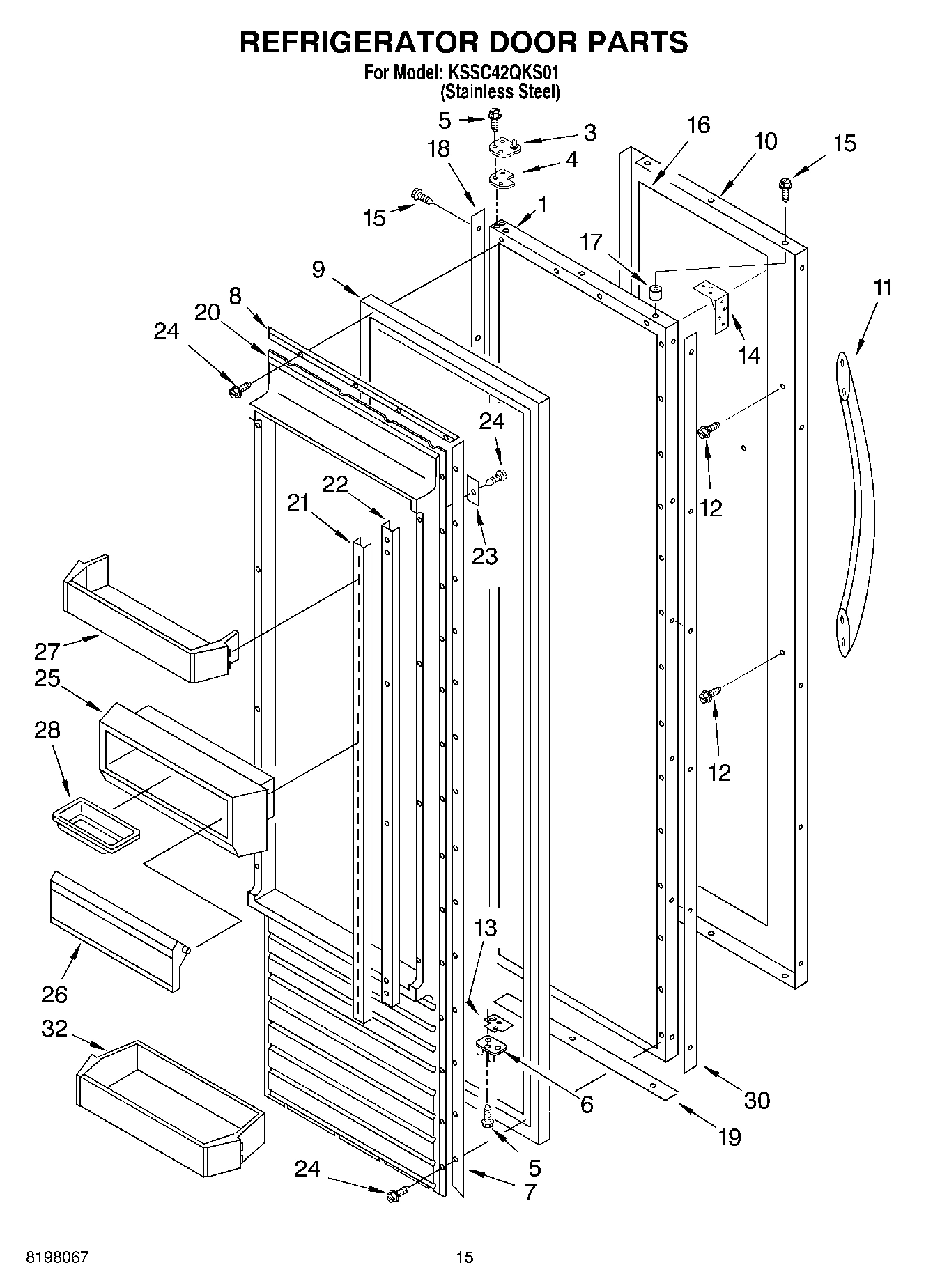

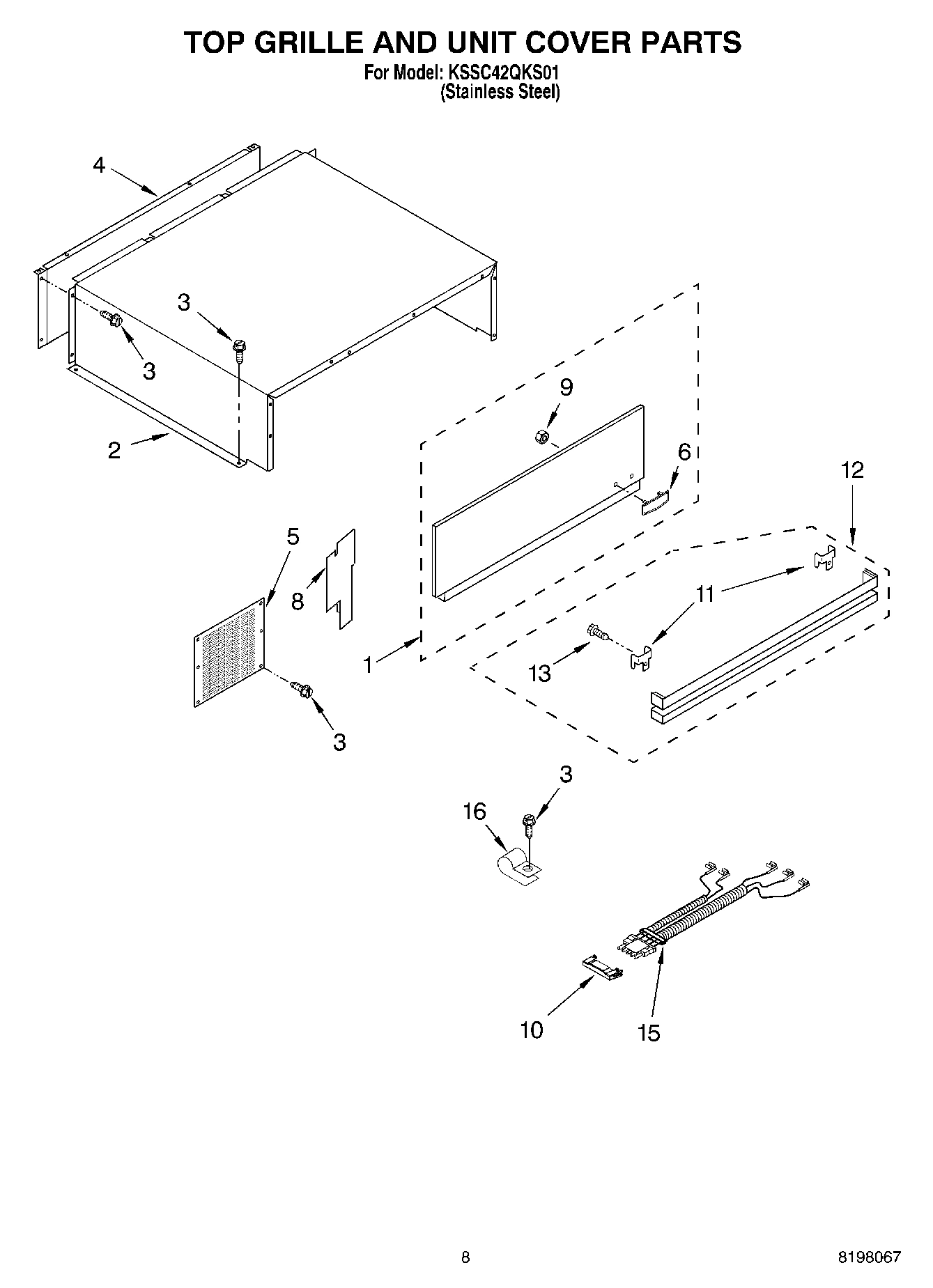

Model Whirlpool KSSC42QKS01 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

1

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

1

Liner (Not A Serviceable Part) WPL ARI105426A Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) WPL 2254731B Contact Us For Availability

1

Panel, Decorator WPL 2215953S Contact Us For Availability

1

Bracket, Motor WPL 2003940 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT2215852 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2221284 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2254714 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2254722 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

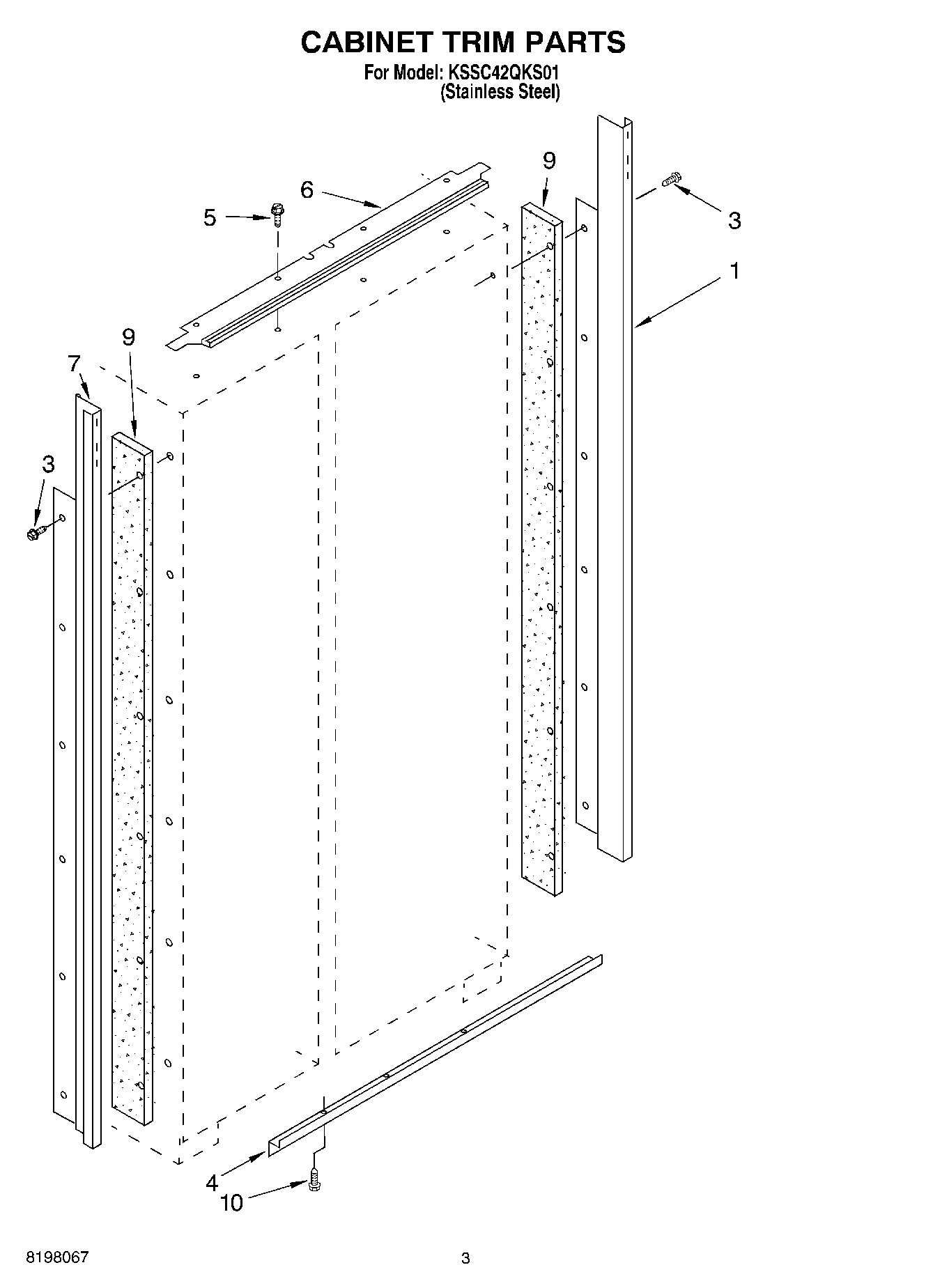

Cabinet, Trim (Right Side) WPL 2215919S Contact Us For Availability

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2

Door Brace, Corner WPL 2004447 Contact Us For Availability

2

Cover, Unit WPL 2209490 Contact Us For Availability

2

Cabinet (Not A Serviceable Part) WPL ARI105425A Contact Us For Availability

2

Wire Harness WPL 2209119 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $335.53

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

Wire Harness WPL 2221203 Contact Us For Availability

3

Door Skin WPL 2215588 Contact Us For Availability

3

Soleniod Assembly WPL 2003979 Contact Us For Availability

3

Grommet, Tube Crossover WPL 2005004 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

4

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

4

Cover, Dispenser (Not Serviced) WPL ARI105429A Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254725 Contact Us For Availability

4

Housing, Control Board WPL 2199929 Contact Us For Availability

5

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

5

Ladder, Shelf (2) WPL 2221211 Contact Us For Availability

5

Filler, Door WPL 2215696 Contact Us For Availability

5

Guard, Wiring WPL 2209492 Contact Us For Availability

5

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

5

Side Support WPL 2209067 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

6

Stop, Roller WPL 1113169 Contact Us For Availability

6

Hinge, Bottom WPL 2220810 Contact Us For Availability

6

Nameplate WPL 2005292 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Suction Tube WPL 2209035 Contact Us For Availability

6

Cabinet, Trim Top WPL 2003646 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

Ice Door Mechanism WPL 2206423 Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2187421 Contact Us For Availability

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Cabinet Trim (Left Side) WPL 2215936S Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2209038 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

Hinge, Top WPL 2220922 Contact Us For Availability

8

Baffle-Air, Condenser WPL 8201530 Contact Us For Availability

8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability

8

Panel, Condenser Front WPL 2215665 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

WP1113894 Whirlpool Refrigerator Cover Backorder WPL WP1113894 $45.27

9

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

9

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Spacer-Door, Top WPL 2004520 Contact Us For Availability

9

Mounting Stud, Grill WPL 2006442 Contact Us For Availability

Lever, Ice Dispenser WPL 2180261 Contact Us For Availability

Meat Pan, Air Duct Cover WPL 2220888 Contact Us For Availability

Enclosure, Terminal WPL 2221297 Contact Us For Availability

Clip, Wire WPL 2005237 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

Shroud, Condenser (Left) WPL 2209037 Contact Us For Availability

W10823805-includeCORE Whirlpool W10823805 Ref Backorder WPL W10823805-includeCORE $326.94

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

Cam, Door Closer WPL 2005783 Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Bracket, Louver WPL 2005483 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $96.31

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Release Valve WPL 2220993 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

Grille, Louver WPL 2215934S Contact Us For Availability

Cover, Motor WPL 1113129 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $29.61

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

Seal, Air Duct WPL 2221175 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability

Tube, Discharge WPL 2209036 Contact Us For Availability

2188496A Whirlpool Refrigerator Door Gasket Backorder WPL 2188496A $136.26

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

Screw WPL 3400525 Contact Us For Availability

Ice Container WPL 2208907 Contact Us For Availability

Delay Mechanism WPL 2205686 Contact Us For Availability

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

Screw WPL 486899 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2306093 Whirlpool Evaporator In Stock WPL WP2306093 $237.23

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Retainer, Knob WPL 2003841 Contact Us For Availability

Handle, Door WPL 2005290 Contact Us For Availability

Condenser WPL 2209062 Contact Us For Availability

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2005378 Whirlpool Refrigerator Screw In Stock WPL WP2005378 $4.58

WP2006750 Whirlpool Refrigerator Heater In Stock WPL WP2006750 $51.54

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Grommet (4) WPL 943447 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

Door, Spacer WPL 2004549 Contact Us For Availability

Wire, Jumper WPL 2187422 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Screw WPL 487522 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

Meat Pan WPL 2220902 Contact Us For Availability

Gasket, Evaporator WPL 2220832 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Diffuser Assembly WPL 2208997 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $30.25

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Bushing WPL 2002903 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $137.10

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $40.99

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Cover, Air Outlet WPL 2215718 Contact Us For Availability

Spacer, Door (Bottom) WPL 2221035 Contact Us For Availability

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

Clip, Water Tube WPL 934011 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $32.39

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

Overlay, Cover (Not Serviced) WPL ARI105430A Contact Us For Availability

Spacer, Door Hinge Side WPL 2005030 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

Grommet, Water Tube WPL 2209444 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $93.40

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability

Front Cover Assembly (Includes Items 4, 11, 2 WPL 2215722 Contact Us For Availability

Spacer, Door (Handle Side) WPL 2221012 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

Panel, Interior Door WPL 2209028 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Conveyor WPL 2160602 Contact Us For Availability

Fastener (3) WPL 1113227 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability

Trim, Shelf (2) WPL 2188515 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $28.40

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

31

WP8204624 Whirlpool Bolt In Stock WPL WP8204624 $8.82

32

SKIRT, GRILLE (BOTTOM) WPL 2209025B Contact Us For Availability

32

Control Arm WPL 2002728 Contact Us For Availability

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

WP2307857 Whirlpool Refrigerator Extension In Stock WPL WP2307857 $33.78

33

WPW10121046 Whirlpool Refrigerator Extension In Stock WPL WPW10121046 $40.44

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Ice Chute WPL 2208909 Contact Us For Availability

Grille, Bottom Front WPL 2209428B Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Screw WPL 2005921 Contact Us For Availability

Wire, Jumper WPL 2221077 Contact Us For Availability

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $12.50

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

Roller WPL 2188212 Contact Us For Availability

Cover, Fan WPL 2209495 Contact Us For Availability

37

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

37

Cover, Condenser WPL 2215628 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $4.59

39

Service Cord WPL 2003381 Contact Us For Availability

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $23.70

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

42

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

43

Eyelet, Roller WPL 2174478 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

Front Cover, Ice Container WPL 2002723 Contact Us For Availability

Clip, Cord Plug WPL 653035 Contact Us For Availability

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $30.25

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187417 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

46

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $30.89

47

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $30.89

47

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

48

WPL 2209449 WPL 2209449 Contact Us For Availability

49

WPL 488937 WPL 488937 Contact Us For Availability

99

Complete Ice Crusher Mechanism Assembly WPL 2160606 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

100

Complete Ice Container Assembly WPL 2006542 Contact Us For Availability
