Model Whirlpool KSSC36QTS05 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

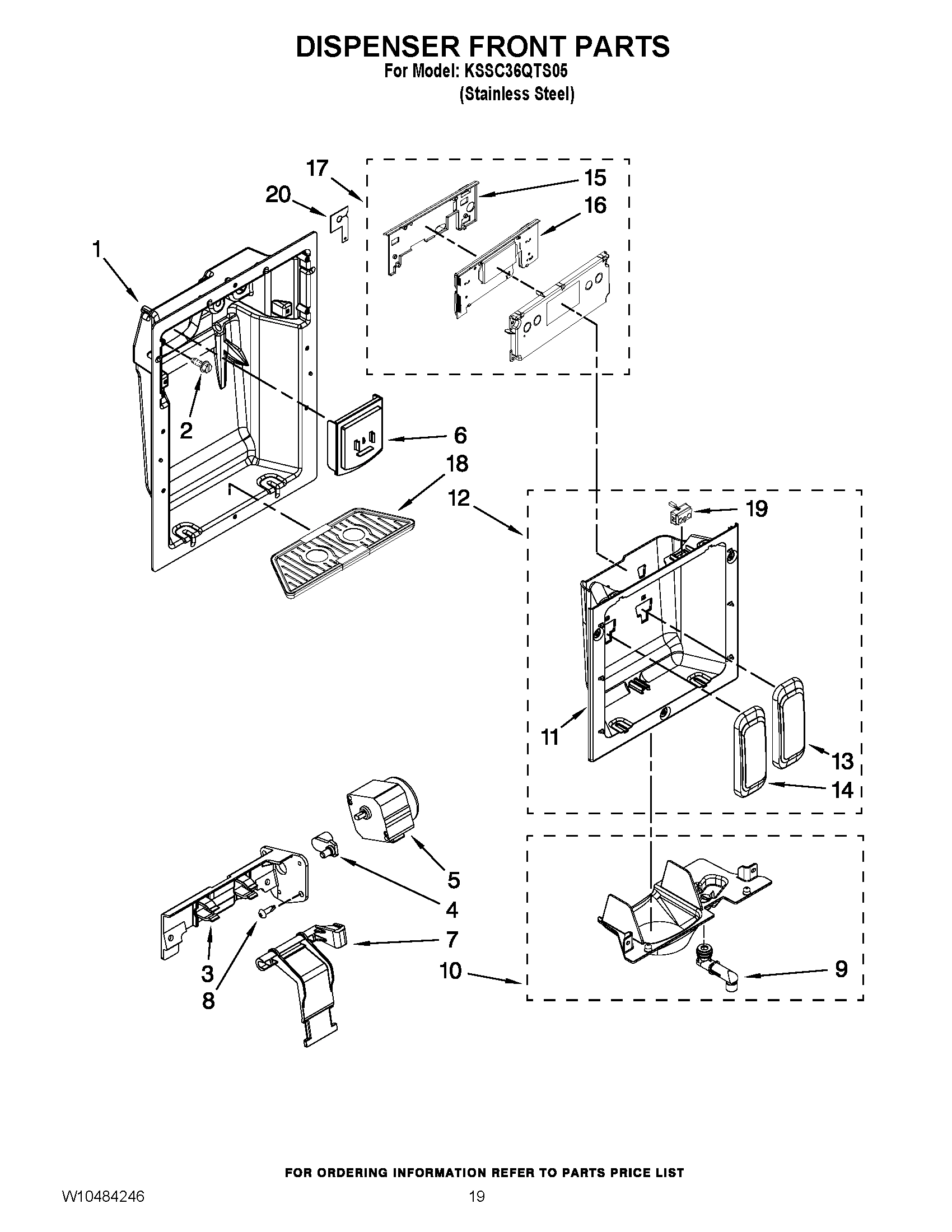

12 - DISPENSER FRONT PARTS

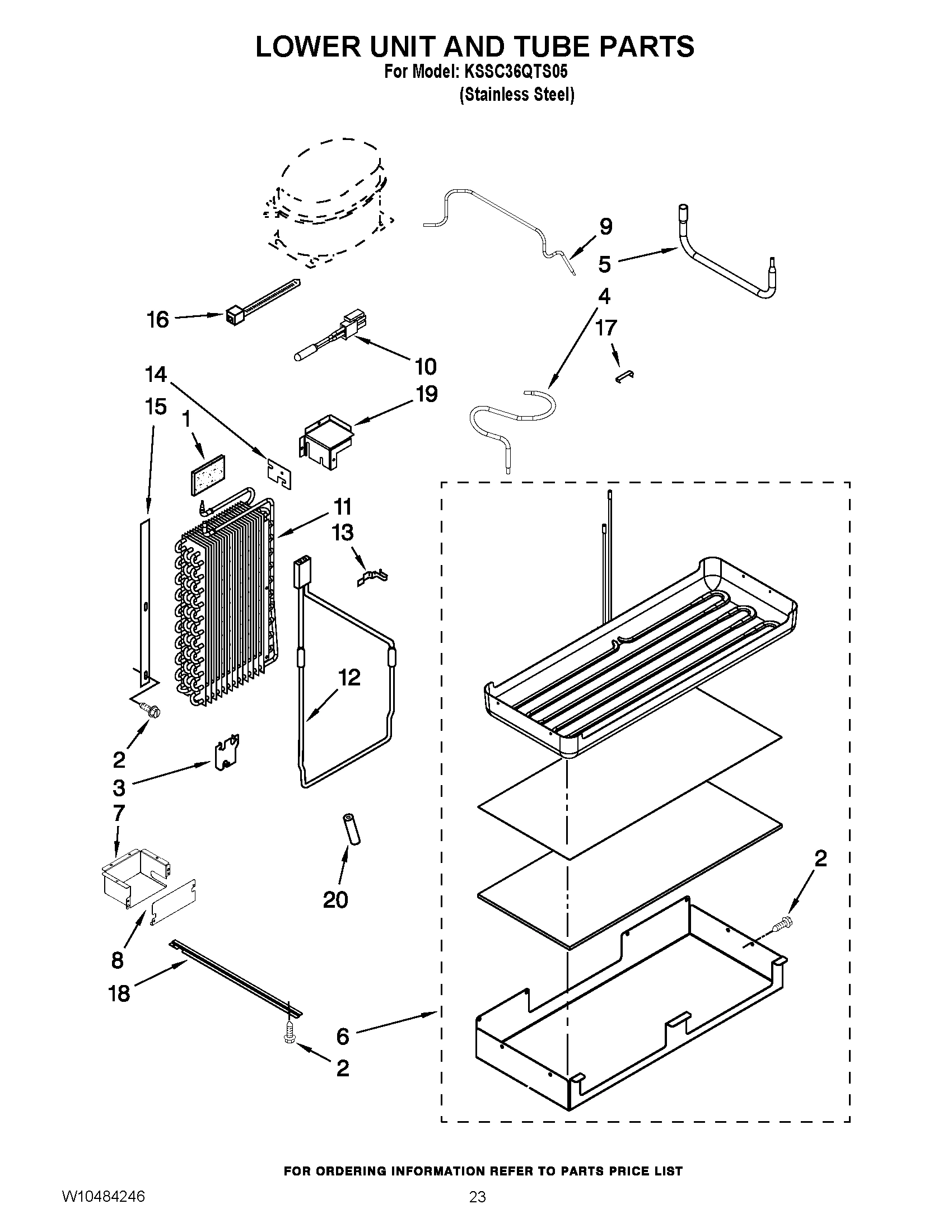

14 - LOWER UNIT AND TUBE PARTS
04 - REFRIGERATOR LINER PARTS
07 - REFRIGERATOR SHELF PARTS
11 - FREEZER DOOR PARTS
05 - CONTROL PANEL PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
13 - UPPER UNIT PARTS
15 - ICEMAKER PARTS
02 - CABINET TRIM PARTS
09 - MOTOR AND ICE CONTAINER PARTS
01 - CABINET PARTS
03 - FREEZER SHELF PARTS
08 - FREEZER LINER AND AIR FLOW PARTS
10 - REFRIGERATOR DOOR PARTS
Common parts from model Whirlpool KSSC36QTS05 36`` BUILT IN REFRIGERATOR
1
CONTROL BOX WPL W10468939 Contact Us For Availability
1
Ice Bin WPL W10134781 Contact Us For Availability
1
WIRE, SHELF WPL 2302882 Contact Us For Availability
1
Fan Motor WPL 2259385 Contact Us For Availability
2
Wire Assembly, Icemaker WPL 2310192 Contact Us For Availability
2
Tube, P.C. Board WPL 2198665 Contact Us For Availability
3
Air Duct WPL 2208970 Contact Us For Availability
3
SHELF, FIXED WPL W10175904 Contact Us For Availability
4
Basket WPL 2259081 Contact Us For Availability
4
Latch, Bin WPL W10134784 Contact Us For Availability
5
TUBE, CONNECT (DRIER/RESTRICTOR) WPL W10388653 Contact Us For Availability
5
Cover, Unit Front WPL W10185625 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2302878 Contact Us For Availability
6
Screw WPL 2198671 Contact Us For Availability
6
SLIDE, BASKET (RH) WPL 2259317 Contact Us For Availability
6
SCREW SUPPORT, LADDER WPL 520965 Contact Us For Availability
6
SLIDE, MEAT PAN (LH) WPL 2302954 Contact Us For Availability
6
SLIDE, MEAT PAN (RH) WPL 2302955 Contact Us For Availability
6
Badge, Kitchen Aid WPL 2317923S Contact Us For Availability
7
Rail, Lid WPL 2222795 Contact Us For Availability
8
Grommet, Crossover Tube WPL 2307584 Contact Us For Availability
8
SPACER, CRISPER (LH) WPL 2256223 Contact Us For Availability
8
Wedge, Air Duct WPL 2259464 Contact Us For Availability
8
SPACER, CRISPER (RH) WPL 2256222 Contact Us For Availability
9
Cam, Door Closer WPL 2005783 Contact Us For Availability
9
SLIDE, CRISPER (LH) WPL 2302956 Contact Us For Availability
9
SLIDE, CRISPER (RH) WPL 2302957 Contact Us For Availability
9
Terminal Cover WPL 2215676 Contact Us For Availability
9
SEAL TRIM, SIDE WPL 2005925 Contact Us For Availability
9
Spacer, Door-Skin (Handle Side) (For Stainles WPL 2309060 Contact Us For Availability
9
TUBE, DISCHARGE WPL W10412487 Contact Us For Availability
10
Separator Assembly WPL 2318017 Contact Us For Availability
10
Skin, Door (Stainless Steel) WPL 2307752 Contact Us For Availability
11
Tray, Drip Filter WPL 2318189 Contact Us For Availability
12
Heater, Defrost WPL W10140160 Contact Us For Availability
12
Screw WPL 3400525 Contact Us For Availability
12
SPACER, DOOR SKIN TOP WPL 2005433 Contact Us For Availability
13
CLAMP, HEATER WPL 1113048 Contact Us For Availability
13
COVER WPL 2318028 Contact Us For Availability
15
Cover, Control WPL 2305219 Contact Us For Availability
15
Wedge, Air Duct WPL 2259465 Contact Us For Availability
16
HINGE, TOP WPL 2257644 Contact Us For Availability
16
CONDENSER WPL 2307998 Contact Us For Availability
16
Guard, Air Return WPL 2003577 Contact Us For Availability
16
Air Duct WPL 2307773 Contact Us For Availability
17
SPACER, DOOR-SKIN (HINGE SIDE) WPL W10142296 Contact Us For Availability
18
BLOCK, FAN SCROLL (LH) WPL 2209066 Contact Us For Availability
19
Screw WPL W10141518 Contact Us For Availability
19
BIN, DOOR WPL W10323601 Contact Us For Availability
20
Bushing WPL 2300082 Contact Us For Availability
20
DAMPNER WPL 2215648 Contact Us For Availability
20
LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
21
Cover, Air Outlet WPL 2259025 Contact Us For Availability
21
PLATE, DOOR HANDLE WPL W10127710 Contact Us For Availability
22
Light Shield WPL 2307751 Contact Us For Availability
23
SPACER, AIR- BAFFLE WPL W10475010 Contact Us For Availability
23
COVER, EVAPORATOR WPL W10427999 Contact Us For Availability
24
Cover, Diffuser WPL 2309087 Contact Us For Availability
24
Screw WPL 8533917 Contact Us For Availability
24
BIN, DOOR WPL W10323598 Contact Us For Availability
24
Support, Air Duct WPL 2302849 Contact Us For Availability
25
Wire Assembly WPL W10139199 Contact Us For Availability
25
BIN, DOOR WPL W10323746 Contact Us For Availability
26
Seal, Air Duct (Square Hole) WPL 2259398 Contact Us For Availability
27
Deflector, Air Duct WPL 2309282 Contact Us For Availability
28
SUPPORT, EVAPORATOR WPL 1112260 Contact Us For Availability
29
SCREW WPL 489136 Contact Us For Availability
30
Tube, Transition (Condenser/Drier) WPL 2307566 Contact Us For Availability
31
Grille Bottom, Front (Black) WPL 2325184B Contact Us For Availability
31
EVAPORATOR, COVER RAIL (LH) WPL 2221107 Contact Us For Availability
31
EVAPORATOR, COVER RAIL (RH) WPL 2259355 Contact Us For Availability
32
SCREW WPL W10004850 Contact Us For Availability
32
GASKET, EVAPORATOR COVER WPL 2220904 Contact Us For Availability
33
Cover, Receiver WPL 2259493 Contact Us For Availability
33
BRACKET, SUPPORT BASE (FRONT) (LH) WPL 2006616 Contact Us For Availability
34
Harness, Evap Fan (Includes Item 45) WPL W10139189 Contact Us For Availability
35
BRACKET, MOUNTING (POWER SWITCH) WPL W10321055 Contact Us For Availability
35
BRACKET, SUPPORT BASE (REAR) WPL 2006617 Contact Us For Availability
37
SCREW WPL 2006475 Contact Us For Availability
39
Support, Screw WPL 2259397 Contact Us For Availability
42
WPL 2215938 WPL 2215938 Contact Us For Availability
43
Slide, Icemaker Shut Off WPL 2255563 Contact Us For Availability
44
WPL 2221096 WPL 2221096 Contact Us For Availability
44
WPL 2221097 WPL 2221097 Contact Us For Availability
45
WPL 2215612 WPL 2215612 Contact Us For Availability
46
WPL 2005032 WPL 2005032 Contact Us For Availability
47
WPL 2006841 WPL 2006841 Contact Us For Availability
48
INSULATION, SOUND WPL W10267707 Contact Us For Availability
49
WPL W10167456 WPL W10167456 Contact Us For Availability
NI
AFFRESH STAINLESS STEEL CLEANER WPL W10355016 Contact Us For Availability
NI
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
NI
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
NI
AFFRESH KITCHEN APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
NI
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
NI
Handle Kit for Previous Architect Series (Sta WPL W10129081 Contact Us For Availability
× ![]()
