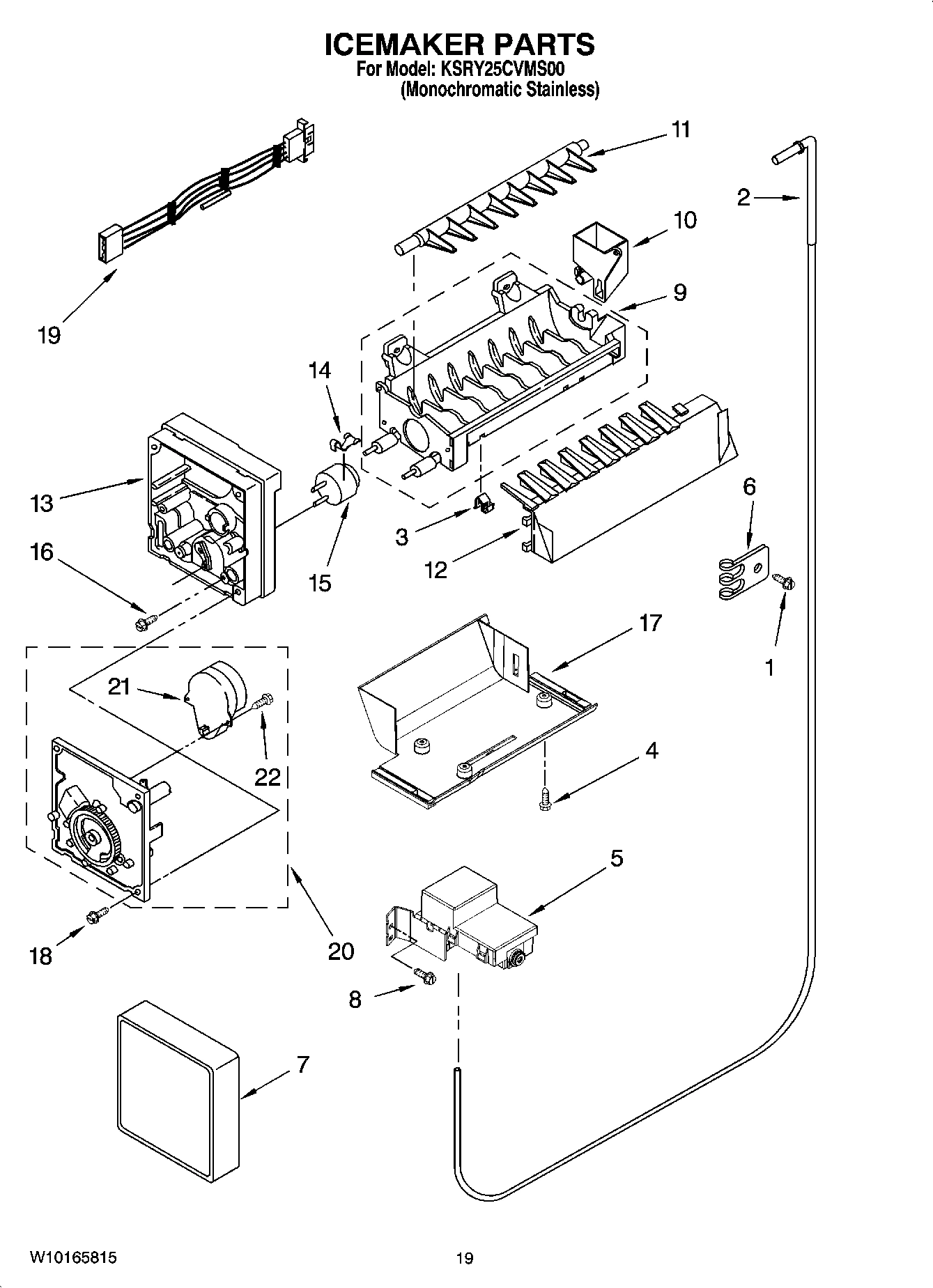

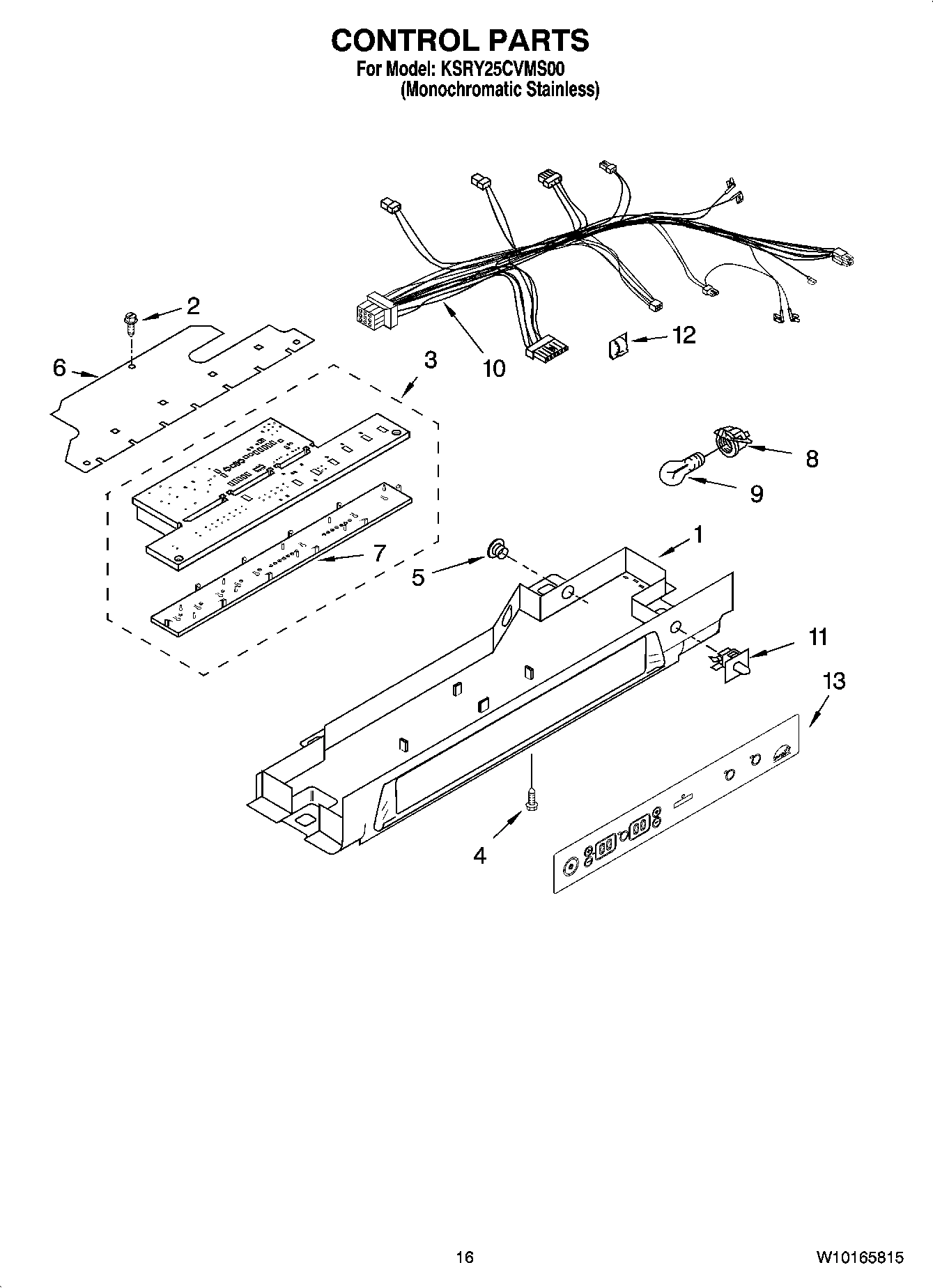

Model Whirlpool KSRY25CVMS00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Freezer Door (Includes 6 And Dispenser Front WPL 2318905SAP Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Service Sheet WPL 2303925 Contact Us For Availability

1

Instruction Sheet, Door Removal WPL 2308395 Contact Us For Availability

1

Owner`s Manual WPL 2315184 Contact Us For Availability

1

Wiring Sheet WPL W10142183 Contact Us For Availability

1

Energy Guide WPL W10162149 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Monochro WPL 2301168SAP Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI105119A Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fitting and Water Tube WPL 2303216 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Door Compartment (Includes 14) WPL 2301486 Contact Us For Availability

2

Ferrite Bead WPL 2308165 Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $61.75

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

Cover, Crisper WPL 2301567 Contact Us For Availability

3

Trivet (3) WPL 2223559K Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $31.92

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Glide Assembly, Top Basket (Right Side) WPL 2301540 Contact Us For Availability

4

Washer, Auger WPL 2258220 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $47.71

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

W10136735 Whirlpool Refrigerator Door Gasket In Stock WPL W10136735 $123.48

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $121.32

6

Glass, Meat Cover WPL 2301028 Contact Us For Availability

6

Shelf Ladder WPL 2319866 Contact Us For Availability

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Safety Barrier WPL 2304895 Contact Us For Availability

7

Beverage Holder WPL 2193409K Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

8

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

Handle (Stainless Steel) WPL 2304832S Contact Us For Availability

9

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

9

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

9

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

Blade, Fixed WPL 2257020 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Bracket, Door Stop (Chrome) WPL 2303113 Contact Us For Availability

Spigot WPL 2305236 Contact Us For Availability

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Harness, Fan Evaporator (Includes 5) WPL 2310238 Contact Us For Availability

Seperator Assembly WPL 2305461 Contact Us For Availability

2203407AP Whirlpool Refrigerator Cover Backorder WPL 2203407AP $36.89

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $206.48

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Tube, Water Dispenser WPL 2305405 Contact Us For Availability

Wire Assembly, Freezer Door WPL 2310084 Contact Us For Availability

Following Parts Not Illustrated WPL ARI105118A Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

13

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

13

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (Apollo Gray) WPL W10143043 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

Lens, Front Cover WPL 2305343 Contact Us For Availability

2305219 Whirlpool Refrigerator Cover Backorder WPL 2305219 $30.25

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Grille (Apollo Gray) WPL 2303292AP Contact Us For Availability

Nameplate-KA Contour WPL 2318942S Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

Glide Assembly (Right Side) WPL 2301548 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

W10133606 Whirlpool Refrigerator Pad In Stock WPL W10133606 $195.40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

18

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

18

WP2321746 Whirlpool Refrigerator Electronic C Backorder WPL WP2321746 $163.94

18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

Extension Tube WPL 2304937 Contact Us For Availability

Harness, Unit WPL 2310229 Contact Us For Availability

20

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

20

LED Assembly WPL 2303841 Contact Us For Availability

21

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.17

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Front Cover, Housing (Not Available Order 23 WPL ARI105120A Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Shelf Assembly WPL 2301566 Contact Us For Availability

Cabinet, (Not A Serviceable Part) WPL ARI105115A Contact Us For Availability

Drip Tray Assembly (Universal Silver) WPL 2315110US Contact Us For Availability

23

2203408AP Whirlpool Refrigerator Cover Backorder WPL 2203408AP $35.32

23

Holder WPL 2212369 Contact Us For Availability

23

Front Cover Assembly (Includes Items 14, 17, WPL 2318906US Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

Window, Crisper WPL 2301001 Contact Us For Availability

Wire Assembly, User Interface (Includes 2) WPL 2187814 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

NLA:SCREW Backorder WPL WPW10141645 $3.70

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

26

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

26

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

26

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

27

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

27

Window, Snack Pan WPL 2301006 Contact Us For Availability

28

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $92.73

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $121.47

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $21.77

Bracket, Motor WPL 2305208 Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

31

Clip, Heat WPL 2155547 Contact Us For Availability

32

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

32

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

33

2303141 Whirlpool Refrigerator Door Hinge Backorder WPL 2303141 $126.31

33

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

33

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

34

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $27.52

34

Block, Housing Support WPL 2260519 Contact Us For Availability

35

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

35

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $41.91

36

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

37

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

38

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

38

Button, Water Filter (Apollo Gray) WPL 2260503AP Contact Us For Availability

39

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability

39

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

40

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41

40

Clamp, Cord WPL 2305373 Contact Us For Availability
