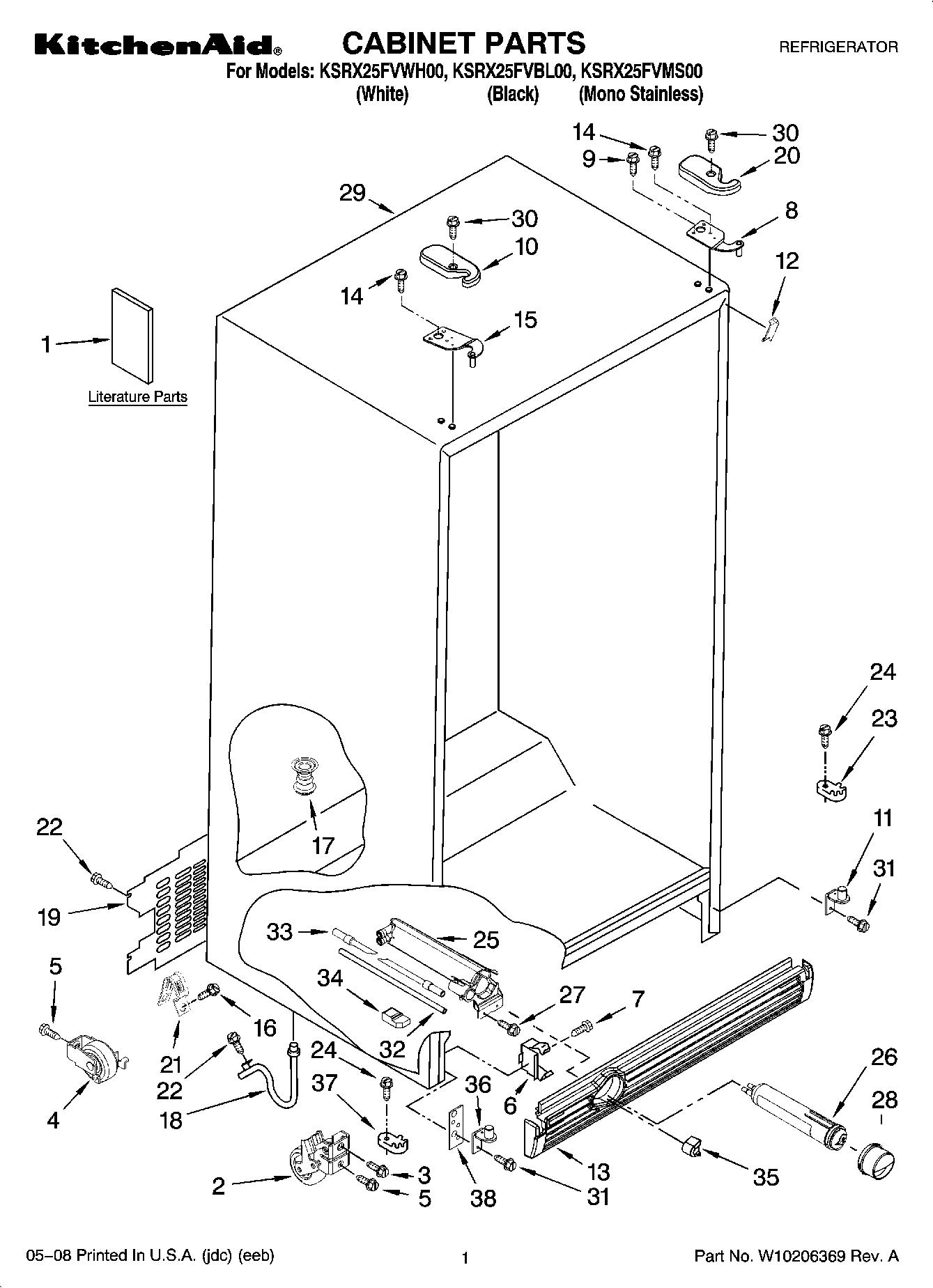

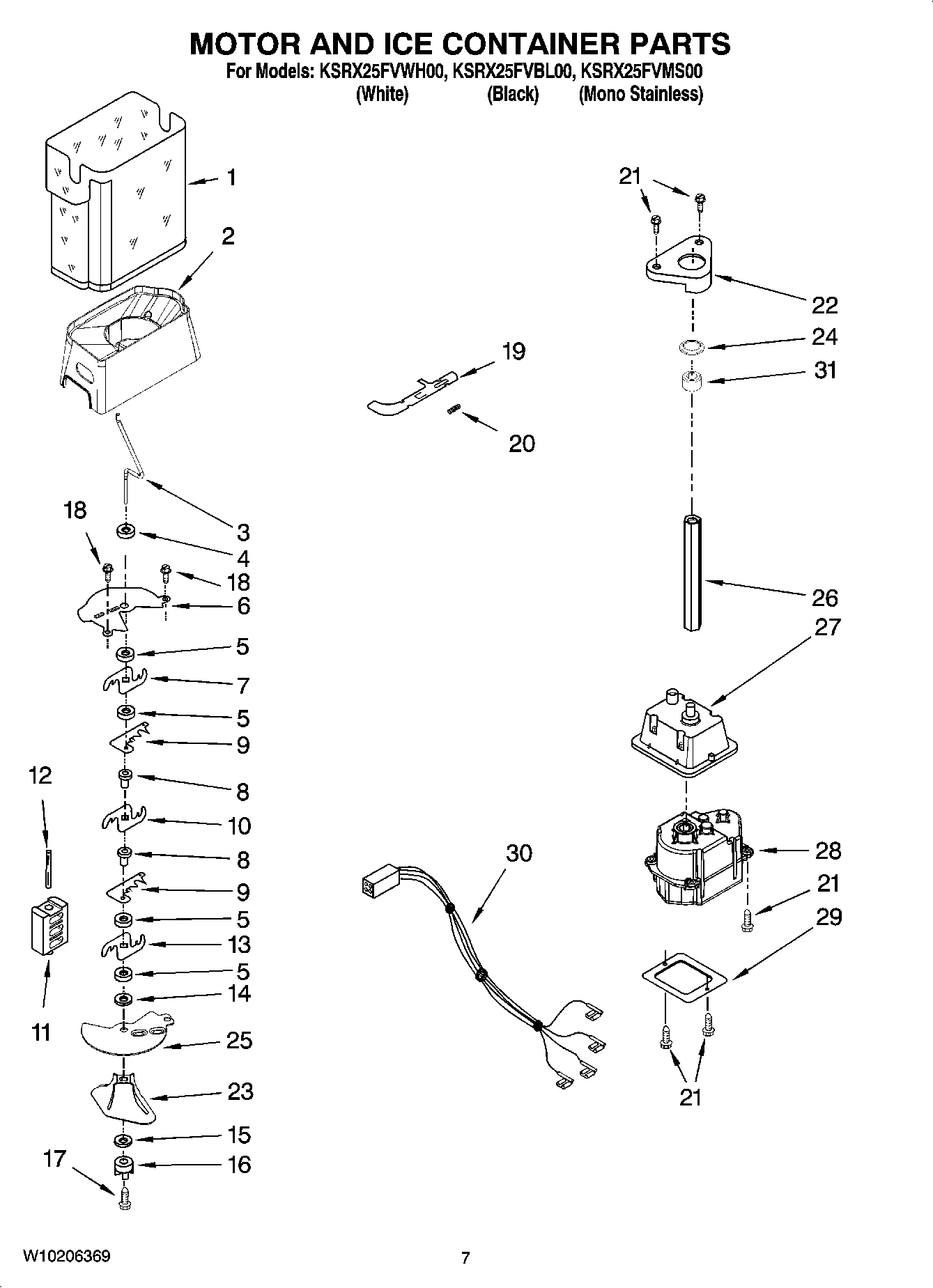

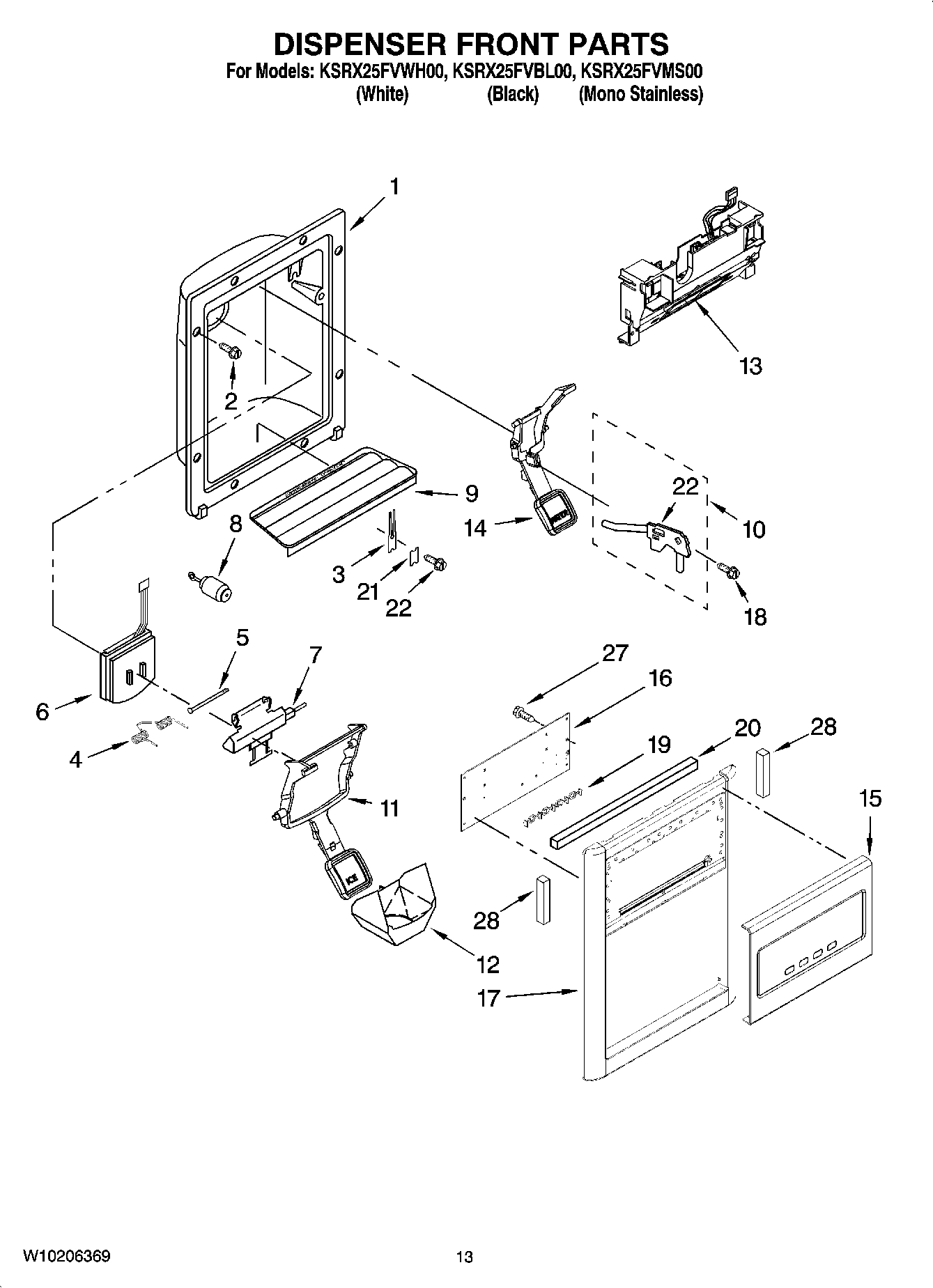

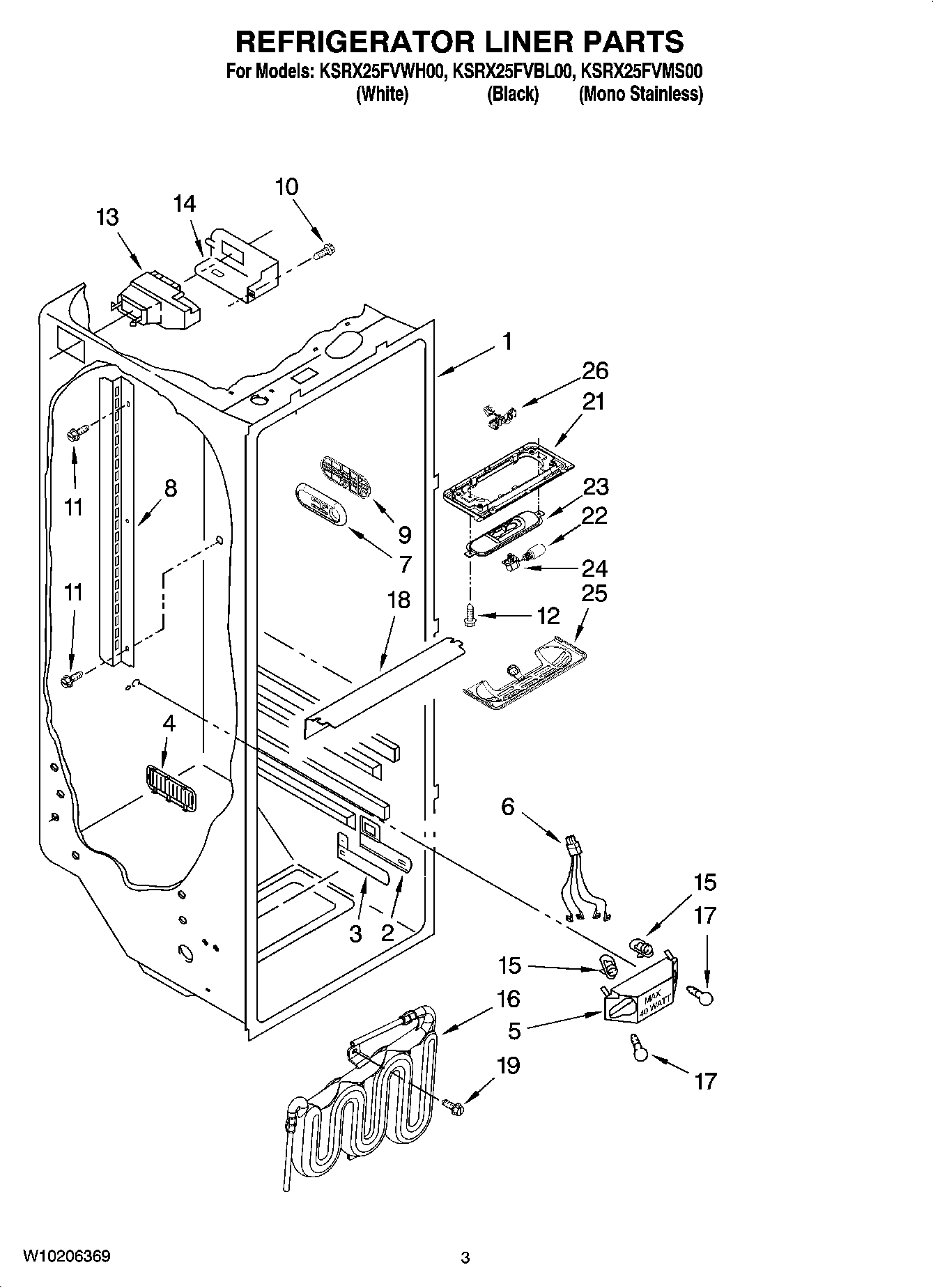

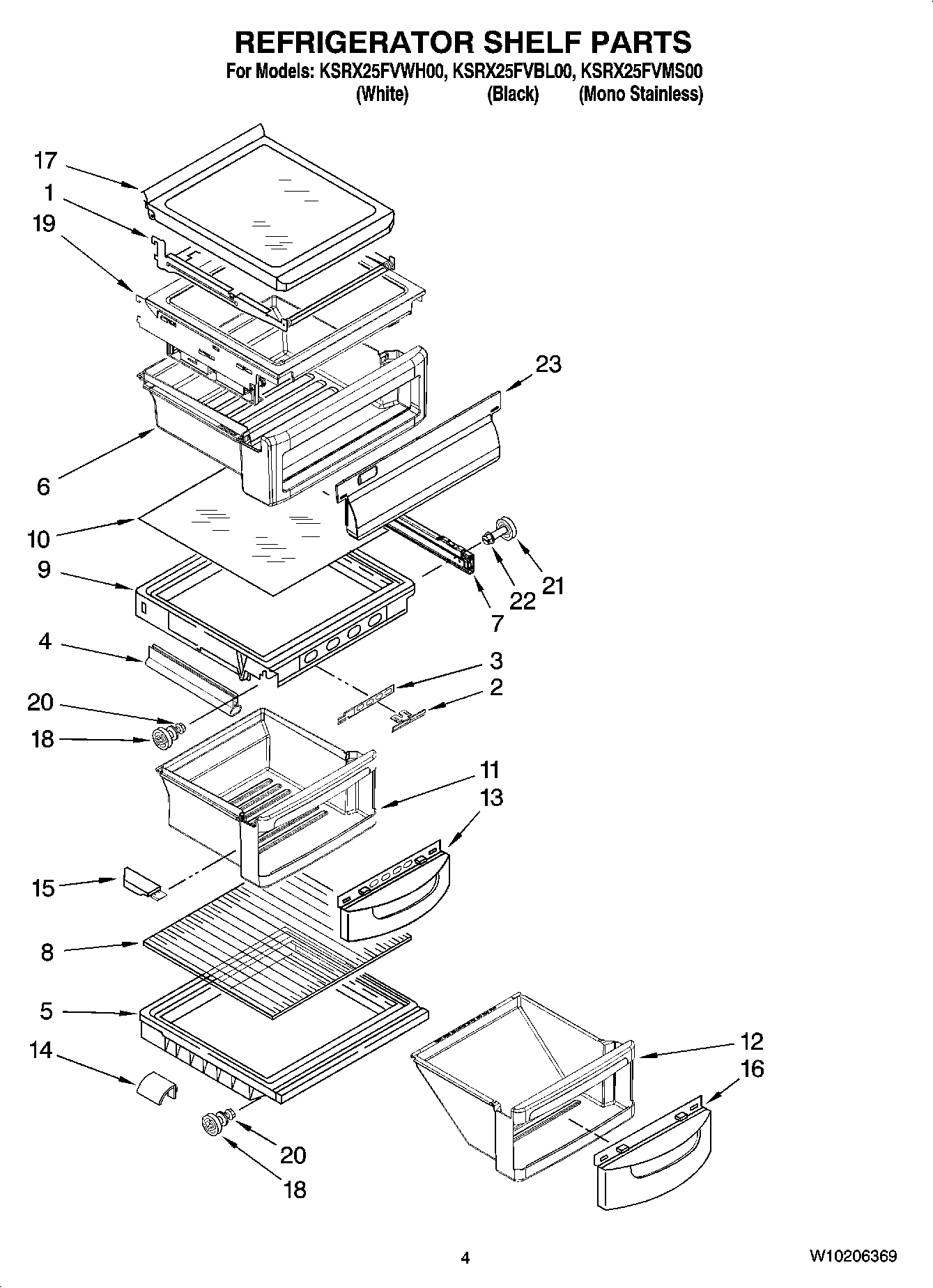

Model Whirlpool KSRX25FVBL00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

Previous Architect Series Handle Kit (Stainle WPL 8201806 Contact Us For Availability

WPL ARI105022A WPL ARI105022A Contact Us For Availability

WPL ARI105023A WPL ARI105023A Contact Us For Availability

WPL ARI105024A WPL ARI105024A Contact Us For Availability

WPL ARI105025A WPL ARI105025A Contact Us For Availability

1

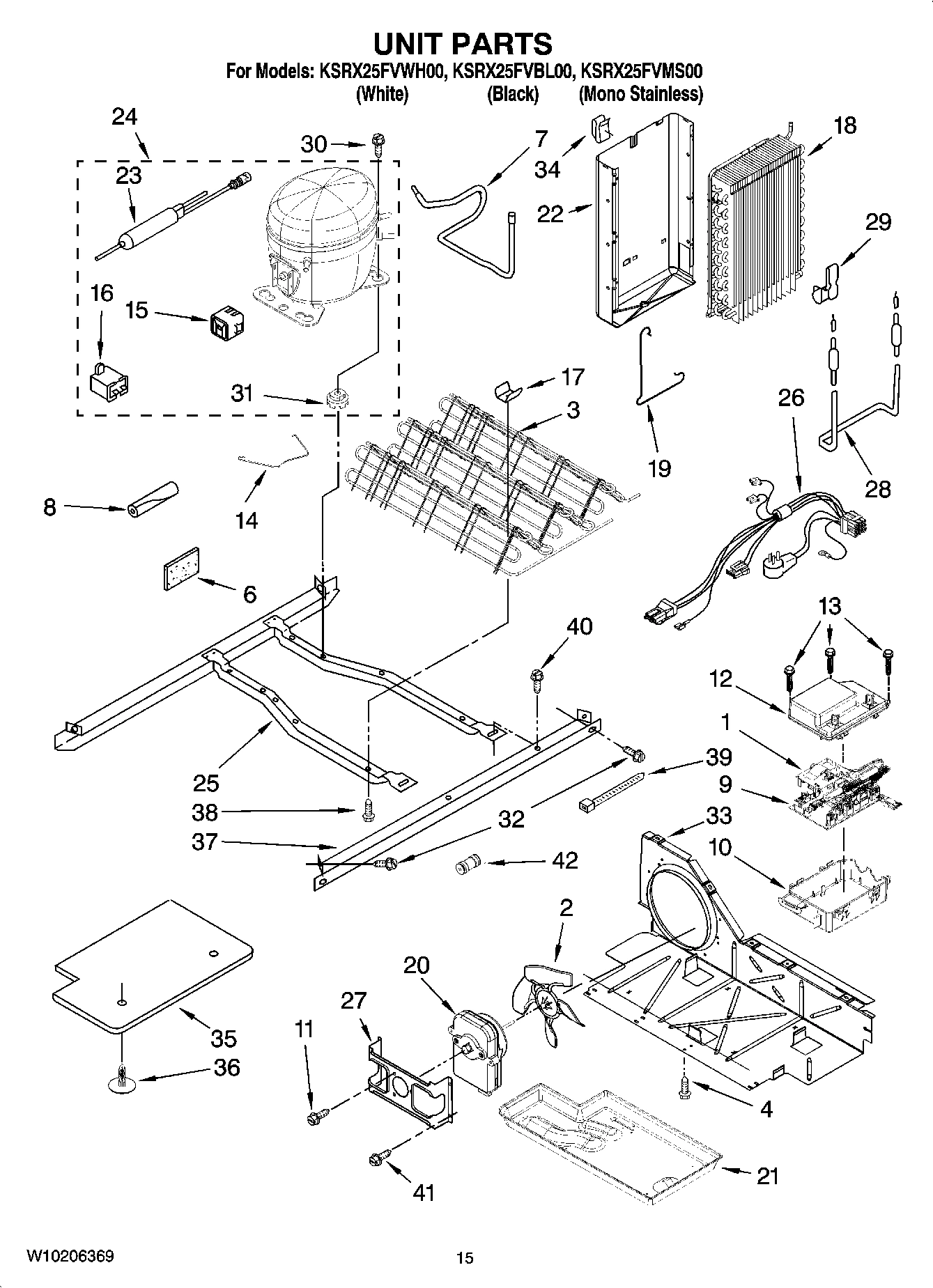

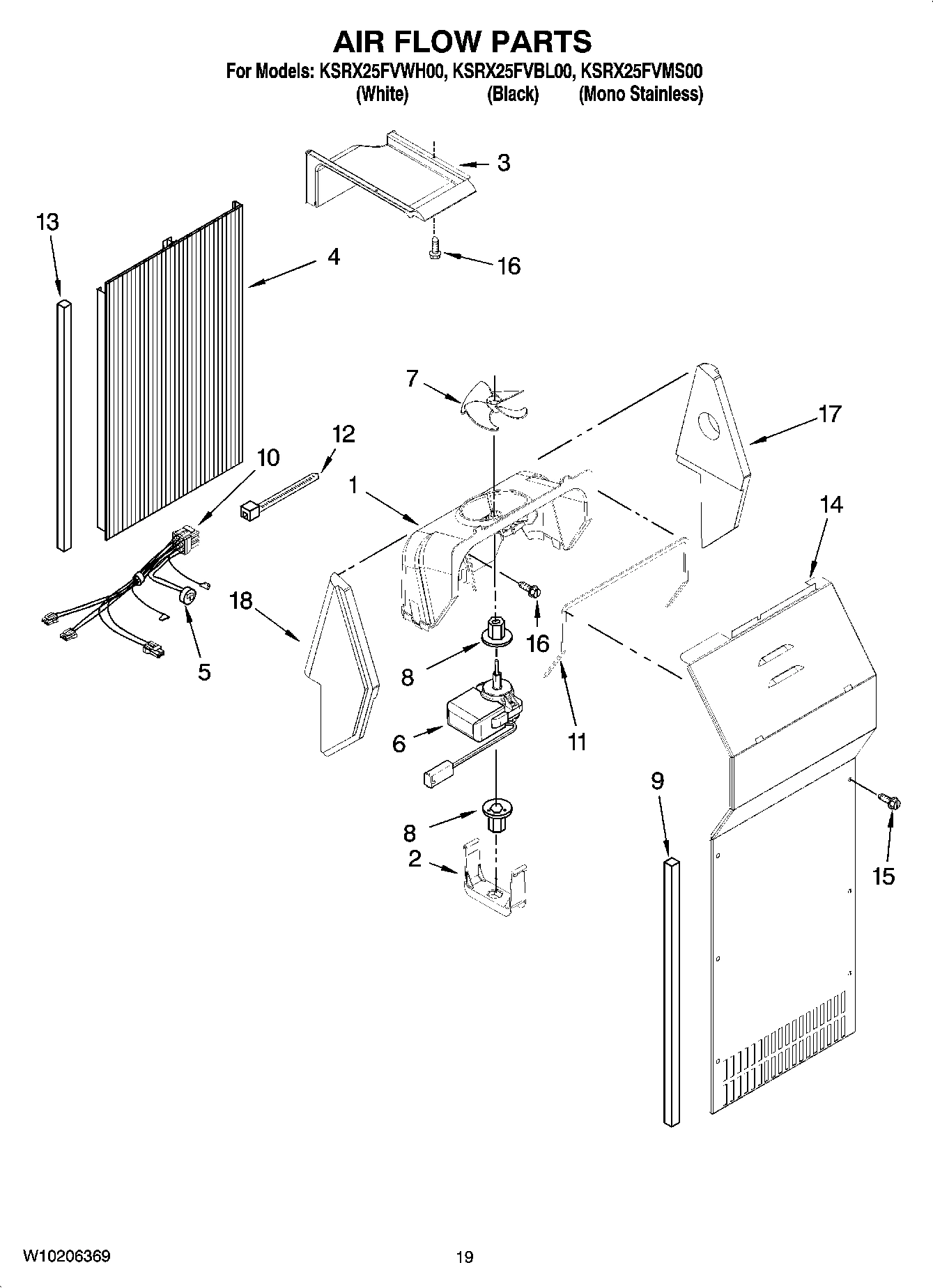

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $137.43

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

1

WPW10120818 Whirlpool Refrigerator Electronic Backorder WPL WPW10120818 $134.21

1

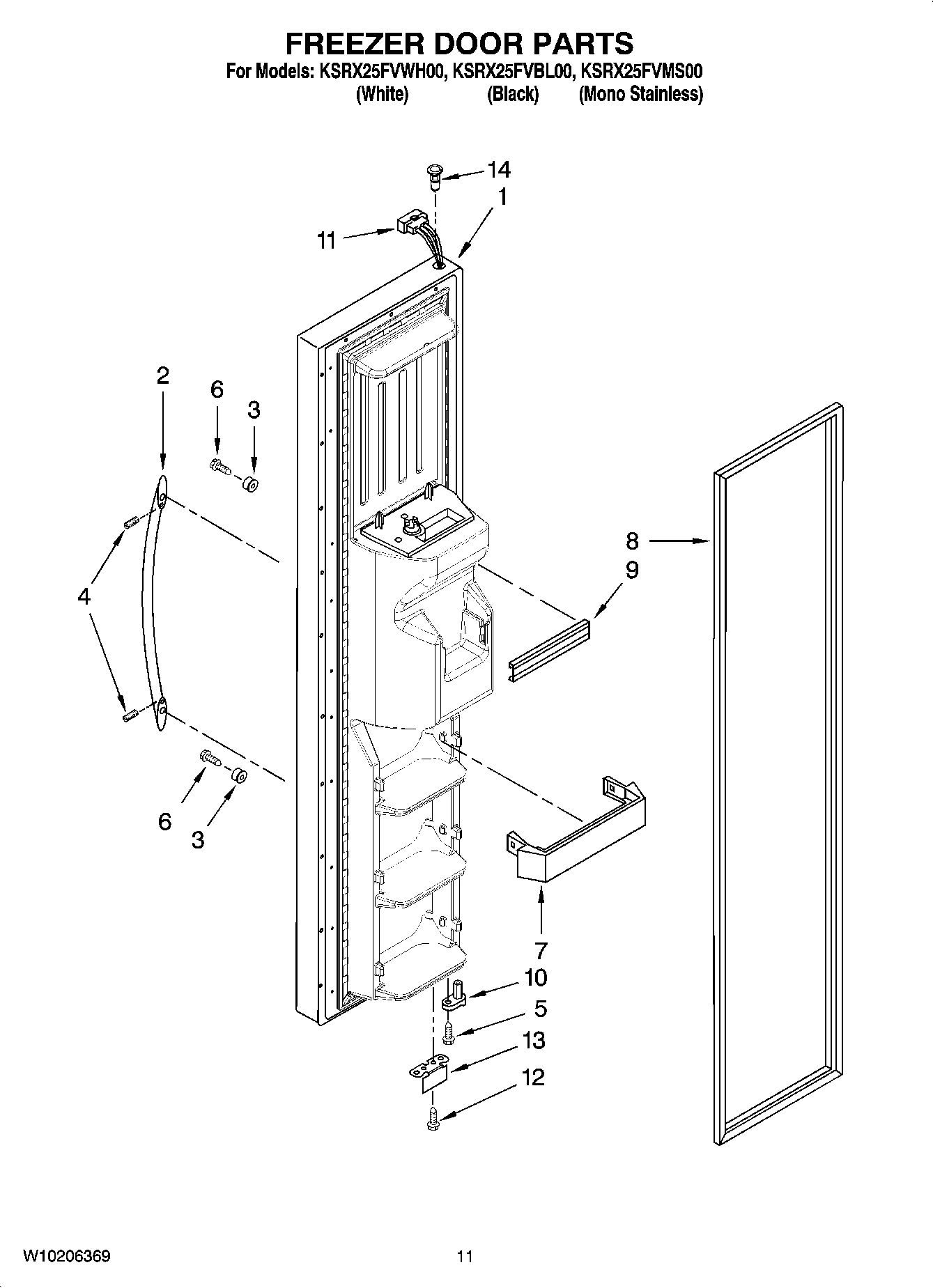

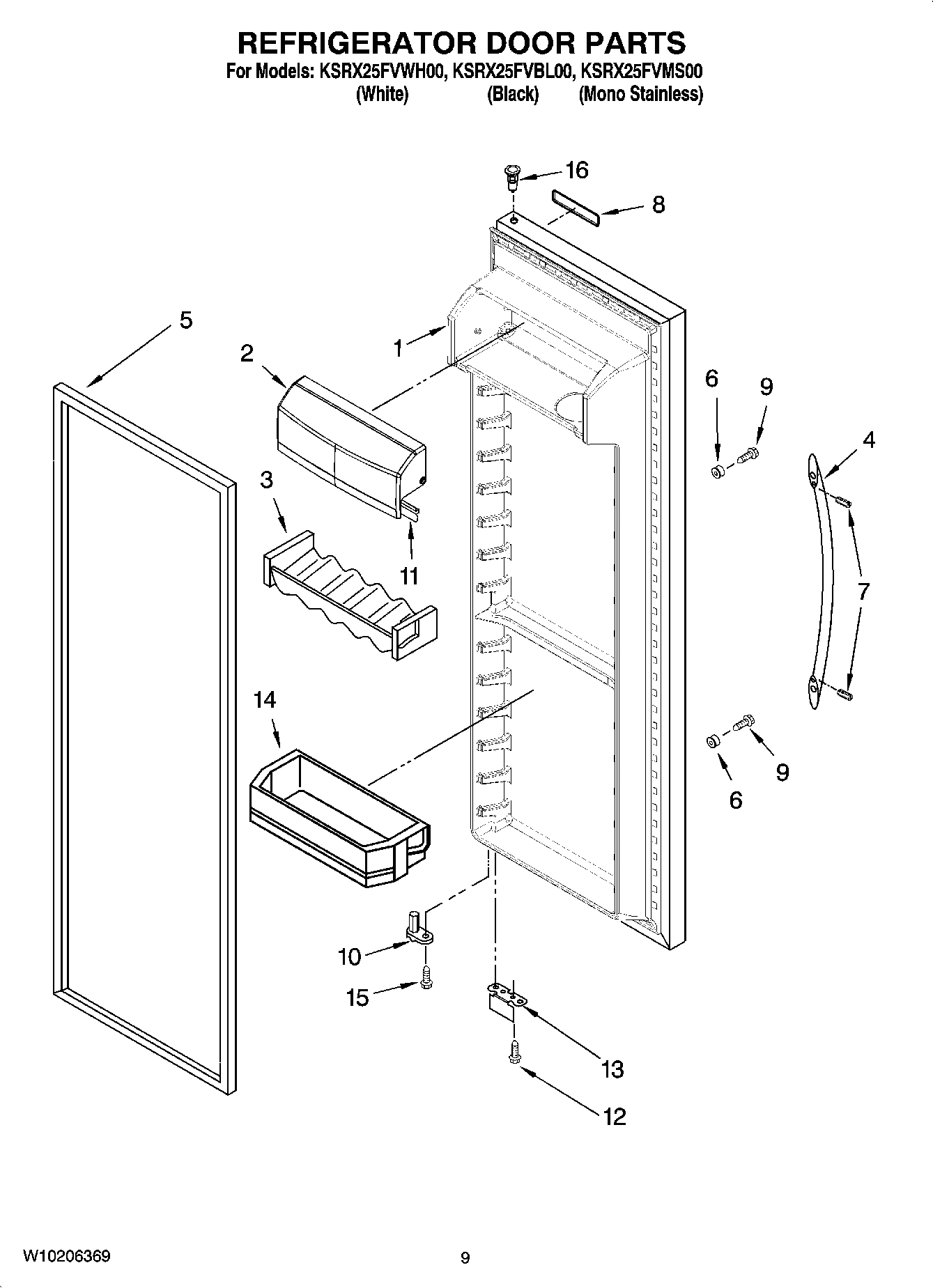

Refrigerator Door (Includes 7) (Stainless Ste WPL 2301184S Contact Us For Availability

1

Refrigerator Door (Includes 7) (Monochromatic WPL 2301184SAP Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL 2313299B Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2313299W Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Door, Compartment WPL 2301486 Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $60.45

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Tube, Water WPL 2303216 Contact Us For Availability

3

Beverage Holder (2) WPL 2193409K Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

4

Handle (Black) WPL 2319727B Contact Us For Availability

4

Washer WPL 2258220 Contact Us For Availability

4

Air Duct Freezer WPL 2198580 Contact Us For Availability

4

Handle (White) WPL 2319727W Contact Us For Availability

5

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $122.49

5

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $107.31

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Snack Pan (Includes 30) WPL W10165555 Contact Us For Availability

7

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

7

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

7

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

7

Glide Assy (Right Side) WPL 2301548 Contact Us For Availability

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Glide Assy (Left Side) WPL 2301549 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

8

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

8

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

8

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

8

Nameplate (Gray) WPL W10046610 Contact Us For Availability

8

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

8

Glass, Cover WPL 2301010 Contact Us For Availability

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4) WPL 2301567 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $35.67

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W11225843 Whirlpool Refrigerator Wire Harness Backorder WPL W11225843 $64.74

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Glass, Cover WPL W10141754 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Crisper Pan (Includes 13 & 15) WPL W10165598 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Meat Pan (Includes 16) WPL W10165656 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $82.67

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

Window, Crisper WPL 2301009 Contact Us For Availability

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $29.85

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $69.88

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $43.18

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $36.47

Thimble-Top (For Stainless) WPL 2301049 Contact Us For Availability

Deflector WPL 2301126 Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $70.92

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Fascia Assy (Stainless) WPL W10144818 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2301016 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2301017 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Window, Meat Pan WPL 2301227 Contact Us For Availability

Thimble-Top (For Stainless) WPL 2308050 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $75.95

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Front Bezel-Disp (Stainless) WPL W10139842 Contact Us For Availability

Shelf & Roller Assembly WPL 2216102 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Tube, Extension WPL 2304937 Contact Us For Availability

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

Latch, Bin WPL 2317277 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.26

23

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

23

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

23

Trim, Snack Pan WPL 2301006 Contact Us For Availability

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

25

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

25

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

25

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

26

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $69.65

26

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

26

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $15.13

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Cover, Receiver WPL W10173569 Contact Us For Availability

Enclosure, Motor WPL 2322488 Contact Us For Availability

28

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

28

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

28

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

30

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

30

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $28.04

33

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

35

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

36

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

37

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

40

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

41

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability
