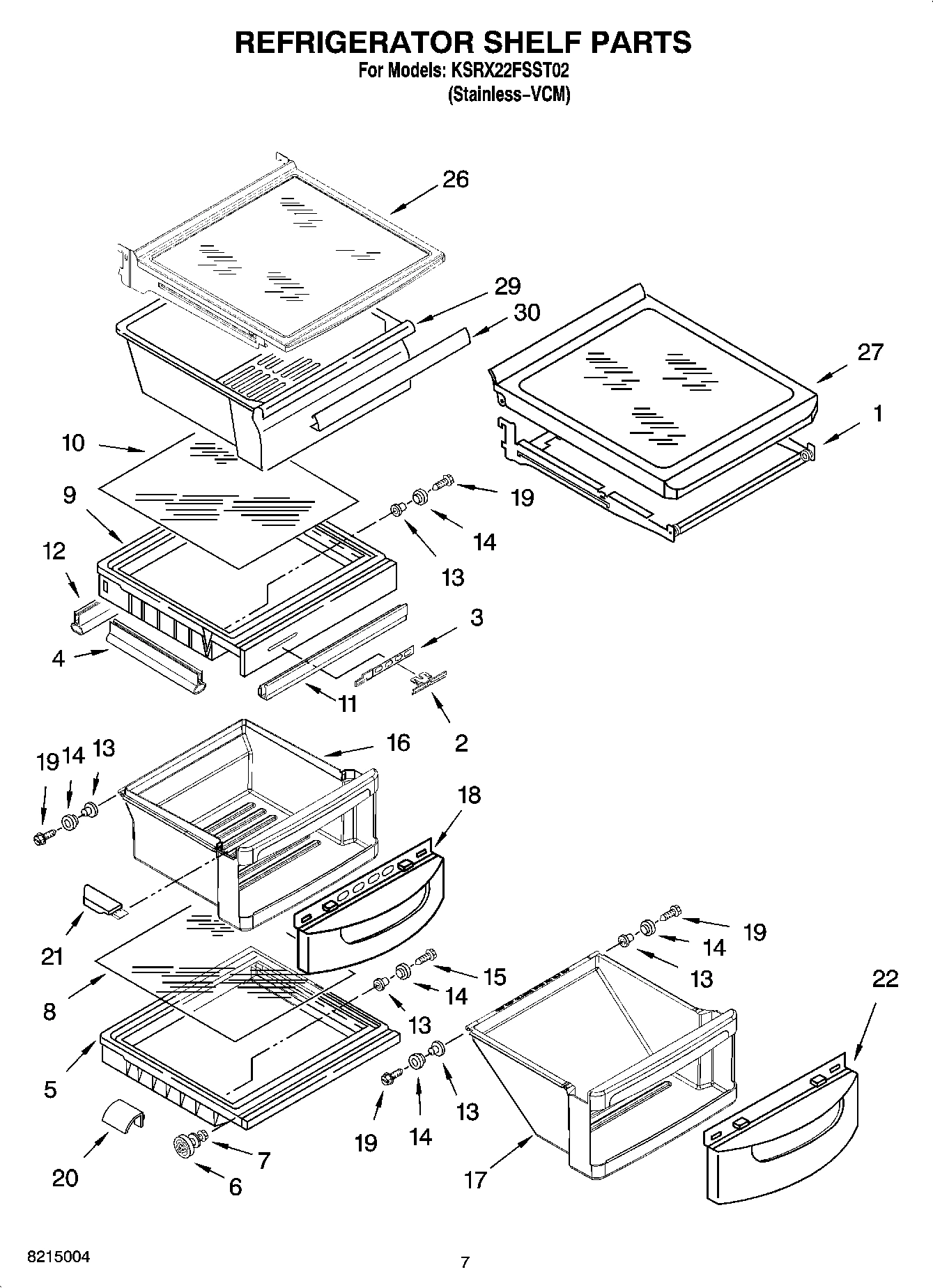

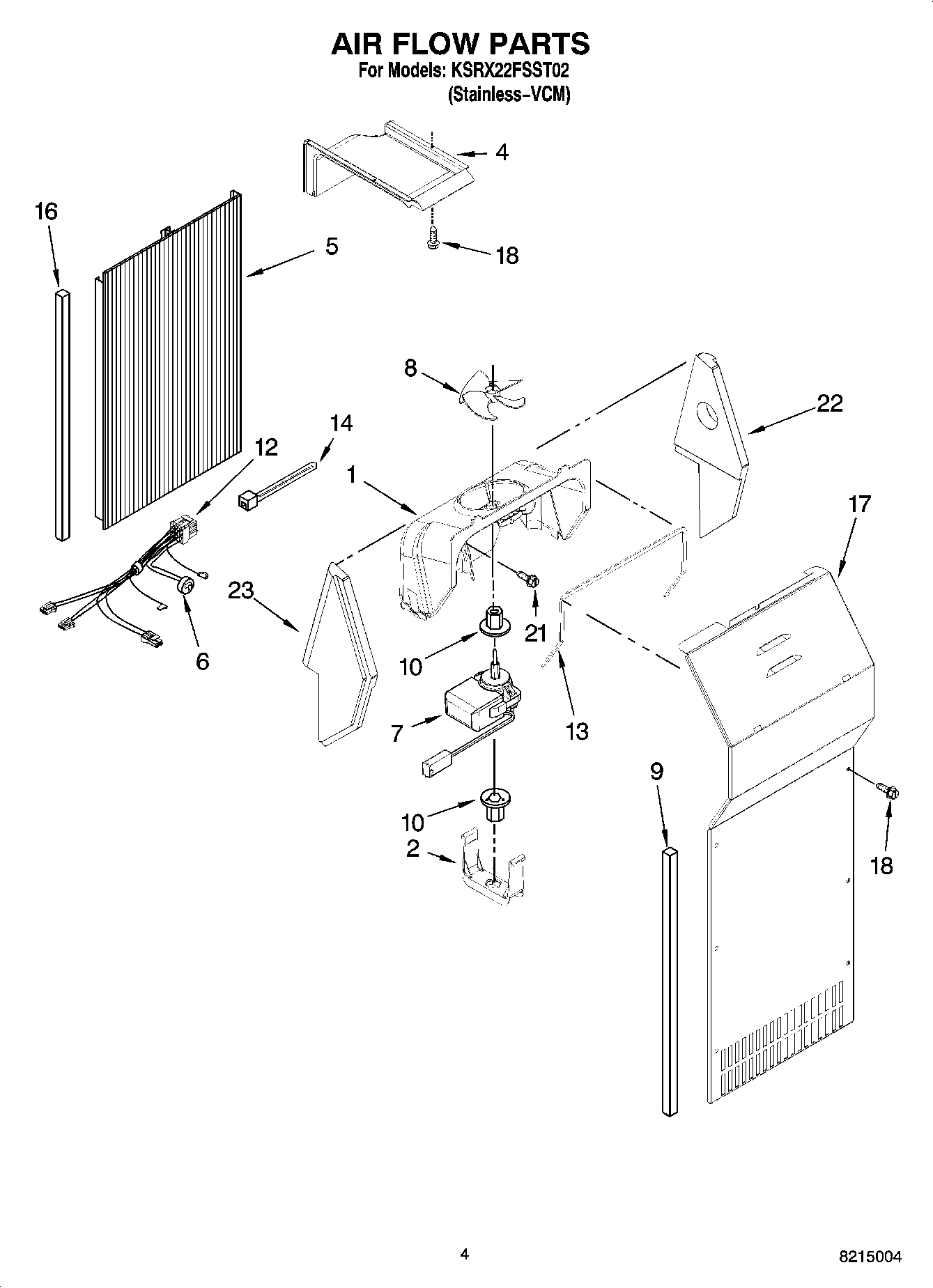

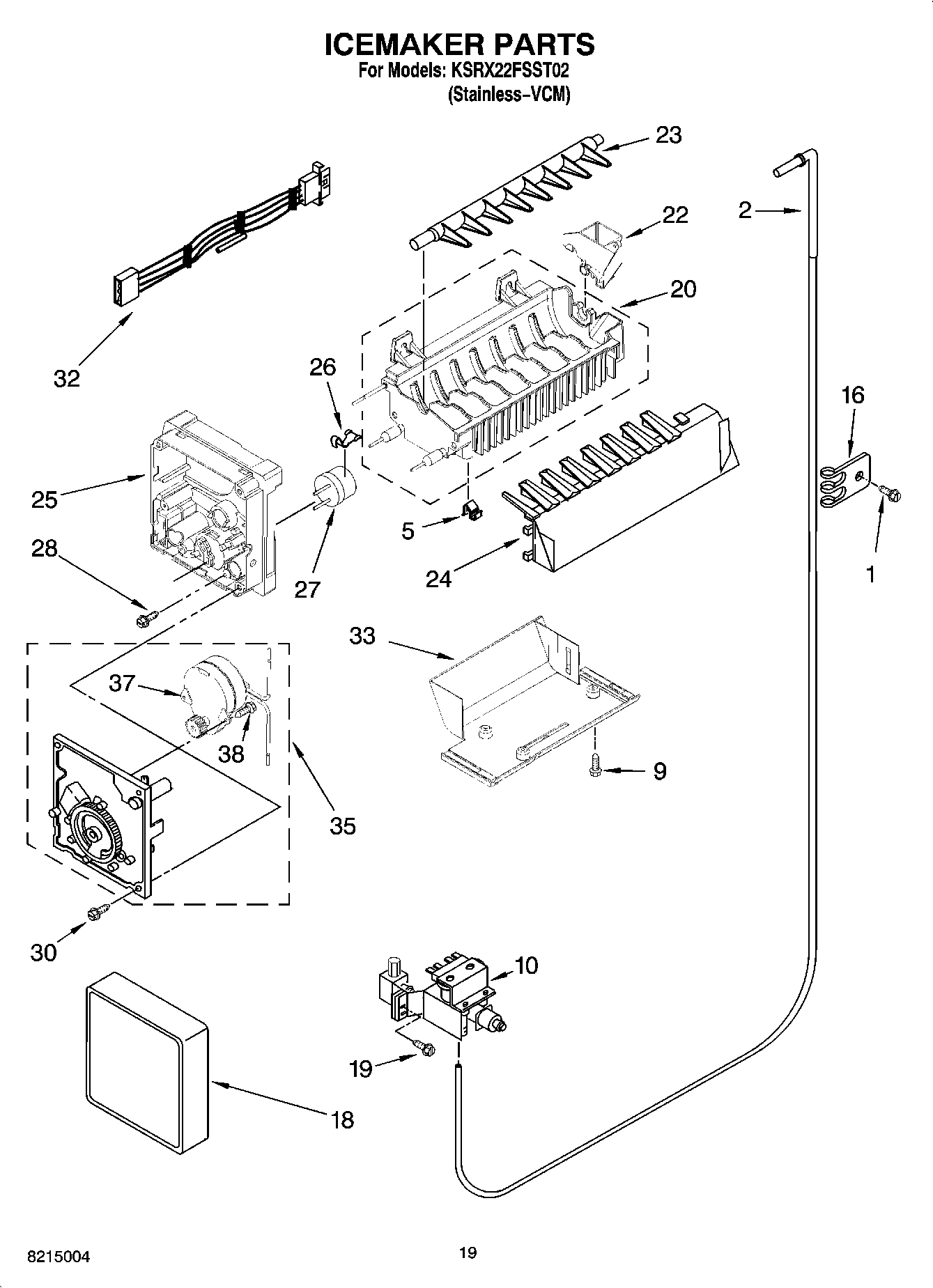

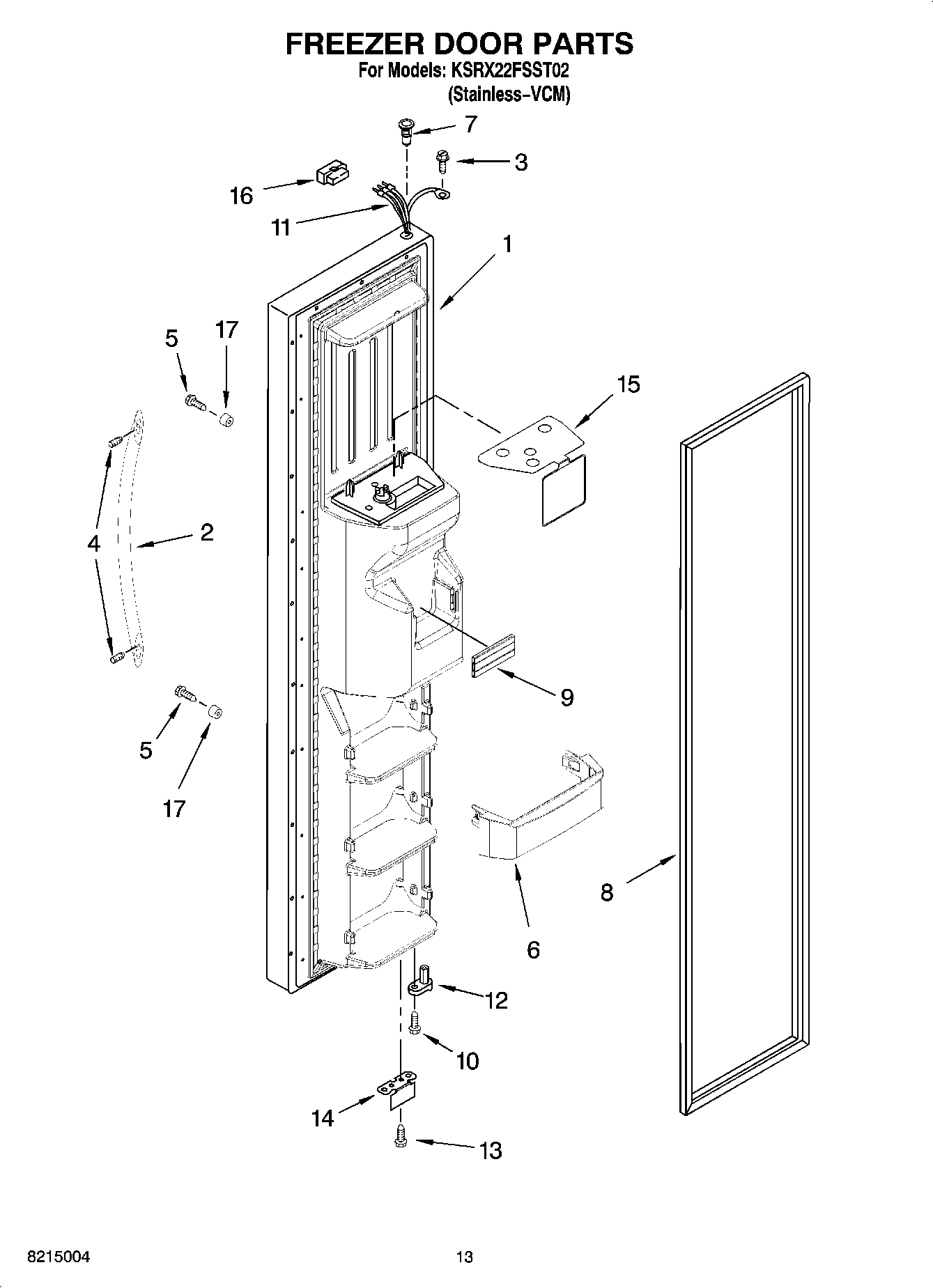

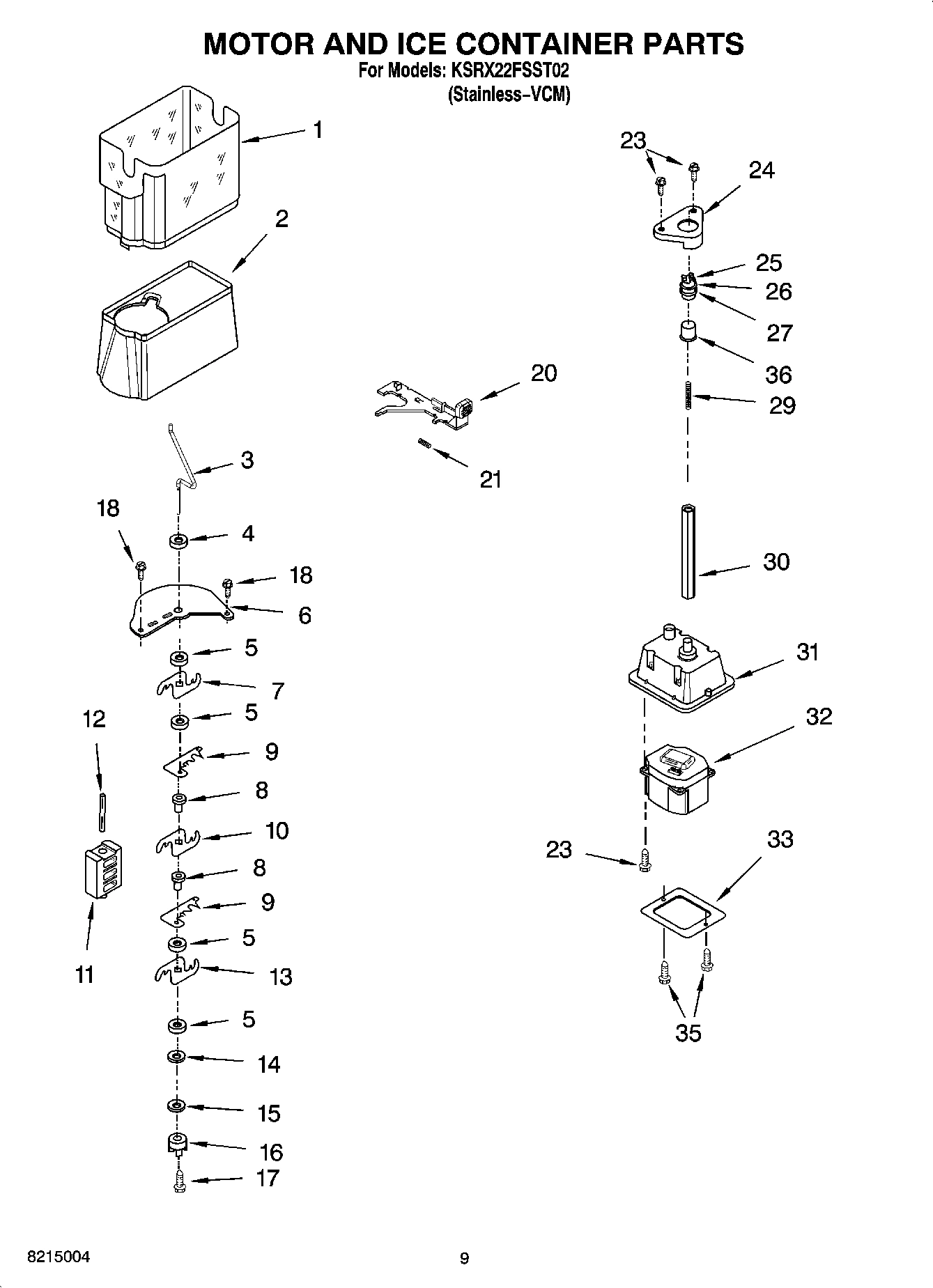

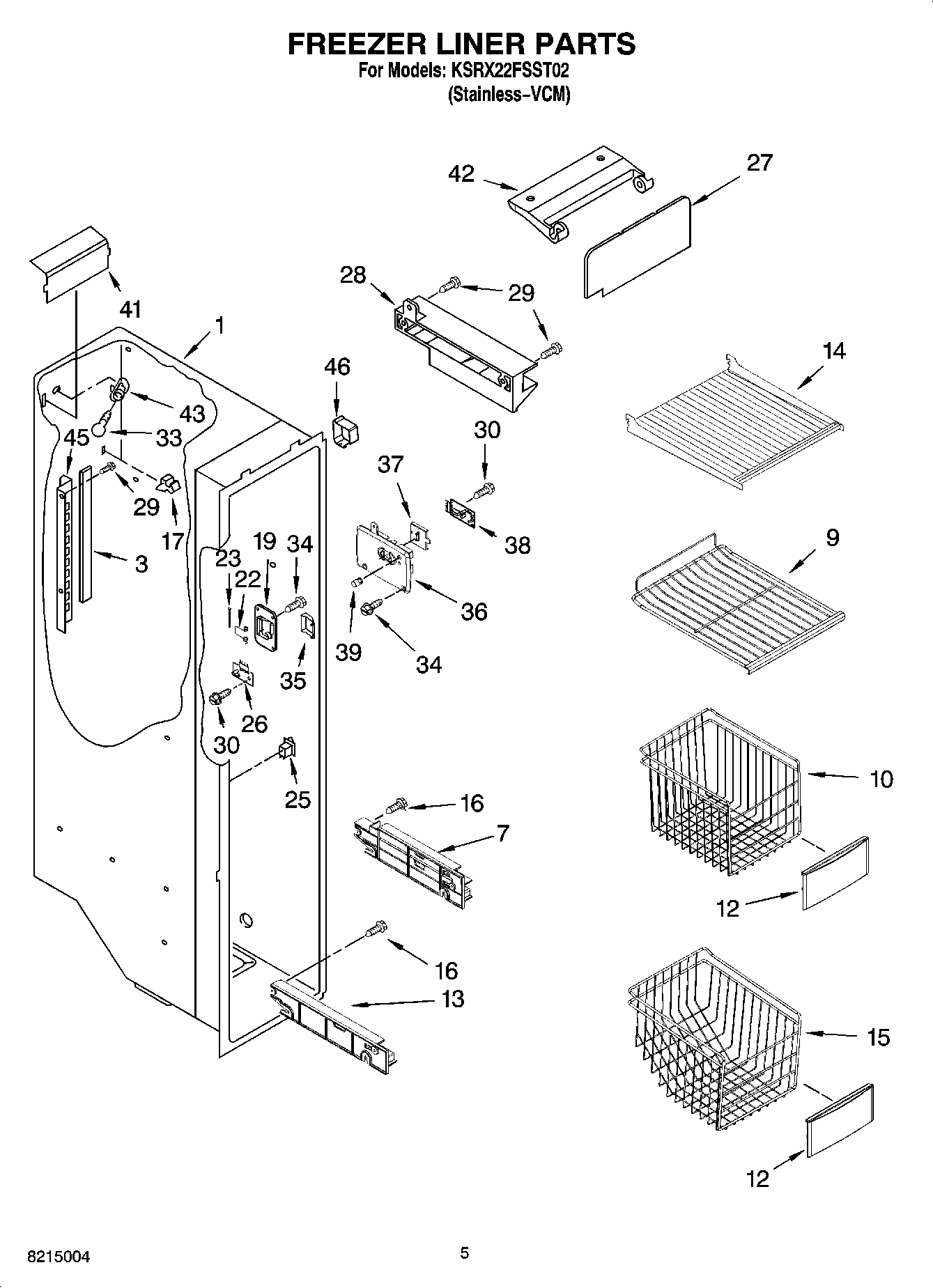

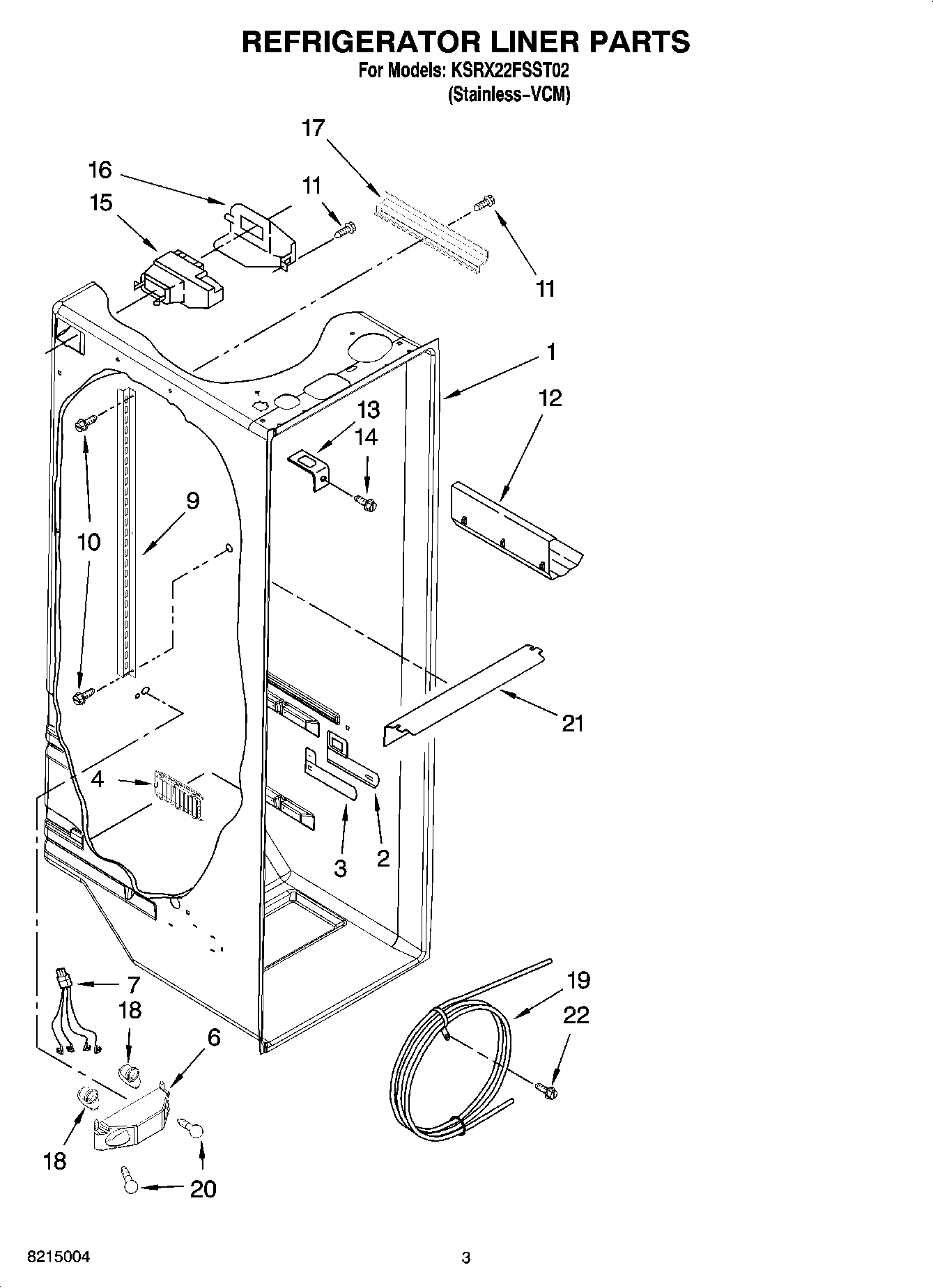

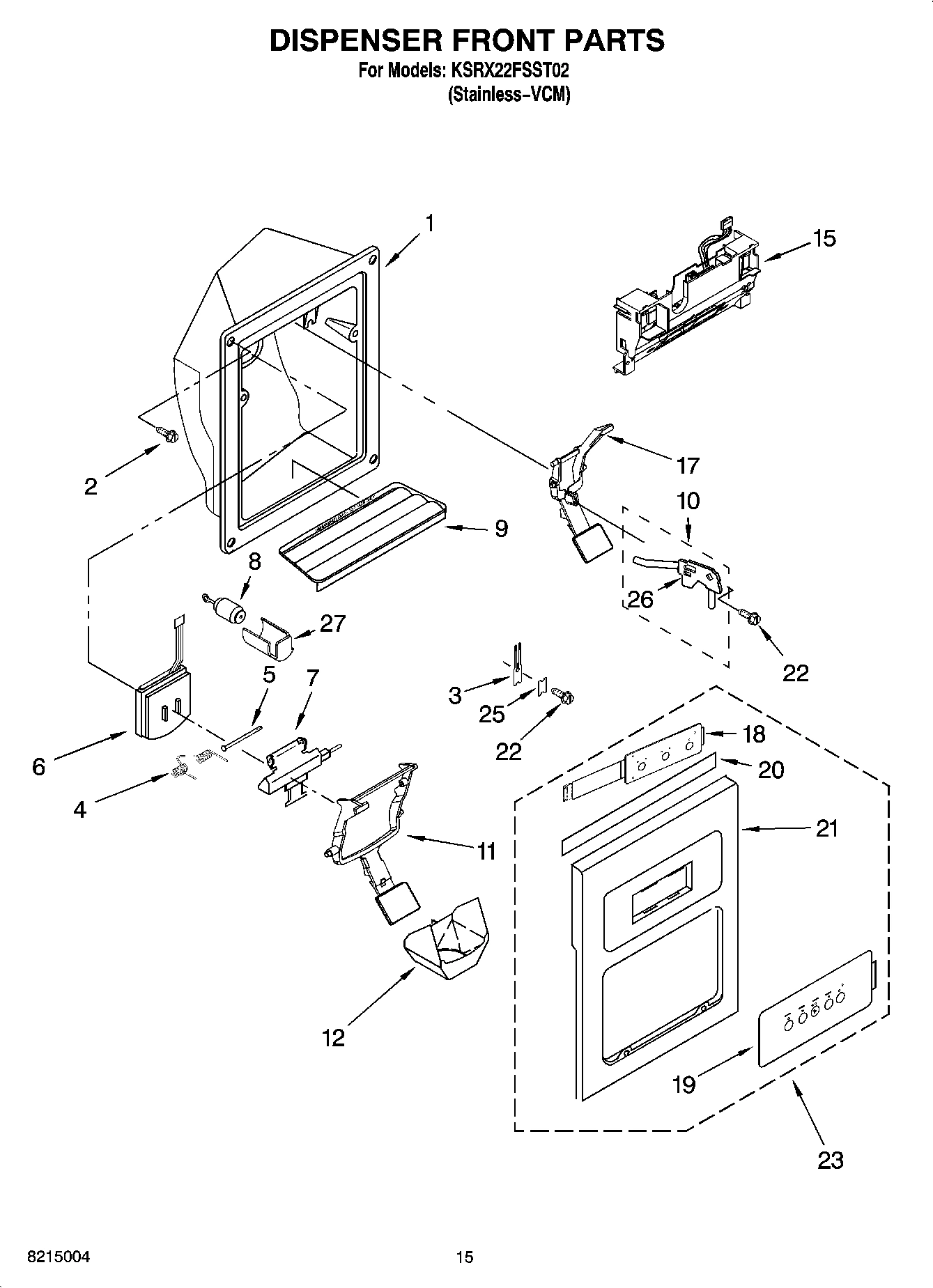

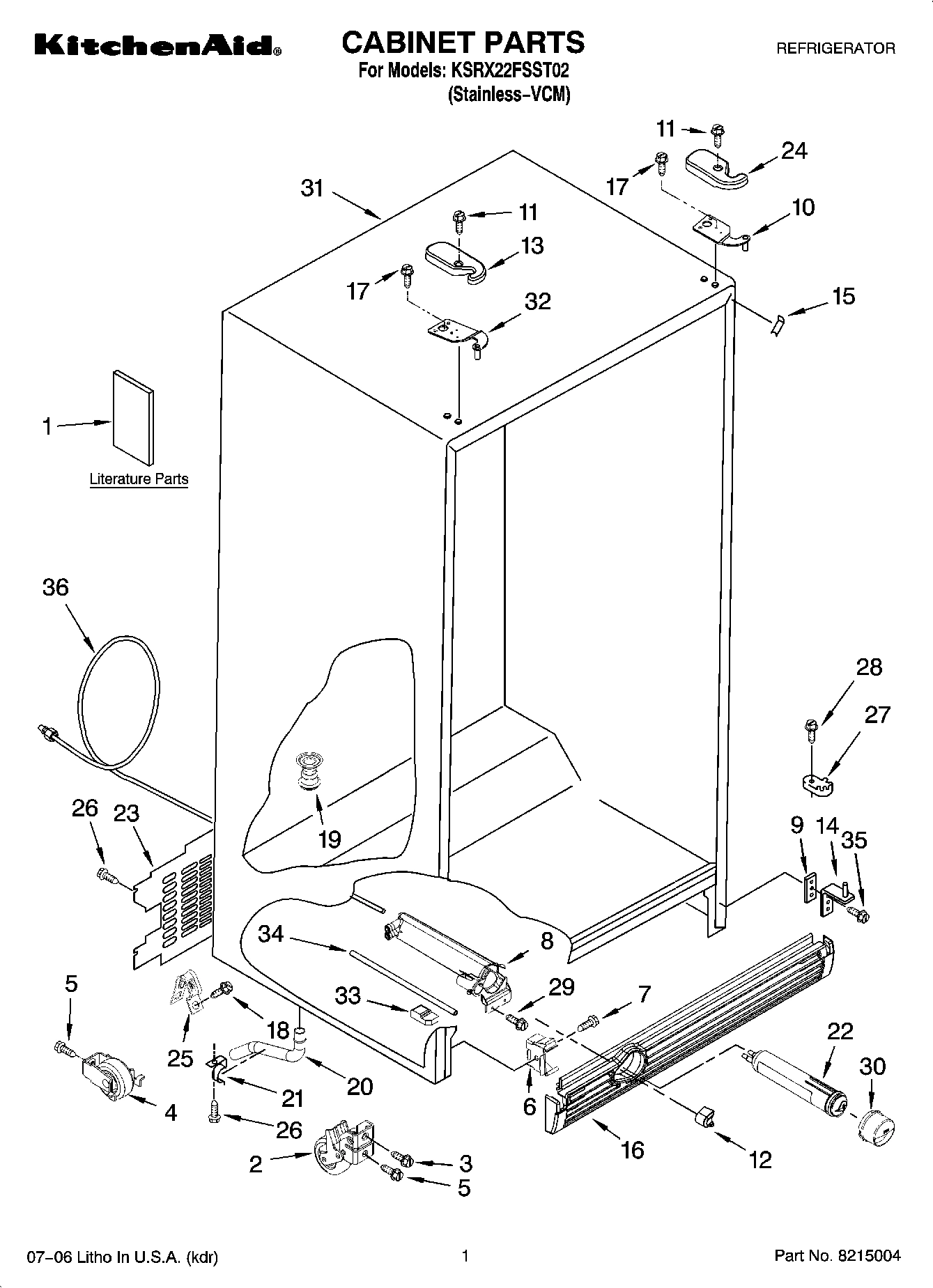

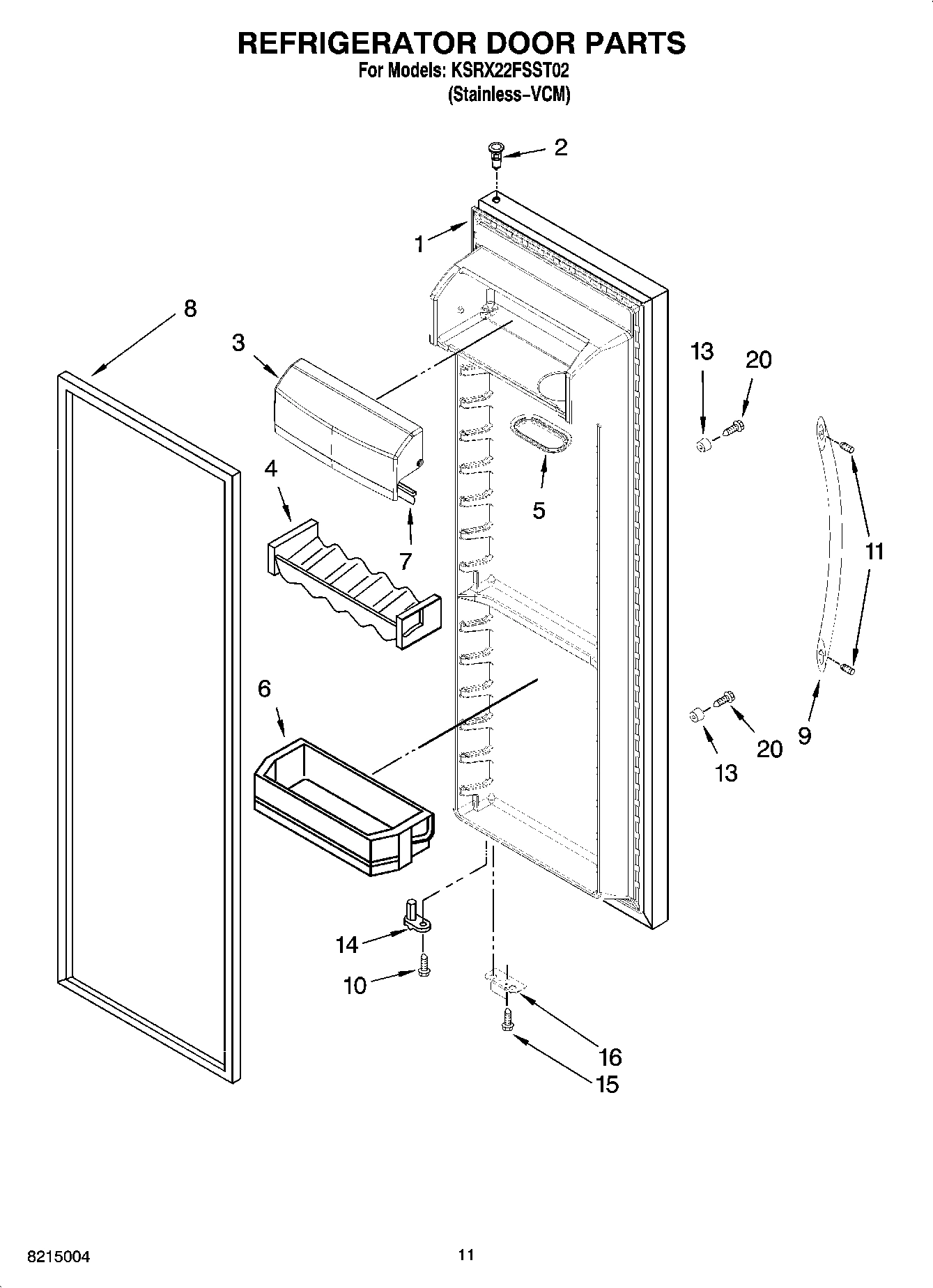

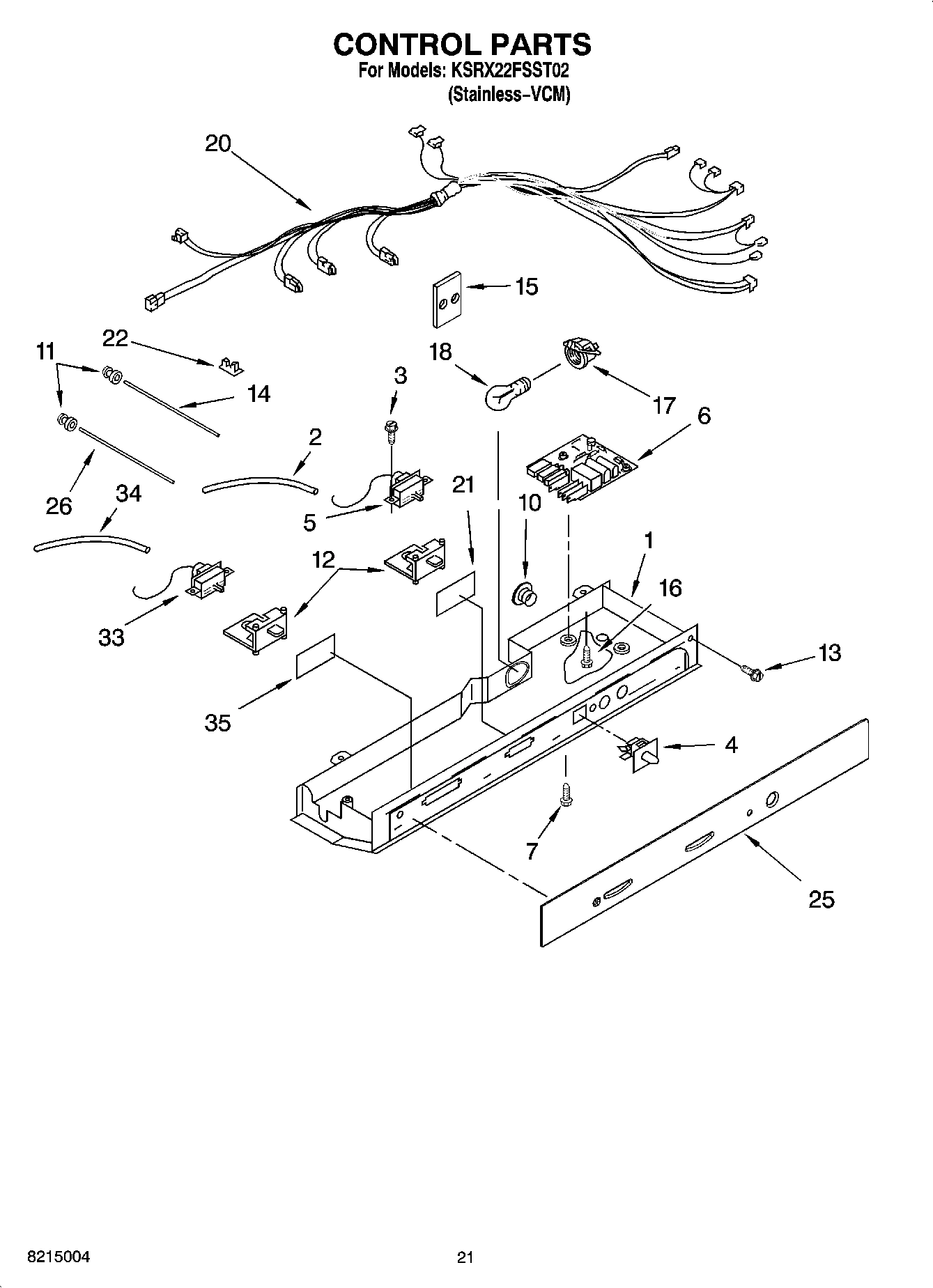

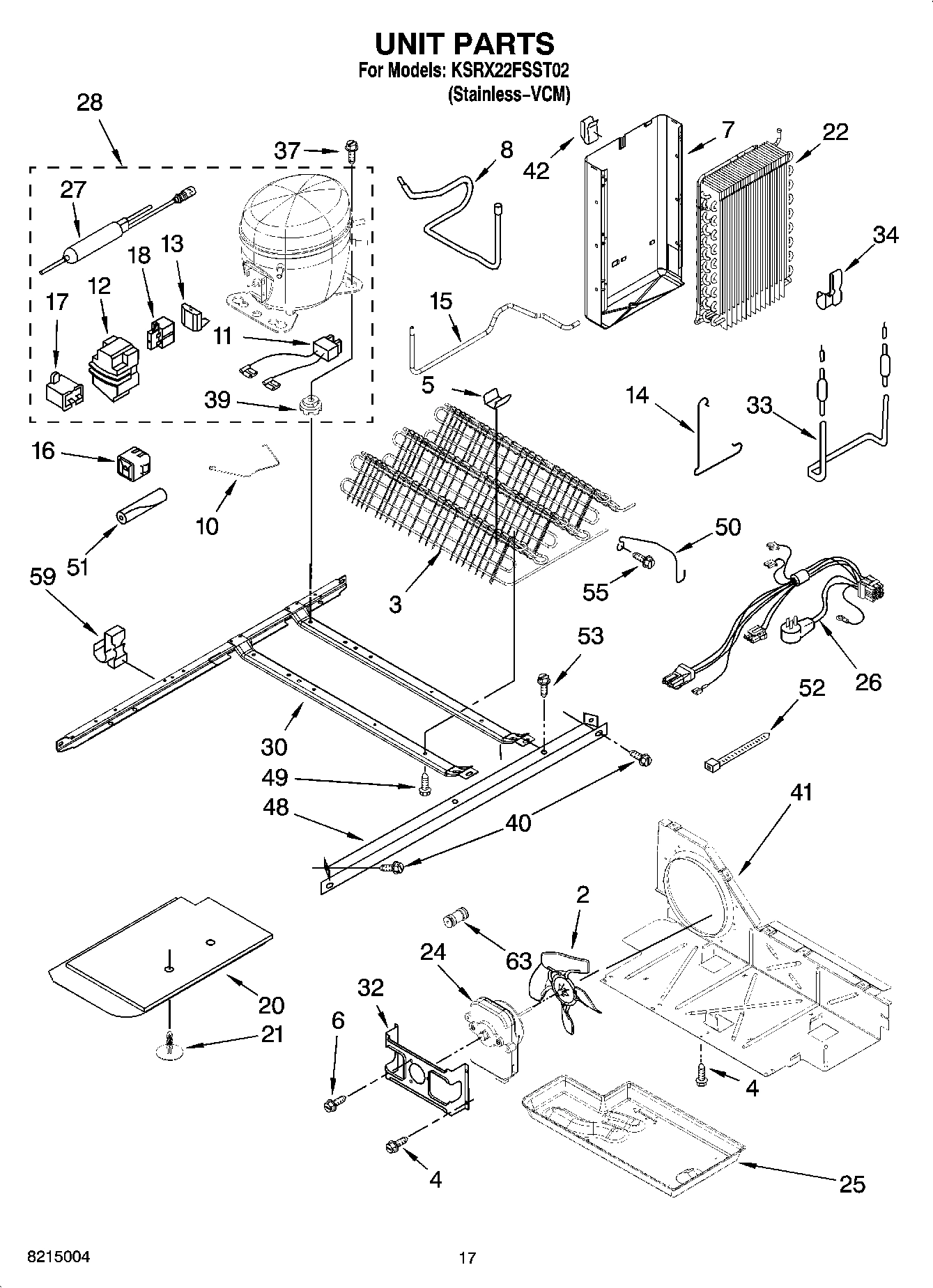

Model Whirlpool KSRX22FSST02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Liner (Not A Seviceable Part) WPL ARI104641A Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Stainles WPL 2301188L Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Service & Wiring Sheet WPL 2315181 Contact Us For Availability

1

Use & Care Guide WPL 2315184 Contact Us For Availability

1

Energy Guide WPL 2318610 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Gasket WPL 2216957 Contact Us For Availability

3

Door, Compartment WPL 2301486 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Beverage Holder WPL 2193409K Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Dish, Butter WPL 2165792K Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Shelf Bin (4) WPL 2171063K Contact Us For Availability

7

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $63.66

7

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $64.89

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

Gasket WPL 2159124 Contact Us For Availability

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Ladder WPL 2206270 Contact Us For Availability

9

Shelf, Slide Out Upper WPL 2211743K Contact Us For Availability

9

Handle (Stainless) WPL 2304832SK Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

Basket, Tall WPL 2301192 Contact Us For Availability

11

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

11

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

11

Block, Blade WPL 2198602 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

Backorder WPL 2179404 $8.47

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $72.87

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

Basket Front WPL 2305582K Contact Us For Availability

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Light, Bar WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Shelf (2) WPL 2212343K Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $174.78

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Basket, Sloped WPL 2301193 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

Grille (Black) WPL 2260501B Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Window, Crisper WPL 2174076 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

20

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Screw WPL 488280 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

24

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

24

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

24

Holder WPL 2212369 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

Cover, Icemaker WPL 2255591 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

31

Cabinet, (Not A Serviceable Part) WPL ARI104639A Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $115.68

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

33

Block, Housing Support WPL 2260519 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $47.93

36

Cover, Receiver WPL 2255561 Contact Us For Availability

37

Slide, Ice Maker Shut Off WPL 2301340 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

41

2212376 Whirlpool Light Lens Backorder WPL 2212376 $28.80

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

45

Ladder (Left Side) WPL 2212315 Contact Us For Availability

45

Ladder (Right Side) WPL 2212316 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
