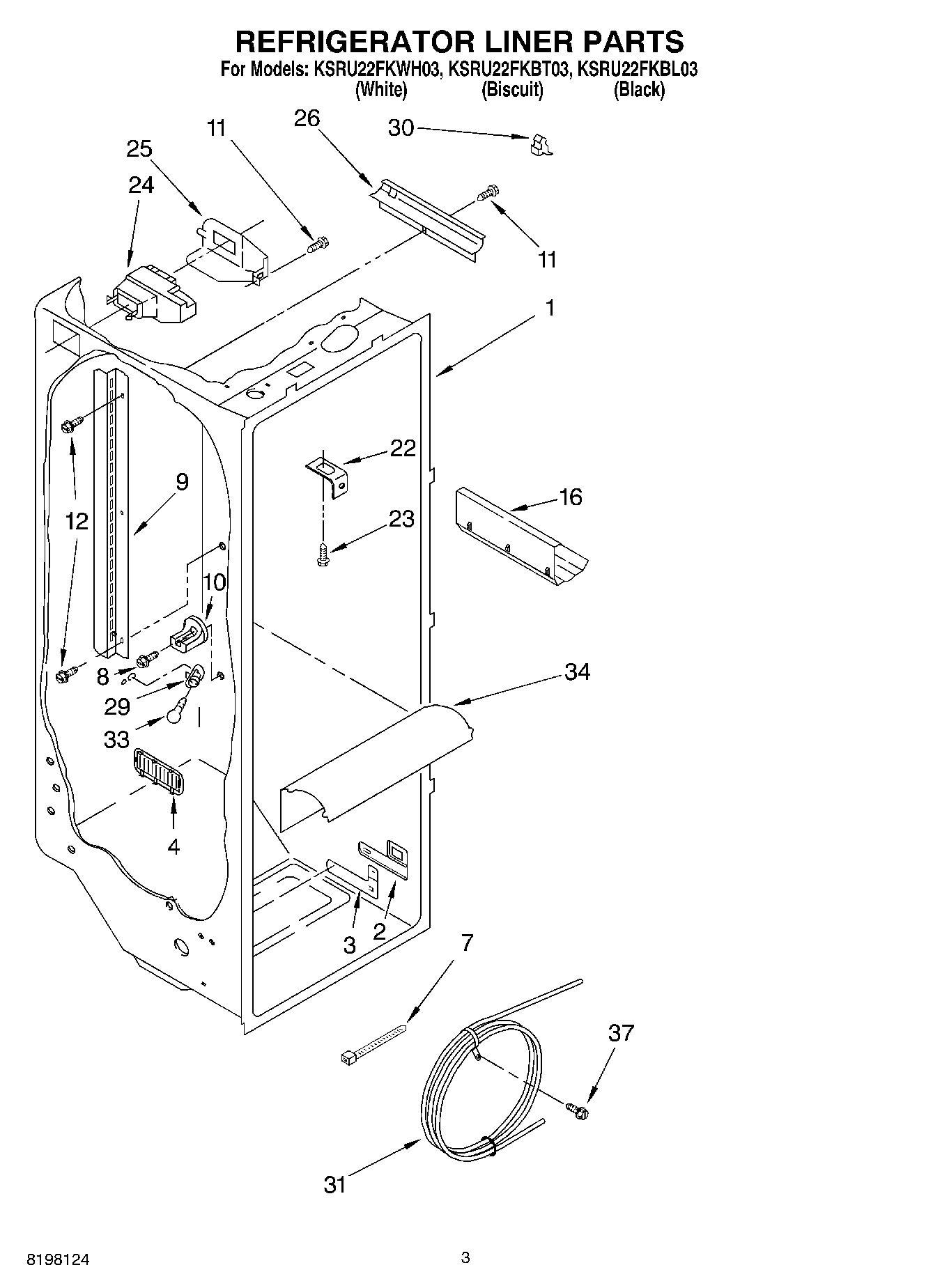

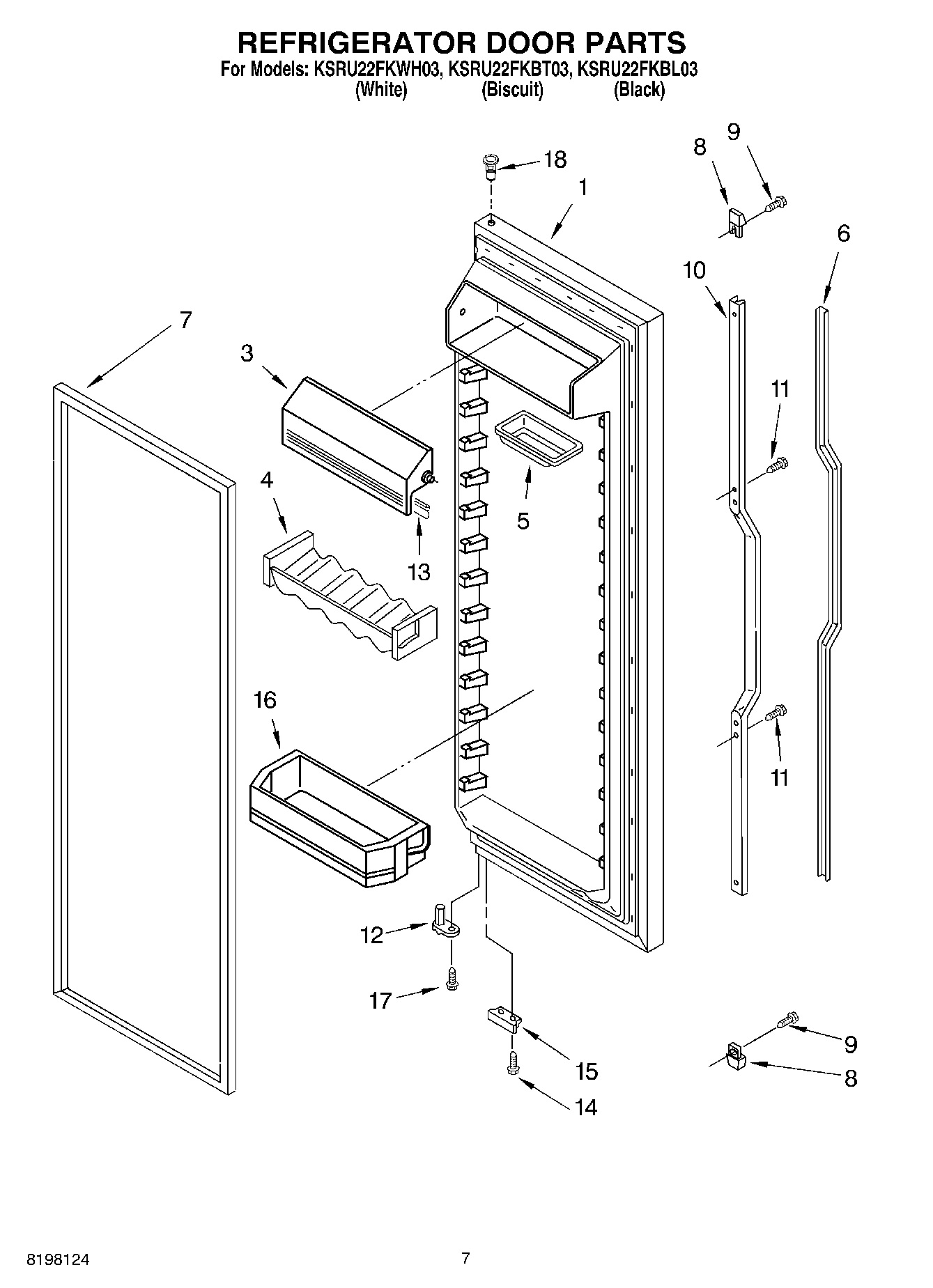

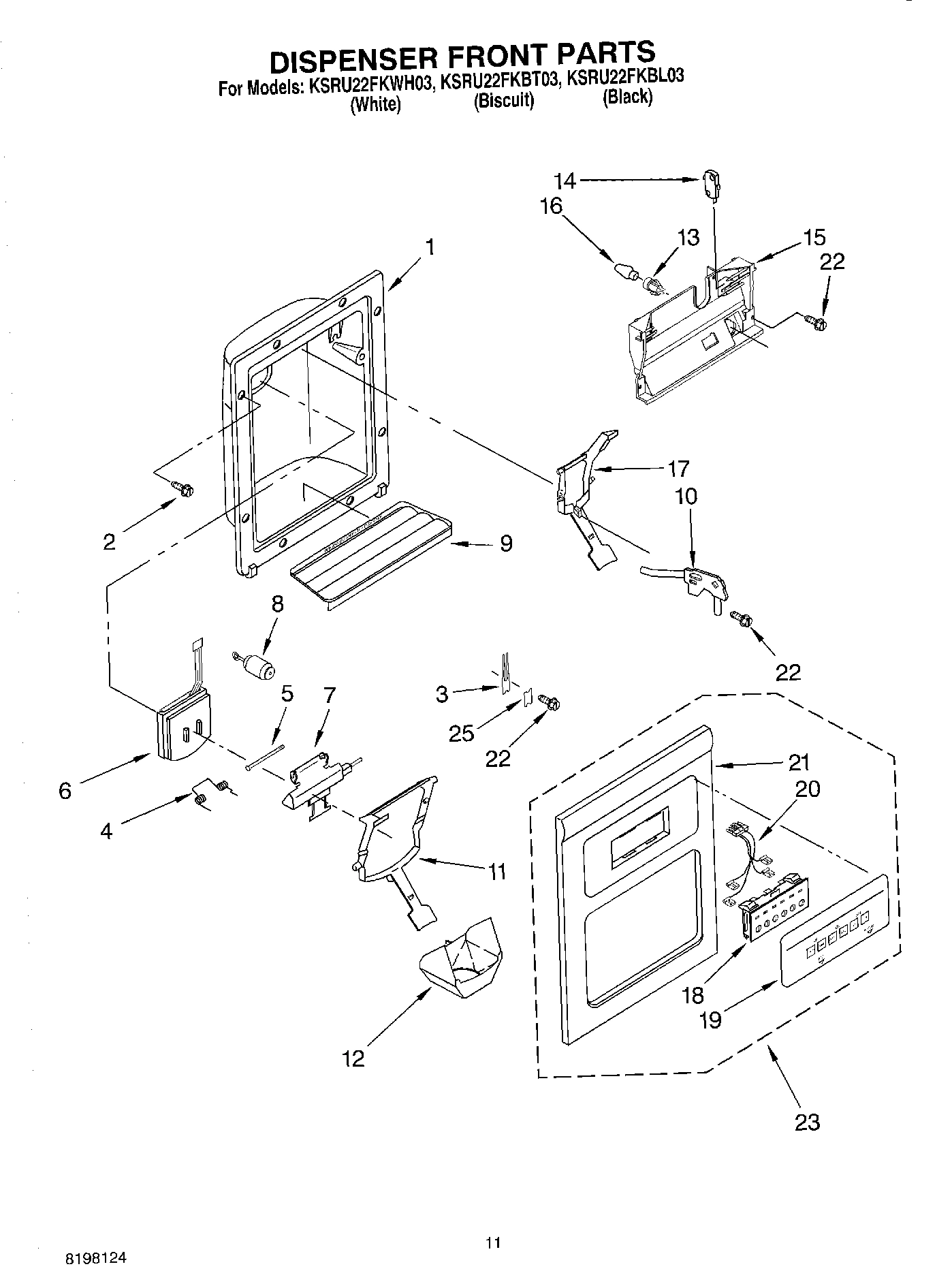

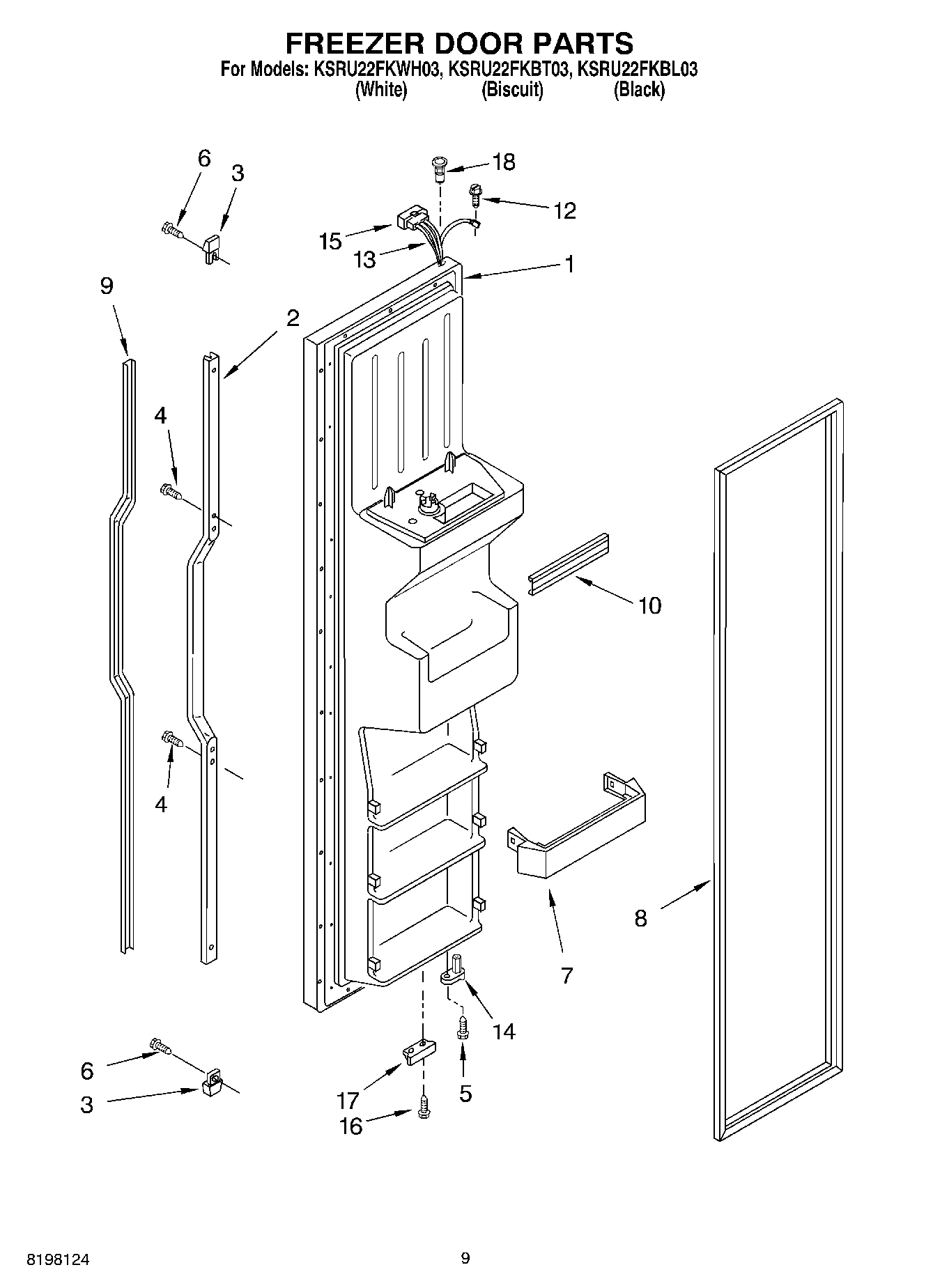

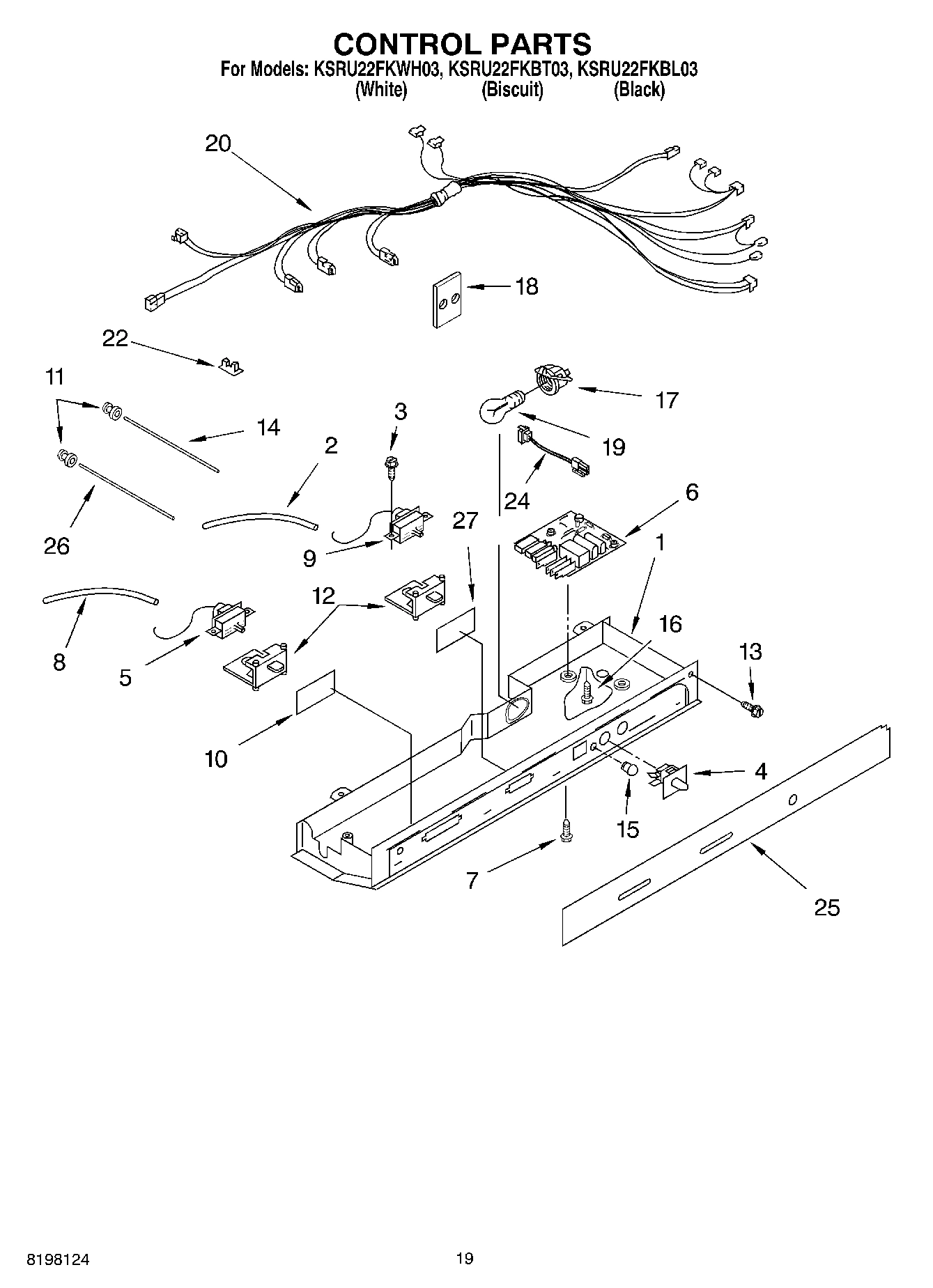

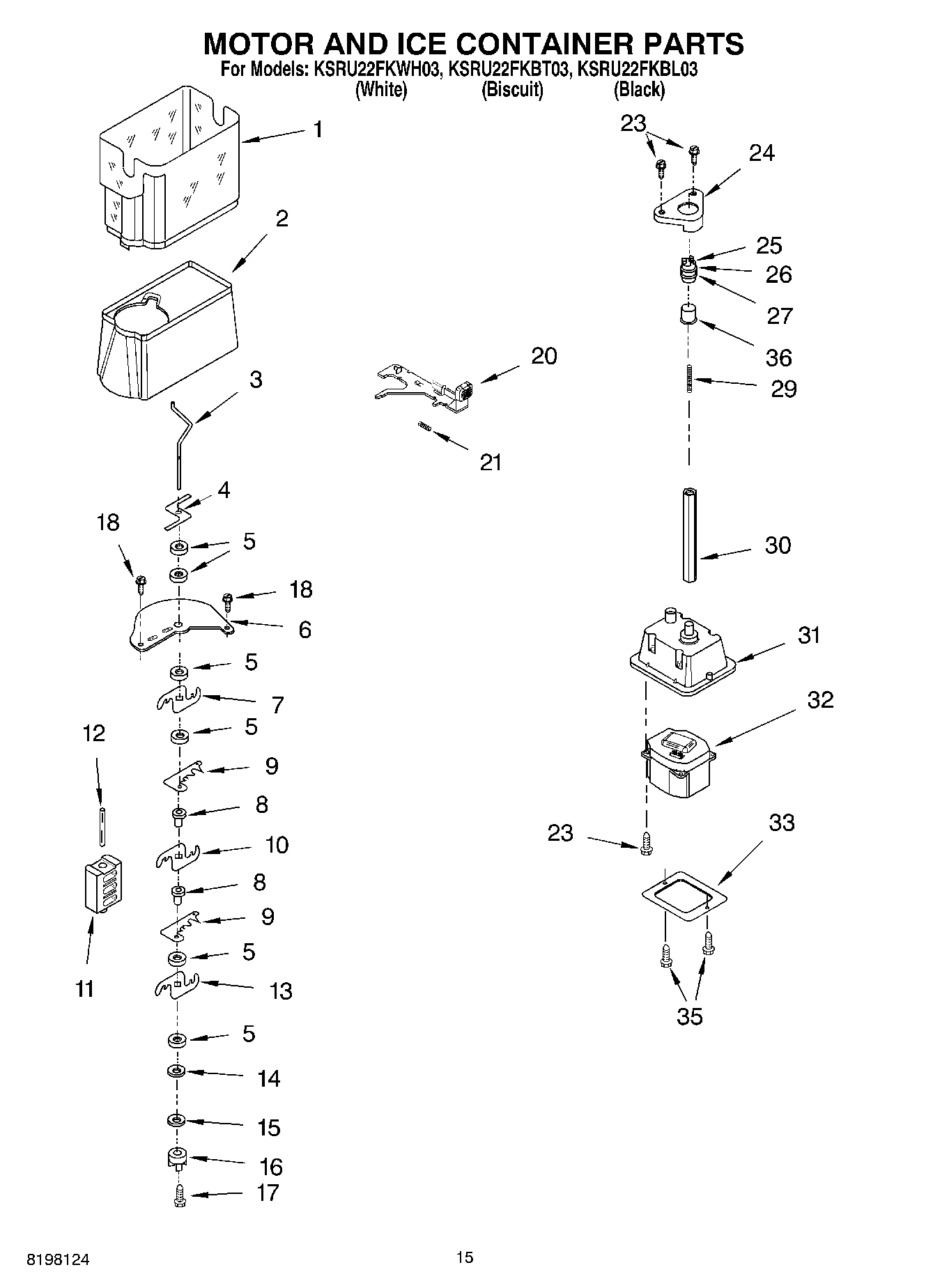

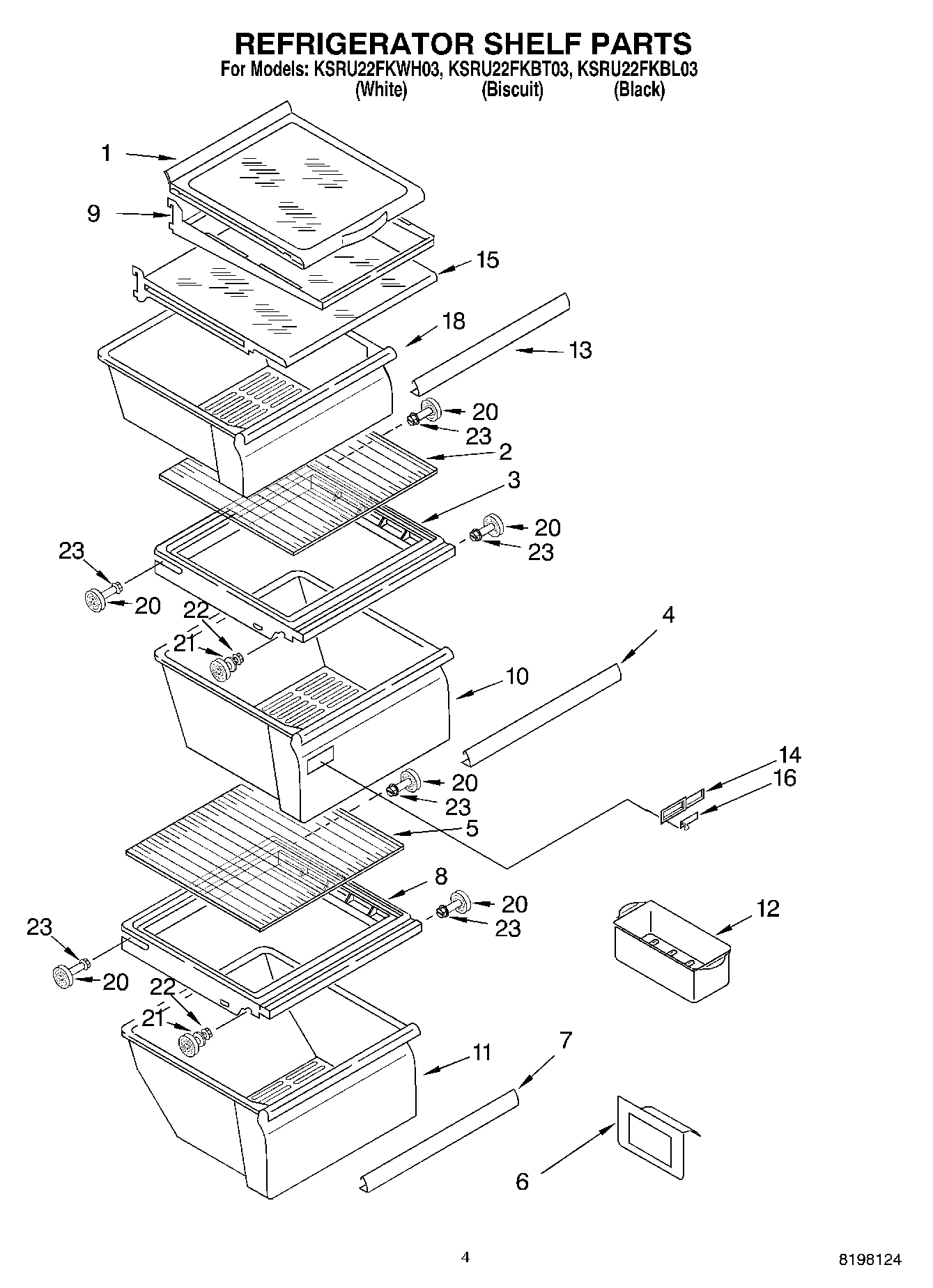

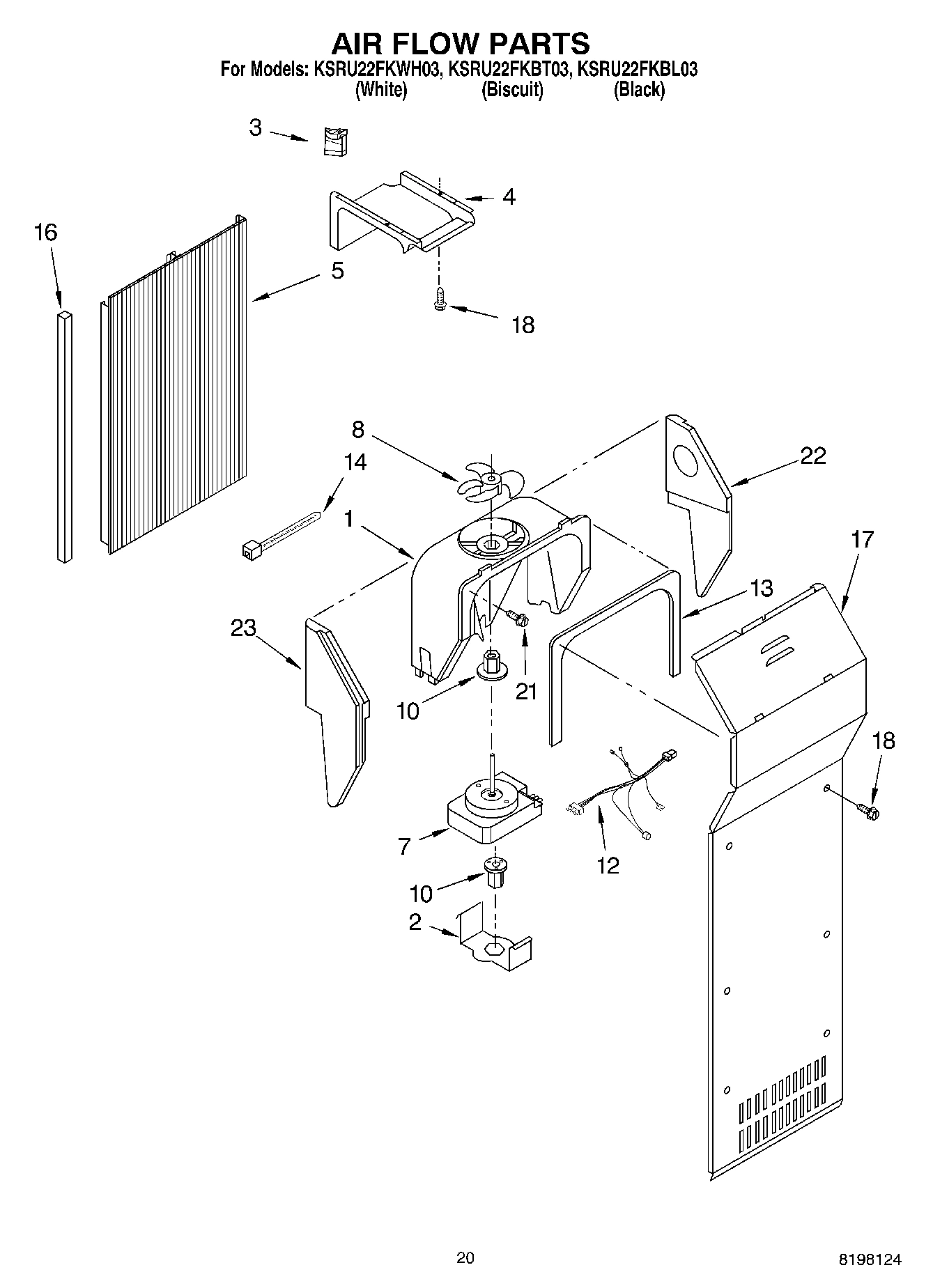

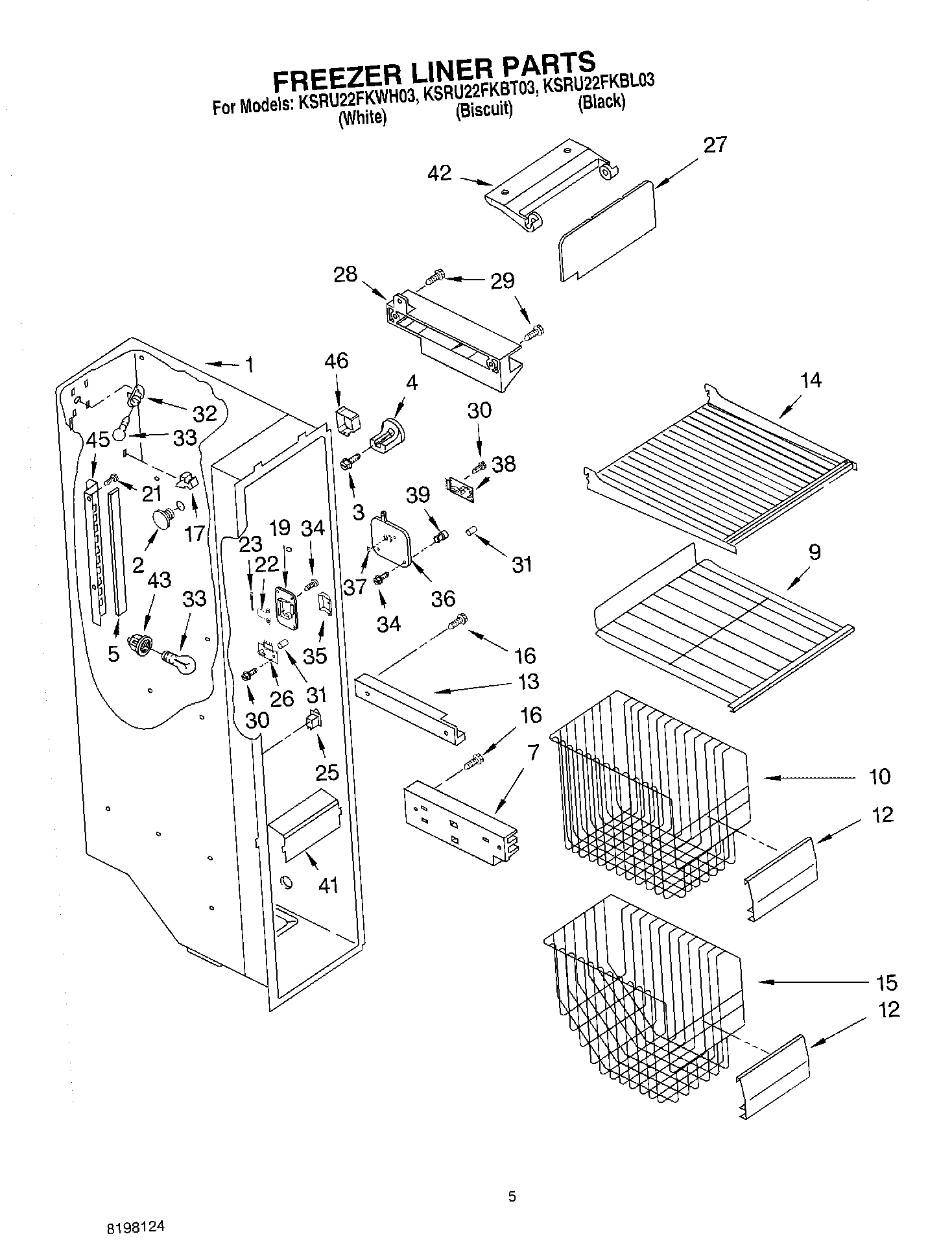

Model Whirlpool KSRU22FKWH03 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Housing, Dispenser (Not Serviced) WPL ARI104043A Contact Us For Availability

1

Control Box WPL 2216588 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI104041A Contact Us For Availability

1

Shelf (2) WPL 2216102 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $120.22

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $14.90

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Stud, Rear WPL 2196207 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2182770 Whirlpool Refrigerator Thermostat In Stock WPL WP2182770 $121.72

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $228.24

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

Shim WPL 2209697 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

Grille, Overflow (Biscuit) WPL 2206671T Contact Us For Availability

9

Ladder, Shelf (2) WPL 2206270 Contact Us For Availability

9

Frame, Shelf WPL 2195975 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $92.53

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $81.31

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $59.81

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

NLA:SCREW Backorder WPL WPW10141645 $3.70

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Shelf, Snack Bin WPL 2206346 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Cover, Evaporator WPL 2212314 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Switch Assembly (Not Available, Order No.23) WPL ARI104044A Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order No WPL ARI104045A Contact Us For Availability

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $43.79

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $98.08

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Control Box Harness WPL 2216587 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Front Cover, Housing (Not Available, Order No WPL ARI104046A Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

CLIP, WIRING WPL 1115375 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Complete Ice Container, Crusher Assembly WPL 2212303 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207331B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207331T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207331W Contact Us For Availability

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $40.37

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $162.82

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

Escutcheon, Control Box WPL 2219879 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Light Bar (FC) WPL 2179921 Contact Us For Availability

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Cement Alumilastic) WPL 542369 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $94.84

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $49.52

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Light Lens WPL 2254920 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

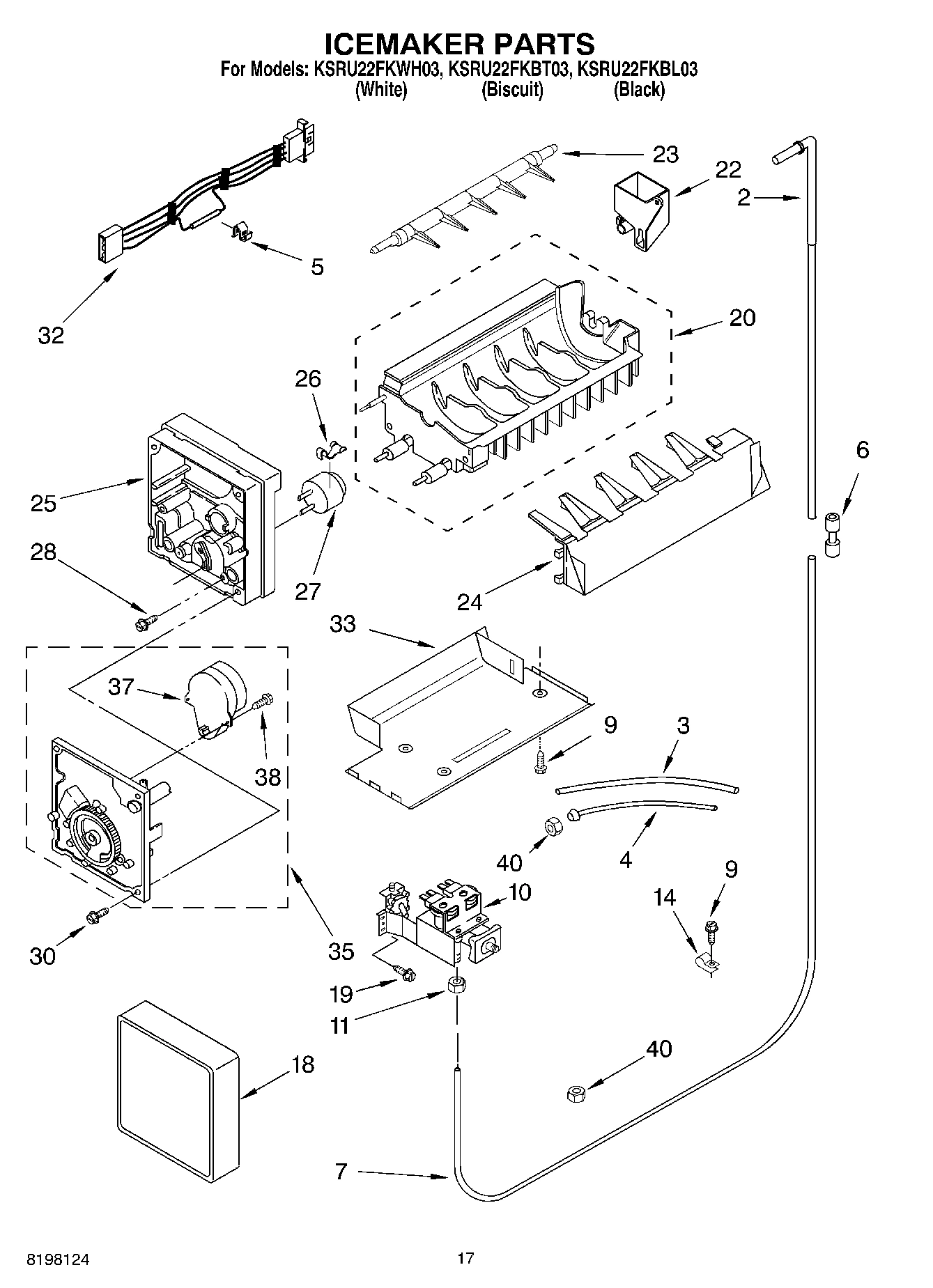

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

40

Nut, Compression WPL 1129179 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
