Model Whirlpool KSRS27QAWH11 REFRIGERATOR – Common Parts & Diagrams

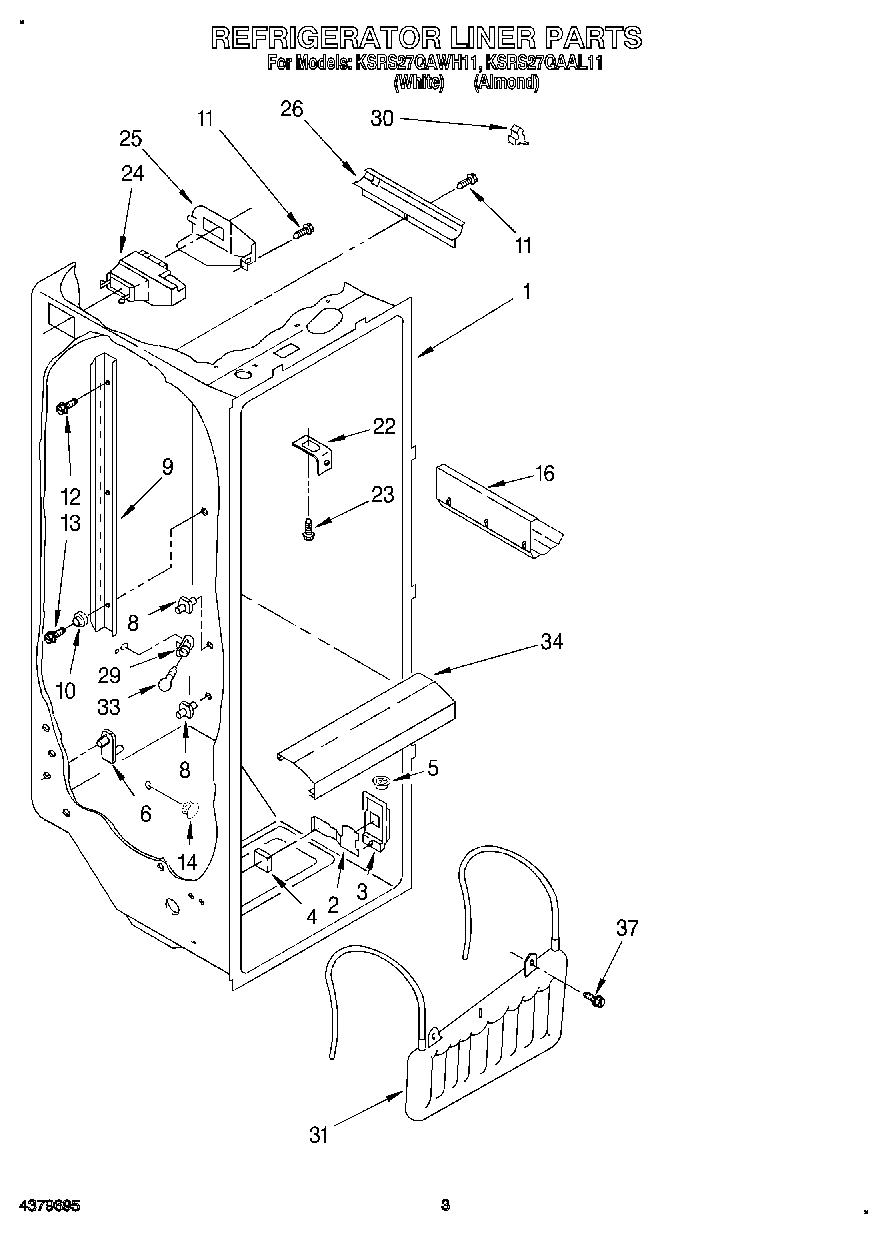

02 - REFRIGERATOR LINER

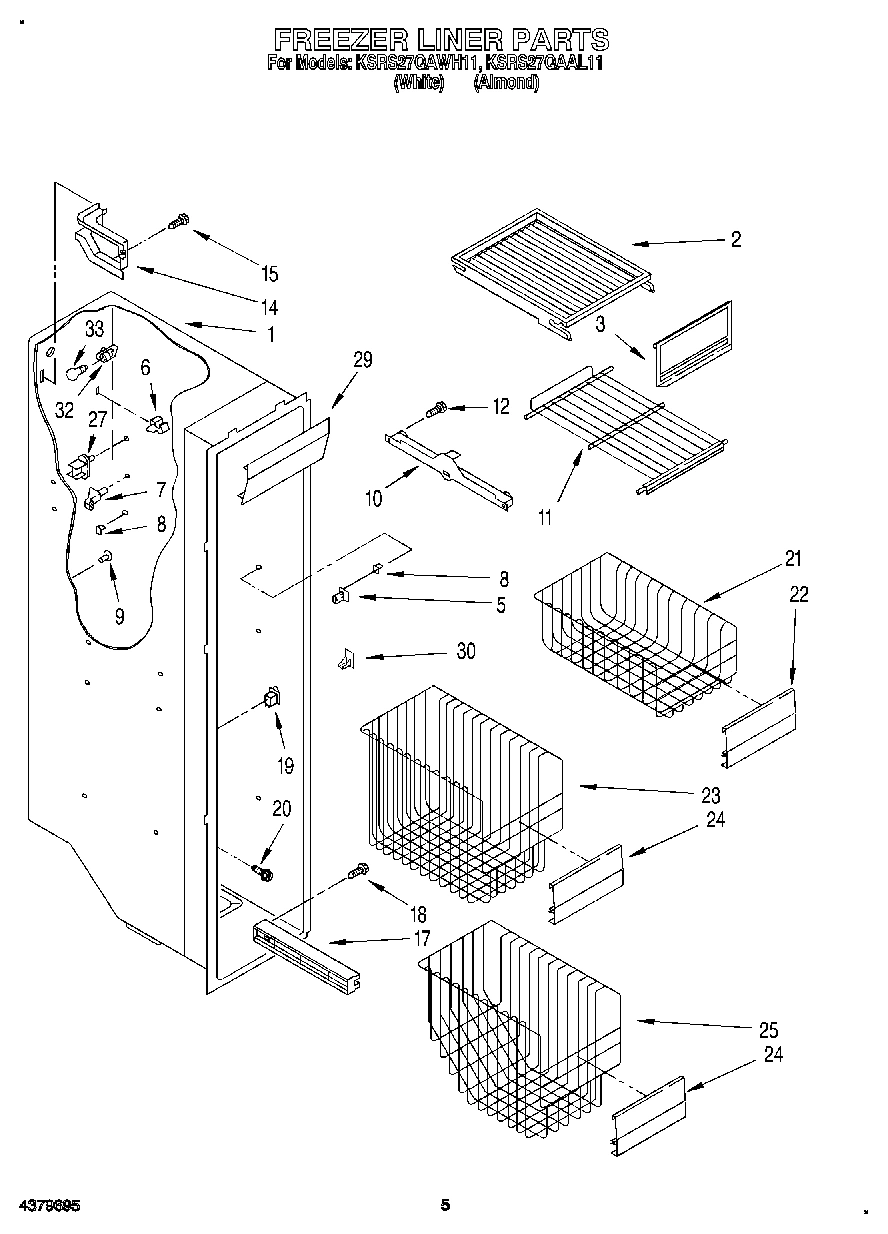

04 - FREEZER LINER
10 - ICEMAKER
07 - FREEZER DOOR
09 - UNIT
06 - REFRIGERATOR DOOR
11 - AIR FLOW
12 - CONTROL, LIT/OPTIONAL
03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER
01 - CABINET
08 - DISPENSER FRONT
Common parts from model Whirlpool KSRS27QAWH11 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155734 WPL LIT2155734 Contact Us For Availability
WPL LIT2168934 WPL LIT2168934 Contact Us For Availability
WPL LIT2176725 WPL LIT2176725 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Refrigerator Door (Includes Item 7) (White) WPL 2171580 Contact Us For Availability
1
Refrigerator Door (Includes Item 7) (Almond) WPL 2171581 Contact Us For Availability
1
Control Box WPL 2169150 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI103697A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load Lock WPL 2161564 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Door, Compartment WPL 2159136 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI103700A Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
6
Insert, Handle (White) WPL 1117948 Contact Us For Availability
6
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
End Cap, Handle WPL 1107341 Contact Us For Availability
8
Hole Plug WPL 940014 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Screw (2) WPL 489075 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 2161760 Contact Us For Availability
10
Handle Assembly WPL 1107215 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
12
Spacer, Handle WPL 1107651 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Hinge Top (R.H.) WPL 2171917 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Bracket, Door Stop WPL 2155331 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Roller WPL 2161749 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 1117952 Contact Us For Availability
15
Relay (See Overload) WPL ARI103701A Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert Hinge Side WPL 1107243 Contact Us For Availability
16
Crisper Pan (2) WPL 2161893 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Trim, Door WPL 1119062 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Utility Pan WPL 2161892 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Shelf Bin (4) WPL 1126069 Contact Us For Availability
18
Black Trim Kit Panels WPL 4210348 Contact Us For Availability
18
Almond Trim Kit Panels WPL 4211147 Contact Us For Availability
18
White Trim Kit Panels WPL 4211148 Contact Us For Availability
18
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
18
Woodgrain Handle Inserts WPL 4318340 Contact Us For Availability
18
Black Grille Kit WPL 4318417 Contact Us For Availability
18
Trim Kit WPL 4318526 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2162461 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Glass, Shelf WPL 2161683 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Reflector WPL 2161809 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Gasket, Front WPL 2161686 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
25
Frame & Roller WPL 2161706 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2161806 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
32
WPL 876029 WPL 876029 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
WPL 799344 WPL 799344 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
32
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
32
Enamel, Black (1 Qt. WPL 799340 Contact Us For Availability
32
WPL 799833 WPL 799833 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Unit, Harness WPL 2149199 Contact Us For Availability
36
Screw (6) WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159199 Contact Us For Availability
39
Insert, Cover (White) WPL 1125798 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1125801 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1125673 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 1125805 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Ice Deflector WPL 1119043 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
49
Hinge Cover (White) WPL 1119787 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
Hinge Cover (Almond) WPL 1119789 Contact Us For Availability
50
Washer WPL 489328 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
