Model Whirlpool KSRS27QAAL07 REFRIGERATOR – Common Parts & Diagrams

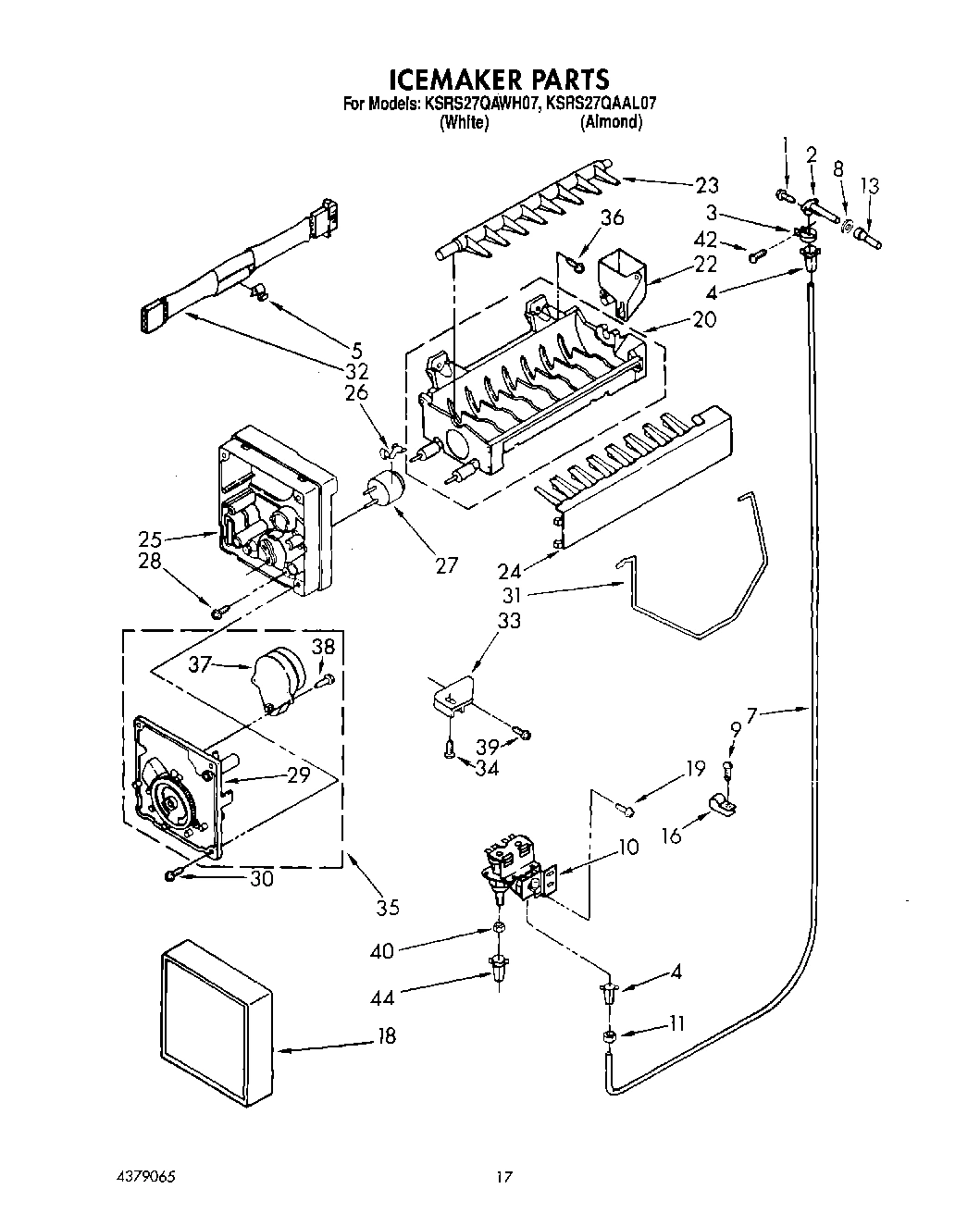

10 - ICEMAKER

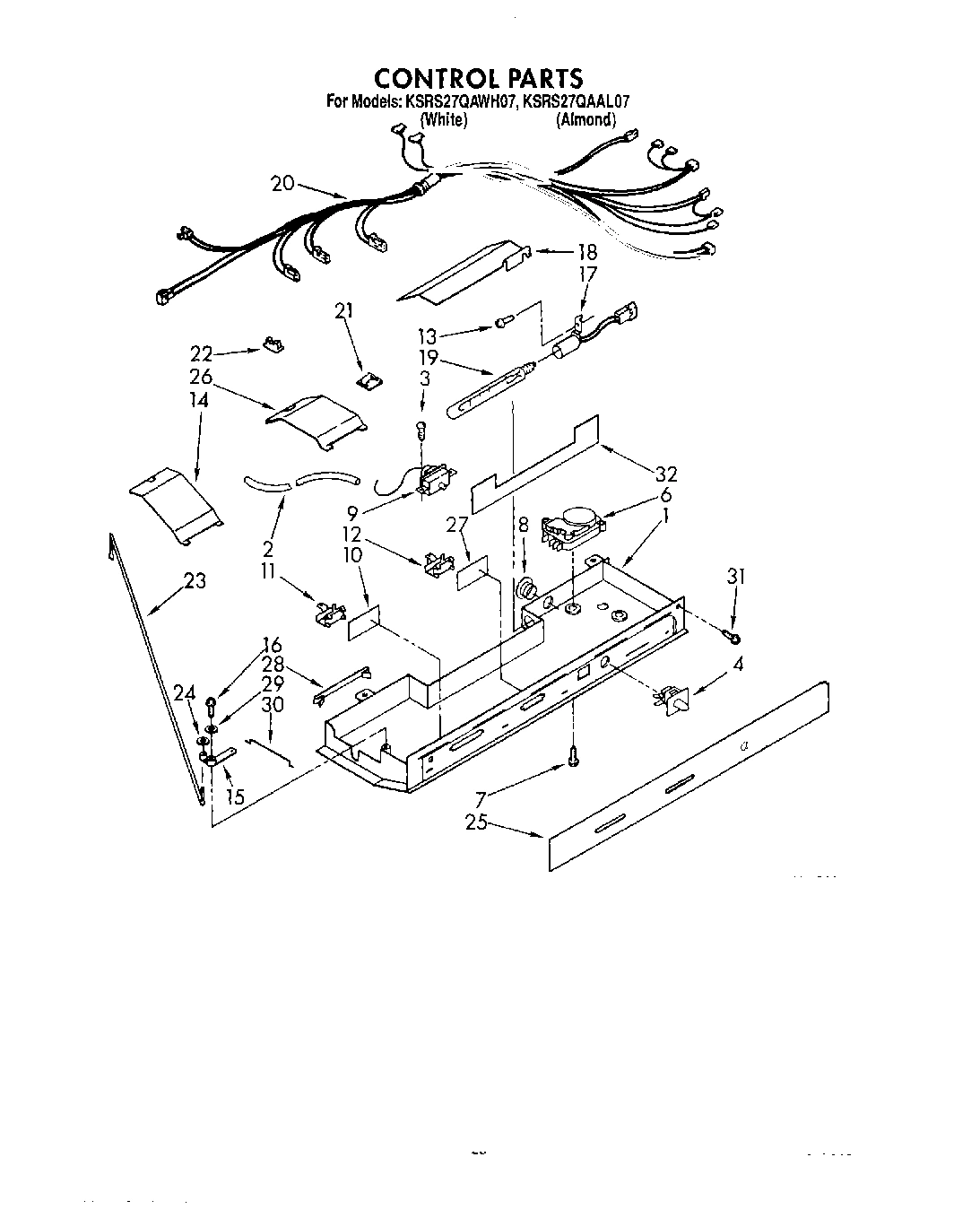

12 - CONTROL
03 - REFRIGERATOR SHELF

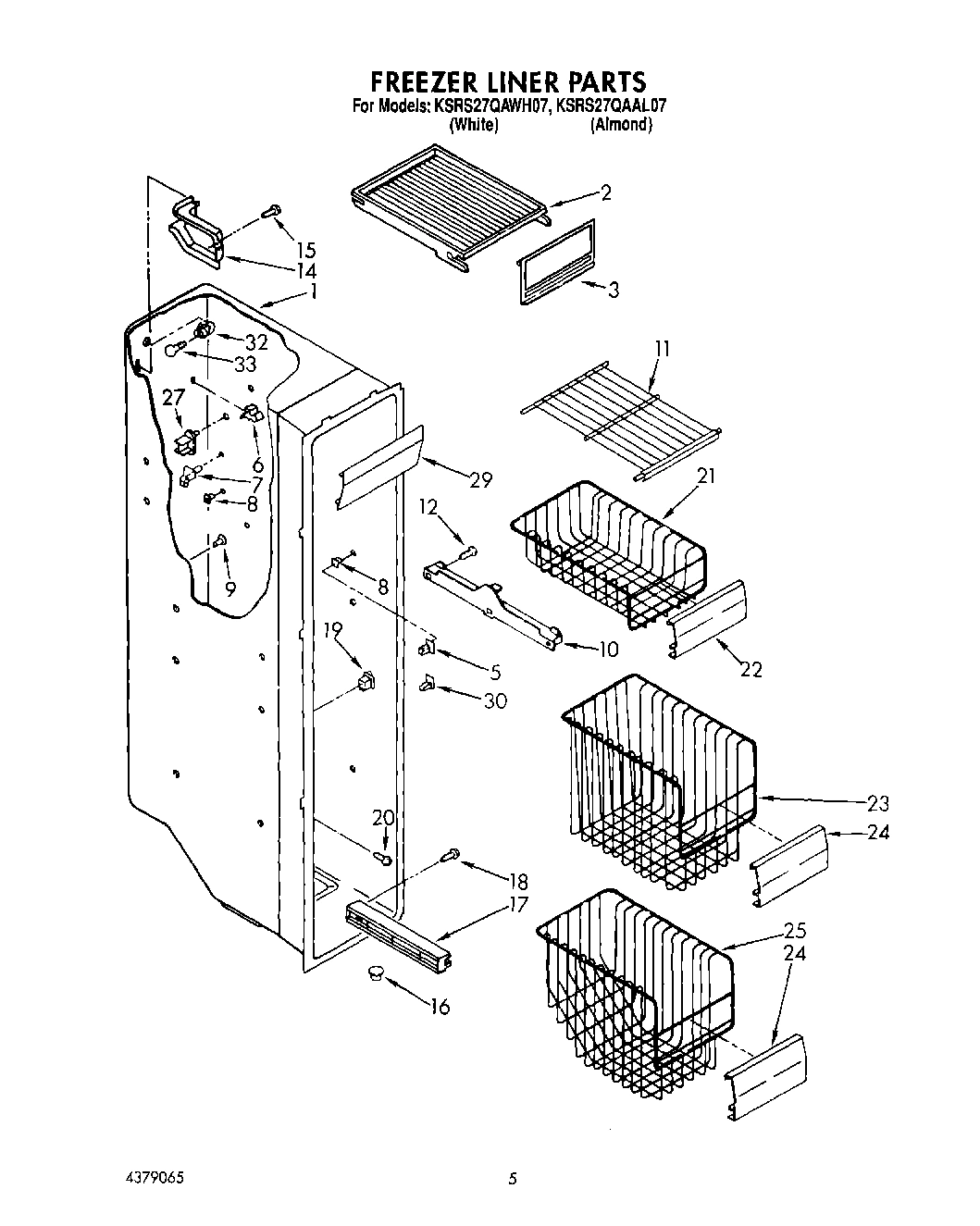

04 - FREEZER LINER

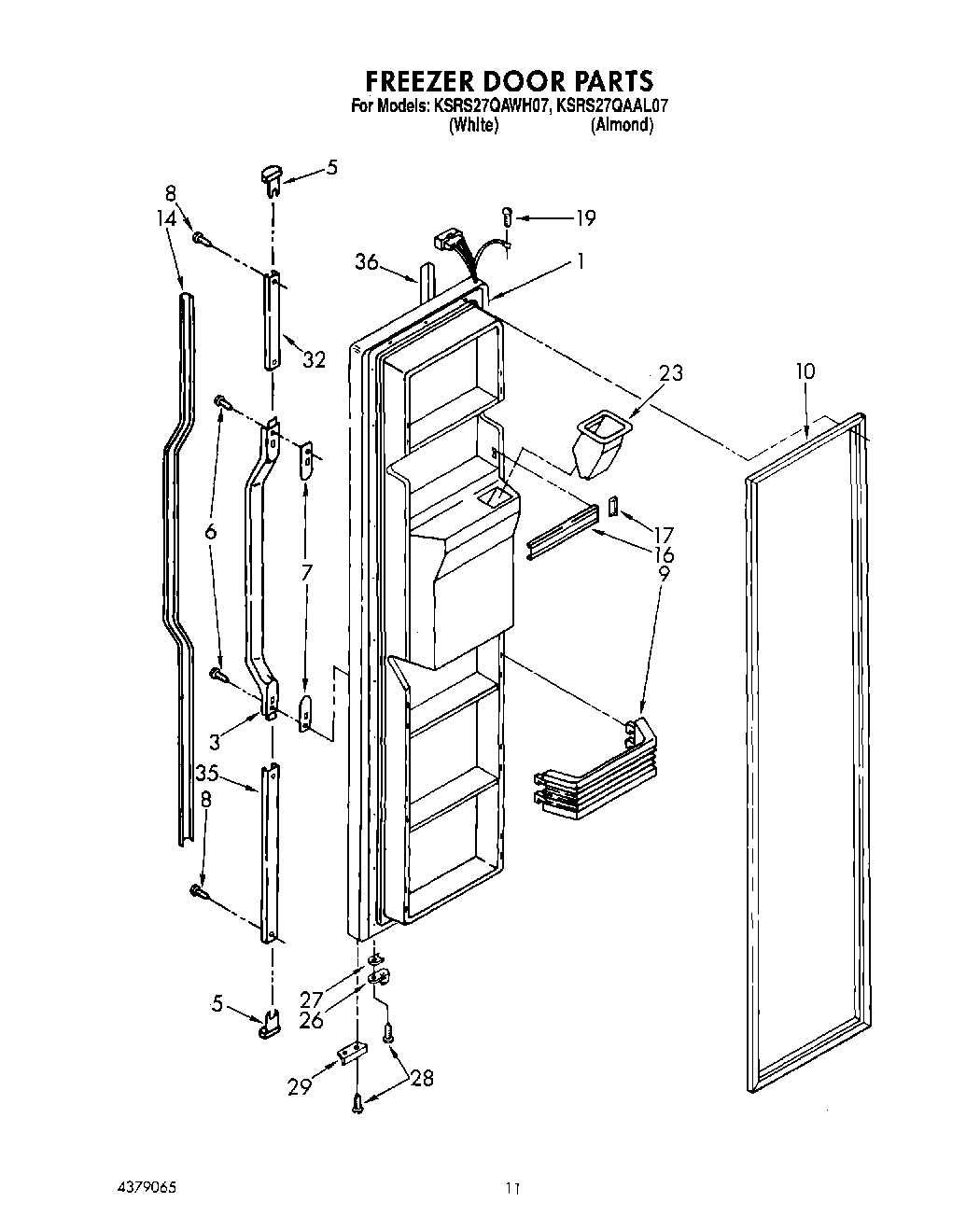

07 - FREEZER DOOR

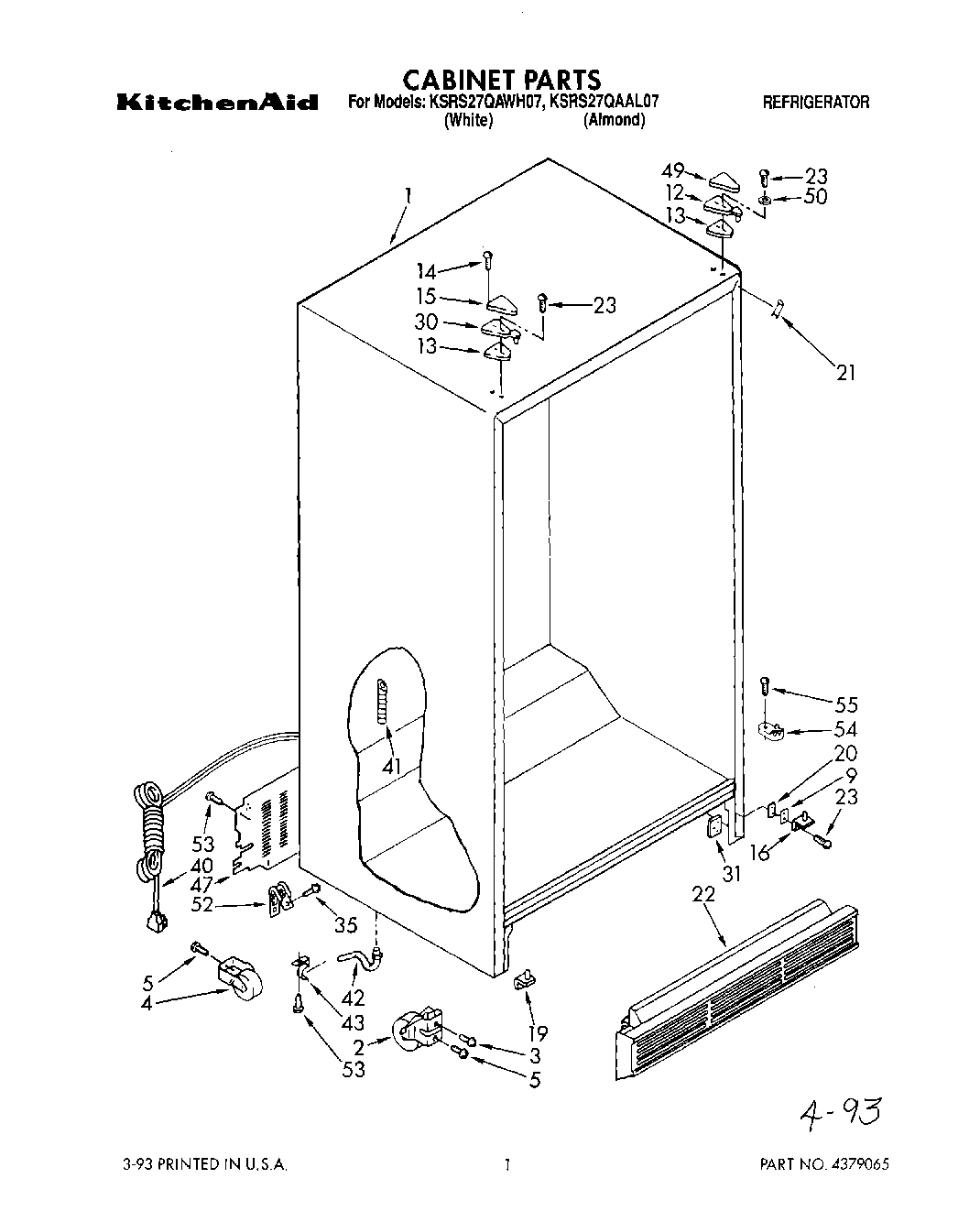

01 - CABINET

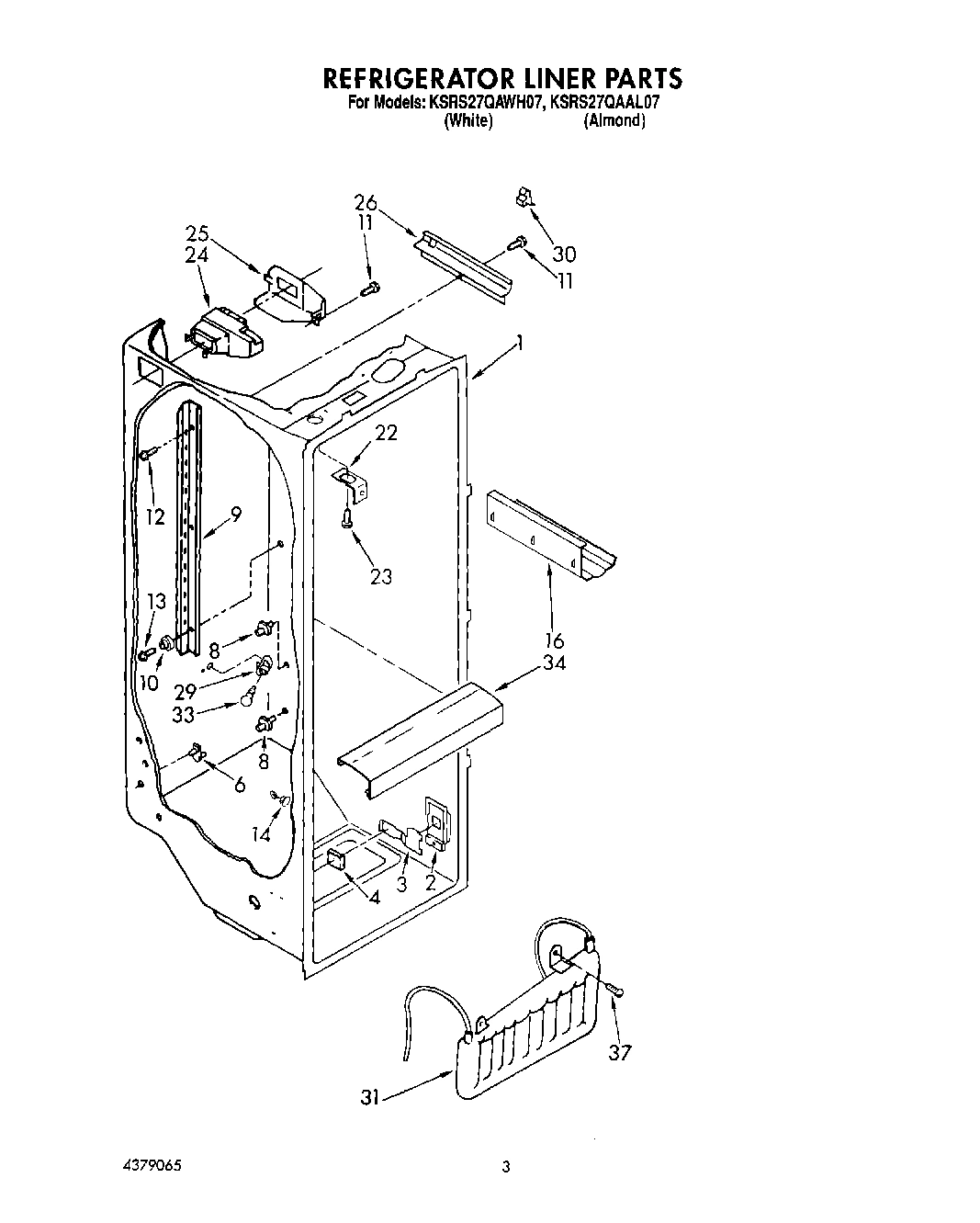

02 - REFRIGERATOR LINER

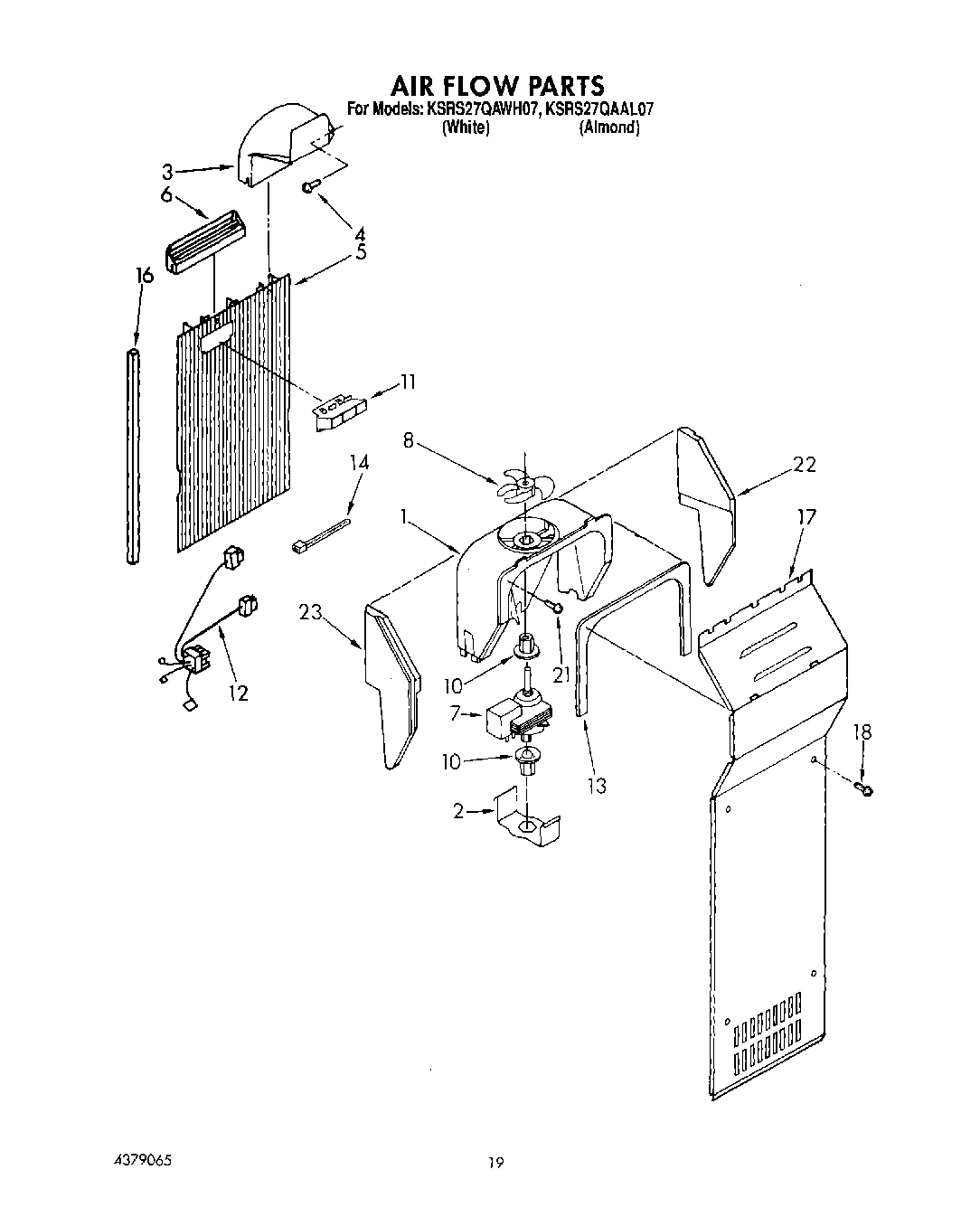

11 - AIR FLOW
05 - MOTOR AND ICE CONTAINER, LIT/OPTIONAL

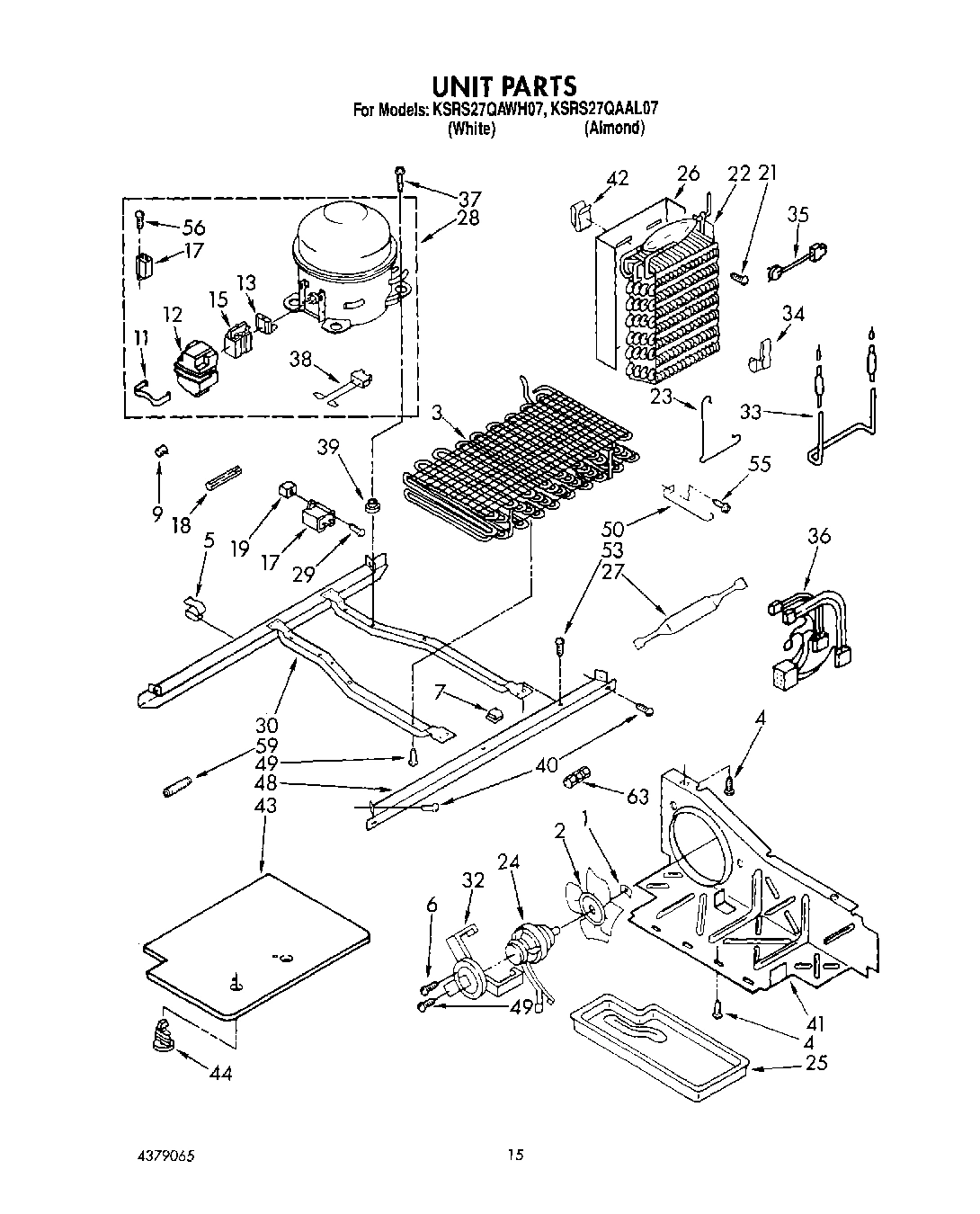

09 - UNIT

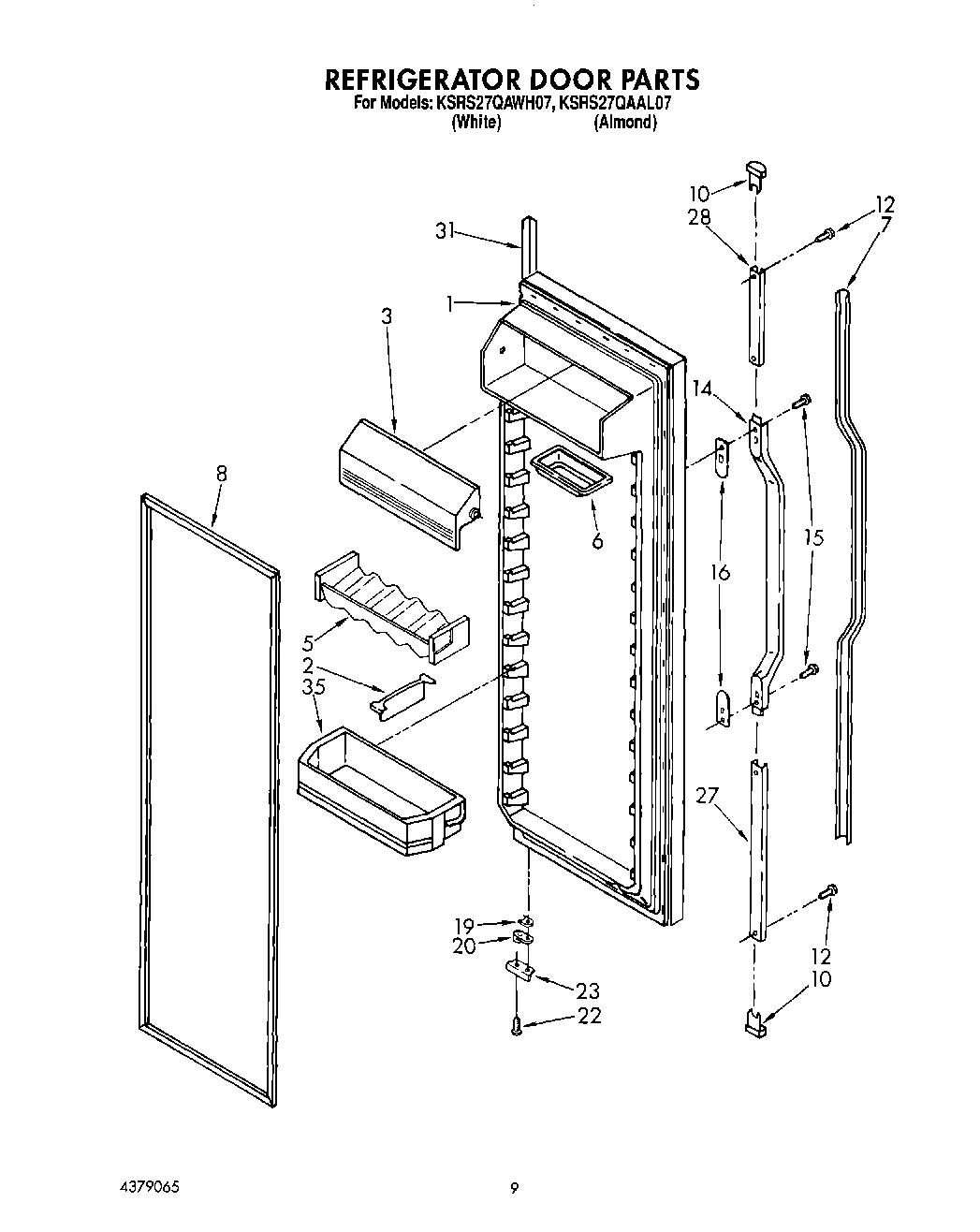

06 - REFRIGERATOR DOOR

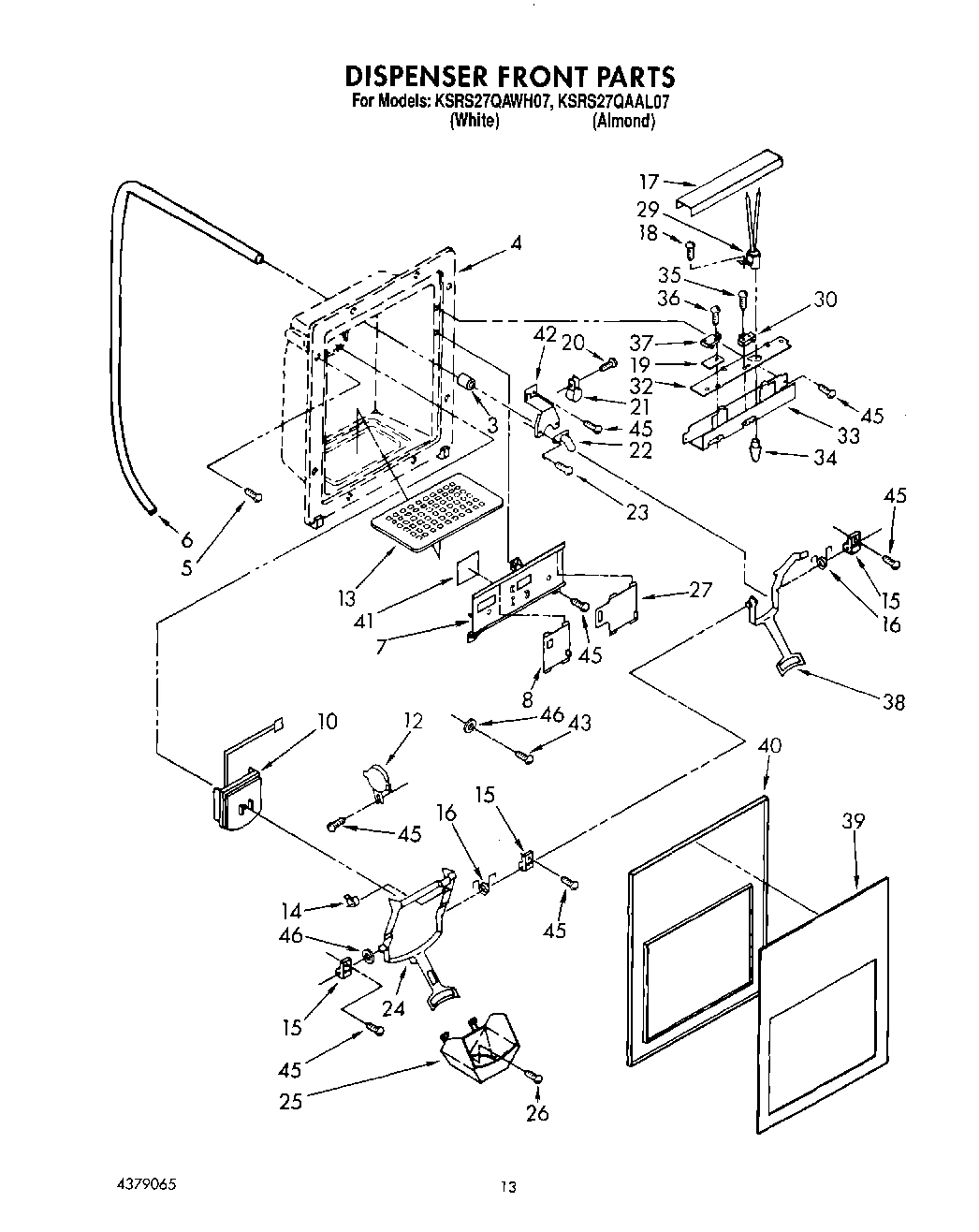

08 - DISPENSER FRONT
Common parts from model Whirlpool KSRS27QAAL07 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155697 WPL LIT2155697 Contact Us For Availability
WPL LIT2155734 WPL LIT2155734 Contact Us For Availability
WPL LIT2168637 WPL LIT2168637 Contact Us For Availability
WPL LIT4379065 WPL LIT4379065 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT787808 WPL LIT787808 Contact Us For Availability
1
Freezer Door (Includes Item 10 And Dispenser WPL 2157731 Contact Us For Availability
1
Freezer Door (Includes Item 10 And Dispenser WPL 2157732 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI103650A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI103651A Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (White) WPL 2157725 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Almond) WPL 2157726 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Load Lock WPL 2161564 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
3
Door, Compartment WPL 2159136 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI103653A Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
7
Insert, Handle (White) WPL 1117948 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Shelf Bin (4) WPL 2156016 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
10
End Cap, Handle WPL 1107341 Contact Us For Availability
10
Stud, Shelf (2) WPL 658944 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Shelf WPL 2155683 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
12
Screw (2) WPL 489075 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Screw (2) WPL 487559 Contact Us For Availability
13
Overload (Service (Includes Relay)) WPL 1118841 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Handle Assembly WPL 1107215 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Relay (See Overload) WPL ARI103654A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
16
Spacer, Handle WPL 1107651 Contact Us For Availability
16
Trim, Door Shelf WPL 2157603 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Rack, Wine & Egg WPL 1126137 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Basket, Middle WPL 2155685 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Front, Basket WPL 1125770 Contact Us For Availability
22
Grille (White) WPL 1125715 Contact Us For Availability
22
Grille (Almond) WPL 1125717 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Upper WPL 2152093 Contact Us For Availability
23
Chute, Ice WPL 2156145 Contact Us For Availability
23
Bracket, Door Stop WPL 2157611 Contact Us For Availability
24
Front, Basket WPL 1125612 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1117952 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Retainer, Insert Hinge Side WPL 1107243 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Switch WPL 1127898 Contact Us For Availability
31
Trim, Door WPL 1119062 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Shelf Bin (4) WPL 1126069 Contact Us For Availability
35
Black Handle Inserts WPL 4210348 Contact Us For Availability
35
Almond WPL 4211147 Contact Us For Availability
35
White WPL 4211148 Contact Us For Availability
35
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
35
Woodgrain WPL 4318340 Contact Us For Availability
35
Black Grille Kit WPL 4318417 Contact Us For Availability
35
Trim Kit Trim Kit Panels WPL 4318526 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Unit, Harness WPL 2149199 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 1125974 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2155909 Contact Us For Availability
39
Grommet (4) (Production) WPL 2162067 Contact Us For Availability
39
Insert, Cover (White) WPL 1125798 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1125801 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1125673 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 1125805 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Ice Deflector WPL 1119043 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
45
Screw WPL 489360 Contact Us For Availability
46
WPL 876029 WPL 876029 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
46
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
46
CEMENT, ALUMILAS WPL 542639 Contact Us For Availability
46
WPL 799340 WPL 799340 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
46
WPL 983359 WPL 983359 Contact Us For Availability
46
Washer WPL 489336 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Washer WPL 489366 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
