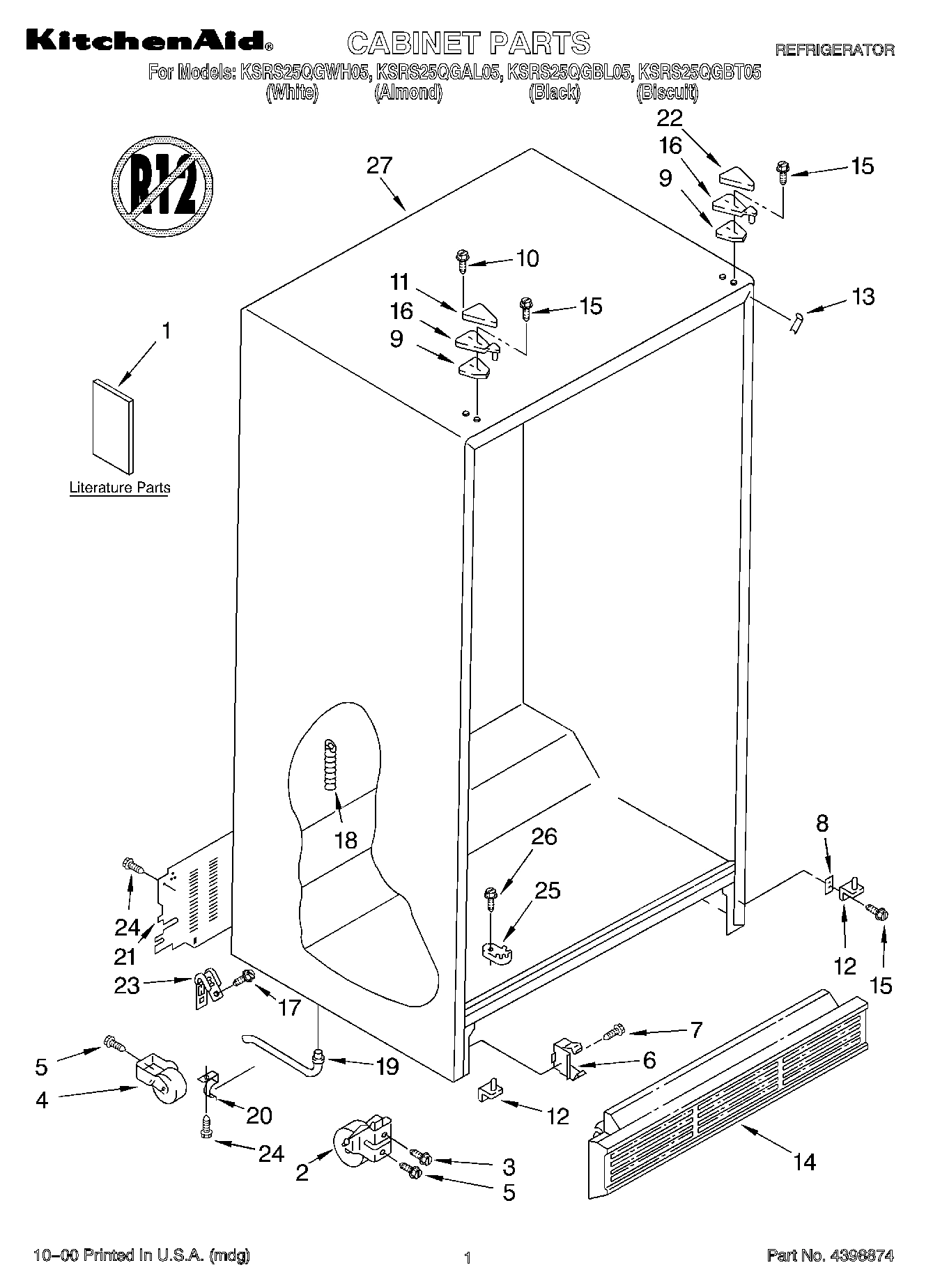

Model Whirlpool KSRS25QGBL05 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2204344B Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2204344N Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2204344T Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2204344W Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Black) WPL 2194233B Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Almond) WPL 2194233N Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Biscuit) WPL 2194233T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2194233W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI102712A Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Load Lock WPL 2195497 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $153.80

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Condenser Assembly WPL 2204242B Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2209606 Whirlpool Gasket Assembly Backorder WPL WP2209606 $27.52

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $82.14

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

5

Tray, Butter WPL 2165792 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2209607 Whirlpool Gasket Assembly Backorder WPL WP2209607 $27.52

6

Insert, Handle (White) WPL 2173825 Contact Us For Availability

6

Insert, Handle (Almond) WPL 2173828 Contact Us For Availability

6

Insert, Handle (Black) WPL 2173829 Contact Us For Availability

6

Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

Shelf Bin (4) WPL 2171070 Contact Us For Availability

7

Clip, Tube (3) WPL 934011 Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $147.90

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

End Cap, Handle (Black) WPL 2194778B Contact Us For Availability

8

End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability

8

End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability

8

End Cap, Handle (White) WPL 2194778W Contact Us For Availability

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $40.99

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (2) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Retainer, Insert (Black) WPL 2194777B Contact Us For Availability

Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability

Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability

Retainer, Insert (White) WPL 2194777W Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180260 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $63.35

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Wire Harness WPL 2180229 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

14

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

14

Light Bar (RC) WPL 2179920 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability

Bracket, Control WPL 2180227 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $133.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

Start Device, Combination (Start Relay and Ov WPL 2188506 Contact Us For Availability

Shelf Bin (4) WPL 2171063 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Cover, Evaporator WPL 2203841 Contact Us For Availability

Capacitor (Production) WPL 2169137 Contact Us For Availability

Lever, Water Dispenser (Almond (Almond Shadow WPL 2180269 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

Window, Crisper WPL 2174076 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

Screw Grommet WPL 509812 Contact Us For Availability

Overlay, Front Cover (White) WPL 2180368 Contact Us For Availability

Overlay, Front Cover (Almond) WPL 2180369 Contact Us For Availability

Overlay, Front Cover (Black) WPL 2180370 Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2186856T Contact Us For Availability

20

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

21

Basket, Shallow WPL 2181763 Contact Us For Availability

21

Front Cover, Housing (Not Available, Order No WPL ARI102713A Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Front, Basket WPL 2171767 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clamp WPL 2161324 Contact Us For Availability

Basket, Square WPL 2181765 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2180396 Contact Us For Availability

WPL 2180397 WPL 2180397 Contact Us For Availability

WPL 2180398 WPL 2180398 Contact Us For Availability

WPL 2186854T WPL 2186854T Contact Us For Availability

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $29.92

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $162.82

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Basket, Sloped WPL 2181764 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

26

Heat Shield WPL 2149294 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

29

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

Stud, Rear WPL 2196207 Contact Us For Availability

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Unit, Harness WPL 2217051 Contact Us For Availability

32

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

Screw WPL 488624 Contact Us For Availability

50

GUARD-FAN Backorder WPL 1110663 $25.31

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
