Model Whirlpool KSRS25IHBU00 REFRIGERATOR – Common Parts & Diagrams

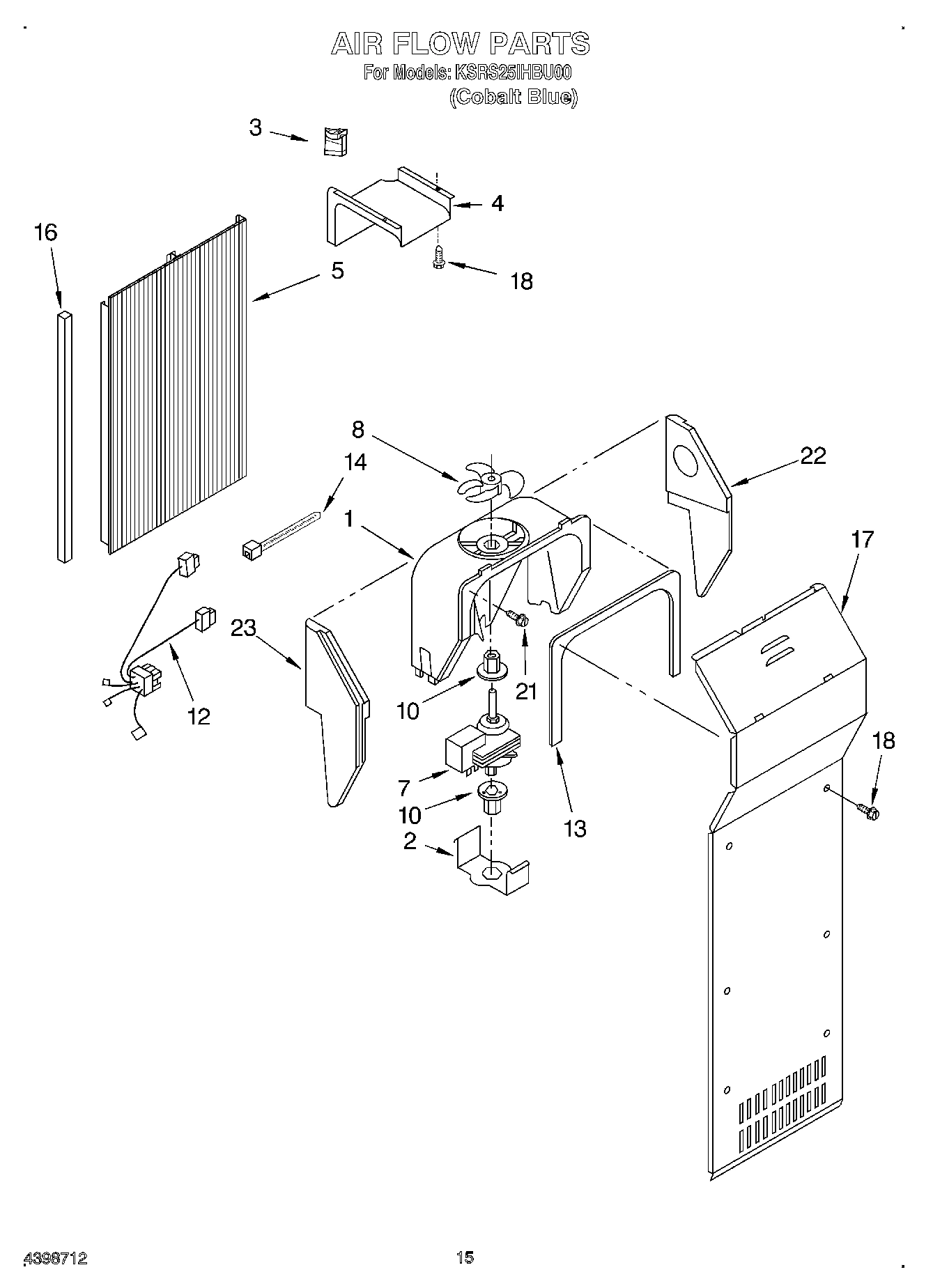

09 - AIR FLOW

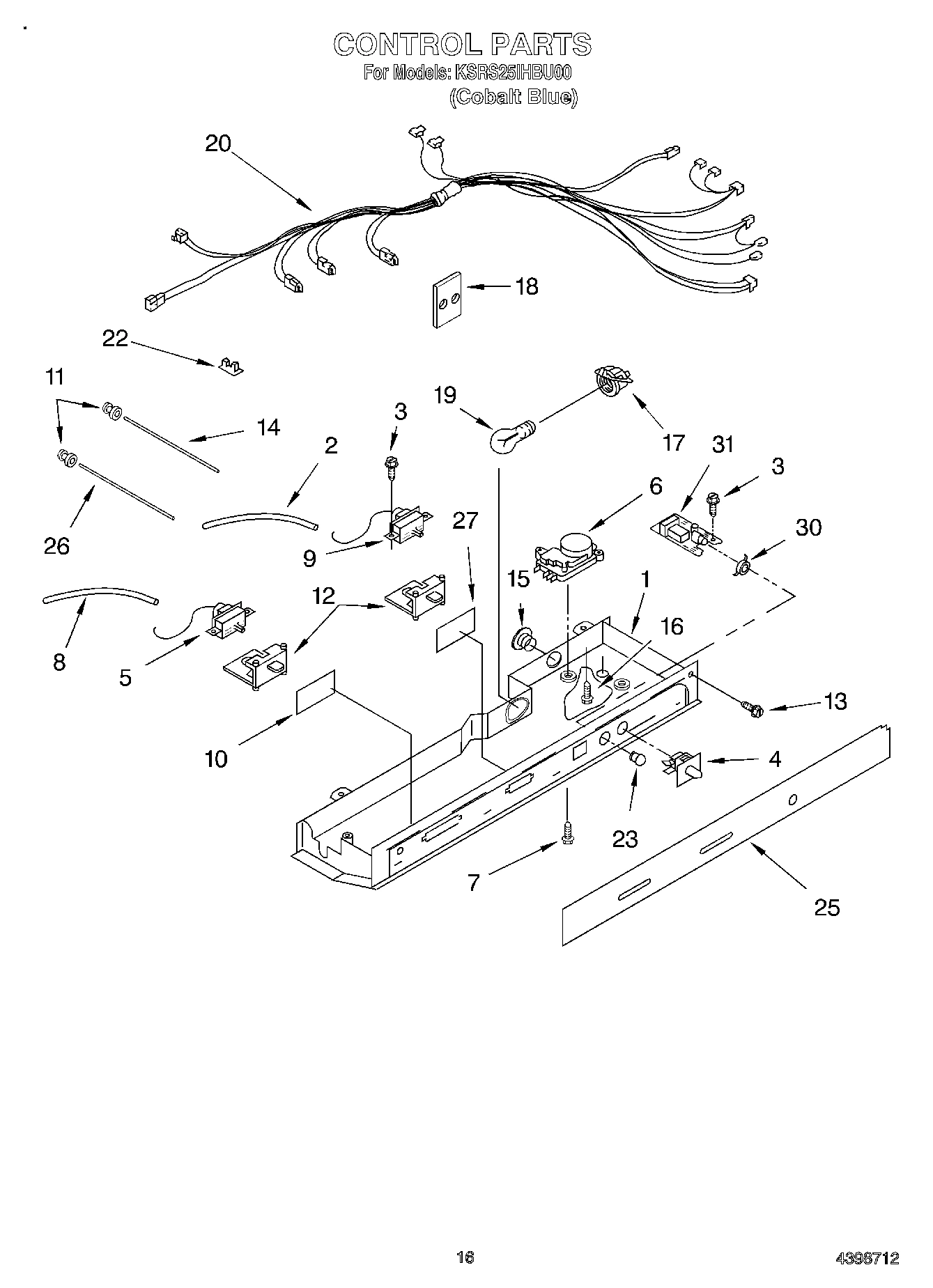

10 - CONTROL

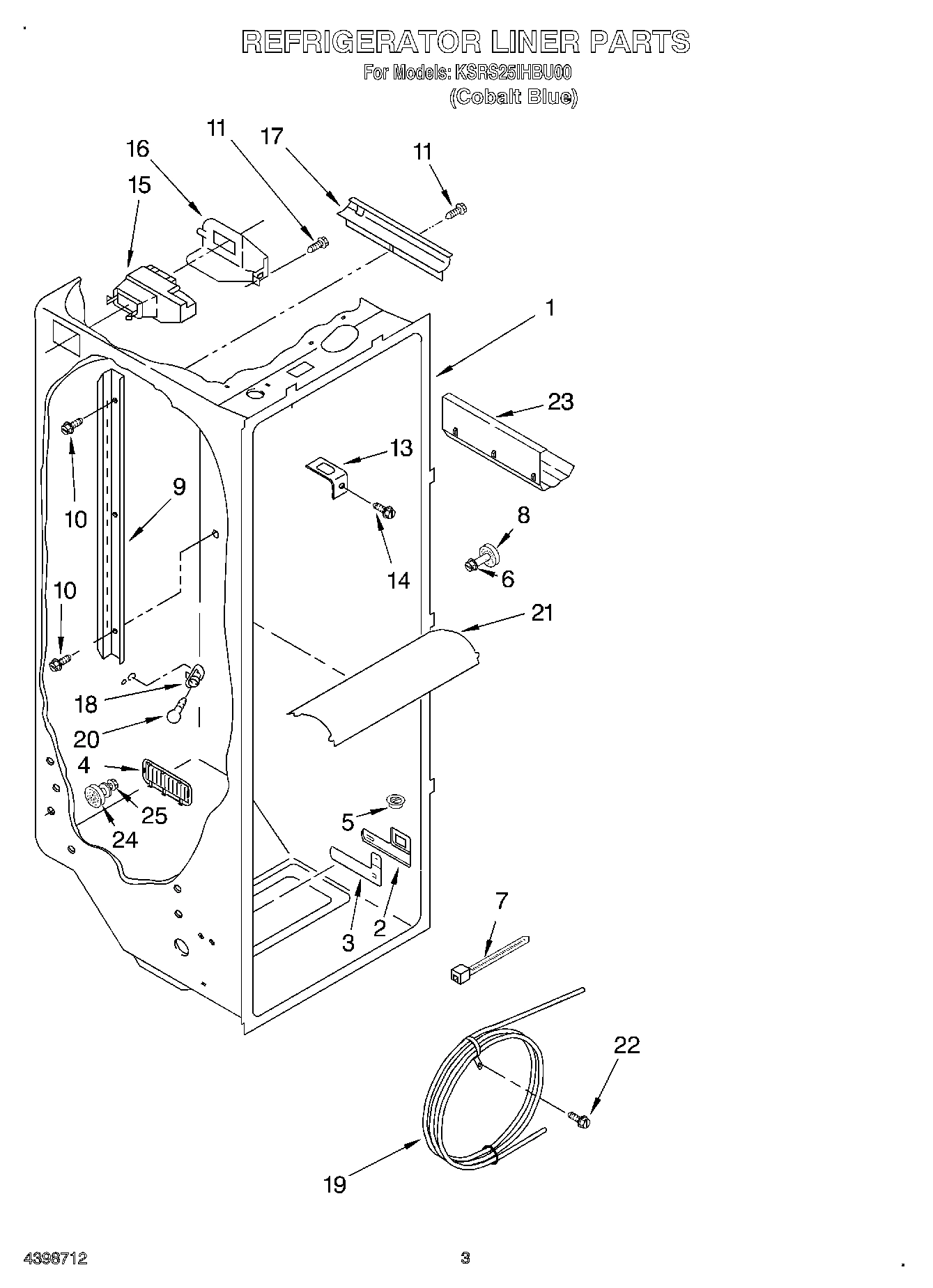

02 - REFRIGERATOR LINER

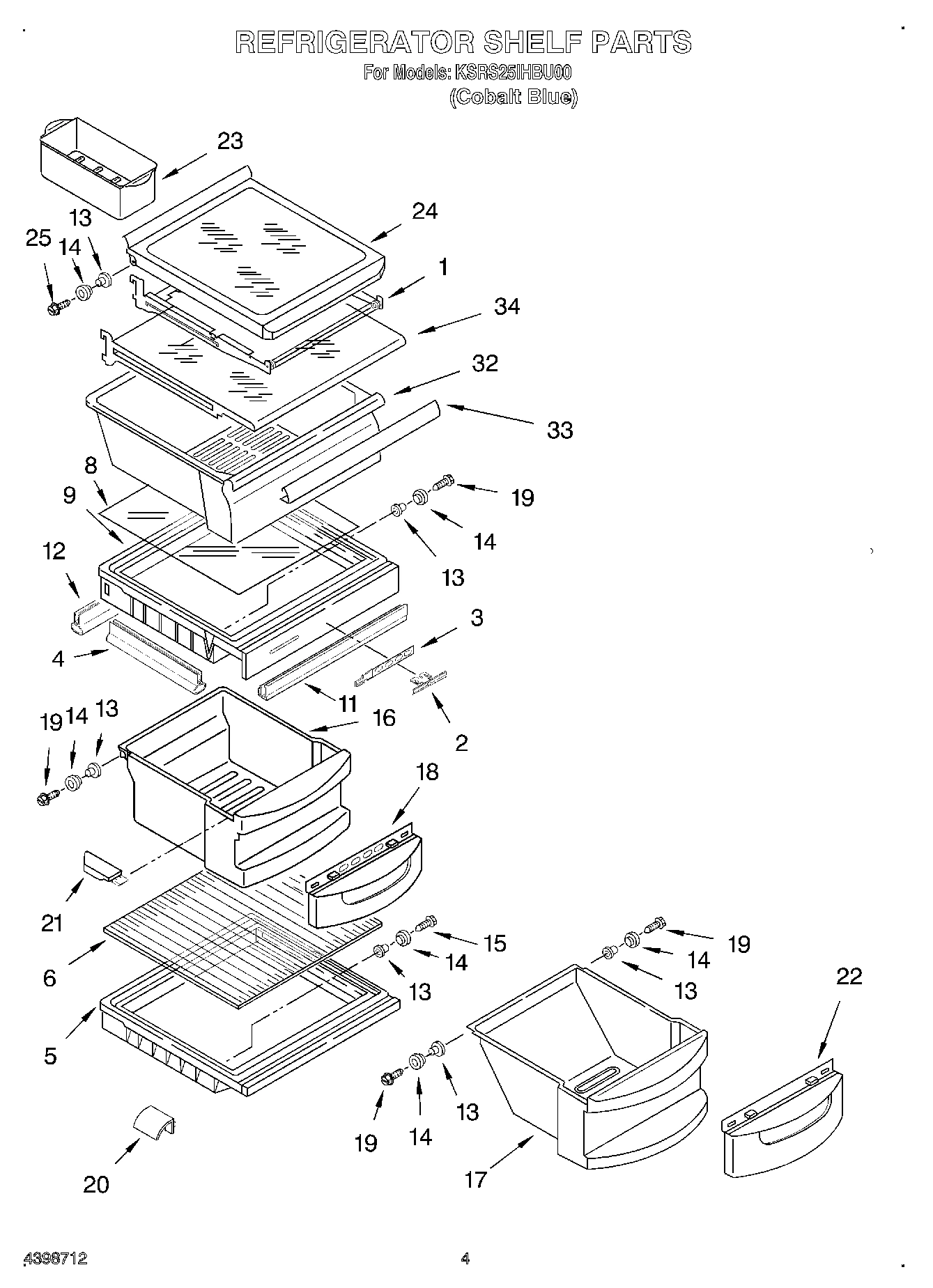

03 - REFRIGERATOR SHELF

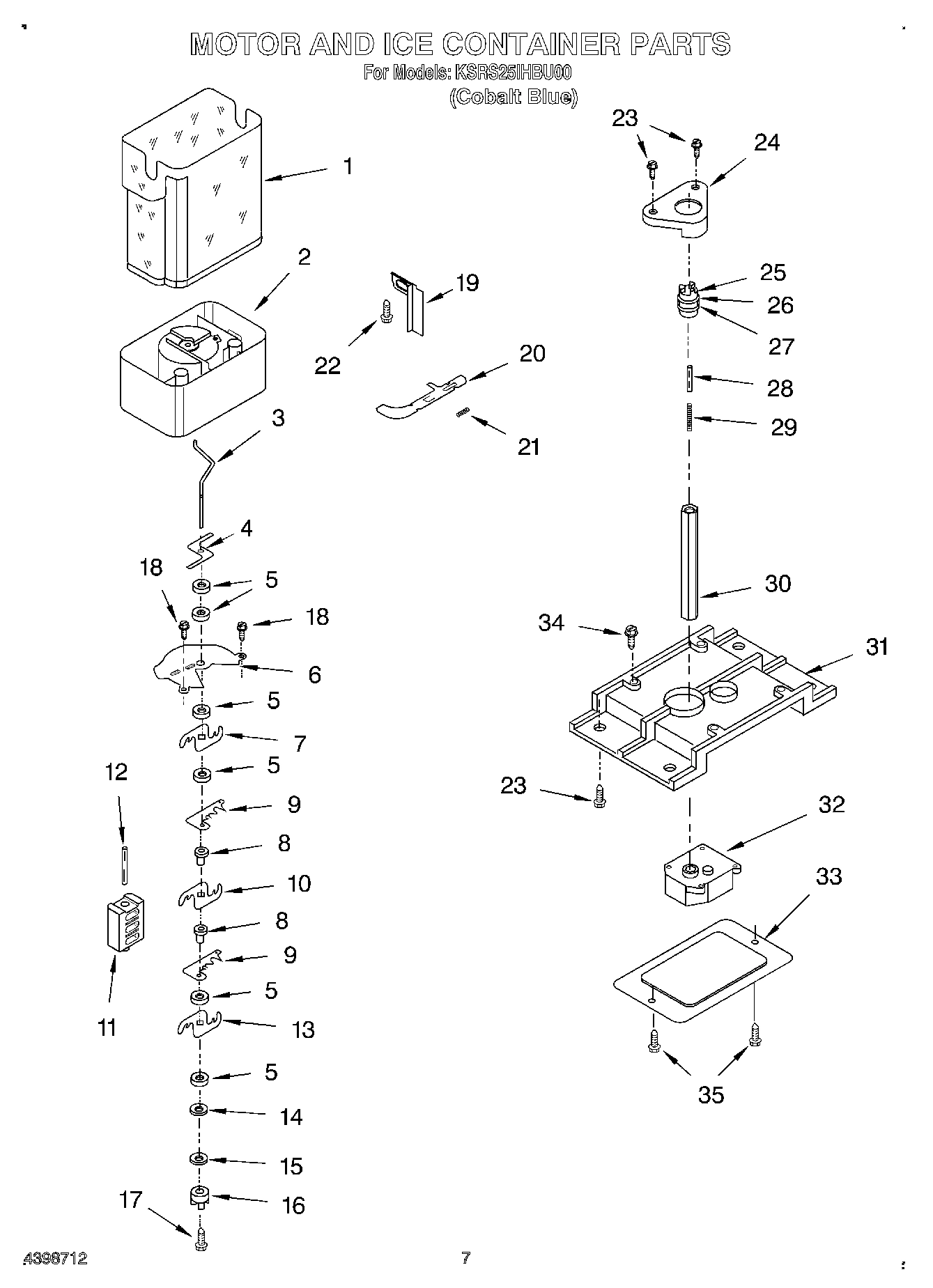

05 - MOTOR AND ICE CONTAINER

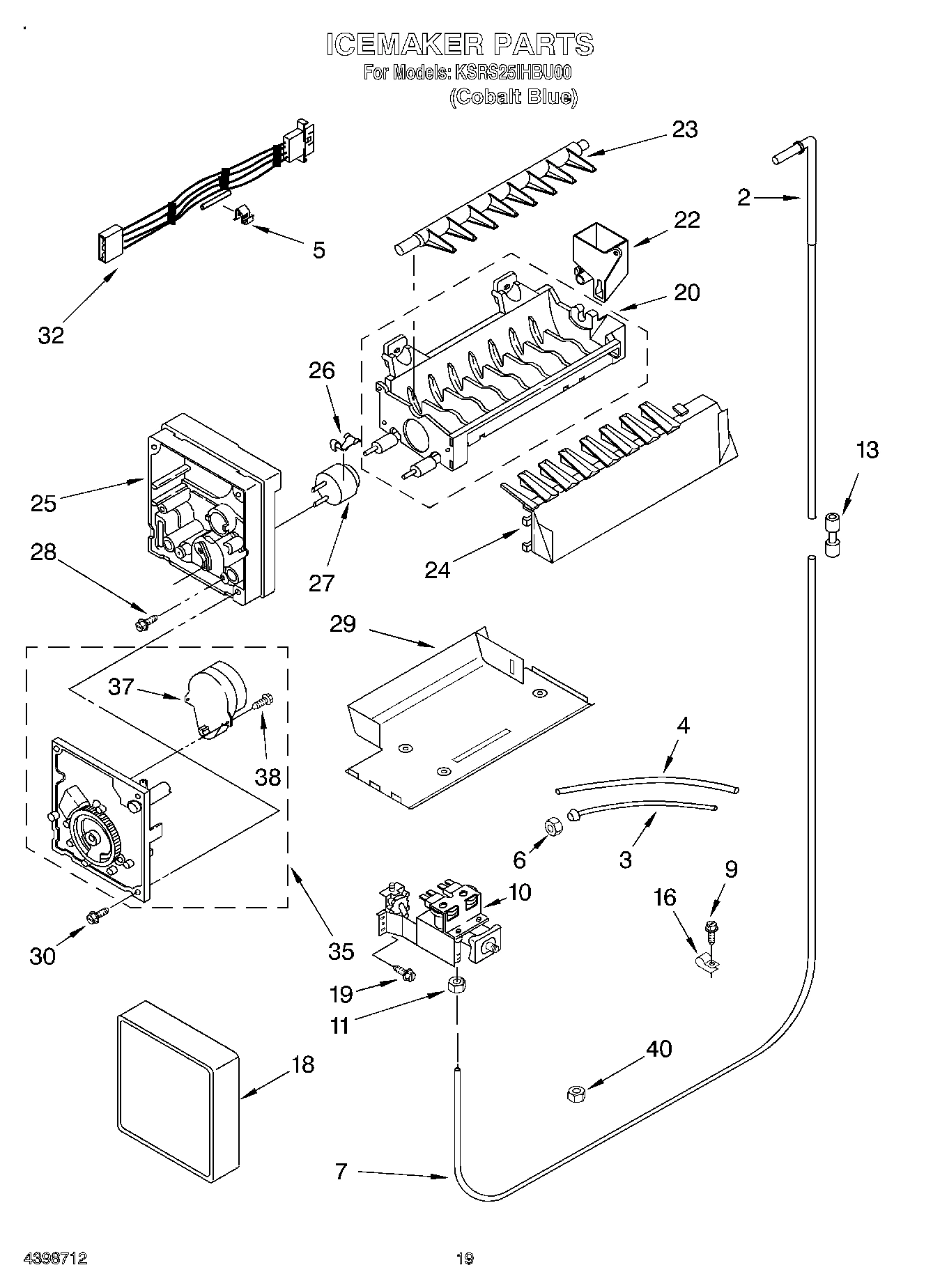

12 - ICE MAKER, OPTIONAL

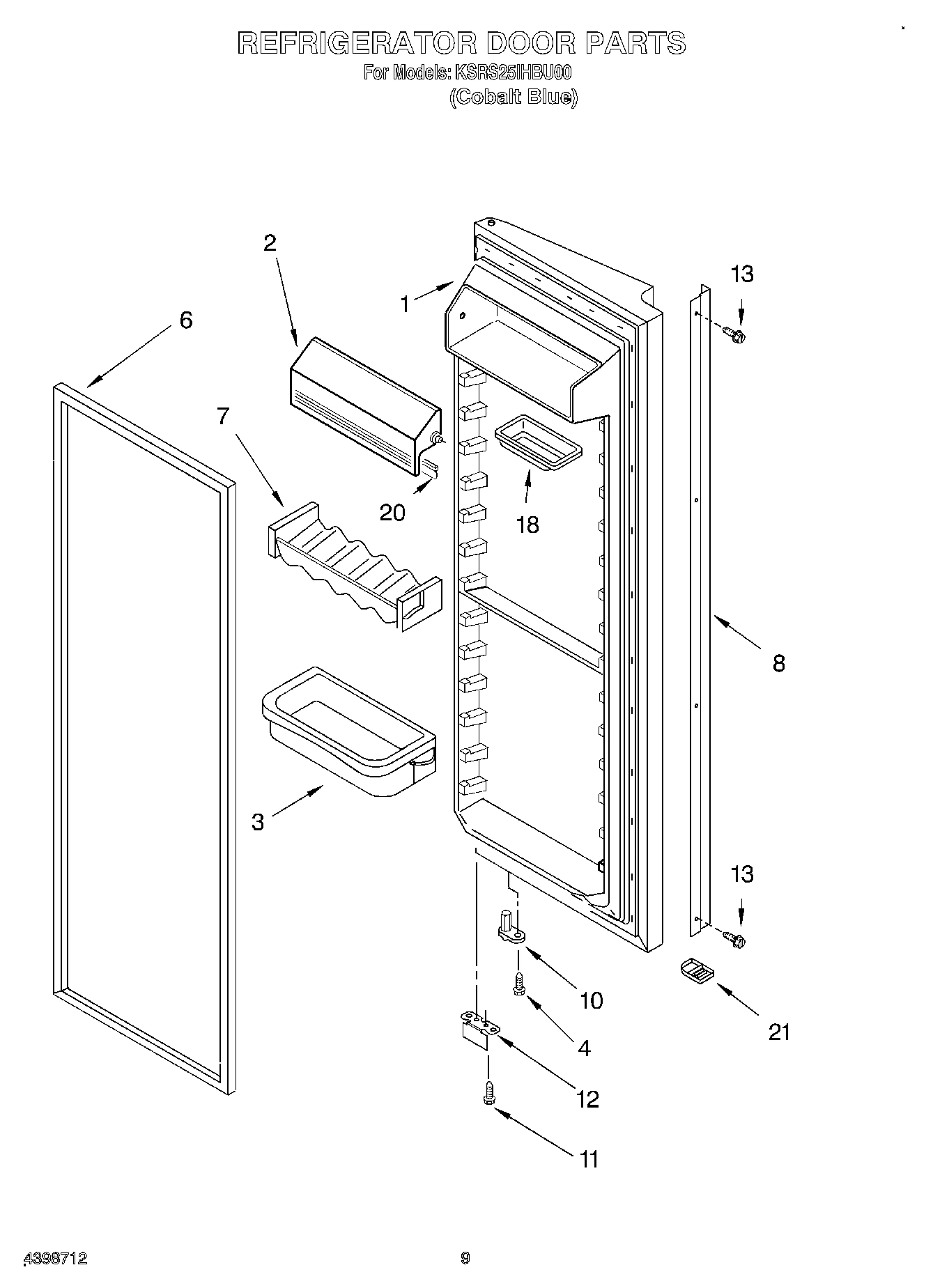

06 - REFRIGERATOR DOOR

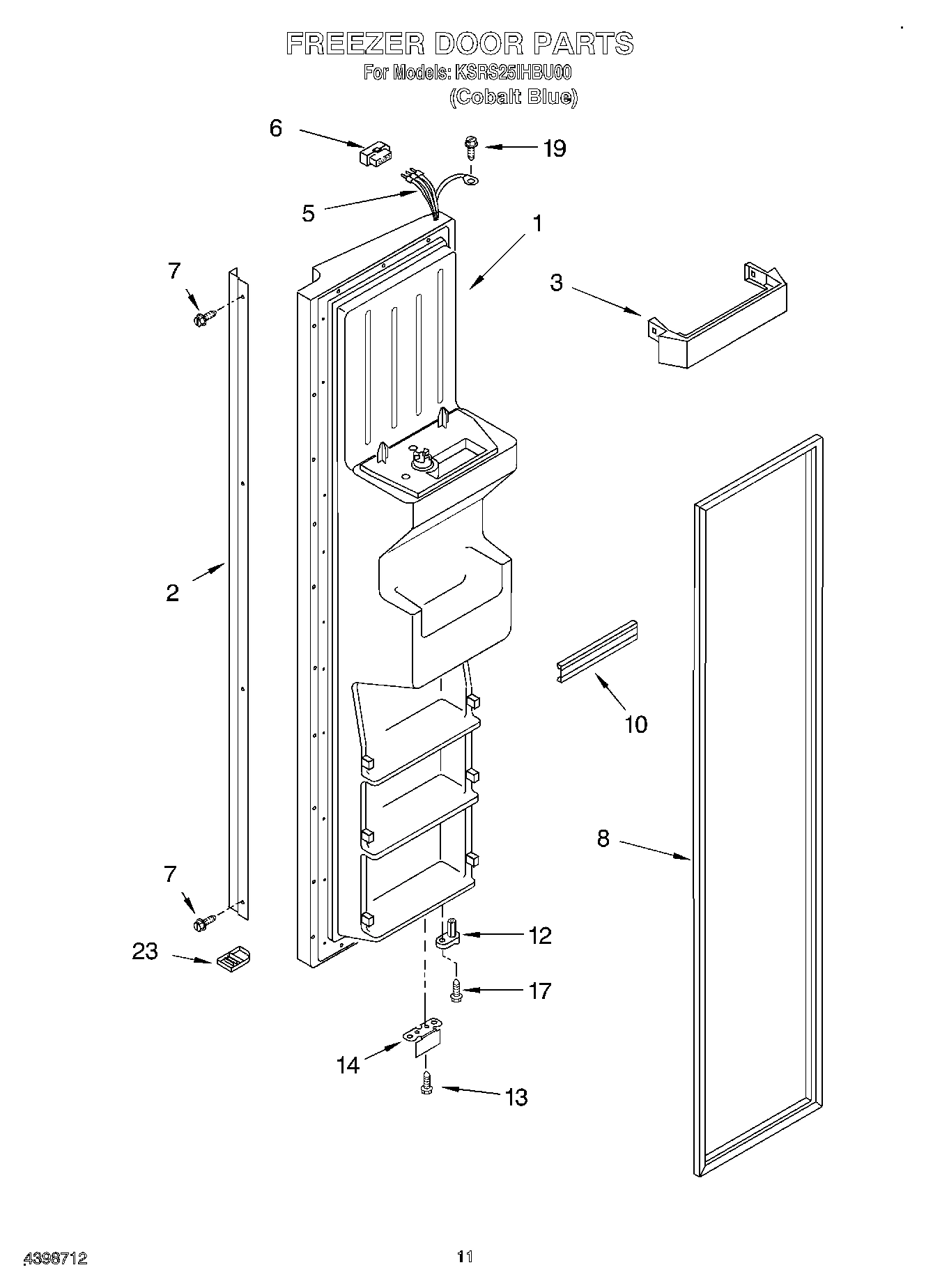

07 - FREEZER DOOR

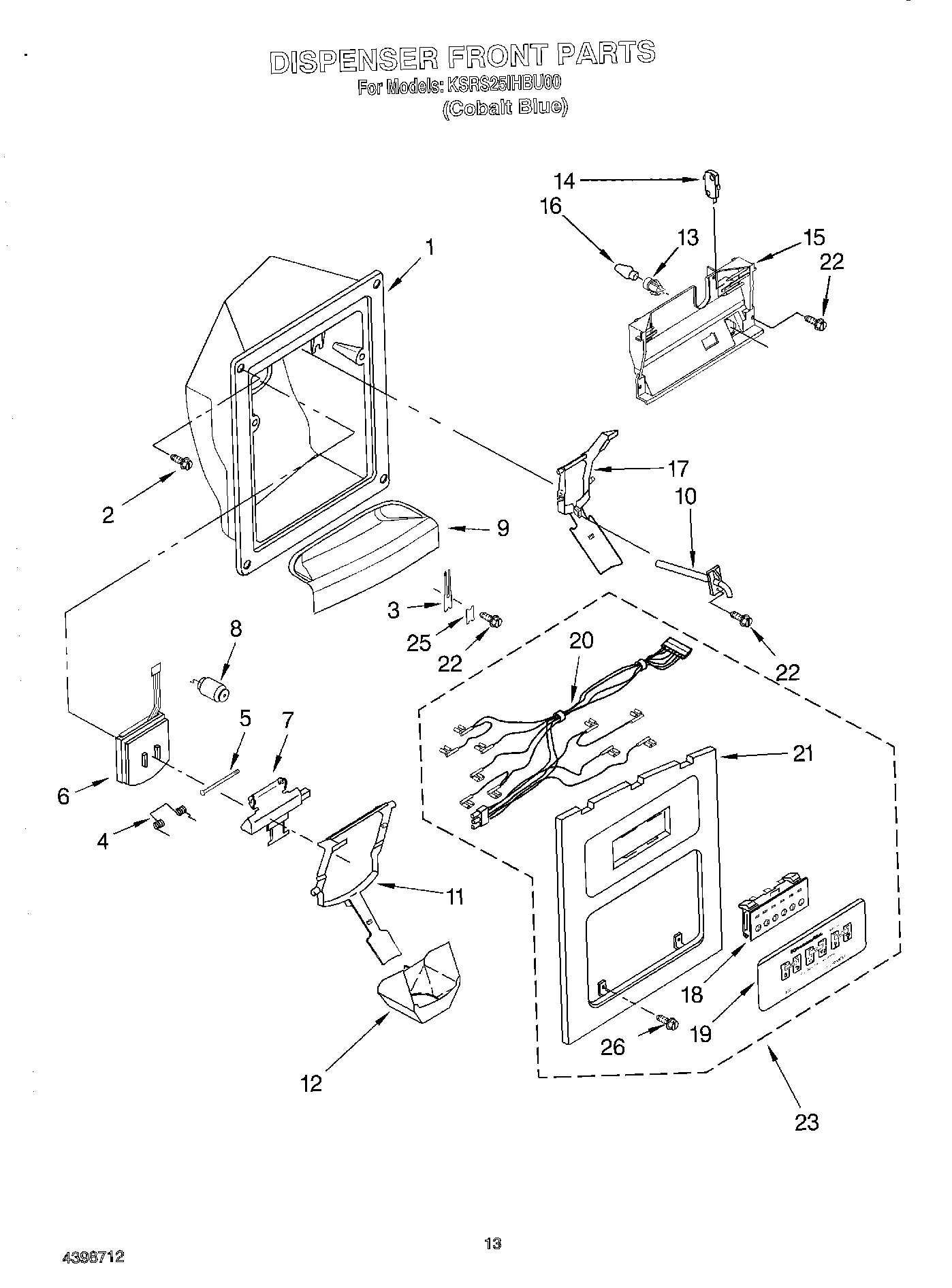

08 - DISPENSER FRONT

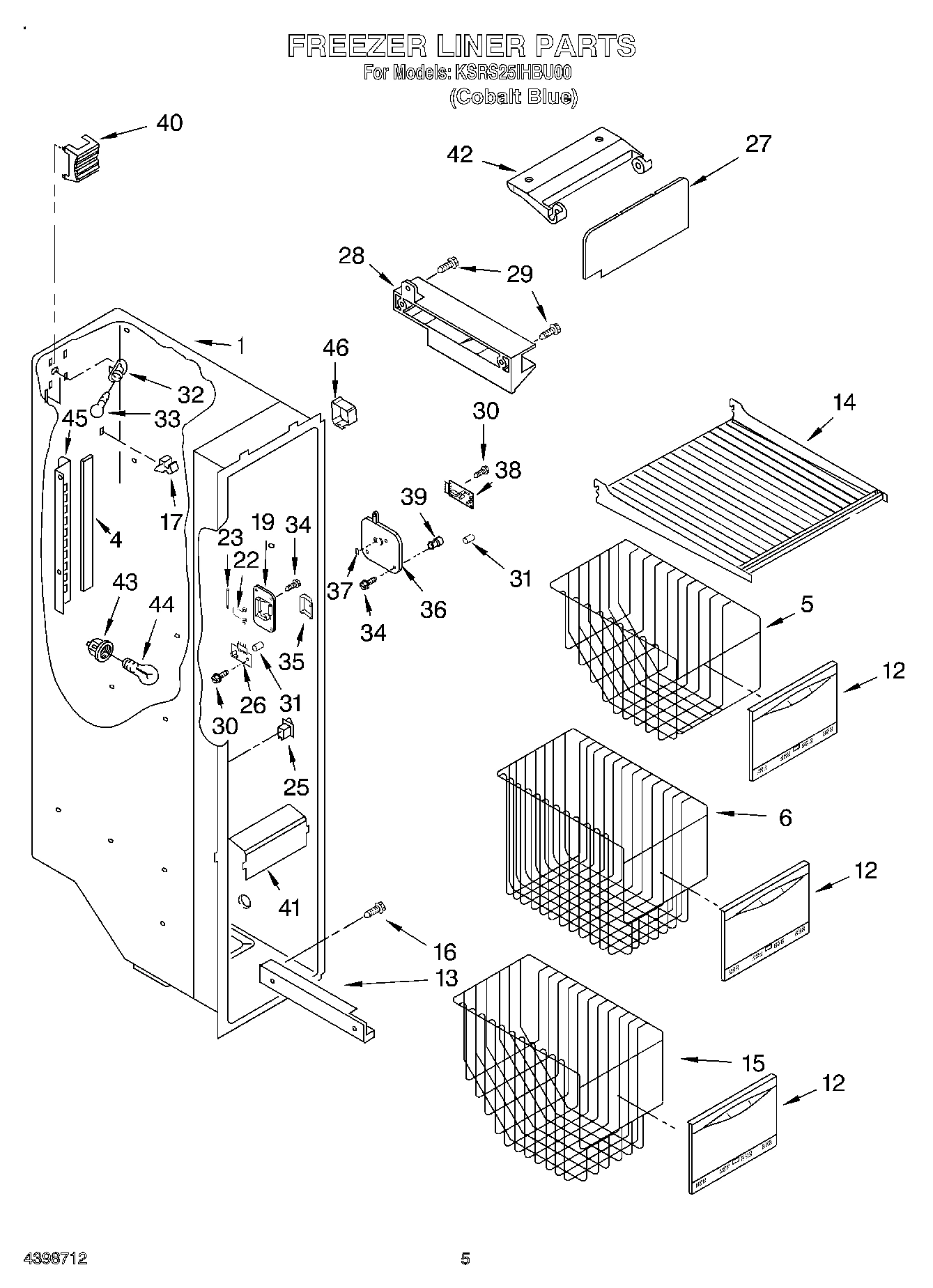

04 - FREEZER LINER

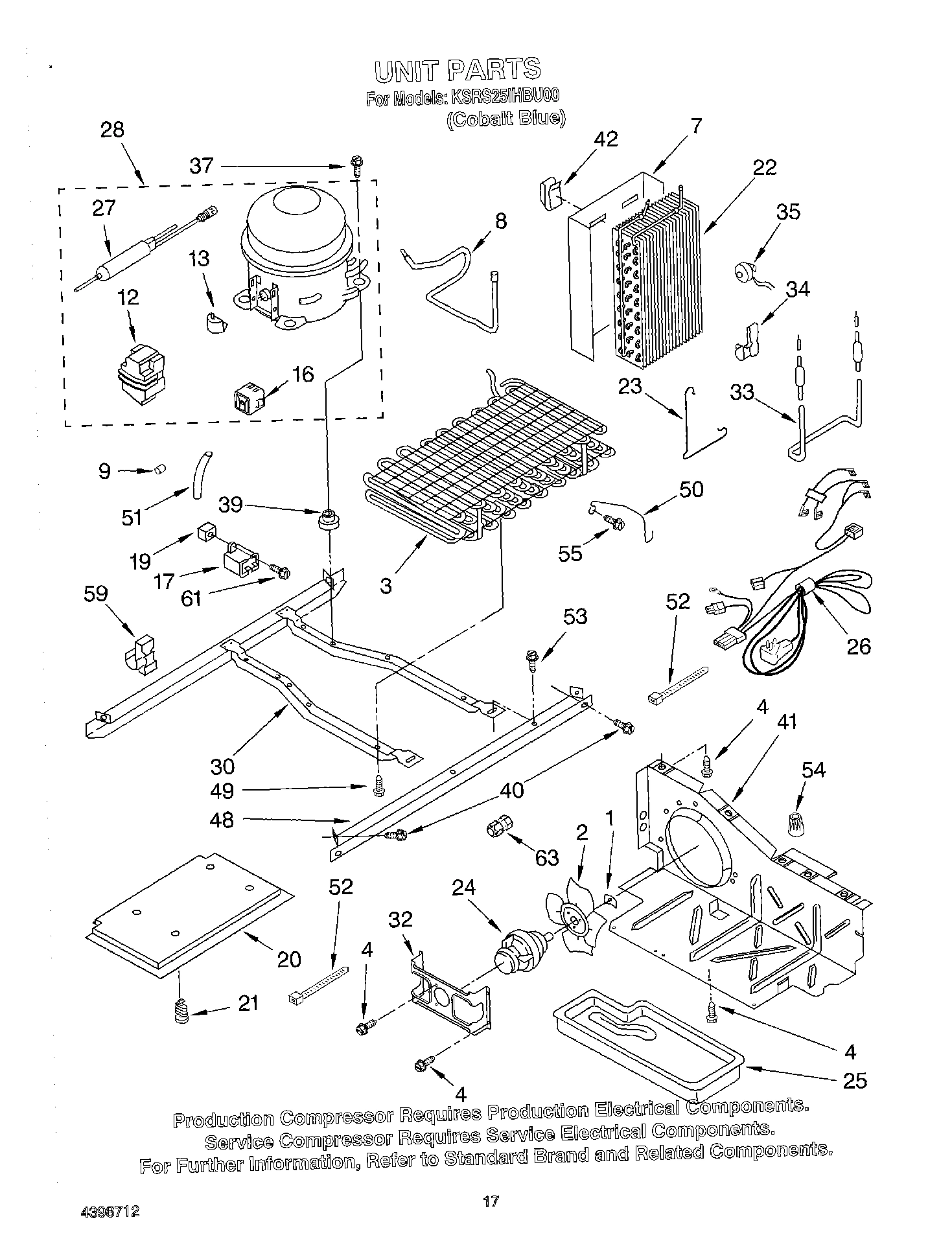

11 - UNIT

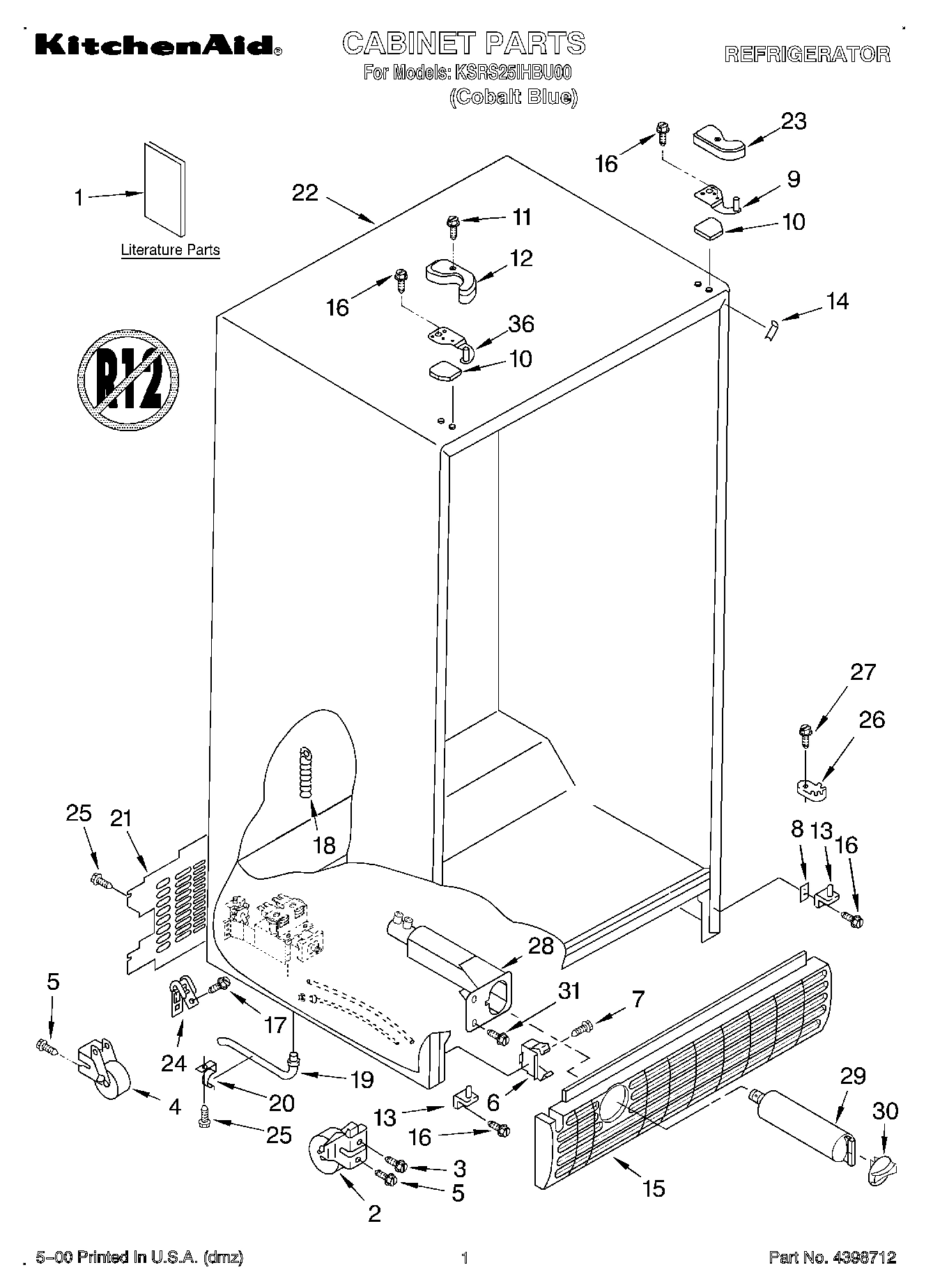

01 - CABINET, LITERATURE
Common parts from model Whirlpool KSRS25IHBU00 REFRIGERATOR
LITERATURE PARTS WPL ARI101900A Contact Us For Availability
Service & Wiring Sheet WPL LIT2198683 Contact Us For Availability
Owner`s Manual WPL LIT2206106 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2207104BU Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI101904A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI101903A Contact Us For Availability
1
Energy Guide WPL LIT2207155 Contact Us For Availability
2
Blade, Fan WPL 2190685 Contact Us For Availability
2
Handle WPL 2207112BU Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Shelf Bin (4) WPL 2205821 Contact Us For Availability
3
Shelf Bin (3) WPL 2171070 Contact Us For Availability
3
Condenser Assembly WPL 2204242B Contact Us For Availability
4
Gasket WPL 2198697 Contact Us For Availability
5
Dispenser Harness WPL 2206178 Contact Us For Availability
5
Basket, Top WPL 2205834 Contact Us For Availability
6
Basket, Tall WPL 2205833 Contact Us For Availability
7
Beverage Holder WPL 2193409 Contact Us For Availability
7
Screw (4) WPL 8281178 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grille, Overflow WPL 2207109BU Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser WPL 2207151 Contact Us For Availability
12
Hinge Cover WPL 2203407BU Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shelf Track (Left Side) WPL 2181759 Contact Us For Availability
13
Shelf Track (Right Side) WPL 2181760 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Bracket, Door Stop WPL 2200082 Contact Us For Availability
14
Shelf WPL 2205837 Contact Us For Availability
14
Filler, Wrapper WPL 2205991 Contact Us For Availability
15
Basket, Sloped WPL 2205832 Contact Us For Availability
15
Grille WPL 2186881BU Contact Us For Availability
17
Lever, Water Dispenser WPL 2207149 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Tray, Butter WPL 2165792 Contact Us For Availability
19
Overlay, Front Cover WPL 2207154BU Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Gasket WPL 2159124 Contact Us For Availability
20
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
21
Light Lens WPL 2203266 Contact Us For Availability
21
Endcap WPL 2207111CH Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI101905A Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI101901A Contact Us For Availability
23
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Endcap WPL 2207110CH Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153BU Contact Us For Availability
23
Hinge Cover WPL 2203408BU Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Harness, Intermediate WPL 2188346 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2198640 Contact Us For Availability
30
Cap, Water Filter WPL 2186884BU Contact Us For Availability
31
Tube, P.C. Board WPL 2198665 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
36
Cover, Receiver WPL 2198588 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
40
Brush Touch- WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Light Shield WPL 2198589 Contact Us For Availability
41
Light Lens WPL 2211506 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
45
Ladder (Left Side) WPL 2198609 Contact Us For Availability
45
Ladder (Right Side) WPL 2198610 Contact Us For Availability
46
Shield, Wiring WPL 2198639 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
