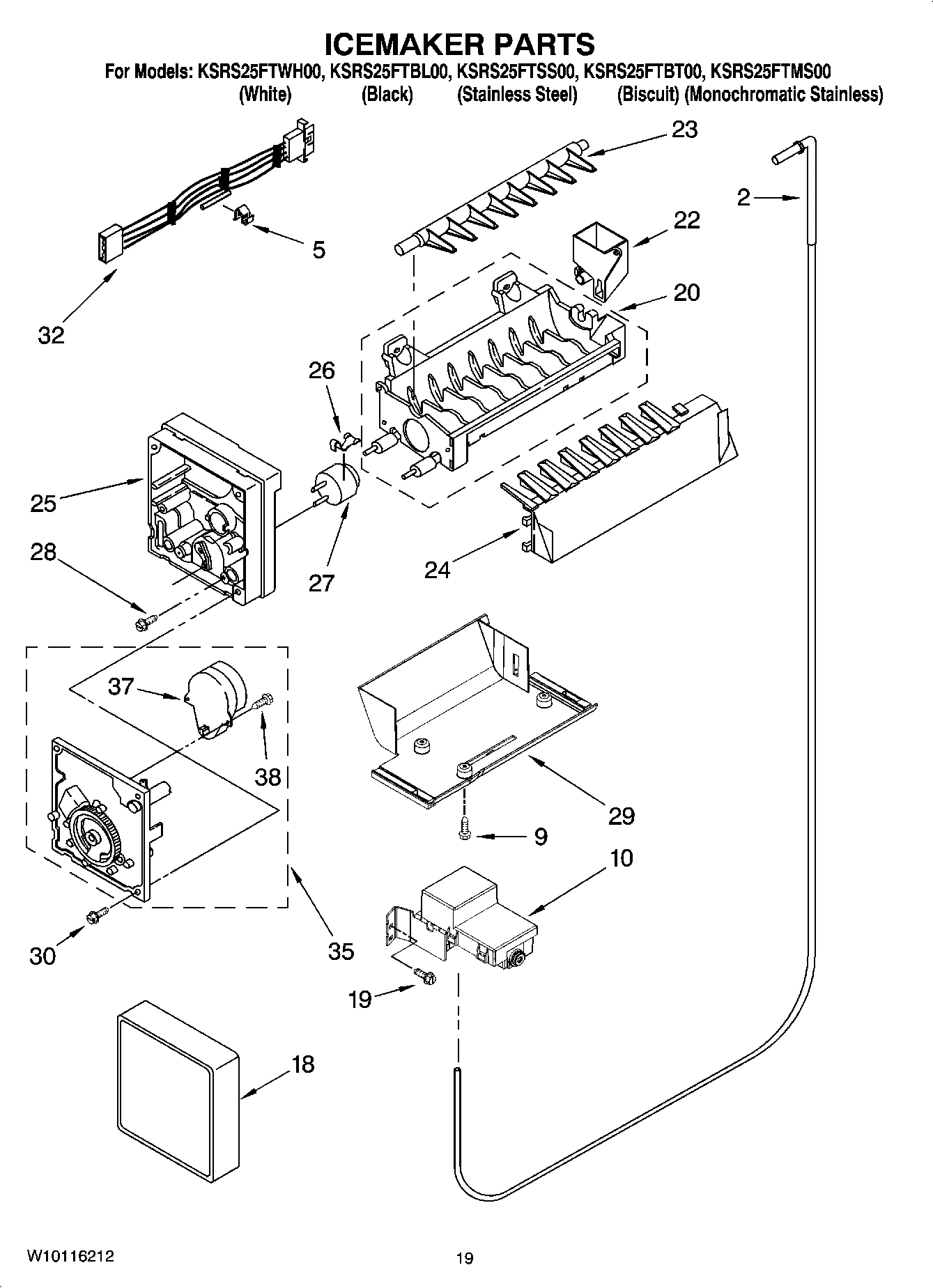

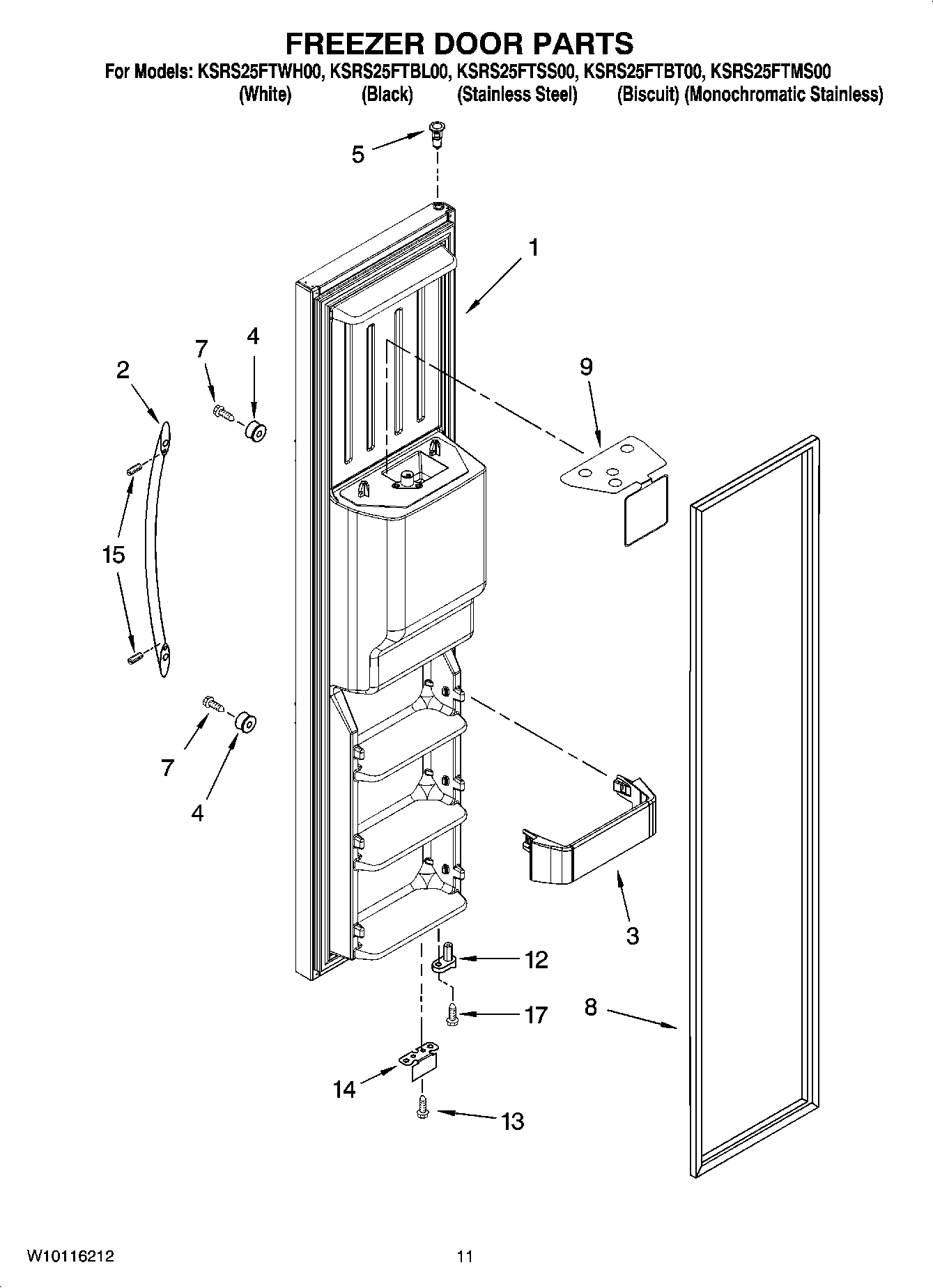

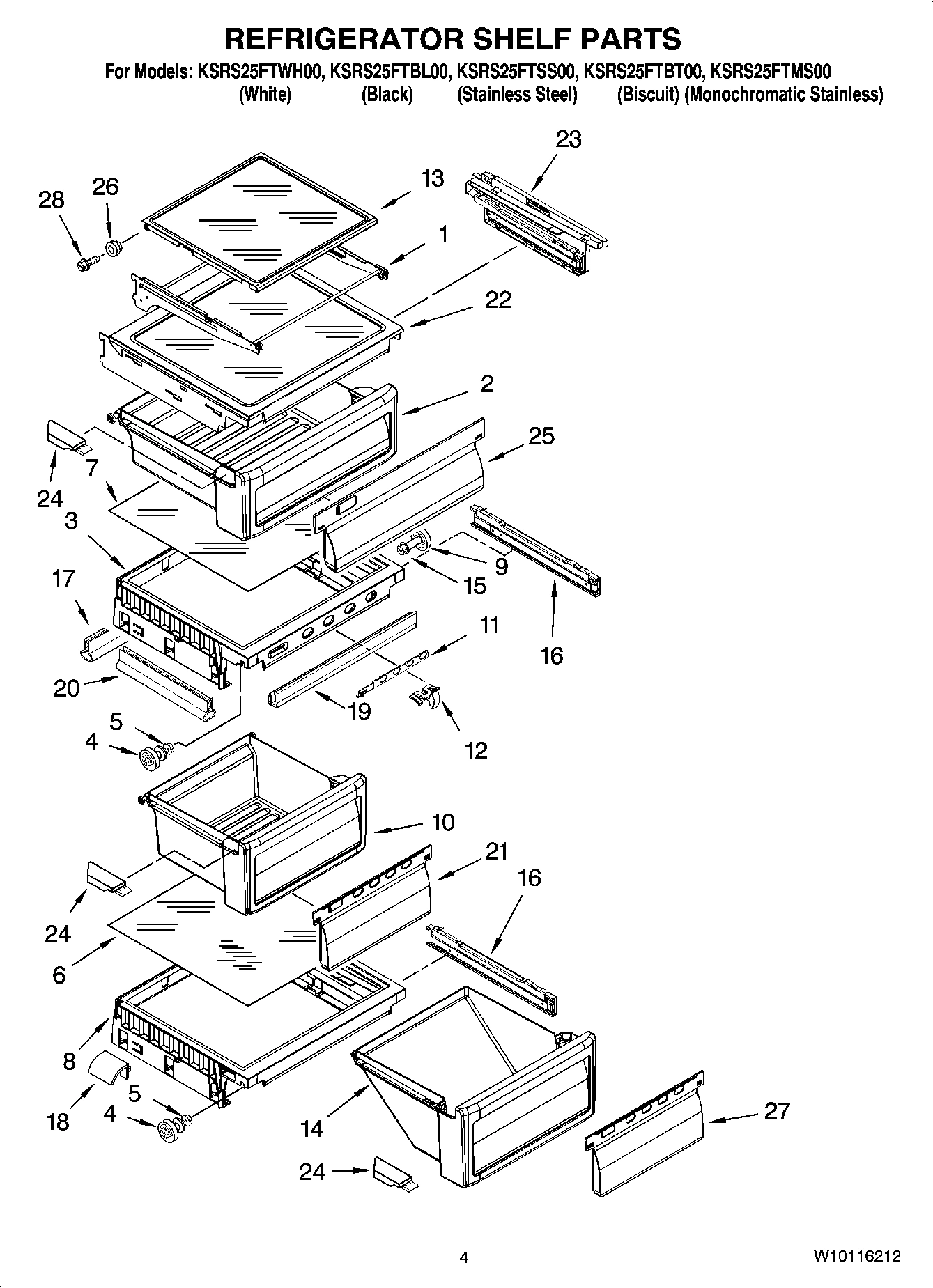

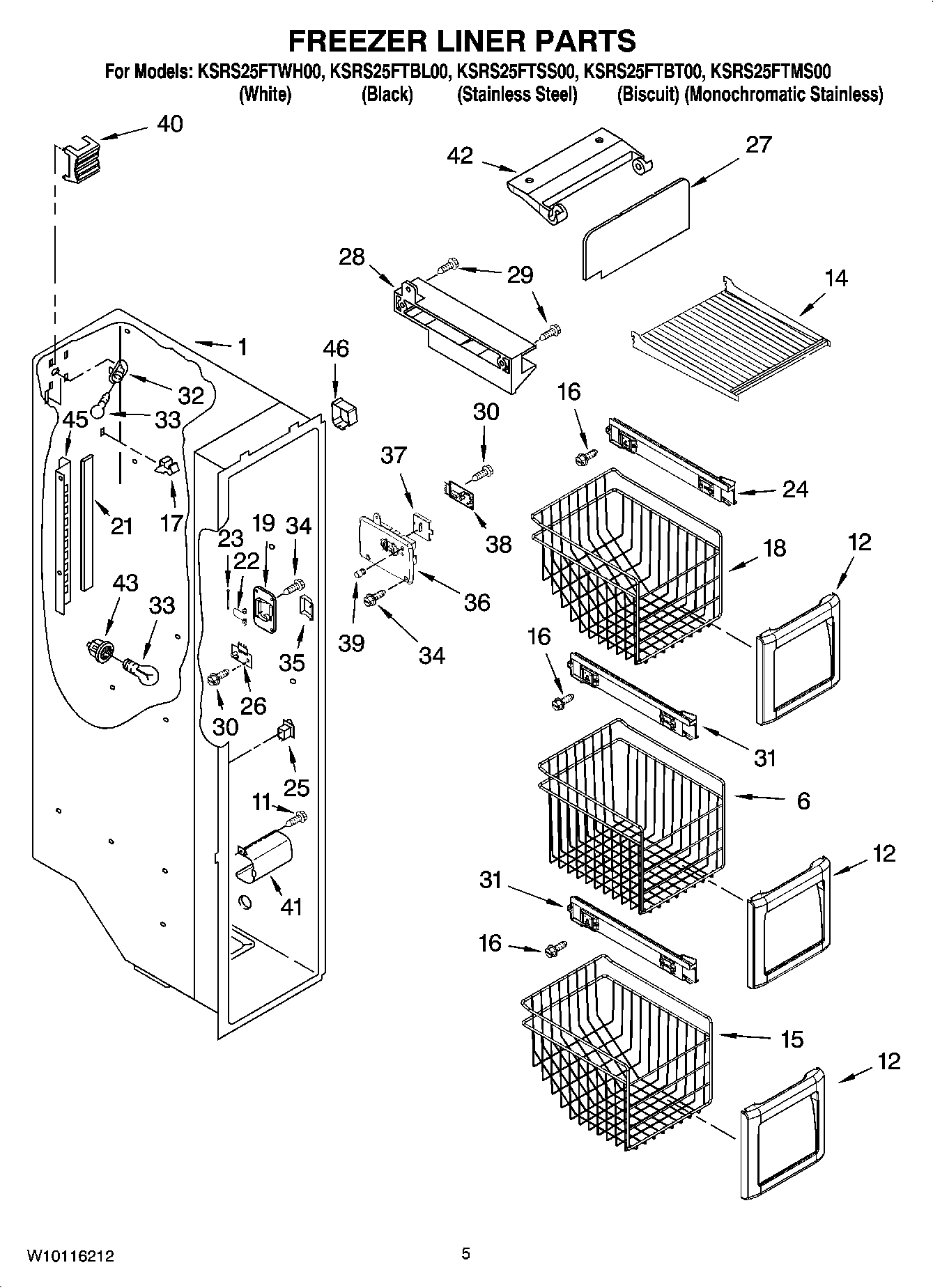

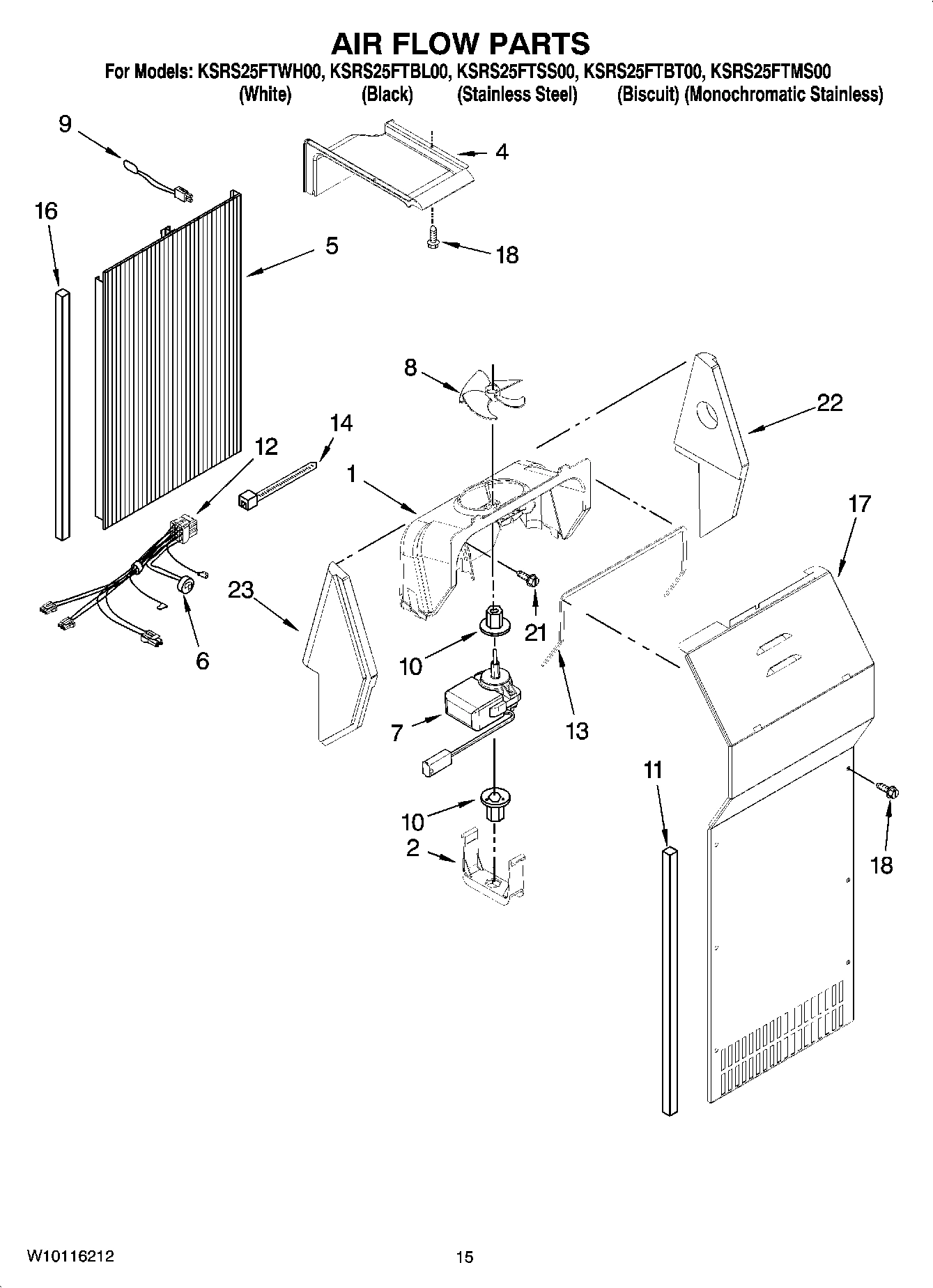

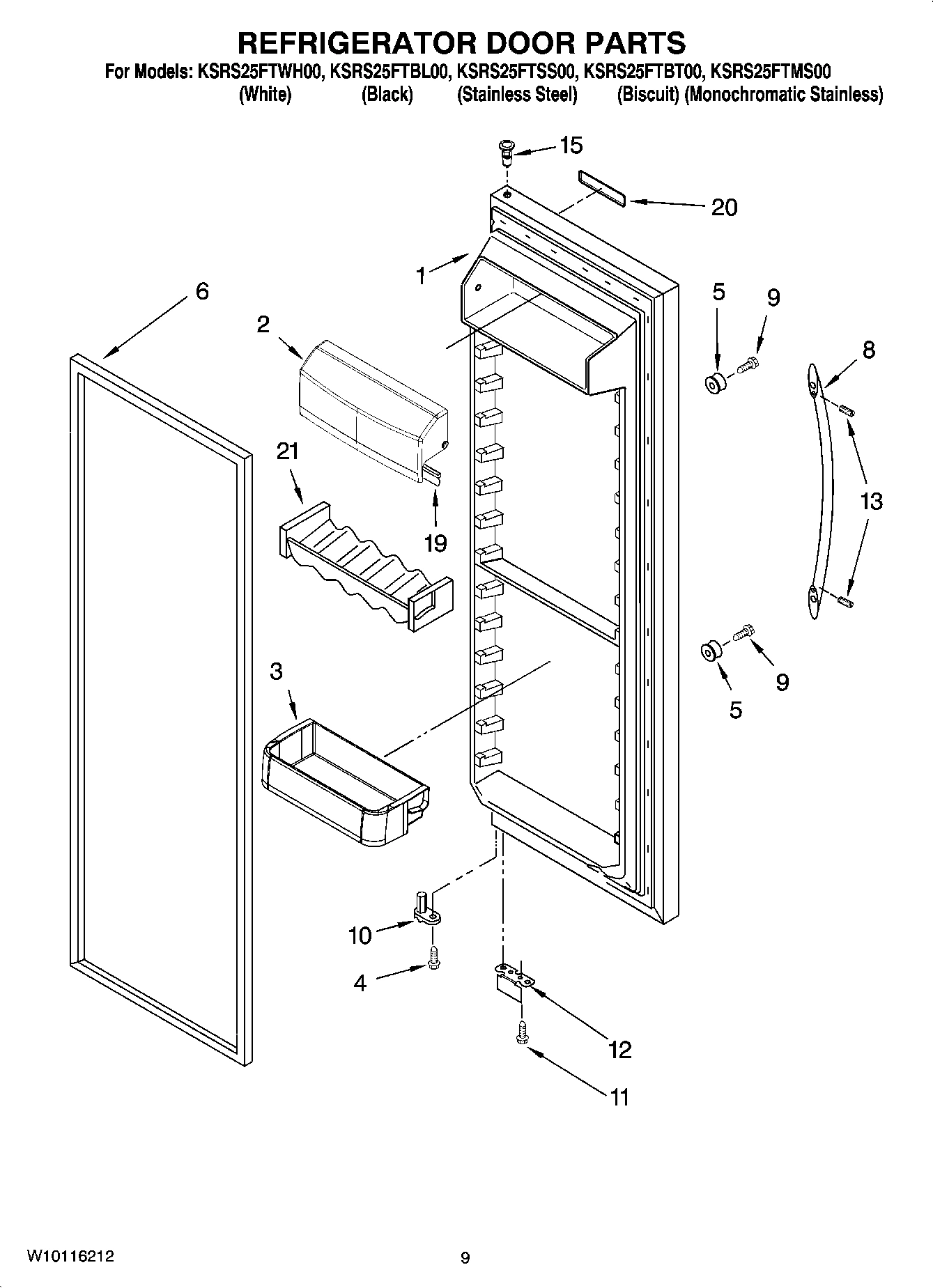

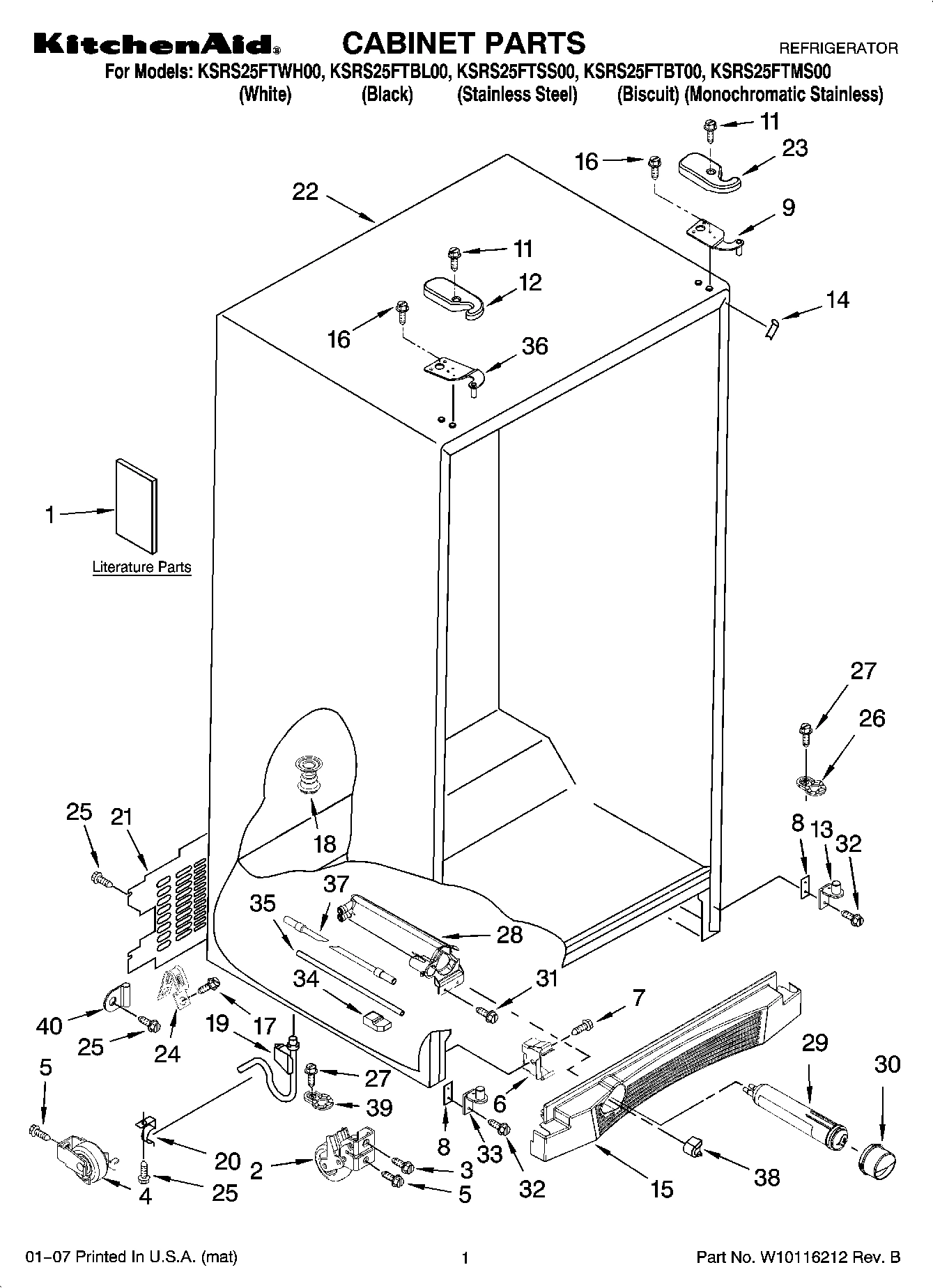

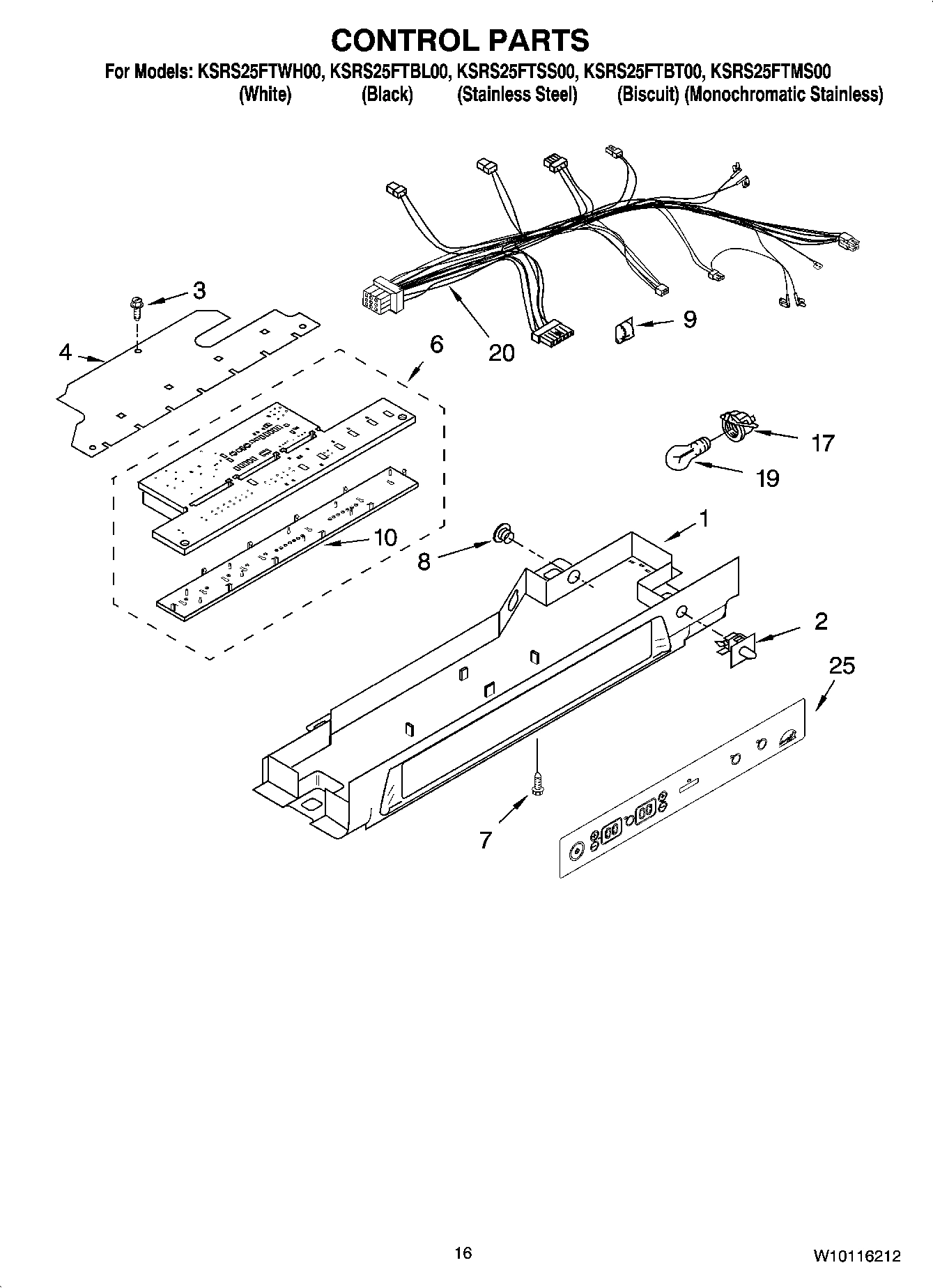

Model Whirlpool KSRS25FTMS00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2301089S Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Monochro WPL 2301089SU Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Black) WPL 2313299B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2313299T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2313299W Contact Us For Availability

1

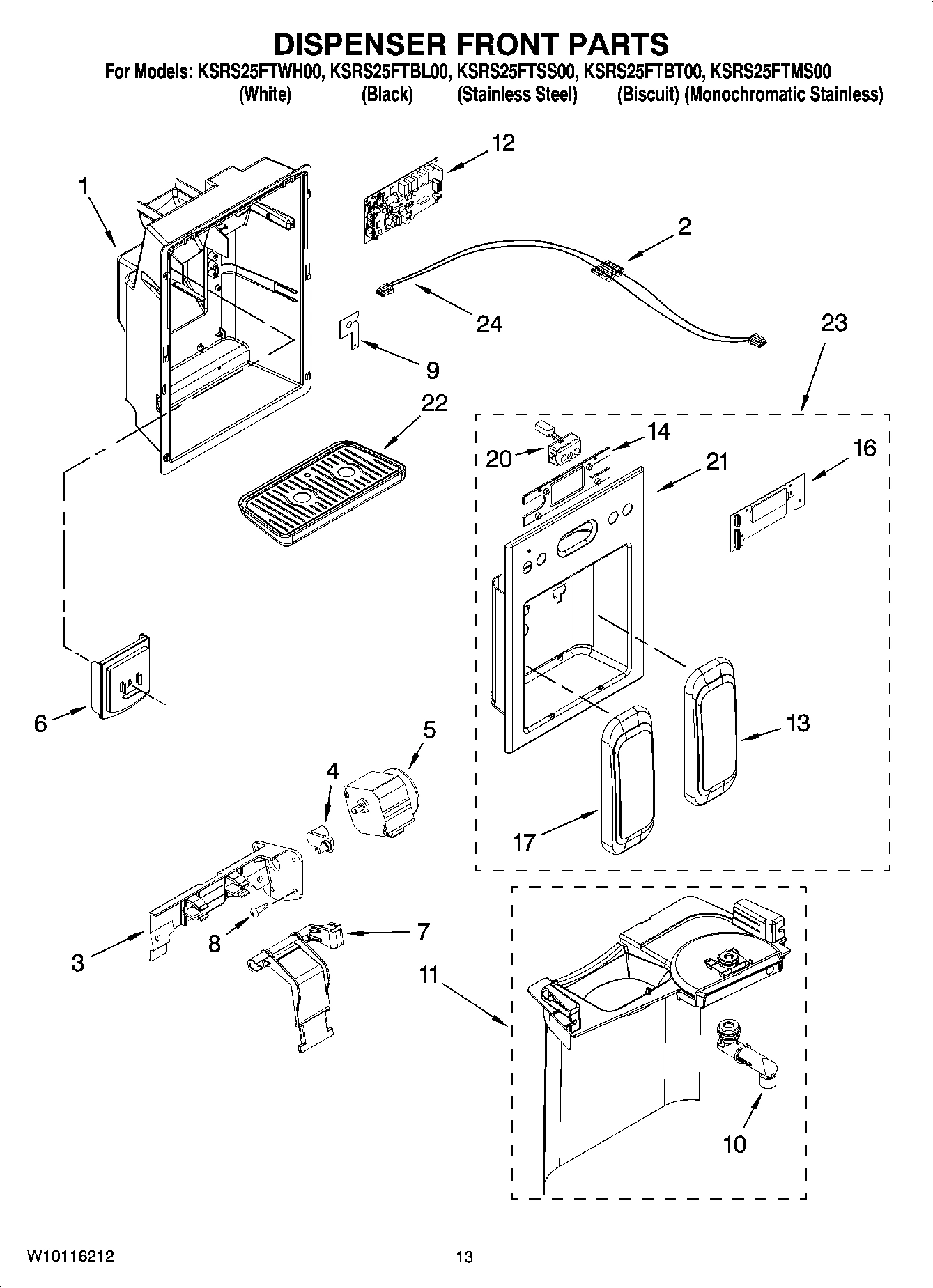

Housing Dispenser (Not Serviced) WPL ARI101767A Contact Us For Availability

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

2

Door Compartment (Includes 19) WPL 2301486 Contact Us For Availability

2

Ferrite Bead WPL 2308165 Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $53.75

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $37.95

3

Cover, Crisper (Includes 11, 12, 16, 17, 19 & WPL 2301567 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

4

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $30.40

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $37.00

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly Backorder WPL WP2305258 $7.69

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

Glass, Meat Cover WPL 2301028 Contact Us For Availability

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $27.69

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

7

Heat Shield And Drain Pan WPL 2217194 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $122.04

8

WP2319727W Whirlpool Refrigerator Handle Backorder WPL WP2319727W $111.68

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

8

Handle (Biscuit) WPL 2319727T Contact Us For Availability

9

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

9

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

9

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $17.24

9

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Ladder WPL 2319866 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W10916292 Whirlpool Refrigerator Crisper Pan Backorder WPL W10916292 $99.22

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

Spigot WPL 2305236 Contact Us For Availability

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Separator Assembly WPL 2305456 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $29.19

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

Harness, Fan Evaporator (Includes 6) WPL 2310238 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

Pad, Water (For White Model) WPL 2305307CE Contact Us For Availability

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

14

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

14

Lens, Front Cover WPL 2305343 Contact Us For Availability

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $139.57

Thimble, Top (For Stainless Steel Model Only) WPL 2308050 Contact Us For Availability

Clip, Retaining WPL 2255199 Contact Us For Availability

2301548 Whirlpool Refrigerator Glide Backorder WPL 2301548 $98.93

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $59.55

WP2319792 Whirlpool Refrigerator Start Device In Stock WPL WP2319792 $58.54

WP2321746 Whirlpool Refrigerator Electronic C Backorder WPL WP2321746 $163.94

W10133603 Whirlpool Refrigerator Dispenser Ac In Stock WPL W10133603 $204.42

W10133606 Whirlpool Refrigerator Pad In Stock WPL W10133606 $195.40

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Pad, Ice (For White Model) WPL 2305306CE Contact Us For Availability

Cover, Evaporator (Includes 11) WPL 2206314 Contact Us For Availability

18

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

18

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $59.78

Gasket WPL 2159124 Contact Us For Availability

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

Nameplate (Gray) WPL W10046610 Contact Us For Availability

Nameplate (Biscuit) WPL W10046700 Contact Us For Availability

LED Assembly WPL 2303841 Contact Us For Availability

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Window, Crisper Pan WPL 2301001 Contact Us For Availability

Beverage Holder (2) WPL 2193409K Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI101768A Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

Tray, Housing (Black) WPL 2315109B Contact Us For Availability

Tray, Housing (White) WPL 2315109W Contact Us For Availability

Tray, Housing (Biscuit) WPL 2315109T Contact Us For Availability

Tray, Housing (Universal Silver) WPL 2315109US Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 13, 14, WPL 2318911B Contact Us For Availability

Front Cover Assembly (Includes Items 13, 14, WPL 2318911T Contact Us For Availability

Front Cover Assembly (Includes Items 13, 14, WPL 2318911US Contact Us For Availability

Front Cover Assembly (Includes Items 13, 14, WPL 2318911W Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Glide Assembly, Top Basket (Right Side) WPL 2301540 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Wire Assembly, User Interface (Includes 2) WPL 2187814 Contact Us For Availability

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

25

Window, Snack Pan WPL 2301006 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

Harness, Unit WPL 2310229 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10139460 Whirlpool Refrigerator Compressor In Stock WPL W10139460 $276.71

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

30

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $88.31

31

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $115.68

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

33

Bracket, Motor WPL 2305208 Contact Us For Availability

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

Cover, Receiver WPL 2255561 Contact Us For Availability

37

Slide, Ice Maker Shut Off WPL 2301340 Contact Us For Availability

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $7.80

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Light Shield WPL 2198589 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

45

Ladder (Left Side) WPL 2320024 Contact Us For Availability

45

Ladder (Right Side) WPL 2320025 Contact Us For Availability

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $26.21

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

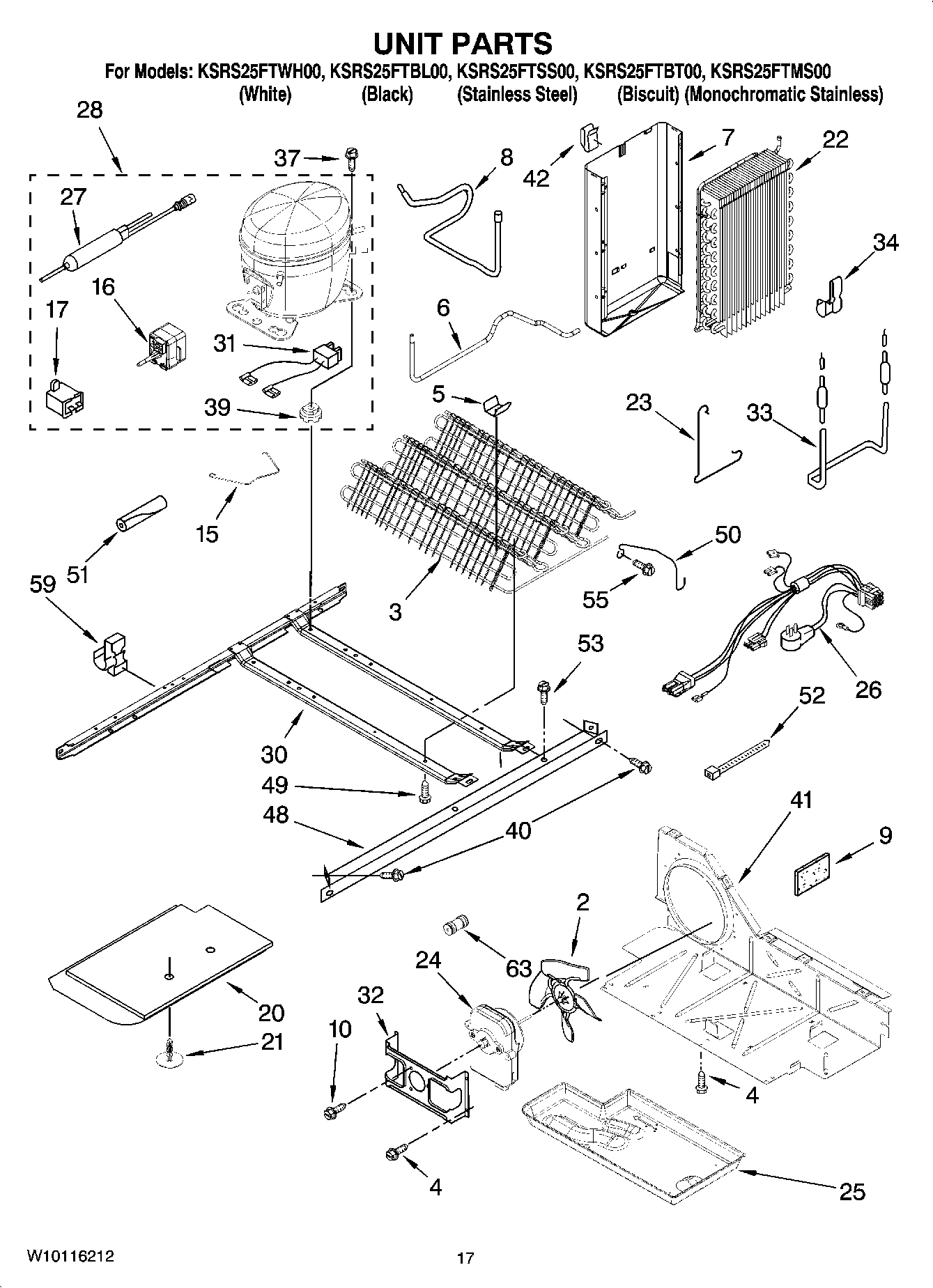

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Union WPL 2305227 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI101770A Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI101771A Contact Us For Availability
