Model Whirlpool KSRP27QDBL00 – Common Parts & Diagrams
07 - FREEZER DOOR
09 - AIR FLOW

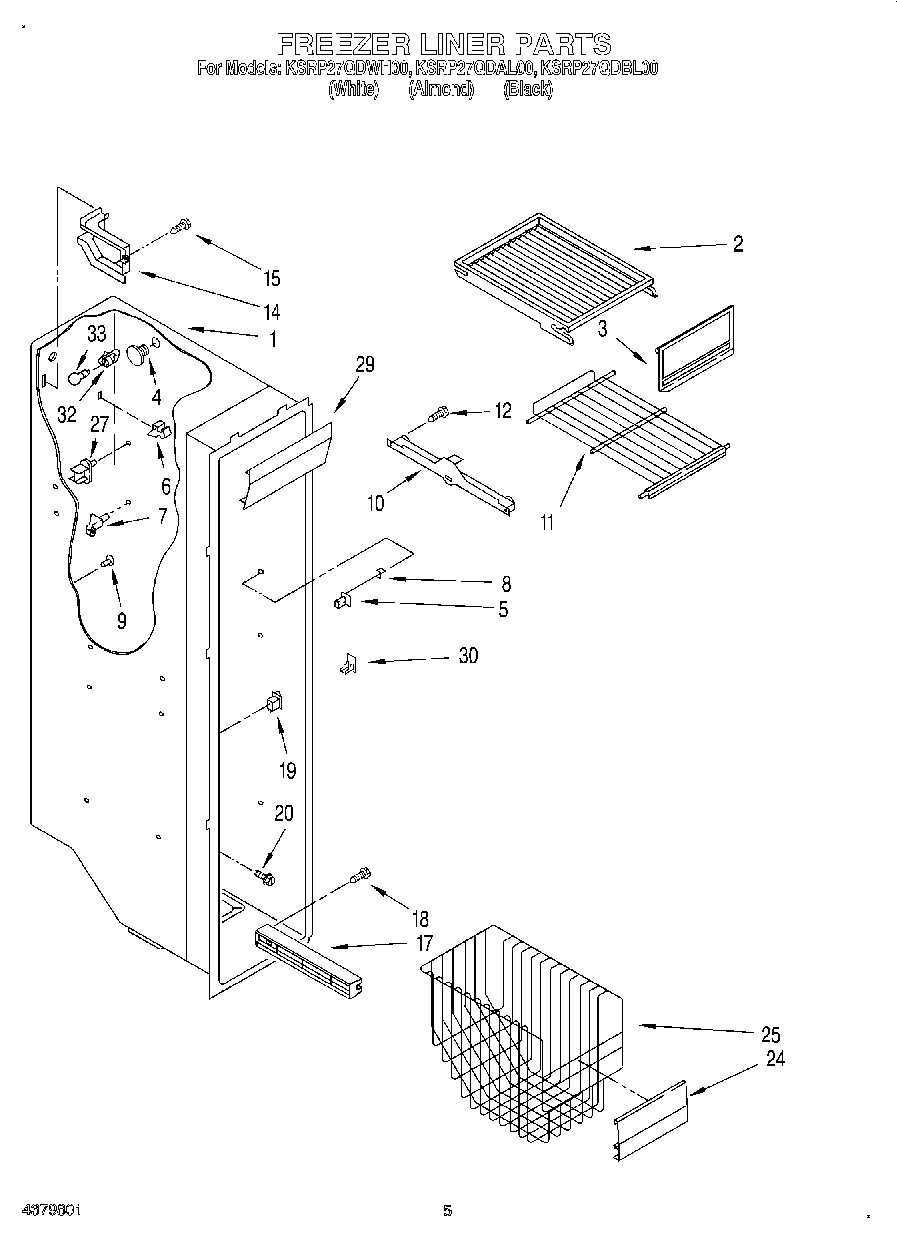

04 - FREEZER LINER

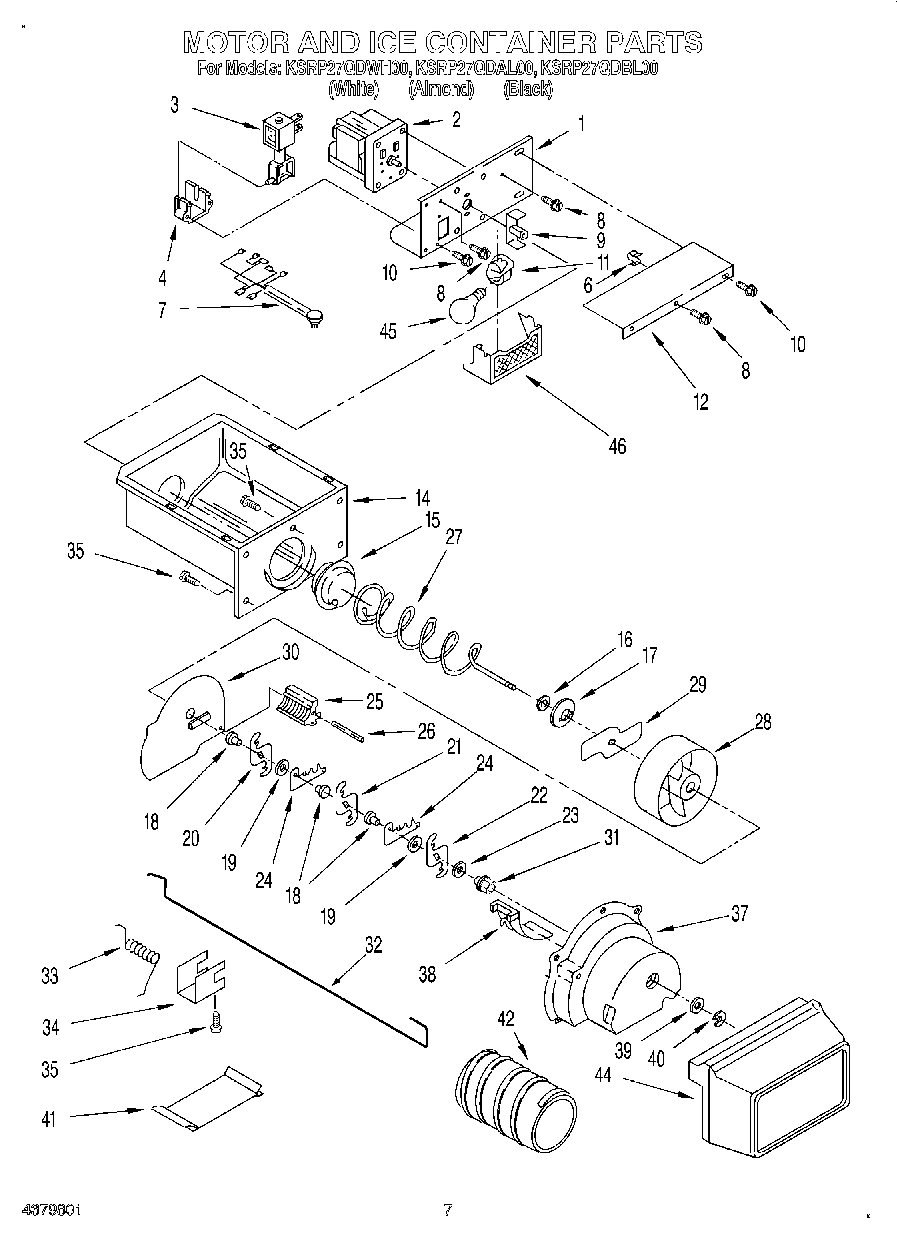

05 - MOTOR AND ICE CONTAINER

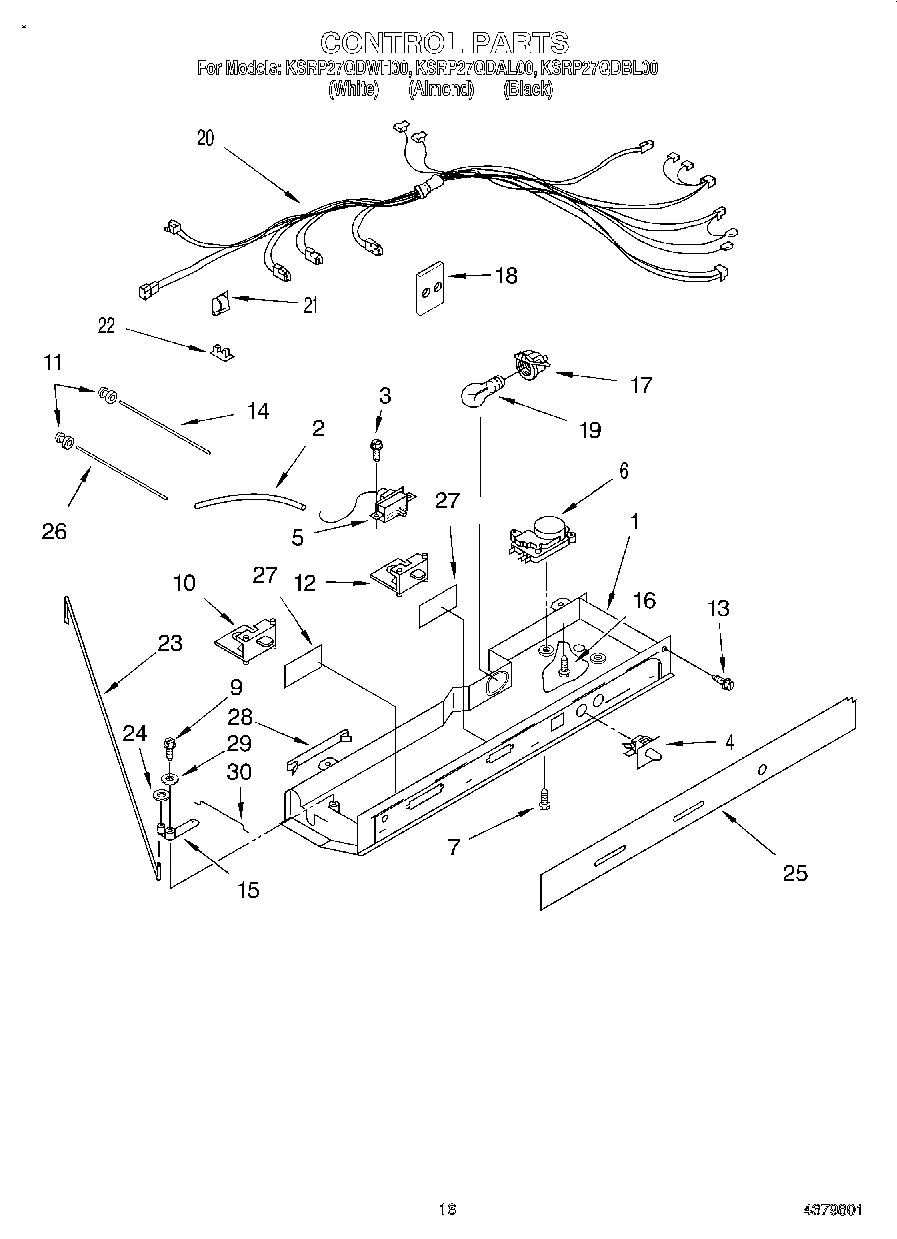

10 - CONTROL
12 - ICEMAKER, LIT/OPTIONAL

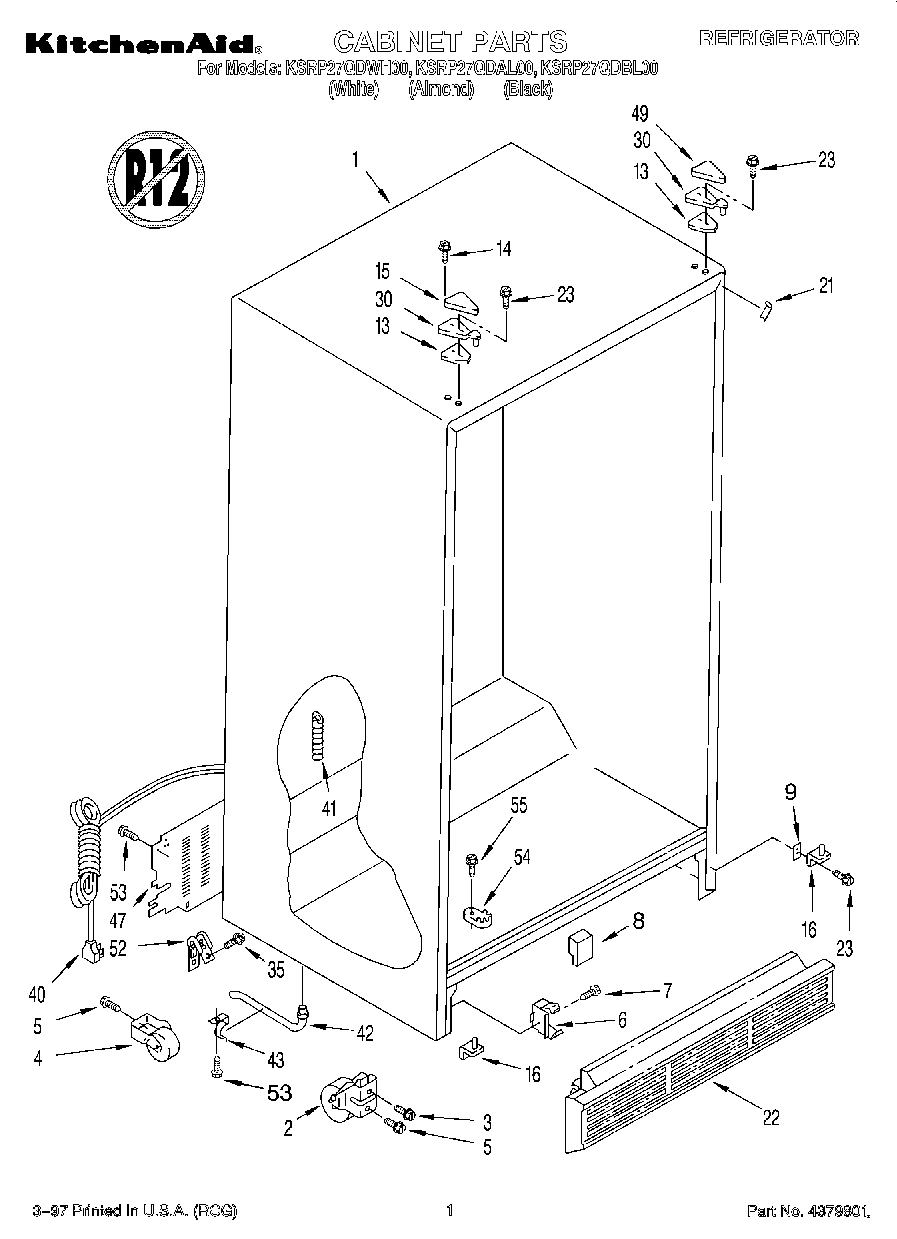

01 - CABINET

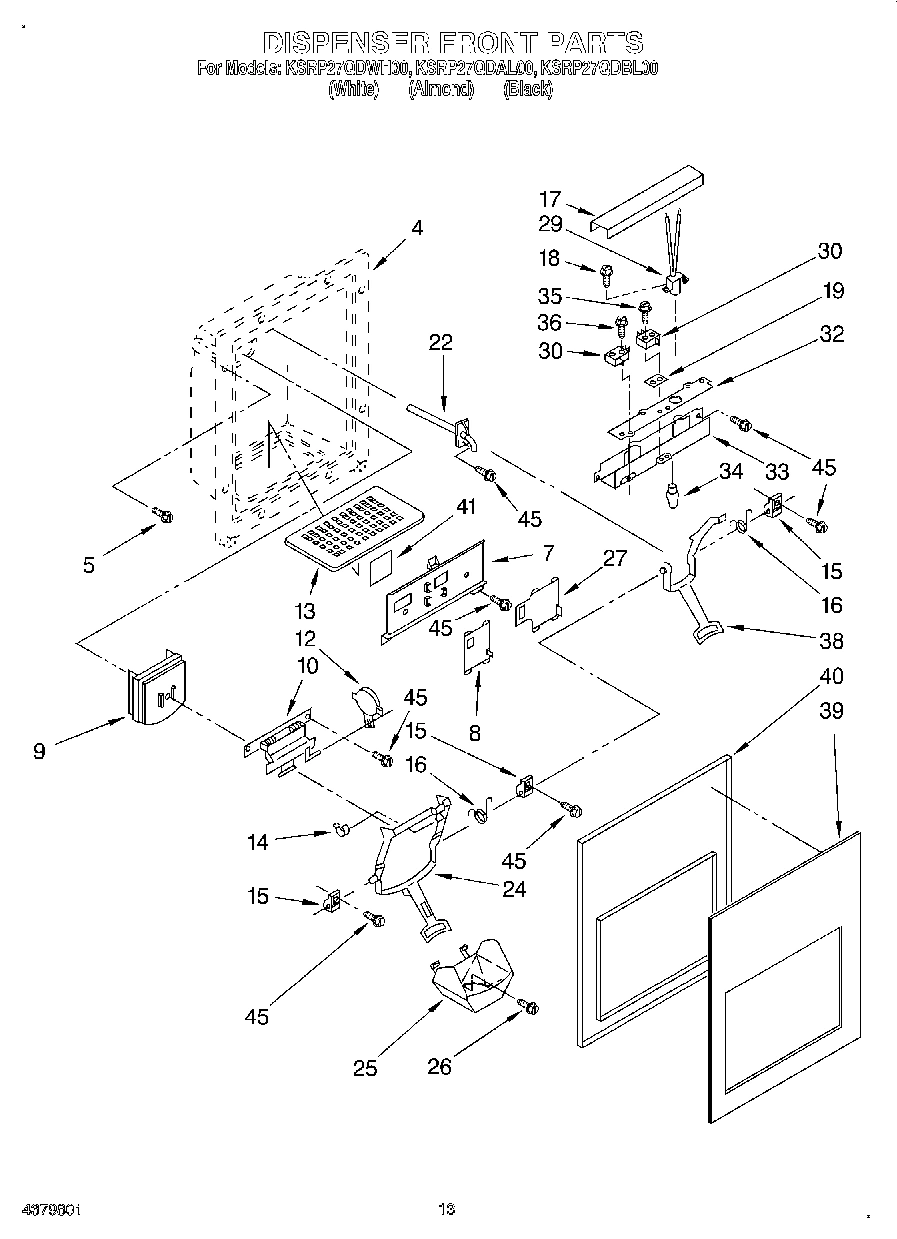

08 - DISPENSER FRONT

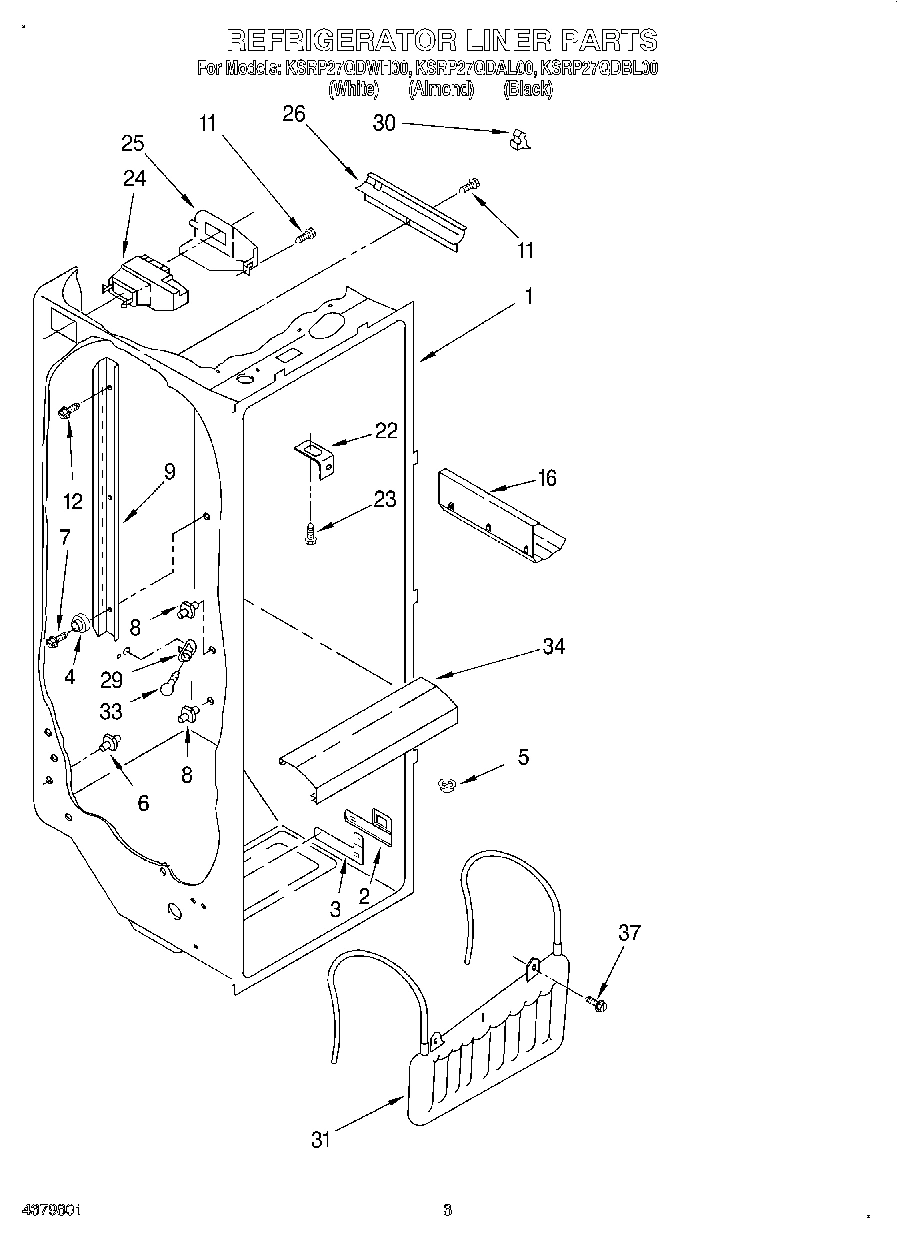

02 - REFRIGERATOR LINER

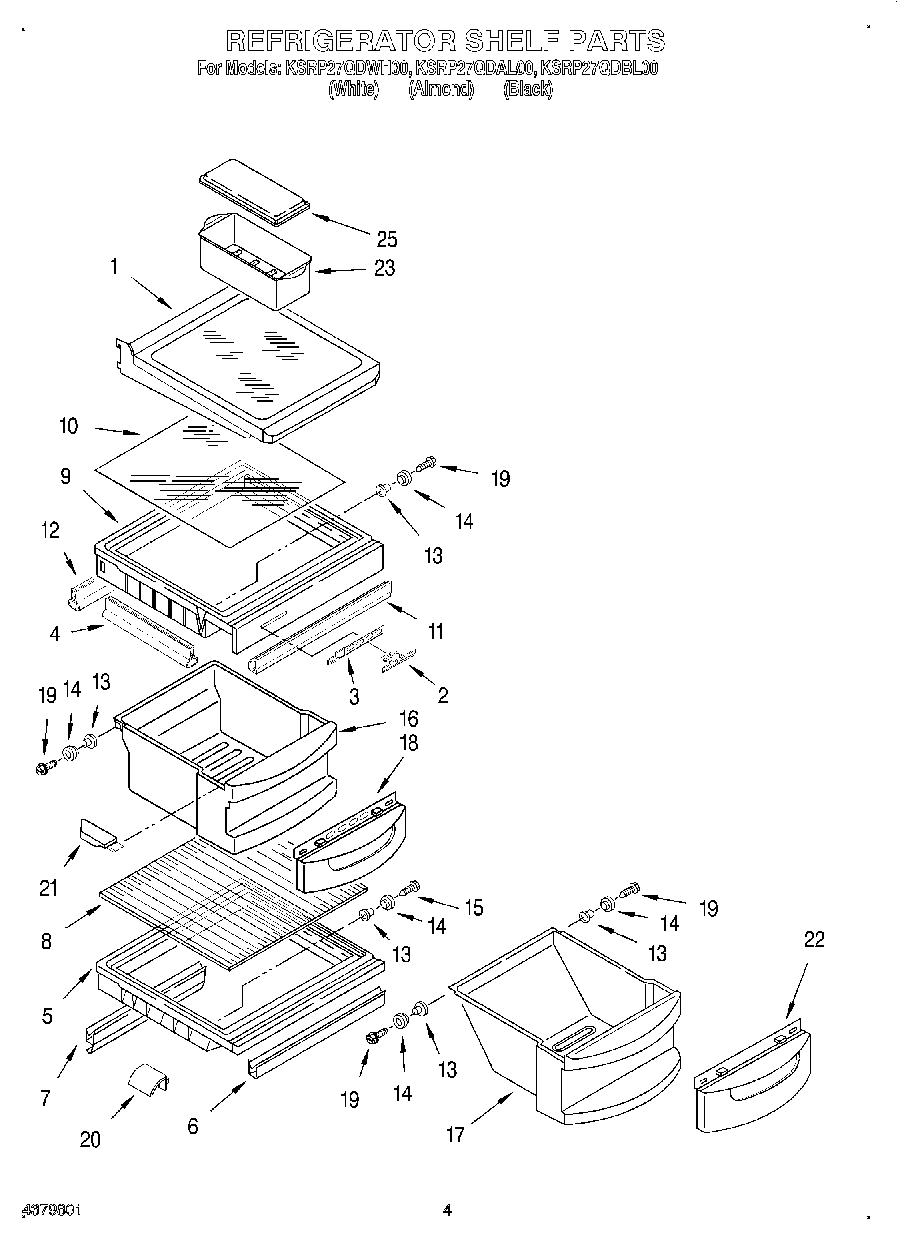

03 - REFRIGERATOR SHELF
06 - REFRIGERATOR DOOR

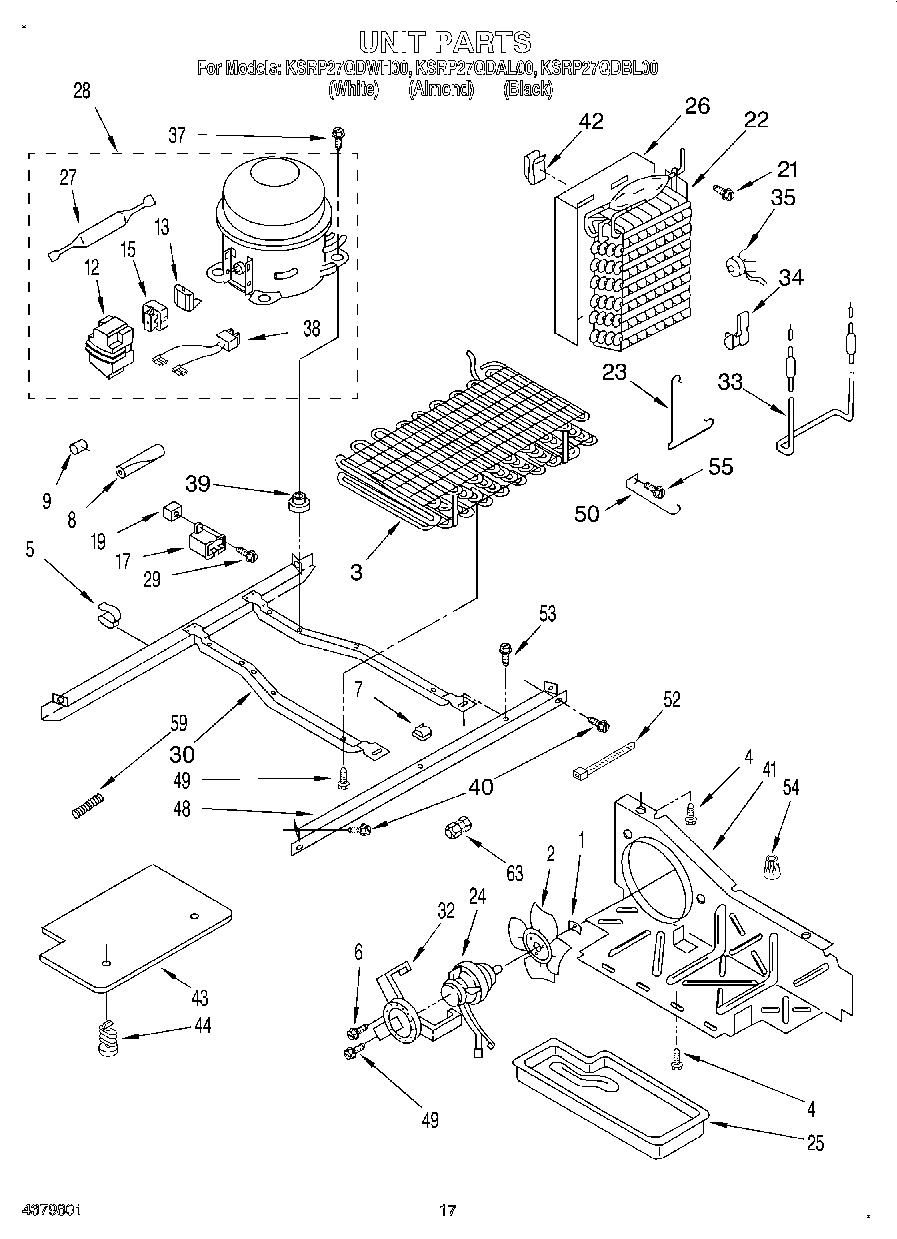

11 - UNIT
Common parts from model Whirlpool KSRP27QDBL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161476 WPL LIT2161476 Contact Us For Availability
WPL LIT2176787 WPL LIT2176787 Contact Us For Availability
WPL LIT2180082 WPL LIT2180082 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI100702A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100703A Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174033 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2177184 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2177185 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2177186 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI100705A Contact Us For Availability
4
Stud WPL 658944 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Insert, Handle (White) WPL 1117948 Contact Us For Availability
6
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
6
Insert, Handle (Black) WPL 2180118 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Screw WPL 487559 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 2172956 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Glass, Cover WPL 2174148 Contact Us For Availability
8
End Cap, Handle WPL 1107341 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171996 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Glass, Cover WPL 2179523 Contact Us For Availability
10
Handle Assembly WPL 1107215 Contact Us For Availability
11
Shelf (2) WPL 2174268 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Spacer, Handle WPL 1107651 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
15
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
15
Relay (See Overload) WPL ARI100706A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert (Bottom) WPL 1117952 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Retainer, Insert WPL 1107243 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Shelf Bin (4) WPL 2171062 Contact Us For Availability
19
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
19
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
19
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
19
Trim Kit WPL 4318336 Contact Us For Availability
19
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
19
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
19
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Cover WPL 2164374 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Window (2) WPL 2175513 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw (6) WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2174314 Contact Us For Availability
39
Insert, Cover (Black) WPL 2174315 Contact Us For Availability
39
Insert, Cover (White) WPL 2174316 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Service Cord WPL 2181709 Contact Us For Availability
40
Co WPL 2174292 Contact Us For Availability
40
WPL 2174293 WPL 2174293 Contact Us For Availability
40
WPL 2174294 WPL 2174294 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncu WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
