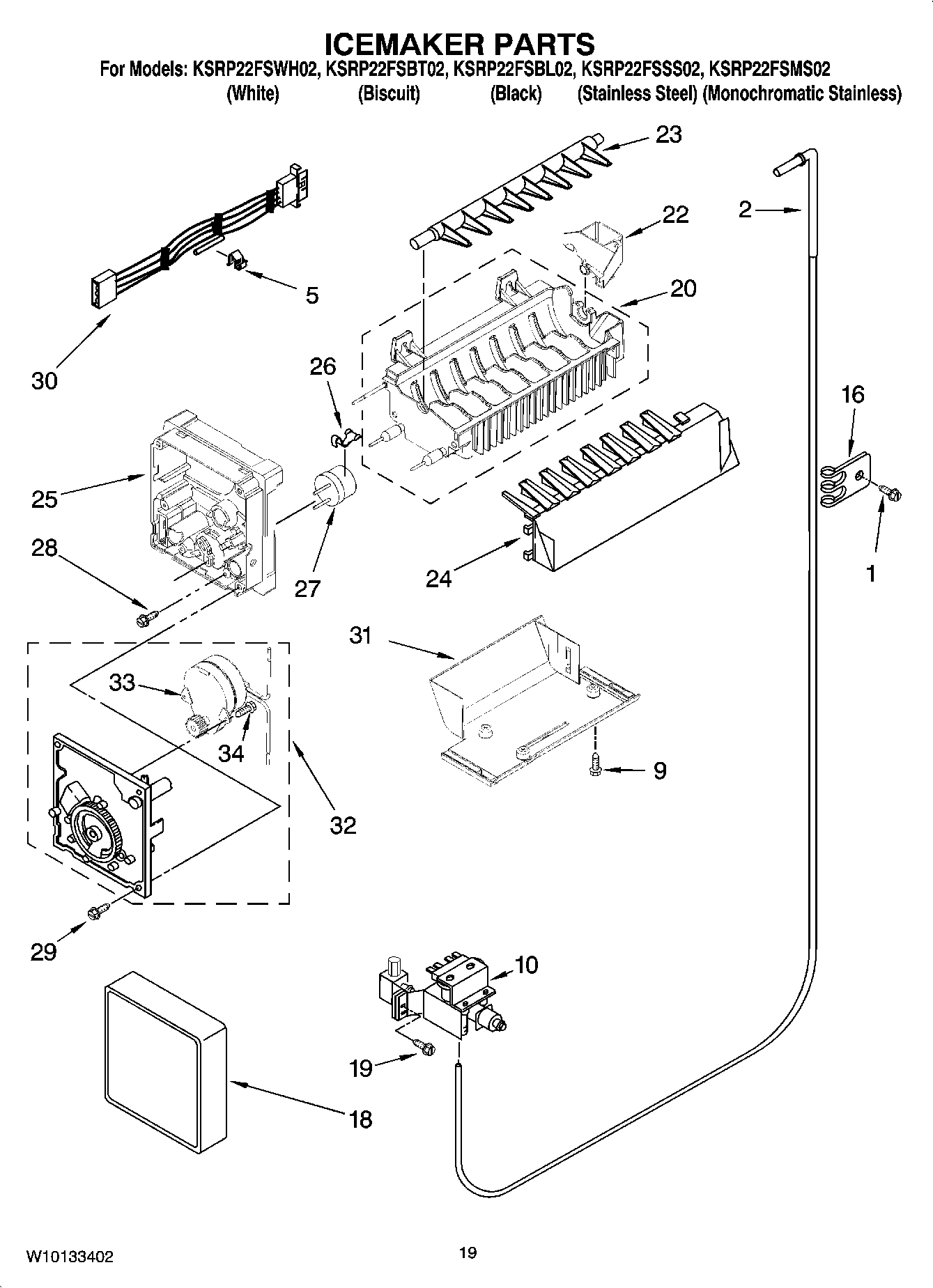

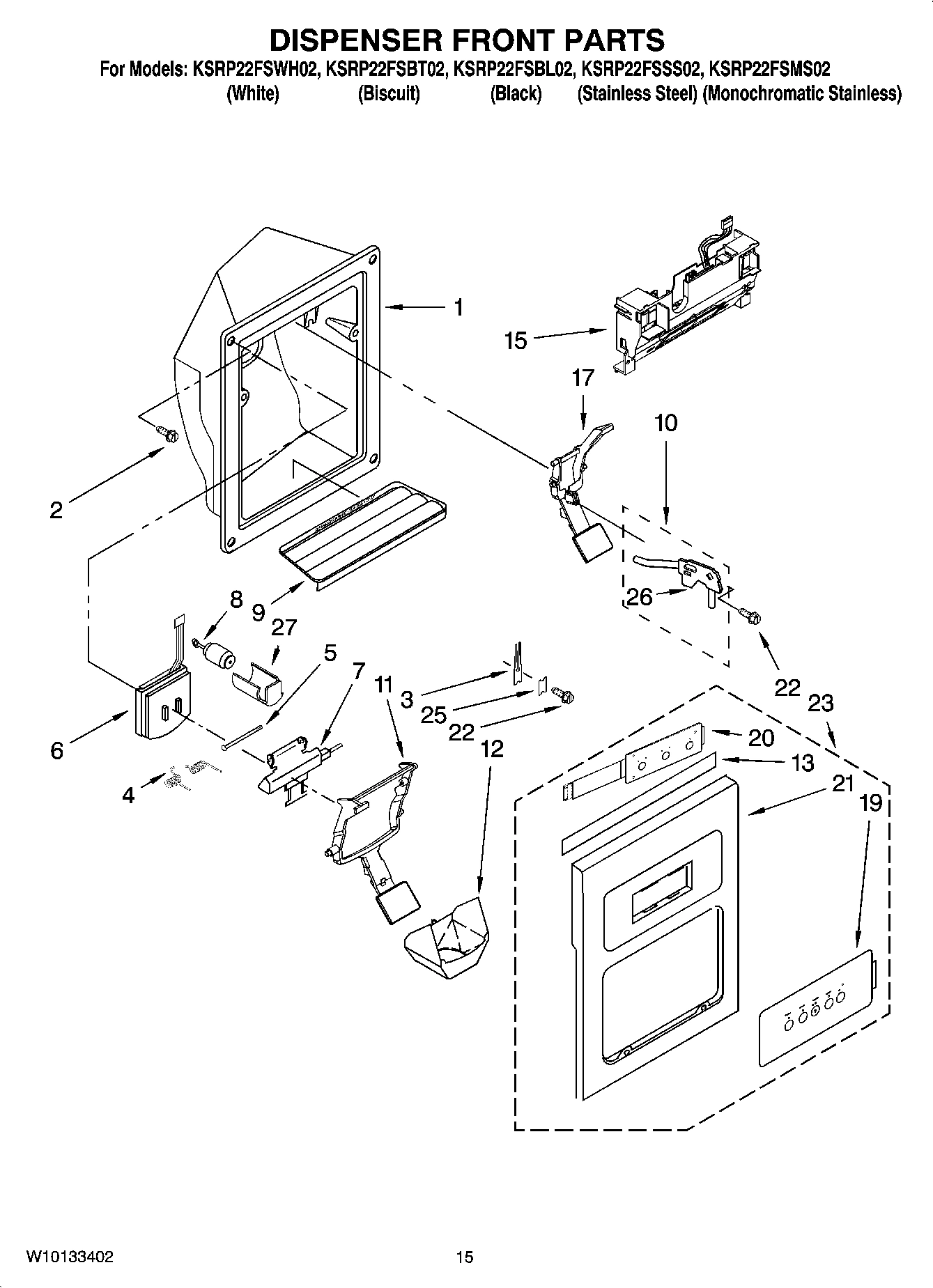

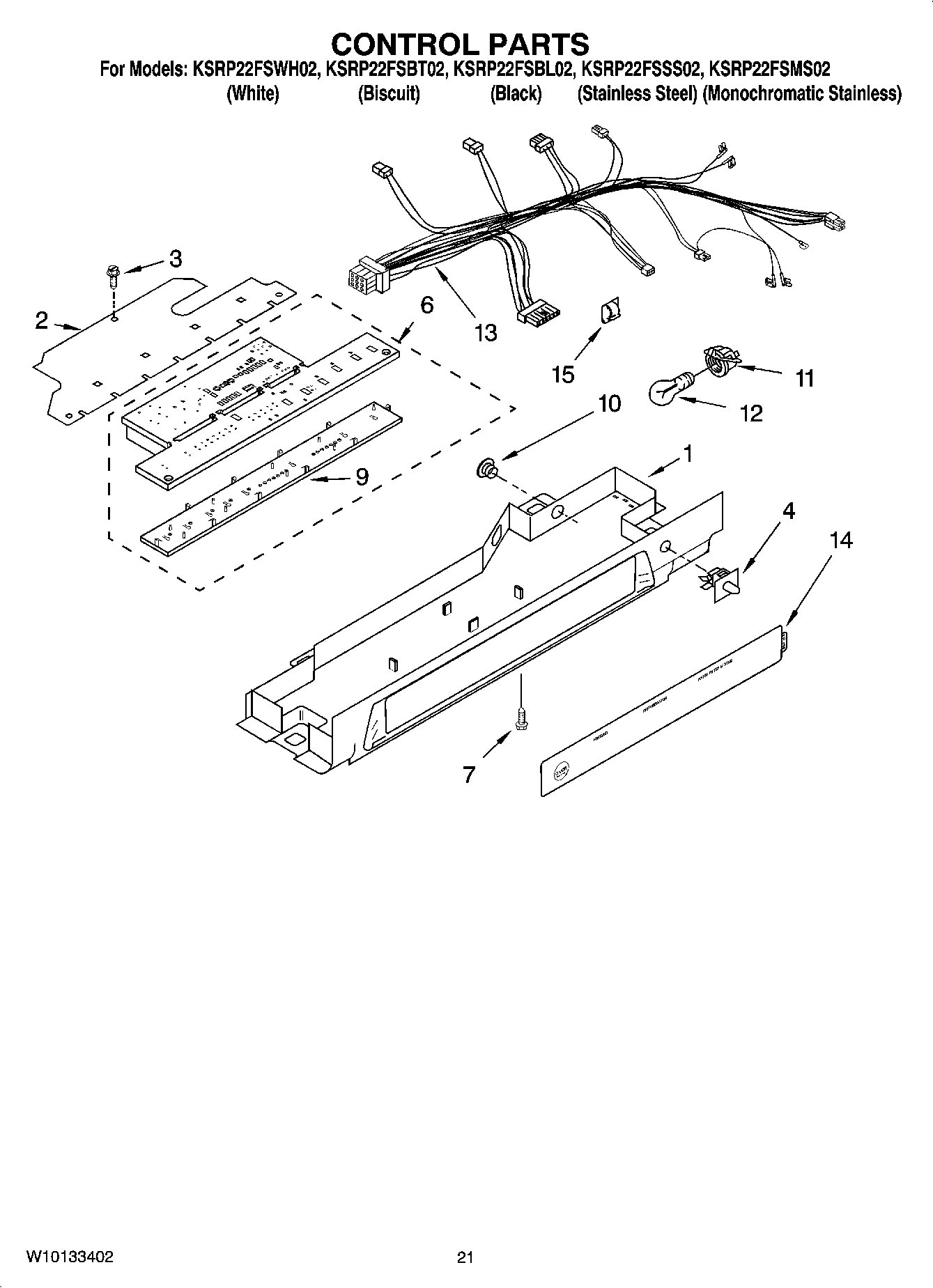

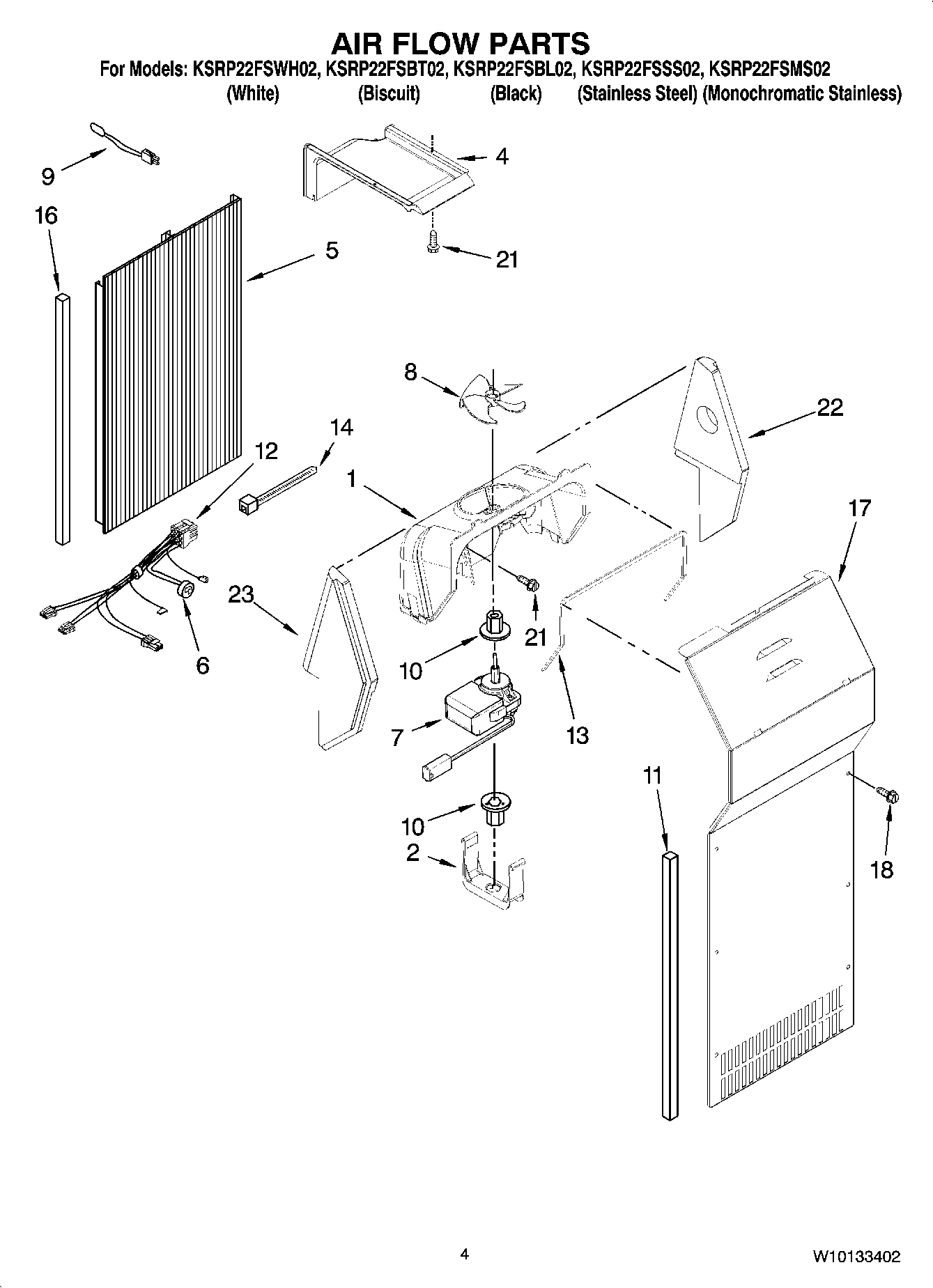

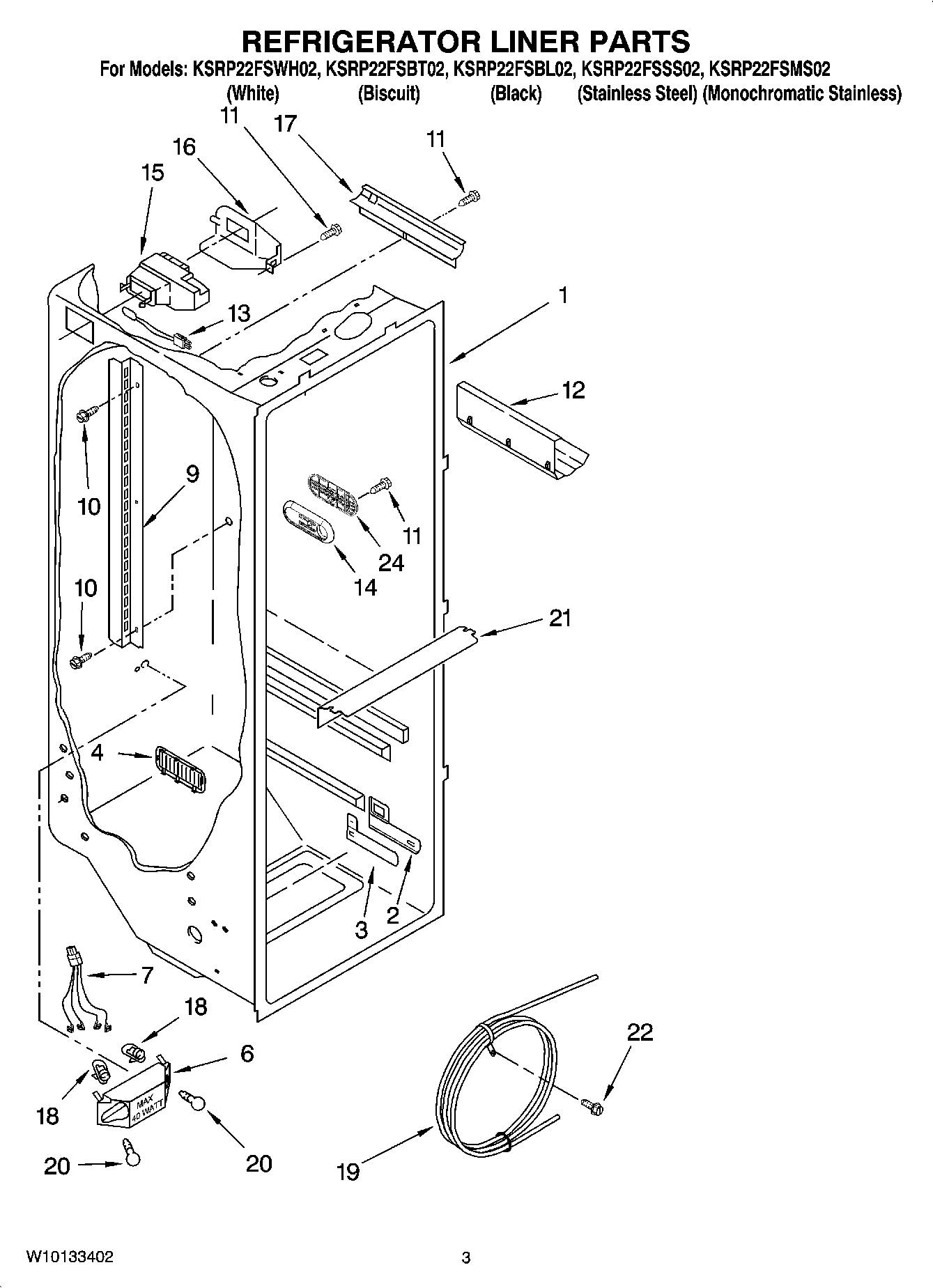

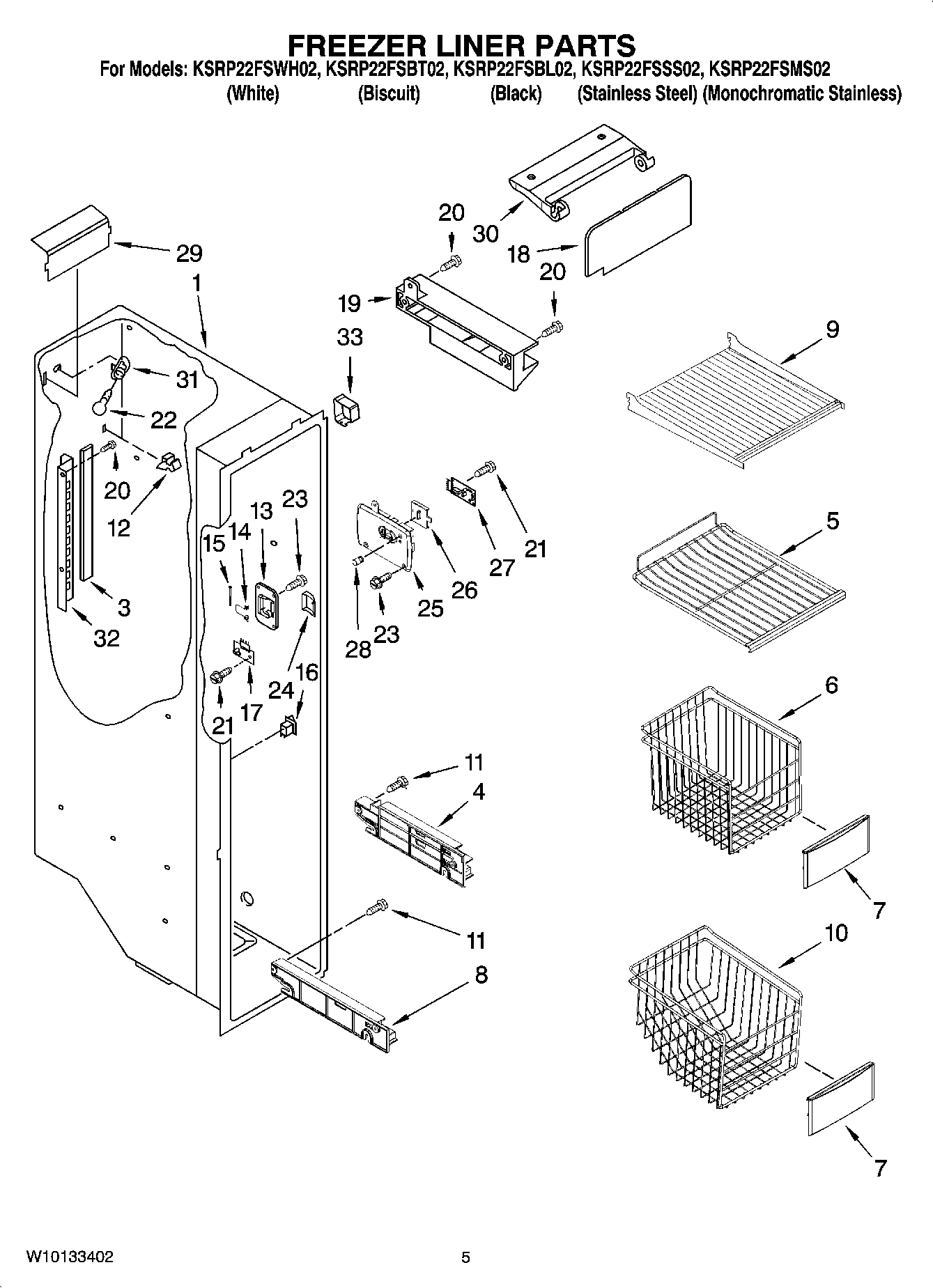

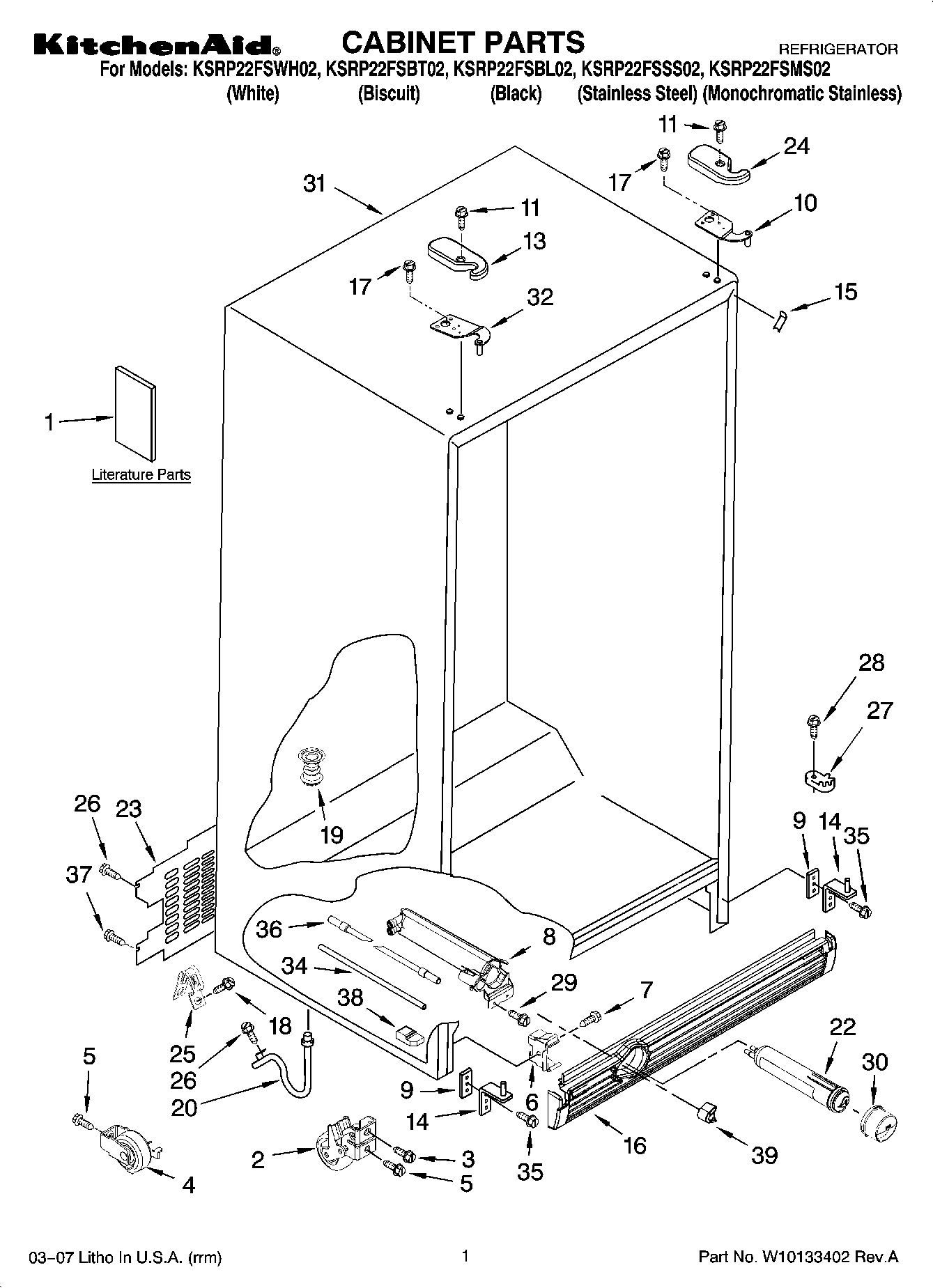

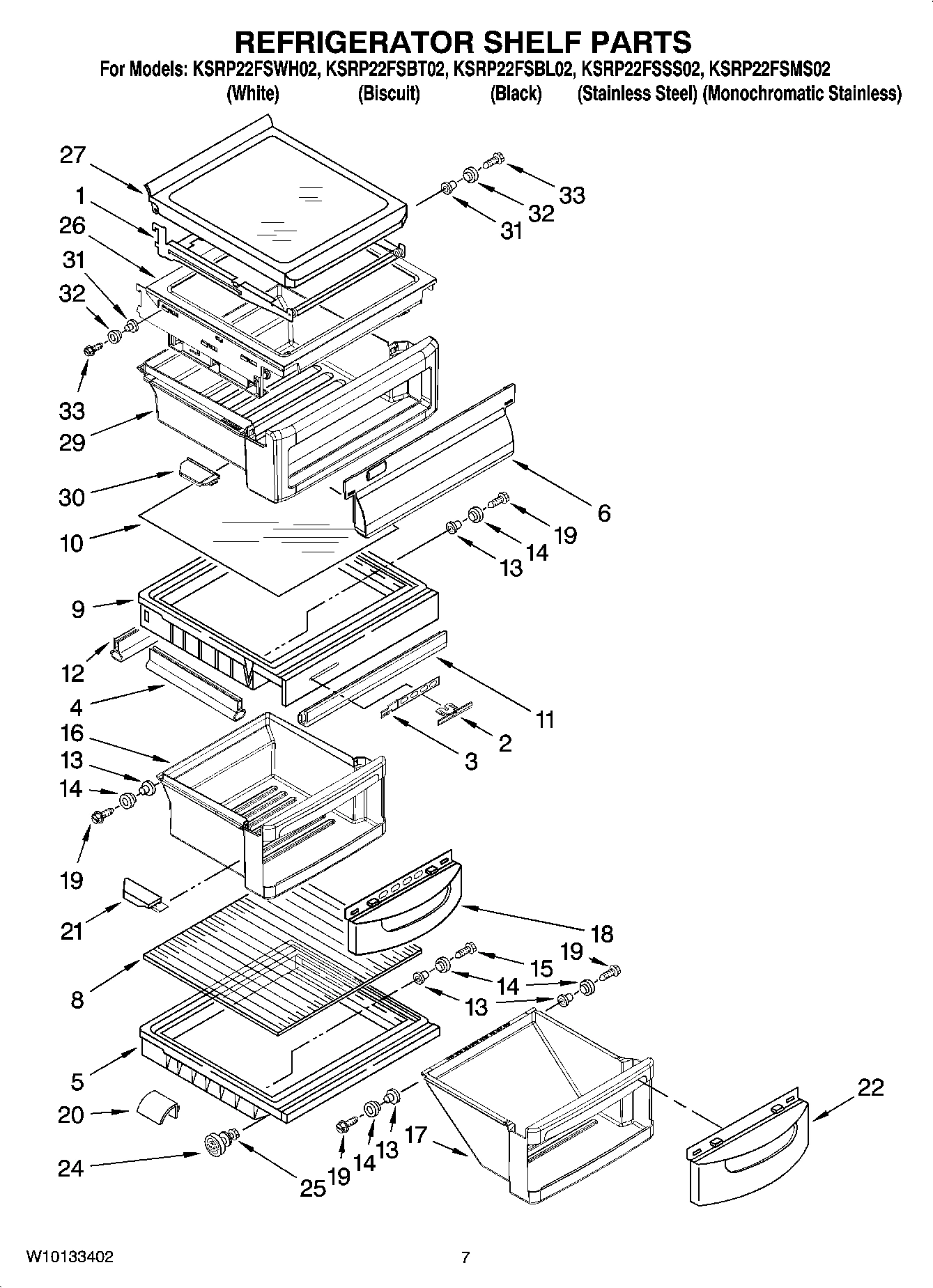

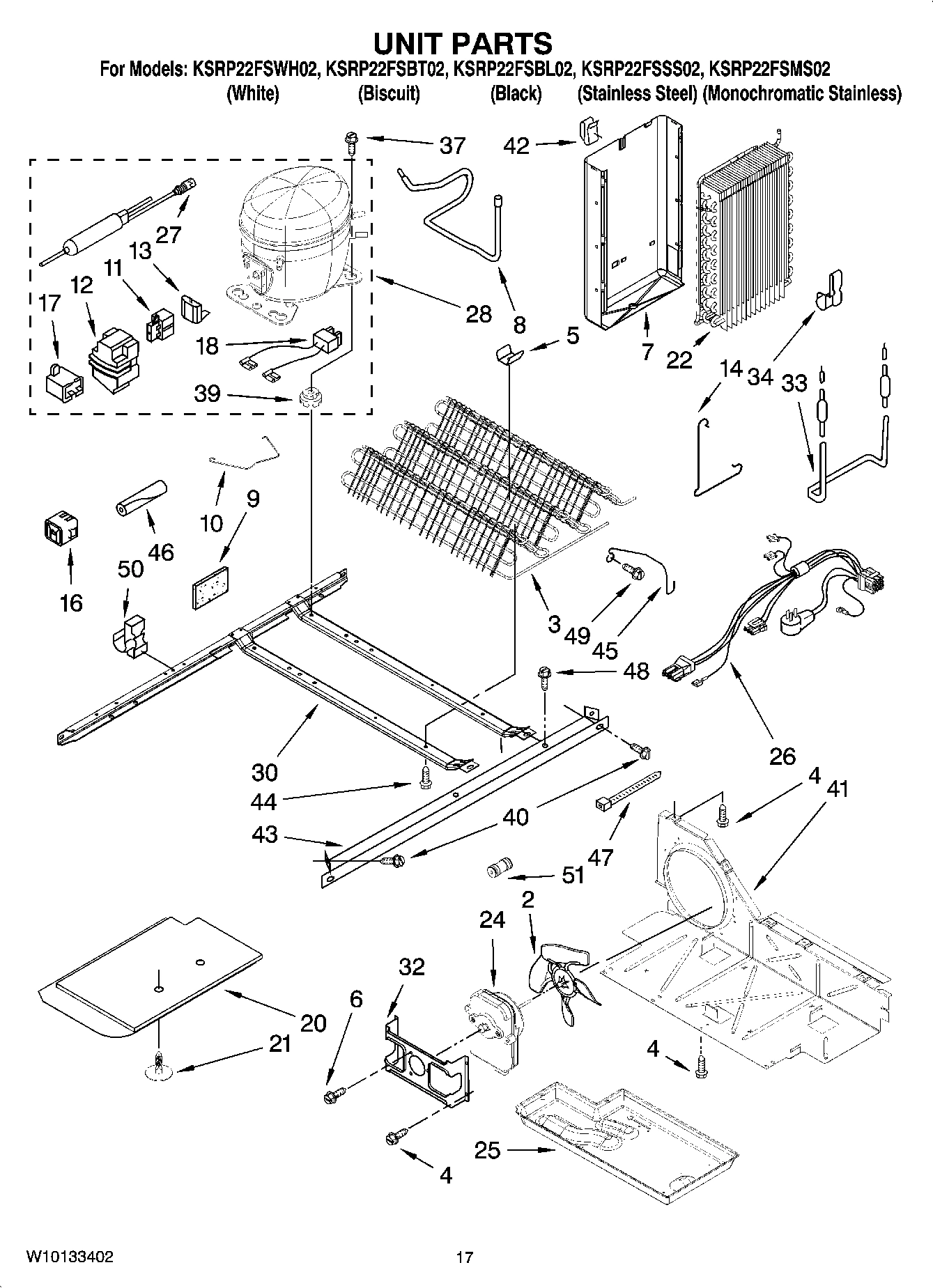

Model Whirlpool KSRP22FSSS02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Ice Bin WPL 2317246 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI99784A5 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI99785A5 Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI99786A3 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Service & Wiring Sheet WPL 2301270 Contact Us For Availability

1

Use & Care Guide WPL 2315184 Contact Us For Availability

1

Energy Label WPL 2318609 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Escutcheon, Meat Pan Control WPL 2255613 Contact Us For Availability

2

Front Roller (2) WPL 2254628 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Slide Meat Pan Control WPL 2301339 Contact Us For Availability

3

Gasket WPL 2216957 Contact Us For Availability

4

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $63.66

4

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $64.89

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Shelf, Slide Out Upper WPL 2211743K Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Window, Snack Pan WPL 2301006 Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Bracket, Dual Crisper Lights WPL 2256035 Contact Us For Availability

6

Basket, Tall WPL 2301192 Contact Us For Availability

7

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $50.03

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

Thimble, Top (For Stainless Steel Models) WPL 2301049 Contact Us For Availability

7

Basket Front WPL 2305582K Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

8

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

8

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

W10171992 Whirlpool Refrigerator Grille Backorder WPL W10171992 $28.80

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Ladder WPL 2206270 Contact Us For Availability

9

Shelf (2) WPL 2212343K Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2206671T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

Basket, Sloped WPL 2301193 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Apollo Gray) WPL 2180261AP Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Harness, Fan Evaporator (Includes 6) WPL 2310239 Contact Us For Availability

2203407AP Whirlpool Refrigerator Cover Backorder WPL 2203407AP $35.14

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $9.11

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $17.24

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Eyelet, Roller WPL 2174478 Contact Us For Availability

Harness, Control Box WPL 2216115 Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $29.19

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Overlay, Control Box WPL 2255617 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $139.57

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Bracket, Control WPL 2323001 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2304849 Contact Us For Availability

Filler, Wrapper (Apollo Gray) WPL 2315169 Contact Us For Availability

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $67.53

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

Grille (Apollo Gray) WPL 2260501AP Contact Us For Availability

Grille (Black) WPL 2260501B Contact Us For Availability

Grille (Biscuit) WPL 2260501T Contact Us For Availability

Grille (White) WPL 2260501W Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Lever, Water Dispenser (Apollo Gray) WPL 2180270AP Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Window, Crisper WPL 2174076 Contact Us For Availability

Cover, Icemaker WPL 2255591 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Slide, Ice Maker WPL 2212321 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI99787A9 Contact Us For Availability

20

Extension Tube WPL 2304937 Contact Us For Availability

20

LED Display (Not Available Order 23) WPL ARI99788A9 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI99789A8 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Screw WPL 488280 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081B Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081T Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081US Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081W Contact Us For Availability

2203408AP Whirlpool Refrigerator Cover Backorder WPL 2203408AP $33.64

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Slide, Door Control WPL 2301235 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $28.80

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

Cover, Receiver WPL 2255561 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

26

Slide, Ice Maker Shut Off WPL 2301340 Contact Us For Availability

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

28

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

29

2212376 Whirlpool Light Lens Backorder WPL 2212376 $28.80

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $20.74

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

Cap, Water Filter (Biscuit) WPL 2260502T Contact Us For Availability

31

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

31

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

31

Cabinet, (Not A Serviceable Part) WPL ARI99783A8 Contact Us For Availability

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Ladder (Left Side) WPL 2320027 Contact Us For Availability

Ladder (Right Side) WPL 2320028 Contact Us For Availability

33

Shield, Wiring WPL 2219878 Contact Us For Availability

34

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

34

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

35

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

36

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

37

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

38

Block, Housing Support WPL 2260519 Contact Us For Availability

39

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

39

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

39

Button, Water Filter (Apollo Gray) WPL 2260503AP Contact Us For Availability

44

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

48

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

49

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
