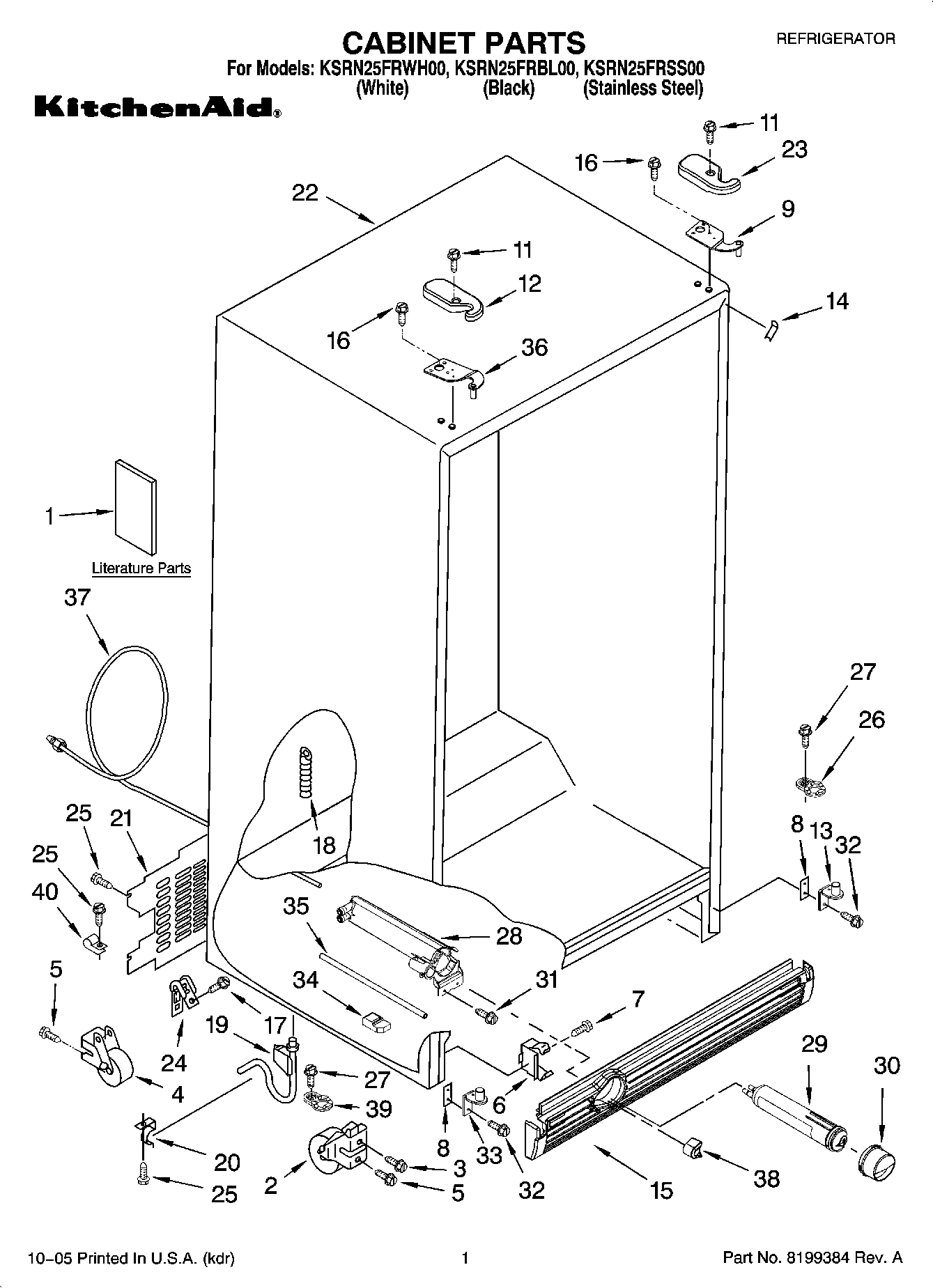

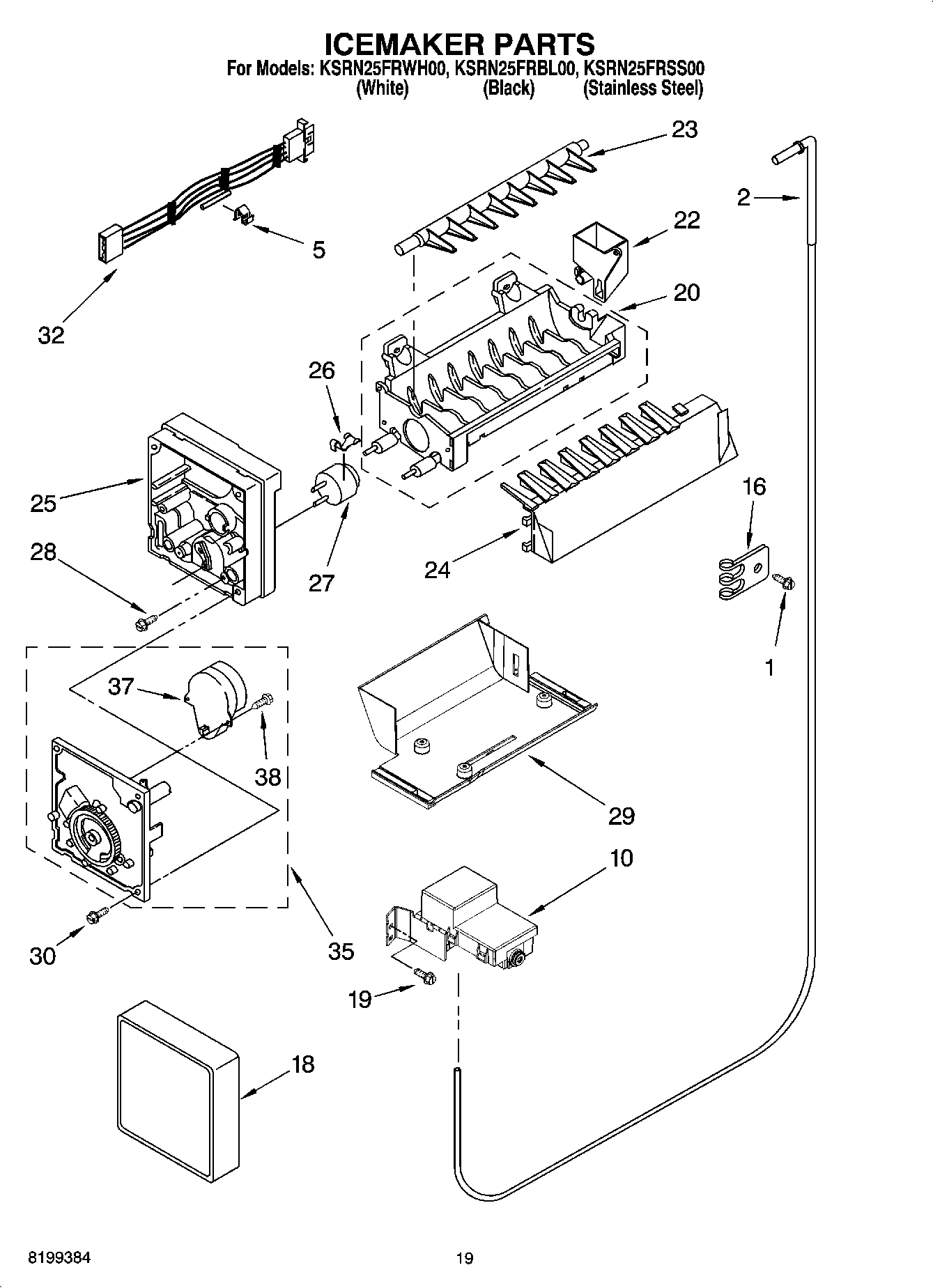

Model Whirlpool KSRN25FRSS00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

Brush Touch-up Ki WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Liner (Not A Serviceable Part) WPL ARI99450A1 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI99453A5 Contact Us For Availability

1

Control Box WPL 2212005 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2301089S Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Black) WPL 2313299B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2313299W Contact Us For Availability

1

Frame Assembly (2) WPL 2301072 Contact Us For Availability

1

Ice Bin WPL 2305336 Contact Us For Availability

2

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 2255612 Contact Us For Availability

2

Ferrite Bead WPL 2308165 Contact Us For Availability

2

Door Compartment (Includes 19) WPL 2301486 Contact Us For Availability

2

Snack Bin Asm (Includes 24 & 25) WPL 2301023 Contact Us For Availability

2

Crusher Bin WPL 2305294 Contact Us For Availability

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $61.75

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Cover, Crisper (Includes 11, 12, 16, 17, 19 & WPL 2301567 Contact Us For Availability

3

Slide Meat Pan Control WPL 2301339 Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $31.92

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

4

Cover, Control Box WPL 2216879 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $47.71

5

Slide, Door Control WPL 2301235 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

6

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

Glass, Meat Cover WPL 2301028 Contact Us For Availability

6

Electronic Control WPL 2304006 Contact Us For Availability

6

Cover, Crusher WPL 2305244 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

7

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.51

7

Glass, Cover WPL 2301027 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Handle (Black) WPL 2255516B Contact Us For Availability

8

Handle (Stainless Steel) WPL 2255516S Contact Us For Availability

8

Handle (White) WPL 2255516W Contact Us For Availability

8

Cover, Meat Pan (Includes 16 & 18) WPL 2301568 Contact Us For Availability

9

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

9

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

9

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

9

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Ladder WPL 2206273 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Spigot WPL 2305236 Contact Us For Availability

Insert, Control Board (Not Available Order6) WPL ARI99455A4 Contact Us For Availability

2301026 Whirlpool Refrigerator Slide Backorder WPL 2301026 $38.48

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Separator Assembly WPL 2305366 Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $206.48

Harness, Fan Evaporator (Includes 6) WPL 2310112 Contact Us For Availability

Knob, Humidity Control WPL 2301025 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Pad, Water (For White Model) WPL 2305307CE Contact Us For Availability

Screw (Black) WPL 8533975 Contact Us For Availability

Screw (Chrome) WPL 8533976 Contact Us For Availability

Shelf & Roller Assembly (2) WPL 2301084 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Butter Dish WPL 2165792K Contact Us For Availability

Lens, Front Cover WPL 2305287 Contact Us For Availability

Meat Pan Asm (Includes 24 & 27) WPL 2301022 Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

Thimble, Top (For Stainless Steel Model Only) WPL 2308050 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

Glide Assembly (Right Side) WPL 2301548 Contact Us For Availability

Glide Assembly (Left Side) WPL 2301549 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

W10133603 Whirlpool Refrigerator Dispenser Ac In Stock WPL W10133603 $172.94

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Pad, Ice (For White Model) WPL 2305306CE Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

Gasket, Rear WPL 2301115 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

WP2321746 Whirlpool Refrigerator Electronic C Backorder WPL WP2321746 $163.94

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Deflector WPL 2301126 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $62.77

Gasket WPL 2159124 Contact Us For Availability

W10222215 Whirlpool Refrigerator Light Indica In Stock WPL W10222215 $57.63

Control Box Harness WPL 2216115 Contact Us For Availability

Gasket, Side (2) WPL 2301117 Contact Us For Availability

Latch, Bin WPL 2305441 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Window, Crisper Pan WPL 2301001 Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI99454A9 Contact Us For Availability

Beverage Holder WPL 2193409K Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

Tray, Housing (Black) WPL 2315109B Contact Us For Availability

Tray, Housing (White) WPL 2315109W Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

Bracket, Dual Crisper WPL 2256035 Contact Us For Availability

Front Cover Assembly (Includes Items 13, 14, WPL 2305311B Contact Us For Availability

Front Cover Assembly (Includes Items 13, 14, WPL 2305311W Contact Us For Availability

Support Assembly (Left Side) WPL 2301570 Contact Us For Availability

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

Glide Assembly, Top Basket (Right Side) WPL 2301540 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Wire Assembly, User Interface (Includes 2) WPL 2187814 Contact Us For Availability

Cap, Corner (Right Side) WPL 2301016 Contact Us For Availability

Cap, Corner (Left Side) WPL 2301017 Contact Us For Availability

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

25

Window, Snack Pan WPL 2301006 Contact Us For Availability

25

Overlay, Control Box WPL 2313361 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

Harness, Unit WPL 2187969 Contact Us For Availability

26

Roller (2) WPL 2188212 Contact Us For Availability

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

Window, Meat Pan WPL 2301227 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

28

Screw (2) WPL 489439 Contact Us For Availability

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

30

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $92.73

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $121.47

33

Bracket, Motor WPL 2305208 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

35

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

Ice Container (Complete) WPL 2305425 Contact Us For Availability
