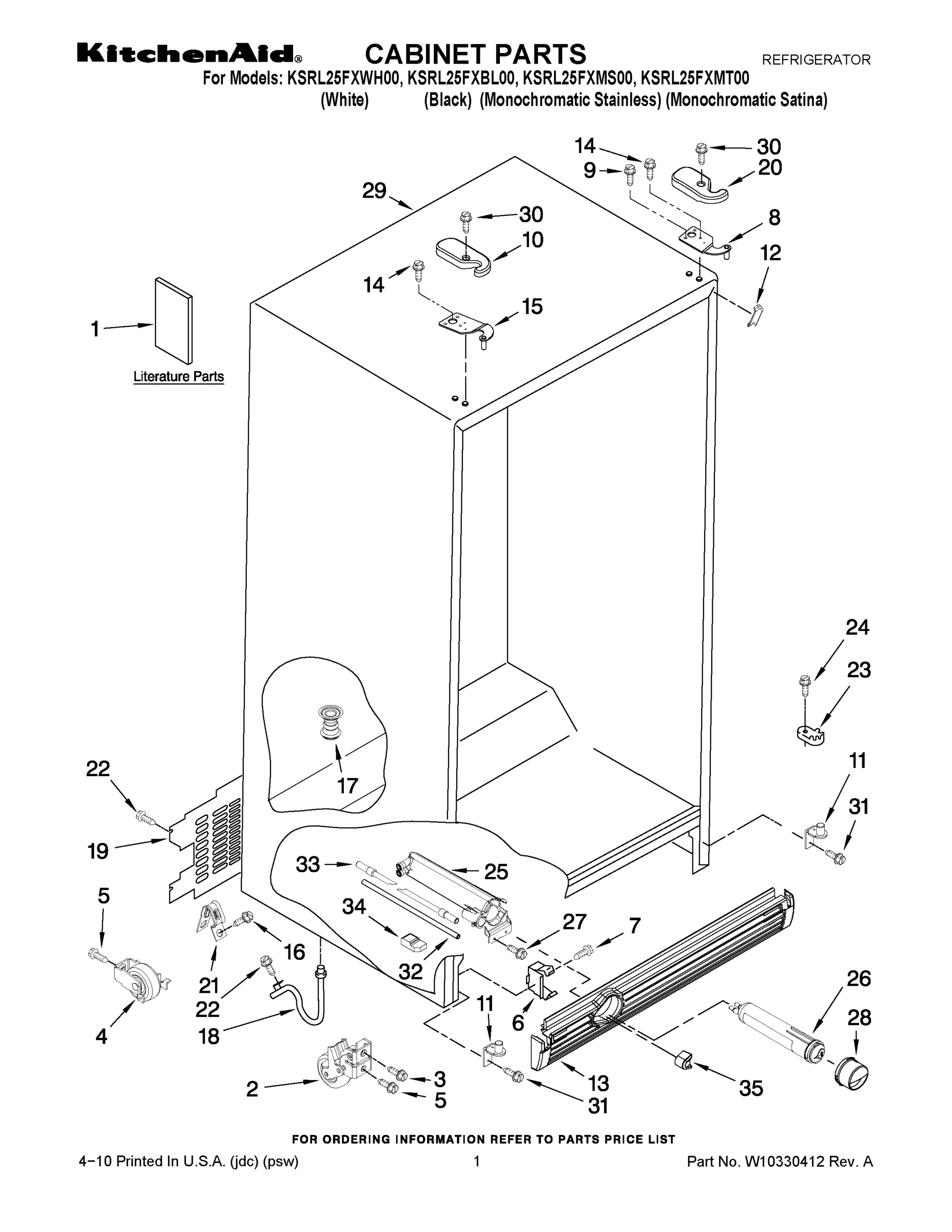

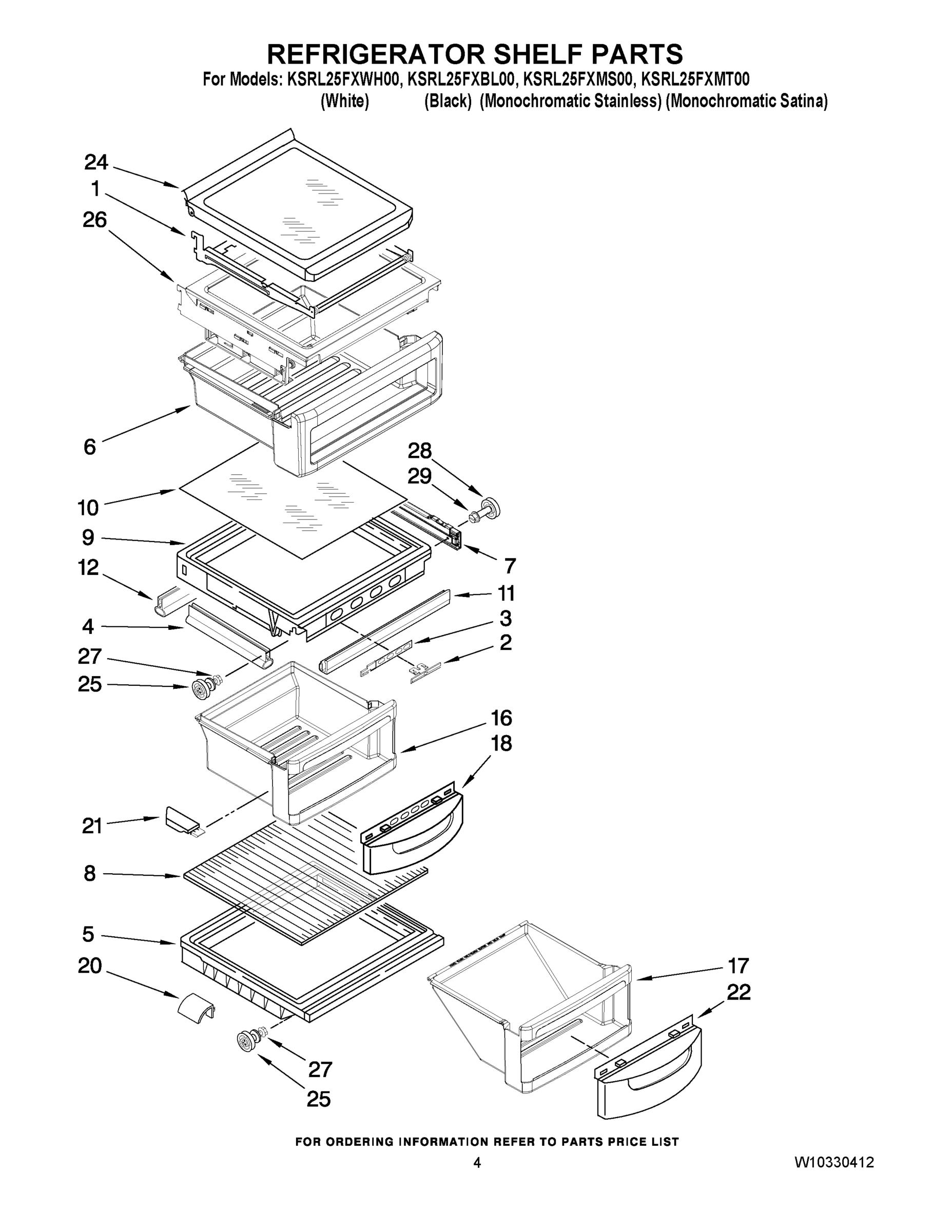

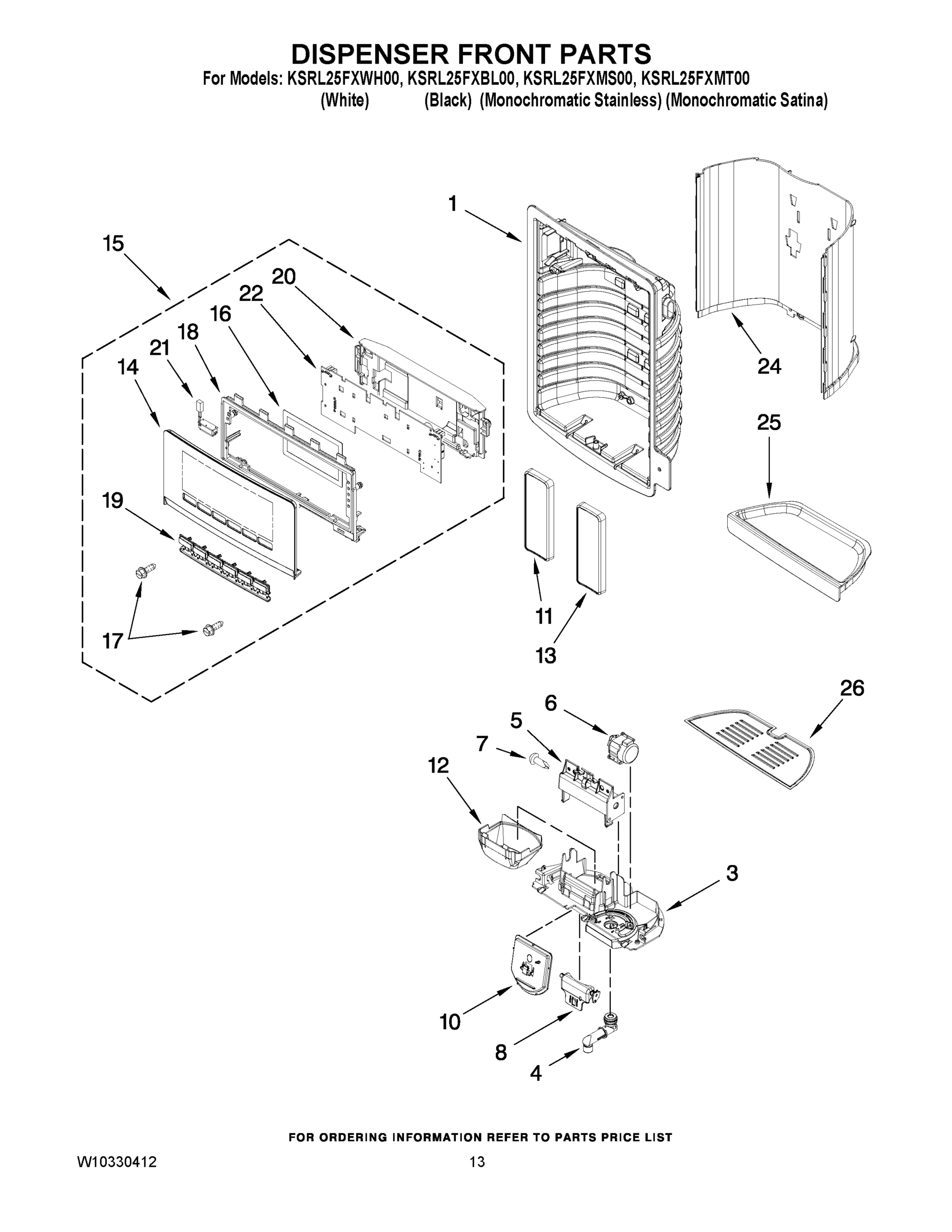

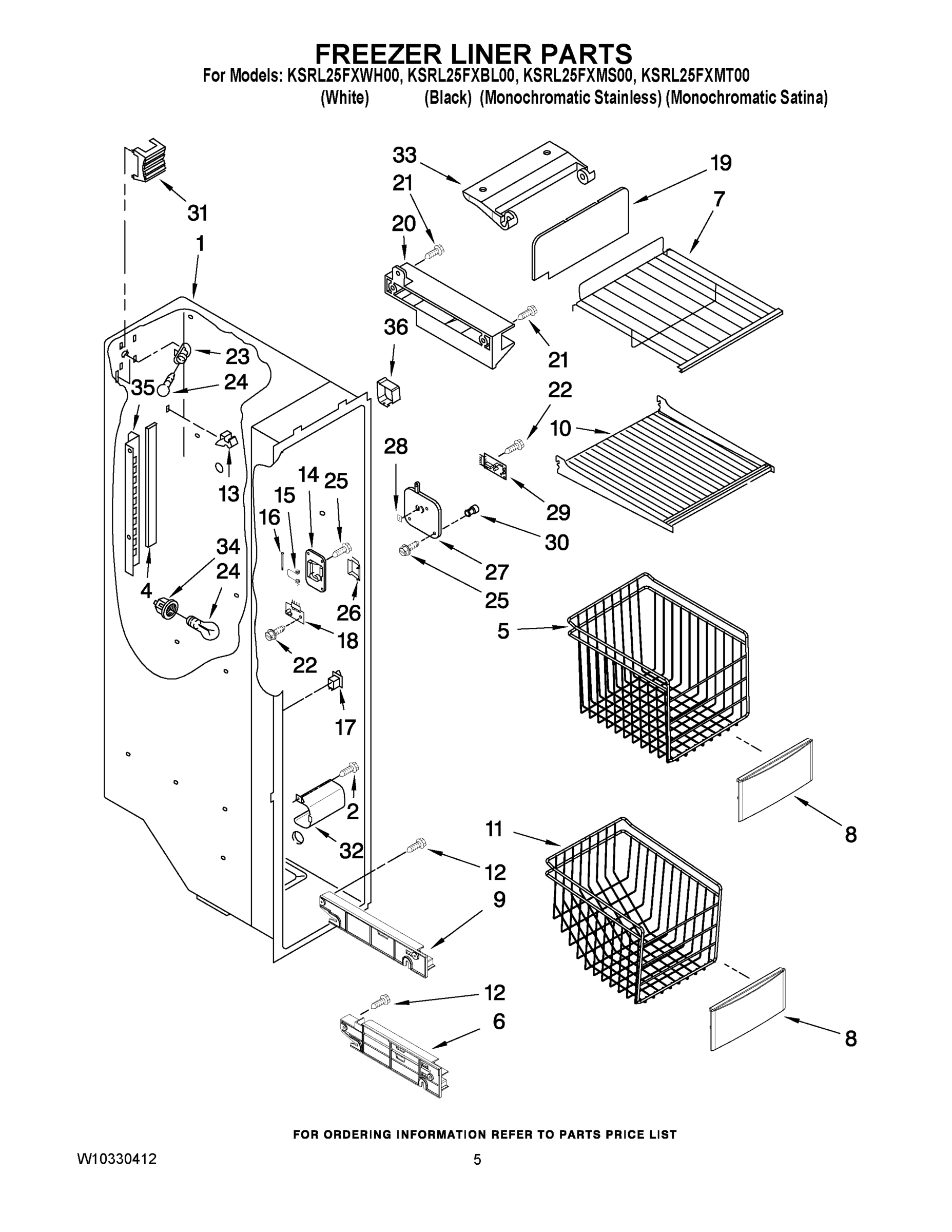

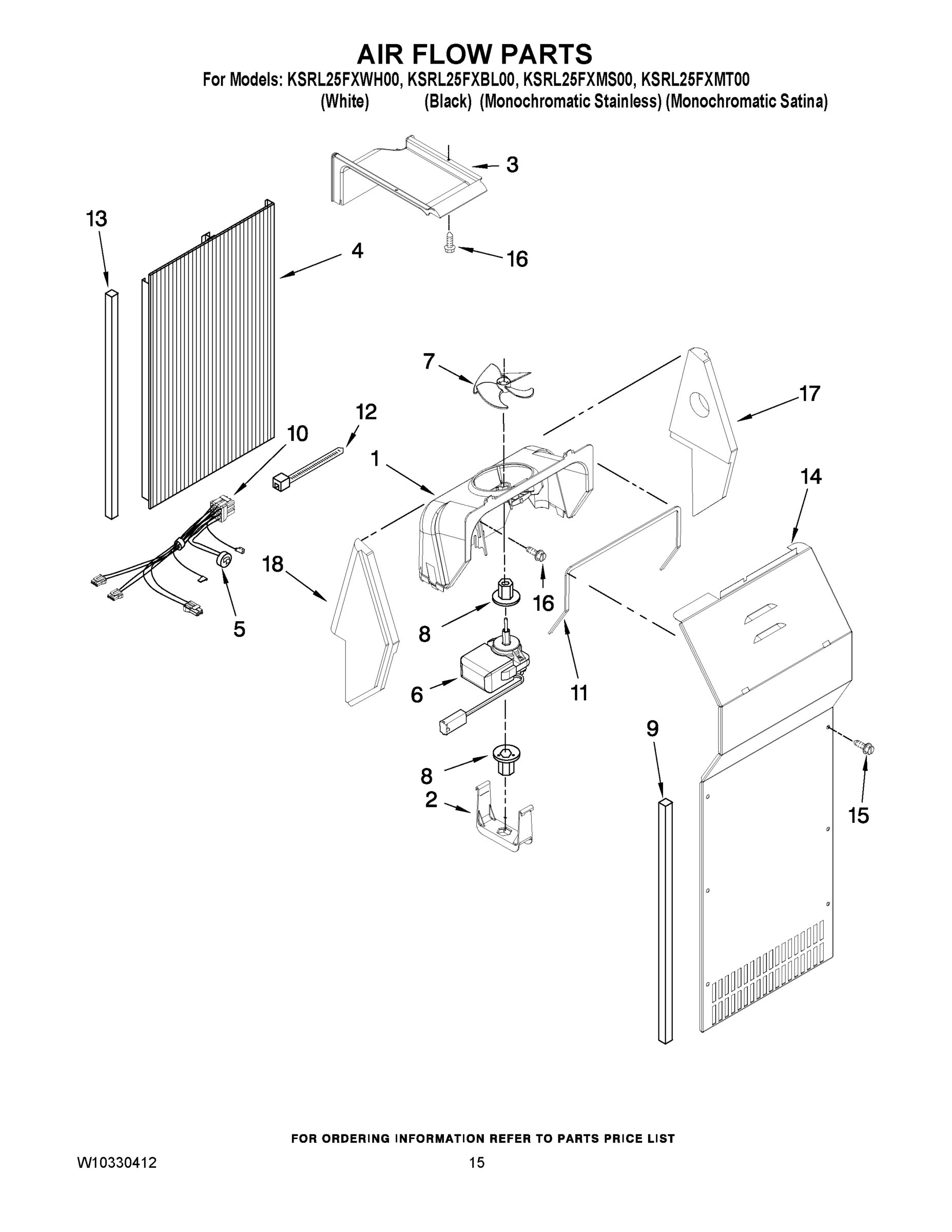

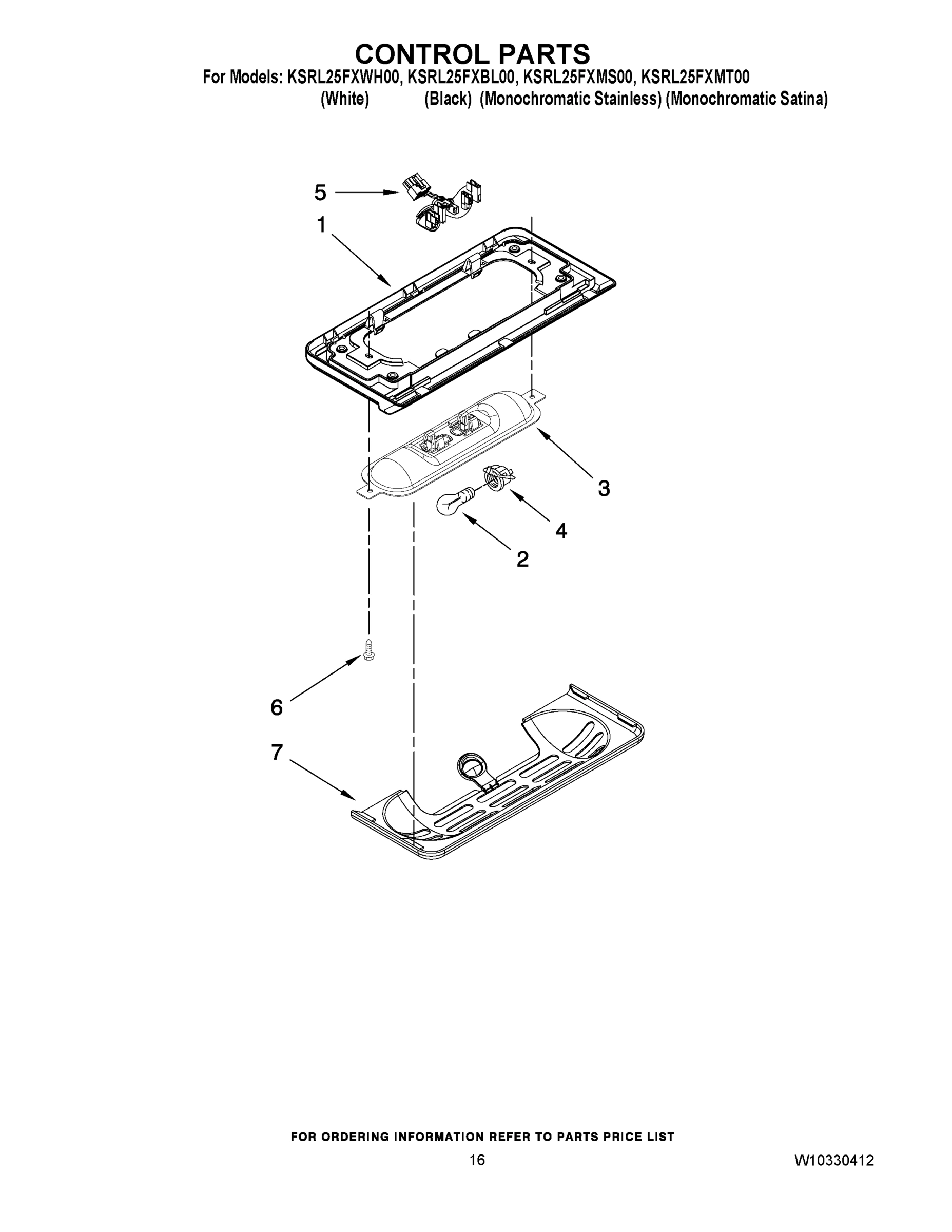

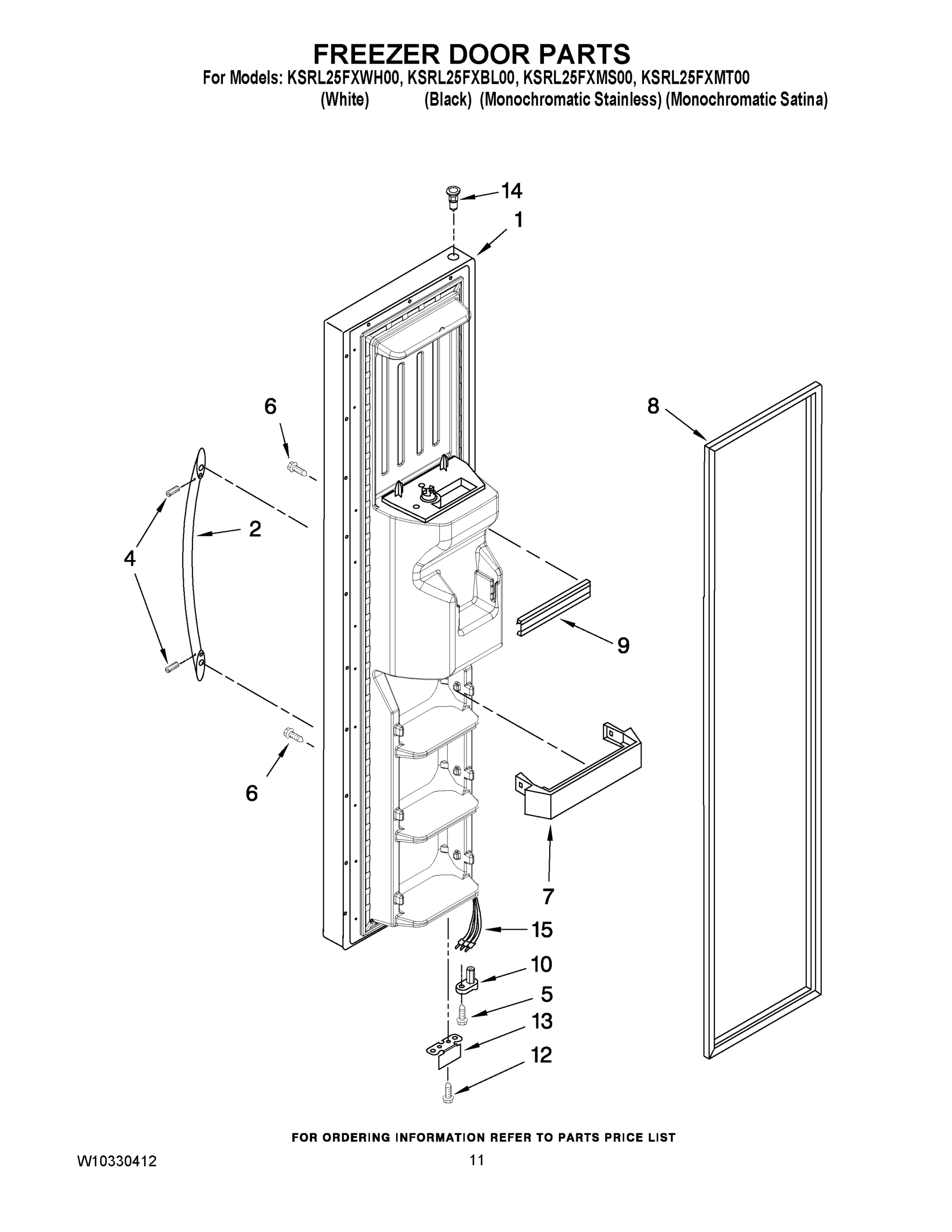

Model Whirlpool KSRL25FXWH00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Instr Sheet, Door Removal WPL W10206334 Contact Us For Availability

1

USE & CARE GUIDE WPL W10289674 Contact Us For Availability

1

SERVICE & WIRING SHEET WPL W10289812 Contact Us For Availability

1

ENERGY GUIDE WPL W10320901 Contact Us For Availability

1

HOUSING, DISPENSER (NOT SERVICED) WPL NP Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (WHITE) WPL W10297353 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (BLACK) WPL W10297357 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (MONO STAIN WPL W10297361 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES No.7) (MONO SATIN WPL W10297378 Contact Us For Availability

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $8.42

2

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

2

Handle (Black) WPL 2319727B Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Door, Compartment WPL 2301486 Contact Us For Availability

3

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Tube, Water WPL 2303216 Contact Us For Availability

3

SEPARATOR, FIXED WPL W10286902 Contact Us For Availability

4

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $51.17

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Handle (White) WPL 2319727W Contact Us For Availability

5

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

5

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

5

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $69.65

5

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

WPW10179146 Whirlpool Refrigerator Water Inle In Stock WPL WPW10179146 $77.91

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $35.32

6

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $138.30

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

W10174818 Whirlpool Refrigerator Clip Backorder WPL W10174818 $7.78

7

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

7

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

7

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

7

WPW10141604 Whirlpool Screw Backorder WPL WPW10141604 $3.90

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

7

Glide Assy (Right Side) WPL 2301548 Contact Us For Availability

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

8

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

8

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

8

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

8

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

8

WPW10346124 Whirlpool Refrigerator Support In Stock WPL WPW10346124 $15.94

8

BASKET, FRONT WPL 2301134 Contact Us For Availability

8

Nameplate (Gray) WPL W10046610 Contact Us For Availability

8

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

9

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

9

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

9

WPW10210789-includeCORE Whirlpool WPW10210789 Backorder WPL WPW10210789-includeCORE $215.12

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $35.67

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10346235 Whirlpool Refrigerator Chute Door Backorder WPL W10346235 $62.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $32.15

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Hinge Cover, FC (White) WPL W10138581 Contact Us For Availability

HINGE COVER, FC (BLACK) WPL W10138582 Contact Us For Availability

Hinge Cover, FC (Apollo Gray) WPL W10138584 Contact Us For Availability

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

Gasket WPL 2159124 Contact Us For Availability

PAD, ICE DISPENSER (WHITE) WPL W10309327 Contact Us For Availability

PAD, ICE DISPENSER (BLACK) WPL W10309328 Contact Us For Availability

WPW10142233 Whirlpool Refrigerator Screw Backorder WPL WPW10142233 $2.71

WPW10272161 Whirlpool Refrigerator Stripper A Backorder WPL WPW10272161 $31.09

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

Filler, Wrapper (Apollo Gray) WPL W10143043 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $116.82

WPW10184888 Whirlpool Refrigerator Grille Backorder WPL WPW10184888 $117.36

WPW10184890 Whirlpool Refrigerator Grille Backorder WPL WPW10184890 $95.73

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $61.29

WPW10368730 Whirlpool Refrigerator Pad In Stock WPL WPW10368730 $120.79

BRACKET, DOOR STOP (CHROME) WPL W10175740 Contact Us For Availability

Bracket, Door Stop (Black) WPL W10175741 Contact Us For Availability

PAD, WATER DISPENSER (WHITE) WPL W10309324 Contact Us For Availability

PAD, WATER DISPENSER (BLACK) WPL W10309325 Contact Us For Availability

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $69.88

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $61.75

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

FASCIA ASSY (BLACK) WPL W10286904 Contact Us For Availability

FASCIA ASSY (WHITE) WPL W10286905 Contact Us For Availability

FASCIA ASSY (STAINLESS) WPL W10286918 Contact Us For Availability

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $42.57

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

UI ASSY, STEALTH WPL W10286916 Contact Us For Availability

WIRE ASSY, DOOR WPL W10295774 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

BARRIER, MOISTURE WPL W10254293 Contact Us For Availability

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Window, Crisper WPL 2301001 Contact Us For Availability

FRAME, FASCIA WPL W10286907 Contact Us For Availability

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.17

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

TREE, BUTTON WPL W10286909 Contact Us For Availability

W10254277 Whirlpool Cover Assembly Backorder WPL W10254277 $27.52

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Hinge Cover, RC (White) WPL W10138576 Contact Us For Availability

HINGE COVER, RC (BLACK) WPL W10138577 Contact Us For Availability

Hinge Cover, RC (Apollo Gray) WPL W10138579 Contact Us For Availability

21

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

21

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $46.48

21

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

Screw WPL W10141645 Contact Us For Availability

22

CTRL-ELEK, STEALTH WPL W10289813 Contact Us For Availability

23

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $173.34

FALSE WALL (WHITE) WPL W10286898 Contact Us For Availability

FALSE WALL (BLACK) WPL W10286899 Contact Us For Availability

FALSE WALL (STAINLESS) WPL W10286900 Contact Us For Availability

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

DRIP TRAY (WHITE) WPL W10286894 Contact Us For Availability

DRIP TRAY (BLACK) WPL W10286895 Contact Us For Availability

DRIP TRAY (STAINLESS) WPL W10286896 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

GRATE, DRIP TRAY (STAINLESS) WPL W10286922 Contact Us For Availability

GRATE, DRIP TRAY (WHITE) WPL W10286920 Contact Us For Availability

GRATE, DRIP TRAY (BLACK) WPL W10286921 Contact Us For Availability

27

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

27

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

27

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

29

Screw WPL W10191952 Contact Us For Availability

30

W10295559 Whirlpool Refrigerator Dispenser Ha Backorder WPL W10295559 $60.09

30

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

30

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

32

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $41.91

33

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

33

TUBE, FILTER INLET WPL W10212512 Contact Us For Availability

34

Block, Housing Support WPL 2260519 Contact Us For Availability

35

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

35

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

36

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

43

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
