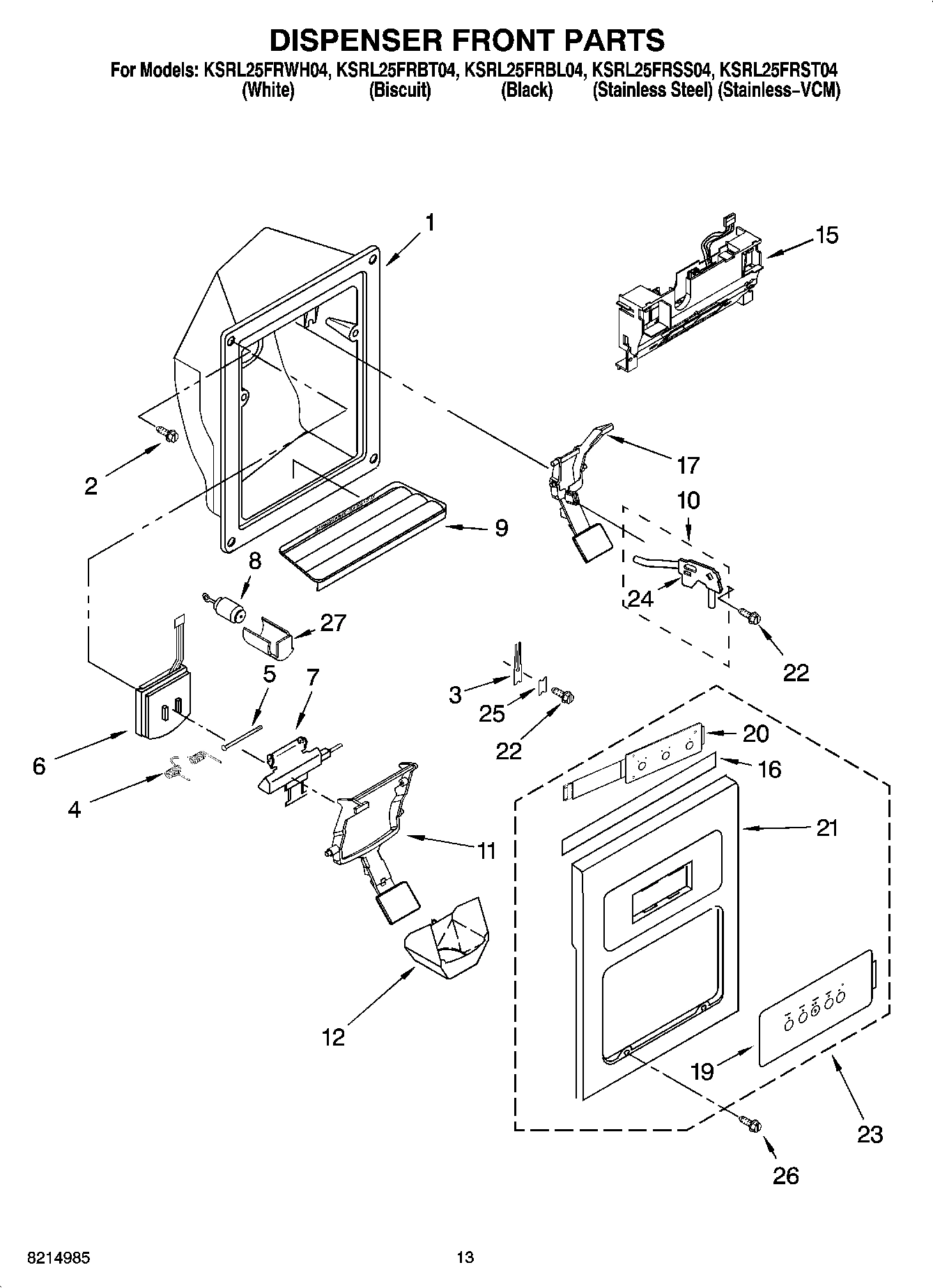

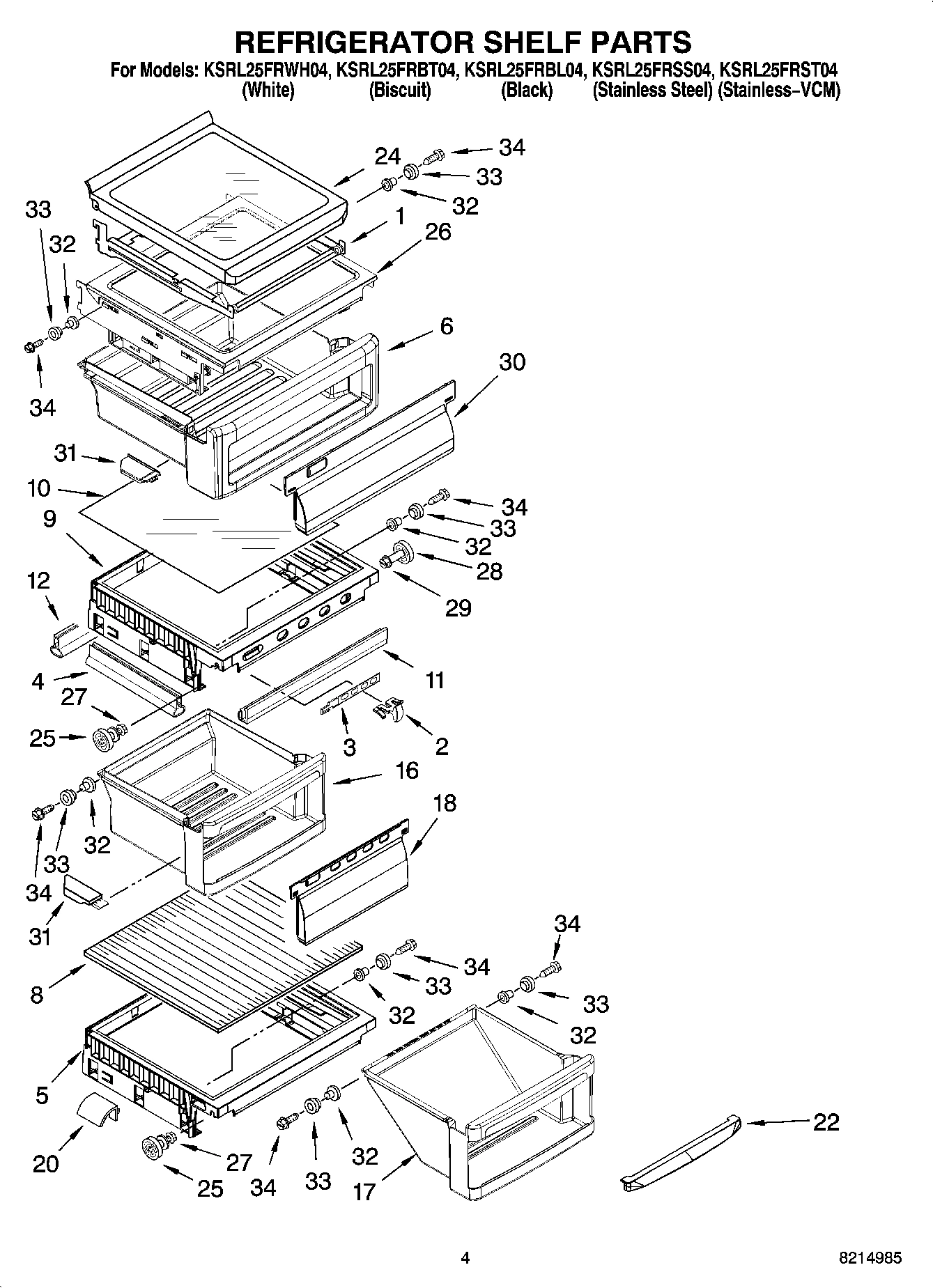

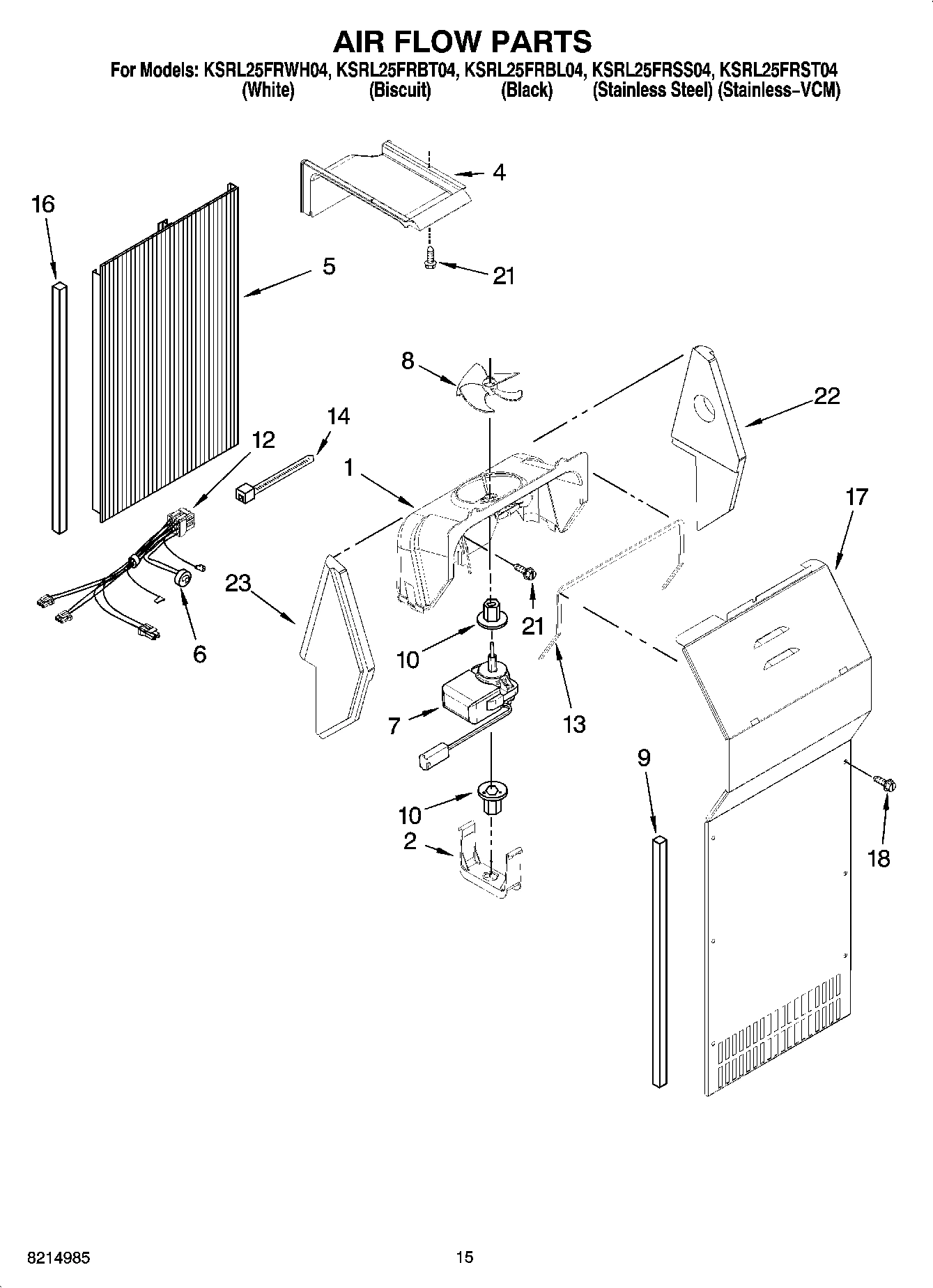

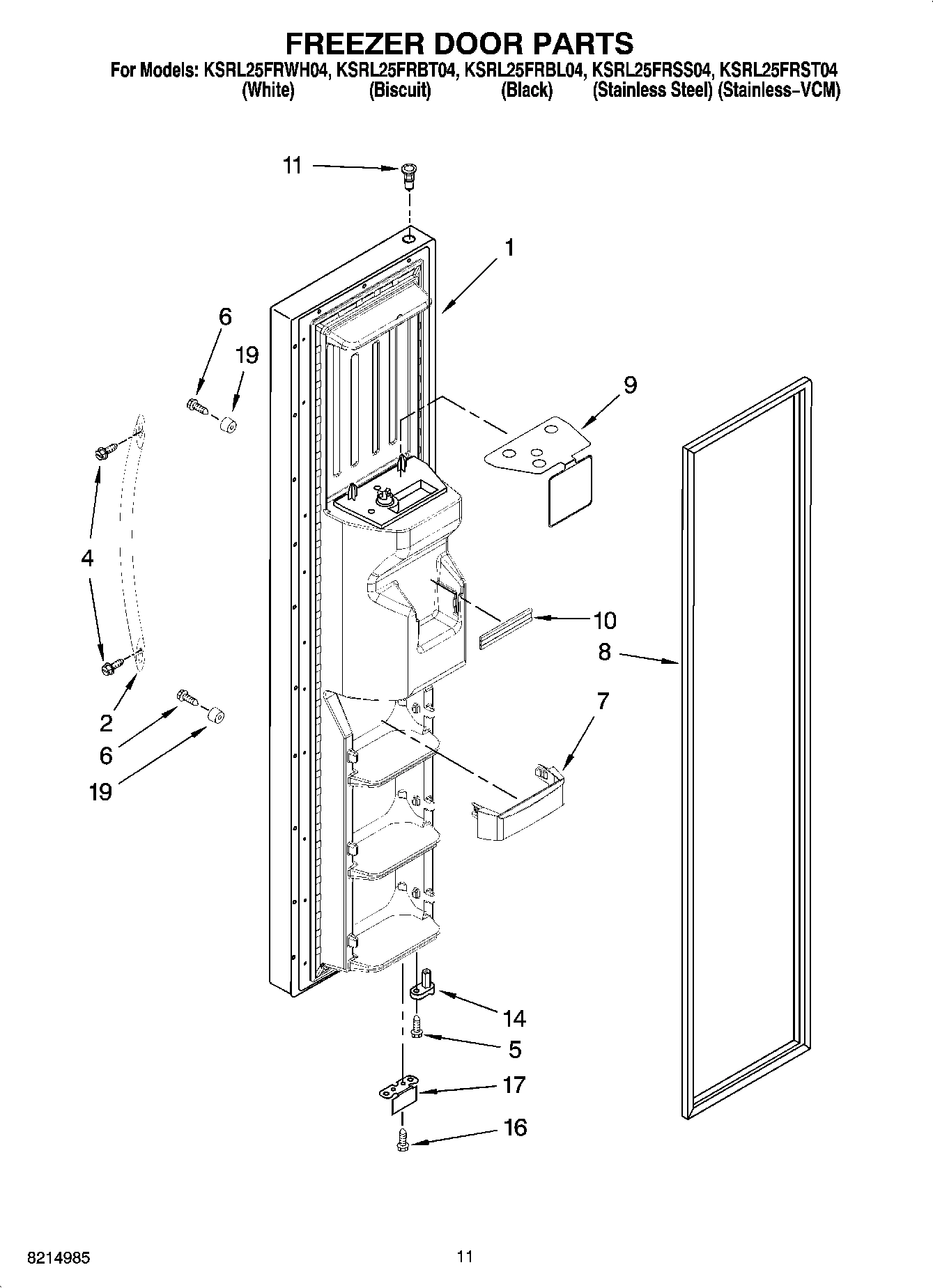

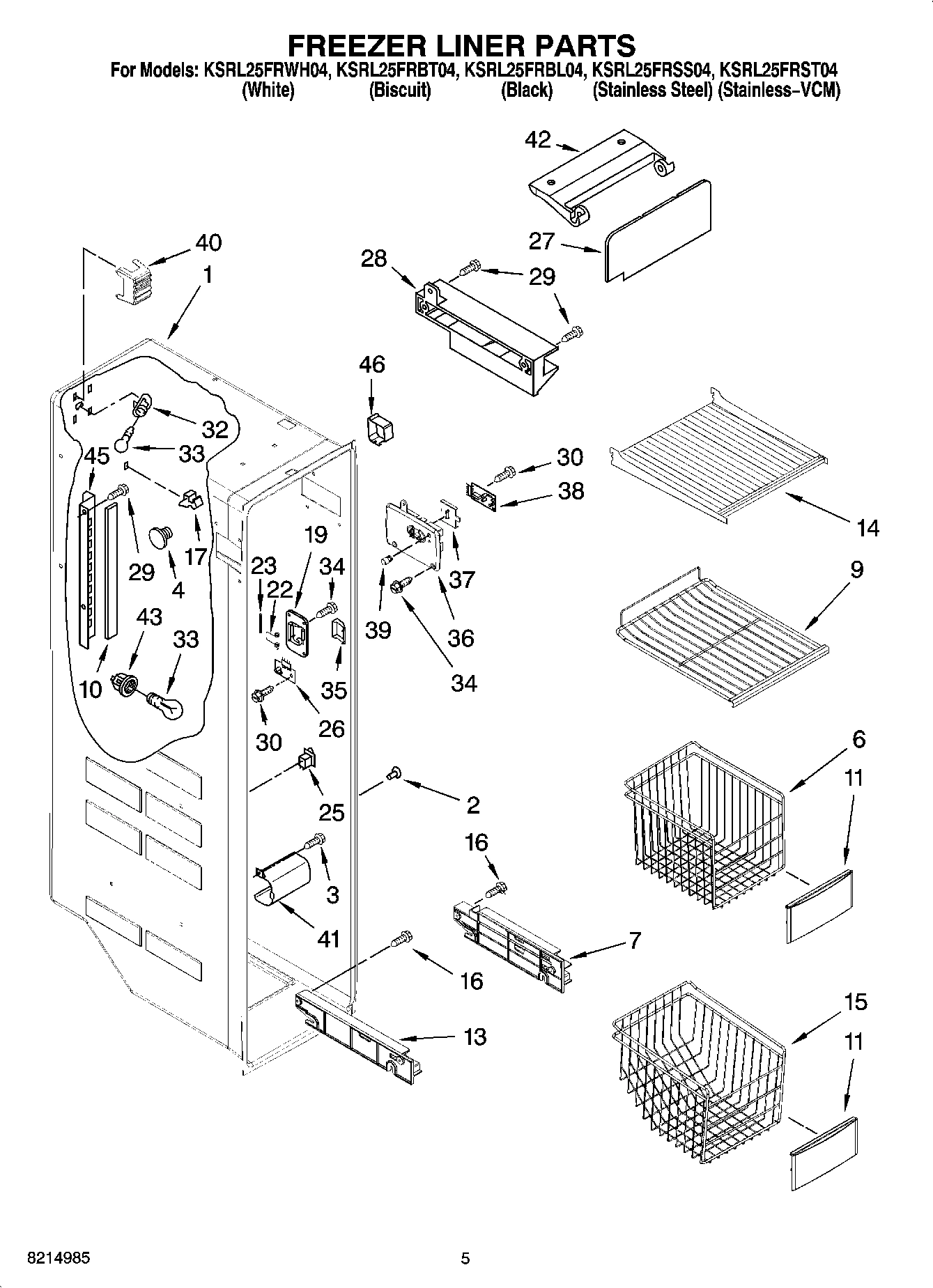

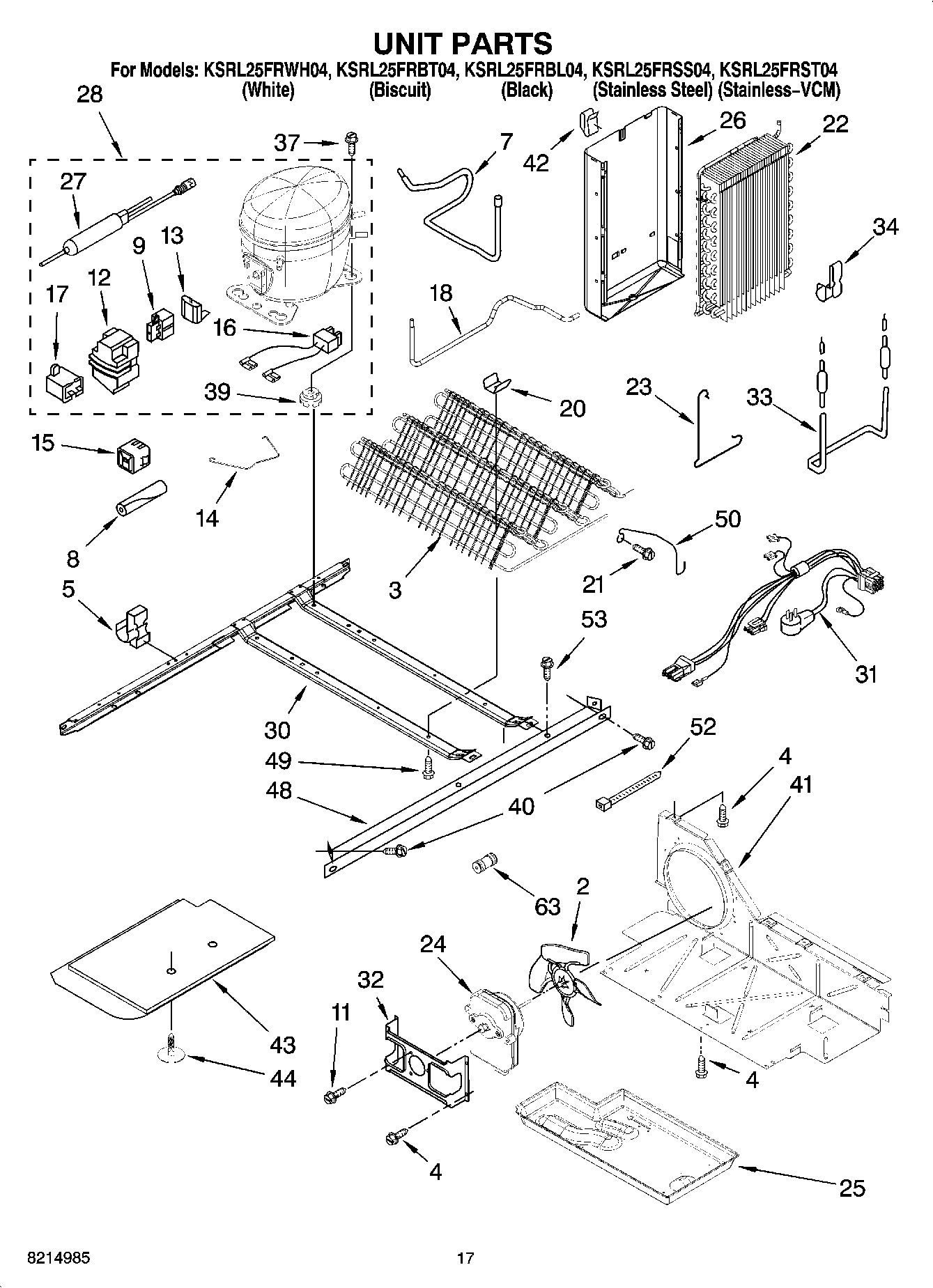

Model Whirlpool KSRL25FRST04 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $138.23

1

Housing Dispenser (Not Serviced) WPL ARI99208A7 Contact Us For Availability

1

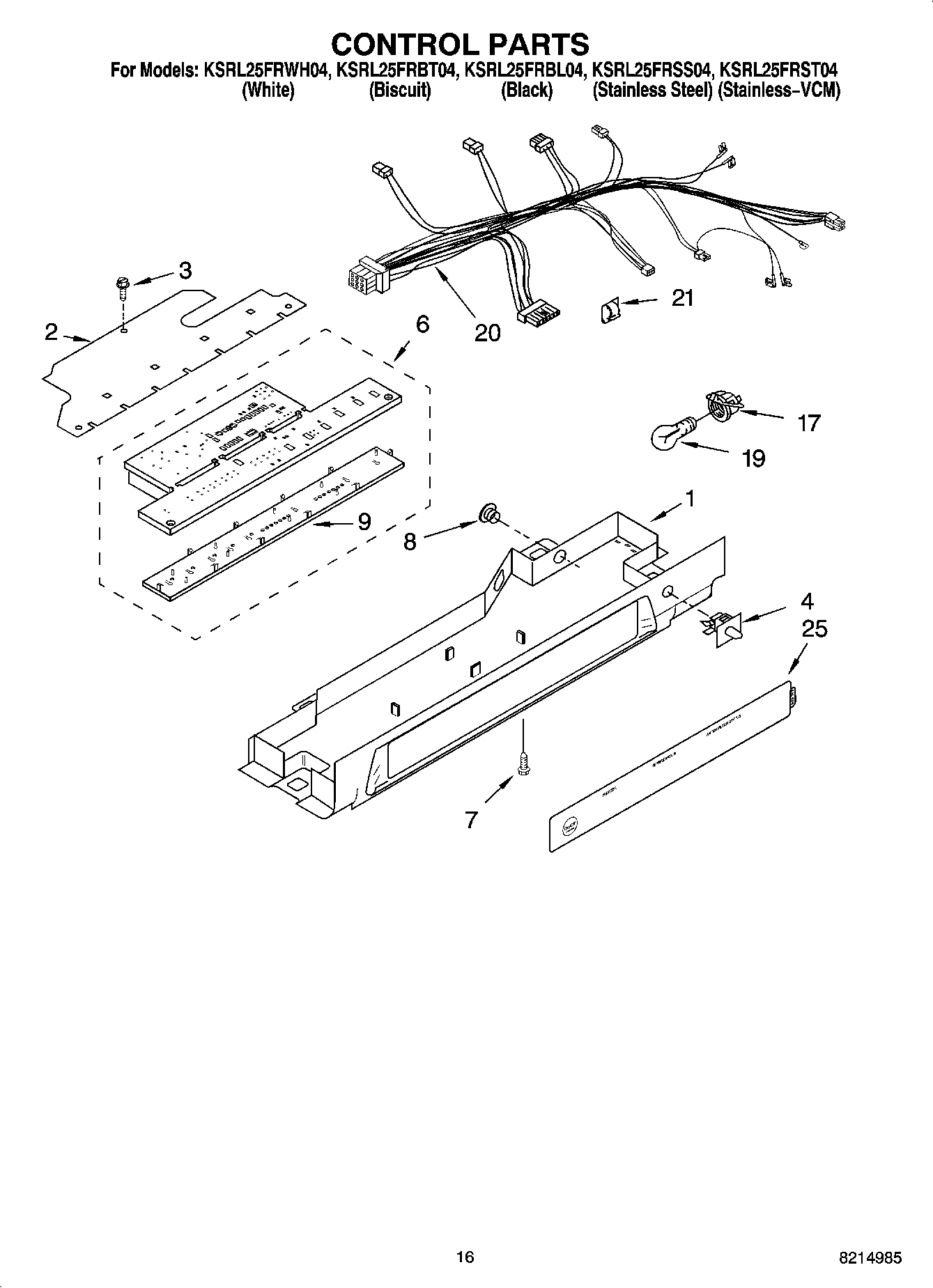

Control Box WPL 2212005 Contact Us For Availability

1

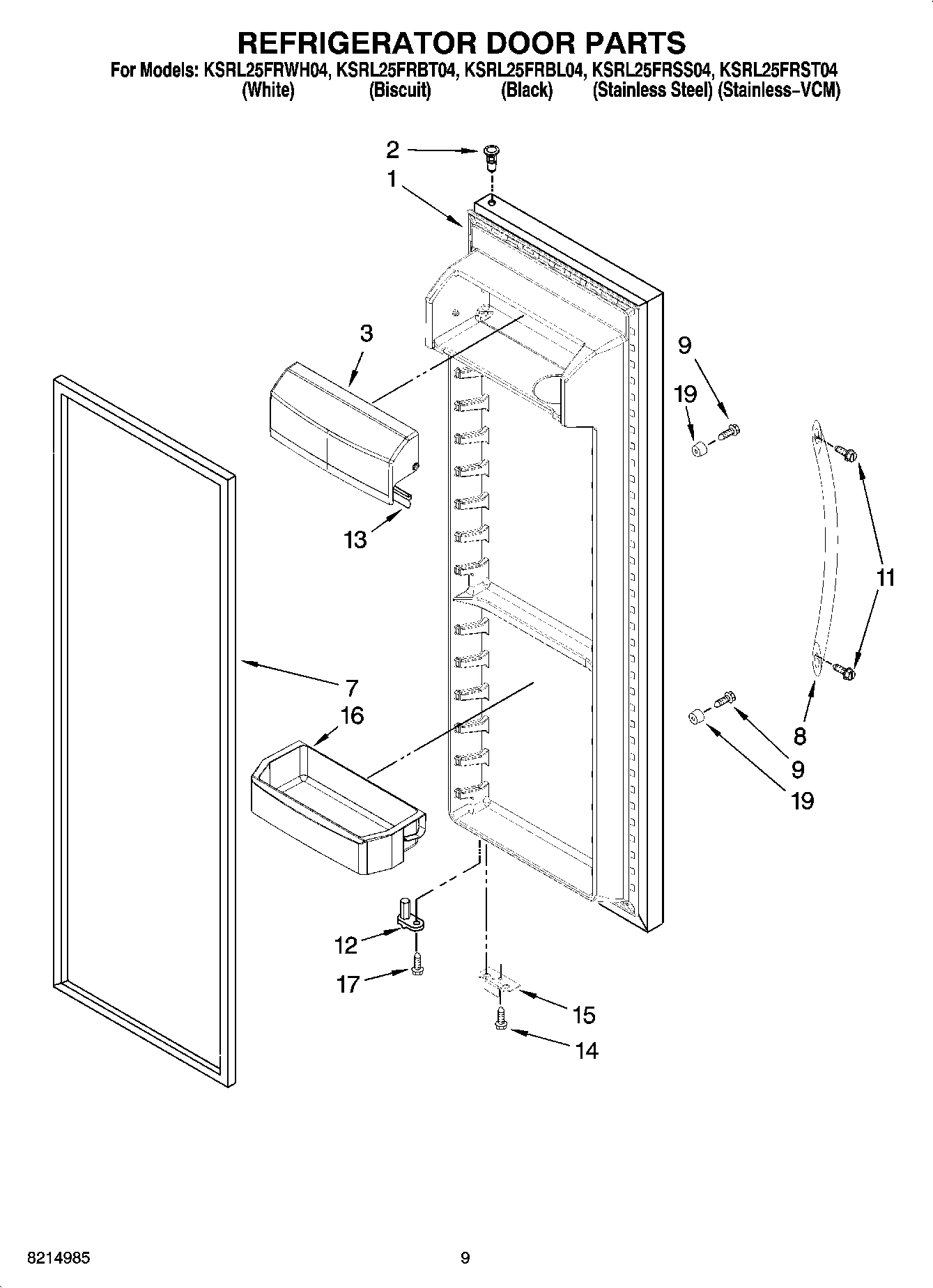

Refrigerator Door (Includes 7) (Stainless Ste WPL 2301089S Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless-VCM WPL 2301184L Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL 2313299B Contact Us For Availability

1

Refrigerator Door (Includes 7) (Biscuit) WPL 2313299T Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2313299W Contact Us For Availability

1

Frame Assembly, Slide Out (2) WPL 2195975 Contact Us For Availability

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Cover WPL 2216879 Contact Us For Availability

2

Thimble-Top (For Stainless Steel Model) WPL 2308050 Contact Us For Availability

2

Knob, Humidity WPL 2301025 Contact Us For Availability

2

Crusher Bin WPL 2255580 Contact Us For Availability

3

2301026 Whirlpool Refrigerator Slide Backorder WPL 2301026 $38.48

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

3

Door, Compartment WPL 2301486 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $33.21

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Gasket, Side (2) WPL 2301117 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Cover, Meat Pan (Includes Items 32, 33 & 34) WPL 2301033 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Control Board Asm (Includes 25) WPL 2304009 Contact Us For Availability

6

Snack Pan (Includes 30, 31, 32, 33, & 34) WPL 2301120 Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.92

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

7

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $3.33

7

Shelf Bin (3) WPL 2171070K Contact Us For Availability

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

Glass, Cover WPL 2301028 Contact Us For Availability

8

Handle (Includes 11) (Stainless) WPL 2304832S Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

8

Handle (Includes 11) (Black) WPL 2304832B Contact Us For Availability

8

Handle (Includes 11) (Biscuit) WPL 2304832T Contact Us For Availability

8

Handle (Includes 11) (White) WPL 2304832W Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

9

Insert, Control Board (Not Available Order6) WPL ARI99212A7 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 32, WPL 2301032 Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.92

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

Glass, Cover WPL 2301027 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $29.92

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Thimble-Top (For Stainless Steel Model) WPL 2301049 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

Gasket, Rear WPL 2301115 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

14

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

15

Bracket, Control WPL 2252163 Contact Us For Availability

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $9.11

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.54

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

Shelf Bin (4) WPL 2205821K Contact Us For Availability

Crisper Pan (Includes 18, 31, 32, 33 & 34) WPL 2301118 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Meat Pan (Includes 22, 32, 33 & 34) WPL 2301119 Contact Us For Availability

18

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

18

Window, Crisper WPL 2301001 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $13.78

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

Overlay, Front Cover (Not Available, Order 23 WPL ARI99209A2 Contact Us For Availability

LED Display (Not Available Order 23) WPL ARI99210A7 Contact Us For Availability

Harness, Control Box WPL 2216115 Contact Us For Availability

Deflector WPL 2301126 Contact Us For Availability

Latch, Bin WPL 2212371 Contact Us For Availability

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Front Cover, Housing (Not Available Order 23 WPL ARI99211A3 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

Window, Meat Pan WPL 2301227 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 16, 19, WPL 2252082W Contact Us For Availability

Front Cover Assembly (Includes Items 16, 19, WPL 2252082T Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 16, 19, WPL 2252082B Contact Us For Availability

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Shelf, Slide Out (2) WPL 2308325 Contact Us For Availability

25

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

Overlay, Control Box WPL 2308323 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Shelf, Snack Pan WPL 2301034 Contact Us For Availability

27

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

27

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

29

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

30

Window, Snack Pan WPL 2301006 Contact Us For Availability

31

Cap, Pan (Right Side) WPL 2301016 Contact Us For Availability

31

Cap, Pan (Left Side) WPL 2301017 Contact Us For Availability

31

Bracket, Motor WPL 2256154 Contact Us For Availability

W10271509 Whirlpool Refrigerator Ice Maker Au In Stock WPL W10271509 $116.47

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Eyelet, Roller WPL 2301153 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Roller WPL 2301152 Contact Us For Availability

Cover WPL 2212305 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

34

Screw WPL 8533983 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

37

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

37

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $27.52

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $24.61

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI99213A1 Contact Us For Availability

REFRIGERANT CHARGE WPL ARI99214A8 Contact Us For Availability

5.00 oz. (R-134A) WPL ARI99215A7 Contact Us For Availability

100

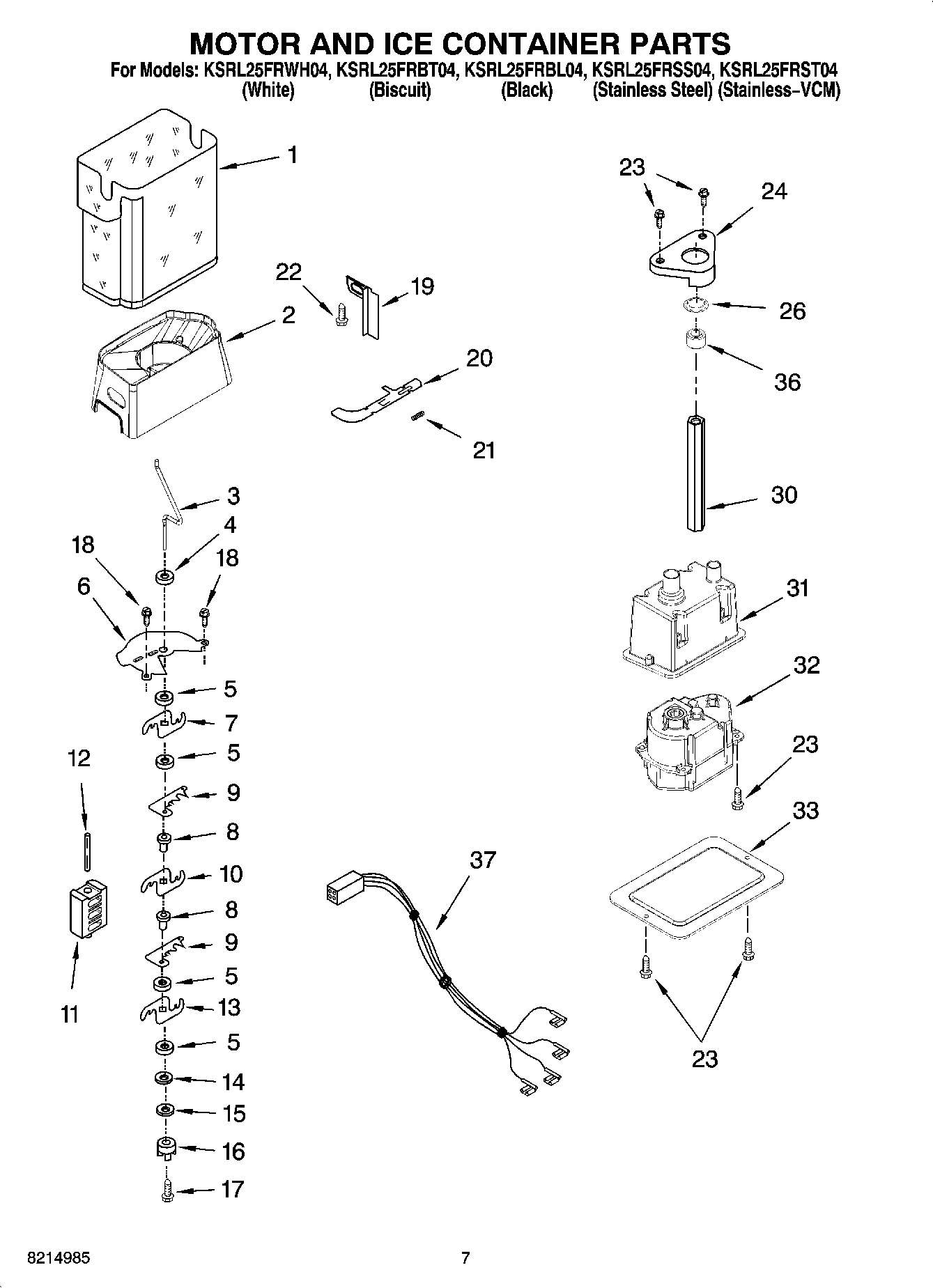

Ice Container (Complete) WPL 2315954 Contact Us For Availability
