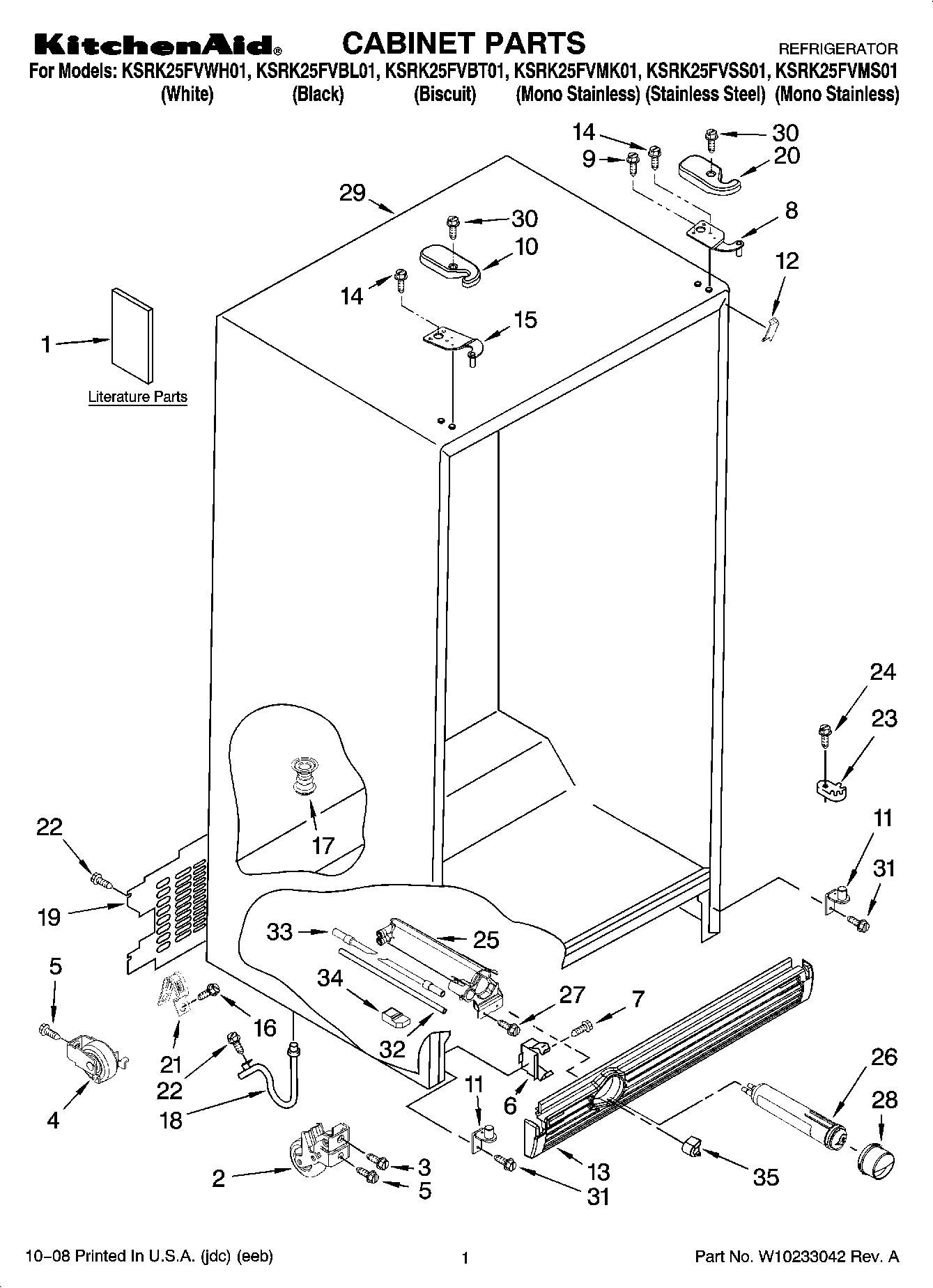

Model Whirlpool KSRK25FVWH01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $137.43

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Use & Care Guide WPL W10162452 Contact Us For Availability

1

Service & Wiring Sheet WPL W10181781 Contact Us For Availability

1

Energy Guide WPL W10194135 Contact Us For Availability

1

Instr Sheet, Door Removal WPL W10206334 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless Ste WPL 2301184S Contact Us For Availability

1

Refrigerator Door (Includes 7) (Monochromatic WPL 2301184SAP Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL 2313299B Contact Us For Availability

1

Refrigerator Door (Includes 7) (Biscuit) WPL 2313299T Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2313299W Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

2

Handle (Black) WPL 2319727B Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Door, Compartment WPL 2301486 Contact Us For Availability

3

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $61.42

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Tube, Water WPL 2303216 Contact Us For Availability

3

Beverage Holder (2) WPL 2193409K Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Handle (Biscuit) WPL 2319727T Contact Us For Availability

4

Handle (White) WPL 2319727W Contact Us For Availability

5

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

5

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

5

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $69.65

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

7

Glide Assy (Right Side) WPL 2301548 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

8

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

8

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

8

Nameplate (Gray) WPL W10046610 Contact Us For Availability

8

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

8

Nameplate (Biscuit) WPL W10046700 Contact Us For Availability

9

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

WPW10210789-includeCORE Whirlpool WPW10210789 Backorder WPL WPW10210789-includeCORE $215.12

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $35.67

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Hinge Cover, FC (White) WPL W10138581 Contact Us For Availability

HINGE COVER, FC (BLACK) WPL W10138582 Contact Us For Availability

Hinge Cover, FC (Biscuit) WPL W10138583 Contact Us For Availability

Hinge Cover, FC (Apollo Gray) WPL W10138584 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2304849 Contact Us For Availability

Filler, Wrapper (Apollo Gray) WPL W10143043 Contact Us For Availability

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $116.82

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WPW10184888 Whirlpool Refrigerator Grille Backorder WPL WPW10184888 $117.36

WPW10184890 Whirlpool Refrigerator Grille Backorder WPL WPW10184890 $95.73

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $61.29

Grille (Biscuit) WPL W10184889 Contact Us For Availability

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $69.88

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $61.75

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Thimble-Top (For Stainless Steel and Monochro WPL 2301049 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $67.68

Fascia Assy (Stainless) WPL W10144818 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $62.77

Thimble-Top (For Stainless Steel and Monochro WPL 2308050 Contact Us For Availability

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $75.95

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Front Bezel-Disp (Stainless) WPL W10139842 Contact Us For Availability

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Window, Crisper WPL 2301001 Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.17

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

Latch, Bin WPL 2317277 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Hinge Cover, RC (White) WPL W10138576 Contact Us For Availability

HINGE COVER, RC (BLACK) WPL W10138577 Contact Us For Availability

Hinge Cover, RC (Biscuit) WPL W10138578 Contact Us For Availability

Hinge Cover, RC (Apollo Gray) WPL W10138579 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

NLA:SCREW Backorder WPL WPW10141645 $3.70

23

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

23

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

24

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

24

Spacer, Switch WPL 625834 Contact Us For Availability

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

26

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

26

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Cover, Receiver WPL W10173569 Contact Us For Availability

Enclosure, Motor WPL 2322488 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

Cap, Water Filter (Biscuit) WPL 2260502T Contact Us For Availability

29

Cabinet, (Not A Serviceable Part) WPL ARI98696A9 Contact Us For Availability

30

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

30

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

30

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

31

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

32

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $41.91

33

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

33

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

34

Block, Housing Support WPL 2260519 Contact Us For Availability

35

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

35

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

36

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

41

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability
