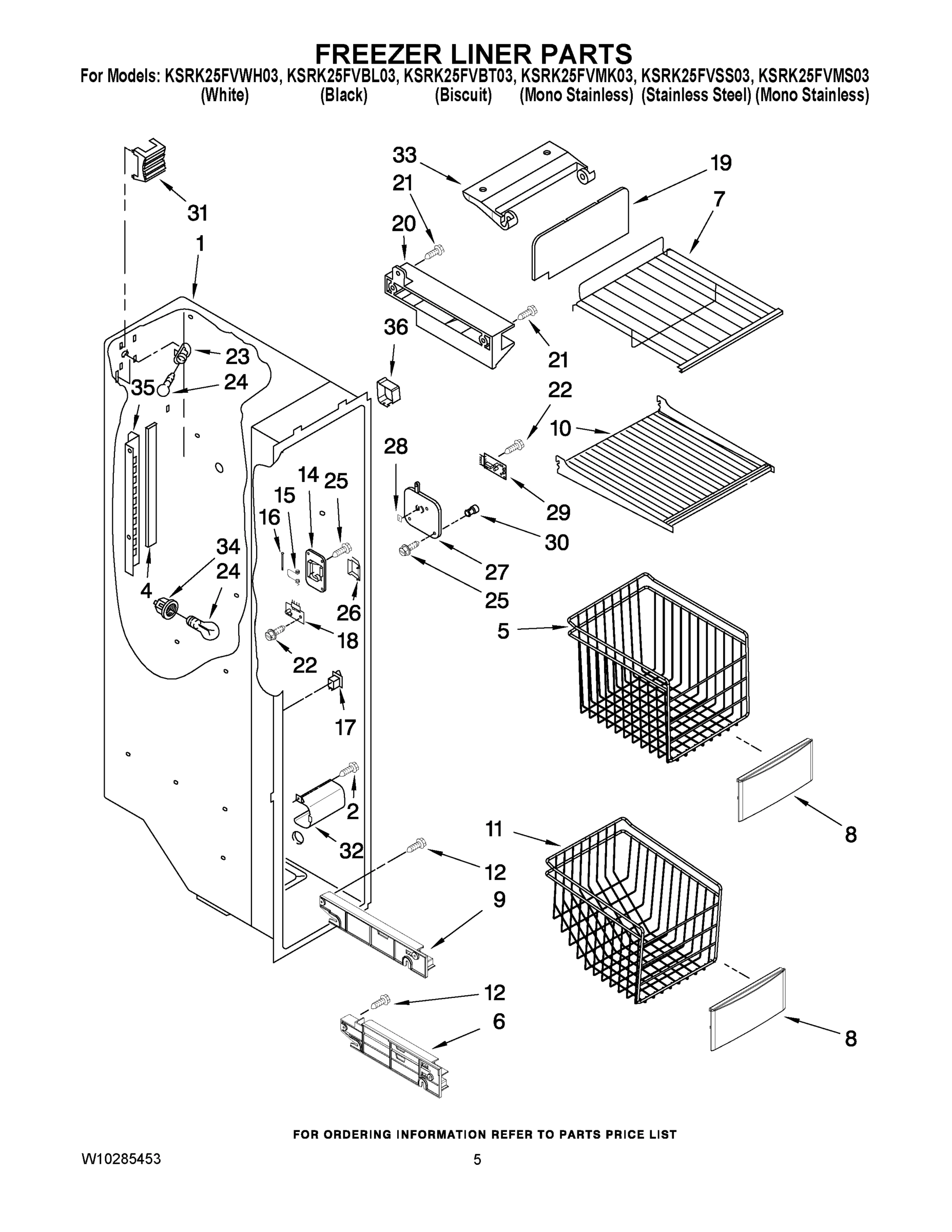

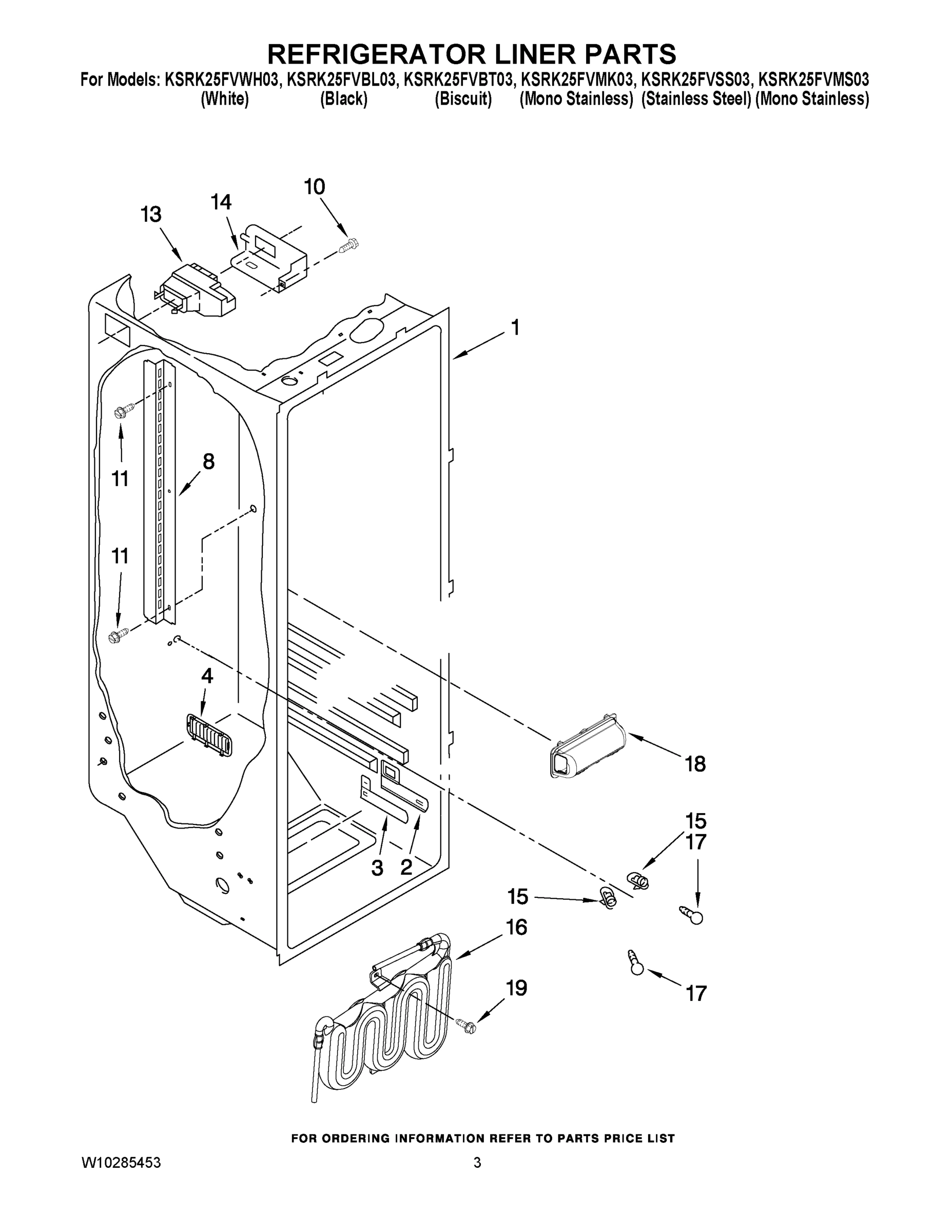

Model Whirlpool KSRK25FVSS03 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $33.18

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WPW10130497 Whirlpool Refrigerator Crush Bin Backorder WPL WPW10130497 $86.34

2

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

2

Screw WPL W10141645 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $37.22

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $57.58

3

Tube, Water WPL 2303216 Contact Us For Availability

4

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $122.04

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $66.34

5

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $51.73

5

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $125.90

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

W10812039 Whirlpool Clip Backorder WPL W10812039 $4.28

6

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $128.57

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

2301548 Whirlpool Refrigerator Glide Backorder WPL 2301548 $98.93

7

2313230 Whirlpool Tube Backorder WPL 2313230 $92.13

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

7

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $52.72

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

8

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

8

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

8

BASKET, FRONT WPL 2301134 Contact Us For Availability

8

Nameplate (Gray) WPL W10046610 Contact Us For Availability

8

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

9

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $33.96

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $30.62

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $29.81

W10152855 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152855 $33.86

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $56.33

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $34.13

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.38

2323188 Whirlpool Refrigerator Cover Backorder WPL 2323188 $28.80

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W10297244 Whirlpool Refrigerator Arm Strip Backorder WPL W10297244 $39.95

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $101.79

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WPW10171469 Whirlpool Refrigerator Screw In Stock WPL WPW10171469 $4.58

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $66.55

W10152860 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152860 $32.68

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $32.50

Lever, Water Dispenser (Apollo Gray) WPL W10155162 Contact Us For Availability

Thimble-Top (For Stainless Steel and Monochro WPL 2301049 Contact Us For Availability

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2313162 Whirlpool Refrigerator Start Device Backorder WPL WP2313162 $61.14

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Fascia Assy (Stainless) WPL W10144818 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10916292 Whirlpool Refrigerator Crisper Pan Backorder WPL W10916292 $99.22

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $38.80

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $72.33

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Front Bezel-Disp (Stainless) WPL W10139842 Contact Us For Availability

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $36.31

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Window, Crisper WPL 2301001 Contact Us For Availability

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

Latch, Bin WPL 2317277 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

20

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

20

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Heat Shield WPL 2217194 Contact Us For Availability

23

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $28.80

23

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $5.97

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $165.08

Spacer, Switch WPL 625834 Contact Us For Availability

COMPRESSOR (ALSO ORDER 876765 TUBE KIT) WPL W10120463 Contact Us For Availability

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

WPW10291106 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10291106 $126.61

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Cover, Receiver WPL W10173569 Contact Us For Availability

Enclosure, Motor WPL 2322488 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

W10822606 Whirlpool Dishwasher Dispenser Moto In Stock WPL W10822606 $96.04

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $27.21

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

29

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

29

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

29

Cover WPL 2212305 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Wire Harness, IDI Motor WPL W10209450 Contact Us For Availability

31

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

32

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

33

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

33

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

34

Clip, Heat Shield WPL 2155547 Contact Us For Availability

35

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

35

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

36

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

37

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

40

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

41

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

43

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE 5.00 OZ. (R-134A) WPL NP Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

Kit, Evaporator Repair WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

Previous Architect Series Handle Kit (Stainle WPL 8201806 Contact Us For Availability
