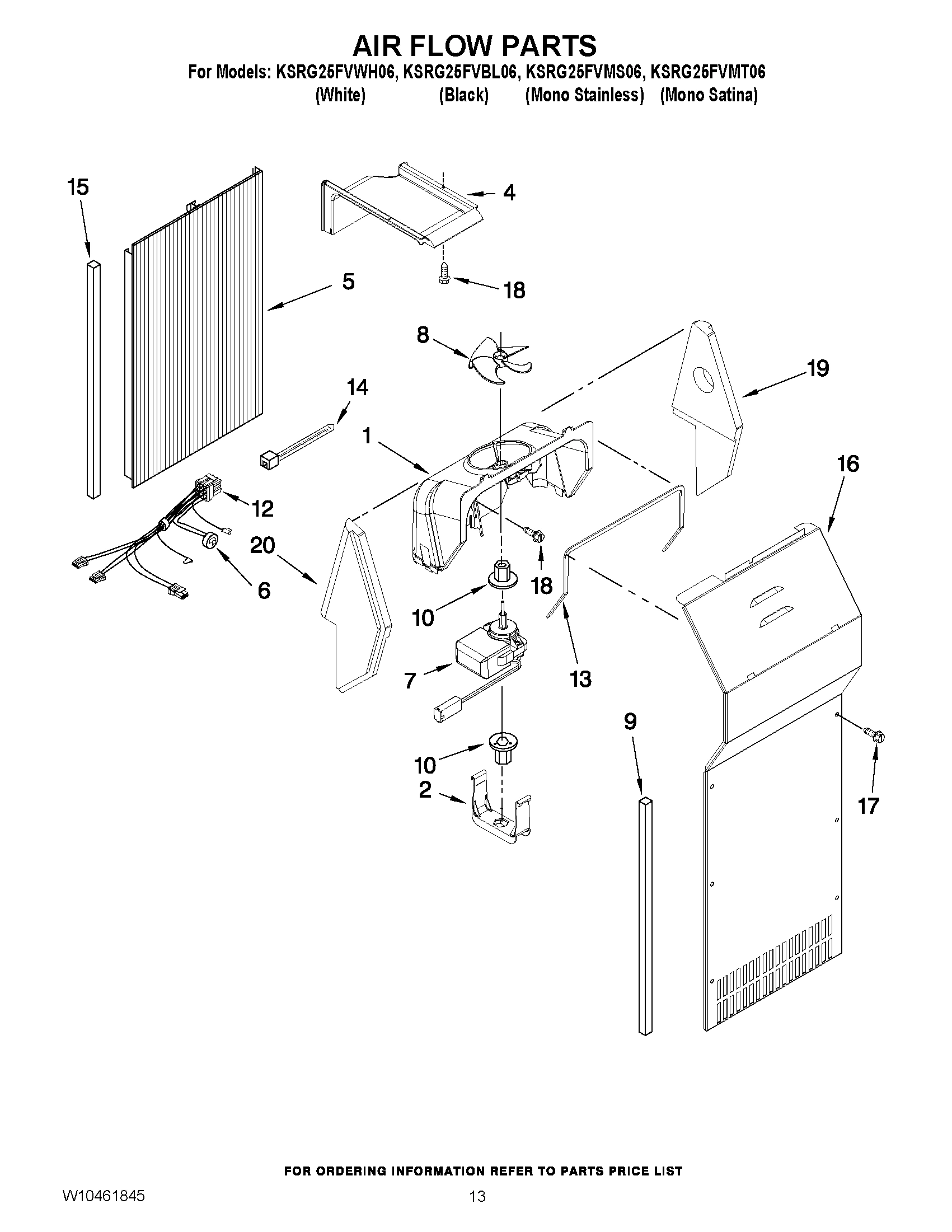

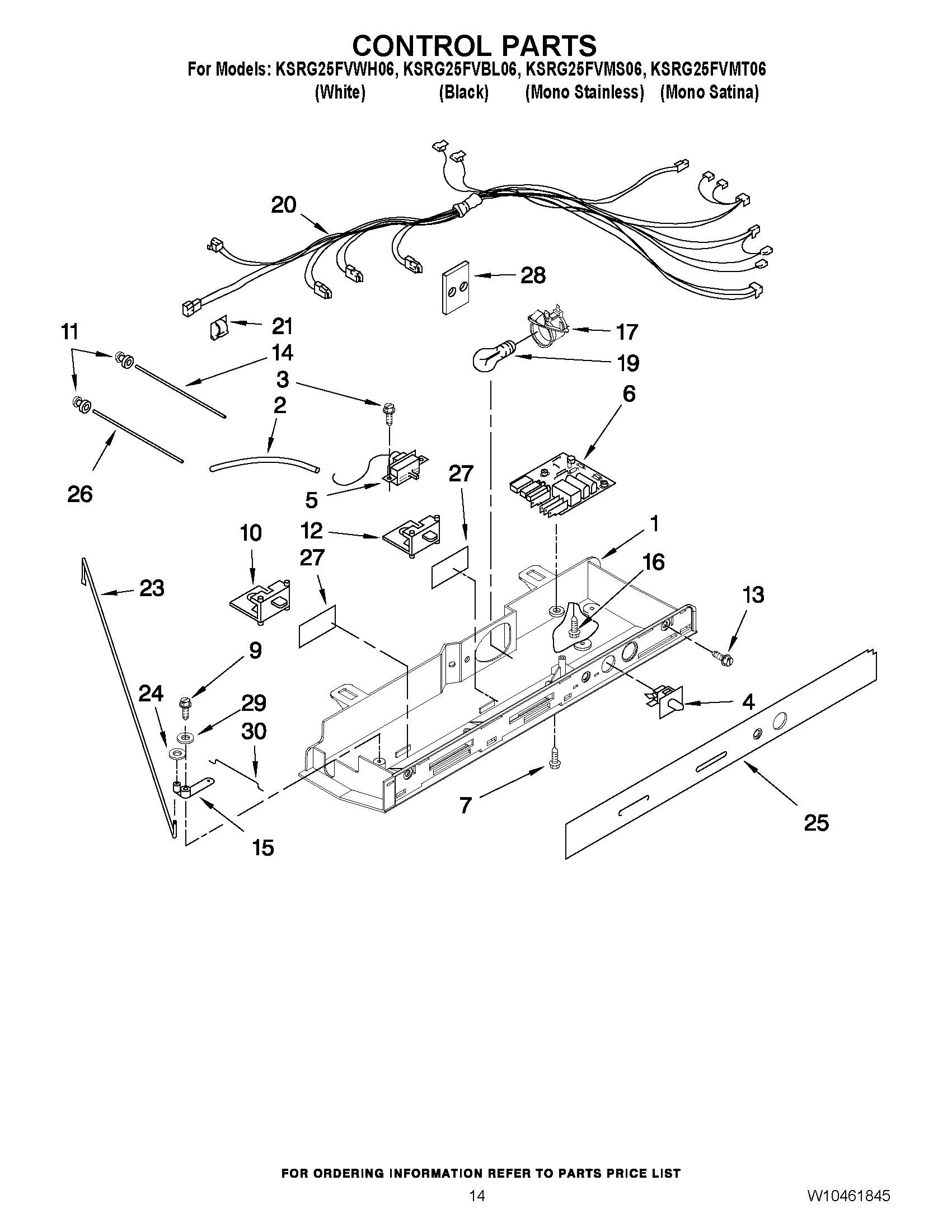

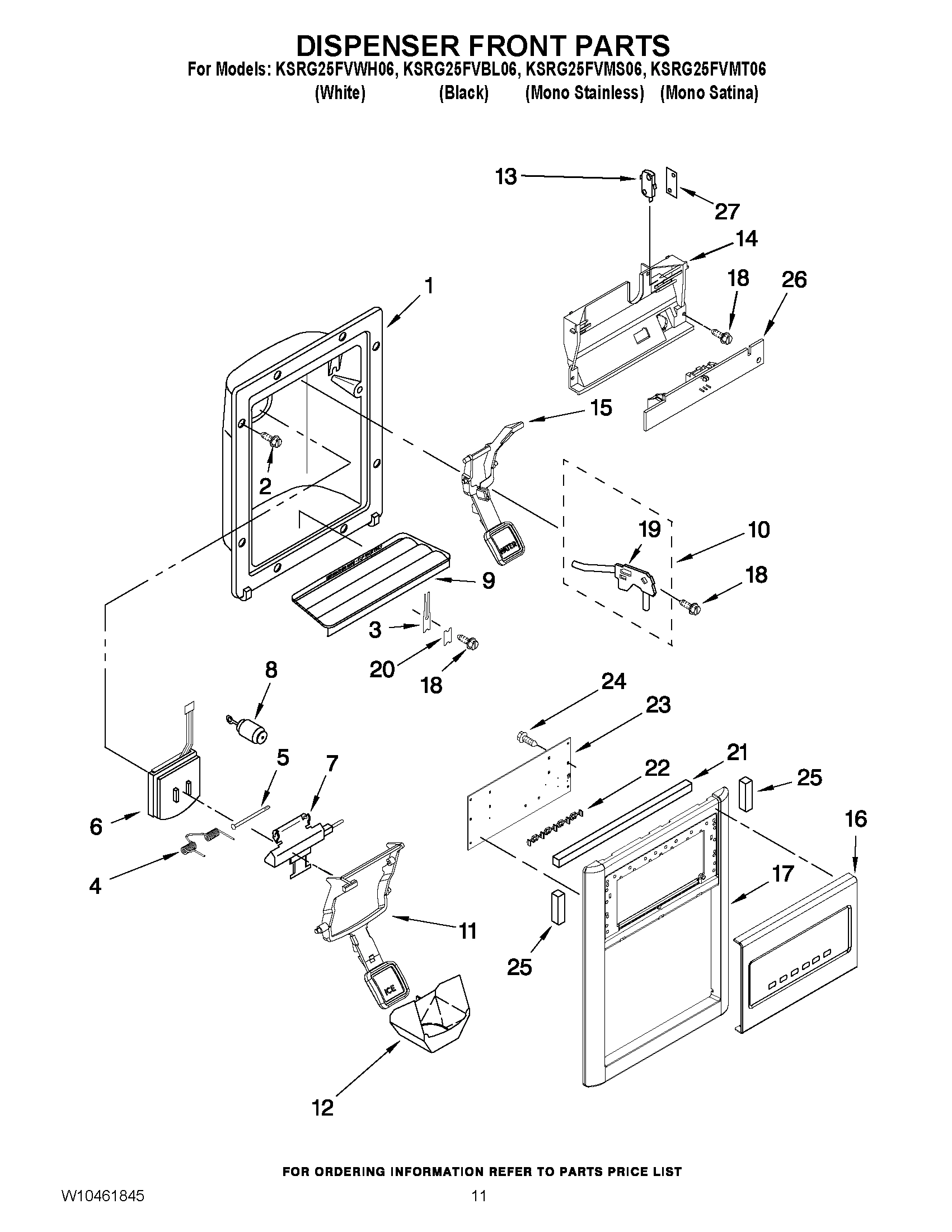

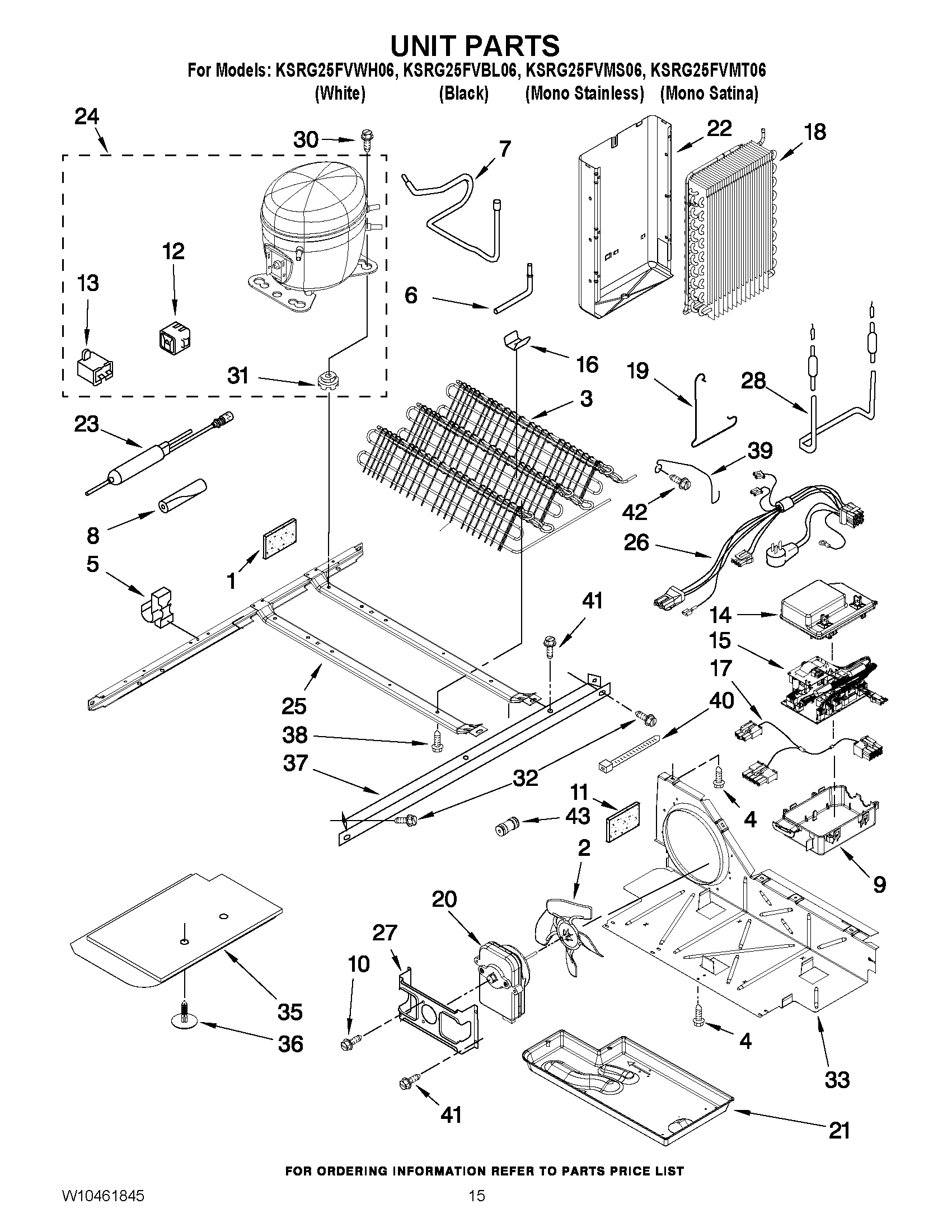

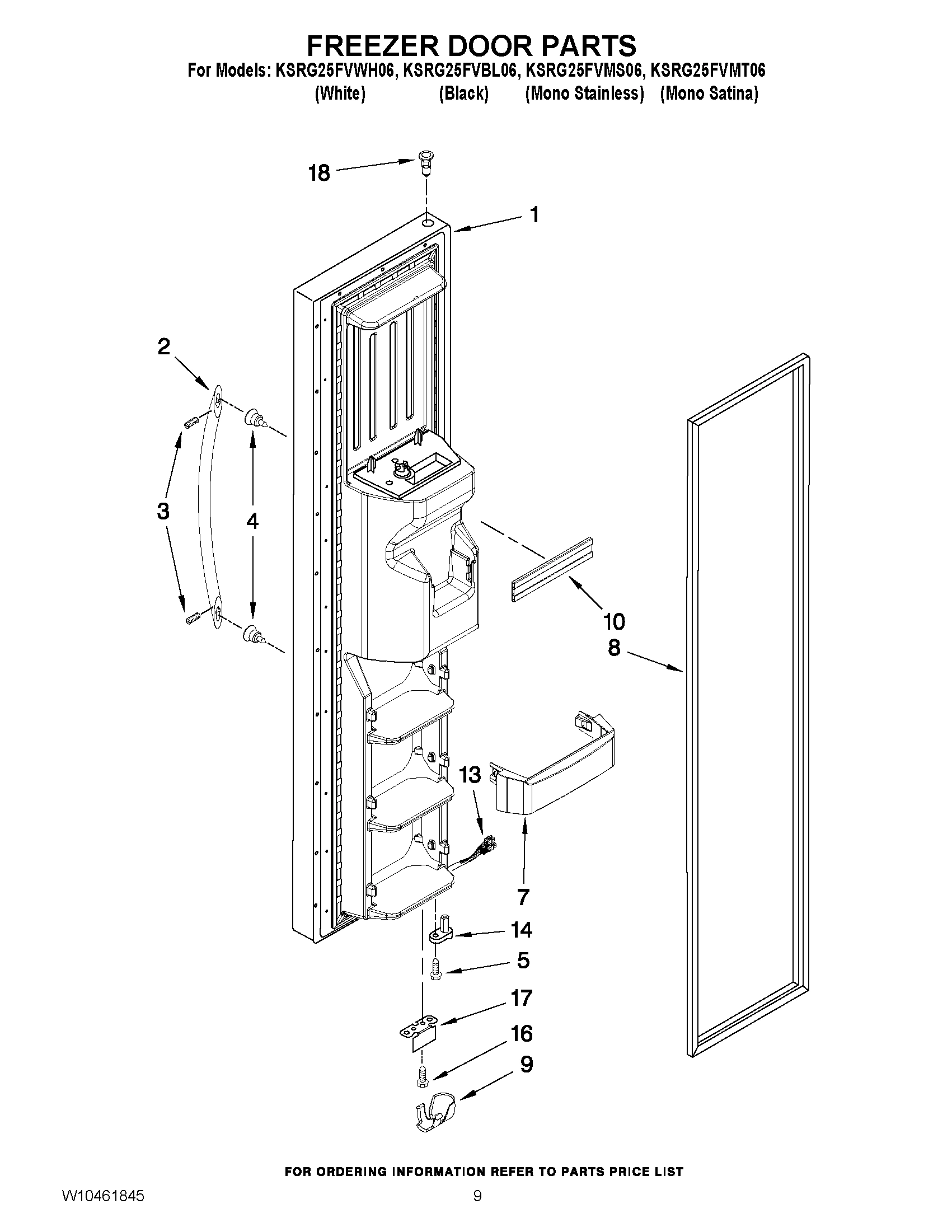

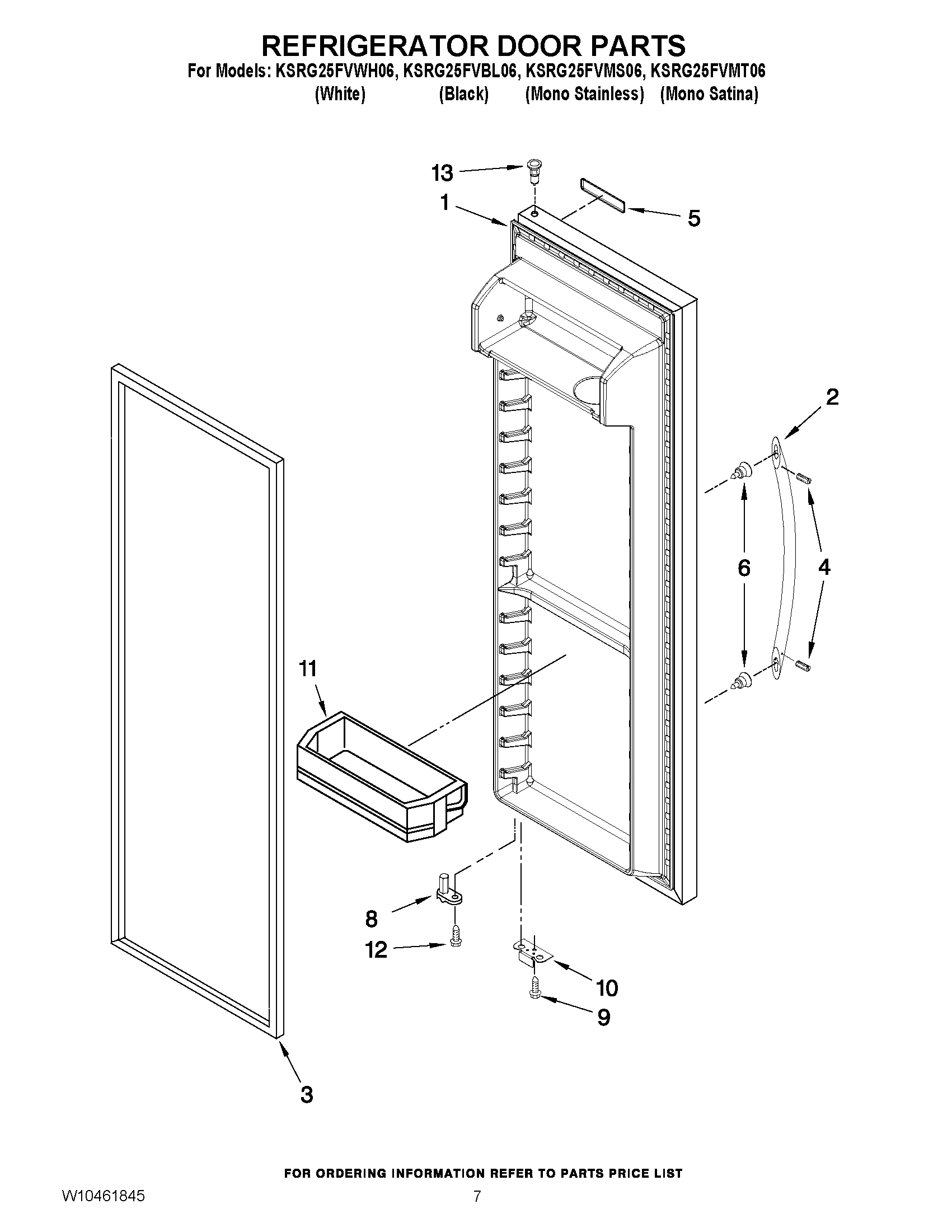

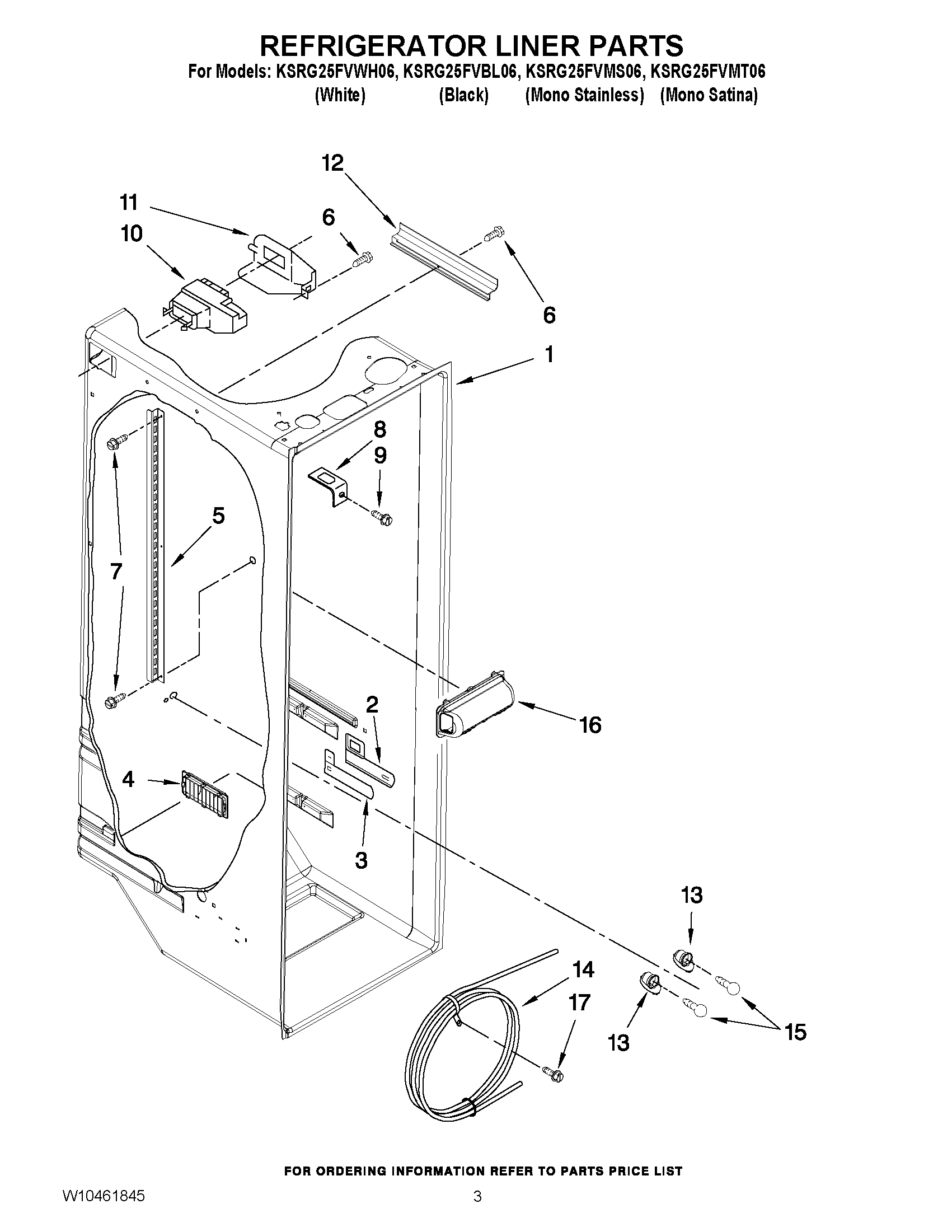

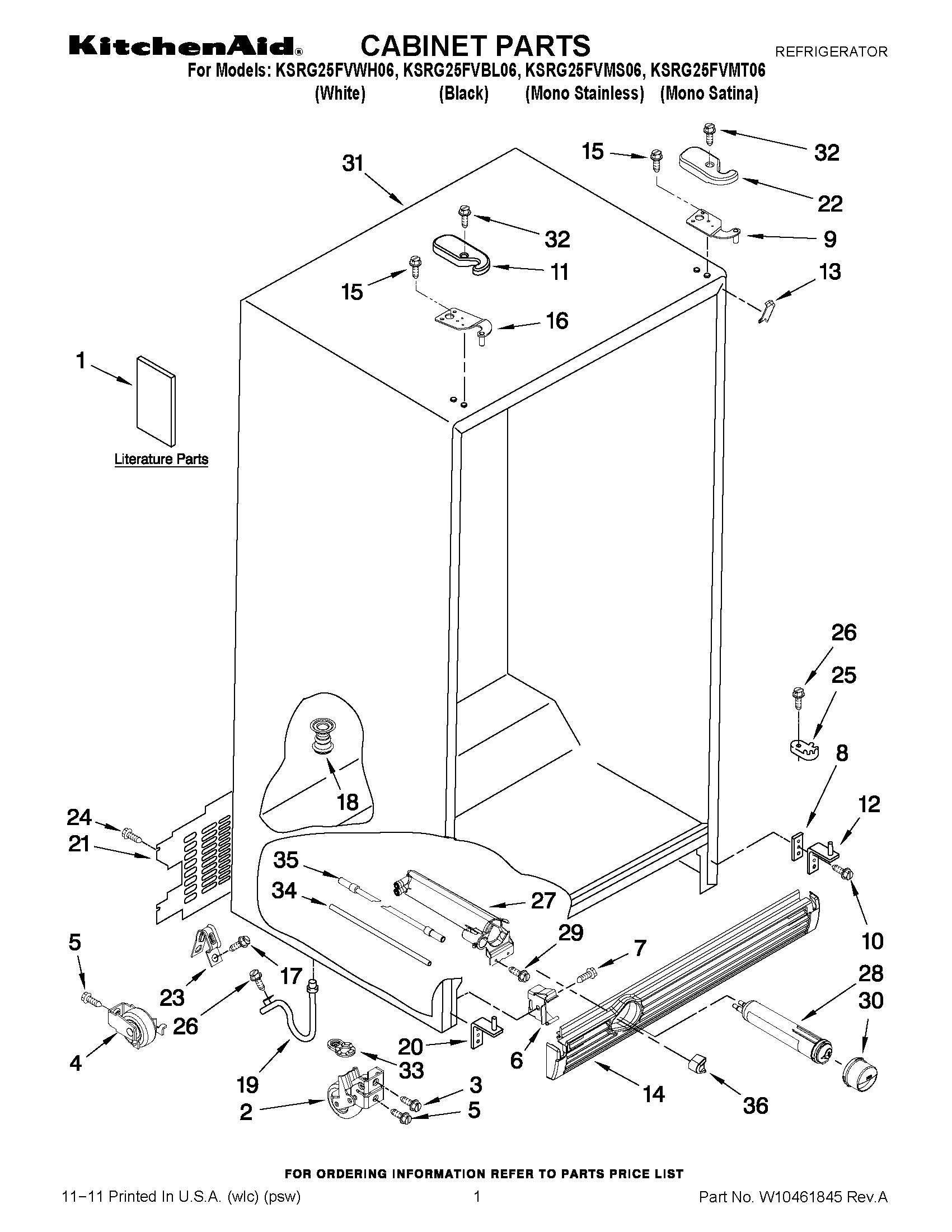

Model Whirlpool KSRG25FVMS06 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $33.18

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $8.42

2

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $122.04

2

Handle (Stainless) WPL 2319727S Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10281266 Whirlpool Refrigerator Wire Harness Backorder WPL W10281266 $8.89

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Tube, Water WPL 2303216 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

4

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10254073 Whirlpool Refrigerator Washer Backorder WPL WPW10254073 $4.15

5

W10169512 Whirlpool Clip Backorder WPL W10169512 $26.21

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $49.85

5

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $26.90

5

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

5

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

5

Latch, Bin WPL 2317277 Contact Us For Availability

5

Ladder, Shelf WPL 2319866 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $125.90

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

TRACK, BASKET (RH) WPL 2301289 Contact Us For Availability

6

TRACK, BASKET (LH) WPL 2301290 Contact Us For Availability

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $128.57

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $71.88

8

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $28.42

9

2326982 Whirlpool Refrigerator Control Box Backorder WPL 2326982 $29.43

9

W10242649 Whirlpool Refrigerator Door Hinge Backorder WPL W10242649 $33.56

9

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

9

COVER, CRISPER PAN ASSY (INCLUDES 2, 3,4,11,1 WPL W10160318 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $42.25

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $30.62

BRACKET, DOOR STOP (CHROME) WPL W10219811 Contact Us For Availability

BRACKET, DOOR STOP (BLACK) WPL W10219812 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2217070 Whirlpool Foam Kit Backorder WPL 2217070 $10.76

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $56.33

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $34.13

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.38

Enclosure, Motor WPL 2322488 Contact Us For Availability

DOOR BIN WPL W10169669 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W11225843 Whirlpool Refrigerator Wire Harness Backorder WPL W11225843 $61.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $64.45

WPW10272161 Whirlpool Refrigerator Stripper A Backorder WPL WPW10272161 $29.61

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $59.78

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

Cover, Control WPL 2255624 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $32.50

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

ELEC CONTROL WPL W10259855 Contact Us For Availability

LEVER, WATER DISPENSER (MONO SATINA) WPL W10155162 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $36.31

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

CRISPER PAN (INCLUDES 13, 14,18,19 & 21) WPL W10142714 Contact Us For Availability

COVER, EVAPORATOR (INCLUDES No.9) WPL 2206314 Contact Us For Availability

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $72.33

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Bezel, Disp (Stainless) WPL W10139842 Contact Us For Availability

Harness, Elec Ctl WPL 2310439 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Window, Crisper WPL 2174076 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

20

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

20

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

21

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

21

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

21

CAP, CRISPER PAN (RH) WPL 2223286 Contact Us For Availability

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

22

Heat Shield WPL 2217194 Contact Us For Availability

23

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

23

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

23

Control Board WPL 2321704 Contact Us For Availability

24

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $353.02

24

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $165.08

24

Cover, Receiver WPL W10173569 Contact Us For Availability

25

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

25

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

25

W11049959 Whirlpool Refrigerator Hinge In Stock WPL W11049959 $43.87

26

2310425 Whirlpool Refrigerator Wire Harness Backorder WPL 2310425 $153.79

26

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

27

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

27

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

27

Spacer, Switch WPL 625834 Contact Us For Availability

28

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

28

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

28

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $27.21

31

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

32

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

32

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

33

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

33

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $7.80

33

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

35

TUBE, FILTER INLET WPL W10281289 Contact Us For Availability

35

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

37

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

39

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

40

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

41

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

42

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

43

CONNECTOR, WATER TUBE WPL W10271542 Contact Us For Availability

100

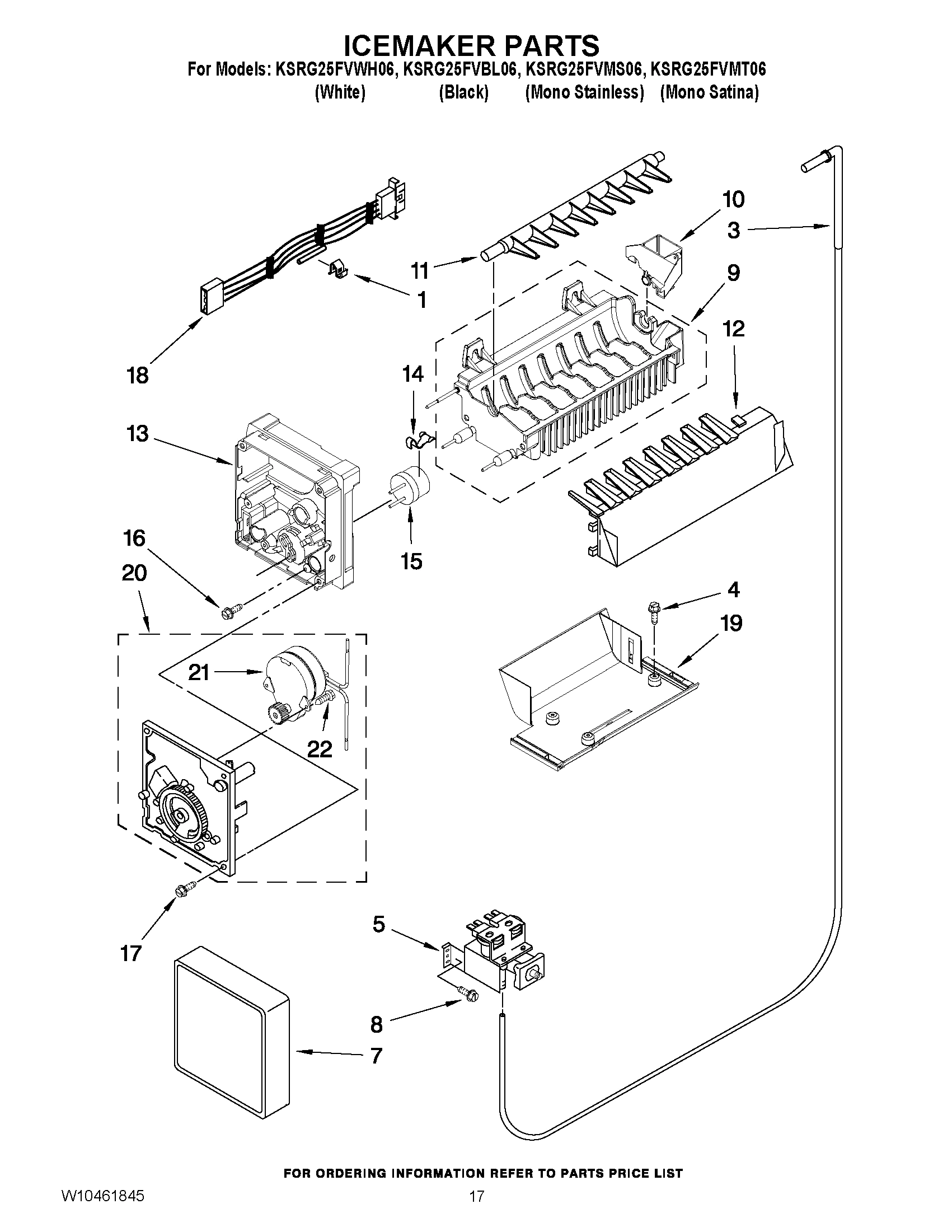

W11512149 Whirlpool Ice Maker Assembly In Stock WPL W11512149 $78.53

100

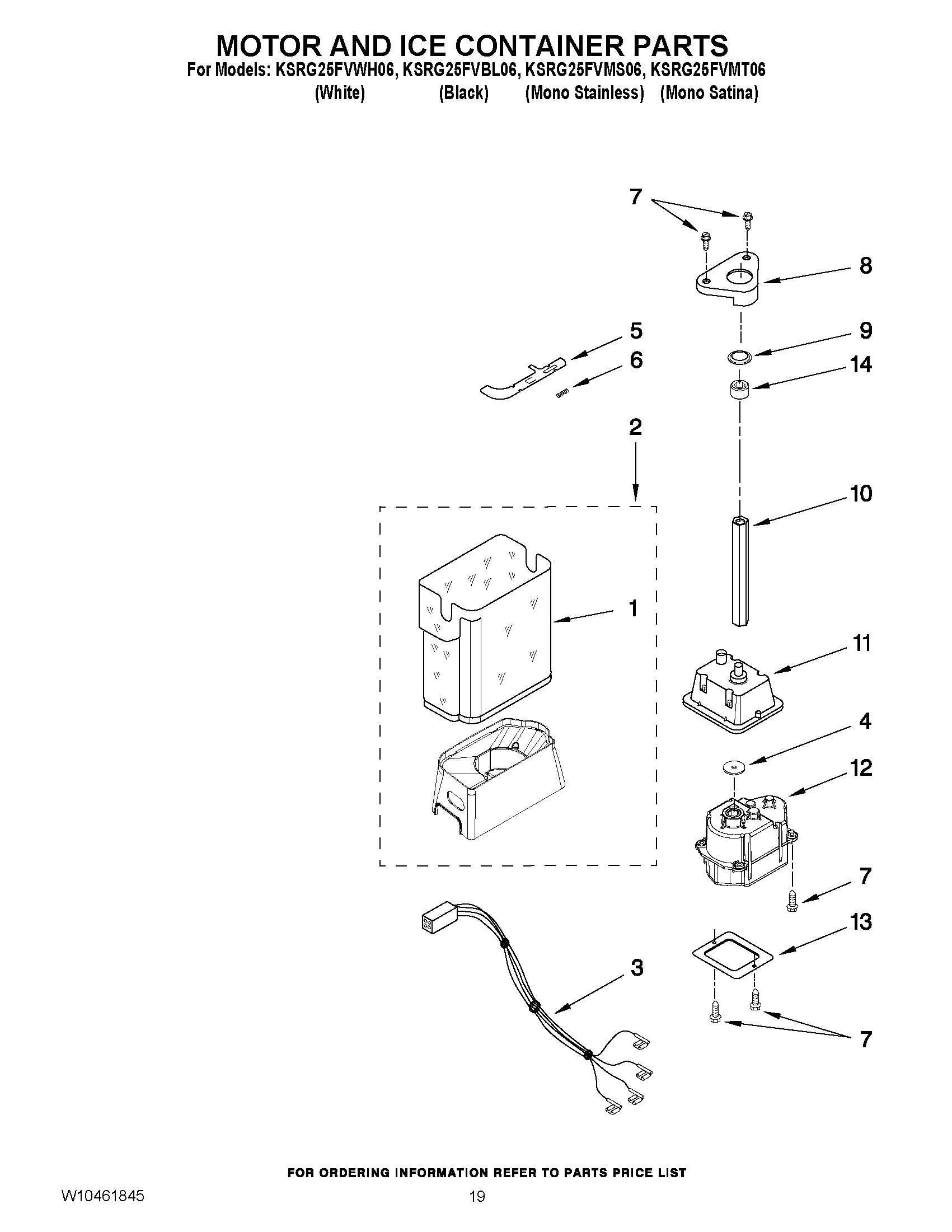

Ice Container (Complete) WPL 2317273 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

AFFRESH STAINLESS STEEL CLEANER WPL W10355016 Contact Us For Availability

AFFRESH KITCHEN APPLIANCE CLEANER WPL W10355010 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE 5.00 OZ. (R-134A) WPL NP Contact Us For Availability
