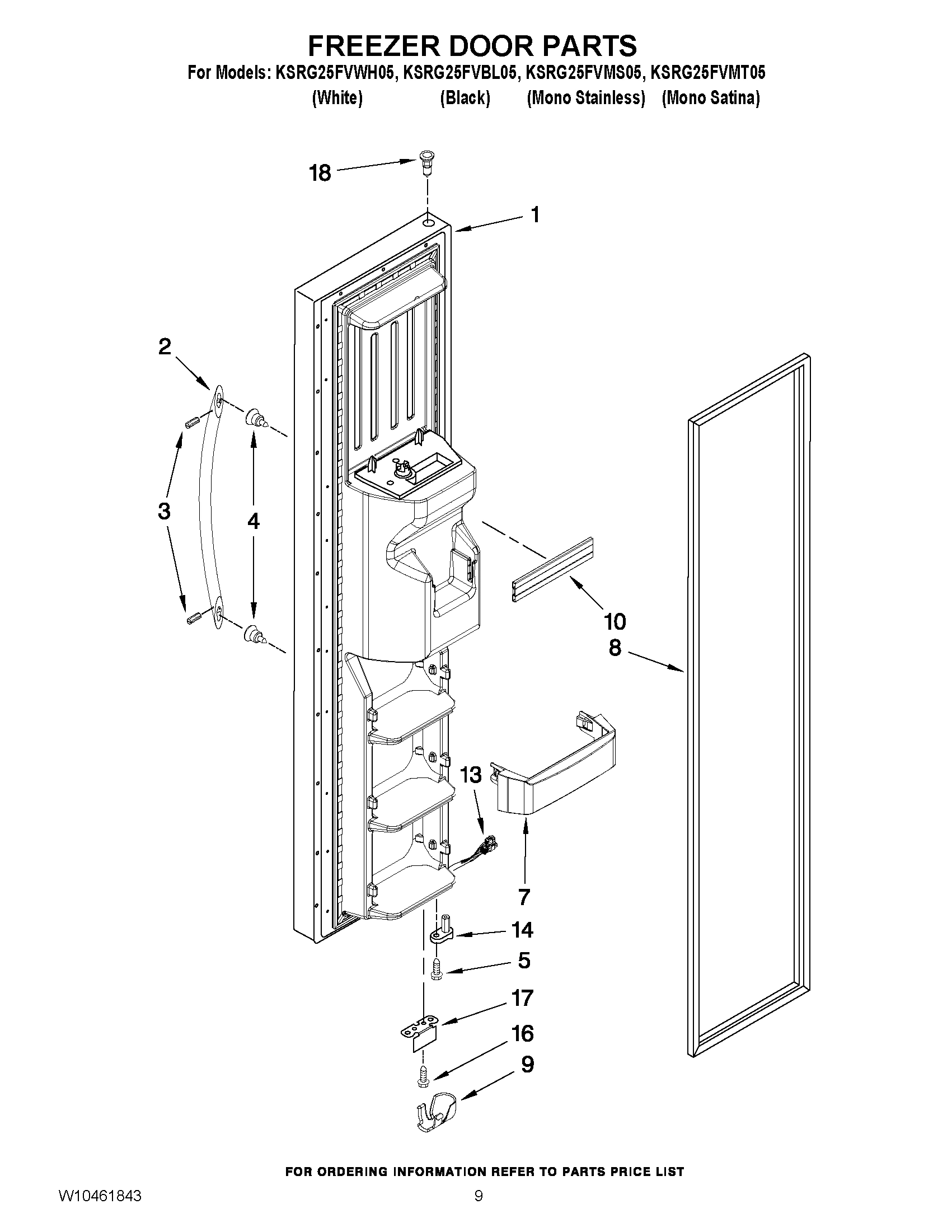

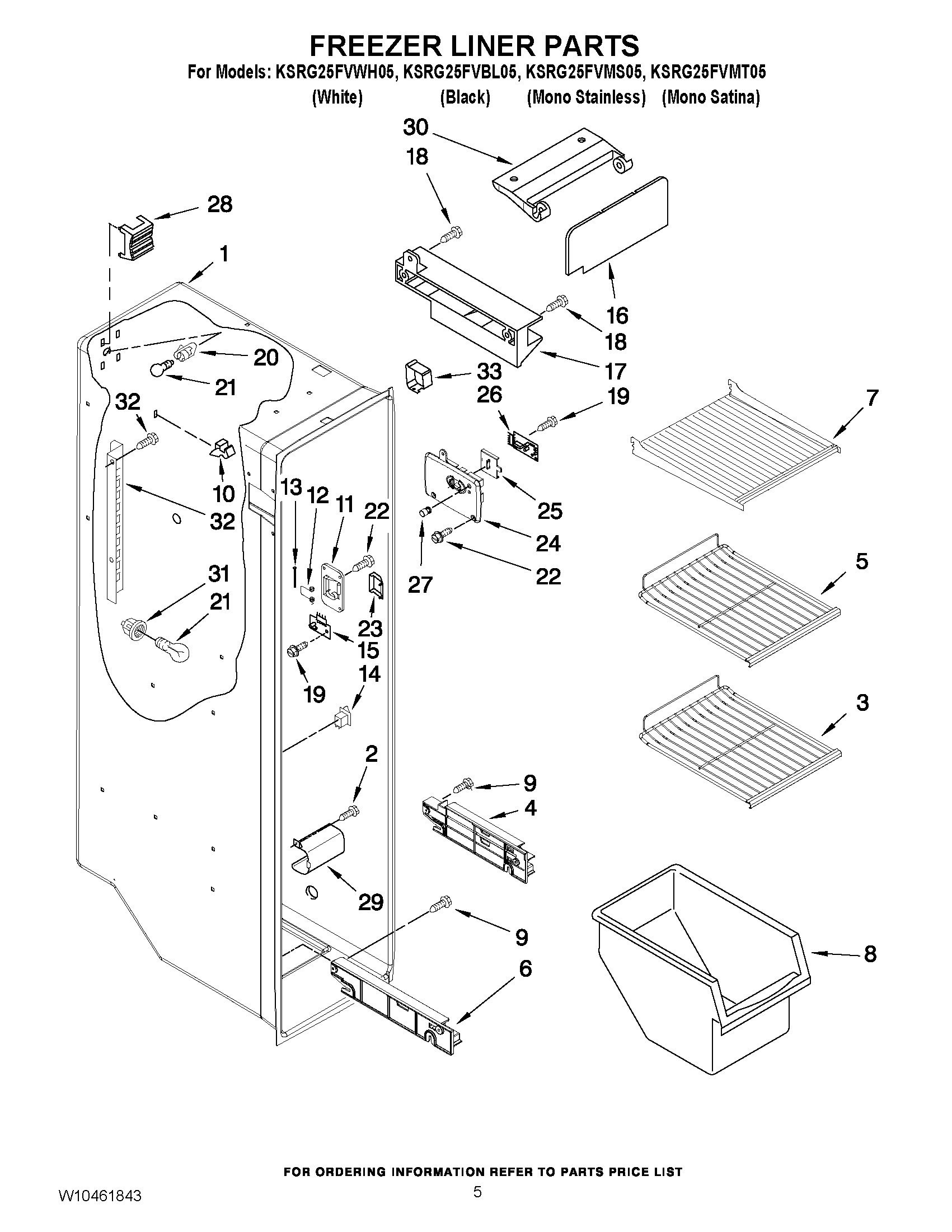

Model Whirlpool KSRG25FVBL05 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

1

FRAME ASSEMBLY, SLIDE OUT WPL 2195975 Contact Us For Availability

1

HOUSING, DISPENSER (NOT SERVICED) WPL NP Contact Us For Availability

2

W10175967 Whirlpool Refrigerator Escutcheon Backorder WPL W10175967 $28.80

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $8.42

2

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $122.04

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Handle (Stainless) WPL 2319727S Contact Us For Availability

2

Button, Humidity WPL 2319720 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10281266 Whirlpool Refrigerator Wire Harness Backorder WPL W10281266 $8.89

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Tube, Water WPL 2303216 Contact Us For Availability

4

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10254073 Whirlpool Refrigerator Washer Backorder WPL WPW10254073 $4.15

4

Gasket, Side WPL 2174273 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $49.85

5

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $26.90

5

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

5

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

5

Latch, Bin WPL 2317277 Contact Us For Availability

5

Ladder, Shelf WPL 2319866 Contact Us For Availability

6

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

TRACK, BASKET (RH) WPL 2301289 Contact Us For Availability

6

TRACK, BASKET (LH) WPL 2301290 Contact Us For Availability

6

SNACK PAN (INCLUDES No.7) WPL W10142717 Contact Us For Availability

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $128.57

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $71.88

8

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

8

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $28.42

9

W10242649 Whirlpool Refrigerator Door Hinge Backorder WPL W10242649 $33.56

9

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

9

COVER, CRISPER PAN ASSY (INCLUDES 2, 3,4,11,1 WPL W10160318 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $42.25

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $30.62

BRACKET, DOOR STOP (CHROME) WPL W10219811 Contact Us For Availability

BRACKET, DOOR STOP (BLACK) WPL W10219812 Contact Us For Availability

Glass, Cover WPL 2255143 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $56.33

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $34.13

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.38

Enclosure, Motor WPL 2322488 Contact Us For Availability

DOOR BIN WPL W10169669 Contact Us For Availability

LEVER, ICE DISPENSER (MONO STAINLESS) WPL 2180261AP Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $64.45

WPW10272161 Whirlpool Refrigerator Stripper A Backorder WPL WPW10272161 $29.61

GASKET (REAR) WPL 2223362 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

W10728484 Whirlpool Refrigerator Dispenser Co In Stock WPL W10728484 $30.65

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $59.78

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $32.50

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

ELEC CONTROL WPL W10259855 Contact Us For Availability

LEVER, WATER DISPENSER (MONO SATINA) WPL W10155162 Contact Us For Availability

LEVER, WATER DISPENSER (MONO STAINLESS) WPL 2180270AP Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $36.31

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

CRISPER PAN (INCLUDES 13, 14,18,19 & 21) WPL W10142714 Contact Us For Availability

Fascia Assy (White) WPL W10136796 Contact Us For Availability

Fascia Assy (Black) WPL W10139735 Contact Us For Availability

FASCIA ASSY (STAINLESS) WPL W10159778 Contact Us For Availability

FASCIA ASSY (NICKEL ONE) WPL W10172018 Contact Us For Availability

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $72.33

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

W10171988 Whirlpool Refrigerator Front Cover Backorder WPL W10171988 $151.44

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Bezel, Disp (Stainless) WPL W10139842 Contact Us For Availability

MEAT PAN (INCLUDES 13, 14,19 & 22) WPL W10149982 Contact Us For Availability

Bezel, Disp (Black) WPL W10136851 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

Window, Crisper WPL 2174076 Contact Us For Availability

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

20

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $28.80

20

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

20

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

21

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

21

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $9.11

21

CAP, CRISPER PAN (RH) WPL 2223286 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

Window, Meat Pan WPL 2174362 Contact Us For Availability

Support, Window WPL W10170417 Contact Us For Availability

23

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

23

Control Board WPL 2321704 Contact Us For Availability

24

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

24

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $165.08

24

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

W11049959 Whirlpool Refrigerator Hinge In Stock WPL W11049959 $43.87

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

GASKET-LIGHT WPL W10194025 Contact Us For Availability

26

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

26

Shelf, Snack Pan WPL W10141750 Contact Us For Availability

26

LED Assy WPL W10245284 Contact Us For Availability

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

Spacer, Switch WPL 625834 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

W11527119 Whirlpool Refrigerator Shelf Stud Backorder WPL W11527119 $4.12

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $27.21

32

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

33

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

33

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $7.80

35

TUBE, FILTER INLET WPL W10281289 Contact Us For Availability

36

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

36

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

39

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

43

CONNECTOR, WATER TUBE WPL W10271542 Contact Us For Availability

100

W11512149 Whirlpool Ice Maker Assembly In Stock WPL W11512149 $78.53

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
