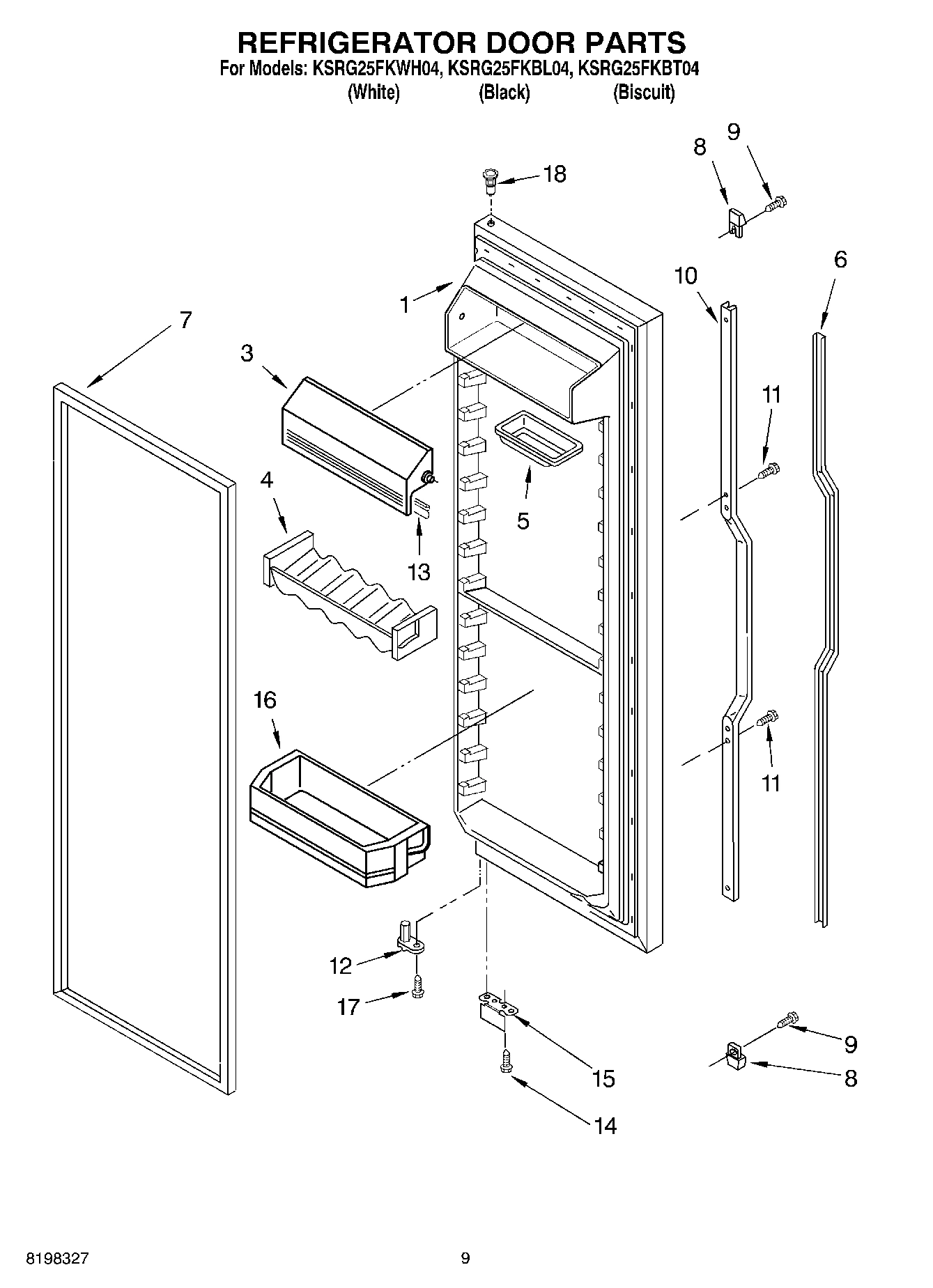

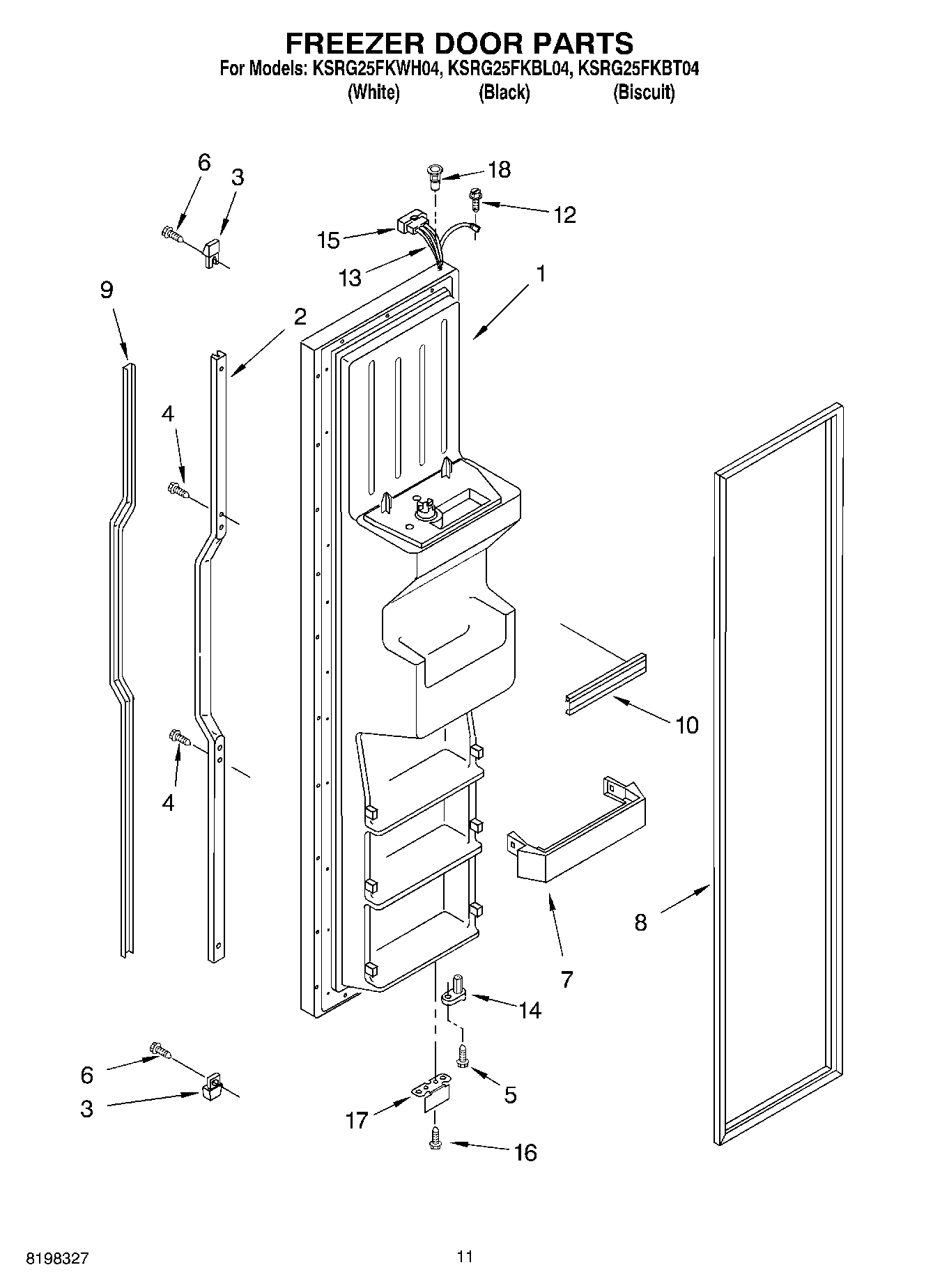

Model Whirlpool KSRG25FKBL04 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI96966A3 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI96967A1 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Crusher Bin WPL 2212367 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Basket, Tall WPL 2181765 Contact Us For Availability

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

Track, Basket-Dual (Right Side) WPL 2216106 Contact Us For Availability

7

Track, Basket-Dual (Left Side) WPL 2216107 Contact Us For Availability

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $36.29

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2223356 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2206273 Contact Us For Availability

9

Shelf, Slide Out Upper WPL 2211746 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

Glass, Cover WPL 2255143 Contact Us For Availability

Bracket, Insert WPL 2216997 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $28.49

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

GASKET (REAR) WPL 2223362 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Wire Harness WPL 2206178 Contact Us For Availability

Shelf Track (Left Side) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side) WPL 2181760 Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Light Bar (RC) WPL 2179920 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Shelf WPL 2205837 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

8201786 Whirlpool Relay and Overload Start Ki In Stock WPL 8201786 $38.92

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Basket, Sloped WPL 2181764 Contact Us For Availability

Backorder WPL 2179404 $8.47

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

Crisper Pan (Includes 13, 14, 18, 19, & 21) WPL 2223358 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Window, Crisper WPL 2174076 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

Screw Grommet WPL 509812 Contact Us For Availability

20

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $28.80

20

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

21

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Window, Meat Pan WPL 2174362 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 18, 19, WPL 2220092W Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $42.25

Holder WPL 2212369 Contact Us For Availability

Shelf & Roller Assembly WPL 2216102 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Shelf, Snack Pan WPL 2206346 Contact Us For Availability

Heat Shield WPL 2149294 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

31

Unit, Harness WPL 2187512 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $35.67

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Light Lens WPL 2209769 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

Cover, Receiver WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

37

Screw WPL 488280 Contact Us For Availability

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Light Shield WPL 2198589 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
