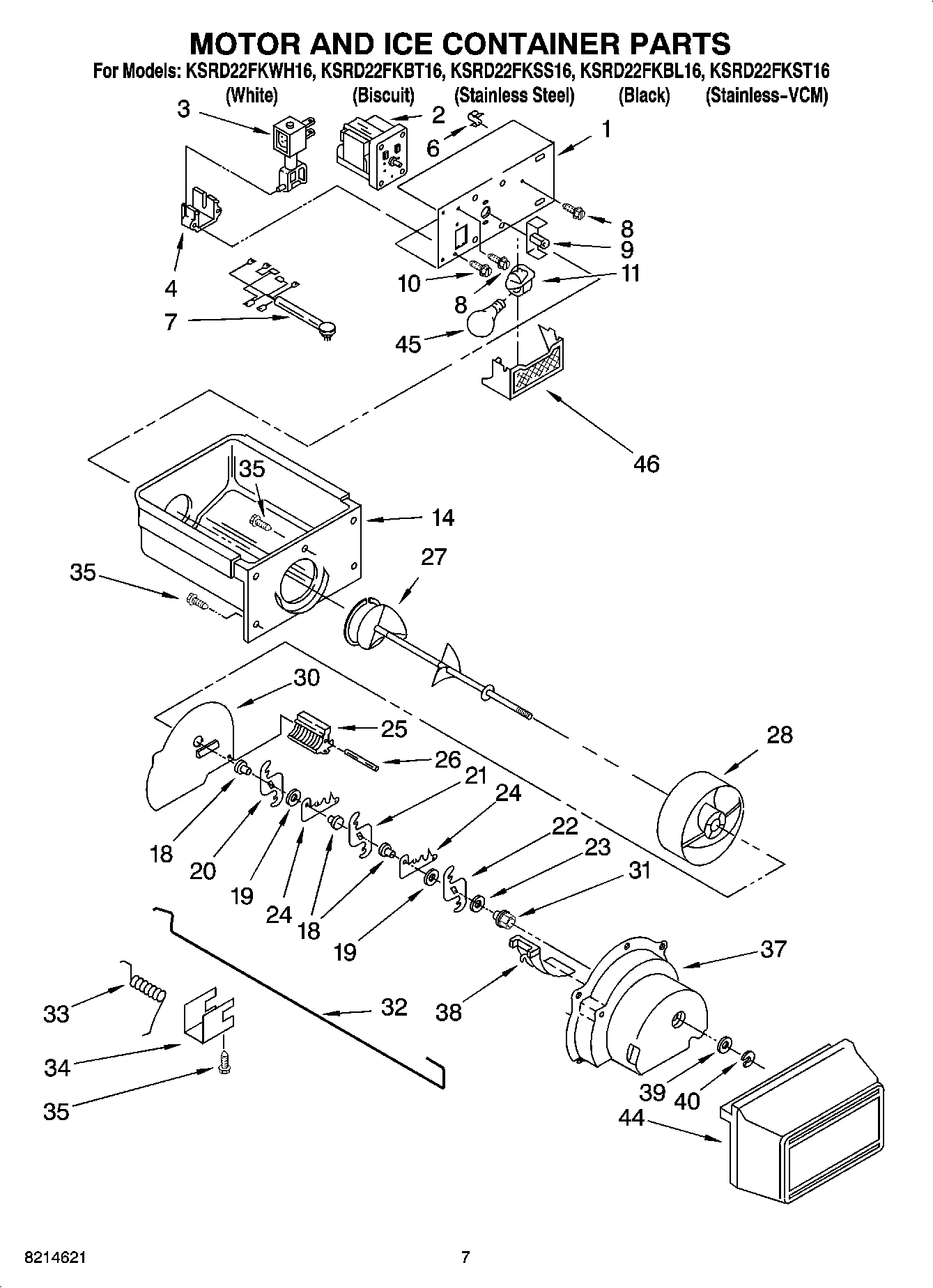

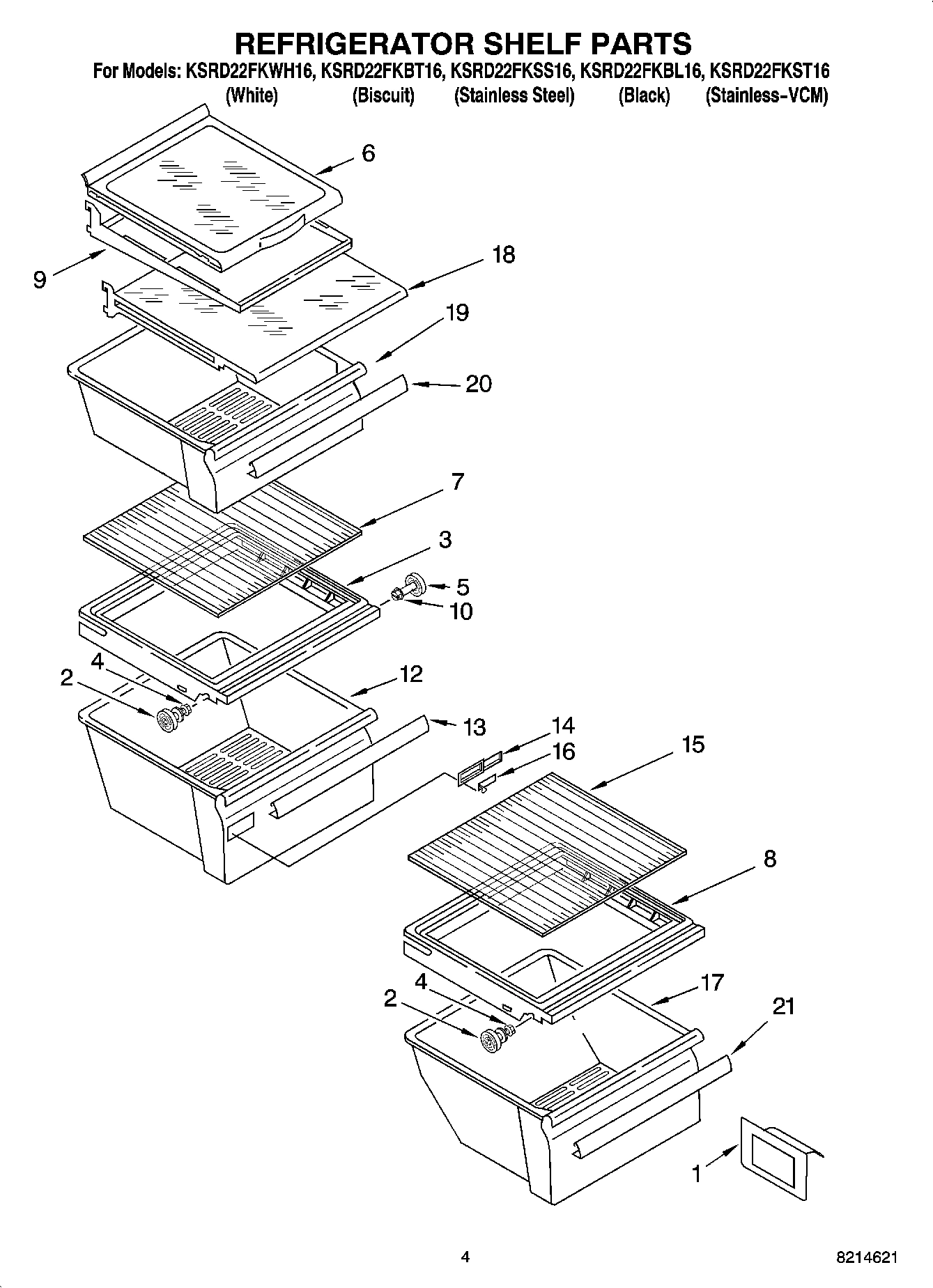

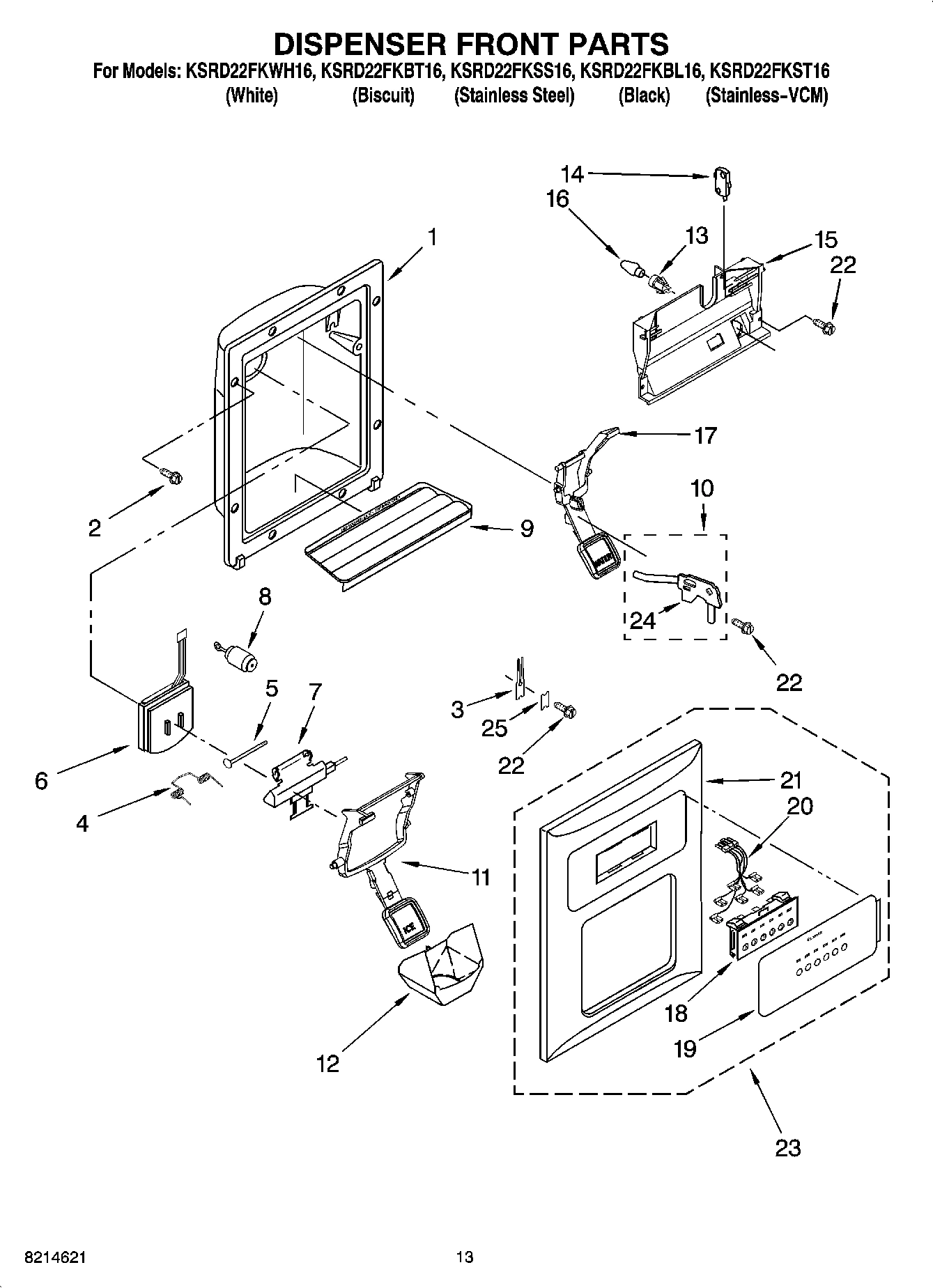

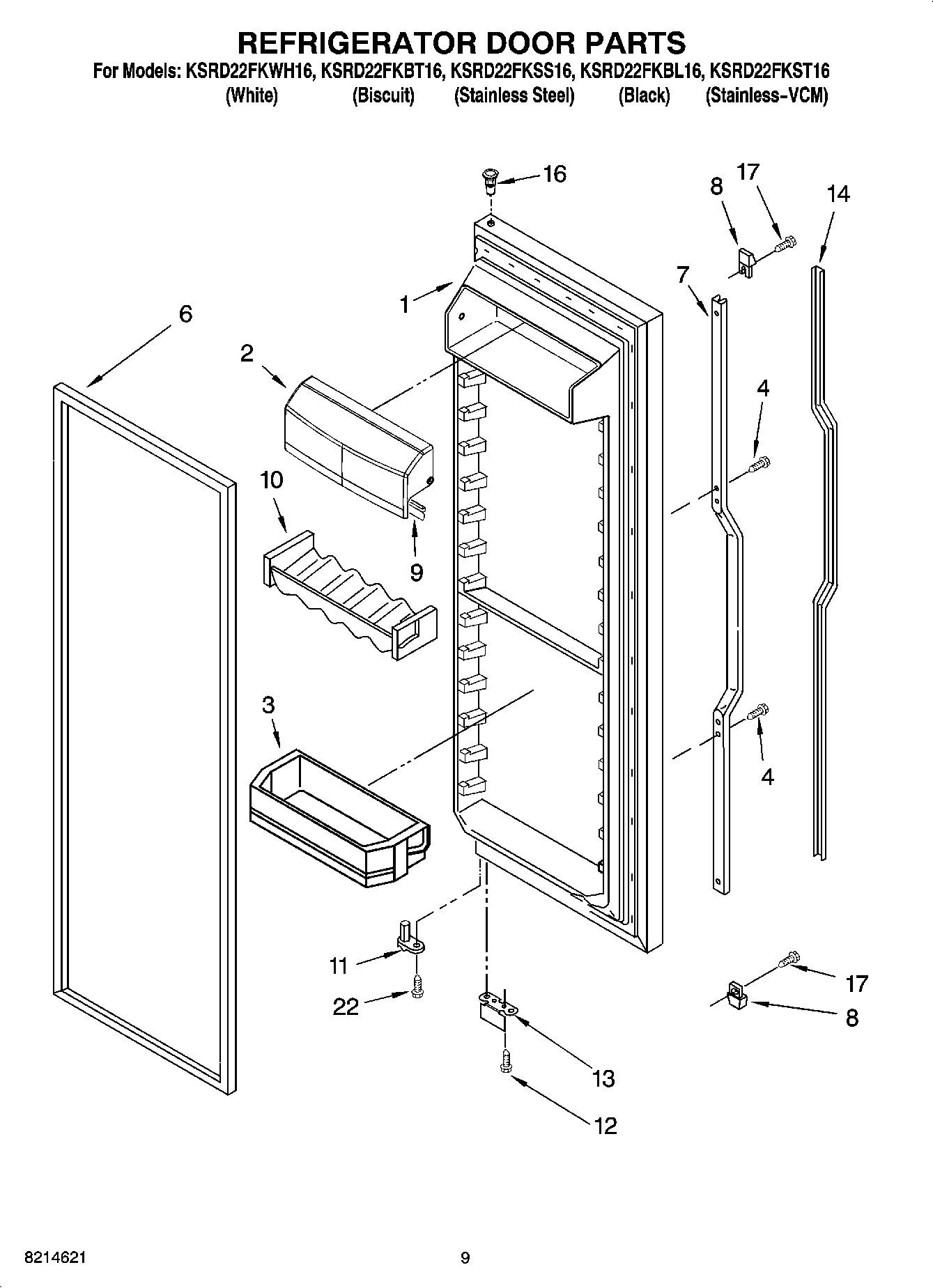

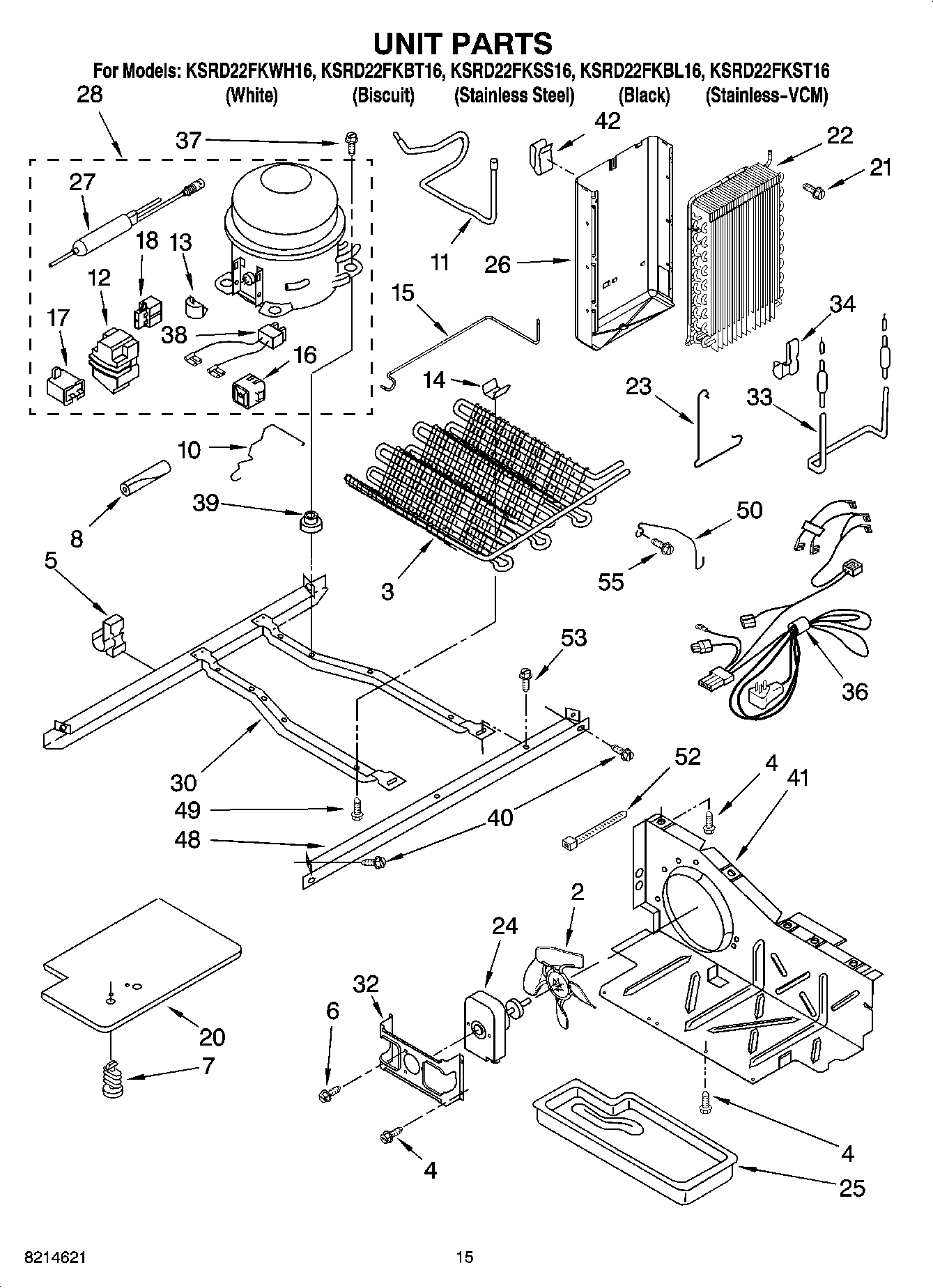

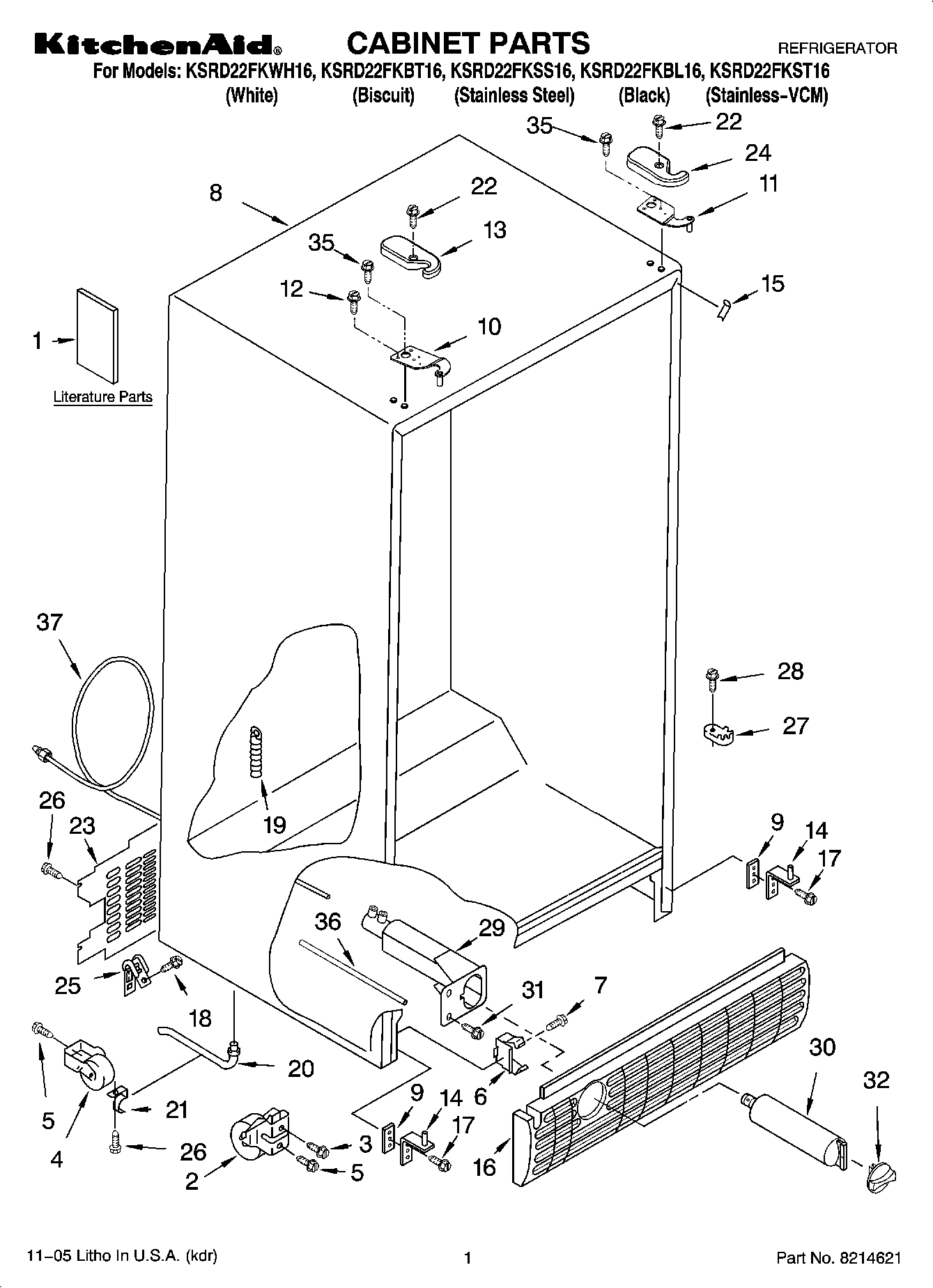

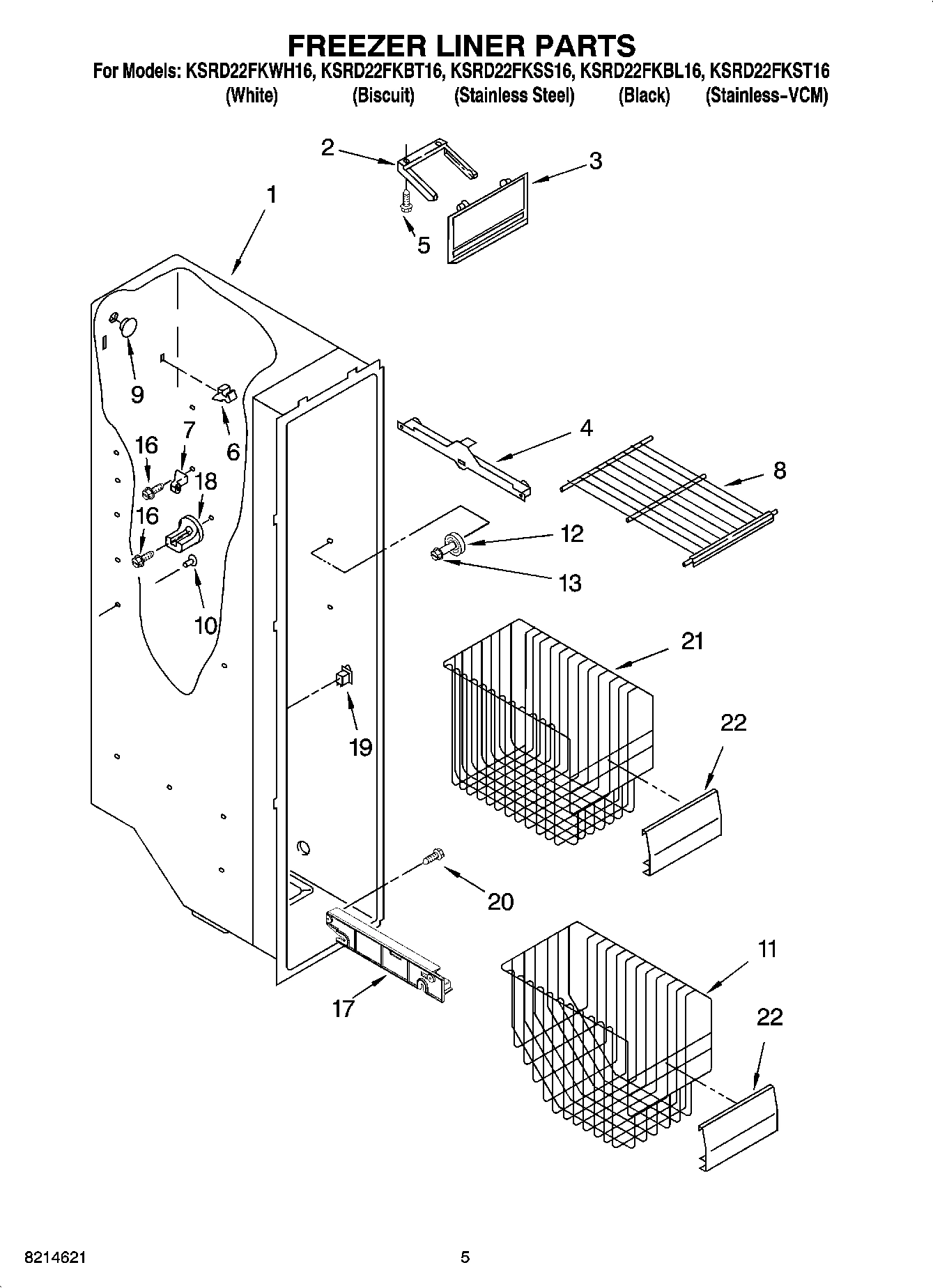

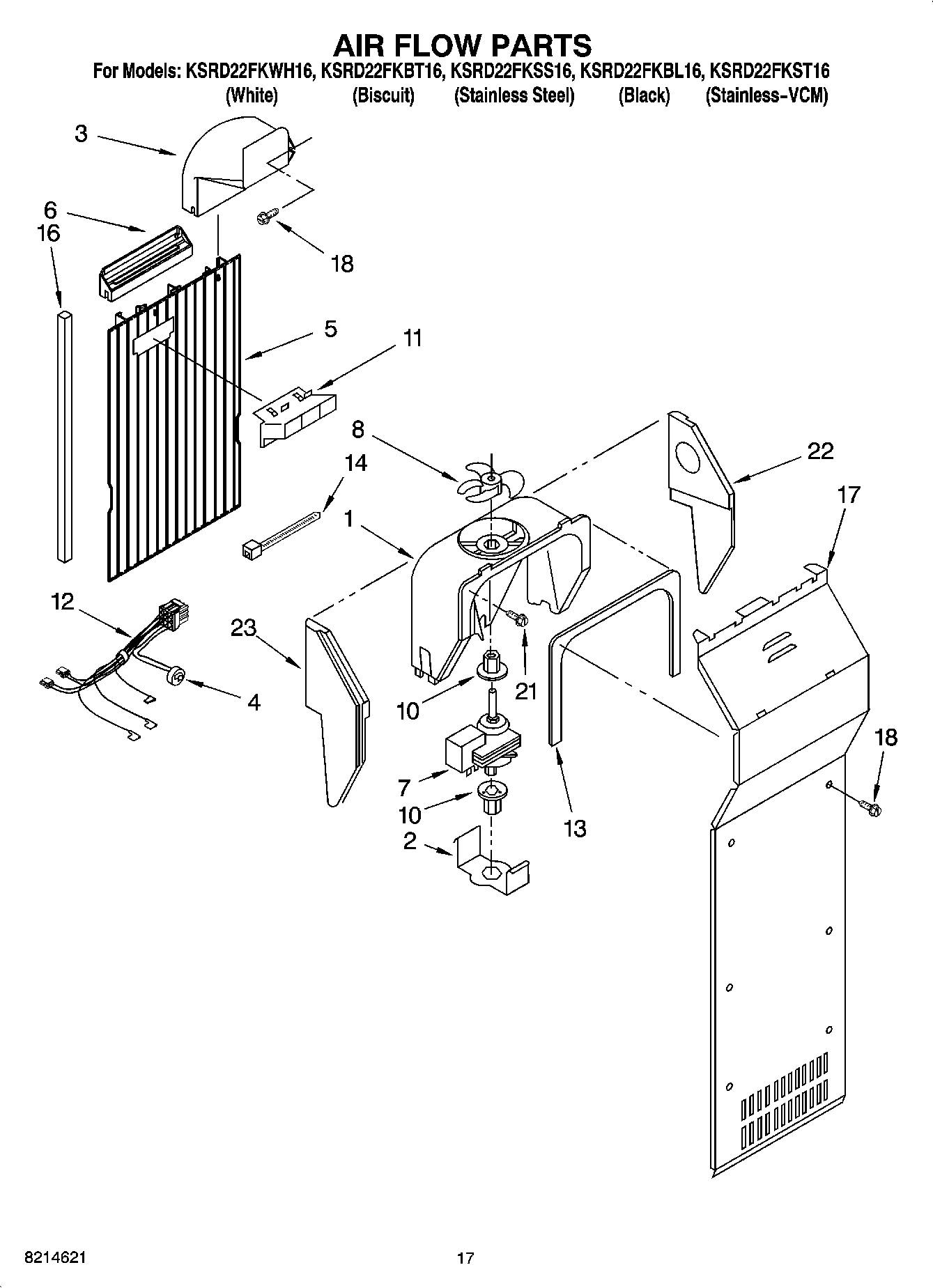

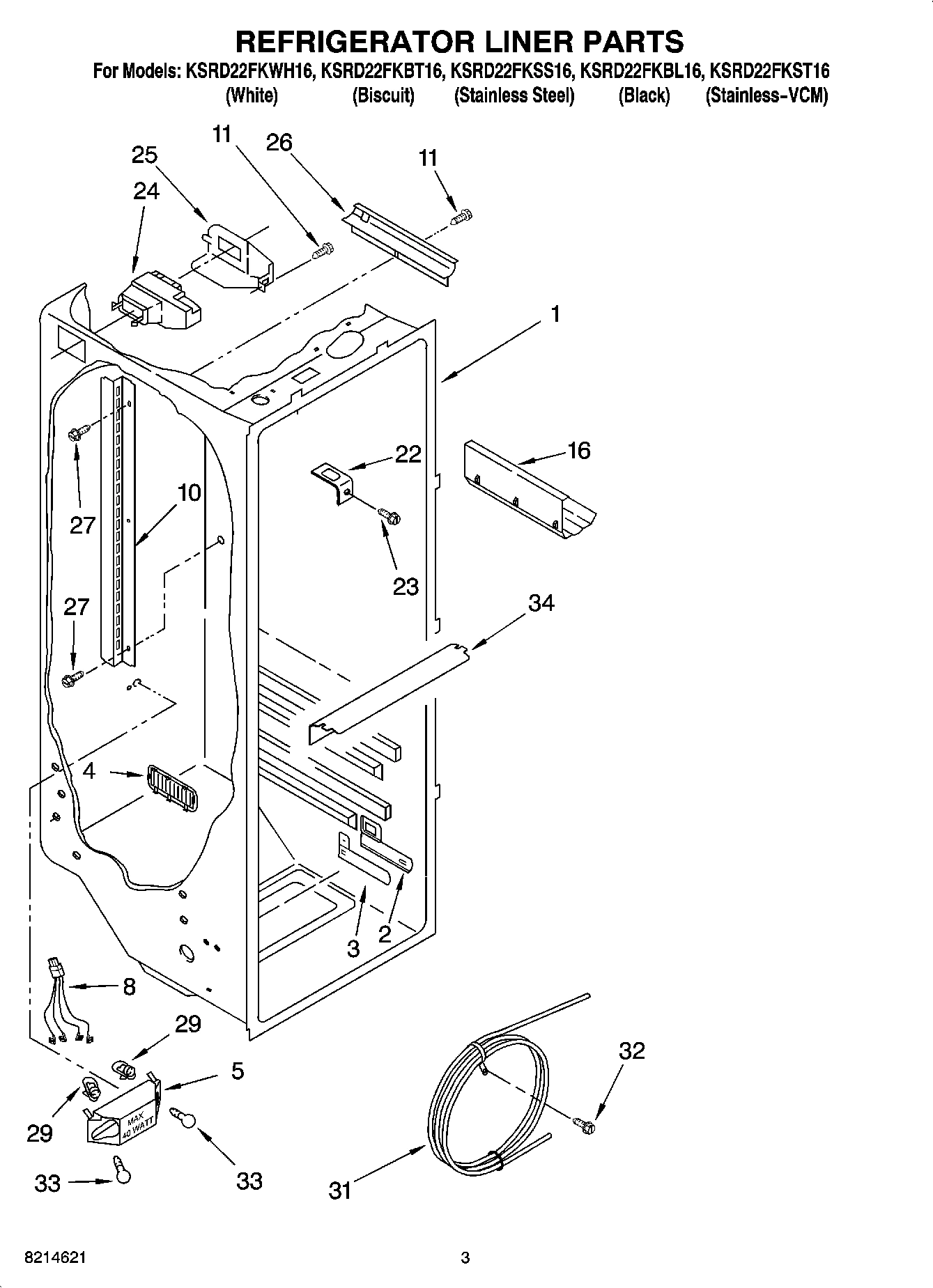

Model Whirlpool KSRD22FKBT16 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $13.54

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stainless Steel, 2 Oz. WPL 2006783 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI95467A5 WPL ARI95467A5 Contact Us For Availability

WPL ARI95468A7 WPL ARI95468A7 Contact Us For Availability

WPL ARI95469A9 WPL ARI95469A9 Contact Us For Availability

WPL ARI95470A7 WPL ARI95470A7 Contact Us For Availability

WPL ARI95471A4 WPL ARI95471A4 Contact Us For Availability

1

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

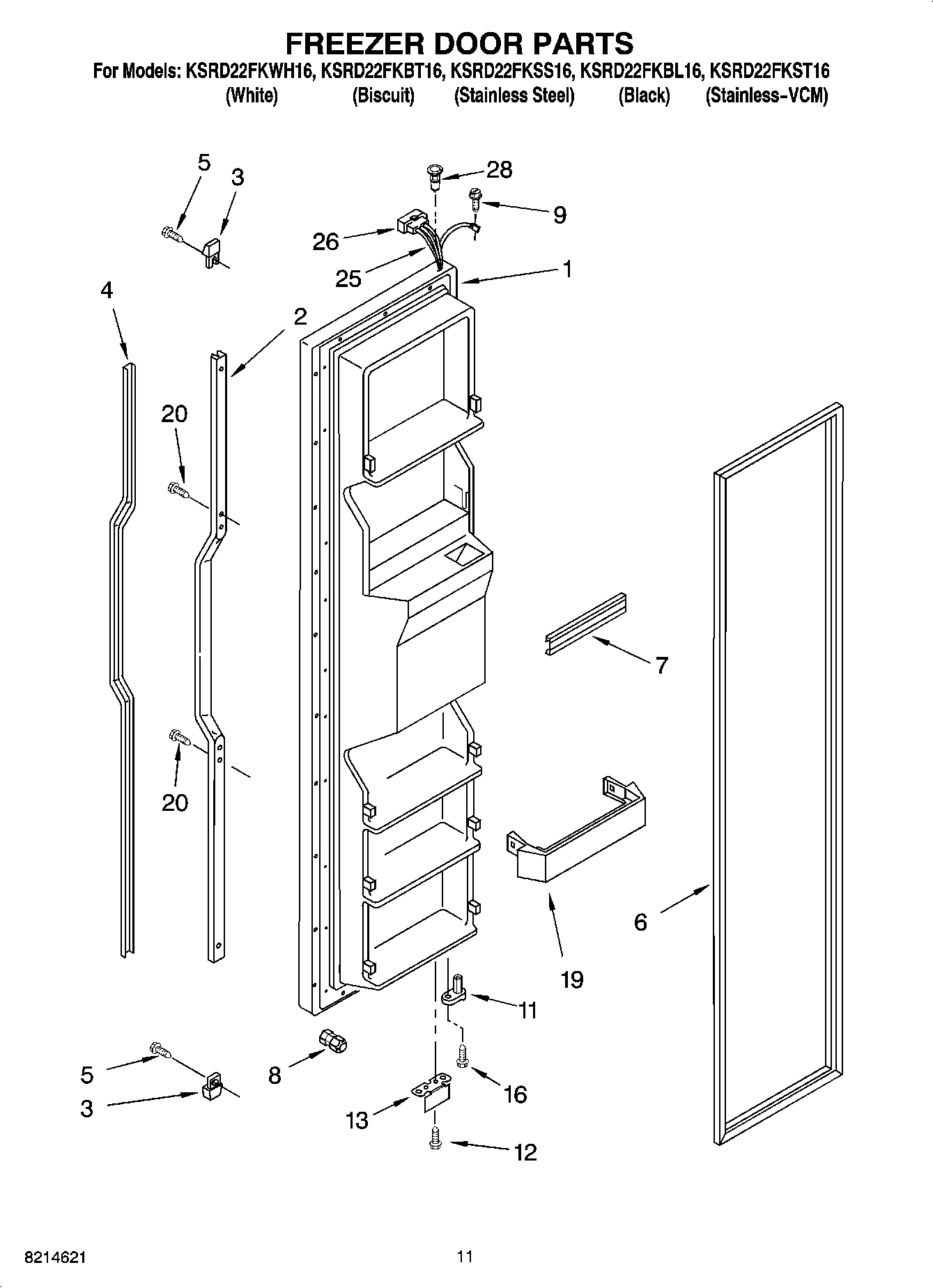

Freezer Door (Black) WPL 2216262B Contact Us For Availability

1

Freezer Door (Stainless-VCM (Includes Item 6 WPL 2216262L Contact Us For Availability

1

Freezer Door (Stainless Steel) WPL 2216262S Contact Us For Availability

1

Freezer Door (Biscuit) WPL 2216262T Contact Us For Availability

1

Freezer Door (White) WPL 2216262W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Insert, Handle (White) WPL 2173830 Contact Us For Availability

2

Insert, Handle (Black) WPL 2173832 Contact Us For Availability

2

Insert, Handle (Biscuit) WPL 2200434 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Shelf Bin (4) WPL 2171063K Contact Us For Availability

3

End Cap (Black) WPL 2194778B Contact Us For Availability

3

End Cap (Biscuit) WPL 2194778T Contact Us For Availability

3

End Cap (White) WPL 2194778W Contact Us For Availability

4

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

4

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Retainer, Insert (Black) WPL 2194776B Contact Us For Availability

4

Retainer, Insert (Biscuit) WPL 2194776T Contact Us For Availability

4

Retainer, Insert (White) WPL 2194776W Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

6

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

7

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $107.97

8

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

2255009 Whirlpool Retainer Backorder WPL 2255009 $7.32

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $51.73

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2220642 Whirlpool Refrigerator Tube Backorder WPL 2220642 $120.84

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

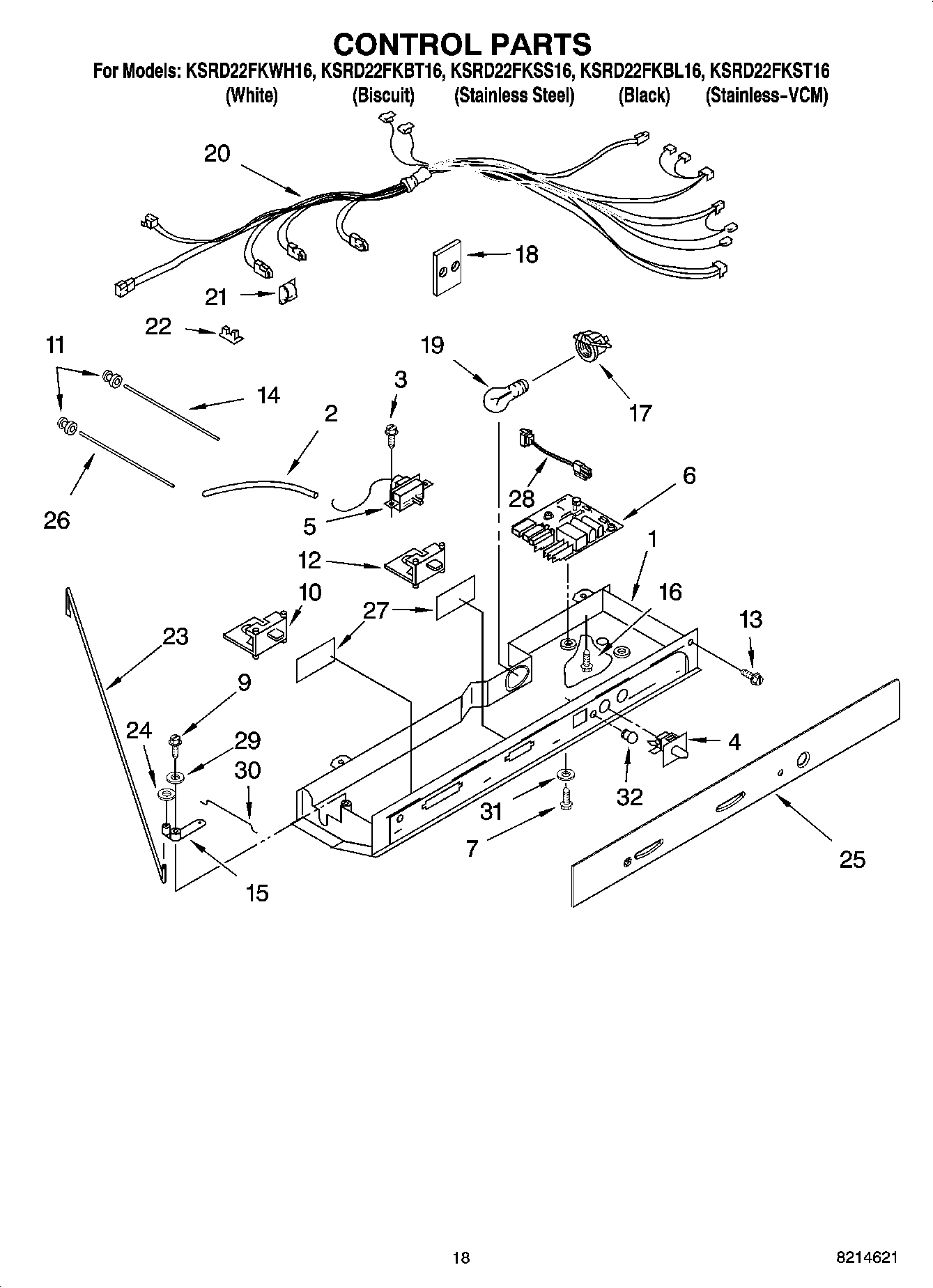

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

16

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

16

WP2188831 Whirlpool Refrigerator Start Device Backorder WPL WP2188831 $61.09

16

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

17

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $38.80

17

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

17

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Stud, Rear WPL 2196207 Contact Us For Availability

19

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

Shelf Bin (4) WPL 2171071K Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

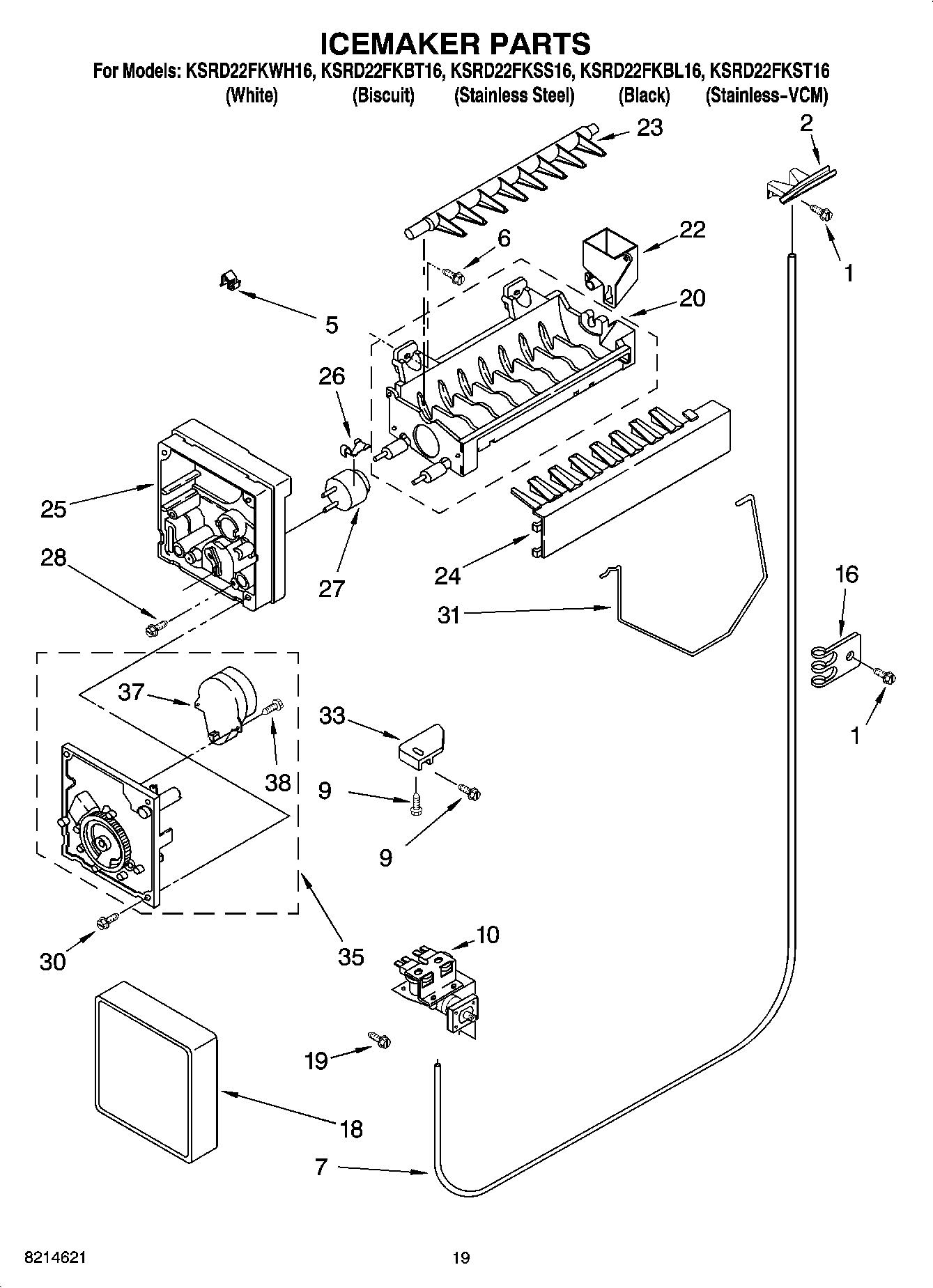

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Front, Basket WPL 2171768K Contact Us For Availability

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

23

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

23

Clamp WPL 2161324 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Wire Assembly WPL 2187324 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Heat Shield WPL 2304288 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

Thimble-Top (For Stainless Steel Model) WPL 2301049 Contact Us For Availability

29

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $47.25

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

36

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $132.65

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186496 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI95464A3 Contact Us For Availability

and Optional Parts Not Included WPL ARI95465A8 Contact Us For Availability

REFRI WPL ARI95466A4 Contact Us For Availability
