Model Whirlpool KSRB27QABL10 – Common Parts & Diagrams
03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER

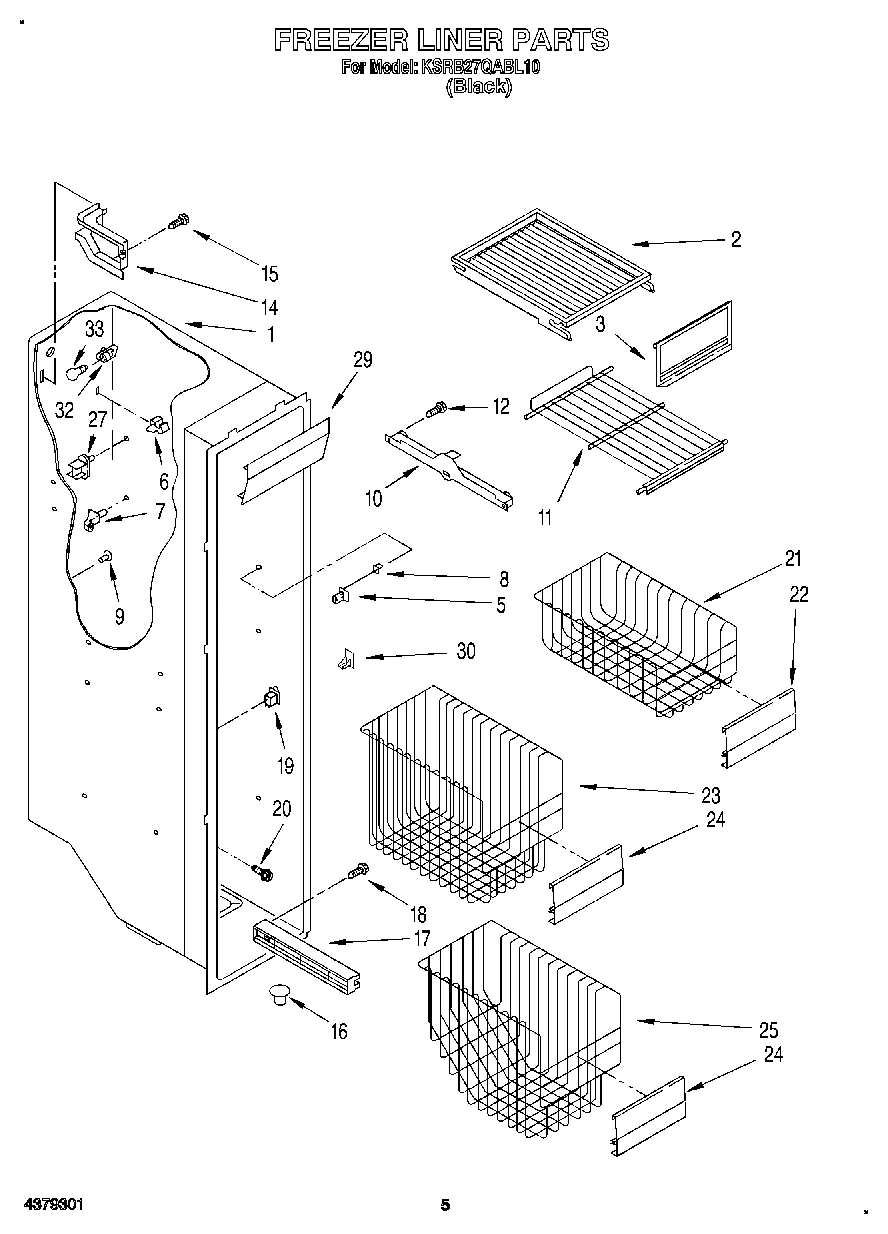

04 - FREEZER LINER

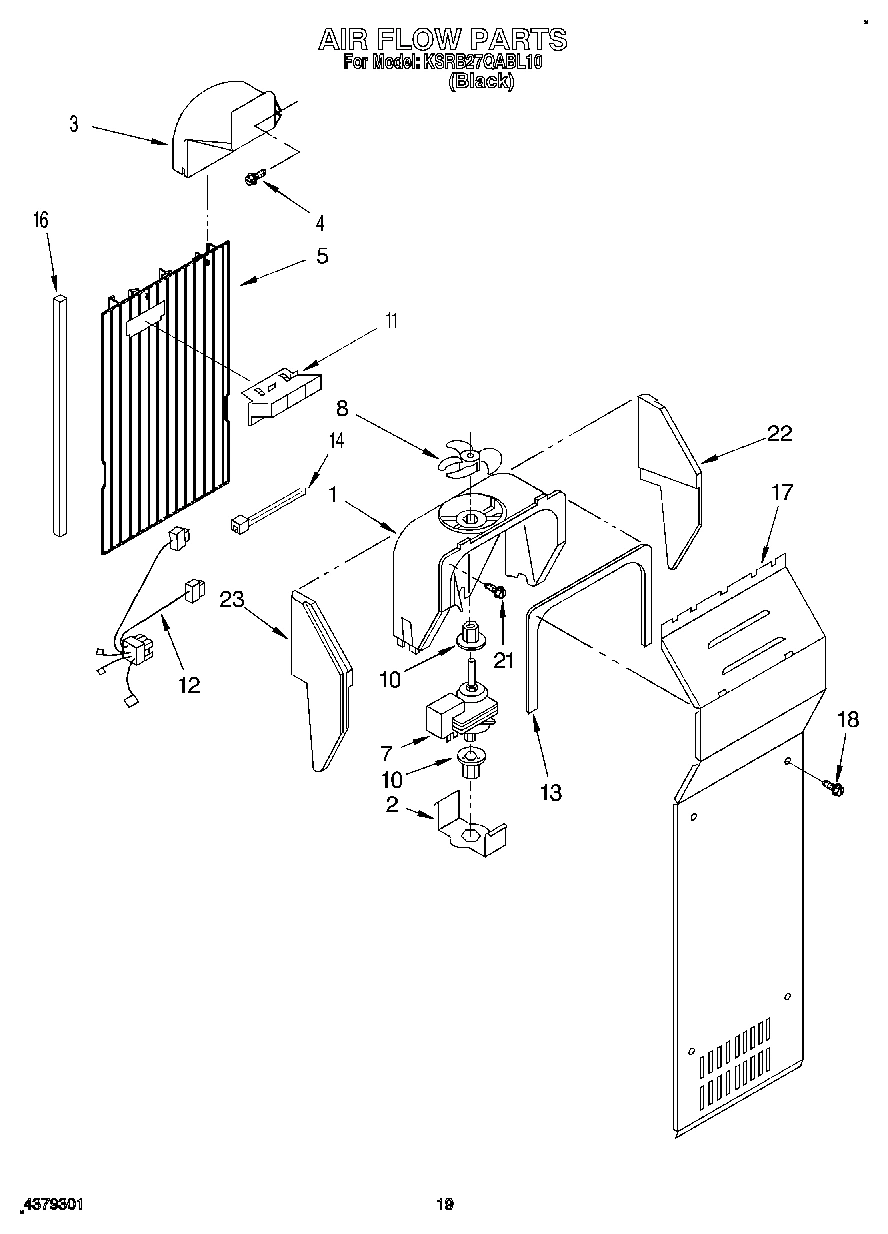

11 - AIR FLOW

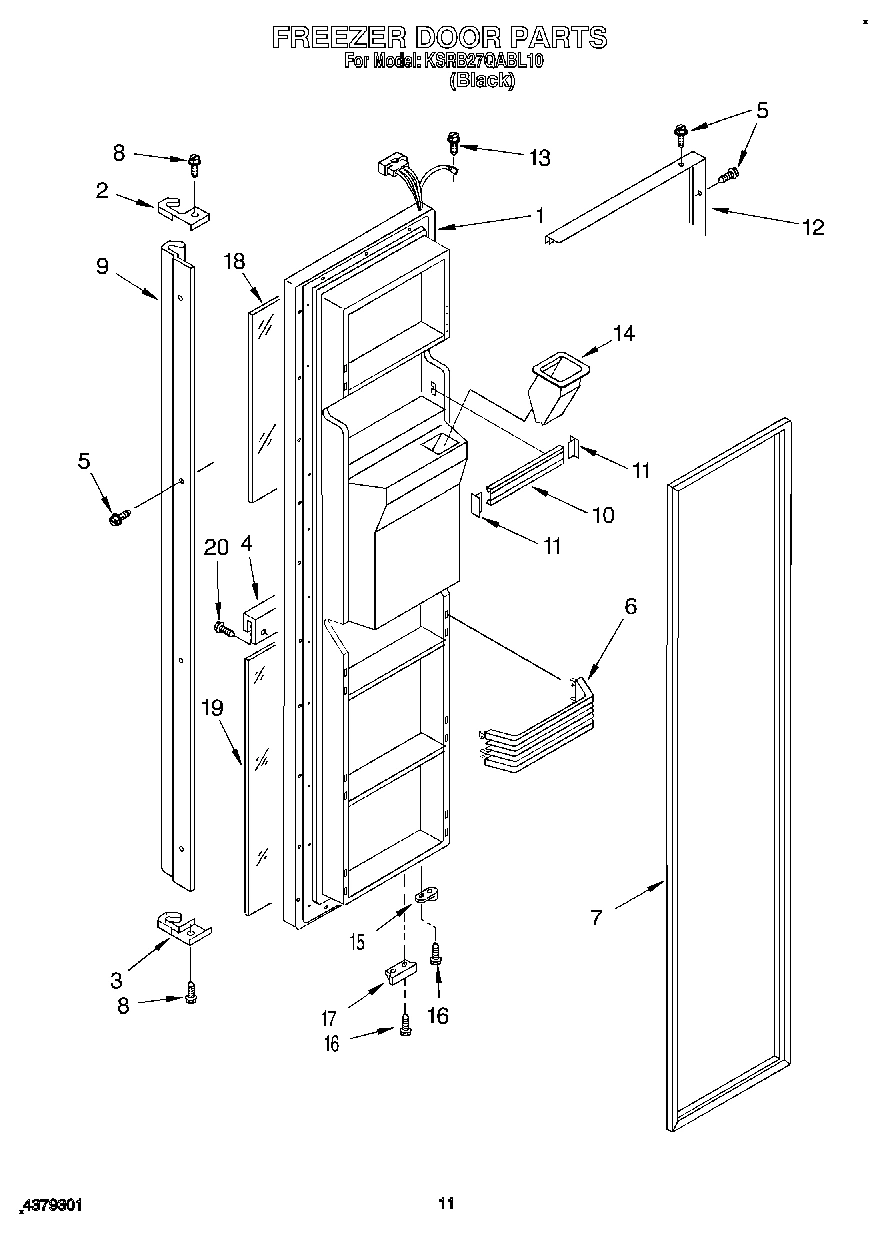

07 - FREEZER DOOR

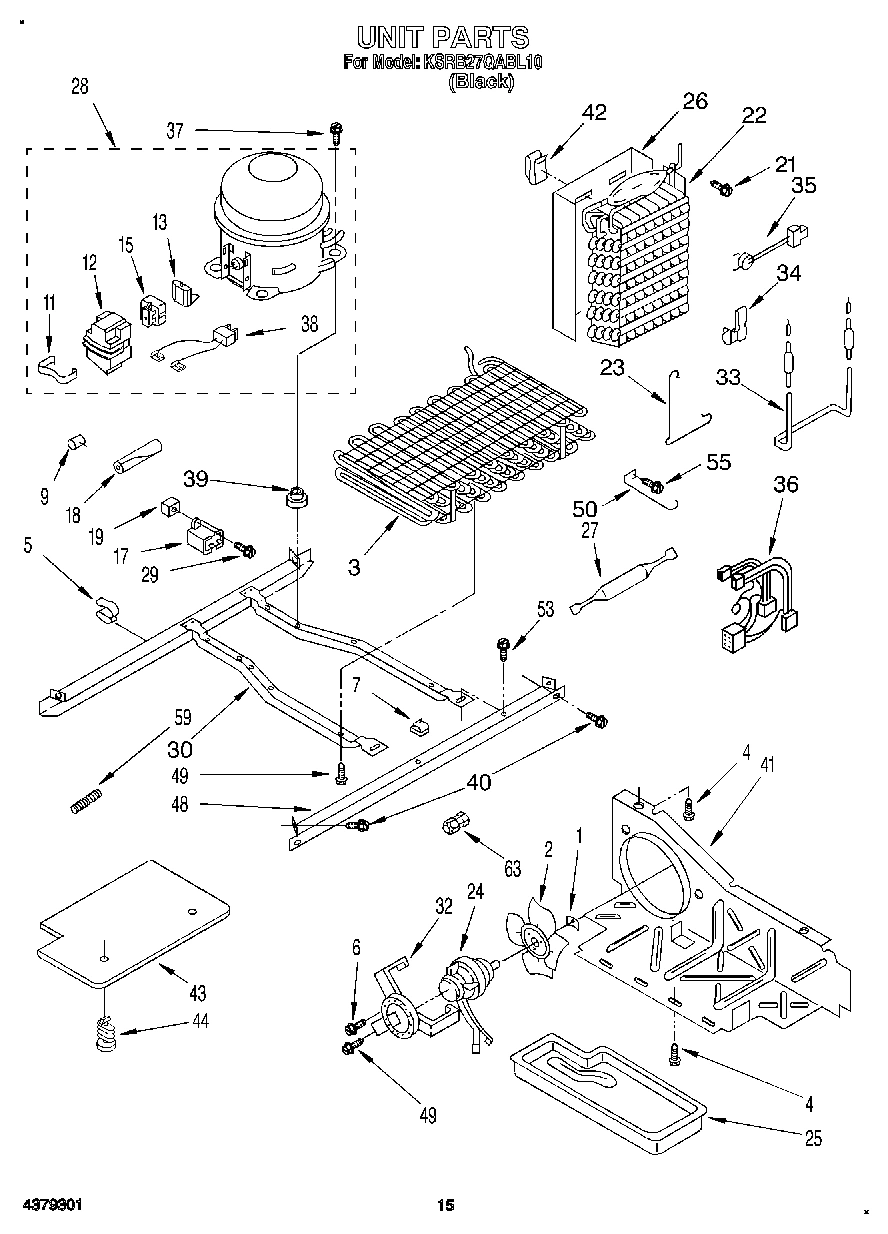

09 - UNIT

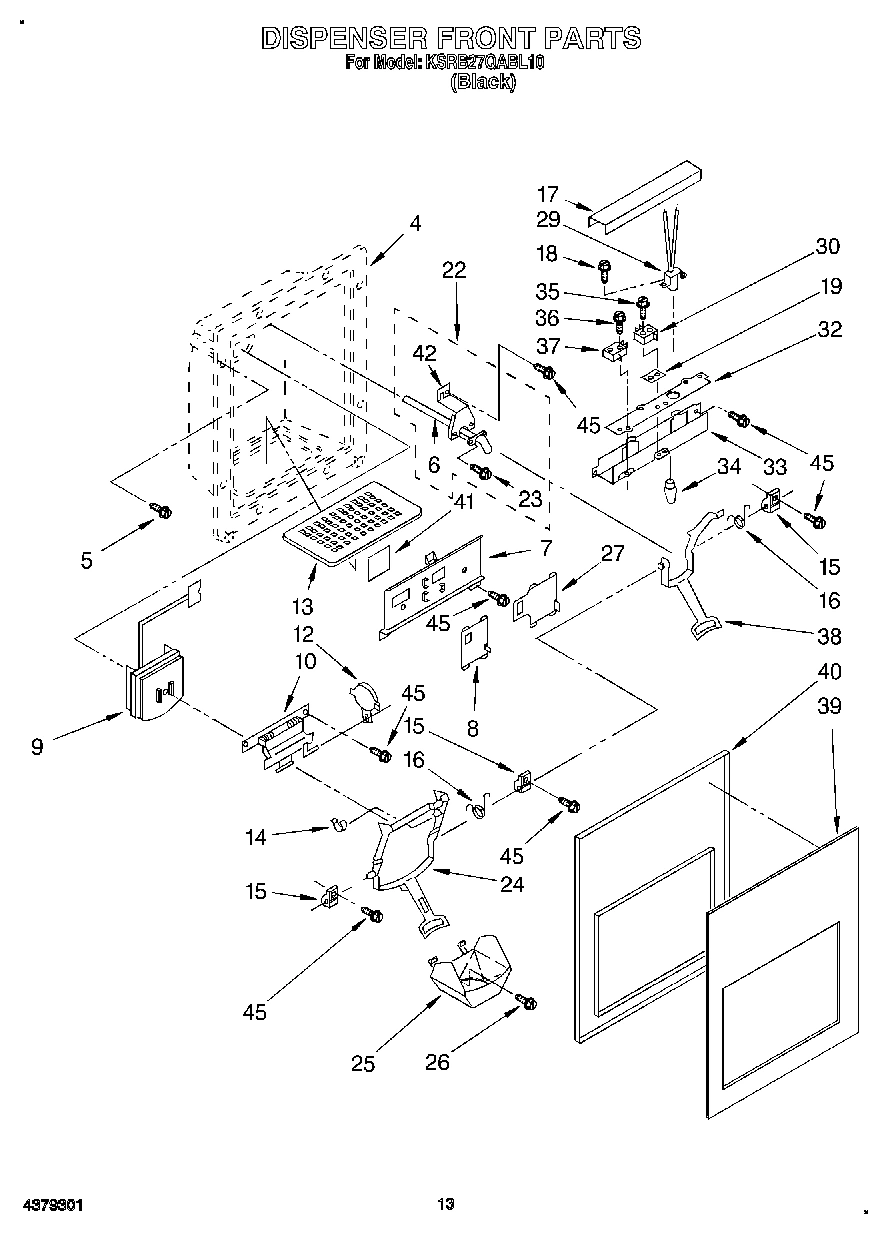

08 - DISPENSER FRONT
10 - ICEMAKER

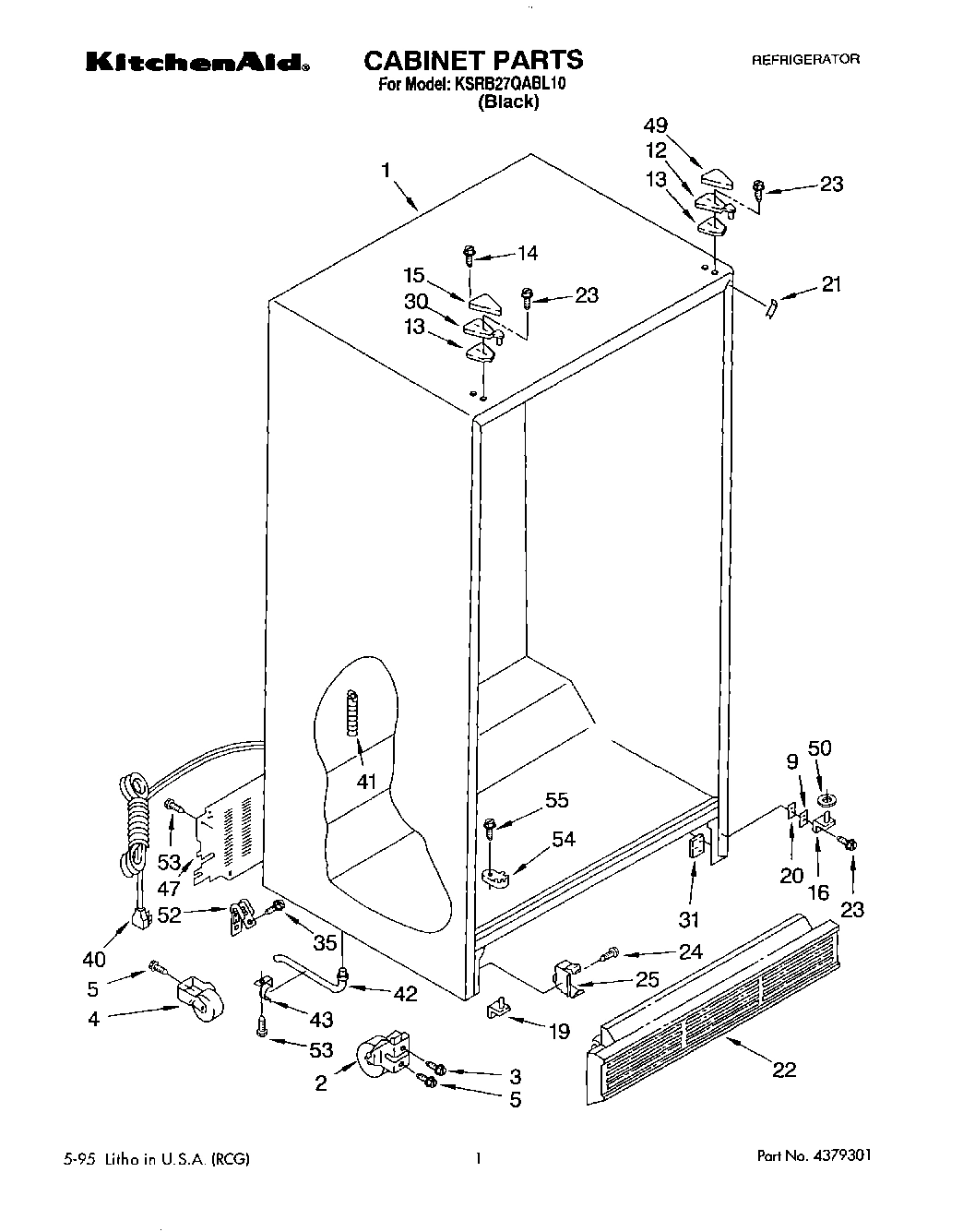

01 - CABINET

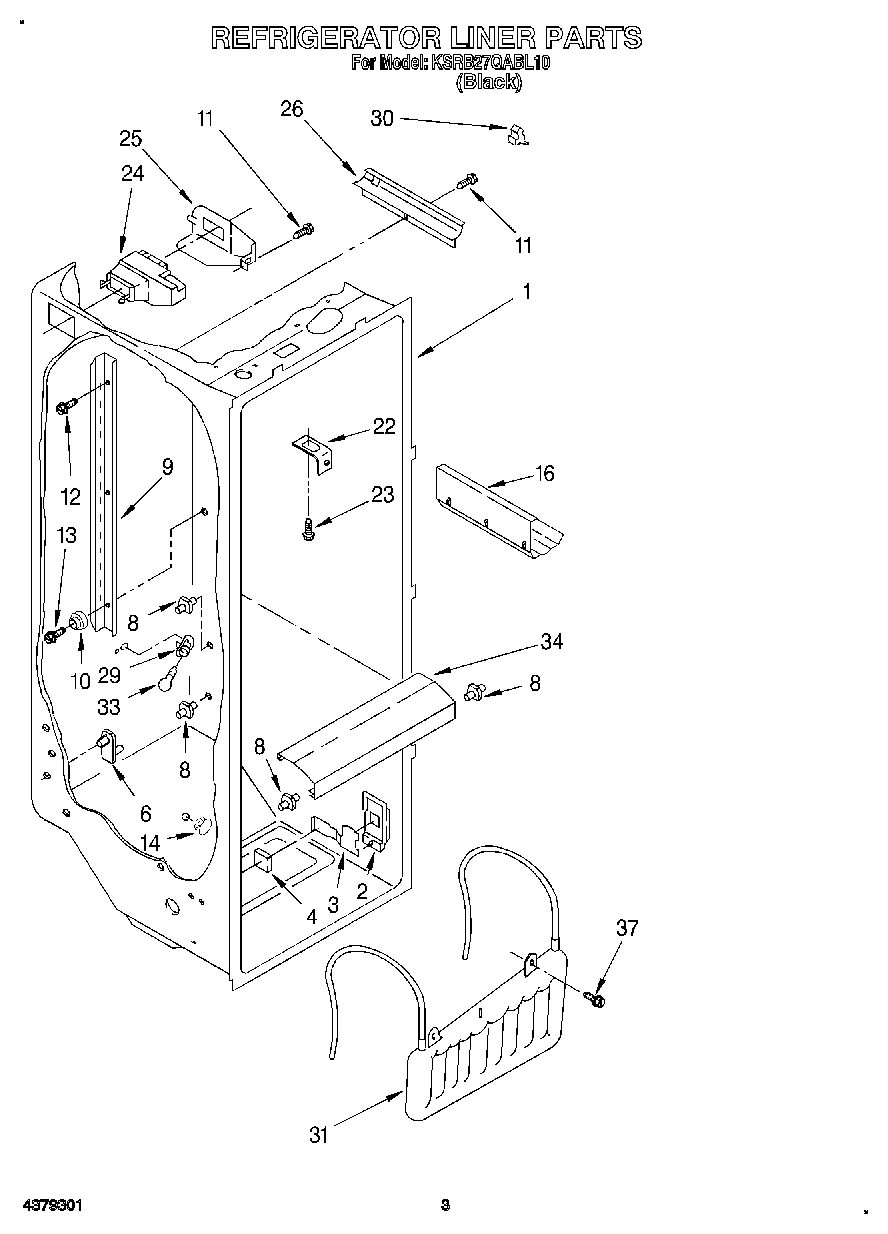

02 - REFRIGERATOR LINER

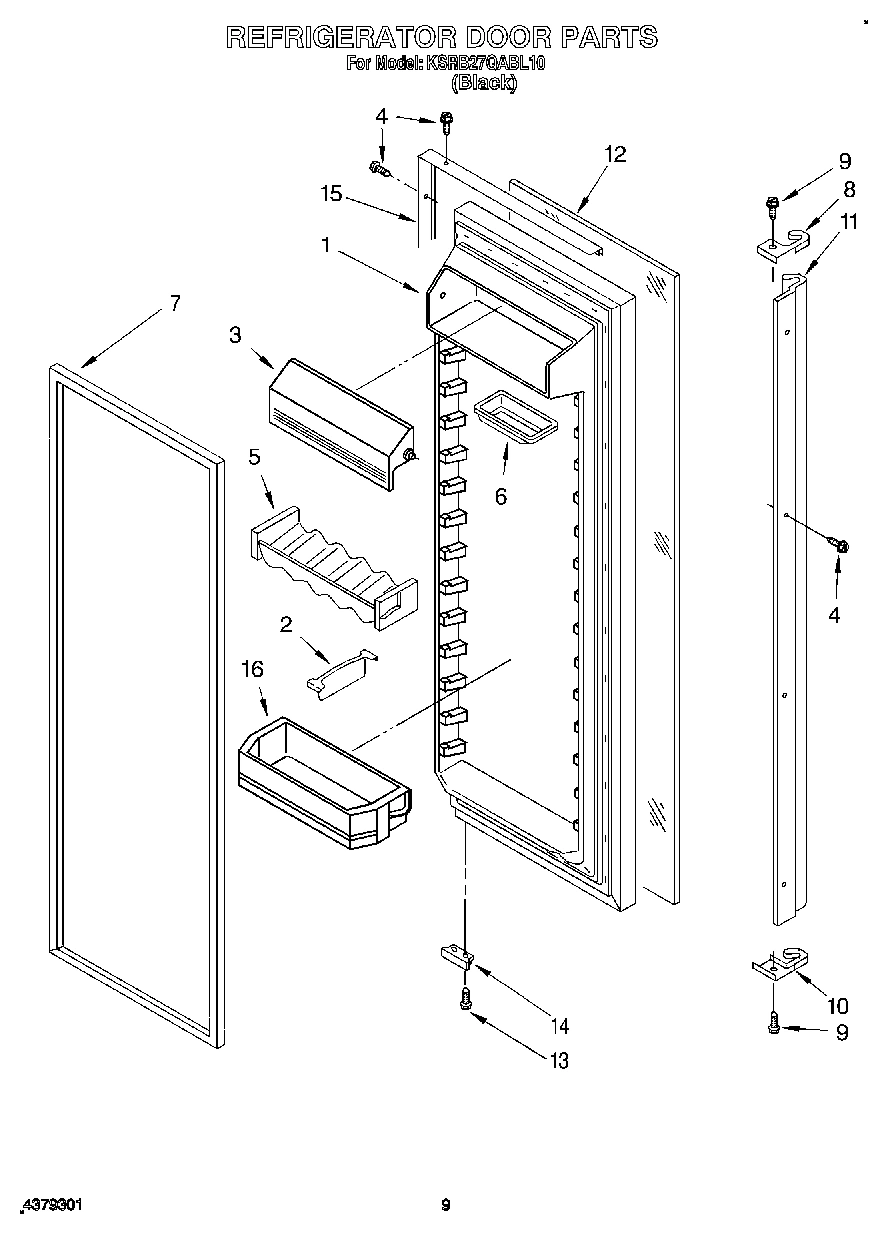

06 - REFRIGERATOR DOOR

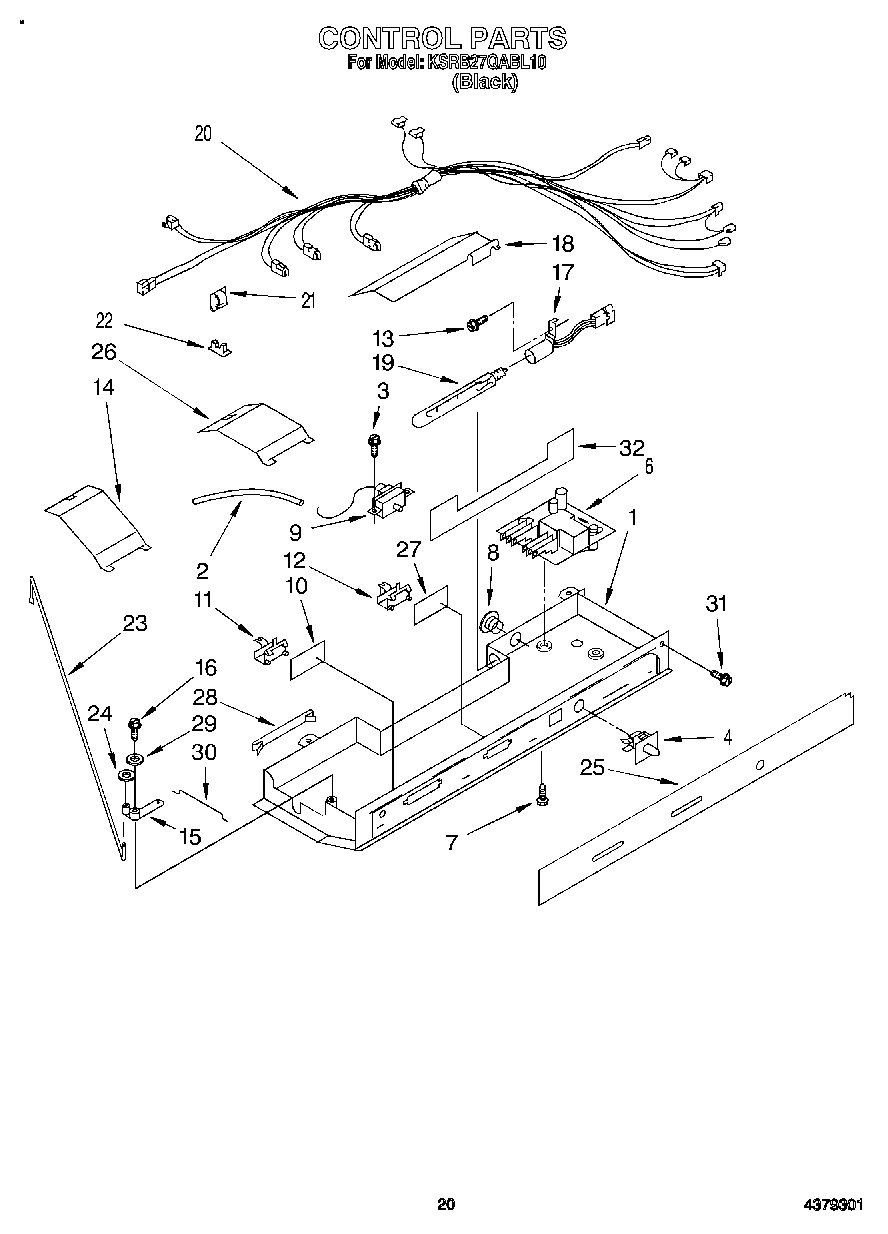

12 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool KSRB27QABL10
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155734 WPL LIT2155734 Contact Us For Availability
WPL LIT2168863 WPL LIT2168863 Contact Us For Availability
WPL LIT2169394 WPL LIT2169394 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes Item 7 And Dispenser F WPL 2171590 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI95094A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95095A3 Contact Us For Availability
1
Refrigerator Door (Includes Item 7) WPL 2171583 Contact Us For Availability
1
Control Box WPL 2169150 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Load Lock WPL 2161564 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Compartment WPL 2159136 Contact Us For Availability
4
Trim, Dispenser WPL 1125980 Contact Us For Availability
4
Screw WPL 489376 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI95097A7 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
6
Shelf Bin (4) WPL 2156016 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI95098A7 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
8
End Cap WPL 1126074 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
9
Screw WPL 489112 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
End Cap WPL 1126073 Contact Us For Availability
10
Trim, Door Shelf WPL 2157603 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Stud, Shelf (2) WPL 658944 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
11
Handle WPL 1126070 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Trim, Door WPL 1126072 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Black Glass WPL 1126015 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Shim, Hinge Top WPL 1123518 Contact Us For Availability
13
Screw (2) WPL 487559 Contact Us For Availability
14
Chute, Ice WPL 2156145 Contact Us For Availability
14
Bracket, Door Stop WPL 2155329 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
15
Relay (See Overload) WPL ARI95099A5 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Hinge Cover WPL 1115888 Contact Us For Availability
15
Trim, Door WPL 1117901 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
16
Rack, Wine & Egg WPL 1126137 Contact Us For Availability
16
Shelf Bin (4) WPL 1126069 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Running Capacitor (Service) WPL 2154565 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
18
Black Glass, Upper WPL 1126016 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Black Glass, Lower WPL 1126017 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
20
Screw WPL 489374 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2162461 Contact Us For Availability
21
Filler, Wrapper WPL 1127272 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
WPL 876029 WPL 876029 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
PAINT, WPL 799344 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
32
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
32
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
32
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
32
WPL 799833 WPL 799833 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Unit, Harness WPL 2149199 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2159196 Contact Us For Availability
39
Grommet (4) (Production) WPL 2162067 Contact Us For Availability
39
Insert, Cover WPL 1125803 Contact Us For Availability
40
Cover, Housing (Includes Item 39) WPL 1125807 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Insert, Tube WPL 1129177 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Washer WPL 489328 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
