Model Whirlpool KSRB25QFBL00 – Common Parts & Diagrams

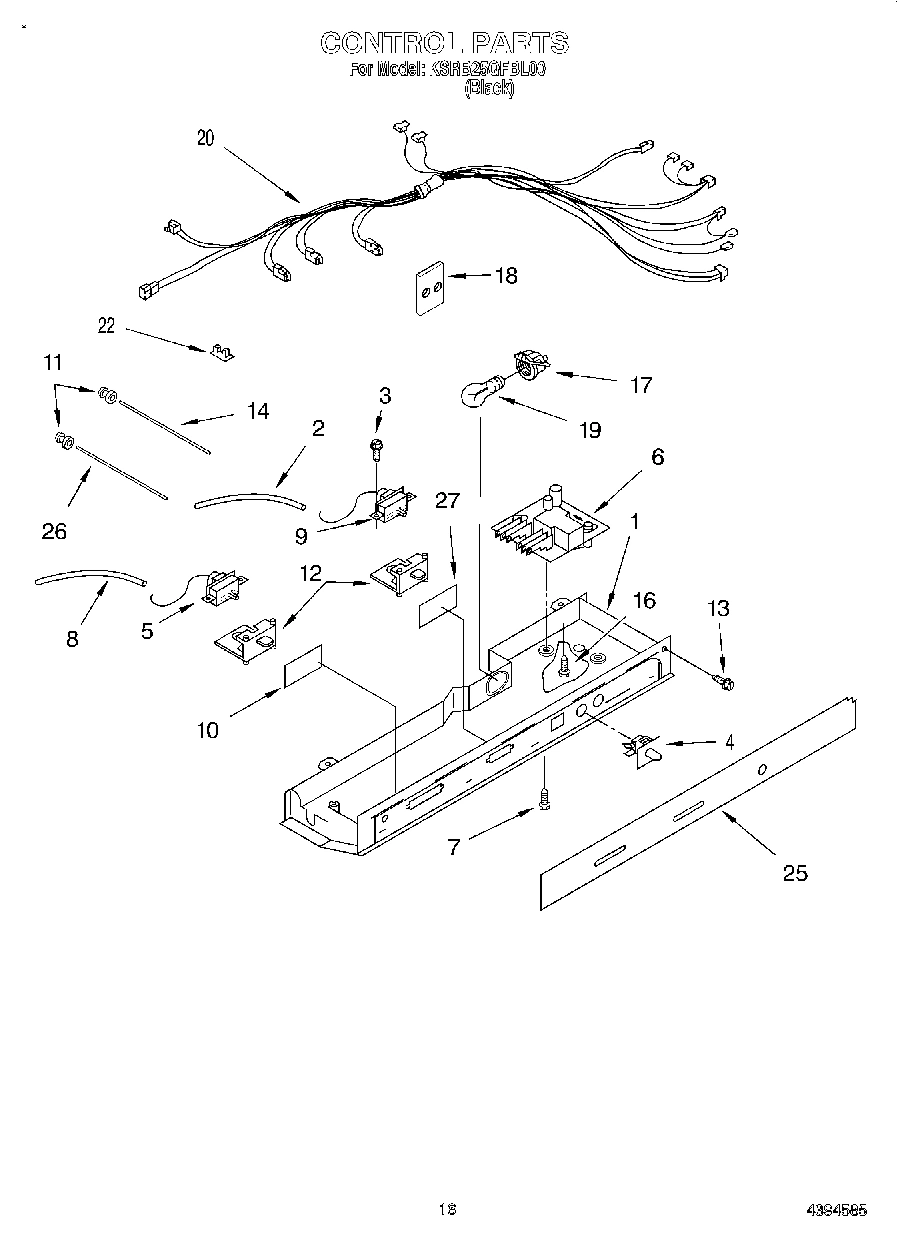

10 - CONTROL
12 - ICEMAKER, LIT/OPTIONAL
02 - REFRIGERATOR LINER
09 - AIRFLOW
06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
05 - MOTOR AND ICE CONTAINER
07 - FREEZER DOOR
04 - FREEZER LINER
11 - UNIT
01 - CABINET
03 - REFRIGERATOR SHELF
Common parts from model Whirlpool KSRB25QFBL00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2194961 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94883A9 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI94881A1 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174023 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Handle WPL 2194946 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
End Cap WPL 2198098 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Screw WPL 489374 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
End Cap, Bottom WPL 2198100 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Screw WPL 489481 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Glass, Cover (2) WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Trim, Dispenser WPL 2194945 Contact Us For Availability
9
Shim, Hinge Top WPL 2171869 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Trim, Door WPL 2194953 Contact Us For Availability
11
Hinge Cover WPL 2171947 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper WPL 1127272 Contact Us For Availability
14
Grille WPL 2155485 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Relay (See Overload) WPL ARI94886A2 Contact Us For Availability
16
Bracket, Door Stop WPL 2155334 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Black Glass, Lower WPL 1126017 Contact Us For Availability
19
Black Glass, Upper WPL 1126016 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
21
Wire Harness WPL 2180229 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Hinge Cover WPL 2155938 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Unit, Harness WPL 2194749 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
