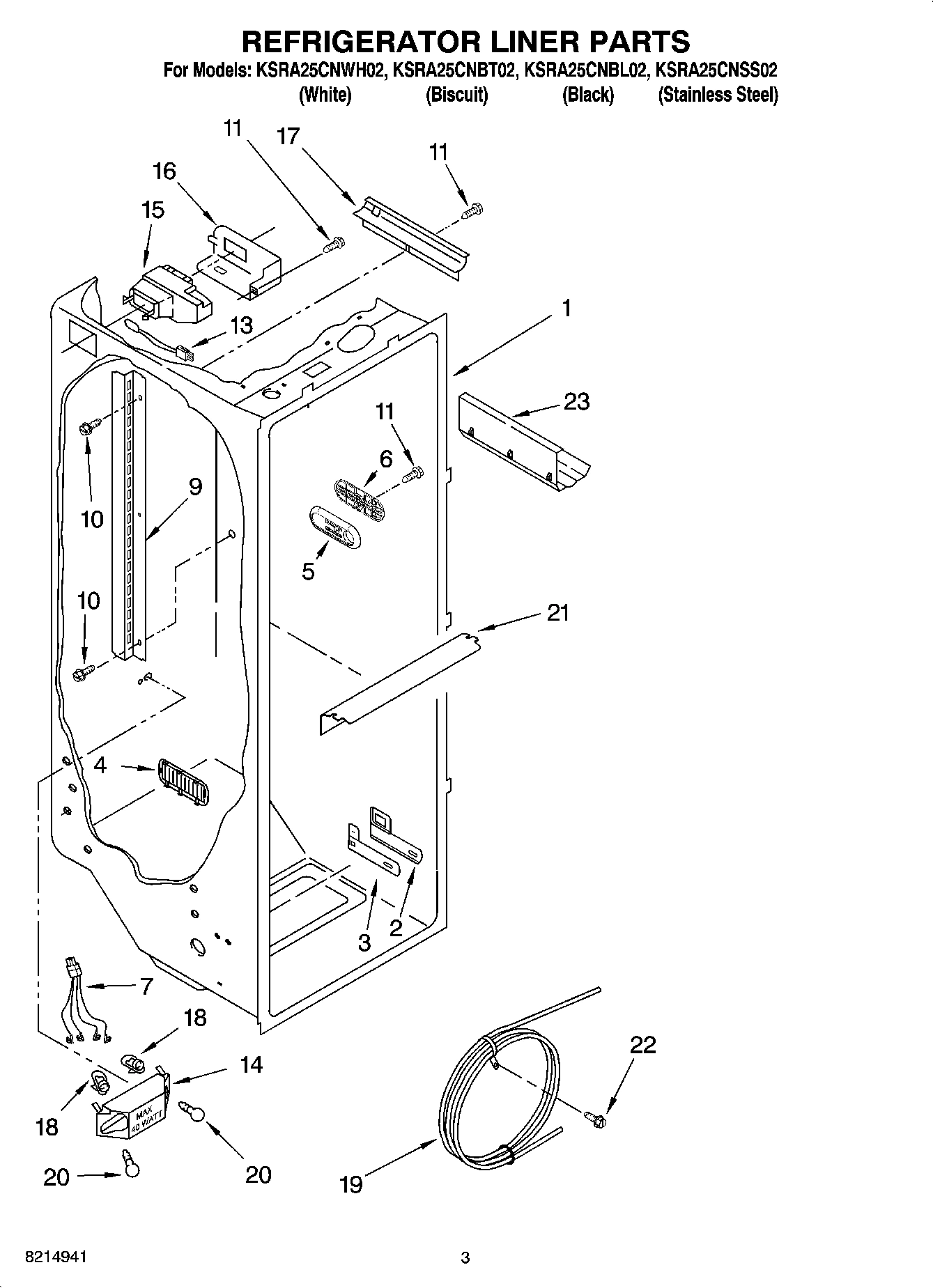

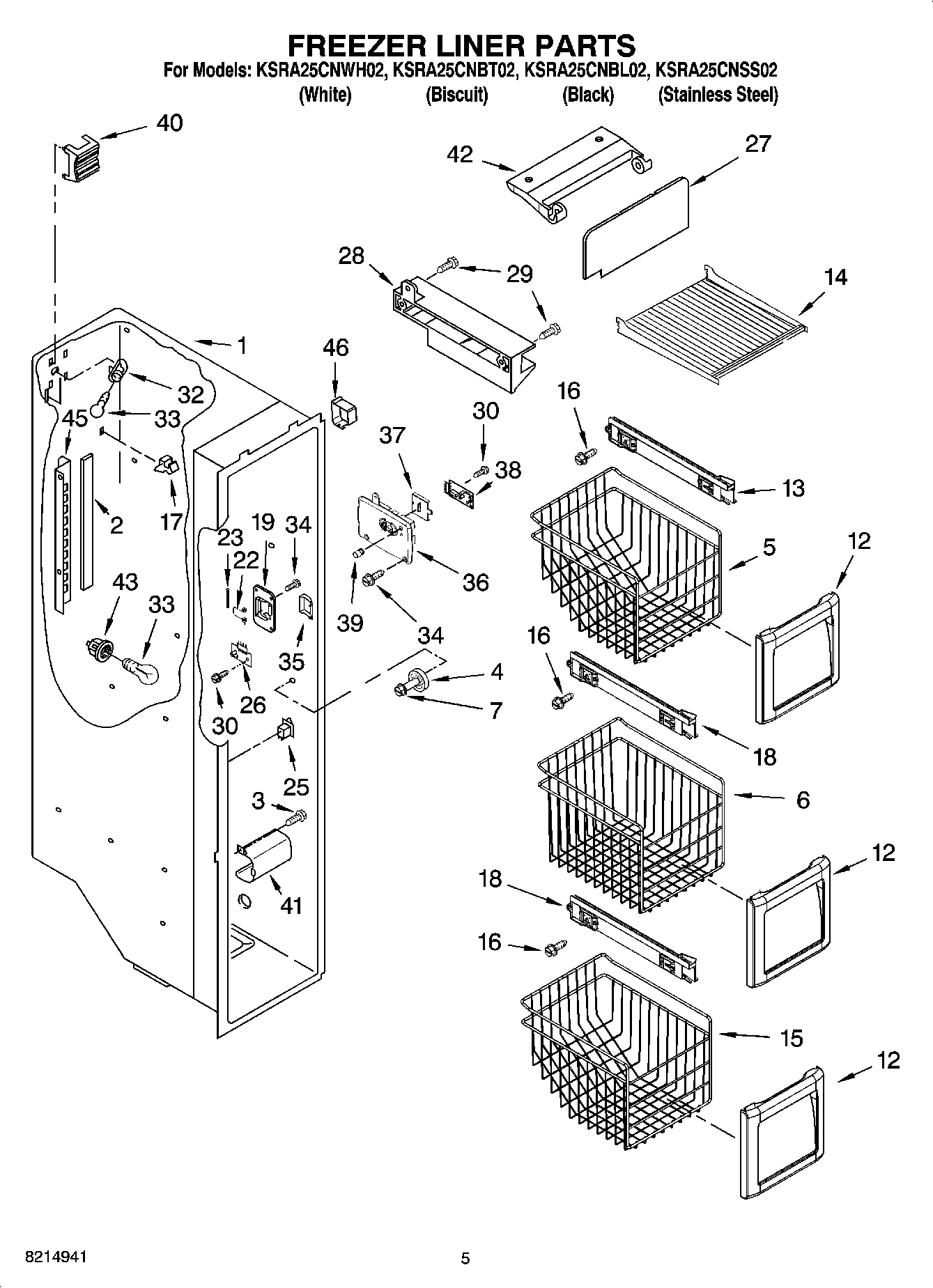

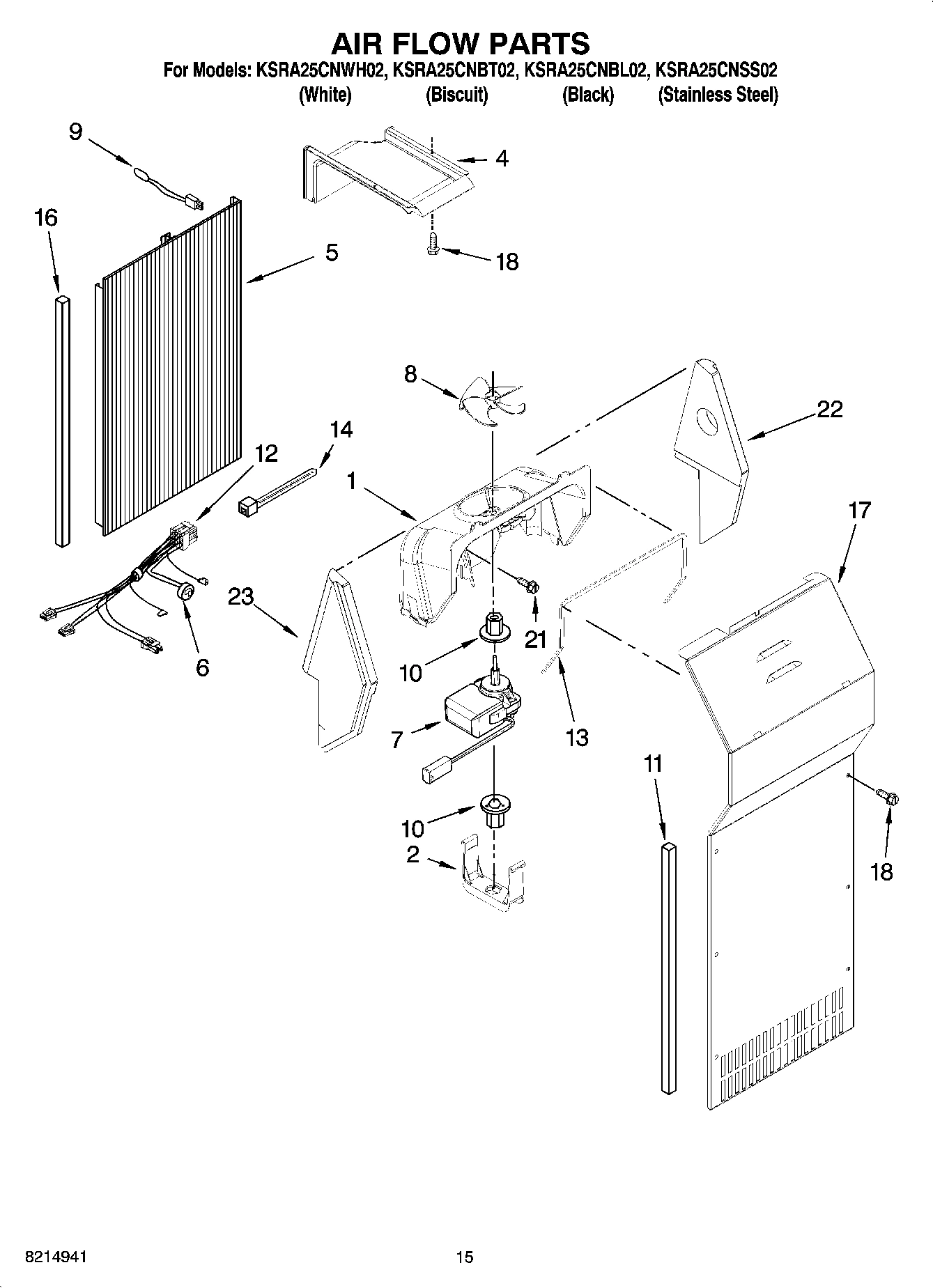

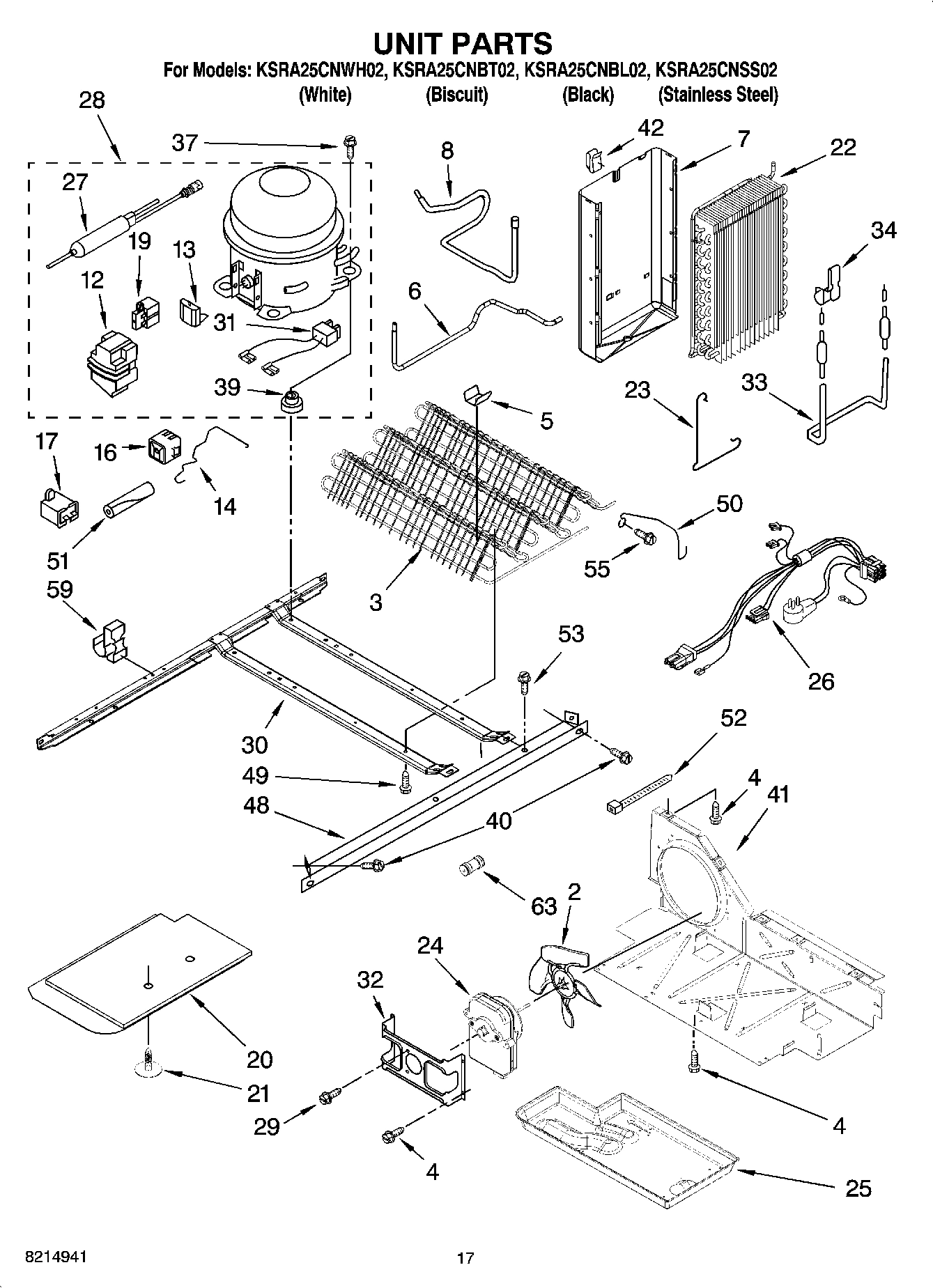

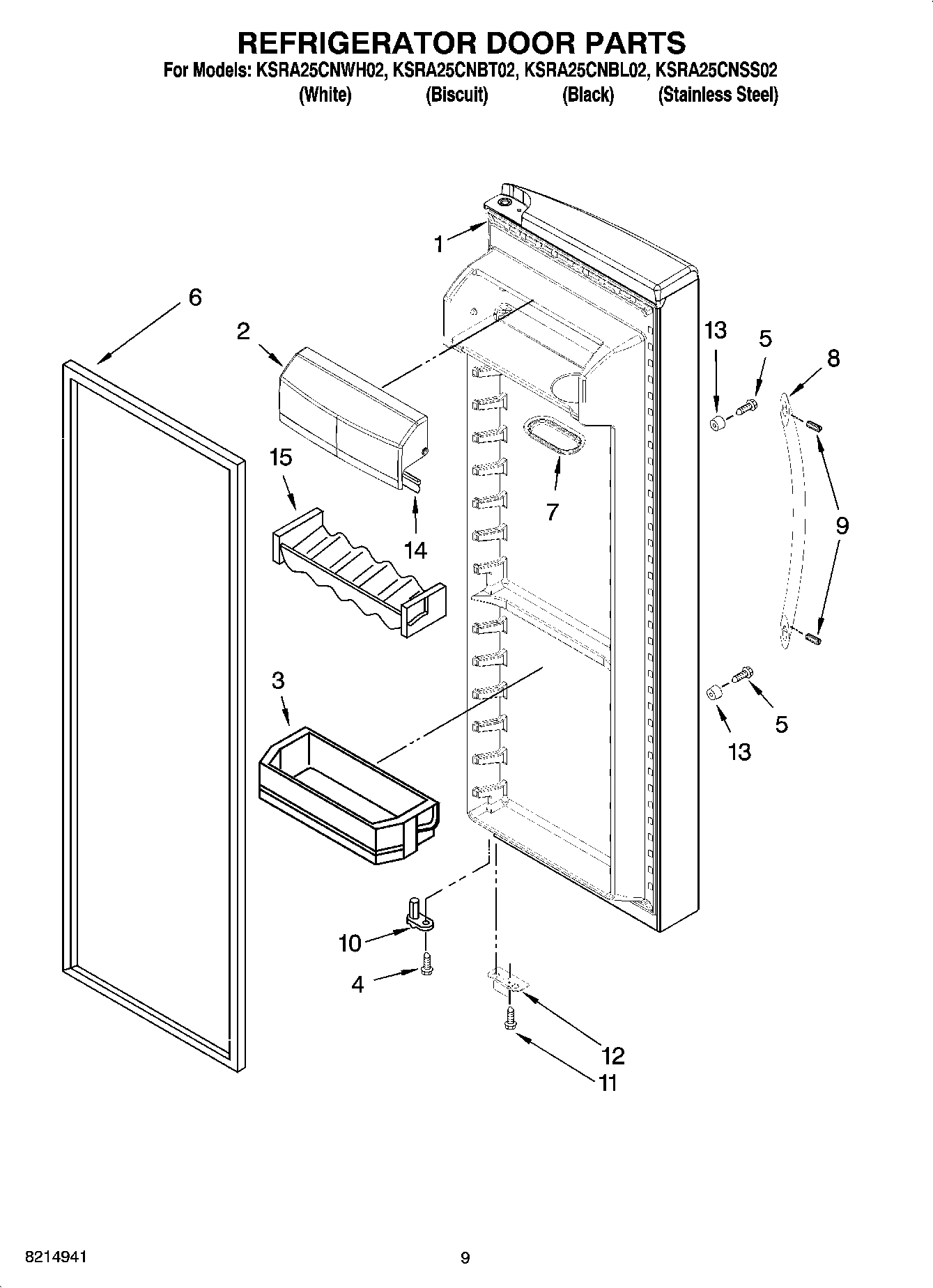

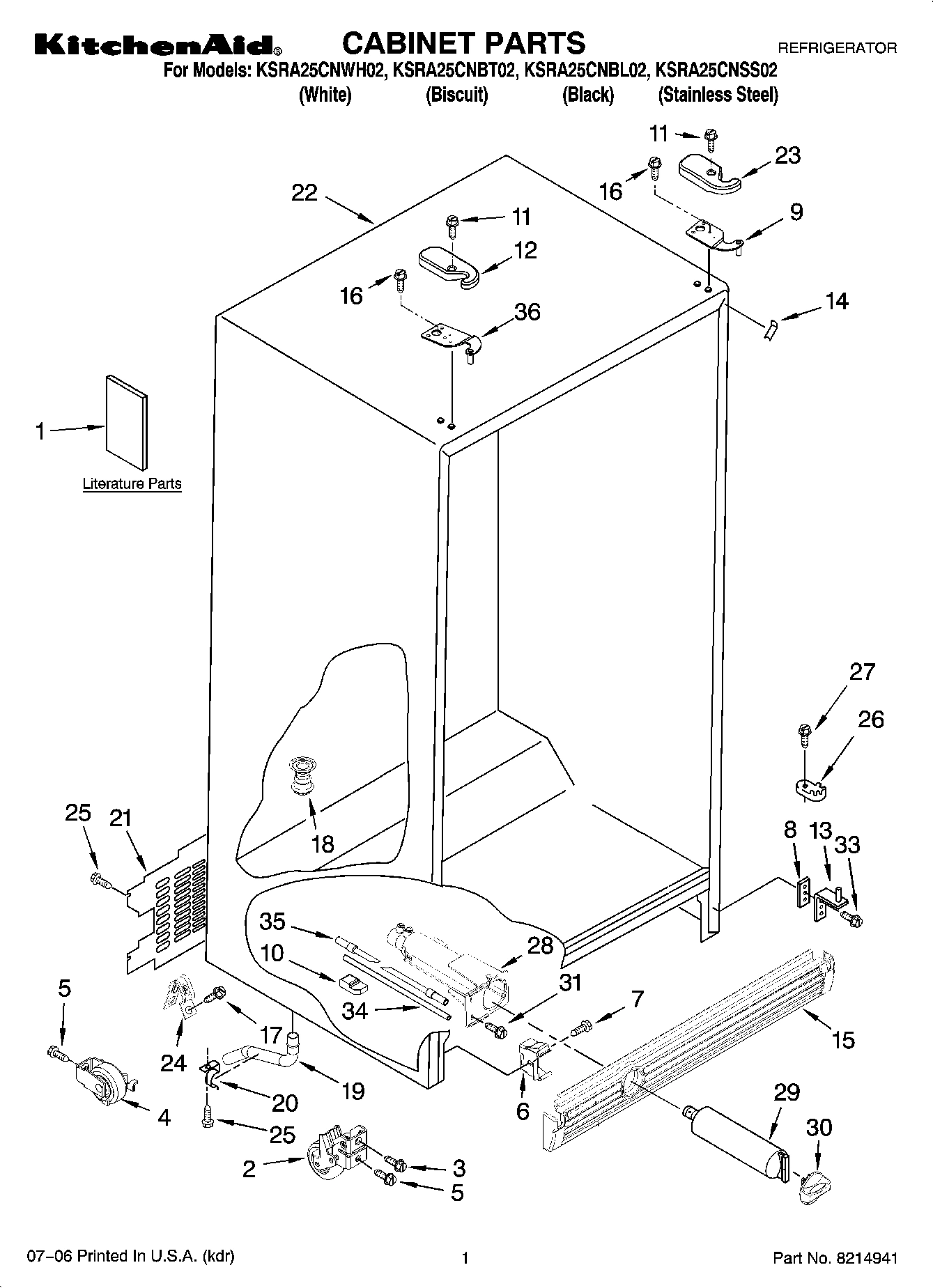

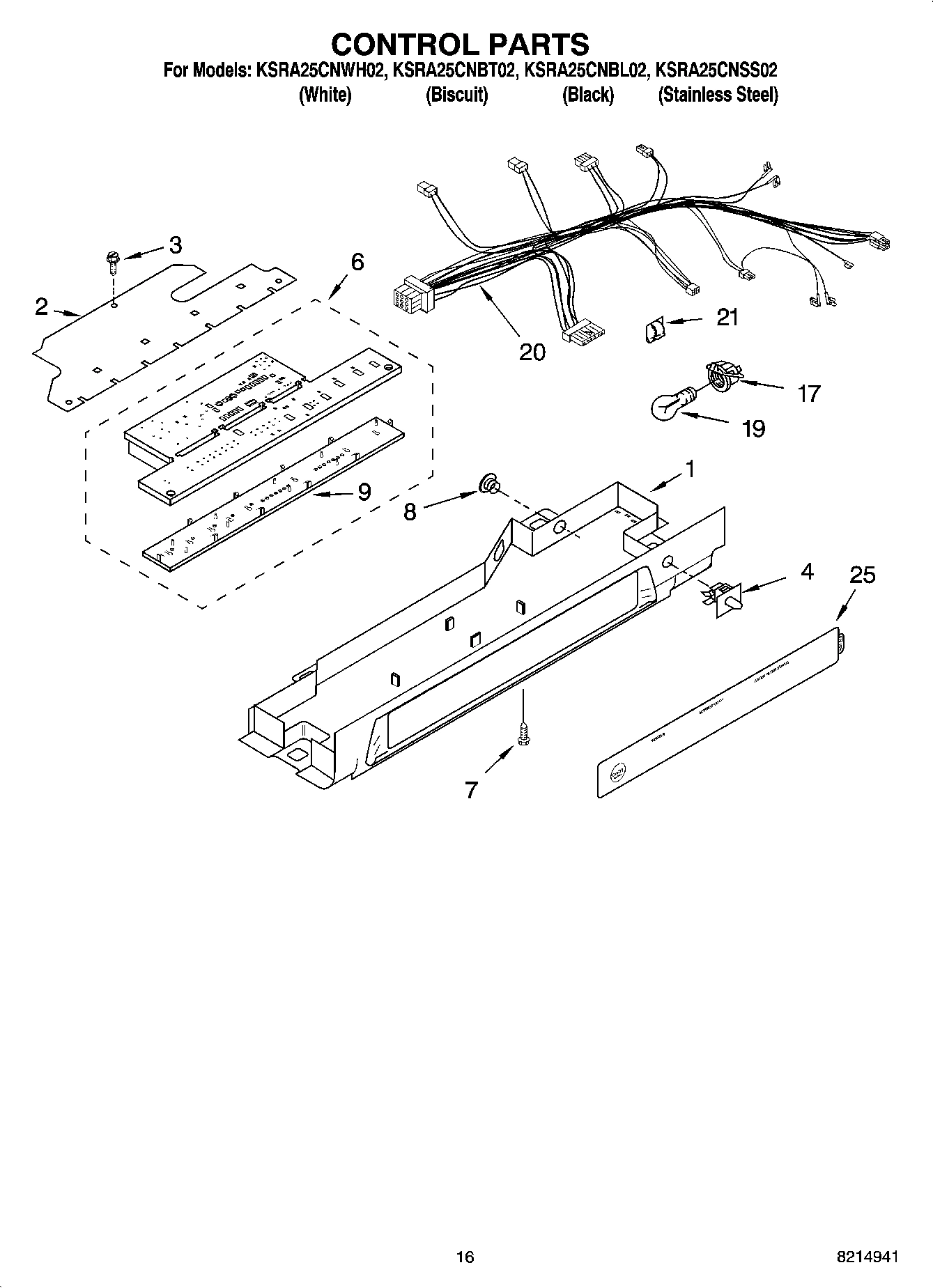

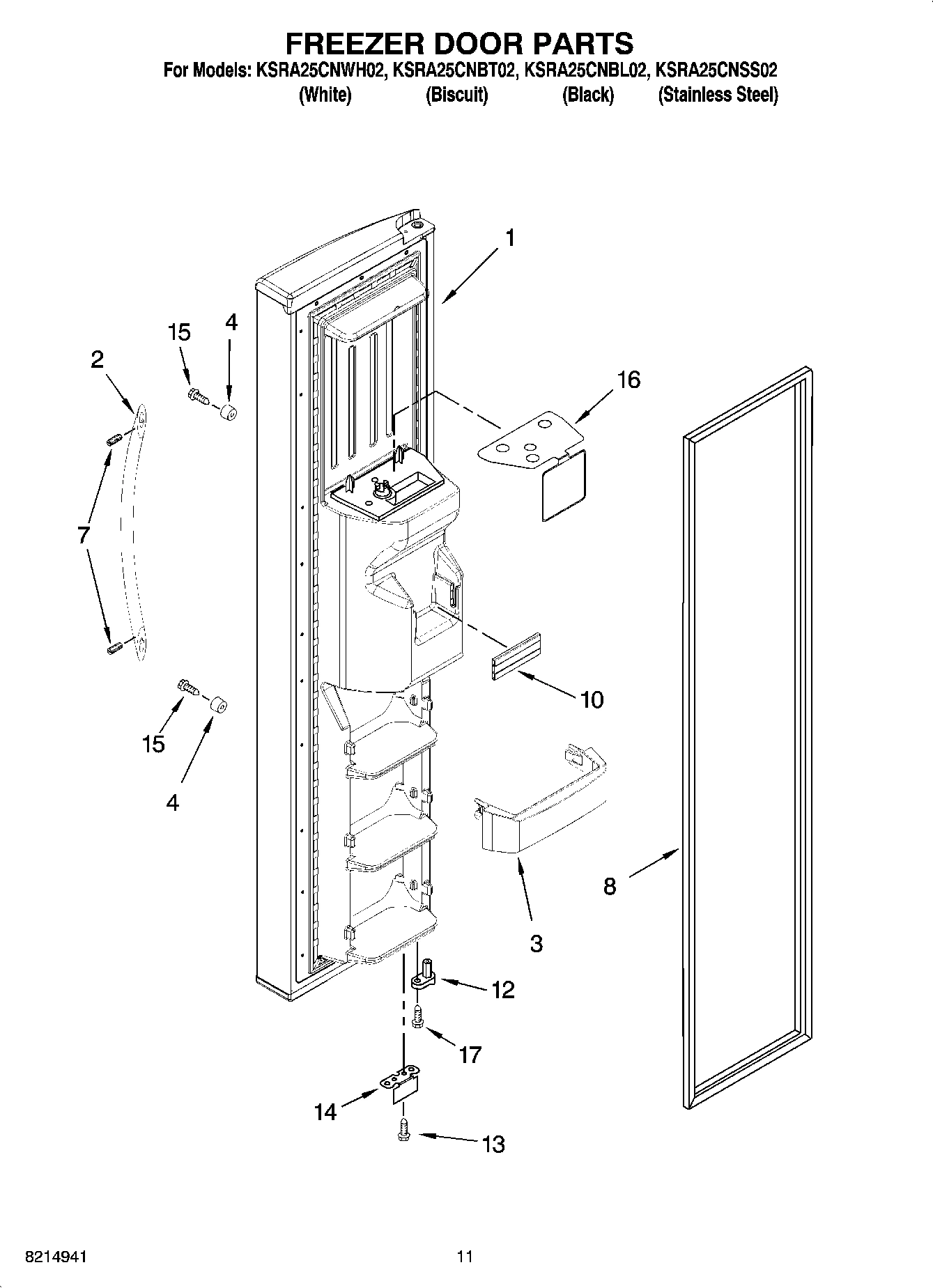

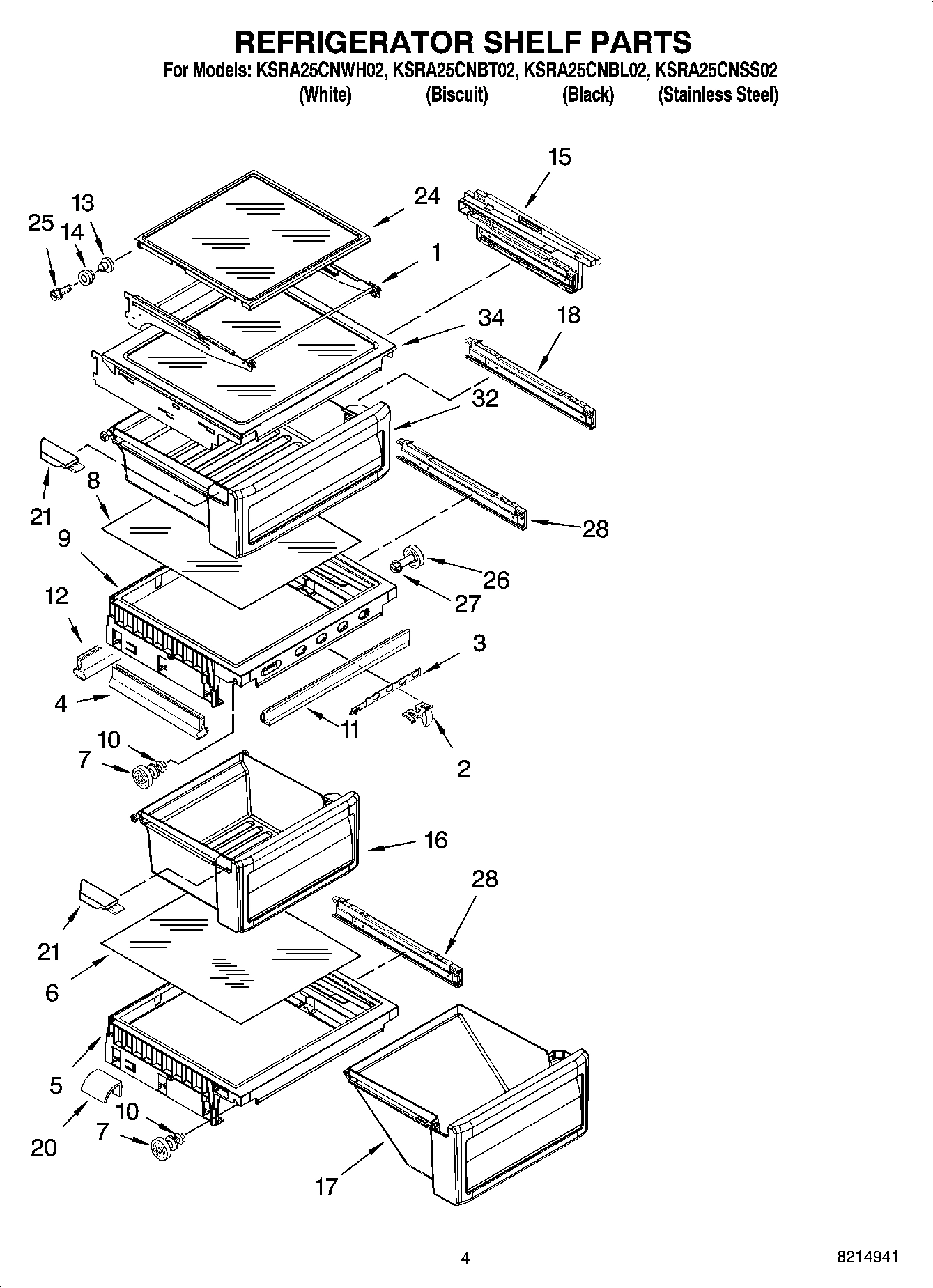

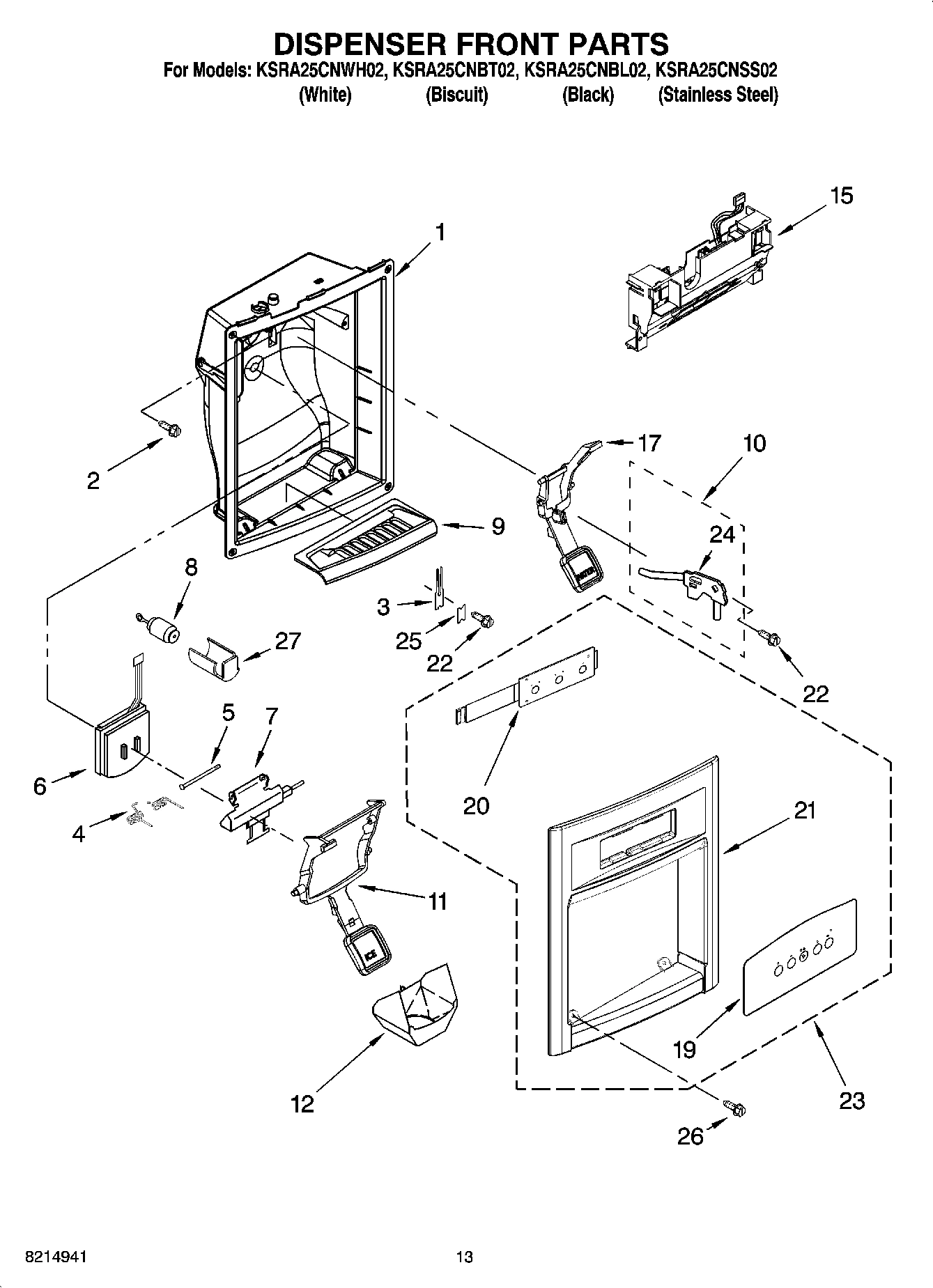

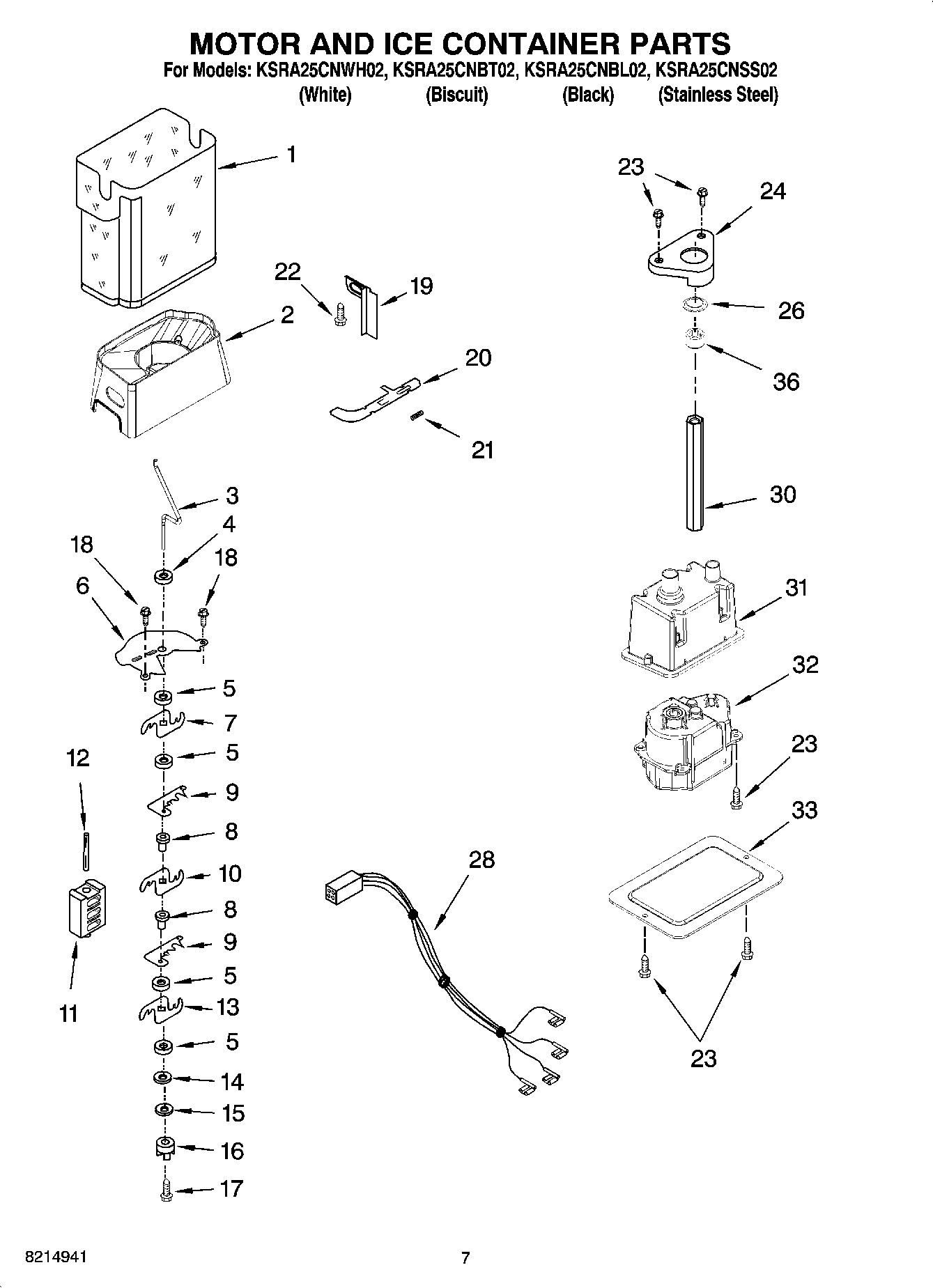

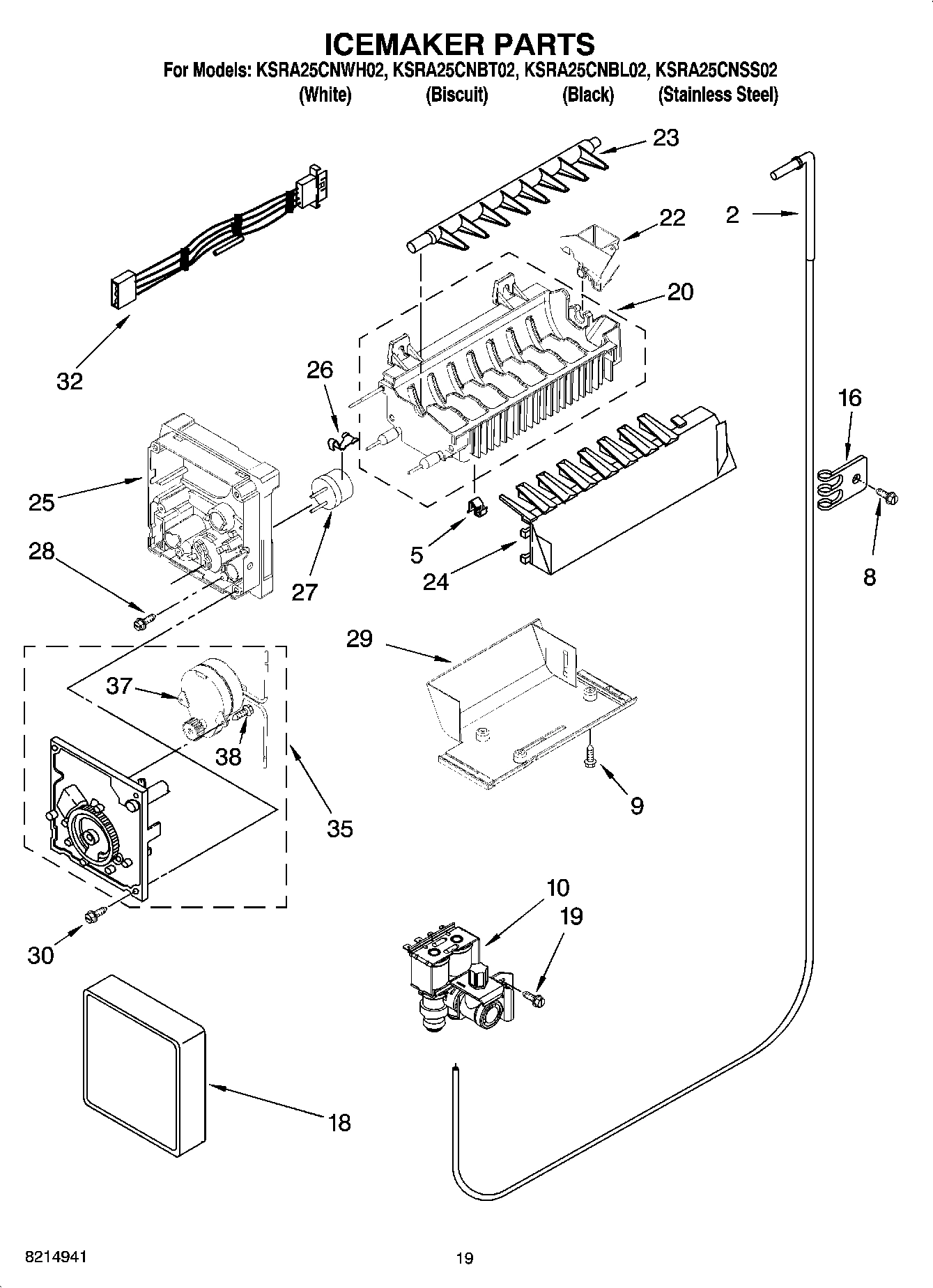

Model Whirlpool KSRA25CNBL02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graph WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stainless Steel WPL 2006783 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL ARI93208A4 WPL ARI93208A4 Contact Us For Availability

WPL ARI93209A7 WPL ARI93209A7 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin In Stock WPL WP2198573 $137.43

1

Control Box WPL 2212005 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI93198A8 Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 2301072 Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI93200A6 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $62.32

2

Cover WPL 2216879 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 2255612 Contact Us For Availability

2

Knob, Humidity WPL 2301025 Contact Us For Availability

3

2301026 Whirlpool Refrigerator Slide Backorder WPL 2301026 $38.48

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $55.82

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Slide Meat Pan Control WPL 2301339 Contact Us For Availability

4

2301117 Whirlpool Refrigerator Gasket Backorder WPL 2301117 $54.68

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Cover, Meat Pan (Includes 20 & 28) WPL 2301568 Contact Us For Availability

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Glass, Meat Pan Cover WPL 2301028 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Control Board Asm (Includes 9) WPL 2304006 Contact Us For Availability

6

Slide, Door Control WPL 2301235 Contact Us For Availability

7

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

7

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

7

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

7

Butter Dish WPL 2165792K Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $165.68

8

Glass, Crisper Cover WPL 2301027 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $37.75

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12 & 28 WPL 2301567 Contact Us For Availability

9

Shelf Ladder WPL 2319866 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

9

Insert, Control Board (Not Available Order6) WPL ARI93204A6 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $54.32

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Black (Black Pad)) WPL 2259396SB Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Biscuit Pad)) WPL 2259396T Contact Us For Availability

Lever, Ice Dispenser (White (Cody Grey Pad)) WPL 2259396W Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Gasket, Rear WPL 2301115 Contact Us For Availability

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Eyelet, Roller WPL 2174478 Contact Us For Availability

Glide Assy, Basket Top (Right Side) WPL 2301540 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Bracket, Dual Crisper Lights WPL 2256035 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $103.28

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Support Assembly (Left Side) WPL 2301570 Contact Us For Availability

Bracket, Control WPL 2252163 Contact Us For Availability

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

WP2319792 Whirlpool Refrigerator Start Device In Stock WPL WP2319792 $61.47

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Meat Pan WPL 2301022 Contact Us For Availability

Lever, Water Dispenser (Black (Black Pad)) WPL 2259395SB Contact Us For Availability

Lever, Water Dispenser (Biscuit (Biscuit Pad) WPL 2259395T Contact Us For Availability

Lever, Water Dispenser (White (Cody Grey Pad) WPL 2259395W Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WPW10289690 Whirlpool Ice Maker Cover In Stock WPL WPW10289690 $2.64

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

Glide Assembly (Snack Pan) (Right Side) WPL 2301550 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI93201A5 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WPW10190929 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190929 $144.80

Control Box Harness WPL 2216115 Contact Us For Availability

Deflector WPL 2301126 Contact Us For Availability

LED Display with Auto Night Light (Not Availa WPL ARI93202A9 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Light Lens WPL 2209769 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2301016 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2301017 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI93203A8 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $16.56

Screw WPL 488280 Contact Us For Availability

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 19, 20 & WPL 2252084B Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252084T Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252084W Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $41.94

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Shelf & Roller Assembly (2) WPL 2301084 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Overlay, Control Box WPL 2255619 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP3400065 Whirlpool Refrigerator Screw In Stock WPL WP3400065 $2.51

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Glide Asm, Pan (Right Side) WPL 2301548 Contact Us For Availability

Glide Asm, Pan (Left Side) WPL 2301549 Contact Us For Availability

29

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $19.18

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

32

Snack, Pan (Includes Item 21) WPL 2301023 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Shelf, Snack Pan (Includes 15) WPL 2301566 Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $15.13

35

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $28.04

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

WPL ARI93206A6 WPL ARI93206A6 Contact Us For Availability

WPL ARI93207A6 WPL ARI93207A6 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $89.56
